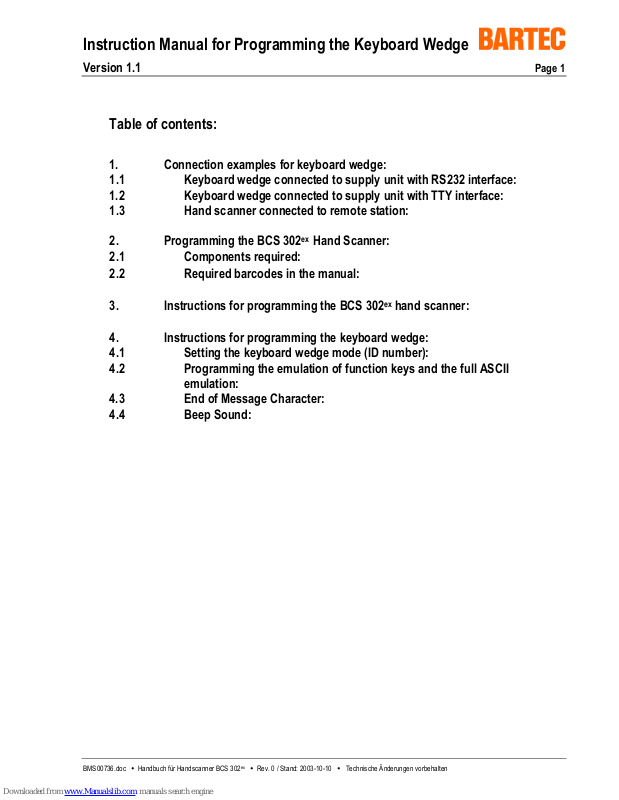

Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 1
Table of contents:
1. Connection examples for keyboard wedge:
1.1 Keyboard wedge connected to supply unit with RS232 interface:
1.2 Keyboard wedge connected to supply unit with TTY interface:
1.3 Hand scanner connected to remote station:
2. Programming the BCS 302
ex
Hand Scanner:
2.1 Components required:
2.2 Required barcodes in the manual:
3. Instructions for programming the BCS 302
ex
hand scanner:
4. Instructions for programming the keyboard wedge:
4.1 Setting the keyboard wedge mode (ID number):
4.2 Programming the emulation of function keys and the full ASCII
emulation:
4.3 End of Message Character:
4.4 Beep Sound:
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 2
1. Connection examples for keyboard wedge:
1.1 Keyboard wedge connected to supply unit with RS232 interface:
Wiring diagram for supply unit, type 17-21BB-0218 (RS-232 interface)
For supply of Hand Scanner BCS 302
ex
Type 17-21BA-0020
X1 Serial interface RS232 1 TxD
2 Gnd
3
4
X2 Supply voltage AC 100 V – 250 V 1 L
2 N
PE PE
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 3
Wiring diagram for keyboard wedge Master BB+, type 17-28BE-0001,
connected to supply unit with RS232 interface
Pin connections of the RS232 interface of the supply unit and the RS232 interface of the keyboard
wedge Master BB+.
Power pack for the hand scanners
BCS 302
ex
Keyboardwedge
9 pin Sub D
1 TxD 4 RxD
2 Gnd 7 Gnd
3
4
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 4
1.2 Keyboard wedge connected to supply unit with TTY interface:
Wiring diagram for supply unit, type 17-21BB-0217 (TTY interface)
For supply of Hand Scanner BCS 302
ex
Type 17-21BA-0020
X1 Serielle Schnittstelle TTY 1 20 mA
2 Kollektor
3 Emitter
4 Gnd
X2 Spannungsversorgung AC 250 V 1 L
2 N
PE PE
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 5
Wiring diagram for keyboard wedge Master BB+, type 17-28BE-0001,
and TTY-/RS-232 transducer, type 17-28BE-0000,
connected to supply unit with TTY interface
Pin connections of the TTY interface of the supply unit and the TTY interface of the TTY-RS-232
transducer from Phoenix Contact.
Power pack for the hand scanners
BCS 302
ex
TTY-/RS-232-Converter
1
2 TxD+ 24 RxD+
3 TxD- 25 RxD-
4
Pin connections of the RS-232 interface of the TTY-/RS-232 transducer from Phoenix Contact and
the RS-232 interface of the keyboard wedge Master BB+.
TTY-/RS-232-Converter Keyboardwedge
9 pin Sub D
2 (TxD) 4 (RxD)
3 (RxD) 3 (TxD)
7 (Gnd) 7 (Gnd)
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 6
1.3 Hand scanner connected to remote station:
Keyboard wedge connected to supply unit with RS232 interface:
Keyboard wedge connected to supply unit with TTY interface:
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 7
2. Programming the BCS 302
ex
Hand Scanner:
2.1 Components required:
- Instruction manual from Symbol for programming (product reference guide for P300
STD/FZY/PRO scanner)
- BCS 302
ex
Hand Scanner
- Keyboard wedge Master BB+ with instruction manual
- Ready-connected and operative system
2.2 Required barcodes in the manual:
- Page 2 – 9 Barcode Set All Defaults
- Page 2 – 12 Barcode Standard RS – 232 C
- Page 2 – 16 Barcode Continous On
- Page 2 – 50 Barcode Enable Code 39
- Page 2 – 96 Barcodes Scan Suffix or Data Format Cancel (if incorrectly scanned)
- Page 2 – 120 for Numeric Barcodes (7013 for Enter character)
- Page A – 6 for selection of Prefix Suffix Values
- Page 2 – 97 Barcodes Scan Options and <Data> <Suffix>
- Page 2 – 98 Barcodes Enter
- Page 2 – 101 Barcode (Parity) Even
- Page 2 – 108 Barcode (ASCII Format) 7 – Bit
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 8
3. Instructions for programming the BCS 302ex hand scanner:
Set All Defaults
Standard settings
Standard RS-232C
Baud Rate = 9600, Parity = None, Hardware and Software
Handshaking = None, Stop Bit = 1 and ASCII Format = 8 - Bit
Continous On: After scanning a barcode the scanner is still live.
If no scanning takes place for 60 minutes the hand scanner goes
over to the standby mode.
Enable Code 39
Scan Suffix
Enter symbol as suffix programming
Enter = 7013
7
0
1
3
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 9
Scan Options
<Data> <Suffix>
Enter
Completes programming of the suffix for the keyboard wedge
ASCII Format 7 – Bit
Setting is required for the wedge.
Parity = Even
Setting is required for the wedge.
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 10
4. Instructions for programming the keyboard wedge:
Please note: When scanning the barcode make a pause of approx. 1 sec.
4.1 Setting the keyboard wedge mode (ID number):
ID Information Germany:
104 Supports emulation of function keys
114 No emulation of function keys
ID Information USA:
011 US keyboard with emulation of function keys
ID Information Belgium:
644 No emulation of function keys (use of DELL keyboard)
ID Information France:
654 No emulation of function keys
Further ID numbers are given in the connection list of the manufacturer PSC.
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 11
Default configuration of the keyboard wedge:
/+$
By reading in this barcode the keyboard wedge is returned to its
standard setting.
After scanning, wait approx. 6 sec until acknowledged.
$%/
Configuration start: In order to programme the keyboard
wedge this special start sequence must be scanned at the
beginning.
AE U
Activation of the keyboard wedge mode
AG1
AG2
AG3
AG4 AG5 AG6
AG7 AG8 AG9
AG0
Since the keyboard wedge can be connected to almost all
available PCs, the keyboard wedge must be programmed to the
respective PC. For this purpose a so-called I.D. (three digit
number
)
is required.
DHI
Through this barcode a deactivated upper-case key is assumed.
$+$
Configuration end: By scanning this barcode the alterations are
stored.
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 12
4.2 Programming the emulation of function keys and the full ASCII
emulation:
In order to use the function keys and the full ASCII code the following barcodes must be scanned in.
For activation: START Emulation of function keys ACTIVATED
Full ASCII emulation ACTIVATED END
For deactivation: START Emulation of function keys NOT ACTIVATED
Full ASCII emulation NOT ACTIVATED END
START
$%/
NOT ACTIVATED
Emulation of function keys
ACTIVATED
CHS
CHU
NOT ACTIVATED
Full ASCII emulation
ACTIVATED
BHT
BHV
END
$+$
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 13
4.3 End of message character:
START END
$%/
$+$
No character Field advance
DP 0
DP 4
TAB + Enter
DP 1
DP 5
LF CR/LF, feed, send
DP 2
DP 6
Field exit Return
DP 3
DP 7
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
Instruction Manual for Programming the Keyboard Wedge
Version 1.1 Page 14
BMS00736.doc y Handbuch für Handscanner BCS 302ex y Rev. 0 / Stand: 2003-10-10 y Technische Änderungen vorbehalten
4.4 Beep sound:
START
END
$%/
$+$
High beep Low beep
IK0
IK1
Medium beep Beep OFF
IK2
I00
