Scope :

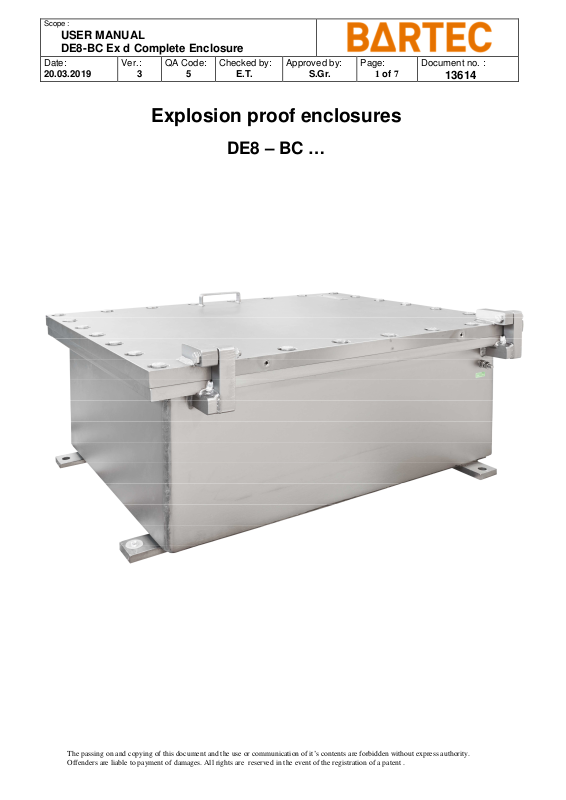

USER MANUAL
DE8-BC Ex d Complete Enclosure
Date:
20.03.2019

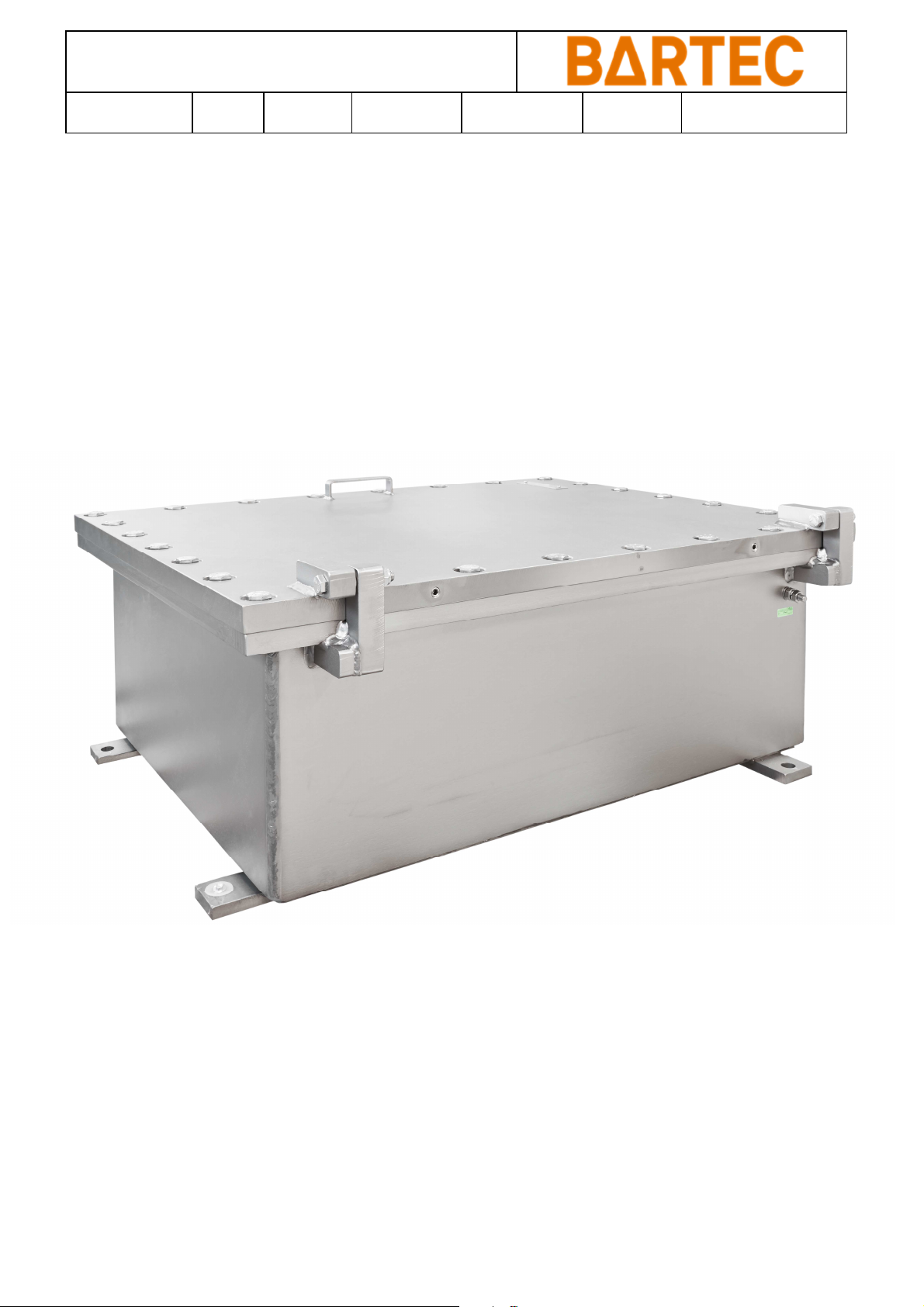

The DE8-BC range of Ex d enclosures are rugged and designed for harsh environment
like:
• Oil and gas industry
• Chemical industry
• Pharmaceutical
• Industry
• Agribusiness
They are designed for use in potentially explosive atmospheres and certified according to the
requirements of the ATEX Directive and IECEx.
Ver.:
3
QA Code:
5
Checked by:
E.T.
Approved by:
S.Gr.
Page:
2 of 7
Document no. :
13614
Marking
Without Intrinsic safety With Intrinsic safety
Ex db IIB T4 to T6 Gb
Or
Ex db IIB + H2 T4 to T6 Gb
(Except for DE8-BC148)
Ex tb IIIC IP65-66 T85°C to T135°C Db
Ex db[ia] or [ib] IIB T6 Gb
Or
Ex db[ia] or [ib] IIB + H2 T4 to T6 Gb
(Except for DE8-BC148)
Ex tb [ia] IIIC IP65-66 T85°C Db
The enclosures listed in this manual are certified:
II 2 G / II 2 D
The certificate numbers are :
INERIS 09ATEX0061X
IECEx INE 13.0088X
They are made in accordance with the following standards:
Zones due to gases, vapors and fumes
EN 60079-0 : 2018 IEC 60079-0 : 2017
EN 60079-1 : 2014 IEC 60079-1 : 2014
EN 60079-11: 2012 IEC 60079-11: 2011
Zones for dusts
EN 60079-31: 2014 IEC 60079-31: 2013
Description
Our DE8-BC range of explosion proof enclosures is available in many sizes. They are made
of welded and machined acid resistant stainless steel 316L or painted carbon steel. Each is
expected to receive electrical components inside, making service and maintenance easy.
They can also be customized to meet each individual specific need. If necessary, multiple
enclosures can be assembled on a frame with or without combined Ex e junction boxes.
The enclosures can be delivered fully equipped according to customer’s requirements or
empty with component certificate (U-certificate) to be used as basis for further certification of
an Equipment or Protective System.
The passing on and copying of this document and the use or communication of it’s contents are forbidden without express authority.
Offenders are liable to payment of damages. All rights are reserved in the event of the registration of a patent .
Scope :
USER MANUAL
DE8-BC Ex d Complete Enclosure
Date:
20.03.2019
Ver.:
3
QA Code:
5
Checked by:
Meaning of symbols
This symbol means a hazard and precaution to be taken
Safety instructions
The device must be installed, used and maintained in accordance with the following
standards:
• IEC/EN 60079-1 (Explosive atmospheres - Part 1: Equipment protection by
• Decrees, orders, laws, directives, circulars, applications, standards, state of art and
other documentation relating to its installation site
E.T.
Approved by:
S.Gr.
Page:
3 of 7
Document no. :
13614
It is forbidden to change anything (components, installation, wiring ...) without the
prior written consent of Bartec Technor.
We cannot accept any responsibility for failure to observe these regulations:
• Make sure of the compatibility between the information on the nameplate, the
explosive atmosphere present, the area of use and ambient temperatures on surfaces
• Any damage on the device can cause the explosion-proof protection to become
ineffective
• The installation of the enclosure must be done in the state of the art in the technical
domains and only by qualified, competent and empowered personnel
• A defective or abnormal use as well as the non compliance with the instructions of the
present document exclude any clause of guarantee and do not engage our
responsibility
• The use of the device in case of excessive deposits of dusts superior at 50mm
according to EN / IEC 60079-31 is not authorized
• Liability for manufacturer traceability is ensured only at the first known delivery
destination (serial number specified on the certification label)
• It is also required to observe the regulations of the country of use
• The doors of the DE8-BC enclosures are relatively heavy, to avoid sagging of the
doors, potentially making the door not align with the flange of the enclosure, the doors
shall be closed and secured during any moving and shfting of the enclosures. It is
also strongly advisable to close and secure the doors when the daily working shift is
over
• The flame paths of the doors and of the flanges of the enclosures must be well
protected whilst work is performed and ongoing inside the enclosures
Transport, storage
• Check it the product has been damaged during transport. If any damage is observed,
do the statutory reserves to the carrier
• Do not put damaged products into service
The passing on and copying of this document and the use or communication of it’s contents are forbidden without express authority.
Offenders are liable to payment of damages. All rights are reserved in the event of the registration of a patent .
Scope :
Packaging
Location storage
Duration storage
USER MANUAL
DE8-BC Ex d Complete Enclosure
Date:
20.03.2019
Ver.:
3
QA Code:
5
Checked by:
E.T.
Approved by:
S.Gr.
Page:
4 of 7
Document no. :
13614
Open In a covered location, clean (without contact with
external substances) and closed with temperature a
constant humidity (-40°C < T < +70°C). Shielded from
important temperature variations
2 years and more with regular inspection (cleanliness
and mechanical damage)
Putting into service
• Verify that the information on the label of the product is in accordance with the
permissible conditions for the Ex area of the site of use (Group II: Surface Industries Category 2: high level of protection for ATEX G = for Gas / D = for Dust, IECEx EPL G = for Gas / D = for Dusts - IPxx: IP rating (waterproofness for solids and liquids)
• Check if there is a specific position of mounting
• The wiring of the cable conductors must be made with a particular care
• The conductor insulation must reach the terminal. The conductive soul must not be
damaged
• Not to exceed the authorized maximal temperature appropriate cables must be
selected and take particular care installing them
• Follow the instructions contained in the specifications

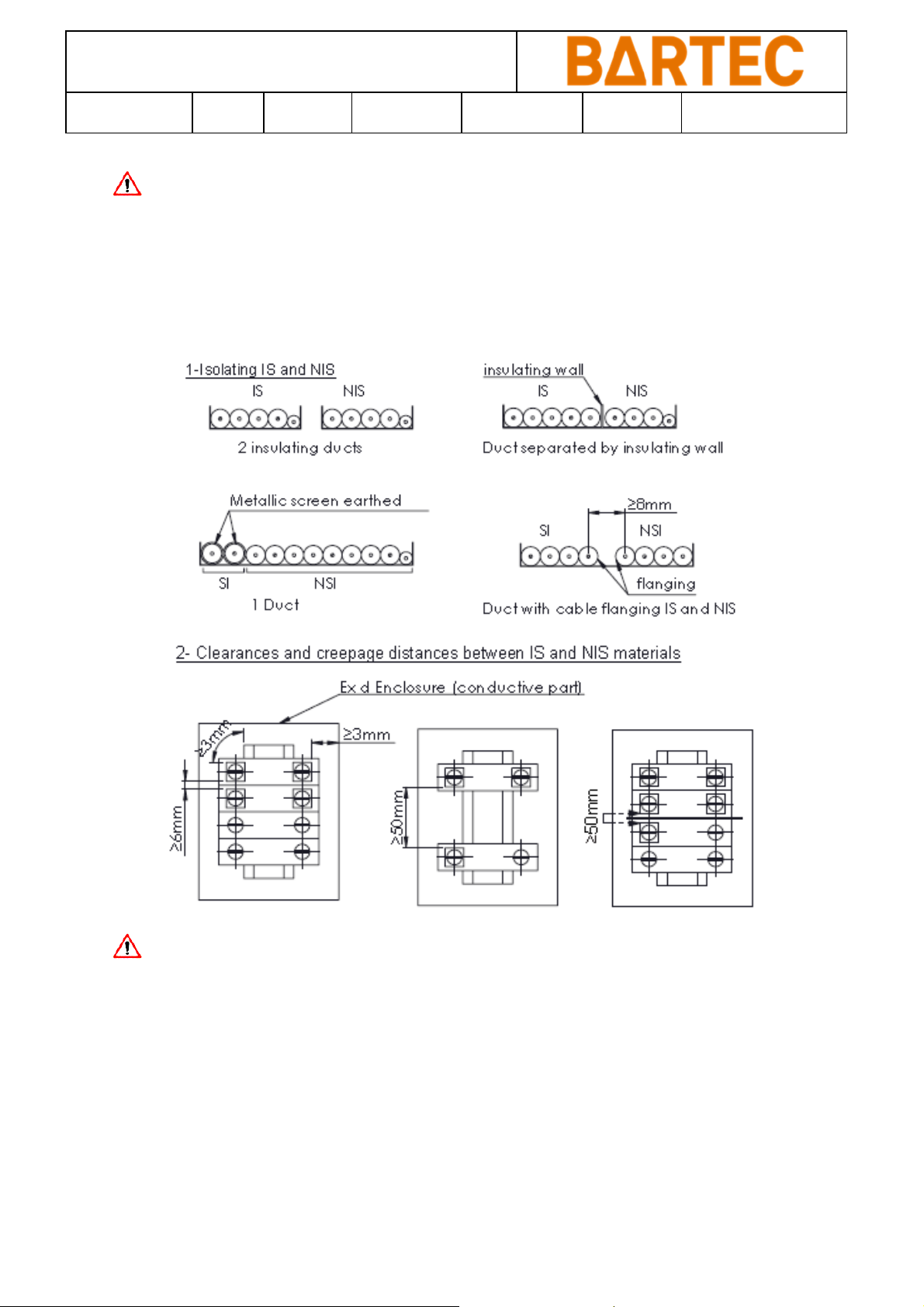

• Installation of intrinsic safety elements :
o The installation of the intrinsic safety circuits (IS) inside the enclosure is
subordinated to the respect of the requirements of their documents of
certification, their certificates and with that after:
IS Circuits are cabled with connection wires of which the thickness of
insulator is ≥ 0,5 mm and the section ≥0,5 mm ²
The connection wires support a dielectric test of 500 V effective
The air gap between the active parts under voltage of the connection
elements of the intrinsic safety circuit compared to connection
elements of an non intrinsic safety circuit is higher or equal to 50
millimeters
The air gap and creepage distances in the air between the active parts
under voltage of the intrinsic safety circuit compared to an intrinsic
safety circuit close are higher or equal to 6 millimeters
The air gap and creepage distances in the air between the active parts
under voltage of the intrinsic safety circuit compared to the metal parts
which can be with the ground are higher or equal to 3 millimeters
The active parts of the intrinsic safety circuits support a dielectric test of
rigidity under an effective alternating voltage of 500 Volts compared to
the metal mass
The active parts of an intrinsic safety circuit support a dielectric test of
rigidity under an effective alternating voltage of 500 Volts compared to
an intrinsic safety circuit close
Circuits NIS are cabled with conductive wires whose insulation is such
as they can support a dielectric test of 2 U + 1000 V effective, U being
the sum of the tensions of the IS and NIS circuits, with a minimum of
1500 V
Before starting
• Make sure the unit has been correctly settled and not damaged
• Make sure the wiring and the tightening of the terminal screws have been performed
properly (see descriptive tightening torque)
• The device may include any foreign body and no part is damaged
• The cable gland must be tightened (see description of the gland torque)
The passing on and copying of this document and the use or communication of it’s contents are forbidden without express authority.
Offenders are liable to payment of damages. All rights are reserved in the event of the registration of a patent .
Scope :
USER MANUAL
DE8-BC Ex d Complete Enclosure
Date:
20.03.2019
Ver.:
3
QA Code:
5
Checked by:
E.T.
Approved by:
S.Gr.
Page:
5 of 7
Document no. :
Maintenance
The maintenance and repairs works on devices must be made only by authorized and
trained persons for that purpose.
Before any work the devices must be switched off. In addition:
• Prevent and avoid any formation of layers of dusts: make a periodic cleaning with a
wet cloth
• Do not take apart the command and control units (push buttons, pilot light, etc.)
It is adviseable that the following checks must be made at least once a year:
• The external equipment and surfaces must not be damaged
• The cable entries and blanking plugs must be securely fastened
• Check tightness of the connections, rewiring if necessary
• Prior to closing, check the cleanliness of the flame path (machined part of the cover in
contact the machined part of the box). Grease these 2 parts with a grease resistant to
oxidation (acid free white vaseline)
•
Screw the cover on the box using the original stainless steel bolts A4-70 minimum.
Ensure that all the bolts are screwed. After tightening the bolts, check with a shim of
15/100 mm (4/100mm for IIB + H2) all around the flame path that the shim cannot
penetrate the enclosure. Its non-penetration on full perimeter is the insurance of the
conformity of the product with the standards
13614
Technical features
Dimensions
References A B C
DE8BC 32 334 434 240 17,5
DE8BC 351 354 474 240 21,06
DE8BC 43 434 534 290 40,95
DE8BC 44 544 544 295 52,65
DE8BC 54 544 644 305 64,35
DE8BC 64 544 744 310 76,05
DE8BC 75 664 864 320 109,31
DE8BC 86 764 964 365 168,51
DE8BC 107 864 1164 380 240,18
DE8BC 108 864 1164 425 275,62
DE8BC 148 940 1590 510 448
External dimensions
(mm)
Internal
volume
dm3 /
liters
Maximum
power
whatever the
content is
W Max. H L Int c H1 L1
250
250
380
380
410
470
600
600
1200
1400
2000
Dimensions of
mounting plate (mm)
300 200 166 234 326 Ø12 12 x M12-35
350 225 166 274 346 Ø12 14 x M12-35
400 300 226 334 526 Ø12 14 x M12-35
400 400 226 334 526 Ø12 16 x M14-40
500 400 226 414 526 Ø20 18 x M14-40
600 400 226 514 526 Ø20 20 x M14-40
700 500 231 614 630 Ø20 24 x M14-45
800 600 271 714 734 Ø20 26 x M16-40
1000 700 251 908 868 Ø20 30 x M16-40
1000 700 300 908 868 Ø20 30 x M16-40
1450 800 425 1200 900 Ø20 40 x M16-60
Fixing (mm)
ØD
holes
Bolts in
stainless steel
INOX A4-70
(min.)
Qty x Ø-L Nm
Tightening
torque
59
59
59
95
95
95
95
148
148
148
148
The passing on and copying of this document and the use or communication of it’s contents are forbidden without express authority.
Offenders are liable to payment of damages. All rights are reserved in the event of the registration of a patent .
Scope :
USER MANUAL
DE8-BC Ex d Complete Enclosure
Date:
20.03.2019
Ver.:
3
QA Code:
5
Checked by:
E.T.
Approved by:
S.Gr.

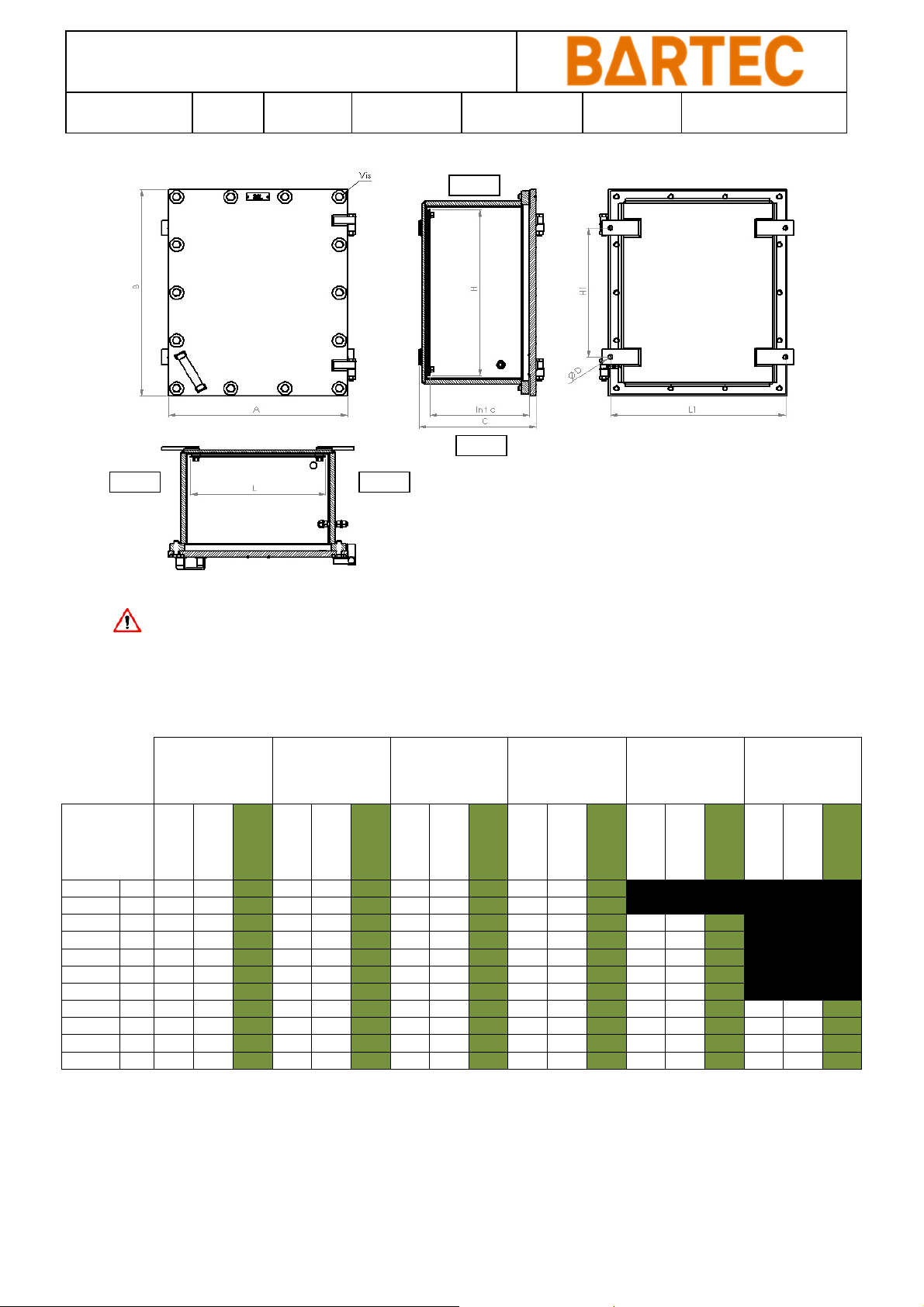

Side C
Side A
Page:
6 of 7
Document no. :
13614
Side D
Side B
Number of cable entries:
• Any type of cable or conduit entry certified Ex d can be used and installed according
to EN / IEC 60079-14
• Different types of threads can be used but minimum five threads by bolt must always
The passing on and copying of this document and the use or communication of it’s contents are forbidden without express authority.
Offenders are liable to payment of damages. All rights are reserved in the event of the registration of a patent .
Scope :
USER MANUAL
DE8-BC Ex d Complete Enclosure
Date:
20.03.2019
Ver.:
3
QA Code:
5
Checked by:
E.T.
Approved by:
S.Gr.
Page:
7 of 7
Document no. :
Special Conditions for safe use (X):
When the enclosure is equipped with intrinsic safety elements, a temperature probe must be
fitted inside and be connected to a system that can switch off the supply when the inner
temperature raises above the maximum ambient temperature indicated in the certificates of
the IS equipment.
The products that can be connected to the IS equipment installed inside the enclosure must
be of a certified type and association must be compatible in regards of intrinsic safety.
13614
The content of the DE8-BC enclosures may be placed in any arrangement provided
that an area of at least:
• - 20 % of each cross-sectional area remains free for gas group IIB
• - 40 % of each cross-sectional area remains free for gas group IIB + H2
The passing on and copying of this document and the use or communication of it’s contents are forbidden without express authority.
Offenders are liable to payment of damages. All rights are reserved in the event of the registration of a patent .
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
