Handheld scanner series BCS 3600
User Manual
ex
User Manual – Translation of the original
Hand-held scanner
BCS 3608ex-NI, BCS 3608ex-IS
ex
BCS 3678
ATEX / IECEx Zone 1 and Zone 21
ATEX / IECEx Zone 2 and Zone 22
NEC / CEC Class I, II, III DIV 1
-NI, BCS 3678ex-IS
NEC / CEC Class I, II, III DIV 2
Document No.: 11-A1S4-7D0001
Status: 15.04.2019 / Revision A
BARTEC GmbH
Max-Eyth-Straße 16
97980 Bad Mergentheim
GERMANY
Phone: +49 7931 597-0
Fax: +49 7931 597-119
Support: service-mobilecomputing@bartec.de
Download: http://automation.bartec.de
Internet: www.bartec.de
Handscanner
BCS 3600ex series
Contents
1 About this documentation ............................................................................................................................... 7
1.1 Target groups ....................................................................................................................................................................... 7
1.2 Explanation of Symbols ........................................................................................................................................................ 8
1.2.1 Warnings ............................................................................................................................................................................... 8
1.2.2 Symbols and means of presentation .................................................................................................................................... 9
1.2.3 Explanation of terms ............................................................................................................................................................. 9
1.3 Technical changes ................................................................................................................................................................ 9
1.4 Languages ............................................................................................................................................................................ 9
1.5 Reference documents ......................................................................................................................................................... 10
2 Safety ............................................................................................................................................................... 11
2.1 Intended use ....................................................................................................................................................................... 11
2.2 Personnel qualifications ...................................................................................................................................................... 12
2.3 Explosion protection ........................................................................................................................................................... 12
2.3.1 Using hand-held scanners and accessories ....................................................................................................................... 12
2.4 Residual risks ..................................................................................................................................................................... 13
2.4.1 Risk of an explosion caused by electrical ignition sources ................................................................................................. 13
2.4.2 Damage to eyes caused by laser light ................................................................................................................................ 14
2.4.3 Risks of cuts if the scan window is broken ......................................................................................................................... 14
2.4.4 Health hazard in the case of incorrect disposal .................................................................................................................. 14
2.5 Preventing damage to property .......................................................................................................................................... 14
2.5.1 Short circuit caused by incorrect connection ...................................................................................................................... 14
2.5.2 Storage at too high a temperature ...................................................................................................................................... 14
2.5.3 Contact with chemicals ....................................................................................................................................................... 14
2.5.4 Aggressive cleaning agents ................................................................................................................................................ 14
3 Approval, standards ....................................................................................................................................... 15
3.1 Hand-held scanner BCS 3608ex-IS ..................................................................................................................................... 15
3.2 Hand-held scanner BCS 3678ex-IS ..................................................................................................................................... 15
3.3 Universal supply module 3678ex-IS/3608ex-IS .................................................................................................................... 16
3.4 Hand-held scanners BCS 3608ex-NI/BCS 3678ex-NI .......................................................................................................... 16
3.5 Ex-relevant parameters for connection to universal supply module or other systems ........................................................ 17
4 Product description ........................................................................................................................................ 19
4.1 Configurations and comparison with ZEBRA hand-held scanners ..................................................................................... 19

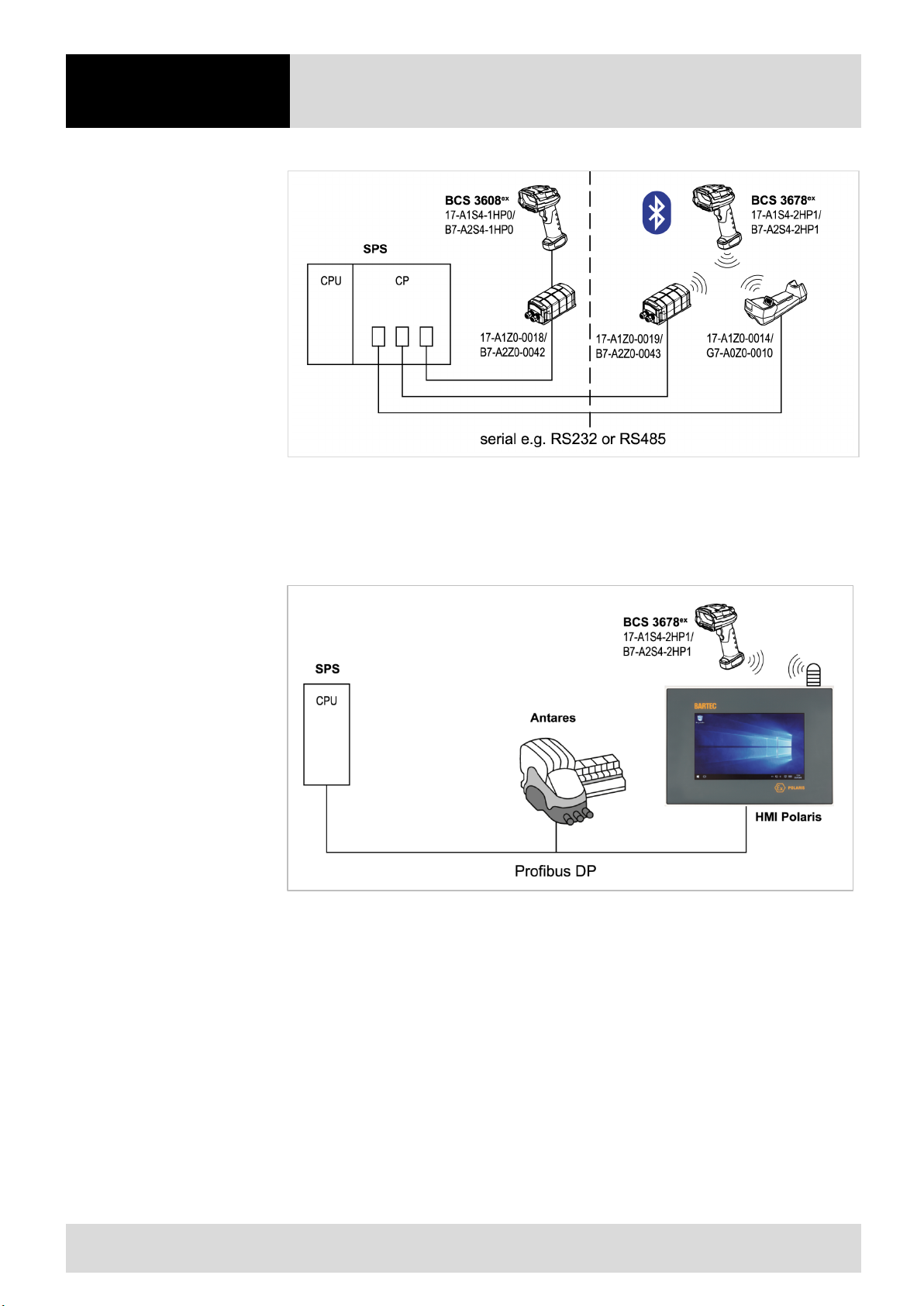

4.2 Possible system configurations .......................................................................................................................................... 20
4.2.1 Corded hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS with universal supply module ............................................... 20
4.2.2 Corded hand-held scanner BCS 3608ex-NI with HMI (only Zone 2 and 22) and HMI limiting cable*.................................. 21
4.2.3 Corded hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS with universal supply module ............................................... 22
4.2.4 Bluetooth hand-held scanners BCS 3678ex-NI / BCS 3678ex-IS with base station and Bluetooth-enabled device ............ 23
4.2.5 Bluetooth hand-held scanners BCS 3678ex-NI / BCS 3678ex-IS via Bluetooth universal supply module ........................... 24
4.3 Corded hand-held scanners BCS 3608ex-NI/BCS 3608ex-IS .............................................................................................. 25
Handscanner
BCS 3600ex series
Contents
4.3.1 Construction of the corded hand-held scanners ................................................................................................................. 25
4.3.2 Contacts / cables ................................................................................................................................................................ 26
4.4 Bluetooth hand-held scanner BCS 3678ex-NI / BCS 3678ex-IS ........................................................................................... 28
4.4.1 Construction of the Bluetooth hand-held scanner ............................................................................................................... 28
4.4.2 External contacts ................................................................................................................................................................ 29
4.4.3 Communication via Bluetooth ............................................................................................................................................. 29
4.4.4 Construction of base station (cradle) .................................................................................................................................. 30

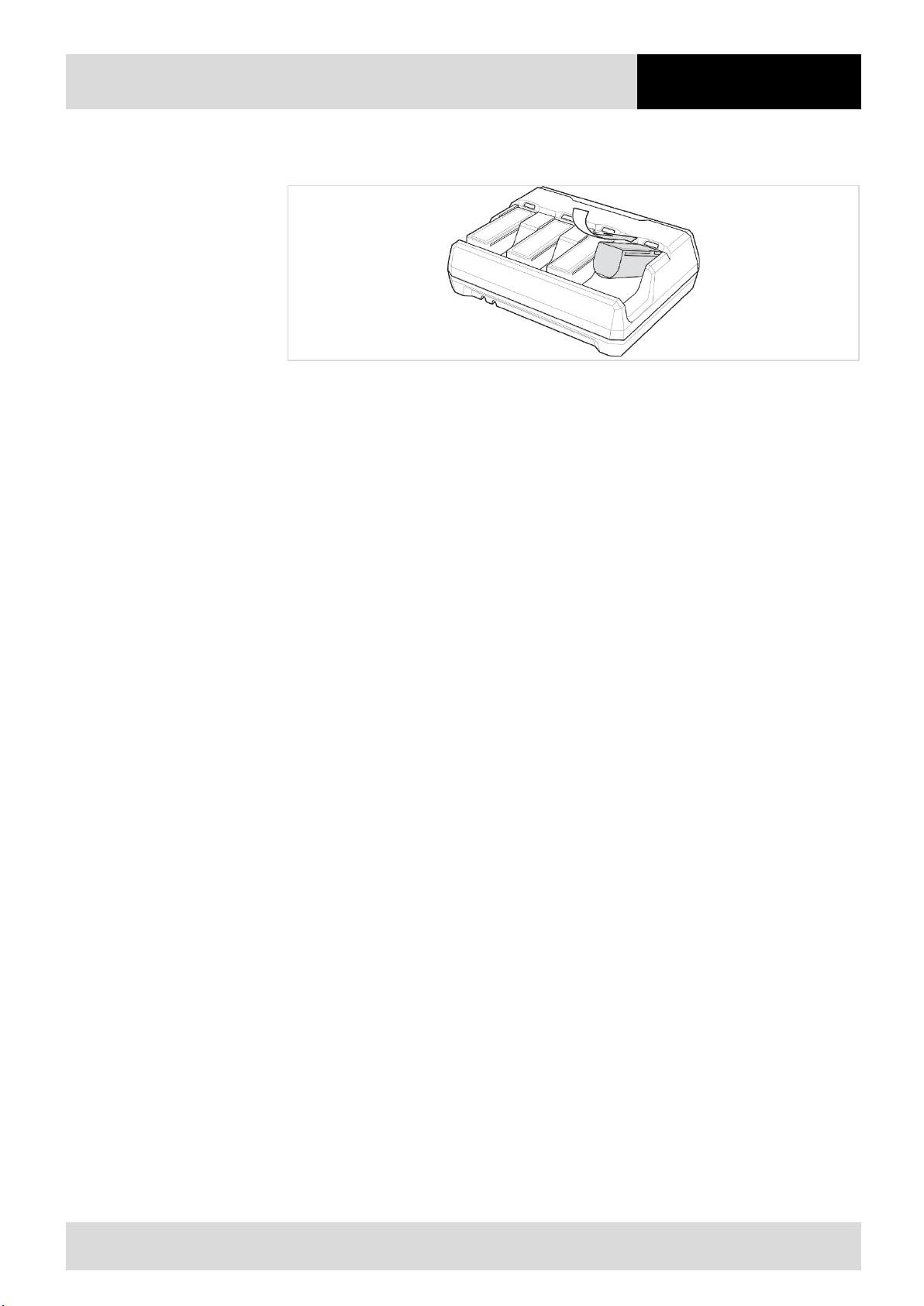

4.4.5 Construction of 4-slot charging station for spare batteries ................................................................................................. 32
4.5 Meaning of LED display / beeps ......................................................................................................................................... 33
4.5.1 Hand-held scanner ............................................................................................................................................................. 33
4.5.2 Base station ........................................................................................................................................................................ 33
4.6 Construction of the universal supply module ...................................................................................................................... 34
4.6.1 Terminal assignment .......................................................................................................................................................... 35
4.6.2 Setting the DIP switches (only for Zone 2/22 and Div 2) .................................................................................................... 36
4.6.3 Ranges / maximum cable length of connected cable from the universal supply module to the host or PC ....................... 36
4.6.4 Permissible core cross-sections ......................................................................................................................................... 37
Permissible connection cable diameter .............................................................................................................................. 37
4.6.6 Terminals for outer conductors ........................................................................................................................................... 37
4.6.7 Recommendation for data line ............................................................................................................................................ 38
4.6.8 Ferrite core for data cable ................................................................................................................................................... 38
4.7 Product marking hand-held scanner ................................................................................................................................... 40
4.8 Product marking universal supply module .......................................................................................................................... 41
4.9 Decodable barcode types ................................................................................................................................................... 42
5 Transport and storage.................................................................................................................................... 43
5.1 Check the contents and condition of delivery ..................................................................................................................... 43
5.2 Storage ............................................................................................................................................................................... 43
5.2.1 Battery ................................................................................................................................................................................ 43
6 Configuration .................................................................................................................................................. 44
6.1 Programming tools .............................................................................................................................................................. 44
6.1.1 Programming manuals ........................................................................................................................................................ 44
6.1.2 Zebra 123Scan Utility ......................................................................................................................................................... 44
6.1.3 Required programming cables ............................................................................................................................................ 46
6.1.4 Further tools ........................................................................................................................................................................ 46
6.2 Manuals for general programming ...................................................................................................................................... 46
6.3 Programming for software developers ................................................................................................................................ 47
6.3.1 Programming manuals ........................................................................................................................................................ 47
6.3.2 Developer tools ................................................................................................................................................................... 47
6.3.3 Drivers ................................................................................................................................................................................ 47
6.4 Functions ............................................................................................................................................................................ 48
6.4.1 Comparison ........................................................................................................................................................................ 48
Handscanner
BCS 3600ex series
Contents
6.4.2 General Device Settings (User Preferences) ...................................................................................................................... 48
6.4.3 Pairing (only with BCS 3678ex) ........................................................................................................................................... 49
6.4.4 Number of Bluetooth Connections (only for BCS 3678ex) ................................................................................................... 50
6.4.5 Unpairing the Bluetooth hand-held scanner ....................................................................................................................... 50
6.4.6 Pairing with other Bluetooth-enabled devices (only with BCS 3678ex) ............................................................................... 51
6.4.7 Scanning when out of range - Out of Range & Batch Mode (only with BCS 3678ex) .......................................................... 51
Prefix and Suffix .................................................................................................................................................................. 52
6.4.9 Advanced Data Formatting (ADF) ...................................................................................................................................... 53
6.4.10 Multicode Data Formatting (MDF) ...................................................................................................................................... 53
6.5 Pairing options for Bluetooth hand-held scanner (only for BCS 3678ex) ............................................................................. 55
6.5.1 Radio Communication General ........................................................................................................................................... 55
6.5.2 Pairing between Bluetooth hand-held scanner and base station (cradle) .......................................................................... 56
6.5.3 Pairing between Bluetooth hand-held scanner and universal power supply module .......................................................... 58
6.5.4 Pairing between Bluetooth hand-held scanner and Bluetooth enabled device ................................................................... 60
6.5.7 Creating Pairing Barcodes with Zebra 123 Scan Utility ...................................................................................................... 64
6.6 Threshold values for battery level for Bluetooth hand-held scanners ................................................................................. 64
6.6.3 Programming the interface parameters .............................................................................................................................. 67
7 Connection / commissioning (qualified personnel) .................................................................................... 68
7.1 Corded hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS .............................................................................................. 68
7.1.1 Connecting the connection cable to the hand-held scanner ............................................................................................... 68
7.2 Universal supply module ..................................................................................................................................................... 70
7.2.1 Establishing universal supply module connections ............................................................................................................. 70
7.2.2 Connecting the USM to an HID device ............................................................................................................................... 71
7.2.3 Connecting the USM to a PLC ............................................................................................................................................ 71
7.3 Bluetooth hand-held scanner BCS 3678ex-NI / BCS 3678ex-IS ........................................................................................... 73
7.3.1 Connecting the base station to the host PC and power source .......................................................................................... 73
7.4 Connecting to the HMI: connecting the hand-held scanner to the HMI .............................................................................. 75
Wiring diagram for Universal Supply Module (USM) .......................................................................................................... 76
USM with USB-SPP Interface ............................................................................................................................................. 76
USM with RS232 Interface ................................................................................................................................................. 77
USM with RS422 Interface ................................................................................................................................................. 78
USM with RS485 Interface ................................................................................................................................................. 79
Explanation of the interfaces .............................................................................................................................................. 80

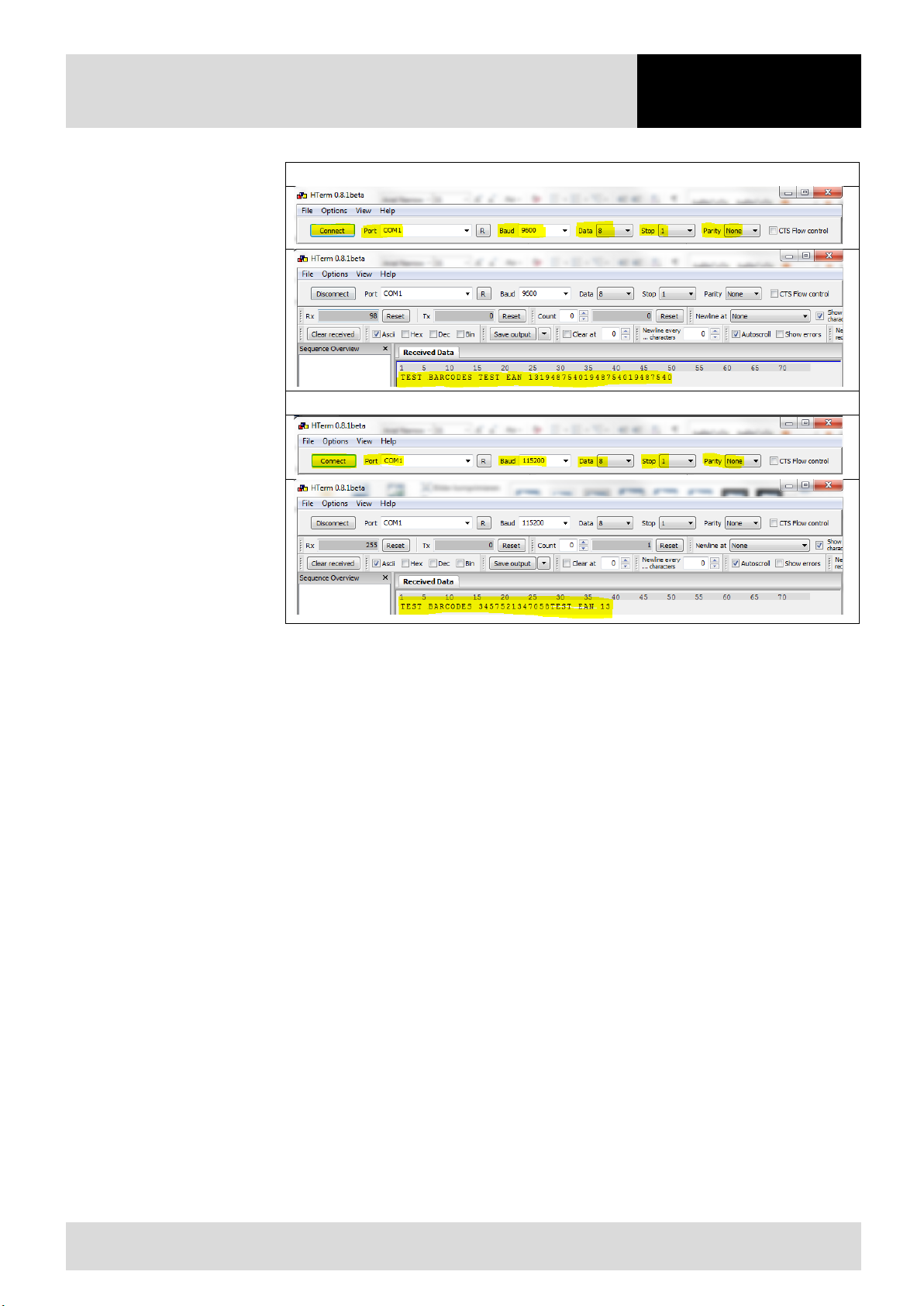

Testing the communication (RS232 or USB-SPP) ............................................................................................................. 82
8 Operation ......................................................................................................................................................... 84
8.1 Bluetooth hand-held scanners BCS 3678ex-NI / BCS 3678ex-IS ......................................................................................... 84
8.1.1 Changing the battery .......................................................................................................................................................... 84
8.1.2 Placing the hand-held scanner in the base station ............................................................................................................. 86
8.1.3 Connecting the Bluetooth hand-held scanner to the base station ...................................................................................... 87
8.1.4 Charging the battery ........................................................................................................................................................... 87
8.2 Inspection to be conducted prior to use .............................................................................................................................. 90
Handscanner
BCS 3600ex series
Contents
8.3 Scanning ............................................................................................................................................................................. 91
8.3.1 Optimal scan position ......................................................................................................................................................... 92
9 Cleaning .......................................................................................................................................................... 93
9.1 Suitable cleaning agents ..................................................................................................................................................... 93
9.2 Cleaning the enclosure ....................................................................................................................................................... 93
9.3 Cleaning the scan window .................................................................................................................................................. 93
9.4 Cleaning the contacts ......................................................................................................................................................... 93
10 Maintenance, inspection, repair .................................................................................................................... 94
10.1 Maintenance intervals ......................................................................................................................................................... 94
10.2 Returning faulty devices ..................................................................................................................................................... 94
11 Faults – causes and remedies ....................................................................................................................... 95
11.1 Restoring the connection between Bluetooth hand-held scanner and base station ........................................................... 97
11.2 Resetting the hand-held scanner ........................................................................................................................................ 97
Set Factory Default - Remove Custom Defaults (Reset to Factory Defaults) ..................................................................... 98
Write to Custom Defaults - Set user-defined default values ............................................................................................... 98
11.2.3 Notes on resetting the hand-held scanners ........................................................................................................................ 99
Pairing with base station doesn’t work ................................................................................................................................ 99
Base station does not work ............................................................................................................................................... 100
12 Disposal ......................................................................................................................................................... 101
13 Ambient conditions ...................................................................................................................................... 102
14 Scope of delivery .......................................................................................................................................... 103
15 Annex ............................................................................................................................................................. 104
15.1 Technical data .................................................................................................................................................................. 104
15.2 Approved accessories ...................................................................................................................................................... 104
15.3 Notice ................................................................................................................................................................................ 106
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Read carefully before commissioning the device.
The User Manual is an integral part of the device.
‒ Make the User Manual accessible to all people who are entrusted with handling the device.
Target group
Tasks
Company electrician
Forwarding agent
Operator
1 About this documentation
The User Manual is directed at all persons who are entrusted with handling the device.
Knowledge of the safety instructions and warnings in this User Manual and strict compliance with
1.1 Target groups
them is essential for safe handling.
‒ Carefully read the User Manual and especially the safety instructions before using the device.
‒ Keep the User Manual throughout the service life of the device.
1 About this documentation
• Connection
• Commissioning and decommissioning
• Repair
• Cleaning
IT specialist
Table 1 Tasks of the various target groups
• Configuration
• Cleaning
• Transport
• Operating the scanner after instruction
by the operating company
• Changing batteries
• Bluetooth version: charging the battery
• Cleaning
7 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
DANG ER
DANG ER designates a hazardous situation that can lead to death or serious, permanent
injuries if safety measures are disregarded.
WARNING
WARNING designates a hazardous situation that can lead to serious but not permanent injuries
if safety measures are disregarded.
CAUT ION
CAUT ION designates a hazardous situation that can lead to minor injuries if safety measures
are disregarded.
ATTENTION
ATTENTION designates a hazardous situation that can lead to material damage if safety
measures are disregarded.
WARNING TERM
Specification of the source of danger, cause of danger or type of danger
Safety measure
DANG ER
Changing the battery in a potentially explosive atmosphere!
Only change the battery outside the potentially explosive atmosphere.
1 About this documentation
1.2 Explanation of Symbols
1.2.1 Warnings
Warnings are used in this User Manual to warn of the risks of damage to property and personal injuries.
Always read and follow these warnings.
Warnings in this User Manual are specially highlighted and indicated by symbols:
Explanation of the structure of a warning
Consequence if the safety measures described are disregarded.
Example of a warning
Death or serious injury.
8 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Symbol
Explanation
Condition that must be met before the subsequent actions can be performed.
Individual steps you must take.
Indication of the results of a step or of several steps for monitoring success.
1.2.2 Symbols and means of presentation
Important advice and information for the effective, efficient and environmentally
sound use of the product.
1., 2., … Various steps to be performed in the order specified.
Table 2 Symbols and means of presentation
1.2.3 Explanation of terms
Some abbreviations are used in the documentation.
IS - Intrinsically Safe is used as an umbrella term for the Zone 1 and Division 1 versions.
NI - Non Incendive is used as an umbrella term for Zone 2 and Division 2.
BCS 3600
ex
- stands for the entire explosion-protected product range.
1 About this documentation
1.3 Technical changes
The current versions of data sheets, operating instructions, certificates, EU declarations of conformity
and information about new accessories can be downloaded from www.bartec.com under “Products” in
the “Automation & Enterprise Mobility ” product area or can be requested directly from BARTEC GmbH
(see Chapter 1.5).
Please find further Service and Support download information on
http://automation.bartec.de/indexE.htm
1.4 Languages
The original User Manual was drawn up in German. All other available languages are translations of
the original User Manual.
The User Manual is available in German, English and French. If other languages are required, these
should be requested from BARTEC or specified when placing the order.
9 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
All documents are available online from the following websites:
‒ ZEBRA (ZEB): www.zebra.com
In the event of an overlaps with Zebra user manuals, the instructions in the BARTEC User Manual
apply. The BARTEC User Manual takes priority.
Document
Explanation
Download site
BARTEC
commissioning and the
related to explosion protection and
Data sheet
Data on explosion protection and
universal supply module and
global
ZEBRA
Instructions for commissioning,
Further information on programming hand-held scanners can be found in the original Zebra
held scanners.
1 About this documentation
1.5 Reference documents
‒ BARTEC (global): www.bartec.com
‒ BARTEC: http://automation.bartec.de
Quick Start Guide
BCS 3608
BCS 3678
ex
-NI/BCS 3608ex-IS/
ex
-NI/BCS 3678ex-IS
BCS 3608ex-NI/BCS 3608ex-IS/
BCS 3678
ex
-NI/BCS 3678ex-IS
For DS3608-HP and DS3678HP:
• Product Reference
Guide
• Multicode Data
Formatting and
Preferred Symbol
• Advanced Data
Formatting (ADF)
• Simple Serial
Interface
Programmer's Guide
Table 3 Reference documents
Guidelines on
safe use of hand-held scanners
(including installation, safety information
information regarding programming)
technical data for hand-held scanners,
accessories
operating, configuring, programming
and maintaining hand-held scanners (full
information can be found on the ZEBRA
support page).
global
ZEB
10 / 106
documentation. The explosion protected BARTEC BCS 3608ex-NI / BCS 3608ex-IS / BCS 3678ex-NI
/ BCS 3678ex-IS hand-held scanners are based on the Zebra DS3608-HP and DS3678-HP hand-
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
2 Safety
Configuration
Approved zone
BCS 3678ex-IS
ATEX / IECEx Zone 1 and
BCS 3608ex-IS
BCS 3678ex-NI
ATEX / IECEx Zone 2 and
BCS 3608ex-NI
2.1 Intended use
2 Safety
The hand-held scanners in the BCS 3600ex series are hand-operated items of electrical equipment.
They are used for the mobile capture, processing and transfer of data within potentially explosive
atmospheres.
ex
The data are transferred either using a connection cable (BCS 3608
ex
(BCS 3678
The hand-held scanners in the BCS 3600
).
ex
series have been modified for use in the following potentially
explosive atmospheres:
) or using a Bluetooth connection
(Type 17-A1S4-XXXX)
Zone 21
NEC / CEC Class I, II, III DIV 1
(Type 17-A1S4-XXXX)
(Type B7-A2S4-XXXX)
Zone 22
NEC / CEC Class I, II, III DIV 2
(Type B7-A2S4-XXXX)
Table 4 Assignment configuration for the explosion protected area
The hand-held scanners may only be used together with operating equipment that corresponds to
Installation Category I.
You must comply with the permissible ambient conditions for the device used (see chapter 14).
11 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
Target group
Skills
IT specialists
Warehouse and transport employees
Operators
2 Safety
2.2 Personnel qualifications
The following skills are required for handling the device:
Qualified electricians
Table 5 Personnel qualifications
• Professional training
• Knowledge and experience to
recognise and avoid risks that can
emanate from electricity
• Understanding of the overall system
• Special instruction for potentially
explosive atmospheres
• Understanding of the overall system
• Configuration/programming
• Understanding of programming
manuals
• Loading and transport activities
• Correct storage
• Instruction by the operating company
on operation, changing and loading
the battery
• Special instruction for potentially
explosive atmospheres
2.3 Explosion protection
Incorrect use of the hand-held scanner and its accessories can trigger fires and explosions in potentially
explosive atmospheres.
Read the instructions in this Manual thoroughly and follow them when using the device.
In the event of an overlaps with user manuals from Zebra, the instructions in the BARTEC User Manual
apply. The BARTEC User Manual takes priority.
2.3.1 Using hand-held scanners and accessories
Always carry out an inspection prior to use (see Chapter 8.2).
Ensure that the application area corresponds to the explosion protection marking and permissible
ambient conditions (see chapter 14).
Remove the device from the potentially explosive atmosphere immediately in the event of a
malfunction or damaged enclosure.
Only use accessories specified by BARTEC in the potentially explosive atmosphere.
Have all maintenance work on and inspections of accessories conducted by authorised personnel.
Have all repairs to the hand-held scanner conducted by BARTEC.
12 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
2.4 Residual risks
2.4.1 Risk of an explosion caused by electrical ignition sources
2 Safety
Electrical ignition sources can trigger fires and explosions in a potentially explosive atmosphere.
Non-approved components
Specific hand-held scanners and accessories (including universal supply module, battery, cable) are
suitable for each potentially explosive atmosphere. Hand-held scanners and components that have not
been approved for the respective potentially explosive atmosphere may trigger explosions.
Only use components that have been approved for the relevant potentially explosive atmosphere.
Spark formation during battery change and cable connection
Sparks can arise when changing the battery or connecting cables. Sparks can trigger an explosion in
a potentially explosive atmosphere.
Only insert or remove the battery outside the potentially explosive atmosphere.
Only connect or disconnect the cable outside the potentially explosive atmosphere.
Always have cables connected by a qualified electrician.
Spark formation caused by the battery falling out / the connection cable coming unplugged
The following risks arise if the safety lock on the underside of the hand-held scanner is not correctly
closed:
‒ The battery on a Bluetooth hand-held scanner can fall out.
‒ The connection cable on a corded hand-held scanner can come unplugged.
This can produce sparks which can trigger an explosion.
Check that the safety lock is correctly closed before taking the hand-held scanner into the
potentially explosive atmosphere.
Broken enclosure: loss of explosion protection
The hand-held scanner has been tested for falls from a height of up to 2.4 m (7.9 ft) (Zone 2 / Div. 2)
and 1.2 m (4 ft) (Zone 1 / Div. 1). There is a risk of the enclosure breaking during falls from a greater
height, in which case the explosion protection is no longer guaranteed.
Protect hand-held scanners from falling from a greater height.
If the hand-held scanner has fallen from a greater height or you suspect a damaged enclosure:
– Remove the hand-held scanner from the potentially explosive atmosphere immediately.
– Send the faulty hand-held scanner to BARTEC and reference the RMA number you were
issued.
Corrosion: loss of explosion protection
The enclosure of the hand-held scanner has protection class IP65, however constant exposure to
moisture can lead to corrosion. This may lead to the loss of the explosion protection.
Protect hand-held scanners against constant exposure to moisture.
Do not subject hand-held scanners to any damp weather conditions.
13 / 106
2 Safety
Handscanner
BCS 3600ex series
Subject to technical modifications
2.4.2 Damage to eyes caused by laser light
The hand-held scanner operates with a Class 2 laser. Laser beams can damage eyes.
Do not look into the laser beam.
2.4.3 Risks of cuts if the scan window is broken
The scan window may become damaged if the hand-held scanner falls down. There is a risk of cuts if
you reach into the broken or cracked area.
When getting the hand-held scanner out, secure it to prevent it falling down.
Only get the hand-held scanner out when it reaches its destination.
If the scan window is broken:
– Do not touch the broken area.
– Do not use the hand-held scanner.
– Send the faulty hand-held scanner to BARTEC and reference the RMA number you were
issued.
2.4.4 Health hazard in the case of incorrect disposal
Lithium ion batteries on the Bluetooth hand-held scanner contain pollutants that can be harmful to
health.
Dispose of batteries in an environmentally sound way in accordance with regional regulations.
2.5 Preventing damage to property
2.5.1 Short circuit caused by incorrect connection
Incorrect electrical connection can cause a short circuit, thereby damaging the hand-held scanner.
Always have the hand-held scanner connected by a qualified electrician in accordance with the
connection diagram.
2.5.2 Storage at too high a temperature
A thermal fuse prevents the hand-held scanner getting too hot during operation and triggering an
explosion. There is also a risk of the hand-held scanner getting too hot if the hand-held scanner is
stored outside of the permissible ambient temperatures. The hand-held scanner is damaged as soon
as the thermal fuse responds.
Only store the hand-held scanner within the permissible ambient temperatures.
2.5.3 Contact with chemicals
14 / 106
The enclosure of the hand-held scanner consists of polycarbonate that has only limited chemical
resistance. Contact with chemicals can break the enclosure.
Do not bring the hand-held scanner into contact with chemicals.
2.5.4 Aggressive cleaning agents
Aggressive cleaning agents can attack and fade the scan window, thereby impairing the scanning
functionality. In extreme cases scanning is no longer possible.
Only use a damp cloth to clean the hand-held scanner.
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Standard
Ex protection type
Certification
ATEX
II 2G Ex ia ma op is IIC T4 Gb
EPS 18 ATEX 1 199 X
IECEx
Ex ia ma op is IIC T4 Gb
IECEx EPS 18.0100X
ATEX
II 2G ia ma op is IIC T4 Gb
EPS 17 ATEX 1 177 X
IECEx
Ex ia ma op is IIC T4 Gb
IECEx EPS 17.0090X
NEC/CEC
Class I, II, III Div 1
Applied for
Table 7 Hand-held scanner BCS 3678ex-IS
3 Approval, standards
3.1 Hand-held scanner BCS 3608ex-IS
3 Approval, standards
Zone 1/21
Zone 1/21
NEC/CEC
Div 1
Table 6 Hand-held scanner BCS 3608ex-IS
Further approvals and certificates can be found at www.bartec.com
II 2D Ex ia ma op is IIIC T135°C Db IP 64
Ex ia ma op is IIIC T135°C Db IP 64
Class I, II, III Div 1
Class I Div 1 Groups A, B, C and D
Class II Div 1 Groups E, F
Class III
Class I Div 1
Class I Div 1 Groups A, B, C and D T4
3.2 Hand-held scanner BCS 3678ex-IS
Standard Ex protection type Certification
Zone 1/21
II 2D Ex ia ma op is III T135 ^C Db IP 64
Applied for
Zone 1/21
Div 1
Further approvals and certificates can be found at www.bartec.com
Ex ia ma op is IIIC T135°C Db IP 64
Class I Div 1 Groups A, B, C and D
Class II Div 1 Groups E, F
Class III
Class I Div 1
Class I Div 1 Groups A, B, C and D T4
15 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
The universal supply module Zone 2/22 and Div 2 are included in the certificate of the Zone 2/22
and Div 2 hand-held scanner.
Standard
Ex protection type
Certification
ATEX
II 3G Ex ic IIC T4 Gc
EPS 16 ATEX 1113 X
Standard
Ex protection type
Certification
II 2G Ex ma [ia] IIC T4 Gb
IECEx
Ex ma [ia] IIC T4 Gb
Applied for
NEC/CEC
Class I, II, III Div 1
Applied for
Table 8 Universal Versorgungsmodul 3678ex-IS/3608ex-IS
3 Approval, standards
3.3 Universal supply module 3678ex-IS/3608ex-IS
ATEX
Zone 1/21
Zone 1/21
Div 1
II 2D Ex ma [ia] IIC T135°C Db IP 64
Ex ma [ia] IIC T135°C Db IP 64
Class I Div 1 Groups A, B, C und D
Class II Div 1 Groups E, F
Class III
Class I Div 1
Class I Div 1 Groups A, B, C und D T4
Applied for
Further approvals and certificates can be found at www.bartec.com
3.4 Hand-held scanners BCS 3608ex-NI/BCS 3678ex-NI
Zone 2/22
IECEx
Zone 2/22
ETL Div 2 Class I,II,III Div 2
Table 9 Hand-held scanner BCS 3608ex-NI/BCS 3678ex-NI
Further approvals and certificates can be found at www.bartec.com
II 3D Ex ic IIIB T135°C Dc IP 64
Ex ic IIC T4 Gc
Ex ic IIIB T135°C Dc IP 64
Class I Div 2 Groups A,B,C,D
Class II Div 2 Group F,G
Class III
Class I Div 2
Class I Div 2 Groups A,B,C and D T4
Conforms to ANSI/UL Std. 60950
Cert. to CAN/CSA Std. C22.2 No. 60950
IECEx EPS 16.0050X
5012876
16 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
available for input
available for use in hazardous
Class I, II
Version for US + Canada
Table 10 Available USM
Safe area
Ex-relevant parameters
Ex-relevant parameters
3 Approval, standards
3.5 Ex-relevant parameters for connection to universal supply module or other systems
ex
Important information for connecting the corded hand-held scanner BCS 3608
Supply Module (USM) or to third-party systems.
• ATEX/IECEx – Zone 2/22
• Class I, II Division 2
• Class III
-NI to a Universal
Voc 5 V
I
sc
Ca
L
Figure 1 Ex relevant paramaters for the connection of the USM
for BARTEC UVM
USM Output values:
a
1 A
1000 μF
80 μH
Available USM:
USM for BCS 3608ex-NI 24 V DC
voltage
85 to 250 V
AC
for BCS 3608ex-NI
Input values:
V
max
I
max
Ci
Li 0,1 μH
ATEX/IECEx
Zone 2/22
5 V
1 A
0,3 μF
areas:
Division 2
Class III
Type: B7-A2Z0-0042 Yes Yes Yes No
Yes No Yes Yes
Type: B7-A2Z0-004200US
17 / 106
3 Approval, standards
Handscanner
BCS 3600ex series
Subject to technical modifications
Functional
V
≥ Voc
V
5 V DC
Voc 5 V
4,8 V DC
I
≥ Isc
I
1 A
I
1 A
500 mA
Minimum output values of the used
BARTEC USM: Ca = 1000μF (is ≥ Ci +
BARTEC USM: La = 80μH (is ≥ Li +
C
and L
depend on the connection cable used on the BCS 3608ex-NI.
Important Ex-relevant technical data for the connection of a non-incendive wired field device (e.g.
BCS 3608
ex
-NI) with another associated non-incendive wired field device (e.g. USM B7-A2Z0-0042).
The USM can also be replaced by power supply modules from other manufacturers provided that the
following calculation formula is adhered to.
Calculation
formula
max
max
Ca ≥ Ci + C
BCS 3608ex-NI
max
max
Ci 0,3 μF + C
Kabel
Kabel
Maximum output values of the used
supply module:
max
supply module:
C
)
Kabel
external system Ca ≥ Ci + C
(kundenspezifisch)
L
)
La ≥ Li + L
Li 0,1 μH + L
Kabel
Kabel
Kabel
external system: La ≥ Li + L
(customized)
Table 11 Ex relevant date for the connection of the USM
Kabel
Kabel
Kabel
Kabel
minimum
values
-
-
18 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Configuration
Data transfer
Data capture
BCS 3608ex-NI
1D-/2D-Imager (SE4750)
Bluetooth 4.0
Base station for non-
Bluetooth 4.0
None
4 different universal supply modules for installation in a potentially explosive atmosphere
BARTEC
ZEBRA
BCS 3608ex-NI
BCS 3678ex-NI
4 Product description
4 Product description
The BCS 3608ex-NI and BCS 3608ex-IS series consists of corded hand-held scanners for capturing
ex
1D/2D barcodes and for OCR text recognition. The BCS 3678
scanners with Bluetooth supplement the series with wireless data capture.
ex
The hand-held scanners in the BCS 36x8
-NI- and BCS 36x8ex-IS series have been modified for use
in potentially explosive atmospheres (see Chapter 2.1).
The barcodes are captured by a 1D/2D scan engine. The ergonomic design permits 1-handed
operation.
4.1 Configurations and comparison with ZEBRA hand-held scanners
Configurations
Connection cable
BCS 3608ex-IS
(see Chapter 4.3)
-NI and BCS 3678ex-IS hand-held
BCS 3678ex-NI
BCS 3678
ex
-IS
hazardous area; only for
ex
BCS 3678
-NI / BCS 3678ex-
2.4 GHz to 2.4835 GHz
(see Chapter
4.4)
2.4 GHz to 2.4835 GHz,
(see Chapter
4.4.4)
IS
Zone 1/Zone 2; Division 1/Division 2 as well as a HMI Universal supply module, each Bluetooth or
corded (see system overview, Chapter 15.2)
Table 12 Configurations
Comparison
Tab. 13 compares the hand-held scanners that have been modified for potentially explosive
atmospheres to the original hand-held scanners from ZEBRA.
BCS 3608ex-IS
BCS 3678ex-IS
Table 13 Comparison with ZEBRA hand-held scanners
DS3608-HP
DS3678-HP
19 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
Pos.
Description
1
Power supply (230 VAC or 24 V
for Zone 2/22 and Zone 1/21,
2
Host PC
3
Data cable host PC – universal supply module (RS 232, RS 422, RS 485 or USB)
6
Hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS
4 Product description
4.2 Possible system configurations
4.2.1 Corded hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS with universal supply module
Figure 2 BCS 3608ex-NI / BCS 3608ex-IS hand-held scanner with universal supply module in a potentially
explosive atmosphere
24 V
DC
DC
only for Div 2)
this cable has to be provided by the customer
4 Universal supply module for hand-held scanners
5 Connection cable BCS 3608ex-NI / BCS 3608ex-IS
Table 14 Description of the needed components to build the connection between BCS 3608ex-NI / BCS 3608exIS corded hand-held scanners with universal supply module
The universal supply module can be operated in a potentially explosive atmosphere. The universal
supply module is used for data transfer and power supply. The power source for the universal supply
module and the system to which the data are to be transferred must lie outside the potentially explosive
atmosphere.
3 different cables can be used to connect the hand-held scanner to the universal supply module (see
table 13). The universal supply module and connection cables are not included with delivery.
The universal supply module for US and Canada can only be used with DC 24 V.
20 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
1
HMI (approved for a potentially explosive atmosphere)
2
HMI Limiting cable (B7-A2Z0-0041 or B7-A2Z0-0054)
4 Product description
4.2.2 Corded hand-held scanner BCS 3608ex-NI with HMI (only Zone 2 and 22) and HMI limiting cable*
Figure 3 Hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS with HMI and HMI limiting cable
* Internal power supply ate the HMI USB module must be at least 500 mA
Pos. Description
3 Hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS
Table 15 Description of the needed components to build the connection between corded hand-held scanner
BCS 3608
ex
-NI with HMI (only Zone 2 and 22) and HMI limiting cable
The limiting cable that is connected to the HMI is used for data transfer and power supply. This
connection is only approved for Zone 2, 22 and Division 2.
21 / 106
4 Product description
Handscanner
BCS 3600ex series
Subject to technical modifications
Pos.
Description 1
2
Hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS
3
Data cable HMI – universal supply module (RS 232, RS 422, RS 485 or USB) this
4
Universal supply module for hand-held scanners
5
HMI (approved for a potentially explosive atmosphere)
Figure 1 BCS 3608ex-NI / BCS 3608ex-IS hand-held scanner with universal supply module in a potentially
explosive atmosphere and HMI
Figure 4 Hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS with universal supply module in a potentially
explosive atmosphere and HMI
4.2.3 Corded hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS with universal supply module
Connection cable BCS 3608ex-NI / BCS 3608ex-IS
cable has to be provided by the customer
Table 16 Description of the needed components to build the connection between corded hand-held scanner
BCS 3608
ex
-NI / BCS 3678ex-IS with universal supply module
The hand-held-scanner can be connected with 3 different cables to the universal supply module
(see Tab.15).
Universal supply module and connecting cable are not included into the scope of delivery.
The universal supply module for US and Canada can only be used with DC 24 V.
22 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Pos.
Description
1
Host PC
2
Power supply (12 VDC)
5
Bluetooth hand-held scanner BCS 3678ex-NI / BCS 3678ex-IS
4 Product description
4.2.4 Bluetooth hand-held scanners BCS 3678ex-NI / BCS 3678ex-IS with base station and Bluetooth-enabled device
Figure 5 Bluetooth hand-held scanner BCS 3678ex-NI / BCS 3678ex-IS with base station (cradle) and Bluetoothenabled device
3 Base station (Cradle) only for the use in safe areas
4 Bluetooth-enabled device (approved for a potentially explosive atmosphere):
• Agile X IS for Zone 1/21 / Division 1
• Agile X for Zone 2/22 / Division 2
• TC 7x series for Zone 2/22 / Division 2
6 Bluetooth-enabled device (outside the potentially explosive atmosphere)
Table 17 Description of the needed components to build the connection between BCS 3678ex-NI / BCS 3678exIS Bluetooth hand-held scanners with base station and Bluetooth-enabled device
The BCS 3678ex-NI / BCS 3678ex-IS Bluetooth hand-held scanners can optionally communicate with
the following devices:
‒ Outside the potentially explosive atmosphere:
– Host PC (1)
– Bluetooth-enabled base station (3)
– Bluetooth-enabled device (6)
‒ In the potentially explosive atmosphere (4):
– Agile X IS for Zone 1/21 / Division 1
– Agile X for Zone 2/22 / Division 2
– Other devices approved for explosion-proof certified devices
23 / 106
4 Product description
Handscanner
BCS 3600ex series
Subject to technical modifications
Pos.
Description
1
Supply voltage (230 VAC or 24 V
for Zone 2/22 and Zone 1/21, 24 V
only for Div 2)
2
Host PC
3
Data cable host PC – universal supply module (RS 232, RS 422, RS 485 or USB)
4
Bluetooth universal supply module
4.2.5 Bluetooth hand-held scanners BCS 3678ex-NI / BCS 3678ex-IS via Bluetooth universal supply module
Figure 6 BCS 3678ex-NI / BCS 3678ex-IS Bluetooth hand-held scanner with universal supply module in a
potentially explosive atmosphere
DC
DC
this cable has to be provided by the customer
5 Bluetooth hand-held scanner BCS 3678ex-NI / BCS 3678ex-IS
Table 18 Description of the needed components to build the connection between Bluetooth hand-held scanners
BCS 3678
ex
-NI / BCS 3678ex-IS via Bluetooth universal supply module
The universal supply module can be operated in a potentially explosive atmosphere. The universal
supply module
is used for data transfer.
The power supplies for the universal supply module and the system to which the data are to be
transferred must lie outside the potentially explosive atmosphere.
The universal supply module is not included in the scope of delivery.
24 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Pos.
Description
Function
1
Scan window
Scanning barcodes
2
Trigger button
Starting the scan process
3
Safety lock
Securing the connection cable to prevent
4
Lug
Attaching cord to the hand-held scanner
4.3 Corded hand-held scanners BCS 3608ex-NI/BCS 3608ex-IS
4.3.1 Construction of the corded hand-held scanners
4 Product description
Figure 7 Corded hand-held scanner BCS 3608ex
it coming unplugged
5 Status LEDs Displaying the status of the hand-held
scanner
6 Beeper Transmitting beeps or sequences of
beeps indicating events
Table 19 Construction of hand-held scanner BCS 3608ex
25 / 106
4 Product description
Handscanner
BCS 3600ex series
Subject to technical modifications
The function is only guaranteed if the cables you connect for your configuration have been specified
by BARTEC (see system overview, Chapter 15.2).
4.3.2 Contacts / cables
Figure 8 External contact on corded hand-held scanner
1. Connection of hand-held scanners to a universal supply module
ex
The Hand-held scanners BCS 3608
-NI and BCS 3608ex-IS can be connected to the following
universal supply module:
Version
Zone 1 / Division 1
Zone 2 / Zone 22
Division 2
Bluetooth Coming Soon B7-A2Z0-0043 B7-A2Z0-0043US
Cable Coming Soon B7-A2Z0-0042 B7-A2Z0-0042US
HMI Coming Soon - -
Table 20 Universal supply module
The hand-held scanners BCS 3608ex-NI and BCS 3608ex-IS can be connected by the following cables
to the universal supply module:
Version
Length
Zone 1 / Division 1
Zone 2 / Zone 22
Plain 1.9 m 17-A1Z0-0015 B7-A2Z0-0037
Plain 4.5 m 17-A1Z0-0016 B7-A2Z0-0038
Spiral 2.7 m 17-A1Z0-0017 B7-A2Z0-0039
Table 21 Connection cable for hand-held scanner BCS 3608ex (assembled) to the universal supply module
The cables set out in Tab. 13 have been modified for use in the following potentially explosive
atmospheres:
‒ ATEX/ IECEx Zone 1 and Zone 21
‒ ATEX/ IECEx Zone 2 and Zone 22
‒ Class I, II, III DIV 1
‒ Class I, II, III DIV 2
26 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Limiting cable
USB
1.9 m
B7-A2Z0-0041
Limiting cable
USB
4.5 m
B7-A2Z0-0054
Interface
Recommended cross-
Number of cores
RS232/RS482/RS485
5
4 Product description
Connection of hand-held scanners to HMI (only Zone 2 and 22)
ex
The hand-held scanner BCS 3608
Cable specified for connection to HMI Version Length BARTEC Order No.
Table 22 Connection cable for hand-held scanner to the host PC
The cables set out in Tab. 11 have been approved for use in potentially explosive atmospheres in
Zones 2, 22 and Class I Division 2.
Internal power supply at the HMI USB module must be at least 500 mA
Data cable from the universal supply module to the host PC
We recommend using a standard, shielded data cable (e.g. CAT 5 or superior grade) as data line to
prevent external disturbances to data transfer.
-NI can be connected to the HMI using the following cables:
section
0.2 mm2 to 2.5 mm2
USB 4
Table 23 Data line from the universal supply module to the host PC
The connection to the host PC is provided by the customer.
27 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
Pos.
Description
Function
1
Scan window
Scanning barcodes
2
Contact for base station (cradle)
4
Battery compartment cover with safety
6
Status LEDs
Displaying the status of the hand-held
7
Battery LED
Displaying the charge status of the battery
8
Bluetooth LED
Displaying the status of the Bluetooth
9
Beeper
Transmitting beeps or sequences of beeps
4 Product description
4.4 Bluetooth hand-held scanner BCS 3678ex-NI / BCS 3678ex-IS
4.4.1 Construction of the Bluetooth hand-held scanner
Figure 9 Bluetooth hand-held scanner BCS 3678ex
• Charging the battery
• Transferring data to base station
(cradle)
3 Trigger button Starting the scan process
• Securing the battery to stop it
lock
falling out
• Opening only possible using
special tool (included with
delivery)
5 Lug Attaching cord to the hand-held scanner
scanner
28 / 106
Table 24 Construction of BCS 3678ex
connection
indicating events
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
DANG ER
Non-approved accessories!
Only connect base stations and chargers that have been specified by BARTEC.
Type of connection
Description
Hand-held scanner is connected to a base station, standard
Up to 7 hand-held scanners are connected to one base
Direct communication with Bluetooth host without base
4.4.2 External contacts
Loss of function and risk of explosion.
The approved accessories are shown in the system overview (see system overview, Chapter 15.2).
The model is clearly indicated on the type label.
4 Product description
Figure 10 External contact on Bluetooth hand-held scanner
4.4.3 Communication via Bluetooth
Three types of connection are available for communication of the hand-held scanner via Bluetooth:
Point-to-point mode
Multi-point-to-point mode
HID mode
Table 25 Communication via Bluetooth
mode
station. The connection between base station and handheld scanner can only be made with one device.
(No multi-point-to-point is possible with the universal supply
module. Only 1 hand-held scanner can therefore be
connected to the universal supply module).
station. The Bluetooth hand-held scanner can communicate
with a Bluetooth-enabled device (e.g. smartphone) directly
without a base station.
29 / 106
4 Product description
Handscanner
BCS 3600ex series
Subject to technical modifications
DANG ER
Spark formation!
Only use the base station outside the potentially explosive atmosphere.
The function is only guaranteed if the base station you use for your configuration has been specified
The model is clearly indicated on the type label.
Pos.
Description
Function
1
Retainer
Holding the hand-held scanner in place in
2
Connection code (for connection to
Establishing a connection between base
3
Holes
Water drainage
4
Drill holes
Mounting the base station to the wall
5
Contact
Charging the battery, transferring data
4.4.4 Construction of base station (cradle)
Explosion.
by BARTEC (see system overview, Chapter 15.2).
The base station charges the battery on the Bluetooth hand-held scanner and connects it to the host
PC.
Figure 11 Construction of the base station (cradle)
BCS 3678ex-NI / BCS 3678ex-IS)
6 LEDs Displaying the status of the base station
30 / 106
the base station
station and hand-held scanner
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Pos.
Description
Function
10
Hole
Water drainage
11
Connection
Connecting connection cable to base
12
Rubber feet
Prevent the base station slipping
13
Drill holes
Mounting the base station to the wall
17
Cover
Relieving the strain on the connection
18
Drill holes
Mounting the base station to the wall
19
Rubber feet
Prevent the base station slipping
4 Product description
7 Page button Connected hand-held scanners transmit a
beep when the page button has been
pressed
8 Retainer Holding the hand-held scanner in the
base station
9 Drill hole Mounting the base station to the wall
station
14 Adjusting screw Adjusting retainer to wall mounting or for
use on the desk top
15 Cable routing Feeding the connection cable to the
connection
16 Connection Protecting the connection
cable
Table 26 Construction base station
31 / 106
4 Product description
Handscanner
BCS 3600ex series
Subject to technical modifications
DANG ER
Spark formation!
Only use the 4-slot charging station outside the potentially explosive atmosphere.
The function is only guaranteed if the 4-slot charging station you use for your configuration has been
The model is clearly indicated on the type label.
Pos.
Description
Pos.
Description 1
3
Power connection
4
Mounting holes, wall mounting (2)
5
Power cable groove
6
USB connection
9
Cable routing, power cable
4.4.5 Construction of 4-slot charging station for spare batteries
Explosion.
specified by BARTEC (see system overview, Chapter 15.2).
Figure 12 Construction of the 4-slot charging station for spare batteries
Battery compartments (4) 2 LEDs (4)
7 Cable groove 8 Rubber feet (4)
Table 27 Construction 4 slot battery charger
32 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
LED display
Colour
Beep sequence
Meaning
Status LEDs (on
Green flashes
Low – medium –
Hand-held scanner is
Status LEDs (when
Red
High (4 short beeps)
Transmission error
Green
Medium
Barcode has been read
On Bluetooth hand-
Red – Battery charge less than 20 %
–
On Bluetooth hand-
Red
Low (4 long beeps)
No Bluetooth pairing
Green
2 short beep
Paired to Bluetooth device
LED display
Meaning
Lights up green
Base station is switched on
Flashes green
Battery has been fully charged
Flashes quickly, yellow
Fault during charging
4.5 Meaning of LED display / beeps
4.5.1 Hand-held scanner
4 Product description
switching on)
scanning)
high
switched on
Data are ignored
successfully
held scanners:
Yellow
Battery charge 20 - 50 %
Green – Battery charge over 50 %
held scanners:
sequences
Table 28 Meaning of the LED display, hand-held scanner
When searching the scanner with the paired base station, the search LED on the scanner lights red for
zone 1 and blue for zone 2.
Other LED displays and beeps are described in the ZEBRA Product Reference Guide.
4.5.2 Base station
Lights up blue Page button is pressed
Flashes yellow Battery is being charged
Table 29 Meaning of the LED display, base station
33 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
DANG ER
Non-approved accessories!
by BARTEC.
DANG ER
Ignition!
Do not open the device in hazardous areas during operation!
Pos.
Description
Function
1
Cable gland
Feeding data cable to terminals
2
Cable gland
Feeding power cord to terminals
3
Terminals X1 to X2
Connecting 85 - 250 V
power supply
5
Cover
Protecting the terminal connection
6
DIP switch
Selecting the interface used
7
Terminals X5 to X9
Connecting the data line
4 Product description
4.6 Construction of the universal supply module
Loss of function and risk of explosion.
Only use universal supply modules that have been specified for the relevant configuration
The approved accessories are shown in the system overview (see system overview, Chapter 15.2).
The model is clearly indicated on the type label.
Figure 13 Construction of the universal supply module
Do not open under voltage!
AC
4 7-pole round plug * Connecting corded hand-held scanner
chamber
8 Terminals X3 to X4 Connecting the 24 V
Table 30 Construction universal supply module
DC
*Is not needed with the Bluetooth version
power supply
34 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Terminal
Marking
RS 232
RS 422
RS 485
USB-SPP
X1 L L = 85 VAC bis 250 VAC
X2 N N = Neutral conductor
X3
24 VDC+
24 VDC+
X4
24 VDC–
24 VDC–
X5
TxD; RX–
;TXRX–; M (D–)
TxD
TxD-
TxD/RxD–
M (D–)
X6
RxD; RX+; P
(D+)
RxD
RxD-
–
P (D+)
X7
RTS; TX-;
TXRX+
RTS
TxD+
TxD/RxD+
–
X8
CTS; TX+
CTS
RxD+
– – X9
GND
GND
– – –
X10
Shield
- - -
-
The wire braid of the data cable must be inserted into the shield terminal and the braid must also be
connected to terminal X10.
Connection examples see chapter 7.5 or separate description available on the BARTEC download
- - Additional description - Connection examples for BCS 3600ex series
Terminal
Marking
Colour cable version
Colour cable version
1
+UB
Yellow
Red 2 RxD
Green
Green
4
RTS
Brown
Brown
5
CTS
Orange
Orange
Version 1 and version 2 differ in the color of the seal on the RJ45 connector.
Version 1 black gasket, version 2 green gasket
4.6.1 Terminal assignment
Terminal assignment for installing power cords and RS 232, RS 422, RS 485 and USB-SPP types of
connection cable on the host PC side:
4 Product description
Table 31 Terminal connection plan
page.
The connection using the 7-pole round plug is configured as follows:
1
3 TxD White White
6 – Grey Grey
7 GND Red / black Black
Table 32 Terminal connection plan for 7-pole round plug
2
35 / 106
4 Product description
Handscanner
BCS 3600ex series
Subject to technical modifications
Setting Interface (Dipp-switch S1, S2 and S3)
Interface
S1
S2
S3
S4
RS 232
0 0 0
-
RS 485
0 0 1 - USB-SPP
1 1 1 -
Settings USM Version (Dipp-switch S4)
Version
S1
S2
S3
S4
corded
- - - 0 Bluetooth
- - -
1
Interface
Range
RS 232
15 m
50 ft.
RS 422
1000 m
3280 ft.
4.6.2 Setting the DIP switches (only for Zone 2/22 and Div 2)
The DIP switches (X18) must be set as follows depending on the interface used
Figure 14 DIP switches and switch positions
RS 422 0 1 1 -
Table 33 Setting
4.6.3 Ranges / maximum cable length of connected cable from the universal supply module to the host or PC
RS 485 1200 m 3937 ft.
USB-SPP 5 m 16 ft.
Table 34 Ranges / maximum cable length of connected cable
36 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Description of the conductor
Permissible core cross-section
Rigid
0.08 mm2 - 2.5 mm2
28 – 14 AWG
Flexible
0.08 mm2 - 2.5 mm2
28 – 14 AWG
Flexible with wire end ferrule, without plastic
0.25 mm2 - 1.5 mm2
24 – 16 AWG
Flexible with wire end ferrule, with plastic
0.25 mm2 - 1.5 mm2
24 – 16 AWG
Possible cable dimensions for the cable gland on
Interfaces
Cable gland
pipeline diameter
Shield diameter
USB-SPP*
Ex e M16x1,5
4,5-5,7mm
3-6 mm
RS232
4,5-9mm
3-6 mm
RS422
4,5-9mm
3-6 mm
RS485
4,5-9mm
3-6 mm
4.6.4 Permissible core cross-sections
sleeve
sleeve
Wire diameter (AWG) 28 - 12 kcmil 36 – 39 AWG
Table 35 Permissible core cross sections
Permissible connection cable diameter
4 Product description
the USM
(black)
Table 36 Permissible connection cable diameter
4.6.6 Terminals for outer conductors
To connect the outer conductors to the terminals in hazardous areas, observe EN 60079-14 (Explosive
atmospheres - Part 14: Design, selection and installation of electrical systems).
Connect the conductors according to the terminal assignment. Equipotential bonding is not
necessary because the power supply is electrically isolated.
37 / 106
4 Product description
Handscanner
BCS 3600ex series
Subject to technical modifications
Interfaces
Recommended wire cross
Number of conductor
RS 485
4
USB-SPP
4
The ferrite core is only needed when using the USB-SPP interface.
It is used for shielding and avoiding external interferences on the data line.
4.6.7 Recommendation for data line
BARTEC recommends the use of the following cables:
- Commercially available shielded data cable to avoid external interference into the data cable e.g. min.
CAT5 cable or other shielded cable to avoid external interference into the data cable
- The following core cross-sections and number of cores:
section
RS 232 0,2 mm2 bis 2,5 mm2
RS 422 4
Table 37 Recommended conductor cross-sections and number of conductors
4.6.8 Ferrite core for data cable
A plastic bag with a shield clamp and a ferrite core is supplied with each universal supply module.
The ferrite core must be mounted as follows:
- Strip the insulation of data cable
- Push the ferrite core over the data cable.
- Snap the shield clamp onto the DIN rail in the universal supply module.
- Press the ferrite core into the shield terminal.
- Place the data cable with bare shield in the shield terminal.
- Connect the data line to the terminal.
5
24 – 14 AWG
38 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Shield clamp
Ferrite core
- For snapping onto the top-hat rail in the
- Fixes the ferrite core
Installation in a universal supply module
4 Product description
universal supply module.
Table 38 Connection of the ferrite core to the USM
- Ferrite core for shielding external
interference signals
39 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
Pos.
Symbol
Description
1
Type label (here: BCS 3678ex-NI)
3
Warning opening battery compartment
5
Battery label: information concerning use
4 Product description
4.7 Product marking hand-held scanner
Figure 15 Product marking
2
Warning of laser beam
4
Product designation
• BCS 3678
• BCS 3608
ex
-IS
ex
-IS
Product designation
ex
• BCS 3678
• BCS 3608
-NI
ex
-NI
and disposal
Batteries for IS are provided with a
BARTEC label
Batteries for NI are provided with a
ZEBRA label
Table 39 Product labeling hand-held scanner
40 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Pos.
Symbol
Description
1
Type label (here: Universal supply
2
Product designation IS
Product designation NI
3
Bluetooth only:
4
In the universal supply module:
5
Label for cable assignment
6
Bluetooth only:
Figure 16 Product marking universal supply module
4.8 Product marking universal supply module
4 Product description
module corded)
Table 40 Product marking universal supply module
• UVM – bluetooth
• UVM - corded
• UVM – bluetooth
• UVM - corded
Scan to Connect Barcode
Serial number Barcode
Master Barcode
41 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
Further information about decodable barcode types can be found in the ZEBRA Product Reference
Guide for the SE4750-HP Scan Engine.
Decoding options
Code type
1D barcodes
Code 39, Code 128, Code 93, Codabar/NW7,
2D barcodes
PDF417, Micro PDF417, Composite Codes,
4 Product description
4.9 Decodable barcode types
OCR (Optical Character Recognition) OCR-A/B, MICR-E13B, serial number of US
Table 41 Decodable barcode types
Code 11, MSI Plessey, UPC/EAN, I 2 of 5,
Korean 3 of 5, GS1 DataBar, Base 32 (Italian
Pharma)
TLC-39, Aztec, DataMatrix, MaxiCode, QRCode, Micro QR, Chinese Sensible (Han Xin),
Postcodes
currency
42 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Pay attention to the ambient conditions when storing the hand-held scanner and battery (see
Chapter 14).
The standard warranty period for batteries from BARTEC is 6 months, irrespective of whether they
are bought separately or together with a hand-held scanner.
Battery is UN38.3 conform.
30 %.
5 Transport and storage
5.1 Check the contents and condition of delivery
1. Unpack the product on delivery.
– Repack for transport to the product’s destination.
2. Check that the contents are complete (see Chapter 14).
3. Check all components for transport damage.
4. Report transport damage and missing components to the transport company and your local
BARTEC sales office immediately.
Keep the transport packaging for any future returns.
5.2 Storage
5 Transport and storage
5.2.1 Battery
Heat, cold, extreme environmental influences and serious damage caused by falls can lead to restricted
charge capacity, the rusting of metal parts and the escape of electrolyte.
There may a permanent reduction in quality if the battery is stored for more than six months.
Always store batteries charged to at least 50 % in a cool and dry place outside the device.
When storing for more than one year: check the state of charge at least once a year and charge
to at least 50 % of the charge capacity where necessary.
Replace the battery if there is a substantial reduction in the operating time.
Due to the transport guidelines for air freight, all batteries are delivered ex works charged to max.
43 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
6 Configuration
6 Configuration
6.1 Programming tools
Zebra offers a range of different tools for the programming and simple connection of the hand-held
scanners.
All tools are available to download from Zebra at the following address:
https://www.zebra.com/us/en/support-downloads/scanners/ultra-rugged-scanners/ds3608-hp-ds3678hp.html
Area:
6.1.1 Programming manuals
Various programming manuals for simple programming are available from Zebra. The scanner can be
set up with the help of the programming barcodes.
‒ DS36X8 Product Reference Guide
‒ Advanced Data Formatting Programmer Guide
‒ Multicode Data Formatting and Preferred Symbol User Guide
6.1.2 Zebra 123Scan Utility
BARTEC recommends using the Zebra 123Scan Utility for programming with the aid of a PC.
Zebra 123Scan Utility offers the following advantages:
‒ Simple and fast configuration of hand-held scanners
‒ Creation of profiles and saving the configurations on the PC
‒ Duplication of configurations on further hand-held scanners
‒ Firmware updates
‒ Other
The Zebra 123 Scan Tool only supports USB connection.
To use the Ex-certified hand-held scanners, plug-ins are required so that the 123Scan Utility recognizes
the connected scanners and a software update or configuration is possible.
The plugins are already implemented in the currently available versions.
When using older, not updated 123 Scan Tool applications, the plugin must be installed manually.
44 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Corded hand-held scanner BCS 3608ex
6 Configuration
The plugins can be downloaded from the BARTEC Support page at the following address:
http://automation.bartec.de/indexE.htm
- Data Capture (Barcode Scanner)
- BCS 3600 Hand-Held Scanner
- Driver & Plugins
The following plugins are available:
ex
‒ For the BCS 3608
‒ For the BCS 3678
Install Plugin
1. Start 123Scan Utility
series: DS3608-STANDARD SR MODELS-S-011.scnplg
ex
series: DS3678-STANDARD SR MODELS + CRADLE-S-002.scnplg
2. Select the Import plug-in into 123Scan² function in the Tools menu.
3. select and install plugin
The hand-held scanners are recognized by 123 Scan Utility as follows:
45 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
Bluetooth hand-held scanner BCS 3678ex
Programming cable
Potentially explosive atmosphere
Table 42 Recognition of BCS 3600ex series in Zebra 123Scan Tool
6.1.3 Required programming cables
The programming cables specified by BARTEC are required for programming on a PC in the safe area.
17-A1Z0-0020 BCS 36x8ex-IS Zone 1 / Div. 1
B7-A2Z0-0046 BCS 36x8ex-NI Zone 2 / Div. 2
Table 43 Programming cable
6.1.4 Further tools
Further tools can be found on the Zebra support page. One example is the “ScanToConnect Utility for
Android”. Using this tool, you can connect the Bluetooth hand-held scanner to a smartphone or tablet
in a single step without changing the configuration.
6.2 Manuals for general programming
The following programming manuals are available:
‒ Product Reference Guide
‒ Advanced Data Formatting (ADF)
‒ Multicode Data Formatting and Preferred Symbol
Advantage: programming is possible using programming barcodes also without a PC in the field
(potentially explosive atmosphere)
The programming manuals are available online at the following address:
https://www.zebra.com/us/en/support-downloads/scanners/ultra-rugged-scanners/ds3608-hp-ds3678hp.html
46 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
6.3 Programming for software developers
The following programming tools are available to software developers.
The programming tools are available online at the following address:
https://www.zebra.com/us/en/support-downloads/scanners/ultra-rugged-scanners/ds3608-hp-ds3678hp.html
6.3.1 Programming manuals
‒ Simple Serial Interface – Programmer’s Guide
‒ Cordless Simple Serial Interface – Programmer’s Guide
‒ Zebra Scanner SDK for Android - Developer Guide
‒ Zebra Scanner SDK for iOS - Developer Guide
Area:
6 Configuration
6.3.2 Developer tools
‒ Scanner SDK for Windows
‒ Scanner SDK for Android
‒ Scanner SDK for iOS
‒ EMDK for Xamarin (designed for Visual Studio or Xamarin Studio with Xamarin.Android)
Area:
6.3.3 Drivers
Details of the various drivers provided by Zebra can be found on the Zebra support page.
Area:
47 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
BARTEC
ZEBRA
BCS 3678ex
DS3678-HP
Detailed and full list of information and programming barcodes about “user preferences”
6.4 Functions
6.4.1 Comparison
In terms of function, the hand-held scanners are based on the original Zebra models.
BCS 3608ex DS3608-HP
Table 44 Comparison with ZEBRA hand-held scanners
With a few exceptions, the functions can be applied one-to-one as with Zebra.
When implementing a HID solution, a software wedge application must be installed on the PC / host
when using a universal power supply module (not distributed by BARTEC).
The software wedge application serves to convert the incoming data as keyboard input and to enter
the data into the currently active field on the PC / host.
The complete list of all functions with a detailed functional description can be found in ZEBRA's
Product Reference Guide.
Some important functions are explained in the following chapters.
6.4.2 General Device Settings (User Preferences)
A variety of settings on how the device should behave can be made using the Zebra Product Manual
or the 123 Scan Utility.
Examples:
- Beeper - Adjusts the sound, duration, and volume of the beeper.
- Consumption Mode - Enables or disables the Low Consumption Mode.
- Trigger Mode - Sets various trigger modes such as "Standard", "Presentation", "Auto Aim"
and others.
- Selection List Mode - The Selection List mode allows the digital scanner to decode only
barcodes aligned below the LED target.
See the Zebra documentation for a complete overview.
can be found in Zebra product reference guide “chapter 5 – user preferences”.
48 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
For pairing with the universal supply module:
The Universal Power Supply Module supports only one point-to-point connection.
6.4.3 Pairing (only with BCS 3678ex)
Pairing registers a hand-held scanner at the base station so that the hand-held scanner and base
station can exchange data and information.
The base station type 17-A1Z0-0014 and G7-A0Z0-0010 (functionally based on the Zebra STB3678)
operate in two modes:
- Point-to-point (point to point)
- Multipoint-to-Point (Multipoint to Point)
In point-to-point mode, the hand-held scanner is coupled to the base station either by plugging it into
the base station (if "Pair on Contacts" is enabled) or by scanning the pairing barcode at the base station.
In Multipoint-to-Point mode, you can connect up to seven scanners to one base station. To use this
feature, you must scan the Multipoint barcode in the Multipoint-to-Point Communication in ZEBRA's
Product Reference Guide.
6 Configuration
49 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
Numbe rof
Up to 7 BCS 3678ex can be connected to one base
Universal supply
One hand-held scanner can be connected to a UVM.
How many hand-held scanners can be connected to a
Bluetooth enabled device for more details.
Figure 17 Unpairing Barcode for bluetooth hand-held scanner
6.4.4 Number of Bluetooth Connections (only for BCS 3678ex)
Connection with
connections
Base station Up to 7
Comments
station.
A point-to-point connection is activated in the basic
settings.
A multipoint connection can be activated via the
programming manual.
Chapter 4 "Radio Communications
Point-to-Point Mode: (Default)
Multipoint-to-Point Mode:
6.4.5 Unpairing the Bluetooth hand-held scanner
module (USM)
Bluetooth devices
Table 45 Connection possibilities of the BCS 3678ex
1
Depends on the
used device
A multipoint connection is not supported.
Bluetooth device depends on the Bluetooth module
installed.
Please refer to the product descriptions of your
Scan the unpairing barcode with the hand-held scanner
The hand-held scanner is unpaired from the USM
50 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
The digital scanner has sufficient on-board memory to store 500 barcodes of typical size
30,720 Byte memory / (number of characters in barcode + 3)
If the batch mode selection is changed while data is in batch mode, the new batch mode will not
take effect until all previously stacked data has been sent.
Detailed information and programmable codes for "out of range" and "batch mode" can be found in
the Zebra product reference system "Chapter 4 - Radio Communication".
6 Configuration
6.4.6 Pairing with other Bluetooth-enabled devices (only with BCS 3678ex)
The hand-held scanner can communicate with other devices via Bluetooth or by pairing with a base
station. Detailed information about the operating modes, Bluetooth and pairing can be found in the
ZEBRA Product Reference Guide in Chapter 4 “Radio Communications”.
6.4.7 Scanning when out of range - Out of Range & Batch Mode (only with BCS 3678ex)
If there is a radio link between the hand-held scanner and the base station, the hand-held scanner
transmits all scanned data immediately after scanning the barcode.
If there is no radio connection, the scanning of barcode data is not possible (basic setting).
If the Out-of-Range Scanning function is enabled, barcode data can also be scanned outside the radio
range of the base station. All scanned data is buffered in the hand-held scanner until the radio link is
available.
The digital scanner supports five versions of the batch mode. If the digital scanner is configured for one
of the batch modes, it will attempt to store barcode data (not parameter barcodes) until transmission is
initialized or the maximum number of barcodes is stored. When a barcode has been successfully saved,
a decoding tone sounds and the LED flashes green. If the digital scanner cannot save a new barcode,
a beep sounds.
(UPC/EAN).
Number of barcodes that can be stored =
Operating modes
- Normal (Standard)
No batch data. The digital scanner attempts to transfer each scanned barcode.
- Batch mode out of range
The digital scanner starts storing barcode data when it loses its connection to a remote device
(e.g. when a user holding the digital scanner goes out of range). The data transfer is triggered
by re-establishing the connection with the remote device (e.g. when a user holding the digital
scanner returns to range).
- Standard Batch Mode
The digital scanner starts saving barcode data after the batch mode has been activated. Data
transmission is triggered by scanning transmission batch data.
51 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
Detailed information and programmable codes for "Prefix" and "Suffix" can be found in the Zebra
Another way to set up prefix and suffix is to use the Zebra 123 Scan Utility.
Start
Data length
Prefix
Scanned data
Suffix
End
- Cradle Contact Batch Mode
The digital scanner starts saving barcode data when batch mode is activated. Data transfer
is initiated by inserting the digital scanner into the holder.
- Batch Mode Only
The scanner radio is turned off and the scanner stores all barcode data. The data transfer is
triggered by inserting the scanner into the holder.
- Batch Mode Parameters
When parameter batch mode is enabled and there is no connection to the base station, the
scanner starts saving parameter barcode data intended for the base station. The transfer of
the parameter barcode is triggered by inserting the scanner into the base station. The Batch
Mode parameter is exited at the end of the transfer. Alternatively, the dosing of parameter
barcodes can be aborted by scanning the output parameter batch mode before inserting the
scanner into the holder.
The parameter batch mode can be used when the station and/or scanner is configured with
the radio turned off or connected to a non-battery charger.
Prefix and Suffix
Product Reference Manual "Chapter 5 - User Settings & Other Options --- User Settings --Prefix/Suffix Values".
Data chain
Prefix: Add a character or string before the scanned data.
Suffix: Adds a character or string after the scanned data.
Adding an Enter key
To add an Enter key (carriage return/line feed) after the scanned data, scan the following barcode.
To program other prefixes and/or suffixes, refer to the Zebra Product Reference Guide.
Adding an Enter field (Carriage Return/Line
Feed)
Table 46 Barcode for adding an Enter field
52 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
6.4.9 Advanced Data Formatting (ADF)
Advanced Data Formatting (ADF) - Scan one bar code per trigger pull
Advanced Data Formatting (ADF) is a means of customizing data from before transmission to the
host device. Use ADF to edit scan data to suit your host's requirements. With ADF you scan one bar
code per trigger pull. ADF is programmed using 123Scan.
For an ADF tutorial and a 123Scan programming example, go to the 123Scan section of our How To
Videos:
http://www.zebra.com/ScannerHowToVideos
For additional information, refer to the “Advanced Data Formatting” Programmer Guide.
“Advanced Data Formatting“ programmer Guide, p/n 72E-69680-xx - provides information on ADF, a
means of customizing data before transmission to a host.
6.4.10 Multicode Data Formatting (MDF)
Multicode Data Formatting (MDF) - Scan many bar codes in one trigger pull
6 Configuration
Multicode Data Formatting (MDF) enables a 2D imaging scanner to scan all bar codes on a label with
a single trigger pull, and then modify and transmit the data to meet host application requirements.
MDF supports programming up to nine unique labels into one scanner. MDF also supports scanning
multiple bar codes on opposite sides of a box by holding the trigger.
Programming options include:
- Output all or specific bar codes
- Control the bar code output sequence
- Apply unique multicode data formatting (MDF) to each output bar code
- Discard scanned data if all required bar codes are not present
For an MDF tutorial and a 123Scan programming example, go to the 123Scan section of our How To
Videos:
http://www.zebra.com/ScannerHowToVideos
For more information, refer to the ”Multicode Data Formatting and Preferred Symbol” User Guide.
”Multicode Data Formatting and Preferred Symbol”, p/n MN-002895-xx - provides information on multi
code, data formatting, rules and preferred symbol prioritization.
Programming Options
Using 123Scan, programming an MDF Group is similar to setting an ADF rule. MDF programming is
saved in the 123Scan configuration file.
MDF can be deployed to a fleet of 2D imaging scanners using the Scanner Management Service
(SMS) through a traditional SMS package.
53 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
MDF Terms and Definitions
- Multicode - Industry term for the ability to scan multiple bar codes with one trigger pull.
- Multicode Data Formatting (MDF) - Zebra's name for Multicode.
- MDF Session - The act of decoding a label from trigger pull to either data transmission or
decode session termination.
- MDF Group - The complete set of commands for processing a single label which contains
multiple bar codes. 123Scan can program from one to nine MDF Groups.
- MDF Rule - The programming steps for processing a single bar code. Similar to an ADF
Rule, the MDF Rule contains both criteria and actions. One MDF Rule identifies a single
bar code and how to format its data; more bar codes require more MDF Rules.
- Pattern Match - The criteria used to determine if a set of scanned bar codes qualify for
Multicode Data Formatting. If the pattern match criteria are not met, Multicode Data
Formatting is not applied.
Each bar code within the pattern match is defined according to the bar code criteria identified below.
- Code Type
This is a required field when specifying a bar code within the pattern match.
- Code Length
This is an optional field when specifying a bar code within the pattern match.
- String
This is an optional field when specifying a bar code within the pattern match.
- String Starting Position
Specific location: This is an optional field when specifying a bar code within the pattern
match.
Preferred Symbol
Preferred Symbol is a bar code prioritization technique that enables favored decoding of user
designated high priority bar code(s). The Preferred Symbol is the only bar code that is decoded and
output within the preset Preferred Symbol Timeout. During this time, the scanner attempts to decode
the prioritized bar code and reports only this bar code.
For more information, refer to the MDF and Preferred Symbol User Guide.
Programming Options
To program Preferred Symbol via 123Scan, select 123Scan > Configuration Wizard >
Symbologies screen, and then select Preferred Symbol from the drop-down menu. Preferred
Symbol programming is saved in the 123Scan configuration file.
Preferred Symbol can be deployed to a fleet of 2D imaging scanners using the Scanner Management
Service (SMS) through a traditional SMS package.
54 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
6 Configuration
6.5 Pairing options for Bluetooth hand-held scanner (only for BCS 3678ex)
6.5.1 Radio Communication General
This chapter provides information about the operating modes and functions available for wireless
communication between the BCS 3678
Power Supply Module, and other Bluetooth enabled devices.
Associated with this section is the Zebra "Product Reference Guide" for the DS36X8.
Available on the BARTEC or Zebra Support website.
Contents:
- General information on radio communication
- programmable codes
- Detailed instructions on all available settings
- Default settings of the radio communication parameters
- Host types of radio communication
- Bluetooth Friendly Name
- Wi-Fi friendly mode
- radio output power
- Bluetooth radio status
- HID host parameters
- Try reconnecting the beeper feedback.
- Overrange indicator
- Digital scanner for charging station (base station) Support
- paddocks
- batch mode
- Bluetooth security
- Bluetooth radio, linking and batch operation
ex
Wireless Digital Scanner, Base Station (Cradle), Universal
55 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
Interfaces
Distances
Connection cable
USB (HID or SPP)
4,5 m*
Yes, see accessories list for the respective Ex-version
of the scanner.
RS232
4,5 m**
Keyboard Wedge
4,5 m
On request (no cables in current program)
IBM 468X/469X
4,5 m
On request (no cables in current program)
Maximum functional ranges below.
** Maximum working range for RS232 is 15m.
6.5.2 Pairing between Bluetooth hand-held scanner and base station (cradle)
Base station is installed in the safe area and connected to a PC. The following interfaces are supported:
Extension cables are not included in the product range.
* Maximum working range for USB is 5m.
Figure 18 Connection example between BCS 3678ex and the base station
There are two methods to realize the pairing with the base station.
Pairing – Methode 1
Each base station has an individual barcode for pairing.
The MAC address of the base station is stored in the barcode.
By scanning the pairing barcode in the default setting, a scanner can establish a point-to-point
connection with a base station.
Figure 19 Representation of the pairing between scanner and base station
56 / 106
Use the hand-held scanner to scan the barcode (1) attached to the base station.
The hand-held scanner is connected to the base station and ready for use.
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
The barcode can be recreated using the Zebra 123Scan tool in case the barcode is damaged or
The required MAC address can be found on the type lable of the base station.
If the BCS 3678ex is paired with other Bluetooth devices (not with the base station) we recommend
may establish the
connection with the base station. This will delete the connection with other Bluetooth devices.
6 Configuration
detached.
Pairing - Method 2
With this method, the scanner automatically connects to the contacts when inserted into the base
station.
It is not necessary to scan the base station barcode.
If the pairing is successful, a low/high connection beep will sound a few seconds after the digital
scanner is inserted into the docking station. More audio sequences can be found in the Zebra "Product
Reference Guide" under Definitions for the Wireless Beeper.
In the default settings, pairing via the base station contacts (Enable Pair on Contacts) is enabled.
Enable Pair On Contacts
Default = activated (Enabled)
Disable Pair on Contacts
Table 47 Pairing barcodes for the connection to the base station
to deactivate the function "Pair on Contacts". Otherwise the BCS 3678ex
57 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
Interfaces
Max.
Distance
Connection cable
(USM to PC/Host)
USB (SPP)
5 m
Yes
cable or other shielded cable
RS232
15 m
RS422
1000 m
RS485
1200 m
Bluetooth Serial Port Profile (Master)
6.5.3 Pairing between Bluetooth hand-held scanner and universal power supply module
The USM can be installed in hazardous areas and connected to a PC.
The following interfaces are supported:
Connection cables are not included in the scope of
delivery and are not offered by BARTEC.
Use commercially available shielded data cables to avoid
external interference. Recommendation: e.g. min. CAT5
Table 48 Interfaces of the USM
USB-HID is not supported!
Figure 20 Connection example of the USM with the BCS 3678ex
Pairing
Two barcodes are attached to each USM. The "Master Barcode" is located in the cover.
Figure 21 Display of the attached master barcode at the UVM
If the digital scanner is configured as Master (SPP), the radio connection to a Slave device is
established. The connection is initiated by scanning a pairing barcode for the remote device.
The pairing barcode for the remote device is attached to the outside of the universal supply module
(USM).
58 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
The barcode for the pairing contains the MAC address of the installed BT module. The MAC address
is printed on the cover.
The barcode can be recreated using the Zebra 123Scan tool in case the barcode is damaged or has
chip (marked red in the picture).
Figure 23 Display of the MAC address of the USM
Figure 22 Display of the attached pairing barcode
Abbildung 2 Darstellung des angebrachten Pairing Barcode
Use the hand-held scanner to scan the barcodes in the following order.
1. Scan the Bluetooth Serial Port Profile (Master) in the cover.
2. Scan the pairing barcode (Scan To Connect) on the outside of the cover.
The hand-held scanner is connected to the USM and ready for use.
6 Configuration
become detached.
The required MAC address can be found on the type lable of the base station or on the Bluetooth
59 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
Interfaces
Explanation
Keyboard Emulation (HID) / Keyboard Emulation (HID)
This function is not supported for connection via USM.
Serial Port Profile (SPP)
- SPP BT Classic (Discoverable)
Simple Serial Interface (SSI) / Simple Serial Interface (SSI)
- SSI BT LE
For more information and detailed descriptions, refer to the Zebra "Product Reference Guide" for
Chapter 4 - "Radio Communication
Explanation
Example
The hand-held scanner can
be connected to other
Bluetooth capable BARTEC
manufacturers)
held scanner can
6.5.4 Pairing between Bluetooth hand-held scanner and Bluetooth enabled device
The hand-held scanner can also be connected directly to any Bluetooth enabled device via Bluetooth
(pairing).
The following interfaces are supported:
Select this host type when connecting to a PC / Tablet / Phone that simulates a
Bluetooth keyboard.
USB (HID)
USB (SPP)
Available Modes:
- HID Bluetooth Classic
- HID BT LE (Discoverable)
Select this host type when connecting to a PC / Tablet / Phone via a Bluetooth
serial connection.
- SPP BT Classic (Non-Discoverable)
Select this host type when connecting to a mobile Zebra device or a PC / Tablet
USB (SSI)
/ Phone with Zebra scanner SDK app.
- SSI BT Classic (Non-Discoverable)
- SSI BT Classic (Discoverable)
Table 49 Supported interfaces with other Bluetooth enabled device
the DS36X8.
devices in Ex-areas and safe
areas.
In the example with the Tablet
PC's of the Agile X series.
(Also possible with devices of
other Ex device
The handbe connected to all Bluetooth
enabled device
Table 50 Connection examples of the BCS 3678ex with Bluetooth enabled device
60 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Prepare the hand-held scanner for pairing with other
connection.
For more information and detailed descriptions, refer to the Zebra "Product Reference Guide" for
Chapter 4 - "Radio Communication
6 Configuration
There are the following methods to realize pairing with Bluetooth enabled device.
Pairing – Programmable codes for different host types
Scanning the respective programmable code from the corresponding Zebra "Product Reference Guide"
for the DS36X8.
Chapter 4 - "Radio Communication" - "Host Types
- Keyboard Emulation
- Simple Serial Interface (SSI)
- Serial Port Profile (SPP)
Detailed explanations of the individual host types can be found in the Zebra manual.
Pairing – Keyboard Emulation
The most common method to connect the hand-held scanner to a Bluetooth enabled device is
described in detail below.
Bluetooth enabled device.
Keyboard Emulation (HID)
"HID BT LE (Discoverable) scanning the barcode.
Enables the host PC to establish an HID (Human Interface
Device) connection to the hand-held scanner via Bluetooth
low-energy radio. The hand-held scanner can be recognized
on the host PC (slave mode).
How to establish a connection (initial setup only):
- Scan the barcode HID BT LE (Discoverable).
- In the Bluetooth Manager on your host PC, find
the hand-held scanner as a "DS36xx" device.
- - Select your hand-held scanner and establish the
HID BT LE (Discoverable)
Table 51 Connection of Bluetooth enabled devices using a pairing barcode
the DS36X8.
61 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
The applications are compatible with the following systems:
Android
v4.4
v8.0
Windows
Windows 7
Windows PC / Tablet operating system
The latest versions, requirements and further information can be found in the corresponding Zebra
Pairing – Scan-To-Connect Application from Zebra
Another way to create a simple pairing is to use the Scan-To-Connect application from Zebra.
The application can be downloaded from the Zebra Support page or from the Google Play Store.
Zebra Support page:
https://www.zebra.com/us/en/support-downloads.html
- Barcode Scanners
- Ultra Rugged Scanners --- DS3608-HP/DS3678-HP
- Utility - Select Scan-To-Connect for Android or Windows
v5.x
v6.x
v7.x
Windows 8.1
Windows 10
Installation requirements
hardware requirements
Pentium Dual-Core E214 1.6 GHz or Pentium Mobile Dual Core T2060 or
Pentium Celeron E1200 1.6 GHz
2 GB RAM
1.2 GB free hard disk space
Minimum display resolution = 1024 x 768 pixels
Operating system requirements
Scan-To-Connect is compatible with the native Bluetooth driver of your
Table 52 Scan To Connect Connection to Bluetooth enabled device
product descriptions.
With the Scan-To-Connect application, a Bluetooth scanner can be connected directly to a
PC/Tablet/Smartphone by scanning a barcode on the display. No printed pairing barcode is required.
This paperless pairing solution connects the scanner directly to the host without the need for a docking
station.
Once a scanner and host are paired, no rescanning of the Scan-To-Connect Pairing barcode is
required, even if the device is woken up/activated (Wake Up), provided automatic reconnection has
been enabled.
Unlike the standard HID keyboard, the STC utility supports the extended HID keyboard, which ensures
that your data is received by your Windows PC. If it is damaged, it will be retransmitted. If it is lost, you
will hear an error tone to rescan the object.
62 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
GEF AHR
Caution Voltage when opening the housing.
Risk of death due to electric shock!
Bluetooth - LED flashes red/orange
Bluetooth – LED flashes green
Check if pairing is OK
Whether the scanner is paired can be checked in the following way.
At the universal supply module (only in the safe area):
An LED (green) on the built-in Bluetooth chip flashes every second.
6 Configuration
Figure 24 Checking the connection of the hand-held scanenr with the UVM
At the scanner:
Not paired
Figure 25 Checking the connection between hand-held scanner and USM on the BCS 3678ex
paired
Radio ranges
The digital scanner BCS 3678ex is equipped with a Bluetooth Class 1 radio which achieves a range
up to 100m (open air, line of sight). The actual range is affected by the presence of other radios,
shelving and wall materials, as well as the type of mount being tested. The surrounding areas are
very different and often influence the radio ranges.
63 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
Status
Factory settings
BCS 3678ex-NI
BCS 3678ex-IS
High – green LED
50 %
Middle – orange LED
20 %
Low – red LED
10 %
6.5.7 Creating Pairing Barcodes with Zebra 123 Scan Utility
Start the Zebra 123Scan Tool application.
Select the following menu items in the start screen.
In the field "Pairing value": enter the MAC address of the Bluetooth module.
"Select "generate bar code
Then scan the two barcodes one after the other for pairing.
6.6 Threshold values for battery level for Bluetooth hand-held scanners
64 / 106
The thresholds for displaying the battery status are defined as follows:
Overall condition Low 60 %
Table 53 Thresholds
However, you can change the threshold values individually within the value range from 0 to 99 %.
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Barcode to adjust the status LED display of the BCS 3678ex-IS version:
Due to the Ex modifications of the BCS 3678ex-IS series, the default values of Zebra can no longer
For configuration information, see the ZEBRA Product Reference Guide.
Table 54 Barcode to adjust the status LED
be adopted 1 to 1.
With the help of the barcode the values for the different LED statuses are adapted.
Default values of the hand-held scanner
6 Configuration
A list of all default values of the hand-held scanners can be found in the Zebra product manual.
Zebra Product Reference Guide - Apendix A - Standard Default Parameters.
Further information on the hand-held scanner default values and the reset options can be found
under:
Zebra Product Reference Guide - Chapter 5 - User Preferences & Miscellaneous Options --- User
Preferences --- Default Parameters
65 / 106
6 Configuration
Handscanner
BCS 3600ex series
Subject to technical modifications
Default values of the universal supply module
The following table lists the default values of the serial interfaces.
Interface
USM
interface parameter
USB-HID Interfaces for BCS 3608ex for BCS 3678ex
Is not supported Is not supported
USB-SPP interfaces for BCS 3608ex for BCS 3678ex
Baud Rate 9600 Baud 115200 Baud
Parität None None
Stopp bits 1 Bit 1 Bit
Data bits 8 Bit 8 Bit
Hardware Handshake None None
Software Handshake None None
RS232 Interfaces for BCS 3608ex for BCS 3678ex
Baud Rate 9600 Baud 115200 Baud
Parity None None
Stopp bits 1 Bit 1 Bit
Data bits 8 Bit 8 Bit
Hardware Handshake None None
Software Handshake None None
RS422 Interfaces for BCS 3608ex for BCS 3678ex
Baud Rate 9600 Baud 115200 Baud
Standard RS422 Interface
RS485 Interface for BCS 3608ex for BCS 3678ex
Baud Rate 9600 Baud 115200
Standard RS485 Interface
Table 55 Default values of the serial interfaces
66 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
6.6.3 Programming the interface parameters
Programming the universal supply module corded:
The universal supply module transmits the data of the serial interface 1 to 1.
In order to establish a connection with a PC, the interface parameters on the hand-held scanner and
the PC/host must be identical.
The interface parameters of the hand-held scanner can be adjusted via the programmable codes in the
Zebra product manual or by using the Zebra 123 Scan Utility.
The interface parameters of the PC/host can be adjusted via the settings e.g. in the device manager.
Programming the universal supply module Bluetooth:
The Bluetooth hand-held scanner is connected to the USM via Bluetooth.
Interface parameters cannot therefore be adjusted on the Bluetooth hand-held scanner (e.g. by
scanning programmable codes or via 123 Scan Utility).
The settings are made directly on the USM Bluetooth.
There is a separate manual for programming on the BARTEC Support Download page.
http://automation.bartec.de/indexE.htm
The manual describes the programming of the baud rate via a terminal program. The Bluetooth USM
must be connected to a PC via a serial interface (RS232 or USB-SPP). A terminal program is required
on the PC to transfer the settings.
Programming of the hand-held scanner:
The interface parameters of the hand-held scanner can be adjusted via the programmable codes in
the Zebra Product Manual or when using the Zebra 123 Scan Utility.
6 Configuration
67 / 106
7 Connection /
personnel)
Subject to technical modifications
DANG ER
Spark formation when connecting a cable!
cable outside the potentially explosive atmosphere.
The function is only guaranteed if the cables you connect for your configuration have been specified
by BARTEC (see system overview, Chapter 15.2).
commissioning (qualified
7 Connection / commissioning (qualified personnel)
Explosion.
Always have cables connected by a qualified electrician.
Only connect or disconnect a cable in the potentially explosive atmosphere when the cable
is not connected to the power supply.
If the cable cannot be disconnected from the power supply, only connect or disconnect the
7.1 Corded hand-held scanner BCS 3608ex-NI / BCS 3608ex-IS
7.1.1 Connecting the connection cable to the hand-held scanner
Handscanner
BCS 3600ex series
1. Insert the connection cable completely in the hand-held scanner.
2. Insert the plug until it lies flush with the surface of the hand-held scanner.
3. Unscrew the Phillips screw on the safety lock.
68 / 106
Revision A / 04/2019
7 Connection /
personnel)
Subject to technical modifications
Revision A / 04/2019
DANG ER
connection cable coming unplugged
Close the safety lock carefully.
Handscanner
BCS 3600ex series
4. Push the safety lock into the closed position.
Spark formation caused by the
Explosion.
commissioning (qualified
!
5. Screw the Phillips screw on the safety lock tight.
69 / 106
7 Connection /
personnel)
Subject to technical modifications
DANG ER
Non-approved accessories!
BARTEC.
commissioning (qualified
7.2 Universal supply module
7.2.1 Establishing universal supply module connections
Loss of function and risk of explosion.
Only use universal supply modules that have been specified for the relevant configuration by
The approved accessories are shown in the system overview (see system overview, Chapter 15.2).
The model is clearly indicated on the type label.
The universal supply module is mounted to a secure base.
Handscanner
BCS 3600ex series
Figure 26 Mounting the hand-held scanner with the Universal Supply Module
1. When using the corded hand-held scanner: connect the connection cable of the hand-held
scanner to the USM, turning the connection cable clockwise to screw tight.
2. When using the Bluetooth hand-held scanner: connect the hand-held scanner via pairing to the
USM (see Chapter 6.4.1).
3. Feed the connection cable for the power supply through the cable gland into the USM.
4. Feed the data cable between the PC and universal supply module through the cable gland into
the USM.
5. Connect the connection cable for the power supply to the USM according to the terminal
connection plan (see Chapter 4.6.1).
6. Connect the data cable between the PC and USM to the USM according to the terminal connection
plan and interface type (see Chapter 4.6.1).
7. Check connections and terminal assignments.
8. Connect data cable between the PC and USM to the PC.
9. Set the DIP switch (see Chapter 4.6.2 for configuration).
10. Close the cover of the USM.
11. Connect the connection cable for the power supply to the power source.
12. For connection to an HID device or to a PLC: note further information on the interfaces (HID
device: see Chapter 7.2.2; PLC: see Chapter 7.2.3)
70 / 106
Revision A / 04/2019
7 Connection /
personnel)
Subject to technical modifications
Revision A / 04/2019
How the data is processed at the SPS/PLC and what has to be set at the scanner is the responsibility
data (read/write routine).
An example project for scanner connection to a Siemens Simatic-S7 SPS/PLC is available on the
- Sample project for use as a project template
Handscanner
BCS 3600ex series
commissioning (qualified
7.2.2 Connecting the USM to an HID device
All interfaces used on the USM (USB, RS232, RS422 and RS485) can be connected to an HID device.
The prerequisite is a software wedge application on the PC / host using which the interface data can
be converted into USB-HID. Software wedge applications are not supplied by BARTEC, but they are
available on the market (e.g. T-Wedge).
7.2.3 Connecting the USM to a PLC
All used interfaces of the USM (USB, RS232, RS422 and RS485) can be connected to a PLC.
There are a number of different manufacturers for SPS/PLC. The connection of a hand-held scanner
depends on the availability of an interface to the SPS/PLC and the ability of the SPS/PLC to process
the incoming data. The SPS/PLC must support the open ASCII protocol.
There is no compatibility list.
The following must be observed when connecting to a PLC:
- What interfaces are available on the SPS/PLC? The USM supports the following interfaces.
- USB-SPP (virtual serial interface)
- RS232
- RS422
- RS485
The SPS/PLC supports the open ASCII protocol.
- What interface parameters are set on the SPS/PLC?
All interconnected components must be set to the same parameters. Otherwise a
communication cannot function correctly or not at all.
- Baud Rate
- parity
- Stop Bit
- Data Bit
- Hardware/Software Handshaking
of the plant operator.
For example, a serial interface has no intelligence of its own and cannot process incoming data
independently. This means that the controller must monitor the serial interface and process incoming
BARTEC Support Download page.
http://automation.bartec.de/indexE.htm
Content:
- Description with components used
71 / 106
7 Connection /
personnel)
Subject to technical modifications
commissioning (qualified
Handscanner
BCS 3600ex series
Solution 1: Availability on the SPS/PLC side
Figure 27 Availability on the PLC side
‒ Communication controller / processor (CP)
‒ Open ASCII driver
Solution 2: Availability on the PROFIBUS DP side
72 / 106
Figure 28 Availability on the DP side
- PROFIBUS DP converter to serial
or
- PROFIBUS compatible terminal equipment such as HMI Polaris with the possibility of
connecting the scanner
Revision A / 04/2019
7 Connection /
personnel)
Subject to technical modifications
Revision A / 04/2019
DANG ER
Spark formation when connecting a cable!
Only use the base station outside the potentially explosive atmosphere.
‒ Power is supplied to the base station either by means of the connection cable to the host PC if
possible that the base station will be unable to establish any connection to a new host PC.
Handscanner
BCS 3600ex series
7.3 Bluetooth hand-held scanner BCS 3678ex-NI / BCS 3678ex-IS
7.3.1 Connecting the base station to the host PC and power source
Explosion.
this is conductive or using a separate power connection. Further information about the power
supply to the base station can be found in the ZEBRA Product Reference Guide.
‒ If a separate power cable is used, this must always be disconnected from the power source
before disconnecting the data cable from the host PC or from the base station. It is otherwise
1. Connect the data cable to the host PC.
commissioning (qualified
2. Open the cover, connect the data cable and close the cover.
3. Feed the connection cable through the cable gland.
4. Connect the base station to the power source.
73 / 106
7 Connection /
personnel)
Subject to technical modifications
Connection via USB
Connection via RS232
BCS 3678ex-IS-Version
CSA Class I, II, III Division 1
BCS 3678ex-NI-Version
CSA Class I, II, III Division 2
Base station for hand-held
Bluetooth
RS232; 1.9 m (plain)
programming cable
RS232; 2 m (plain)
- Type: G7-A0Z0-0018
Power supply with DC
connecting cable
Note on the power supply of the base station via the PC/Host:
The charging current via the USB interface is too low to allow a fast charging of the battery.
Non Ex-area
Non Ex-area
commissioning (qualified
Figure 29 Connecting the AC Cable
Needed power supply:
Part
scanner BCS 3678ex
Handscanner
BCS 3600ex series
ATEX / IECEx Zone 1/21
Type: 17-A1Z0-0014 Type: G7-A0Z0-0010
ATEX / IECEx Zone 2/22
Connecting cable
- Connection between
base station and PC
- With terminal for
12V power supply
- Type: 17-A1Z0-0026
RS232; 4.5 m (plain)
- Type: 17-A1Z0-0027
USB; 1.9 m (plain)
- Type: 17-A1Z0-0020
Identical with
- Type: G7-A0Z0-0014
RS232; 4.6 m (plain)
- Type: G7-A0Z0-0015
RS232; 2.8 m (spiral)
- Type: G7-A0Z0-0016
USB; 2 m (plain)
Type: G7-A0Z0-0019
Table 56 Needed power supply
RS232:
The RS232 does not provide a supply voltage to operate the base station functionally.
External power supply of type G7-A0Z0-0019 is mandatory.
USB:
The supply voltage via the USB interface is sufficient to ensure data transmission via the base
station.
If the base station is also used as a charging station it is strongly recommended to use an external
power supply type G7-A0Z0-0019.
74 / 106
Revision A / 04/2019
7 Connection /
personnel)
Subject to technical modifications
Revision A / 04/2019
The function is only guaranteed if the cables you connect for your configuration have been specified
by BARTEC (see system overview, Chapter 15.2, P. 104).
Handscanner
BCS 3600ex series
commissioning (qualified
7.4 Connecting to the HMI: connecting the hand-held scanner to the HMI
Pay attention to the HMI manual.
When connecting to an HMI or other device, it must be ensured that the Ex-technically relevant values
are not exceeded or undercut.
Chapter 3.5 Observe Ex-relevant values when connecting to UVM or other systems.
Furthermore, it must be noted that the functional values listed in chapter 3.5 are also observed.
Connect the connection cable of the hand-held scanner in the HMI to the terminals provided for
this purpose.
75 / 106
7 Connection /
personnel)
Subject to technical modifications
USM-Bluetooth with USB-SPP
PC/Host with USB Interface
USM-corded with USB-SPP
PC/Host with USB Interface
Wiring:
Dip-Switch:
S4 = 1 = Bluetooth Version
commissioning (qualified
Wiring diagram for Universal Supply Module (USM)
USM with USB-SPP Interface
Handscanner
BCS 3600ex series
USB-SPP = Serial Port Profile
USB = virtual serial COM port
USB-SPP = Serial Port Profile
USB = virtual serial COM port
Blue wire necessary (example connection to AC)
Green line necessary
For data cables, we strongly recommend to use shielded (e.g. CAT5, similar or higher quality)
cables.
Max. cable length is 5 m USM-Bluetooth
Max. cable length is 5 m USM-corded
76 / 106
S1 to S4 = Setup for interface
S4 = 0 = Corded Version
Revision A / 04/2019
7 Connection /
personnel)
Subject to technical modifications
Revision A / 04/2019
USM-Bluetooth with RS232
PC/Host with serial
USM-corded with RS232
PC/Host with serial
Wiring:
Dip-Switch:
S4 = 1 = Bluetooth Version
Handscanner
BCS 3600ex series
USM with RS232 Interface
RS232-interface
Max. cable length is 15 m USM-Bluetooth
commissioning (qualified
RS232-interface
Blue wire necessary (example connection to AC)
Green line necessary
Orange line optional only when using software and/or
Hardware-Handshake required
For data lines (green and orange) we strongly recommend to use shielded (e.g. CAT5, similar or
higher quality) cables.
Max. cable length is 15 m USM-corded
S1 to S4 = Setup for interface
S4 = 0 = Corded Version
77 / 106
7 Connection /
personnel)
Subject to technical modifications
USM-Bluetooth with RS422
PC/Host with serial
Max. cable length is
USM-corded with RS422
PC/Host with serial
Max. cable length is
Wiring:
Dip-Switch:
S4 = 1 = Bluetooth Version
commissioning (qualified
USM with RS422 Interface
RS422-interface
1000m
Handscanner
BCS 3600ex series
USM-Bluetooth
RS422-interface
Blue wire necessary (example connection to AC)
Green line necessary
Orange line optional to use only for large potential differences.
For data lines (green and orange) we strongly recommend to use shielded (e.g. CAT5, similar or
higher quality) cables.
1000m
USM-corded
S1 to S4 = Setup for interface
S4 = 0 = Corded Version
78 / 106
Revision A / 04/2019
7 Connection /
personnel)
Subject to technical modifications
Revision A / 04/2019
USM-Bluetooth with RS485
PC/Host with serial
Max cable length is
USM-corded with RS485
PC/Host with serial
Max cable length is
Wiring:
Dip-Switch:
S4 = 1 = Bluetooth Version
Handscanner
BCS 3600ex series
USM with RS485 Interface
RS485-interface
1200m
commissioning (qualified
USM-Bluetooth
RS485-interface
Blue wire necessary (example connection to AC)
Green line necessary
Orange line connect shield to equipotential bonding
For data lines (green and orange) we strongly recommend to use shielded (e.g. CAT5, similar or
higher quality) cables.
1200m
USM-corded
S1 to S4 = Setup for interface
S4 = 0 = Corded Version
79 / 106
7 Connection /
personnel)
Subject to technical modifications
commissioning (qualified
Handscanner
BCS 3600ex series
Explanation of the interfaces
- USB HID (Human Interface Device)
The digital scanner establishes a connection to the base station or PC / host via Bluetooth
and functions like a keyboard.
USB (Universal Serial Bus) is also a serial bus. The data transfer takes place via 2 lines (D+
and D-). Two further lines serve the power supply of the connected devices.
- USB SPP (Serial Port Profile)
Der digitale Scanner stellt über Bluetooth eine Verbindung zur Basisstation oder UniversalVersorgungsmodul oder PC / Host her und fungiert als serielle Verbindung.
- RS232 (Recommended Standard 232 – differential serial interface)
The digital scanner establishes a connection to the base station or USM or PC / host via
Bluetooth and functions as a serial connection.
In automation technology, only three lines are usually used from the RS-232 interface.
TxD (Transmit Data) for transmitting
RxD (Receive Data) for reception
GND cable for the common reference potential
There is no data transmission without connection of the GND line.
The RS-232 interface is not bus-capable and can only be used for point-to-point connections.
Functionally ranges up to 15m are possible.
- RS422 (Recommended Standard 422 – symmetric serial interface)
The digital scanner establishes a connection to the base station or universal power supply
module or PC / host via Bluetooth and functions as a serial connection.
Data transmission is via a four-wire line.
All participants transmit via the data lines TxD+ and TxD- and receive via RxD+ and RxD-.
The GND line is only to be used for large potential differences and should not be absolutely
necessary.
The RS422 interface is less sensitive to interference than the RS232 interface. The reason
for this is that the difference is always considered in the line levels. An electromagnetic
interference would increase the potential on both lines to the same extent. Thus the
interference would have no influence on the differential signal. (For comparison: With the
RS232 interface, the interference would only have an influence on the signal lines, but not
on the reference potential).
The RS422 interface is bus-capable.
Functionally, ranges of up to 1000m are possible. It may also be possible to install repeaters
in the bus for power amplification.
80 / 106
Revision A / 04/2019
7 Connection /
personnel)
Subject to technical modifications
Revision A / 04/2019
When using the serial interfaces, please note that software is required to process the data on the
Use of a software keyboard wedge.
Handscanner
BCS 3600ex series
commissioning (qualified
- RS485 (Recommended Standard 485 – asynchronous serial interface)
D The digital scanner establishes a connection to the base station or universal power supply
module or PC / host via Bluetooth and functions as a serial connection.
Data transmission is via a two-wire line.
The RS485 interface has similar characteristics to the RS422 interface.
Ranges of up to 1200m can be achieved.
The RS485 interface is bus compatible.
The same applies to repeaters, immunity to interference and voltage levels as described via
the RS422 interface.
The big difference and big advantage of the RS485 interface is that only 2 data lines are
needed. The participants send and receive via the lines TxD/RxD+ and TxD/RxD-. This
results in less installation effort.
- Keyboard Wedge
This interface connects the digital scanner between the keyboard and the host computer and
translates barcode data into keyboard input. The host computer accepts the data as if it came
from the keyboard.
- IBM 468X/IBM469X
Connection to IBM 468X/IBM469X Host System.
PC/host.
BARTEC does not offer its own software solution.
Background:
The serial interface does not have its own intelligence. This means that all data arriving at the
interface is lost if it is not collected and processed by a software application.
Possible solution:
81 / 106
7 Connection /
personnel)
Subject to technical modifications
BARTEC does not distribute any terminal program or software keyboard wedge application.
to enter the data into the currently active field on the host PC.
The test described below with a terminal program was performed with the H-Term application. Any
other terminal program that supports serial communication can be used alternatively.
commissioning (qualified
Testing the communication (RS232 or USB-SPP)
The serial communication can be checked with the help of a terminal program.
A serial interface does not have its own intelligence.
This means that incoming data at the serial interface will be lost if there is no application available that
can process incoming data.
There is a large number of terminal programs on the market. E.g. Hyperterminal, Tera Term, Putty or
others.
When using a universal power supply module, a software wedge or other application must be
installed on the host PC for data transfer.
The software wedge or other application serves to convert the incoming data as keyboard input and
Terminal Program
Handscanner
BCS 3600ex series
Test communication/data transmission
1. Open Terminal program
2. Select the serial interface to which the universal power supply module with coupled
ex
BCS 36x8
is connected (In the example COM1).
Can be checked in Device Manager
82 / 106
Revision A / 04/2019
7 Connection /
personnel)
Subject to technical modifications
Revision A / 04/2019
Example for BCS 3608ex
Example for BCS 3678ex
Handscanner
BCS 3600ex series
commissioning (qualified
3. Make settings in the terminal program and connect with Connect.
4. Read the barcode with the scanner and check the data in the terminal program.
5. Data transfer is OK if the barcode data is displayed in the "Received Data" window.
Otherwise check connection and programming.
83 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
DANG ER
Mixing up the batteries!
Only use batteries that have been specified by BARTEC.
Zone / Div.
Battery type
Zone 1 / Div. 1
17-A1Z0-0012
Zone 2 / Div. 2
B7-A2Z0-0036
DANG ER
Spark formation when changing the battery!
Only insert or remove the battery outside the potentially explosive atmosphere.
8 Operation
8 Operation
8.1 Bluetooth hand-held scanners BCS 3678ex-NI / BCS 3678ex-IS
8.1.1 Changing the battery
Loss of function and risk of explosion.
Only the following batteries are approved:
Table 57 Approved batteries
The model of battery is clearly indicated on the type label.
Explosion.
1. Using the special tool, open the safety lock to unlock the battery compartment cover, rotating the
safety lock by approximately one quarter in either direction.
2. If a battery has been inserted: remove the battery.
84 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
DANG ER
Spark formation caused by the battery falling out!
Close the safety lock carefully.
3. Slide the battery into the battery compartment, ensuring the following:
– Battery contacts point toward the battery compartment.
– Rounded side of the battery points toward the back of the hand-held scanner.
4. Close the battery compartment cover.
Explosion.
8 Operation
5. Turn the safety lock by approximately one quarter in either direction to lock the battery
compartment cover.
6. If a new battery has been inserted: charge the battery using the base station.
85 / 106
8 Operation
Handscanner
BCS 3600ex series
Subject to technical modifications
DANG ER
Non-approved base station!
Only use the base station that has been specified for the relevant configuration by BARTEC.
DANG ER
Spark formation!
Only use the base station outside the potentially explosive atmosphere.
8.1.2 Placing the hand-held scanner in the base station
Loss of function and risk of explosion.
The approved accessory is shown in the system overview (see system overview, Chapter 15.2). The
model is clearly indicated on the type label.
Explosion.
1. Place the head of the hand-held scanner in the base station
2. Press the underneath of the hand-held scanner into the base station until you hear the
hand-held scanner click into place.
86 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
DANG ER
Only use batteries that have been specified by BARTEC.
Zone / Div.
Battery type
Zone 1 / Div. 1
17-A1Z0-0012
Charging time of the different stations
Base station
Type: G7-A0Z0-0010
4 slot battery charger
Type: G7-A0Z0-0013
B7-A2Z0-0036
Up to 3 hours
Up to 5 hours
Base station
Type: 17-A1Z0-0014
4 slot battery charger
Type: 17-A1Z0-0013
17-A1Z0-0012
Up to 8 hours
Up to 8 hours
Note on the power supply of the base station via the PC/Host:
The charging current via the USB interface is too low to allow a fast charging of the battery.
8.1.3 Connecting the Bluetooth hand-held scanner to the base station
The Bluetooth hand-held scanner sends data to the base station. The base station sends these data
to a host PC. To exchange data, the base station must be connected to the hand-held scanner.
To connect the hand-held scanner to the base station, place the hand-held scanner in the base
station (see Chapter 8.1.2)
– or –
Scan the connection code on the base station.
If the display is illuminated in red, the transfer has failed.
If the status LEDs are lit up in green, the hand-held scanner is connected to the base station.
8.1.4 Charging the battery
Mixing up the batteries!
8 Operation
Loss of function and risk of explosion.
Only the following batteries are approved:
Zone 2 / Div. 2 B7-A2Z0-0036
Table 58 Approved batteries
The model of battery is clearly indicated on the type label.
Charging time
Battery type for Zone 2 / Div 2
Battery type for Zone 1 / Div 1
Table 59 Charging times of the usable batteries
RS232:
The RS232 does not provide a supply voltage to operate the base station functionally.
External power supply of type G7-A0Z0-0019 is mandatory.
USB:
The supply voltage via the USB interface is sufficient to ensure data transmission via the base
station.
If the base station is also used as a charging station it is strongly recommended to use an external
power supply type G7-A0Z0-0019.
87 / 106
8 Operation
Handscanner
BCS 3600ex series
Subject to technical modifications
LED
Bedeutung
Green
Switched on
Gree flashing
Bluetooth connection established
Blue
Side button
Battery status LED
Yellow
Preloading in progress
Yellow flashing
Charing
Fast yellow flashing
Load error
Green
Fully charged
Runtime
Scans per load
Battery type for Zone 2 / Div 2
B7-A2Z0-0036
Up to 100.000
Battery type for Zone 1 / Div 1
17-A1Z0-0012
Up to 15.000
Battery life depends on various factors.
Age of the battery
Battery type
Runtime
Battery type for Zone 2 / Div 2
B7-A2Z0-0036
Zebra evaluation can be used 1 to 1
Other cell installed, so the battery statistics
of Zebra can not be used.
The battery type 17-A1Z0-0012 for the BCS 3678ex-IS is modified for Ex-technical reasons.
The battery and the tools are not aligned.
DANG ER
Spark formation when charging the battery!
Only charge the battery outside the potentially explosive atmosphere.
LED display during charging:
Table 60 LED display during charging
Battery charging time
Battery type
Table 61 Runtime of the batteries
Ex version of the BCS 3678ex
Device Settings
Device usage
battery care
Battery Statistics:
Battery type for Zone 1 / Div 1 17-A1Z0-0012
Table 62 Statistics of the batteries
and can therefore not be evaluated via Zebra Diagnostics/Statistics Tools 1 to 1.
Explosion.
Charging the battery with the base station
The base station is connected to a power source.
Place the hand-held scanner in the base station to charge the battery (see Chapter 8.1.2, P. 86).
LEDs on the base station flash yellow to indicate the start of the charging process.
LEDs on the base station flash green to indicate the end of the charging process.
88 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
8 Operation
Charging the battery with 4-slot charging station for spare batteries
1. Point the contacts of the battery upwards.
Figure 30 Sliding the battery into the 4-slot charging station
2. Slide the battery underneath the edge of the 4-slot charging station.
3. Press the battery into the 4-slot charging station on the side with the label.
You can hear the battery click into place
LED on the 4-slot charging station flashes yellow, indicating the start of the charging process.
Battery is charged.
LED on the 4-slot charging station flashes green, indicating the end of the charging process.
89 / 106
Handscanner
BCS 3600ex series
Subject to technical modifications
DANG ER
Spark formation
!
atmosphere.
Check points
Enclosure free from damage, e.g. crack or break
Temperature in the area in which the hand-held scanner is used corresponds to the specified
Cables are not damaged
Cables have been certified
Cables on the universal supply module are securely engaged, locked or screwed tight
Scan window free from damage, e.g. scratches
Enclosure free from damage, e.g. crack or break
Cables have been certified
Battery has been certified
Battery compartment cover has been correctly locked
8 Operation
8.2 Inspection to be conducted prior to use
caused by the connection cable or the battery falling out
Explosion.
Ensure that the safety lock has been correctly closed prior to use in the potentially explosive
The following risks are present if the safety lock on the underside of the hand-held scanner has not
been closed correctly:
‒ The battery on a Bluetooth hand-held scanner can fall out.
‒ The connection cable on a corded hand-held scanner can come unplugged.
Check the following points before operating the device:
ex
Final inspection of BCS 3608
-NI / BCS 3608ex-IS (corded)
Scan window free from damage, e.g. scratches
temperature range
Cable on the hand-held scanner is securely engaged and locked
Table 63 Final inspection before using the BCS 3608ex-NI / BCS 3608ex-IS (corded)
Final inspection of BCS 3678ex-NI / BCS 3678ex-IS (Bluetooth)
Check points
Temperature in the area in which the hand-held scanner is used corresponds to the specified
temperature range
Cables are not damaged
Cables on the universal supply module/base station are securely engaged, locked or screwed
tight
Table 64 Final inspection before using the BCS 3678ex-NI / BCS 3678ex-IS (Bluetooth)
90 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Check points
Supply module is not damaged
Universal supply module has been certified for use with the hand-held scanner
Terminal connection chamber of the universal supply module has been correctly closed
Universal supply module has been correctly connected
8.3 Scanning
8 Operation
Final inspection of the universal supply module
Universal supply module has been certified
Table 65 inal inspection before using the universal supply module
During scanning, the hand-held scanners in the BCS 3600ex series emit a scanner beam.
Figure 31 Scanning
1. To scan a barcode, direct the scanner beam onto the barcode so that it captures the whole width
of the barcode. While doing so, pay attention to the optimal scan position (see Chapter 8.3.1).
2. Align the hand-held scanner centrally on the barcode.
3. Press the trigger button.
White LEDs on the hand-held scanner are switched on to illuminate the barcode.
Scanner emits a beep to signalise the successful decoding of the barcode (see Chapter 4.5).
91 / 106
8 Operation
Handscanner
BCS 3600ex series
Subject to technical modifications
8.3.1 Optimal scan position
Right:
The hand-held scanner can also read barcodes when the scanner beam is not directly centred on the
barcode.
Figure 32 Correct scan position
Wrong:
The hand-held scanner cannot decode/scan a barcode if the scanner beam does not capture the
whole width of the barcode.
Figure 33 Incorrect scan position
92 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
Subject to technical modifications
Revision A / 04/2019
Scan window
Cleaning wipes for glasses or for camera lenses
Hand-held scanner enclosure
Damp cleaning cloths, isopropyl alcohol (70 %)
9 Cleaning
9.1 Suitable cleaning agents
Component Cleaning agent
Hand-held scanner contacts Cotton wool buds, isopropyl alcohol (70 %)
Table 66 Suitable cleaning agents
9.2 Cleaning the enclosure
1. Moisten a soft, fluff-free cloth with a suitable cleaning agent and carefully wipe the enclosure of
the hand-held scanner.
2. Use a cotton wool bud to clean difficult to reach parts.
3. Allow the device to dry naturally until completely dry.
9 Cleaning
9.3 Cleaning the scan window
The scan window must be cleaned at regular intervals to ensure that barcodes are correctly decoded.
1. Clean the scan window with a cleaning wipe for glasses or camera lenses or with comparable
cleaning wipes.
2. Dry the scan window immediately to prevent smear formation, using a soft, fluff-free cloth to do
so.
9.4 Cleaning the contacts
Take the following steps to clean the battery contacts, contacts on the hand-held scanner, contacts
on the base station and the cable connectors for the hand-held scanner:
1. Soak cotton wool buds in isopropyl alcohol.
2. Remove grease and dirt deposits from the contacts using the cotton wool buds.
– Wipe the cotton wool bud over the contacts at least three times.
3. Dry the contacts using a dry cotton wool bud.
– Wipe the cotton wool bud over the contacts at least three times.
93 / 106
10 Maintenance, inspection, repair
Handscanner
BCS 3600ex series
Subject to technical modifications
10 Maintenance, inspection, repair
The hand-held scanners may only be maintained, inspected and repaired by trained and qualified
personnel:
‒ The personnel are familiar with the maintenance and inspection of the device.
‒ The personnel are familiar with the maintenance, inspection and repair of the accessories.
‒ The personnel have been informed about the risks when carrying out these activities and have
the necessary qualifications for this work.
10.1 Maintenance intervals
The maintenance intervals depend on the ambient conditions. Regular maintenance is not necessary
if the device is operated according to the installation instructions and the ambient conditions are
taken into consideration.
Check the hand-held scanner regularly for external damage.
10.2 Returning faulty devices
The following information is required for a repair:
‒ Serial number of the device (see Chapter 4.7)
‒ Model number or product name (see type label)
‒ Software type and version number (see system information for the control panel)
We are unable to guarantee processing within the contractually agreed period for any returns
received without RMA number (Return Merchandise Authorization). The processing guidelines and
the RMA form can be downloaded from our website:
Europe: http://www.bartec.de
USA: http://bartecus.repairshopr.com/wf/rma-2/start.com
1. Read the processing guidelines for the RMA (Return Merchandise Authorization) process before
sending a faulty device in for repair.
2. Complete the RMA form, sign it and send it to our “Returns Centre”.
Europe: Email: services@bartec.de
Fax: +49 7931 597-119
USA: Email: service@bartec.us
In the event of questions
Please send us an email or call us:
Europe: Email: services@bartec.de
Phone: +49 7931 597-444
USA: Email: service@bartec.us
94 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
11 Faults – causes and
remedies
Subject to technical modifications
Revision A / 04/2019
Information about the configuration of host parameters and barcode types can be found in the
ZEBRA Product Reference Guide.
Please contact BARTEC Automation & Enterprise Mobility Support: Servicemobilecomputing@bartec.de if none of the solutions set out rectify the fault.
Fault
Possible cause
Solution
Scanner beam has been
Activate the scanner beam.
Hand-held scanner emits a
Barcode is not legible
1. To test the scan engine, scan
Scanner beam is not capturing
Distance between barcode and
Position the hand-held scanner closer to
Hand-held scanner decodes
Hand-held scanner has not
Program the hand-held scanner for the
11 Faults – causes and remedies
Scanner beam does not
appear when the trigger button
is pressed
scanner beam, but does not
decode barcodes
No power is supplied to the
hand-held scanner
Wrong interface cable is being
used
Hand-held scanner has been
deactivated
deactivated
the whole width of the barcode
Connect the power supply to the corded
hand-held scanner.
Connect the correct interface cable.
Activate the hand-held scanner.
Further information about this can be
found in the ZEBRA Product Reference
Guide.
Further information about this can be
found in the ZEBRA Product Reference
Guide.
barcodes of the same type.
2. Print the barcode out again if it is
damaged.
• Select the optimal scan
position for the barcode.
• Move the barcode into the field
of vision of the hand-held
scanner.
hand-held scanner is wrong
barcodes, but does not send
these to the host
been correctly programmed for
the host type
Interface cable has not been
correctly connected
Base station has not been
programmed for the host type
Hand-held scanner is not
connected to the base station
or farther away from the barcode.
host type.
Further information about this can be
found in the ZEBRA Product Reference
Guide.
Connect the interface cable correctly.
Check the host parameters of the handheld scanner or change the parameters.
Connect the hand-held scanner to the
base station (see Chapter 8.1.3)
95 / 106
11 Faults – causes and
remedies
Handscanner
BCS 3600ex series
Subject to technical modifications
Fault
Possible cause
Solution
Hand-held scanner emits the
With power supply via USB,
No action. Normal when the host is
Hand-held scanner emits 4
USB initialisation has not been
Wait a few seconds then start the scan
Interface cable or mains cable
1. Check cable connections.
Host displays the scanned data
incorrectly
following sequence of beeps:
short low, short medium, short
high (switch-on process)
short high beeps while
decoding a barcode
Hand-held scanner emits the
following sequence of beeps:
3 low beeps, 1 very low beep
The hand-held scanner emits
the following sequence of
beeps when changing the USB
connection: short low, short
medium, short high (switch-on
process)
Base station has lost the
connection to the host
Hand-held scanner has not
been configured for
communication with the host
the hand-held scanner is
repeatedly switched on and off
completed
Receive error during
communication via RS-232
Power transmission via USB is
being restored
Restore the connection between the
hand-held scanner and base station (see
Chapter 11.1).
Configure the hand-held scanner for the
host type.
reset.
process again.
Normal when the host is reset.
No action. Normal when changing the
USB connection.
Hand-held scanner emits
beeps at regular intervals
Table 67 Faults and troubleshooting
Wrong interface cable is being
used
is loose
1. Check the interface cable.
2. If the wrong interface cable is being
used: connect the correct interface
cable.
2. Connect loosely connected cables
correctly.
96 / 106
Revision A / 04/2019
Handscanner
BCS 3600ex series
11 Faults – causes and
remedies
Subject to technical modifications
Revision A / 04/2019
11.1 Restoring the connection between Bluetooth hand-held scanner and base station
If the hand-held scanner is not transferring any data to the base station, restore the connection as
follows:
All cables on the host and on the base station are securely connected.
1. Unplug the mains cable from the base station.
2. Unplug the connection cable from the base station.
3. Wait 3 seconds.
4. Connect the connection cable to the base station.
5. Connect the mains cable to the base station.
6. Connect the hand-held scanner to the base station.
11.2 Resetting the hand-held scanner
The hand-held scanner can be reset to two types of default settings:
- Scanning barcodes for factory settings (see ZEBRA Product Reference Guide, Chapter 5 Section "User Preferences - Default Parameters" --- Appendix A lists all standard default
parameters)
- Reset to factory default using Zebra 123 Scan Utility Tool. Der Handscanner kann auf zwei
Arten von Standardeinstellungen zurückgesetzt werden:
The following reset (default) options are available:
- Factory settings (Factory Default)
- User-Defined Standard (Custom Default)
Scan the appropriate barcode below to reset the hand-held scanner to its factory settings and/or set
the current hand-held scanner settings as the user-defined default.
Restore Defaults - Reset hand-held scanner to default settings
With the barcode "Restore Defaults" the hand-held scanner is reset to the following default settings:
- Restore Defaults - Resets all default parameters as follows:
If custom defaults have been configured (see "Write to Custom Defaults"), the custom
defaults will be set for all parameters each time the Restore Defaults barcode specified
below is scanned.
- If no user-defined defaults have been configured, the factory defaults will be used for all
parameters when the Restore Defaults barcode specified below is scanned.
(For Factory Default, see Zebra "Product Reference Guide" for DS36X8. "Appendix A,
Standard Default Parameters")Restore Defaults - Handscanner auf Standardeinstellungen
zurücksetzen
Figure 34 Restore Default Barcode
Scanning the “Restore Defaults” barcode.
97 / 106
11 Faults – causes and
remedies
Handscanner
BCS 3600ex series
Subject to technical modifications
Set Factory Default - Remove Custom Defaults (Reset to Factory Defaults)
Set Factory Default - Scan the "Set Factory Default" barcode below to remove all user-defined defaults
and reset the hand-held scanner to the factory defaults.
(For Factory Default, see the Zebra "Product Reference Guide" for the DS36X8. "Appendix A, Standard
Default Parameters")
Figure 35 Barcode Factory Default
Barcode “Set Factory Defaults” scanning.
Write to Custom Defaults - Set user-defined default values
Setting custom default values is described in ZEBRA's Product Reference Guide.
- Write custom defaults - Custom defaults can be configured to set unique defaults for all parameters.
After changing all parameters to the desired values, scan the following Write to Custom Defaults
barcode to accept/save the new custom default setting.
Figure 36 Barcode Write to Custom Defaults
Barcode “Write to Custom Defaults” scanning.
98 / 106
Revision A / 04/2019
Loading...
