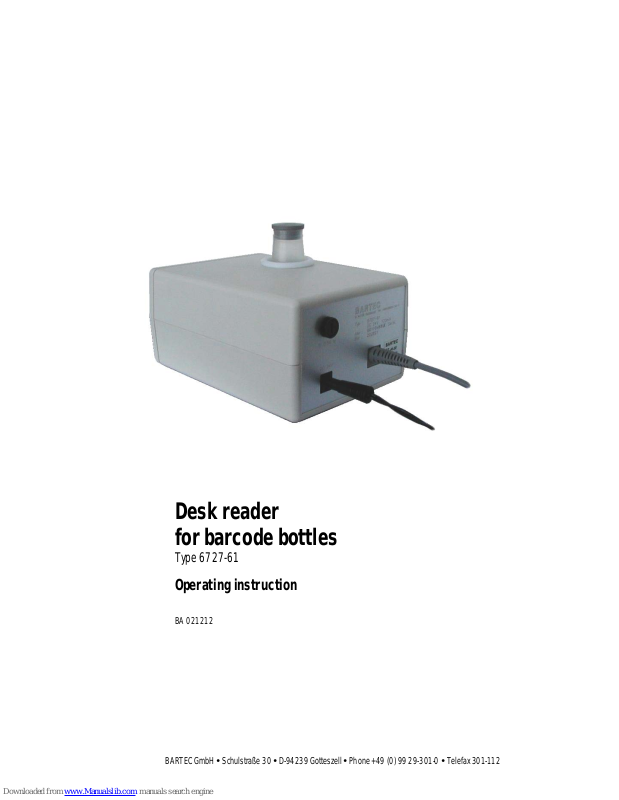

Desk reader
for barcode bottles
Type 6727-61
Operating instruction
BA 021212
Contents
I - 1
Desk reader for barcode bottles type 6727-61 BA 021212
Contents Page Modification date
1 Device description_______________________________________ 1-1
1.1 Task _________________________________________________ 1-1
1.2 Construction ____________________________________________ 1-1
1.3 Interfaces and connections___________________________________ 1-2
1.4 Technical data___________________________________________ 1-3
2 Safety requirements _____________________________________ 2-1
3 Installation ____________________________________________ 3-1
3.1 Voltage supply___________________________________________ 3-1
3.2 Connection to the PC_______________________________________ 3-1
3.2.1 Connection via RS 232 _____________________________________ 3-1
3.2.2 Connection via keyboard interface ______________________________ 3-2
3.3 Replace the connecting cable _________________________________ 3-2
4Operation_____________________________________________ 4-1
4.1 Configuration of the terminal program____________________________ 4-1
4.2 Configuration (initialization) for devices with RS 232 interface ____________ 4-3
4.3 Configuration (initialization) for devices with keyboard interface___________ 4-4
4.4 Read barcodes___________________________________________ 4-5
5 Maintenance___________________________________________ 5-1
5.1 Clean the container________________________________________ 5-1
5.2 Clean the window of the barcode reader __________________________ 5-1
5.3 Replace the fuse__________________________________________ 5-2
6 Appendix______________________________________________ 6-3
6.1 Configuration tags for devices with RS 232 interface __________________ 6-3
6.2 Configuration tags for devices with keyboard interface_________________ 6-5
6.3 Configuration for barcode type Code128__________________________ 6-7
Inhalt
I - 2
Desk reader for barcode bottles type 6727-61 BA 021212
Document: BA 021212 Valid as from: 12.00
Revision: Updated:
Authors: R. Kopp/ G. Rothe
Translator: Evi Bauernfeind
A
ll rights and changes reserved.
Neither the whole document nor any part of it may be
reproduced or transmitted in any form or by any means
without th express written permission of BARTEC.
Copyright © 2000 by
BARTEC GmbH
Schulstraße 30
D-94239 Gotteszell
Contents
I - 3
Desk reader for barcode bottles type 6727-61 BA 021212
Machine description
1-1
Desk reader for barcode bottles type 6727-61 BA 021212
1 Device description
1.1 Task
The device serves to read milk sample bottles equipped with barcode tags (Interleave 2/5, ten digits).
The device is connected to a commercial PC via the RS 232 interface or via the keyboard interface.
1.2 Construction
Connection to
supply voltage DC 24 V
Connection to PC
(RS 232 or key-
board interface)
Fuse 0.5 A M)
Sample bottle
Container for sample bottle to be read
Machine description
1-2
Desk reader for barcode bottles type 6727-61 BA 021212
1.3 Interfaces and connections
RS232 connection: Standard PC RS232 connection 9-pole
Assignment:
SUB-D 9pol. Designation
Pin 1 not assigned
Pin 2 TxD
Pin 3 RxD
Pin 4 not assigned
Pin 5 GND
Pin 6 not assigned
Pin 7 CTS
Pin 8 RTS
Pin 9 not assigned
Connection to supply voltage DC 24 V
(plug-in power supply un)
Connection to PC
(RS 232 or keyboard interface)
Machine description
1-3
Desk reader for barcode bottles type 6727-61 BA 021212
1.4 Technical data
Techncal data
Mechanical data
Housinge PS housing
Dimensions 195mm length x 135mm width x 100mm height
Weight 1.0 kg (excluding plug-in power supply unit)
Protective system IP 54
Ambient conditions
Admissible operating temperature 0 ... + 50 °C
Admissible storage temperature - 10 ... + 70 °C
Climatic class KWF to DIN 40040 (average air humidity 75%, no condensation)
Electrical data
Input voltage
DC 24 V ± 10 %
Input current max. 120 mA
Power supply Plug-in power supply unit (DC 24 V/340 mA)
Device-specific data
Readable barcodes 2/5 Interleave, 10 digits (other versions available on request)
Processing rate < 4 sec per bottle
Interface
Serial interface or RS 232 9 pol. Sub-D 9,600 baud, no parity, 8 data bits, 1 stop bit, no handshaking
IBM AT/XT oderKeyboard interface
IBM PS/2
Enter the barcode by means of keyboard simulation
Pin assignment
Power unit Extra low voltage plug, 2-pole in compliance with DIN 45323
+ 24 V outside
0 V inside
RS-232 connection
Assignment SUB-D 9-pole
Pin 2
Pin 3
Pin 5
Pin 7
Pin 8
Designation
TXT
RXT
GND
CTS
RTS
Keyboard IMB PC XT/AT (DIN)
Assignment 5-pole plug
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Assignment
CLK
Data
Reset
GND
+ 5 V
Keyboard IBM PC PS/2
Assignment 6-pole plug
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Assignment
Data
nc
GND
+ 5 V
CLK
nc
Machine description
1-4
Desk reader for barcode bottles type 6727-61 BA 021212
Ordering designations
Desk reader for barcode bottles, keyboard (XT/AT) 2 028 21Order no.
Desk reader for barcode bottles, RS 232 2 028 22
Connecting cable: RS 232 2 025 27
Connecting cable: keyboard IBM XT/AT 2 042 24
Connecting cable: keyboard IBM PS/2 2 060 37
Barcode interface 2 025 26
Plug-in power supply unit 230 V/24 V, 0.30 A hollow plug., type 4312-8.2 U 010 1 143 1282
Plug-in power supply unit 115 V/24 V, 0.30 A hollow plug, type 4312-8.2 U 010 1 243 1282
Bottle guiding device, type 6727-00-059 2 037 05
Spare parts
Bottle carrier, type 6727-00-60 2 037 06
Saftye requirements
2-1
Desk reader for barcode bottles type 6727-61 BA 021212
2 Safety requirements
The appliances have been built conforming to the statutory regulations and, after having been thoroughly checked, have left the factory in perfectly sound condition.
• The appliances have to be installed and maintained by skilled staff.
• Make sure that the data and operating conditions specified by BARTEC are complied with.
• Before installing the device and taking it into service, please read the operating instruction. If you
have any questions on certain issues, you will get detailed information by our staff.
• Before connecting the supply voltage, make sure that the operating voltage of the appliance con-
forms with the mains voltage.
• Switch off the device immediately and protect it from being switched on again if there is the risk
that it can´t be operated without danger any more (e.g. when there are visible damages).
• Make sure that no liquids can get into the the housing!
BARTEC will not be responsible for damages resulting from the fact that safety instructions aren´t observed or that the operating instruction or the operating conditions are disregarded.
Disclaime
r
Safety requirements
2-2
Desk reader for barcode bottles type 6727-61 BA 021212
Installation
3-1
Desk reader for barcode bottles type 6727-61 BA 021212
3 Installation
3.1 Voltage supply
The device is supplied with 24 V DC via the plug-in power supply unit included in delivery.
3.2 Connection to the PC
The device can be connected to the PC either via the serial interface of the PC or via the keyboard interface. The appropriate interface type is determined by the connecting cable in the barcode reader.
To change the interface type, the cable can be replaced (see 3.3).
3.2.1 Connection via RS 232
The device is connected to the PC via the RS 232 with a 9-pole cable. If the serial interface of the PC
is 25-pole, an appropriate adapter plug has to be used.
Connection to free
serial interface
COM1 /
COM2, 9-pole)
Installation
3-2
Desk reader for barcode bottles type 6727-61 BA 021212
3.2.2 Connection via keyboard interface
If it is connected via the keyboard interface, the barcode reader is inserted between the PC and the
keyboard. XT/AT plugs or PS/2 plugs are available.
3.3 Replace connecting cable
To change the interface type of the barcode reader, the connecting cable has to be replaced (for connecting cable types see ordering designations).
Cautiously insert a thin stiff wire (e.g. a paper clip that has been straightened out) into the opening at
the underside of the housing and push back the lock of the interface cable. At the same time draw the
cable out of the outlet box.
Plug in the new cable until it snaps into place.
After the interface cable has been replaced, the device has to be reinitialized (see 4.2 and 4.3).
Operation
4-1
Desk reader for barcode bottles type 6727-61 BA 021212
4 Operation
4.1 Configuration of the terminal program
After the configuration of the reader and of the application program, you can read in the barcodes via
the serial interface. The configuration of the application program is explained here with the example of
the ”HyperTerminal“ program, which is included in the standard Windows version.
• Click “Start“ and then click “Perform“.
• In the “Perform” window, type the program name hypertrm and click [OK] or press ENTER.
• Enter a name for the new connection in the following window, select an icon and click [OK].
• On the “Connect via“ list box in the following window, select the serial interface by means of
which you have connected the barcode reader to the PC.
Operation
4-2
Desk reader for barcode bottles type 6727-61 BA 021212
• Then configure the interface according to the following illustration.
Now the program is installed. From now on you can start the program with a double-click on the icon
you have selected. It is in the folder c:\programs\accessories\HyperTerminal.
You can also shift the icon to the desktop and start the program directly from there.
Operation
4-3
Desk reader for barcode bottles type 6727-61 BA 021212
4.2 Configuration (initialization) for devices with
RS 232 interface
1. Attach the two following barcode tags to a milk sample bottle.
You can copy sheet 1 in the appendix, cut out the tags and stick them to the bottle.
2. Disconnect the device from its power supply for 5-10 seconds by pulling out the power supply
plug of the device for a short time and then plugging it in again.
3. Put both of the bottles with the configuration tags successively into the shaft.
The barcode has to be read. The device acknowledges this with acoustic signals.
4. Connect the device to a PC, unless it has already been connected.
5. Call a terminal program at the PC, e.g. Hyperterminal.
Configure the terminal program:
Regulate COM interface that the interface is plugged into (mostly COM1 or COM2).
Configure interface parameters (9600 baud, no parity, 8 data bits, 1 stop bit, no handshaking).
6. Enter the following character string (Reset):
$+$* [Enter]
7. Wait for a short time until the device has acknowledged the command with an acoustic signal.
8. Enter the following character string (barcode configuration):
$+AZ0AC111010$- [Enter]
9. Wait for a short time until the device has acknowledged the command with an acoustic signal.
10. Take the bottle with the configurations tag out of the device.
The configuration is completed now.
11. For testing, put a “normal“ milk sample bottle into the device. The barcode should be read and
displayed on the screen now.
Operation
4-4
Desk reader for barcode bottles type 6727-61 BA 021212
4.3 Configuration (initialization) for devices with
keyboard interface
1. Attach the two following barcode tags to milk sample bottles.
You can copy sheet 2 in the appendix, cut out the tags and stick them to the bottles.
At each case, you need one barcode tag with the numbers from 1 to 10.
Select the appropriate keyboard option.
2. Disconnect the device from its power supply for 5-10 seconds by pulling out the power supply
plug of the device for a short time and then plugging it in again.
3. Put the bottle with tag no. 1 into the shaft.
The barcode has to be read in now. The device acknowledges this with an acoustic signal.
4. Now read in the remaining codes one after the other (2, 3, 4, 5, 6, 7, 8, 9, 10)
oder
Operation
4-5
Desk reader for barcode bottles type 6727-61 BA 021212
5. Take the last bottle out of the device. The configuration is completed now.
6. For testing, start your application or an editor (e.g. notepad). Put a ”normal“ milk sample bottle
into the device. The barcode should be read and displayed on the screen now.
4.4 Read barcodes
To read the barcodes, put the sample bottle into the shaft. The barcode is read and displayed on the
screen or it is transmitted via the interface.
The number of revolutions before a bottle is read doesn´t allow any conclusions as to the quality of
the barcode tag. Due to the system, the number of revolutions can vary between 1 and 5 revolutions. It
depends on the mechanic stabilization of the bottle after it has been inserted into the shaft.
If there is an error (e.g. a readable barcode in proper working condition is not read or is not transmitted to the PC), the device has to be reinitialized depending on the device type (see 4.2 or 4.3).
Operation
4-6
Desk reader for barcode bottles type 6727-61 BA 021212
Maintenance
5-1
Desk reader for barcode bottles type 6727-61 BA 021212
5 Maintenance
5.1 Clean the container
Take the container out of the opening. Now you can clean both parts of the container with water and
dishwashing liquid.
Reinsert the container so that the opening on the upper part of the container faces the window of the
barcode reader.
5.2 Clean the window of the barcode reader
Take the container out of the opening of the housing.
Clean the window of the barcode reader with a clean, lint-free cloth.
If necessary, you can use a detergent (window cleaning fluid, spirit).
Put back the container so that the opening on the upper part of the container faces the window of the
barcode reader.
Maintenance
5-2
Desk reader for barcode bottles type 6727-61 BA 021212
5.3 Replace the fuse
If the fuse has to be replaced, unscrew the fuse holder by means of a screw driver. Replace the defective fuse by a new one (0.5 A M.).
Appendix
6-3
Desk reader for barcode bottles type 6727-61 BA 021212
6 Appendix
6.1 Configuration tags for devices
with RS 232 interface
(copy and cut out)
Appendix
6-4
Desk reader for barcode bottles type 6727-61 BA 021212
Appendix
6-5
Desk reader for barcode bottles type 6727-61 BA 021212
6.2 Configuration tags for devices with keyboard
interface
(copy and cut out)
oder
Appendix
6-6
Desk reader for barcode bottles type 6727-61 BA 021212
Appendix
6-7
Desk reader for barcode bottles type 6727-61 BA 021212
6.3 Configuration for barcode type Code128
The following configuration has to be carried out in addition to the standard configuration if the barcode type Code128 has to be read.
Configuration tags for devices with keyboard interface
Configuration for devices with RS232 interface
Enter the following character string (Code 128 configuration):
$+AI11$- [Enter]
Wait for a short time until the device has acknowledged the command with an acoustic signal.
The configuration is completed now.
For testing, put a milk sample bottle with Code 128 into the device. Now the barcode should be read
and displayed on the screen.
***
2. Code 128
1. Start Konfig
3. End Konfig
Loading...
