Barrus SHIRE 14 30 WB, SHIRE 14 40 WB, SHIRE 14 50 WB User Manual

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50

SHIRE WORK BOAT MANUAL

SHIRE 14 30 WB
SHIRE 14 40 WB
SHIRE 14 50 WB

Please read in conjunction with

Yanmar

&

PRM Gearbox Manual.

Enter your engine identification details in the spaces provided above.

E. P. BARRUS LIMITED, Launton Road, Bicester, Oxfordshire. OX26 4UR

Tel: [phone] Fax: [phone] www.barrus.co.uk

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 2 of 40

Declaration of Conformity for Recreational Craft Propulsion Engine

with the requirements of Directive 94/25/EC as amended by

2003/44/EC.

Name of Engine Manufacturer: Yanmar Co LTD.
Address: Yanmar Europe B.V, Brugplein 11, 1332 BS Almere-de Vaart, Netherlands.

Name of Authorised Representative: E.P.Barrus LTD
Address: E.P.Barrus LTD, Launton Road, Bicester, Oxon, OX26 4UR, England

Engine type approved according to: Stage II of Directive 97/68/EC, 88/77/EC

Description of Engine(s) and Essential Requirements

Engine Type: Inboard Engine Fuel Type: Diesel Combustion Cycle: 4 Stroke

Identification of Engine(s) covered by this Declaration of Conformity

Engine Model

Engine Type

Engine Family code

Type Approval Certificate Number

Shire 30WB

3 TNV 82A BDSA

YD1300DNMDEC

e13*97/68DA*2001/63*0574*06

Shire 40/50WB

4 TNV 88 DSA

5YDXL2.19K4N

e13*97/68GA*2001/63*0545*11

Essential Requirements

Standards

Other normative

document/method.

Technical

file

Specify in more detail

*= Mandatory standard.

Annex 1.B- Exhaust Emissions

B.1 Engine Identification

B.2 Exhaust emission
requirements

* EN ISO 8178- 1:1996

B.3 Durability

B.4 Owner’s Manual

Annex 1. C- Noise Emissions

See Declaration of Conformity of the craft in which the engine(s) has(have) been installed

This declaration of conformity is issued under the sole responsibility of the manufacturer. I declare on behalf of
the engine manufacturer that the engine(s) [is (are) in conformity with the type(s) for which above mentioned
EC type-examination or type approval certificate(s) has (have) been issued and]1 will meet the exhaust
emission requirements of Directive 94/25/EC as amended by Directive 2003/44/EC when installed in a
recreational craft, in accordance with the engine manufacturer’s supplied instructions and that this (these)
engine(s) must not be put into service until the recreational craft which it is (they are) to be installed has been
declared in conformity with the relevant provisions of the above mentioned Directives.

Tim Hart
Sales Director
Signed: Bicester, UK

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 3 of 40

PLEASE NOTE:

This manual has been compiled to help you to operate your engine and its associated parts
with safety and pleasure. Please read it carefully and familiarise yourself with the engine
and its parts before operation.

E.P.Barrus reserves the right to change the specification of its products and manuals without
prior notice.

Depending upon the equipment specification of the engine and accessories fitted, there may
be discrepancies with the information presented in this handbook. No claims may be
pursued in this respect.

WARNING:

THIS MANUAL FORMS AN INTEGRAL PART OF THE ENGINE IT ACCOMPANIES, IF

A TRANSFER OF TITLE OCCURS, IT MUST ALWAYS BE HANDED OVER TO THE

NEW OWNER.

WARRANTY

This Limited Warranty provides coverage for three (3) years (or 2000 hours which ever
occurs first) for commercial users from the date of warranty registration. The repair or
replacement of parts, or the performance of service under this warranty, does not extend the
life of this warranty beyond its original expiry date.

PRM gearboxes are covered by a two (2) year warranty.

To ensure that you have been registered for your warranty, please ask your Boat-Builder or
Engine supplier to provide your portion of the registration form.

Engine alternator, starter motor and electrical components are only covered by a one (1)
year warranty.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 4 of 40

CONDITIONS THAT MUST BE MET IN ORDER TO OBTAIN WARRANTY COVERAGE

Warranty coverage is only available from an authorised dealer in the country in which the
sale occurred. Routine maintenance outlined in the Owners Manual must be performed
using genuine parts in order to maintain warranty coverage. If the customer performs
maintenance, Barrus reserves the right to make future warranty coverage possible only with
proof of proper maintenance.

WARRANTY CLAIMS

Warranty claims shall be made by an authorised dealer or boat builder.

The dealer or boat builder will then arrange for the inspection and any necessary repairs. If
the repairs carried out are not covered by the warranty, purchaser shall pay for all related
labour and material, and any other expenses associated with that service.

WHAT IS NOT COVERED

This limited warranty does not cover routine maintenance items, adjustments, normal wear
and tear, damage caused by abnormal use, operation of the product in a manner
inconsistent with the recommended operation/duty cycle section of the Owners Manual,
accident, submersion, improper installation (proper installation specification and techniques
are set forth in the Operations and First time running sections in this manual), use of an
accessory or part not manufactured or sold by us, or alteration or removal of parts.
Expenses related to crane-out, launch, towing, storage, telephone, rental, inconvenience,
slip fees, insurance coverage, loan payments, loss of time, loss of income, or any other
types of accidental or consequential damages are not covered by this warranty.
Failure to use John Deere approved oils and coolants will invalidate any warranty (Shire 90).

Engine electrical systems fitted with alternator boost charge systems or any other electrical
management systems other than those approved by Barrus are not covered by warranty.

Engine and fuel equipment is not covered by warranty if bio-diesel is used in the fuel system.
Also if no type of water trap is incorporated into fuel system.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 5 of 40

Contents

SECTION 1 - Safety Precautions ....................................................................................... 7

1. General ............................................................................................................................................. 7

2. Lifting ................................................................................................................................................ 7

3. Rotating Shafts and Belts ................................................................................................................. 7

4. Exhaust System ............................................................................................................................... 7

5. Launching and Lifting Boats ............................................................................................................. 7

6. Batteries ........................................................................................................................................... 8

SECTION 2 - Engine Identification..................................................................................... 9

SECTION 3 - Installation ................................................................................................... 10

1. Ventilation ....................................................................................................................................... 10

2. Engine Beds ................................................................................................................................... 10

3. Pressurised Water Header Tank .................................................................................................... 10

4. Shaft Connection and Propeller Selection ..................................................................................... 10

5. Engine Anti-Vibration Mounts ......................................................................................................... 10

6. Engine Alignment ........................................................................................................................... 13

7. Electrics .......................................................................................................................................... 13

8. Engine Oil ....................................................................................................................................... 13

9. Fuel ................................................................................................................................................. 13

10. Coolant ........................................................................................................................................... 14

11. Control Cables ............................................................................................................................. 15

12. Seawater Strainer ........................................................................................................................... 15

13. Control Panel .................................................................................................................................. 15

14. Seawater Pump Hose Inlet Size .................................................................................................... 16

15. Exhaust System ............................................................................................................................. 16

17. Hydraulic Pump Drive Option (Shire 38 / 40 / 45 / 50) ................................................................... 17

18. Installation Check list ...................................................................................................................... 18

SECTION 4 - Operation ..................................................................................................... 19

1. Starting the Engine for the First Time ............................................................................................ 19

2. Starting Procedure ......................................................................................................................... 19

3. Stopping Procedure ........................................................................................................................ 20

4. Refuelling ....................................................................................................................................... 20

5. Diesel Fuel Additive ........................................................................................................................ 20

6. Exhaust Back Pressure .................................................................................................................. 20

SECTION 5 - Service Procedure ...................................................................................... 21

1. Engine Oil and Filter Change ......................................................................................................... 21

2. Air Filter Check & Change .............................................................................................................. 22

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 6 of 40

3. Gearbox Oil Change ....................................................................................................................... 22

4. Primary Fuel Filter Water Drain ...................................................................................................... 24

5. Primary and Secondary Fuel Filter Change ................................................................................... 25

6. Bleeding the Fuel System. ............................................................................................................. 26

7. Cooling System .............................................................................................................................. 26

8. Belt Adjustment .............................................................................................................................. 26

9. Belt Maintenance ............................................................................................................................ 27

10. Belt Replacement ........................................................................................................................... 27

11. Panel Maintenance ......................................................................................................................... 28

12. Sacrificial Anode Change ............................................................................................................... 28

13. Raw Water Pump Impeller Change ................................................................................................ 28

14. Engine Heat Exchanger Tube Stack Flushing. .............................................................................. 29

15. Winterization of Seawater Cooling System. ................................................................................... 29

SECTION 6 - Shire Service Parts ..................................................................................... 30

Starter Relay ............................................................................................................................................. 30

b. 40A ....................................................................................................................................................... 30

a. 25A ....................................................................................................................................................... 30

c. 15A ....................................................................................................................................................... 30

SECTION 7 - Service Schedule ........................................................................................ 31

Specifications and Capacities .................................................................................................................. 31

Service Intervals ....................................................................................................................................... 31

SECTION 8 - Wiring Diagrams ......................................................................................... 33

Harness Wiring Diagram .......................................................................................................................... 33

Panel Wiring Diagram .............................................................................................................................. 35

SECTION 9 – Dealer List ................................................................................................... 38

Shire Service Record Card ............................................................................................... 40

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 7 of 40

SECTION 1 - Safety Precautions

1. General

It is the responsibility of the installer/operator to ensure that the finished installation
complies with the relevant health & safety requirements and the recreational craft
directive before commissioning.
Ensure that the engine battery isolator switch is in the off position and the key removed
from the control panel before carrying out any maintenance or repairs.

2. Lifting

The lifting points supplied with the engine are for lifting the engine/gearbox only. A
suitable spreader bar must be employed to prevent over-stressing either bracket during
any lift.

3. Rotating Shafts and Belts

The engine and its accessories are not to be put into operation until they are integrated
into the boat as a whole. No person should be in the engine compartment and the engine
cover or deck hatches should be closed whilst the engine is running.

4. Exhaust System

Exhaust gases may have temperatures as high as 600oC and contain elements which
are harmful if ingested.
It is therefore essential that exhaust systems are gas tight and lagged to prevent
accidental burning.

5. Launching and Lifting Boats

Care must be taken when launching or craning new boats into or out of the waterway, so
that water does not enter the engine via the exhaust system or air vents. It is
recommended that these are blocked temporarily whilst undertaking this procedure.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 8 of 40

6. Batteries

WARNING:

EXPLOSIVE GASES / SULPHURIC ACID.

 Batteries can produce explosive gas; keep sparks and flames away from the battery.

NO SMOKING

 Batteries contain sulphuric acid; if splashed on skin or eyes, flush well with water and

seek medical advice.

 Keep the battery tops and battery compartment ventilated at all times.
 If disconnecting the battery; remove the earth lead FIRST; and re-connect it last.
 If charging the battery; ensure that the charger is switched off before connecting and

disconnecting

 Do not tip the battery on its side.
 Please see label on battery or manufacturer’s instructions for specific information.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 9 of 40

SECTION 2 - Engine Identification

Please quote the engine identification number during any enquiry or when ordering spare
parts. Use the space below to record these details.

This can be found engraved into the brass plate on top of the engine rocker cover and
stamped to the crankcase next to the starter motor.

An example of the engine identification plate is shown below:

Note: There are a number of optional extras that may be fitted to an engine for particular

customer’s engine that are not listed here.

A list of common item service part numbers can be found in Shire service parts in Section 6.
(P 26).

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 10 of 40

SECTION 3 - Installation

1. Ventilation

 All internal combustion engines radiate heat and require cool, clean air to aid

complete combustion.

 Please ensure that adequate engine room ventilation is provided, by fitting at least

two vents of an aperture of not less than 10,000 mm2 each, (16 in2).

An allowance must be made for any grills or louvers or bends placed in the airflows
and generally an increase of 25% in area is sufficient to overcome any restriction
problems.

2. Engine Beds

 These should be a minimum of 10mm thick, extended rearward and be welded to the

hull and forward to the bulkhead. Webs or gussets must be welded in place midway to
prevent flexing. They may be steel or stainless steel glassed into a GRP hull.

3. Pressurised Water Header Tank

 The pressurised header tank should be mounted higher than the level of the engine

and no more than 1 metre from the engine, to prevent cooling system air locks.

4. Shaft Connection and Propeller Selection

 Some type of flexible coupling must be used to connect the gearbox output flange to

the propeller shaft flange. Various coupling flanges are widely available to assist with
this.

 Please note, underperforming engines will not be covered under warranty if the cause

of the poor performance is found to be the use of an inappropriate propeller.

5. Engine Anti-Vibration Mounts

 Ensure that the engine feet do not end up at the top of the thread on the engine

mounts, this puts undue pressure on them and can result in excessive engine
movement and premature mount failure. If this is a problem put steel packing plates
under the mounts. Packing plates 25mm thick are available: order RDG3906 Engine
mount spacer. Alternatively they can be manufactured locally.

 Ensure that the engine has been installed for at least 24 hours before shaft alignment

is checked, to allow the mounts time to settle under the engine weight.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 11 of 40

 Ensure that the anti-vibration mount centre screw is sufficiently raised so as not to

touch the engine bed. If this occurs, excessive engine vibration will be experienced
through the hull.

Care should be taken to install mounts parallel to the engine rails and washer and locknut
firmly tightened on the cover of the mount. The maximum distance from the top of the
locknut to the base of the adjusting nut must not exceed 5mm; any greater adjustment
should be made up using shims below the mount.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 12 of 40

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 13 of 40

6. Engine Alignment

 The gearbox output shaft flange and propeller shaft input flange must be almost

perfectly aligned. A maximum of ± 0.05mm (0.002") misalignment in any plane is
acceptable. Ensure alignment is rechecked after the first 4 hours of running, after the
first month, and thereafter annually.

 If the engine is out of alignment it will result in excessive vibration and possible

damage to the stern tube and propeller shaft.

 Boats that are fitted with fully flexible drive couplings should still have the engine and

shaft alignment as close as possible. A dummy shaft may be required for this
purpose. (Note: some types of flexible shaft couplings require the input and output to
be misaligned, check with the coupling manufacturer’s installation instructions).

7. Electrics

 Do not attach any part, hose or cable to the engine wiring harness. There is a

warning label attached to the harness to remind you of this.

 Connect the wiring extension harness multi plug to the panel plug, and the other end

to the engine. Connect the single wire that is adjacent to the 11 pin plug

 Connect the start battery positive cable to the electrical terminal post adjacent to the

sump pump.

 The starter motor battery cable must have a cross sectional area of at least 50mm

2

.

8. Engine Oil

 All Shire engines are supplied fully run in.
 Check oil levels in engine and gearbox before starting.
 Use a good quality engine oil SAE 15W/ 40 API class CD.

9. Fuel

 Ensure the main fuel tank is clear of dirt & water.
 A separate water trap is strongly advised.
 Connect fuel feed and return hoses from engine to main supply and return lines to

main fuel tank, ensuring they are connected the correct way around. The hose to the
fuel lift pump is the inlet.

 The engine hoses are supplied with

5

/16" (8mm) OD metal hose tails, and should be

securely fitted to the main supply and return pipes with compression fittings.

 The engine hoses should have sufficient slack to absorb engine movement without

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 14 of 40

placing strain on the hoses, and be securely clipped to prevent accidental damage
and chafing.

 Initially fill the fuel system by turning the ignition on to operate the electric fuel pump.

Loosen the bleed screw on the top of the primary fuel filter/water trap and close when
fuel begins to flow clearly (no bubbles). It is rarely necessary to bleed the injection
pump or injectors upon installation as the engine will already have fuel in it from the
engine run in and test procedure.

10. Coolant

 Prepare coolant mix of 50% clean tap water and 50% antifreeze.
 Fill the engine cooling system for the first time through the header tank filler cap on

models 30 & 40, and through the exhaust manifold filler cap and then via the header
tank on model 50. Start and run the engine for several minutes to dispel any
remaining air bubbles, with the pressure cap removed.

 N.B. After running the engine for the first time, monitor the water level frequently as

trapped air bubbles may be expelled. Top up the system as necessary.

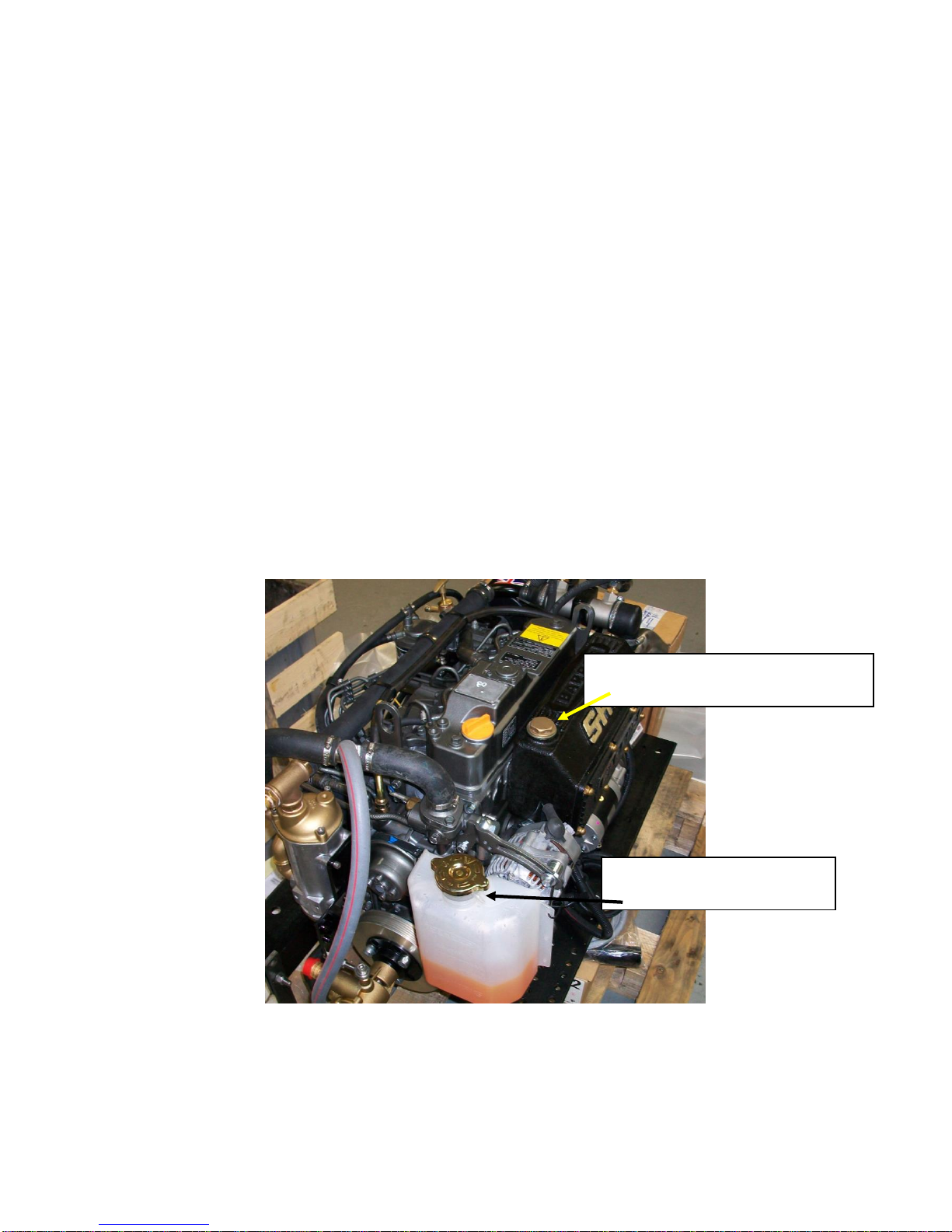

 Ensure the top header tank connection goes to the small hole connection on the tank.

Shire 50

Exhaust manifold filler cap

Header tank filler cap

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 15 of 40

11. Control Cables

 Connect engine speed control cable. With the engine off, ensure that the engine

speed control lever achieves full travel from idle to full speed. Adjust if necessary.

 Check the gearbox shift lever selects positively and that the drive direction

corresponds with the gearshift control lever. Ensure that the gearbox control lever
and the gearshift lever are both in neutral before connection. Adjust if necessary.

 Ensure that when forward is engaged on the throttle that forward is engaged on the

gearbox.

12. Seawater Strainer

A bulkhead mounted seawater strainer or similar is not supplied with the engine, we
recommend that one is fitted between the seawater inlet (seacock) and the sea water
pump inlet.

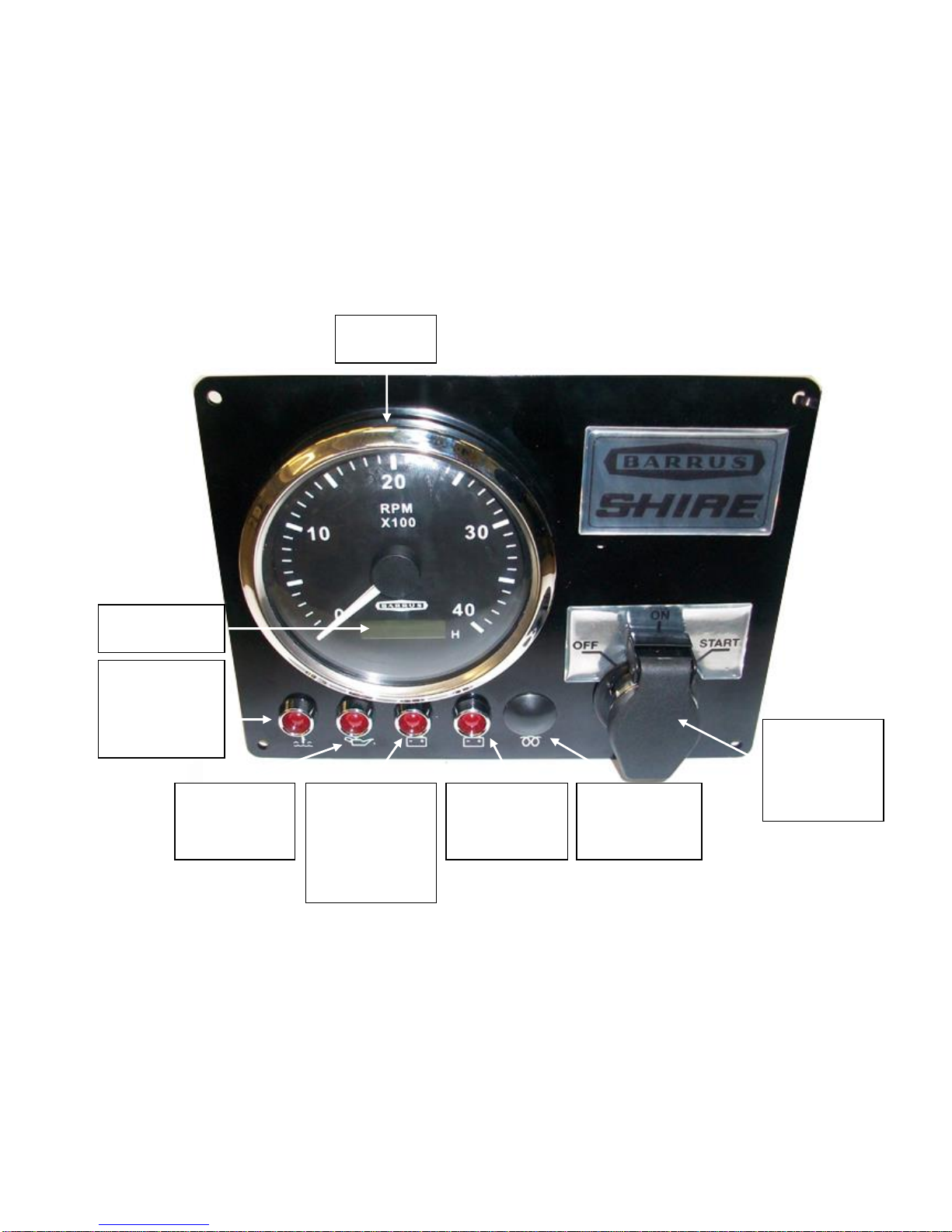

13. Control Panel

All Shire engines are supplied with high quality engine control panel that all show RPM
and hours run and include warning lights and a warning buzzer, the deluxe panels also
have gauges for water temp, oil pressure and battery charging. The panels are designed
to be splash proof and are correctly installed with the gauges vertical. Do not install so
that they remain out in the open, or cover up when not in use.

Dash Panel Calibration Procedure:

 Connect dash panel plug to engine wiring loom plug
 Turn ignition on (do not start engine)
 Press and hold black button on rear of tacho until “H –“ appears on the digital display

on the bottom of the tacho (on the front).

 When pressing and holding the black button on rear of tacho, the value displayed will

increase/decrease until button is released. Then when pressed again it will
increase/decrease in the other direction, keep doing this until the digitally displayed
value on bottom of tacho reaches the correct value, according to the type of alternator
(see table). Must be set to the alternator with blue and black wire connected to it.

 Confirm settings to tacho meter reader.
 An optical tachometer is required to check the reading.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 16 of 40

Barrus Alternator (Amps)

Barrus tacho reading

50

10.50 – 11.00

70

15.00

110

18.00

140

19.50 - 20.00

240

22.00

Alternative or non-standard alternators will require calibrating and checking by trail and
error with a hand held tacho until the engine speed and indicated tachometer speed are
the same.
Engine energise to stop systems are available as an optional extra.

14. Seawater Pump Hose Inlet Size

 Shire 30WB – 20mm (approx. 3/4”)
 Shire 40/50WB – 25mm (approx. 1”)

15. Exhaust System

The exhaust outlet size on the engine is 1 1/2" BSP female. There must be a flexible
exhaust hose of suitable exhaust grade between the engine and the silencer or hull
outlet. The outlet must be above the waterline at all times.

 Make sure exhaust increases then decreases in height as shown above



X

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 17 of 40

16. Hydraulic Drive Transmissions

If an engine is to have a Hydraulic Drive Transmission attached to it, a number of
points must be observed.
Bobtail engines (i.e. Engines supplied without a marine gearbox), normally do not have a
gearbox oil cooler fitted, however if a cooler is supplied, this will only be suitable to cool a
conventional marine gearbox.
Hydraulic drive transmissions generate far more heat than a conventional marine
gearbox, therefore the size of oil cooler installed must be calculated by the hydraulic
drive transmission supplier; to ensure it has sufficient cooling capacity, and is sized
appropriately taking into account:

 Maximum engine power
 High ambient summer air temperature
 Summer River/Canal/Sea temperature
 No additional restriction to engine coolant flow is present

17. Hydraulic Pump Drive Option (Shire 38 / 40 / 45 / 50)

For SAE type pump (9T).
If a hydraulic pump is required to drive items such as bow thrusters or hydraulic winches

then the following parts are required to enable drive to be taken from the engine power take
off.

Part No. 129484-26200 incorporates:

 Packing (on gear case side): 171353-26081
 Cover: 121023 - 26070
 Cover packing: 121023-26061

Ratio: 0.903:1

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 18 of 40

18. Installation Check list

Engine alignment correct, clearance all round, check propeller turns
by hand (Ensure ignition is off battery and battery master switch is
off)

Anti-Vibration mounts correct height, spacers if necessary

Exhaust system as specified

Battery leads are of correct size, tightened and start battery is
charged

Check tension of alternator belts, wiring connected and belt
alignment checked If removed

Check fuel system is connected correctly and primed

Fuel line water trap installed and water drained off

Check header tank and skin tank connections are correct way
round, constant pipework rise to header tank

Check level of coolant in header tank and correct ratio

All air has been bled from skin tank, calorifier and pipework

Engine and gearbox oil levels are as specified

Throttle and gear cables correctly adjusted and operating smoothly

All pipework and cabling supported and not chaffing, slack to allow
movement of engine

Confirm panel and warning lights operational

Check for leaks

Explain/Demonstrate off season storage and maintenance

Installer’s signature

Installer name/company

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 19 of 40

SECTION 4 - Operation

1. Starting the Engine for the First Time

 Remove ignition key.
 Ensure all oil and coolant levels are checked.
 Ensure engine battery is connected. Battery master switch must be turned on.
 Check all connections and mountings are tight.
 Ensure that the raw water seacock is turned on.

2. Starting Procedure

Note: Shire engines do not have a cold start function as standard. Therefore the glow
plug light will not illuminate.

 Ensure the gearshift control lever is set to neutral, and that persons are clear of any

moving parts.

 Insert the ignition key and turn to the first position, on.
 Observe warning lights (and gauges on deluxe panel). NB the engine overheat light

will only illuminate when the water temperature exceeds the safe level

 Listen for warning buzzer.
 Turn key to second position, start, and hold to crank.
 Crank the engine for no more than 15 seconds.
 On engine start, immediately release key.
 Key will return to first position, on.
 The warning buzzer will stop and on the deluxe panel the oil pressure gauge will show

an oil pressure of 3– 4 bar [45-60 psi].

 Should any warning light not go out, or if there is no reading on the oil pressure

gauge, the buzzer will continue sounding. In this case, stop the engine immediately
and check the relevant system (Note: if the charge light does not go out, rev the
engine briefly).

 Once started check that sea water is coming out of the water cooled exhaust outlet in

the hull of the boat

 Stop engine immediately if any abnormal noises are detected.
 Visually check the engine for oil, fuel and coolant leaks, (after initial startup and at

regular intervals, N.B. engine must be stopped to carry out this check).

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 20 of 40

3. Stopping Procedure

 Move speed control lever to idle position.
 Turn key to off position.

4. Refuelling

 All Shire marine engines run on diesel fuel. DO NOT USE BIODIESEL
 Please note that if the vessel is to be left for any period of time the fuel tank should be

full to eliminate the build up of condensation and formation of water in the fuel tank.

5. Diesel Fuel Additive

The use of diesel fuel additive is strongly recommended on Shanks & Shire engines.
The quality of the fuel available when cruising is often unknown; also the fuel may
have been in storage for long periods of time. The use of additives will ensure that
your engine fuel injection system is in top condition which should result in many years
of smooth reliable operation without the cost and inconvenience of expensive
breakdowns due to poor quality fuel. It has also been found that improvements in fuel
consumption and startability are an added benefit of using this product.
Diesel fuel additive is available from your Shire dealer in a handy 375ml container,
part number RDG80210219.

6. Exhaust Back Pressure

 Use 50mm ID suitable marine flexible exhaust hose on the 30 model engine and

60mm on the 40 and 50 models. Do not step down to a smaller size.

 The engine exhaust outlet must be at least 200mm (8”) above the outside seawater

level of the hull. If not an exhaust high rise kit and/or lock box/Swan neck must be
used to prevent sea water flowing back up the exhaust and causing engine damage.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 21 of 40

SECTION 5 - Service Procedure

1. Engine Oil and Filter Change

CAUTION:

WEAR DISPOSABLE GLOVES AND BEWARE OF HOT OIL AND ENGINE BLOCK.

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

 Change the engine oil while the engine is still hot.
 Remove the blanking plug in the sump pump spout. [6mm Allen key] Note (if there is

an optional gearbox oil drain pump) the engine sump is the pump mounted adjacent
to the starter motor.

 Place a plastic tube over the spout and into a container. Operate the pump handle to

empty the sump. (Remember to refit the blanking plug afterwards).

 Place a drip tray under the engine to catch the small amount of oil that will escape

from the oil filter. Using a strap type oil filter removal tool (supplied), slacken the filter
from the engine block in an anti-clockwise direction, remove the tool and spin off the
filter.

 Lightly oil the new filter O-ring seal and install the filter onto the engine. Spin it on in a

clockwise direction and finally tighten by hand only as firmly as you can.

 Refill the sump using the oil filler cap in the rocker cover on top of the engine.
 Oil level should be to the top mark on the dipstick.
 Run the engine for 5 minutes to fully circulate the oil, and check for leaks, stop the

engine. Wait 5 minutes before checking the oil level with the dipstick and top up if
required.

 Do not overfill with oil above the maximum level marker as this may cause damage to

the internal components of the engine.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 22 of 40

2. Air Filter Check & Change

 Release the 2 spring clips, pull off the end cover to reveal the filter element. The

element simply pulls out.

 The air filters elements are constructed of pleated paper and requires regular

inspection for dirt or dust. Air filter elements cannot be cleaned and must be replaced.

 The engine requires an unrestricted flow of clean air to run efficiently. Increased

levels of smoke and high fuel consumption and eventually engine damage will occur if
the air filter is not maintained.

 To fit the new element, slide the open end of the filter element into the main body;

gently push the element home until fully seated. Refit the end cover.

3. Gearbox Oil Change

 Change the gearbox oil while it is still hot. (Please refer to PRM gearbox manual for

more information).

 Place a tray beneath the gearbox that will hold at least 2.0 litres.
 Undo the gearbox drain plug, and remove, allow the oil to drain fully.
 Replace the drain plug, ensure that the sealing washer (if used) is still in place, and in

good condition, tighten. Fit a new washer if required.

 Refill the gearbox with oil to the upper mark on the dipstick. Screw dipstick in fully to

establish level.

 Do not overfill gearbox as this can damage the internal components.
 Note; Some gearboxes may have a gearbox drain pump fitted as an optional extra. In this

case use the drain pump to remove the oil.

PRM 80 and 120 gearbox

CAUTION:

WEAR DISPOSABLE GLOVES AND BEWARE OF HOT ENGINE BLOCK.

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

CAUTION:

WEAR DISPOSABLE GLOVES AND BEWARE OF HOT OIL AND GEARBOX CASINGS.

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 23 of 40

PRM 150 gearbox

Level dipstick /
Filler plug

Magnetic drain plug

(Viewed from underneath)

Level dipstick /
Filler plug

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 24 of 40

PRM 260 gearbox

Disposal of Oil and Related Items

 Please dispose of used oil and oil filters safely with due regard for the environment,

and take to your local waste oil disposal point.

 Do not allow oil or contaminated parts to enter the inland waterway system.

4. Primary Fuel Filter Water Drain

 Place a small drain bowl under the primary fuel filter/water trap.
 Loosen the drain screw located in the bottom of the fuel filter/water trap.

CAUTION:

WEAR DISPOSABLE GLOVES.

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

Level dipstick /
filler plug

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 25 of 40

 Drain off any water (if any)
 When water is drained off, close the drain screw.
 It is unlikely the complete fuel system will require bleeding.
 Run for 5 minutes.
 Check that the drain union is tight and that there are no leaks.
 Note; the boat builder may have fitted an additional water trap in the fuel system

before the engine. Ensure that this is drained regularly.

5. Primary and Secondary Fuel Filter Change

CAUTION:

WEAR DISPOSABLE GLOVES.

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

 Ensure the fuel tank is at least ¾ full prior to undertaking this procedure.
 Turn off the main boat fuel supply tap, located on or near the fuel tank.
 Place a small drip tray under the filter body.
 Remove the fuel filters using the oil filter wrench supplied. Unscrew them until loose then

remove by hand.

 Primary fuel filter only – Retain the metal fuel filter drain screw from old filter and re-use

in the new filter.

 Smear a small amount of clean fuel on all of the O ring seals that are supplied with the

new filter element.

 Screw the new element back into the filter head.
 Turn the main boat fuel supply tap back on.
 Ensure system is correctly bled before attempting start up.

The same procedure is used for both Primary and secondary fuel filter changes

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 26 of 40

6. Bleeding the Fuel System.

 Ensure the fuel tank is at least ¾ full prior to undertaking this procedure.
 See Fuel paragraph, Section 3, in Yanmar Engine Operation Manual.

7. Cooling System

CAUTION:

DO NOT CHECK THE COOLANT LEVEL WHEN THE ENGINE IS HOT.

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

 To check the coolant level, ensure that the engine has been shut down for at least

half an hour.

 The coolant level can be checked visually and should between the two level marks

moulded on the front of the white, plastic expansion tank.

 If required, top up the level with coolant (50% clean tap water and 50% ethylene

glycol based anti-freeze) through the expansion tank filler cap.

 Do not use water only to top up as this weakens the coolant mix, reducing the level of

frost protection and anti-corrosion protection of the coolant.

8. Belt Adjustment

 Depress the longest run of the drive belt to be checked. If the travel exceeds 15 –20

mm using hard finger pressure, the belt needs re-tensioning.

 Loosen the upper adjuster bolts on the alternator, and the lower mounting pivot nut

and bolt, pull out using hand pressure.

 Pull the alternator away from the engine to tighten the belt.
 Hold the alternator in position and re-tighten all the bolts.

CAUTION:

WEAR DISPOSABLE GLOVES.

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

CAUTION:

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 27 of 40

 Note: if the belts are over tightened alternator bearing failure will occur.

9. Belt Maintenance

 Do not allow oil to contact the belt. Oil attacks the construction of the belt, reduces

the drive efficiency, and will ultimately cause, it to fail prematurely.

 Replace the belt, if it cracks; splits or as the adjustment nears the limit of its travel.
 Note: Some boat builders may remove one or more of the alternators during the

installation of the engine. It is essential that when the alternators are re-fitted that the
alignment is perfect or premature belt wear will occur.

10. Belt Replacement

 Ensure that you have the correct new belt prior to starting this procedure (some

engines may have been fitted with non-standard optional alternators which may not
have the belt sizes listed. Make a note of belt size on delivery).

 Loosen the top adjuster bolts, and the lower mounting pivot nut and bolt.
 Push the alternator towards the engine to loosen the belt.
 Remove the seawater pump (may not be required, depending on seawater pump

option fitted).

 Remove the belt.
 Hold the belt in position over the top alternator pulley; rotate the engine, if required, by

hand, to guide the new belt into the pulley “V”s check it is correctly seated in the
pulley.

 Replace seawater pump (if required).
 Re-tension the belt as above.

Note: Some engines maybe fitted with a side mounted belt driven seawater pump.
Similar belt tightening procedure will apply for this.

CAUTION:

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 28 of 40

11. Panel Maintenance

Warning Light Bulb replacement
Release the panel from its mounting

1. To replace an illumination bulb.
a. The bulbs are accessible from the rear of the panel. This can be gently removed

by pulling off the wires, unscrewing the nut and pulling out the bulb housing from
the panel.

2. To replace any gauge
a. The gauges are accessible from rear of the panel. Unplug the wire connectors,

unscrew and pull the gauge out from the panel.

3. Periodically squirt a lubricant in to the key switch slot with key removed (a lubricant such

as WD40 – with silicon, other lubricants are available). Then with the battery master
switch turned off operate key switch a couple of times to ensure lubricant works in to
mechanism.

12. Sacrificial Anode Change

 The anode is located in the "T" fitting on top of the engine at the front of the engine

facing forward.

13. Raw Water Pump Impeller Change

The pump is located on the front of the engine bolted to either the P.T.O pulley camshaft
drive or side mounted and driven by a belt. Procedure is similar for all.

 Remove the pump cover plate.
 Remove the pump impeller, (special tools are available from chandleries to assist with

this task)

 Note, do not lever against the front of the pulley housing as it is easily damaged, and

inspect the pump housing and front wear plate.

 Replace the impeller.

CAUTION:

TURN BATTERY ISOLATION SWITCHES OFF

REMOVE THE IGNITION KEY BEFORE WORKING IN ENGINE COMPARTMENT.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 29 of 40

 Replace the cover plate gasket if damaged.
 Replace any other worn components as necessary.

14. Engine Heat Exchanger Tube Stack Flushing.

 When the engine is cold, drain the water from the engine block, drain screw is located

behind the heat exchanger.

 Drain water from the heat exchanger, the drain plug is in the bottom of the heat

exchanger end cap.

 Disconnect pipes and hoses from engine heat exchanger.
 Remove the heat exchanger from the engine.
 Mark position, and remove end caps from engine heat exchanger.
 Carefully remove the tube stack from the centre of the heat exchanger.
 Fully flush between the tubes to remove any dirt or scum build up.
 Inspect the tube stack replace if damaged.
 Reassemble and refit checking the end cap "O" rings are in good condition

Refill the engine with coolant as described earlier (page 14).

15. Winterization of Seawater Cooling System.

 To prevent frost damage to the seawater cooling circuit components because of water

freezing, ensure all seawater or raw water is drained from the system

 Alternatively, run neat anti-freeze through the seawater pump inlet to protect the

system

 Ensure that the anti-freeze is drained before starting the engine the next season to

ensure that it does not get into the marine environment. Dispose of correctly

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 30 of 40

SECTION 6 - Shire Service Parts

Shire 14 30/40/50 Workboat

Fuses

The electrical system is fitted with three blade type
fuses:

a. Engine start control system 25A (RDG1152)
b. Engine stop control system 40A (RDG3246)
c. Dash Panel supply 15A (RDG3245)

Engine oil is available from Shanks & Shire dealers in
convenient 5 litre containers (part no. RDG6110).
Diesel fuel additive is available from Shire dealers in a 375ml container (part no.
RDG80210219).

Primary Fuel Filter

RDG9188346

Secondary Fuel Filter

119802-55801

50A Alternator Belt (Shire 30)

25132-003700

50A Alternator Belt (Shire 40/50)

RDG6079

140A Alternator Belt (optional)

RDG6076

Air Filter Element

RDG5795

Engine Oil Filter Element

129150-35153

Zinc anti corrosive anode

119574-44150

Zinc sticker

124220-09340

Raw Water Pump Impeller for front crank mounted
pump (option on all engines).

RDG0109627

Raw water pump Impeller for front camshaft
mounted pump (standard on 30WB).

RDG010A5

Raw water pump impeller for side-mounted, belt­driven pump.(option on 40/50WB).

RDG01010242

Raw water pump impeller for front camshaft
mounted pump (standard on 40/50WB)

RDG010A4

Starter Relay

a. 25A

b. 40A

c. 15A

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 31 of 40

SECTION 7 - Service Schedule

Specifications and Capacities

ENGINE OIL CAPACITY (WITH FILTER):

Engine

Capacity (litres)

Capacity (Pints)

30

5.5

9.7

40/50

7.4

13

GEARBOX OIL CAPACITY (EXCLUDING COOLER):

Gearbox

Capacity (Litres)

Capacity (Pints)

PRM 80 (30)

0.57

1.0

PRM 120 (30) option

0.8

1.4

PRM 150 (30/40/50)

1.4

2.5

PRM 260 (40/50) option

1.5

2.7

Engine and Gearbox Oil: SAE 15W 40 API Class CD. *
(N.B. PRM 80 & 120 gearbox – ATF (Automatic Transmission Fluid)).

Coolant: 50% Clean Water + 50% Ethylene Glycol Antifreeze.

Service Intervals

Check

Change

Notes

Engine Oil & Filter

Daily

(level)

Every 250 hours
Or 12 Months*

First change after 50 hrs.

Gearbox Oil

Weekly

(level)

Every 250 hours
Or 12 Months*

First change after 25 hrs.

Coolant level

Daily

(level)

Every 24 Months

Diesel Fuel Filter
Primary &
Secondary

50 hours

Every 500 hours
Or 12 Months*

Drain water every 50
hours, or monthly #

Air Filter Element

250

Hours

Every 500 hours
or 24 Months

Sooner if required

Drive belts

Daily

As required

Adjust as necessary

Sacrificial
Anode’s

250hrs

Every 500hrs or
12 months*

Check and change more
frequently if local
conditions require it.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 32 of 40

Raw Water pump
Impeller

250hrs

Every 500hrs or
12 months*

Change more frequently if
operating in shallow or
sandy waters

Main Heat
Exchanger

500hrs

Or check more frequently
if local conditions require.

Remove & clean as
instructions on pg. 26

Key Switch

Lubricate

Every 150 hours

Or 12 Months *

As per Instructions section
12, Dash Panel
Maintenance

* Whichever occurs first.

#

If large quantities of water are found in fuel when filter drained, increase frequency of

draining.

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50

SECTION 8 - Wiring Diagrams

1. Harness Wiring Diagram

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 34 of 40

2. Engine Wiring Diagram Shire 30 & 35 (with Glowplugs)

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50

Panel Wiring Diagram

Standard Panel

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 36 of 40

Deluxe Panel

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50

RDG20710110 - Standard Instrument Panel

Tachometer

Hour Meter

Water

Temperature

Warning Light

Oil Pressure

Warning Light

Optional
Additional
Alternator

Charge Light

50A Alternator

Charge Light

Glow Plug Light

(Optional)

Key Flap

&

Ignition Switch

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 38 of 40

RDG20710111 - Shire Deluxe Instrument Panel

50A Alternator

Charge Light

Optional

Additional
Alternator

Charge Light

Oil Pressure

Warning Light

Water

Temperature

Warning Light

Glow Plug Light

(Optional)

Key Flap

&

Ignition Switch

Water

Temperature

Gauge

Hour Meter

Tachometer

50A Alternator Voltage

Output Gauge

Oil

Pressure

Gauge

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 39 of 40

SECTION 9 – Dealer List

Area

Company

Telephone

Email

BERKSHIRE

Bluenine Marine

01189 406482

[e-mail]

Aquatec Marine

07880793686

[e-mail]

CORNWALL

Black Dog Marine

01503 265898

[e-mail]

Cellar Marine

01326 280214

[e-mail]

DEVON

Sleeman & Hawkin Ltd

01626 778266

[e-mail]

ESSEX

French Marine Motors Ltd

01206 305233

[e-mail]

French Marine Motors Ltd

01255 850303

[e-mail]

HAMPSHIRE

Marine Power Ltd

0238 0403918

[e-mail]

HERTFORDSHIRE

P & S Marine

01923 248372

(no email contact)

KENT

Freedom Marine

01303 844400

[e-mail]

LONDON

De La Hunty Marine

02089 792121

[e-mail]

NORFOLK

French Marine Motors Ltd

01603 722079

[e-mail]

NOTTINGHAM

Farndon Marina

01636 705483

[e-mail]

SOUTH AYRSHIRE

West Coat Marine

01292 318121

[e-mail]

SUFFOLK

John Buckley

01502 724721

[e-mail]

YORKSHIRE

Rodley Boat Centre

01132 576132

[e-mail]

EIRE

Dun Laoghaire Marine Services

00353 12104776

[e-mail]

EIRE

O’Sullivans Marine

003536 67124524

[e-mail]

RDG603A9 - Issue 1 - Shire 14 Workboat Owners Manual 30, 40, 50 Page 40 of 40

Shire Service Record Card
