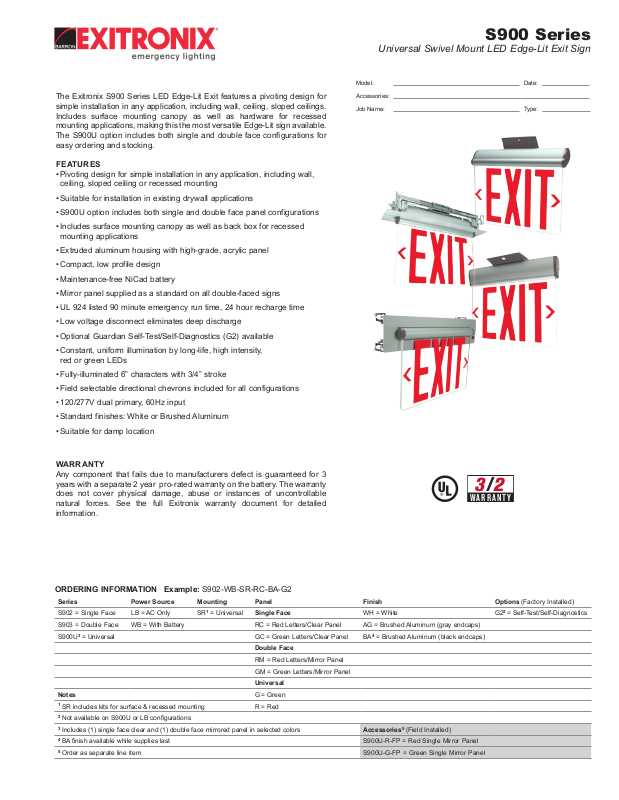

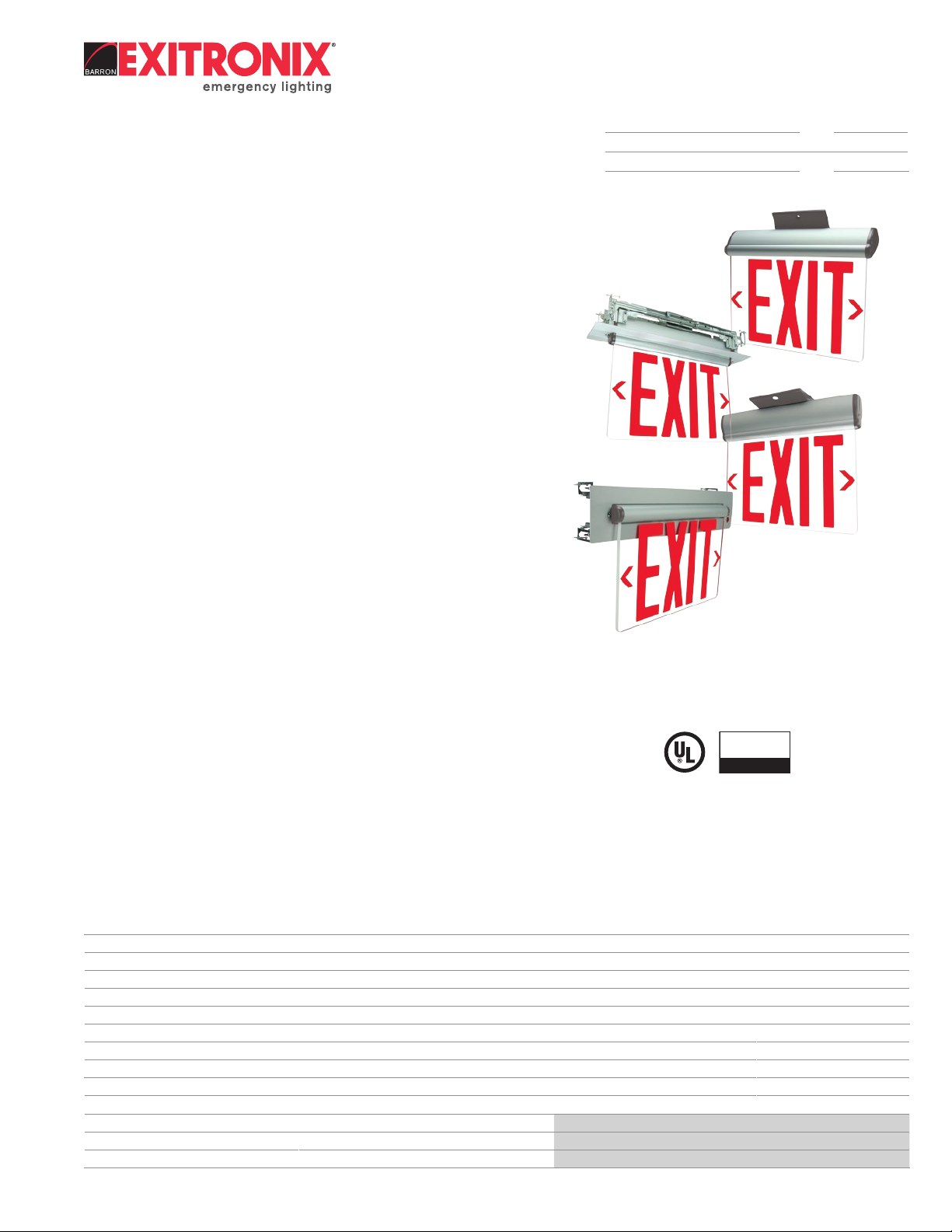

The Exitronix S900 Series LED Edge-Lit Exit features a pivoting design for
WARRANTY
3/2
simple installation in any application, including wall, ceiling, sloped ceilings.
Includes surface mounting canopy as well as hardware for recessed
mounting applications, making this the most versatile Edge-Lit sign available.
The S900U option includes both single and double face congurations for
easy ordering and stocking.
FEATURES
• Pivoting design for simple installation in any application, including wall,
ceiling, sloped ceiling or recessed mounting
• Suitable for installation in existing drywall applications
• S900U option includes both single and double face panel configurations
• Includes surface mounting canopy as well as back box for recessed
mounting applications
• Extruded aluminum housing with high-grade, acrylic panel
• Compact, low profile design
• Maintenance-free NiCad battery
• Mirror panel supplied as a standard on all double-faced signs
• UL 924 listed 90 minute emergency run time, 24 hour recharge time
• Low voltage disconnect eliminates deep discharge
• Optional Guardian Self-Test/Self-Diagnostics (G2) available
• Constant, uniform illumination by long-life, high intensity,
red or green LEDs
• Fully-illuminated 6” characters with 3/4” stroke
• Field selectable directional chevrons included for all configurations
• 120/277V dual primary, 60Hz input
• Standard finishes: White or Brushed Aluminum
• Suitable for damp location
S900 Series
Universal Swivel Mount LED Edge-Lit Exit Sign
Model: Date:
Accessories:
Job Name: Type:
WARRANTY
Any component that fails due to manufacturers defect is guaranteed for 3
years with a separate 2 year pro-rated warranty on the battery. The warranty
does not cover physical damage, abuse or instances of uncontrollable
natural forces. See the full Exitronix warranty document for detailed
information.
ORDERING INFORMATION Example: S902-WB-SR-RC-BA-G2
Series Power Source Mounting Panel Finish Options (Factory Installed)
S902 = Single Face LB = AC Only
S903 = Double Face WB = With Battery RC = Red Letters/Clear Panel AG = Brushed Aluminum (gray endcaps)
3
S900U
= Universal GC = Green Letters/Clear Panel BA4 = Brushed Aluminum (black endcaps)
Notes G = Green
1
SR includes kits for surface & recessed mounting R = Red
2
Not available on S900U or LB configurations
3
Includes (1) single face clear and (1) double face mirrored panel in selected colors Accessories5 (Field Installed)
4
BA finish available while supplies last S900U-R-FP = Red Single Mirror Panel
5
Order as separate line item S900U-G-FP = Green Single Mirror Panel
1
SR
= Universal
Single Face WH = White G2
Double Face
RM = Red Letters/Mirror Panel
GM = Green Letters/Mirror Panel
Universal
2
= Self-Test/Self-Diagnostics
Page 2
CONSTRUCTION
13”
3.5”
2.81”
Housing
Available in either a powder coated or brushed aluminum finish.
Surface and Recessed Mounting
Engineering grade aluminum extrusion with mounting canopy.
Extruded aluminum housing supplied with galvanized steel adjustable
bar hanger assembly.
Panels
Constructed of clear acrylic. Stencil letters are 6” high with 3/4” stroke,
with minimum of 100 ft viewing distance rating as required by UL 924
standard. Double face panels are supplied with a mirror insert. Units
are supplied with press-on directional arrows for placement in all
applications.
ILLUMINATION
High output red or green LEDs provide superior brightness. Energy
consumption of less than 3 watts for AC only and less than 5 watts
for battery back-up units. LEDs are a maintenance-free solution,
providing up to 100,000 hours of use without failure.
ELECTRICAL
Input
Dual-voltage input 120 or 277VAC at 60Hz.
Nickel Cadmium Battery - NiCad (With Battery Only)
Exitronix NiCad batteries are maintenance-free with a life expectancy
of 15 years. NiCad batteries offer high discharge rates and continue to
perform in a vast temperature range from 32°F to 104°F (0°C to 40°C).
Low Voltage Disconnect
When the battery’s terminal voltage falls below predetermined levels,
the low-voltage circuit disconnects the emergency lighting load. The
disconnect remains in effect until normal power is restored, preventing
deep battery discharge and improving the life of the battery. The
disconnect will also automatically reconnect the load circuit once the
battery voltage returns to a normal value after charging.
Test Button
Test button is easy to locate and allows for manual verification of
proper operation of the transfer circuit and emergency lamps.
INSTALLATION
Surface Mounting: Completely universal canopy provides for end or
ceiling mounting. All hardware is included.
Recessed Mounting: Recessed ceiling mount, accessible above the
plenum. Electronics and battery contained in housing. Plug-in battery
connector supplied for easy installation. All hardware is included.
OPTIONS
Guardian Self-Test/Self-Diagnostics (Option: G2)
The Guardian circuit continuously monitors the operating condition of
the AC power, battery supply voltage and charging circuit.
The purpose of this option is to provide visual signaling in response
to a fault at the EXIT sign battery and/or battery charger. If a failure is
detected, visual status will occur immediately via the CHARGER LED
and/or the BATTERY FAULT LED. The LEDs will stay illuminated until
the fault is corrected.
The Guardian circuit also monitors the transfer circuit as well as
performing automatic code compliance testing. The Guardian circuit
will perform a 30 second discharge and self-test every 28-30 days. A
90 minute discharge and self-test is performed every 6 months.
CONFORMANCE TO CODES AND STANDARDS
The S900 Series is UL 924 listed and meets or exceeds the following:
NEC requirements and NFPA 101.

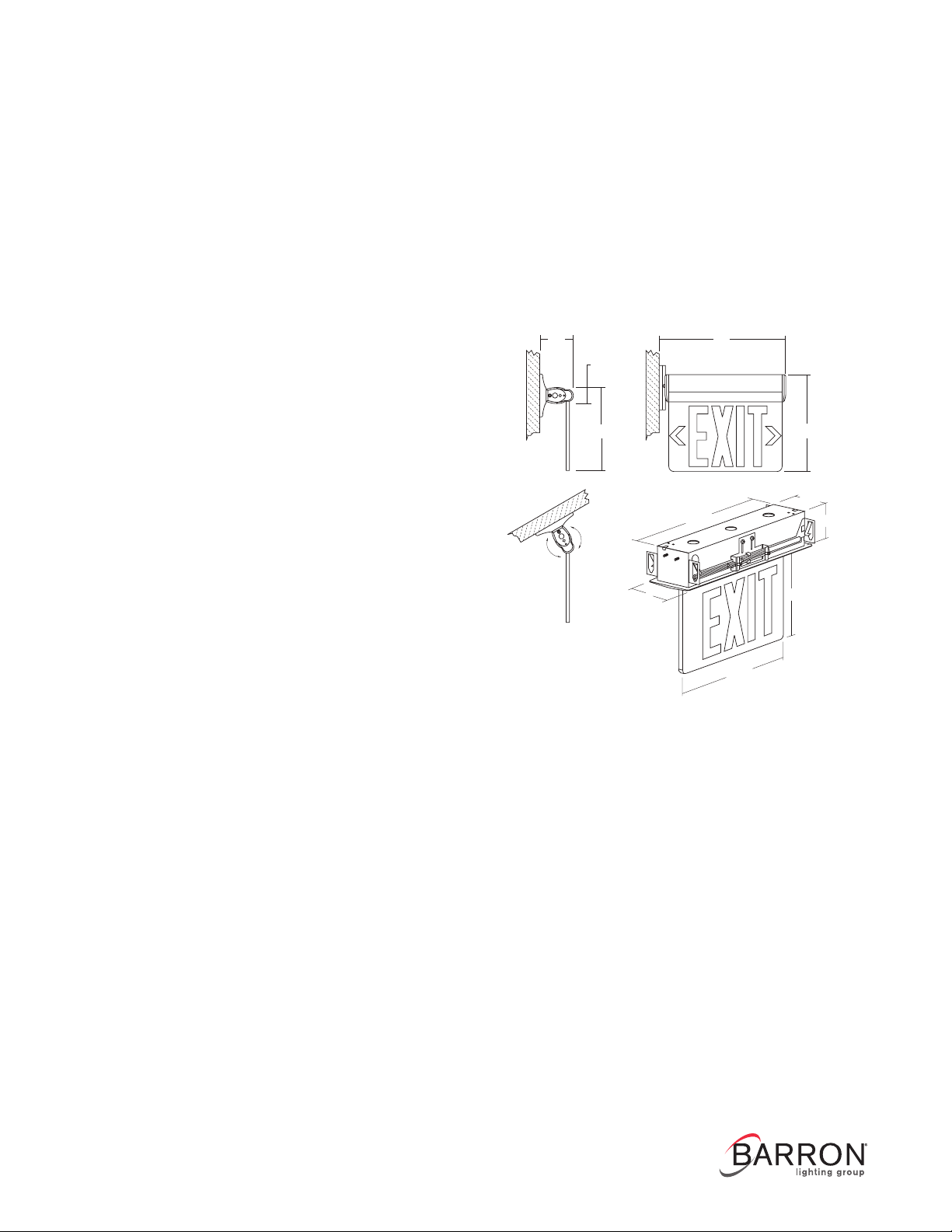

DIMENSIONS
1.63”
8.68”
14.96”
4”
12.69”
9.63”
3.13”
7.5”
Specifications are subject to change without notice.
Installation must be performed in accordance with
Barron Lighting Group installation instructions.
10800157 10/17
800.533.3948 • www.barronltg.com
