PRODUCT INFORMATION

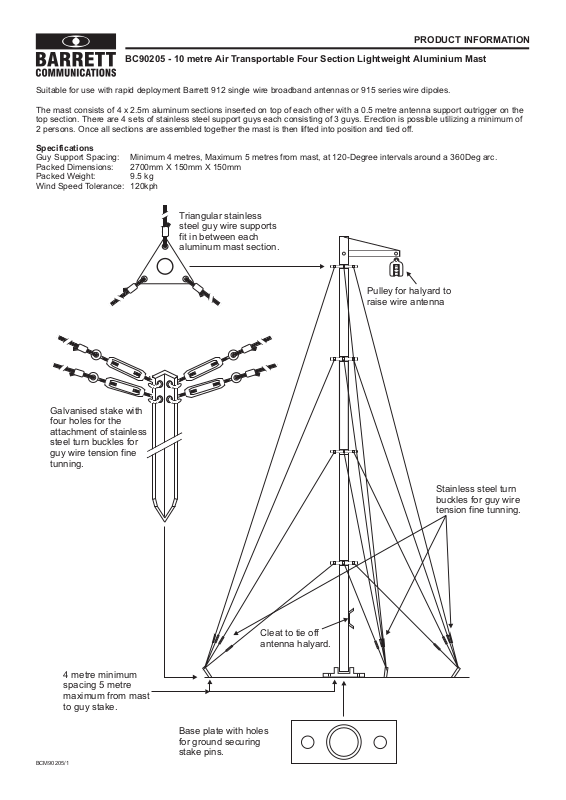

BC90205 - 10 metre Air Transportable Four Section Lightweight Aluminium Mast
Suitable for use with rapid deployment Barrett 912 single wire broadband antennas or 915 series wire dipoles.
The mast consists of 4 x 2.5m aluminum sections inserted on top of each other with a 0.5 metre antenna support outrigger on the
top section. There are 4 sets of stainless steel support guys each consisting of 3 guys. Erection is possible utilizing a minimum of
2 persons. Once all sections are assembled together the mast is then lifted into position and tied off.
Specifications
Guy Support Spacing: Minimum 4 metres, Maximum 5 metres from mast, at 120-Degree intervals around a 360Deg arc.
Packed Dimensions: 2700mm X 150mm X 150mm
Packed Weight: 9.5 kg
Wind Speed Tolerance: 120kph
Triangular stainless
steel guy wire supports
fit in between each
aluminum mast section.
Pulley for halyard to
raise wire antenna
Galvanised stake with
four holes for the
attachment of stainless
steel turn buckles for
guy wire tension fine
tunning.
4 metre minimum
spacing 5 metre
maximum from mast
to guy stake.
Stainless steel turn
buckles for guy wire
tension fine tunning.
Cleat to tie off
antenna halyard.
BCM90205/1
Base plate with holes
for ground securing
stake pins.
