Page 1
4x12G-SDI
User Manual
Page 2
THE CONCEPT
Each BarnColor pair is available as SDI or Ethernet version and can cascade maximum 4 boxes
(colors) on each side. The boxes can be combined in any variation as long as color is
different. Maximum transmission distance – medium range. Equipped with rugged
connectors.

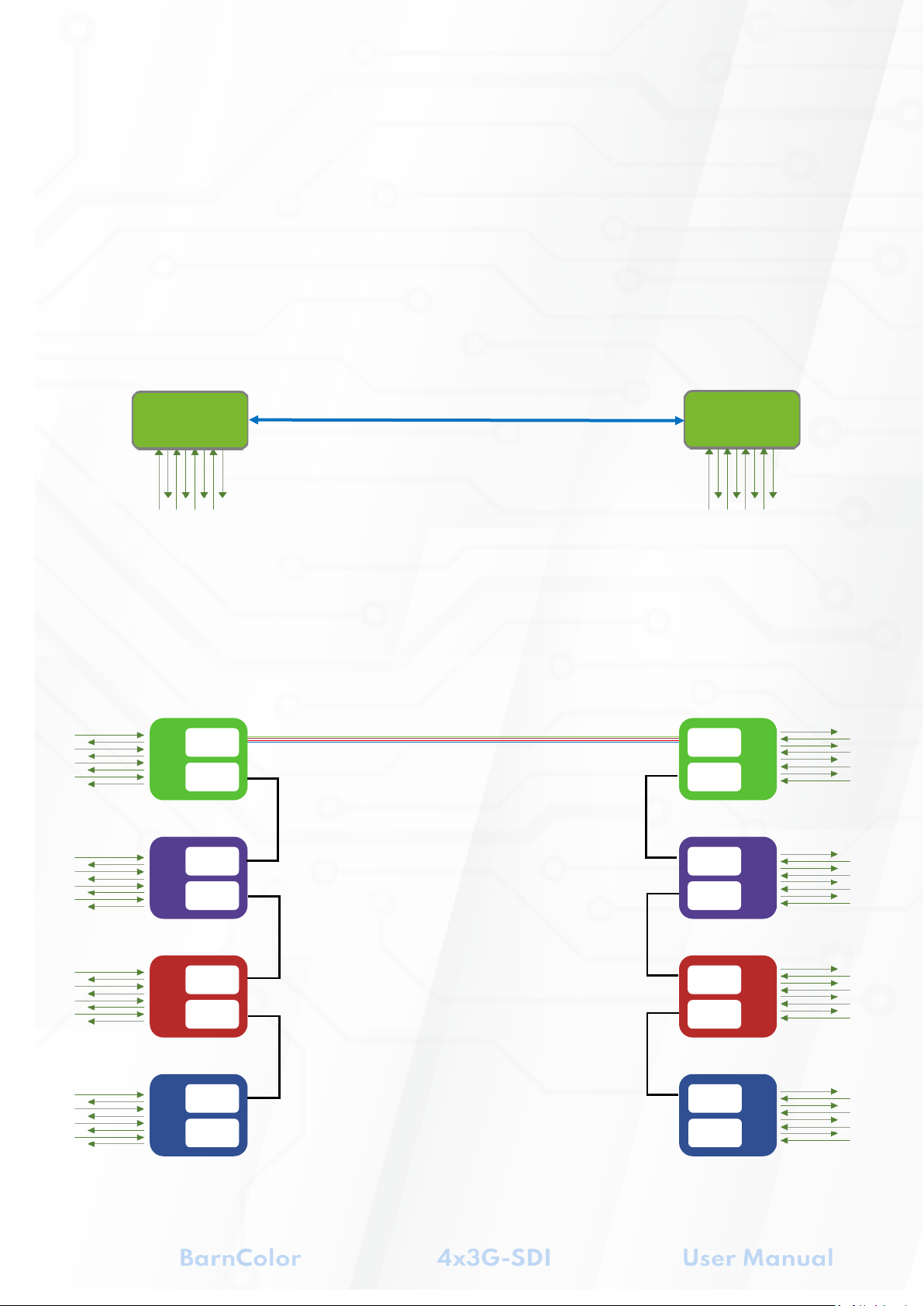

As a pair
BarnColor can be coupled as a point to point link and will transmit/receive 4x SDI signals each
way. This point to point connection can be done with any color
Cascade
BarnColor devices can be cascade coupled and all signals for both directions will be transfered
into the same fiber connection. Follow the diagram under for connections. You will find the same
diagram on top of the device.
Peers
Cascade
Peers
Cascade
Peers
Cascade
Peers
Cascade
Peers
Cascade
Peers
Cascade
Peers
Cascade
Peers
Cascade
Page 3

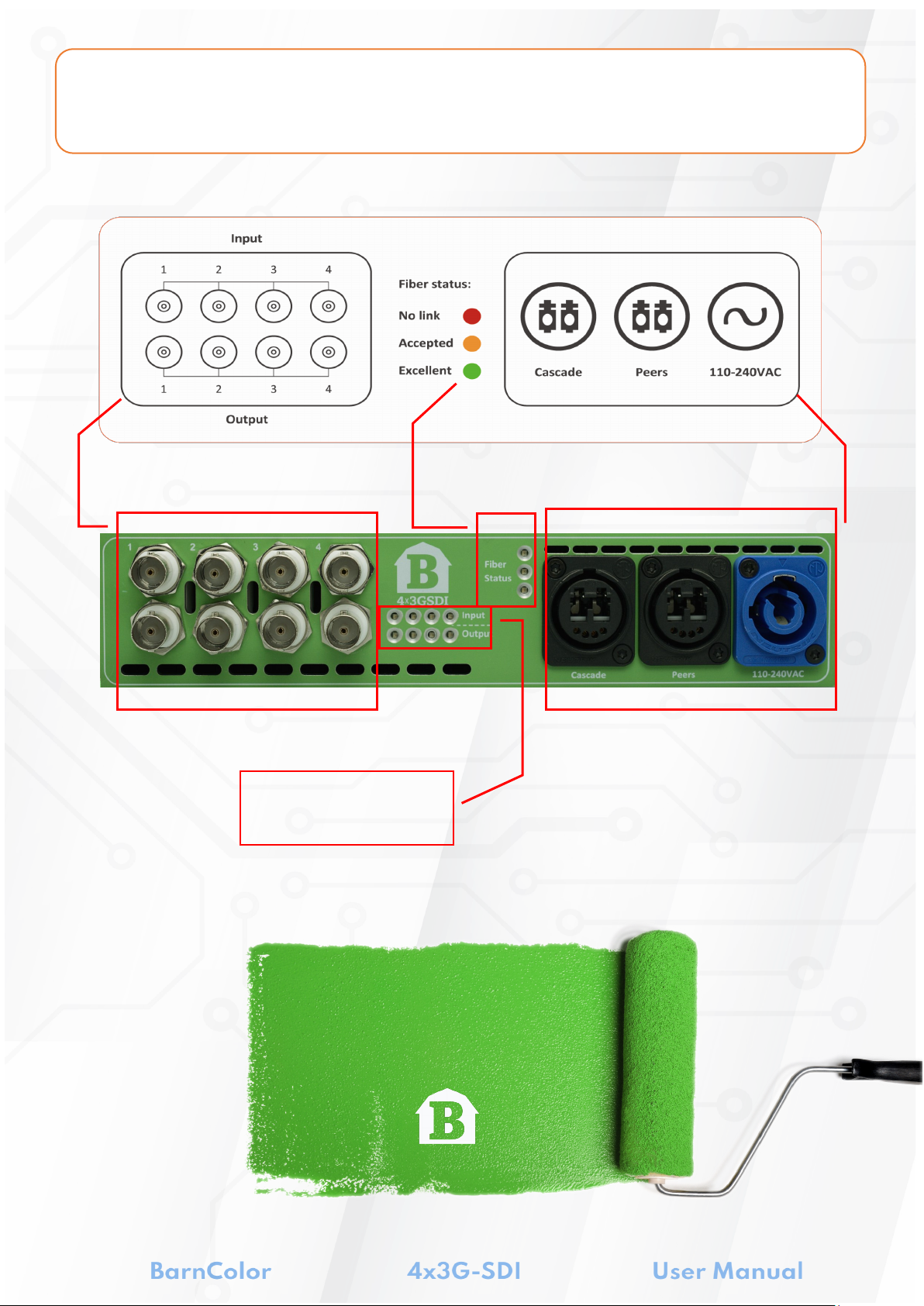

Front panel
Diagram on the top lid explain connectors and indicators
Indicates valid signal on input
- - - - - - -
Indicates valid signal on output
For any quesons, please contact
Support@barnnd.no
Page 4
• SMPTE 259M, 292M, 372M, 424M, DVB-ASI
• Multirate reclocking of outputs 270Mbps – 3Gbps
• Neutrik opticalCON DUO LITE, also compatible with dup-
lex LC
• SMPTE 297M
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
• 1.4 kg
• Neutrik powerCON 20 A
• 100-240VAC, 15Watt
• BarnColor-3G-SDI-G – Green position
• BarnColor-3G-SDI-P – Purple position
• BarnColor-3G-SDI-B – Blue position
• BarnColor-3G-SDI-R – Red position
• BC-PowerCable-EU – 220VAC Europe/Shuko (Hybrid CEE 7/7 plug)
• BC-PowerCable-US – 110VAC US (NEMA 5-15 grounded (Type B))
BNC-Ports
Fiber port
Physical size
Power plug
Order codes
Technical Specifications
4x3G-SDI
Page 5
• SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST2081, ST-2082
• Multirate reclocking of outputs 270Mbps – 3Gbps
• Neutrik opticalCON DUO LITE, also compatible with dup-
lex LC
• SMPTE 297M
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
• 1.4 kg
• Neutrik powerCON 20 A
• 100-240VAC, 15Watt
• BarnColor-12G-SDI-G – Green position
• BarnColor-12G-SDI-P – Purple position
• BarnColor-12G-SDI-B – Blue position
• BarnColor-12G-SDI-R – Red position
• BC-PowerCable-EU – 220VAC Europe/Shuko (Hybrid CEE 7/7 plug)
• BC-PowerCable-US – 110VAC US (NEMA 5-15 grounded (Type B))
BNC-Ports
Fiber port
Physical size
Power plug
Order codes
Technical Specifications
4x12G-SDI
