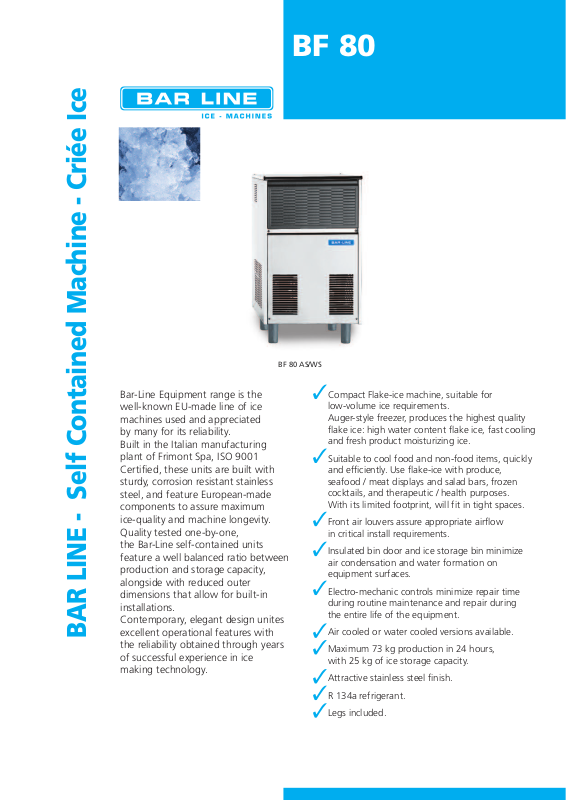

BF 80

BAR LINE - Self Contained Machine - Criée Ice

BF 80 AS/WS

Bar-Line Equipment range is the
well-known EU-made line of ice
machines used and appreciated
by many for its reliability.
Built in the Italian manufacturing
plant of Frimont Spa, ISO 9001
Certified, these units are built with
sturdy, corrosion resistant stainless
steel, and feature European-made
components to assure maximum
ice-quality and machine longevity.
Quality tested one-by-one,
the Bar-Line self-contained units
feature a well balanced ratio between
production and storage capacity,
alongside with reduced outer
dimensions that allow for built-in
installations.
Contemporary, elegant design unites
excellent operational features with
the reliability obtained through years
of successful experience in ice
making technology.

Compact Flake-ice machine, suitable for
low-volume ice requirements.
Auger-style freezer, produces the highest quality
flake ice: high water content flake ice, fast cooling
and fresh product moisturizing ice.

Suitable to cool food and non-food items, quickly
and efficiently. Use flake-ice with produce,
seafood / meat displays and salad bars, frozen
cocktails, and therapeutic / health purposes.
With its limited footprint, will fit in tight spaces.

Front air louvers assure appropriate airflow
in critical install requirements.

Insulated bin door and ice storage bin minimize
air condensation and water formation on
equipment surfaces.

Electro-mechanic controls minimize repair time
during routine maintenance and repair during
the entire life of the equipment.

Air cooled or water cooled versions available.

Maximum 73 kg production in 24 hours,
with 25 kg of ice storage capacity.

Attractive stainless steel finish.

R 134a refrigerant.

Legs included.

Air out-flow

f ICE Maker

o

626 mm

BF 80

BF 80 AS/WS

m

5

m

29

7

96/921 mm

ir

ntake

A

i

of ICE Maker

OP ER ATI NG LIMITS

Air Temp. Range 10°C - 40°C

ater Temp. Range 5°C - 35°C

ater Pressure Min. 1 bar

W
Electrical Voltage 230V/50Hz/pH

W

Max. 5 bar

(on selected models)

All specifications and performance data
are subject to normal manufacturing variances.

All units have stainless steel finish.
Refrigerant: R-134a

BAR-LINE Self Contained Machine - Criée Ice

ICE Production

Model Cond. Bin Storage

No.Unit .

BF 80 AS

BF 80 WS

Air 70 25 230/50/1 R 134a

Water 73 25 230/50/1

per 24 hrs. at

10°C Air/10°C Water

BF 80 AS/WS

80 (3 1/8)

70 (2 3/4)

58 (2 1/4)

57 (2 1/4)

140 (5 1/2)

243 (9 9/16)

260 (10 1/4)

300 (11 13/16)

Installation Note: allow 152 mm minimum space
at back for utility connections.

ø20 mm (13/16) OD-OVERFLOW DRAIN - OVERFLOW DRAIN

3/4 GAS WATER INLET - WATER COOLED ONLY

3/4 GAS WATER OUTLET - WATER COOLED ONLY

CORD SET

3/4” GAS WATER INLET

OR DE RI NG AN D SP EC IF IC ATI ON INFORMATIO N

Kgs. Refrigerant

Kgs.

Voltage

Characteristics

R 134a

Consumption

Water

Lt/60’

2,2

16

Electric

Consumption

kwh/24h

7,5

7,5

Net Weight

Kgs.

51
52

Max. Shipping

Weight

Kgs.

59
60

We reserve the right to make changes in design
and construction at any time without obligation.

ADV-Bar-Line 9/2010

Frimont S.p.A.
Via Lainate 31/b - 20010 Pogliano Milanese - (Milano) Italy
