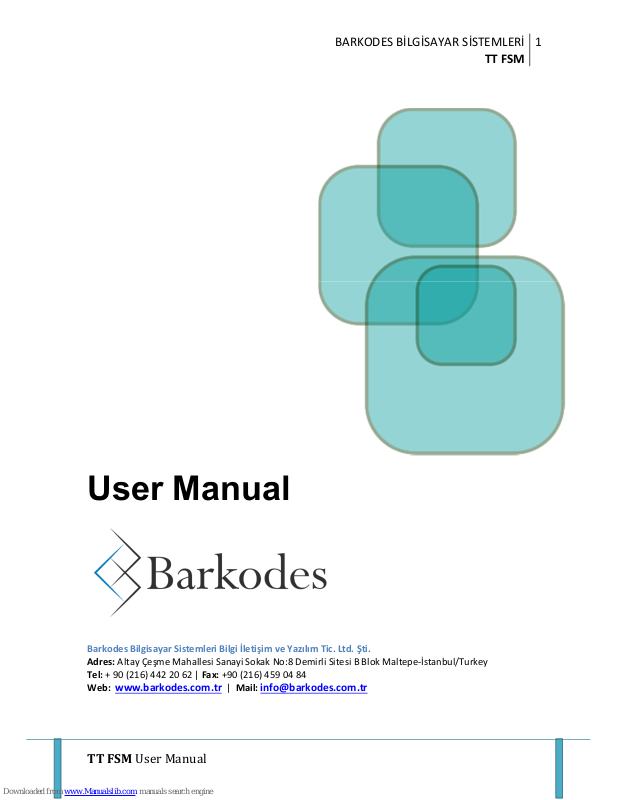

BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
1
TT FSM User Manual
User Manual
Barkodes Bilgisayar Sistemleri Bilgi İletişim ve Yazılım Tic. Ltd. Şti.
Adres: Altay Çeşme Mahallesi Sanayi Sokak No:8 Demirli Sitesi B Blok Maltepe-İstanbul/Turkey
Tel: + 90 (216) 442 20 62 | Fax: +90 (216) 459 04 84
Web: www.barkodes.com.tr | Mail: info@barkodes.com.tr
BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
2
TT FSM User Manual
TT FSM
User Manual
BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
3
TT FSM User Manual
Contents
Preface…………………………………………………5
Safety Measures ……………………………………..6
Applications ………..………………………………….7
Technical Data ………………………………………..7
Installation..……………………………………………8
Connection…………………………………………….9
Operating Modes……………………………………10
BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
4
TT FSM User Manual
Preface
TT FSM Card Reader
TT FSM is a device equipped with a micro database, which can handle twowire online/offline communication. The Access PDKS utilities allow event
recording the pass movements, including date, time, direction and card ID
information, through a dedicated RTC (Real Time Clock) and Flash Memory. In
Offline mode, the authorized user details are defined through PC/Server/Host.
In Online mode, the identification is completely performed by PC or the
server. If no response is received from PC/Server/Host, it allows offline pass
control.
It is possible to connect 8 units of TT FSM to a single line. The maximum
distance should be 100m. The line termination impedance is 120Ω.
BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
5
TT FSM User Manual
SAFETY MEASURES
The following safety measures will extend the usable life of your device. Please follow
all the measures and instructions. Consult to a qualified person for all the service needs other
than those described herein.
Before the cleaning works, be sure to disconnect the power cables. Use
a clean cellulose sponge or wash leather cloth and a few drops of lukewarm water to wipe
clean the instrument, and dehumidify it by a dry cloth.
DO NOT PLACE the unit on any working surface that is not flat or stable. Call
the service station if the casing is damaged.
DO NOT STOP any object onto the unit, and do not scratch the unit with a
foreign substance.
DO NOT EXPOSE the unit to dirty or dusty spaces. Do not operate the unit if
there is a gas leak.
Keep the unit away from the strong magnetic or electrical fields.
Do not press or TOUCH the display panel.
DO NOT USE the unit in the vicinity of fuels, rainy or humid zones.
SAFE TEMPERATURE: -10C to %70 C operating temperature range.
INPIT VOLTAVE: 8V-36V DC
DO NOT DISPOSE the unit in the public garbage fields. This unit has been designed with
the recyclable parts and components. The crossed garbage box symbol means that the product
(electrical and electronic equipment, and mercury containing cells and batteries) should not be
disposed with the household wastes.
DO NOT DISPOSE the batteries together with the urban wastes. The crossed wheel
garbage box symbol means that the batteries should not be disposed with the municipal wastes.
BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
6
TT FSM User Manual
Applications
Personnel Attendance Check System
Passover Control System
Dining Hall Check System
Visitor Check System
Special Software Development and Projects
Online Card and Key Verified Shopping Systems
Crediting Systems, etc.
Technical Data
Voltage: 8V-36V DC
Operating frequency 13,56 Mhz operating frequency
Cart support: Mifare, Mifare Desfire, UltraLight, Mifare
Plus, Felica, Jevel,NFCIP1 card support
Standard compliance: ISO/IEC 14443A,
ISO/IEC 14443B,
ISO/IEC 18092-NFC Standards
Buzzer: Yes
Led warning: Yes
Read-Write time: 126ms
Memory capacity:
CPU: 16bit Risc CPU,12 Mips, Low
User memory:
Log memory:
Software Development Kit (SDK): C#,VB,.Net
Optical isolation 1
Relay output: External relay output (Normally open
and closed)
Endurance: IP65 compatible – durable to ambient
conditions
Operating temperature: -10C - +70C operating temperature
Casing: Black
86 x 54 mm
BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
7
TT FSM User Manual
Installation
You can easily install your product through the screw holes
provided.
Screw holes
Screw cover
BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
8
TT FSM User Manual
Connection
BARKODES BİLGİSAYAR SİSTEMLERİ
TT FSM
9
TT FSM User Manual
OPERATING MODES
Operating Mode LED Color Log Data
Offline Blue Onboard
Online Authorization Purple Pc/Server
Online Info Yellow Onboard
Service Red ---------
Offline Mode
When the card is read, if it is authorized, the green light flashes up to draw
the relay for the specified time out. If no pass is authorized, then the red
light flashes. The card ID, date, time, pass direction are recorded in the unit
database.
Online Authorization
The card is queused through the PC/server/host, and the blue light is up. If
no response is received within the specified timeout period, the offline pass
check is enabled. The after-pass authorization light codes are the same with
the offline mode. No log data is stored by the unit.
Online Info
It decides in offline mode. The pass information is also transmitted to
PC/server/host. (Monitoring mode) Log is stored onboard.
Service Mode
The unit is set in this mode when an update is in progress in the unit, and in
this case, no card is read, nor no pass is allowed.
