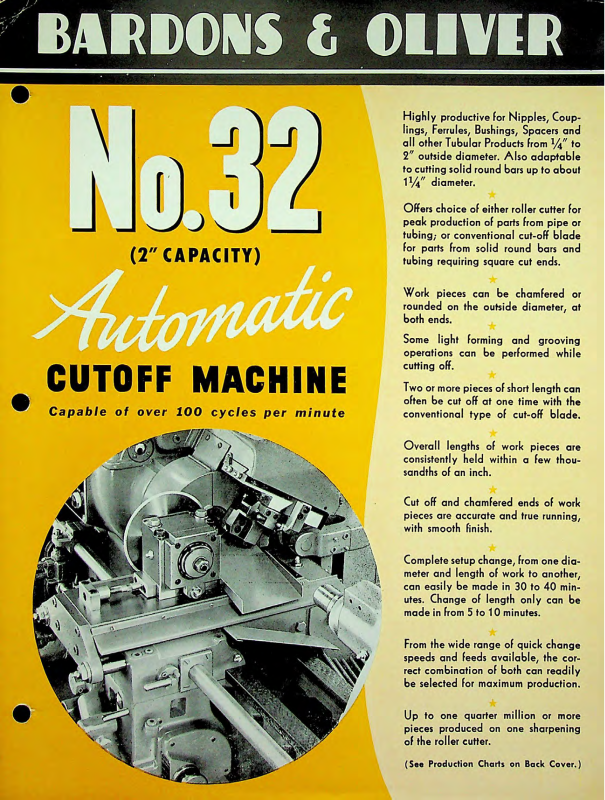

Page 1
BARDONS £
OLIVER
CUTOFF MACHINE
Capable of over 100 cycles per minute
Highly productive for Nipples, Coup
lings, Ferrules, Bushings, Spacers and
all other Tubular Products from *4" to
2" outside diameter. Also adaptable
to cutting solid round bars up to about
1*4" diameter.
Offers choice of either roller cutter for
peak production of parts from pipe or
tubing; or conventional cut-off blade
for parts from solid round bars and
tubing requiring square cut ends.
Work pieces can be chamfered or
rounded on the outside diameter, at
both ends.
Some light forming and grooving
operations can be performed while
cutting off.
Two or more pieces of short length can
often be cut off at one time with the
conventional type of cut-off blade.
Overall lengths of work pieces are
consistently held within a few thou
sandths of an inch.
Cut off and chamfered ends of work
pieces are accurate and true running,
with smooth finish.
Complete setup change, from one dia
meter
and length of work to another,
can easily be made in 30 to 40 min
utes. Change of length only can be
made in from 5 to 10 minutes.
From the wide range of quick change
speeds and feeds available, the cor
rect combination of both can readily
be selected for maximum production.
to
Up
pieces produced on one sharpening
of the roller cutter.
one quarter million or more
(See Production Charts on Back Cover.)
Page 2
FLANGED TYPE MOTOR
SQUARE LOCK (STOo)!?!? SELO®!!
AUXILIARY CHAMFERING SLIDE
BALL BEARING STOCK STOP
ROLLER STOCK FEED
THE GEARED HEAD, with an 1800 r.p.m. or 3600 r.p.m. motor,
provides six quick change spindle speeds. A choice of several speed
ranges is offered. Twelve speeds are obtainable, if needed, by the
use of a two speed 1800/3600 r.p.m. motor. Since the spindle and
all gear shafts are mounted in anti-friction bearings, a quiet free running
head is assured. All gear teeth are precision finished after heat treat
ment. The sliding gears are mounted on heat treated alloy steel, in
tegral ground spline shafts. Force feed lubrication is provided.
SIX SPEED QUICK CHANGE
HEADSTOCK
QUICK CHANGE CARRIAGE
APRON
A BALL BEARING MOUNTED STOCK
STOP advances just before the collet opens, and
recedes immediately after the collet closes.
A ROD TYPE WORK CHUTE guides the fin
ished parts into your container on the floor, after
having screened out the chips and coolant into
the
pan.
A MOTOR DRIVEN IMPELLER TYPE
COOLANT PUMP 5s mounted in the sump of the
pan, away from falling chips.
A STOCK TROUGH mounted
in three heavy, adjustable floor
stands
provides
for lengths up to 20 feet, of all
stock diameters within the ca
pacity of the machine. Floor
stands provide arms for storage
of uncut stock.
ROD TYPE WORK CHUTE
i
__
adequate support,
On work too long to be cut
can be readily changed over to semi-automatic operation by merely
adjusting one trip dog on the side of the cut off slide. In so doing, the
clutch will become disengaged at the end of the cut
stroke. To repeat the cycle, it is only necessary to raise
the engaged position.
off
automatically,
the cycle of the machine
off slide rapid
the clutch lever to
return
A STANDARD FLANGED TYPE, BALL BEARING MOTOR is
bolted directly to the end of the head with the rotor mounted on the
first drive shaft. The motor thus becomes an integral part of the machine,
eliminating pulleys, belts, idler, guard, and motor cabinet. Ventila
tion is greatly improved, and the motor is more readily accessible for
inspection or servicing.
THE MASTER COLLET is of hinged type to give long life under
high cycle operation. When changing collet jaws, it is not necessary
to remove the collet
of work are automatically taken care of by the versatile collet chuck
mechanism.^The wide opening of the collet permits work having dis
torted ends to be fed thru the collet jaws. The collet mechanism is air
operated to provide maximum cycles per minute.
from
the spindle. Minor variations in the diameter
.THE CUT OFF SLIDE is of square lock construction. Both the slide and its saddle are fitted
with hardened and ground alloy steel ways. A floating roller cutter holder, or interchangeably,
a tool holder for a conventional type of cut-off blade, can be mounted on the cut off slide.
Since the tool holder base covers the full width of the slide, two or more
can be used at one time, permitting multiple cuts to be taken when cutting parts up to about
five inches long, if over about % inch
AN AUXILIARY CHAMFERING SLIDE is offered as
chamfering or rounding operations while cutting off. It is mounted in a rigid bracket on tM^
headstock and carries an end cutting type chamfering cutter. This form cutter has four reversib^^
cutting positions and
A SEPARATE CAM operates each tool slide. Both cams are mounted on a shaft directly
under the rear of the cut off slide. Either or both cams may be readily changed in about one
minute.
(See Production Charts on Back Cover.)
Hand Operated CUTOFF MACHINE
can
in diameter.
an
be
easily sharpened without altering its form.
cut-off
blade holders
optional extra for performinc^^
2 in. Cap.
THE CARRIAGE APRON provides three quick change
feeds to the cut off slide. A conveniently located lever on
the front of the apron engages and disengages the feed clutch.
Easily removable, reversible, change gears in the head end
gear train bracket, provide for further feed changes if necessary.
THE ROLLER STOCK FEED produces lengths up
6 inches automatically, at maximum rate. Lengths between
^ about 6 to 18 inches may be produced automatically at a
W somewhat reduced rate. Lengths over about 18 inches may
be produced semi-automatically by operating machine single
cycle. The feed is motor driven, and the correct rate of speed
can be selected by means of the variable pitch Vee belt
pulley.
to
about
Uses same bed, headstock, roller stock feed,
and stock stop as the automatic model.
The entire automatic cycle
of operation is synchronized
with, and controlled by
motion of the slide hand
lever.
Well suited for econom
ical production of smaller
lots; also for cutting to
longer lengths
the
Page 3
PRODUCTION OUTPUT CHARTS
Free machining cold drawn bar stock up to
about 6" long (with conventional cut-off
blade).
O.D.
V
72
Vs
V
1
1 Z
VZ2
2
a
a
Bar dia.
%
Zi
s
/s
V
1
1 Z
b
a
a
.028
37
32
28
24 16
21
19
17 15 6
15
Pcs. per min.
13
9
6
4
3
2
Pieces per minute up to about 6" long (with conventional cut-off blade).
.035
35
30
26 24 19
22 20
20
18
12
Quantities listed are based on perfect performance for 100% of a minute.
Seamless or welded, cold drawn, low carbon steel tubing.
Steel pipe nipple blanks cut off with roller cutter and chamfered on both ends on O.D.
SIZE
3
/
b
Pipe
Vi Pipe
V
a
Pipe
1 Pipe
1 V
a
Pipe
1/2 Pipe
.049
33
28
18 15
16
14
11
.065
31
26
22
19
12
10
8
LENGTH
To 6"
6" to 12"
To 6"
6" to 12"
To 6"
6" to 12"
To 6"
6" to 12"
To 6"
6" to 12"
To 6"
6" to 12"
Wall Thickness
.083
28
23
13
11
9
7
.109
25
20
17
14
11
R.P.M.
1870
1460
1460
1140
1140
950
950
735
735
572
572
572
9
8
6
Pieces per minute.
FINE
FEED
58
46
46
36
36
29
29
23
23
18
18
.156
17
14
11
9
7
5
MED.
FEED
72
56
56
44
44
36
36
28
22
2218
22
.187
10
COARSE
FEED
88
69
69
54
54
45
45
35
3528
27
27
27
.250
8
6
5
4
6
5
4
3
Spindle
Cut off
Slide
Stock
Stop
Motor
Floor Space
(Approx.)
Weight
(Approx.)
Boxed Size
SPECIFICATIONS
Hole
............................................................
Hole in plunger
Max. Collet capacity
Min. Collet capacity
Speeds—six (1800 r.p.m. motor) choice of
..........................................
.................................
..................................
230 to 935 r.p.m.
280 to 1140 r.p.m.
338 to 1 375 r.p.m.
Speeds—six (3600 r.p.m. motor) choice of
Speeds—twelve (2 speed motor) choice of
Center of spindle to top of slide...
Total cross travel
Cross feeds—three—in ratio of
Width
...............................................
Max. and Min. dia. of roller cutter.
Max. length that can be cut with std. bar
Max. length that can be cut with spl. bar
50 cycle, 1500 r.p.m. — or 60 cycle, 1800 r.p.m
50 cycle, 3000 r.p.m. — or 60 cycle, 3600 r.p.m.....................................................
2 Speed — 50 cycle, 1500 and 3000 r.p.m. — or 60 cycle, 1800 and 3600 r.p.m,
Floor space of machine..
Extension of stock trough
Net...
Crated
Boxed.
Width 42", Height 66", Length 102"
.............................
.......
......................................................
j 460 to 1870 r.p.m.
\
572 to 1870 r.p.m.
1
230 to 1870 r.p.m.
\
286 to 1870 r.p.m.
...................
...............
33/4 and Vh H.P.
............
2%6" dia.
2Za" dia.
...2" dia.
• 3
/»" dia.
....3 Zb”
....1 "
1-1.2-1.5
7" & 5'/*"
30"
60"
5 H.P.
7/2 H.P.
40" x 92"
20'
3000 lbs.
3500 lbs.
4000 lbs.
216 cu. ft.
5"
Printed in U. S. A.
MANUFACTURERS OF TURRET LATHES AND CUTOFF MACHINES
