User Guide
IP20 & IP66 (NEMA 4X)
AC Variable Speed Drive
0.37 – 11kW (0.5 – 15HP)
110 – 480V
Installation and Operating Instructions
Bardac Corporation
40 Log Canoe Circle
Stevensville, MD 21666 USA
Phone: (410)604-3400 Fax: (410)604-3500
www.bardac.com
AC Supply Voltage
(50 / 60 Hz)
|
L1 |
L2 |
L3 |
Earth |
L |
N |
|
Fuses or MCB
Easy Start Up Guide
Supply Voltage
-110 – 115, 200 – 240, 400 – 480 VAC + / - 10%
-1 or 3 Phase
Check the drive rating information on page 26
Fuses or MCB
-Fuse Ratings given on page 26
-Recommended cable sizes shown on page 26
Mechanical Mounting
-Information can be found on page 10
Keypad operation can be found on page 16
Control Terminals
Based on the factory default (out of box) settings
-Connect a Start / Stop switch between terminals 1 & 2
-Close the switch to Start (Enable) the drive
-Open the switch to Stop (Disable) the drive
-Connect a potentiometer (5kΩ minimum) between terminals 5, 6 and 7 as shown below to vary the speed from minimum (0Hz) to maximum (50 / 60 Hz)
Motor Cable Information
-Check the rating information on page 26 for sizing information
-For EMC compliance, use a shielded type cable
Motor Connections
-Check for Star or Delta connection according to the motor
nameplate and voltage rating (See page 13)
Motor Nameplate Details
Easy Start Up Guide
Control Terminals
Based on the factory default (out of box) settings
-Connect a Start / Stop switch between terminals 1 & 2
-Close the switch to Start (Enable) the drive
-Open the switch to Stop (Disable) the drive
-Connect a potentiometer (5kΩ minimum) between terminals 5, 6 and 7 as shown below to vary the speed from minimum (0Hz) to maximum (50 / 60 Hz)
Fuses or MCB
-Fuse Ratings given on page 26
-Recommended cable sizes shown on page 26
Always follow local and national codes of practice
Supply Voltage
-110 – 115, 200 – 240, 400 – 480 VAC + / - 10%
-1 or 3 Phase
Check the drive rating information on page 26
Fuses or MCB
Earth |
L |
N |
|
|
L1 |
L2 |
L3 |
AC Supply Voltage
(50 / 60 Hz)
Mechanical Mounting
-Information can be found on page 10
Keypad operation can be found on page 16
Motor Cable Information
-Check the rating information on page 26 for sizing information
-For EMC compliance, use a shielded type cable
Motor Connections
-Check for Star or Delta connection according to the motor nameplate and voltage
rating (See page 13)
Motor Nameplate Details
-Enter the motor rated voltage in P-07
-Enter the motor rated current in P-08
-Enter the motor rated frequency in P-09
Easy Start Up Guide
Local Speed Potentiometer The local speed potentiometer will adjust the output frequency
from minimum (Parameter P-02, default setting = 0Hz) to maximum (Parameter P-01, default setting = 50 / 60 Hz)
Run Reverse / Off / Run Forward Switch
With the factory parameter settings, this switch allows the drive to be started in the forward and reverse operating directions. Alternative switch functions can be programmed, such as Local / Remote, Hand / Auto, see page 15
Fuses or MCB
-Fuse Ratings given on page 26
-Recommended cable sizes
shown on page 26
Always follow local and national codes of practice
Supply Voltage
-110 – 115, 200 – 240, 400 – 480 VAC + / - 10%
-1 or 3 Phase
Check the drive rating information on page 26
Fuses or MCB
Earth |
L |
N |
|
|
L1 |
L2 |
L3 |
AC Supply Voltage
(50 / 60 Hz)
Mechanical Mounting
-Information can be found on page 10
Keypad operation can be found on page 16
Motor Cable Information
-Check the rating information on page 26 for sizing information
-For EMC compliance, use a shielded type cable
Motor Connections
-Check for Star or Delta connection according to the motor nameplate and voltage rating (See page
13)
Motor Nameplate Details
-Enter the motor rated voltage in P-07
-Enter the motor rated current in P-08
-Enter the motor rated frequency in P-09
Optidrive ODE-2 User Guide Revision 3.10
Declaration of Conformity
Invertek Drives Ltd hereby states that the Optidrive ODE-2 product range conforms to the relevant safety provisions of the Low Voltage Directive 2006/95/EC and the EMC Directive 2004/108/EC and has been designed and manufactured in accordance with the following harmonised European standards:
EN 61800-5-1: 2003 |
Adjustable speed electrical power drive systems. Safety requirements. Electrical, thermal and energy. |
|
|
EN 61800-3 2nd Ed: 2004 |
Adjustable speed electrical power drive systems. EMC requirements and specific test methods |
|
|
EN 55011: 2007 |
Limits and Methods of measurement of radio disturbance characteristics of industrial, scientific and |
|
medical (ISM) radio-frequency equipment (EMC) |
EN60529 : 1992 |
Specifications for degrees of protection provided by enclosures |
|
|
Electromagnetic Compatibility
All Optidrives are designed with high standards of EMC in mind. All versions suitable for operation on Single Phase 230 volt and Three Phase 400 volt supplies and intended for use within the European Union are fitted with an internal EMC filter. This EMC filter is designed to reduce the conducted emissions back into the supply via the power cables for compliance with the above harmonised European standards.
It is the responsibility of the installer to ensure that the equipment or system into which the product is incorporated complies with the EMC legislation of the country of use. Within the European Union, equipment into which this product is incorporated must comply with the EMC Directive 2004/108/EC. When using an Optidrive with an internal or optional external filter, compliance with the following EMC Categories, as defined by EN61800-3:2004 can be achieved:
|
Drive Type / Rating |
|
EMC Category |
|
||
|
|
|
|
Cat C1 |
Cat C2 |
Cat C3 |
|
1 Phase, 230 Volt Input |
No additional filtering required |
|
|
||
|
ODE-2-x2xxx-1xBxx |
Use shielded motor cable |
|
|
||
|
|
|
|
|
|
|
|
3 Phase, 400 Volt Input |
Use External Filter OPT-2—E3xxxx |
No additional filtering required |
|
||
|
ODE-2-x4xxx-3xAxx |
|
|
|
||
Use shielded motor cable |
|
|
||||
|
|
|
|
|
|
|
|
Note |
|
Compliance with EMC standards is dependent on a number of factors including the environment in which the drive is installed, |
|||
|
|
motor switching frequency, motor, cable lengths and installation methods adopted. |
|
|||
|
|
|
|
|||
|
|
|
For shielded motor cable lengths greater than 100m and up to 200m, an output dv / dt filter must be used (please refer to the |
|||
|
|
|
Bardac Drives Catalog for further details) |
|
|
|
|
|
|
Compliance with EMC directives is achieved with the factory default parameter settings |
|
||
All rights reserved. No part of this User Guide may be reproduced or transmitted in any form or by any means, electrical or mechanical including photocopying, recording or by any information storage or retrieval system without permission in writing from the publisher.
Copyright Bardac Corporation © 2013
All Bardac Optidrive units carry a 2 year warranty against manufacturing defects from the date of manufacture. The manufacturer accepts no liability for any damage caused during or resulting from transport, receipt of delivery, installation or commissioning. The manufacturer also accepts no liability for damage or consequences resulting from inappropriate, negligent or incorrect installation, incorrect adjustment of the operating parameters of the drive, incorrect matching of the drive to the motor, incorrect installation, unacceptable dust, moisture, corrosive substances, excessive vibration or ambient temperatures outside of the design specification.
The local distributor may offer different terms and conditions at their discretion, and in all cases concerning warranty, the local distributor should be contacted first.
This user guide is the “original instructions” document. All non-English versions are translations of the “original instructions”.
The contents of this User Guide are believed to be correct at the time of printing. In the interest of a commitment to a policy of continuous improvement, the manufacturer reserves the right to change the specification of the product or its performance or the contents of the User Guide without notice.
This User Guide is for use with version 1.10 Firmware.
User Guide Revision 3.10
Bardac Drives adopts a policy of continuous improvement and whilst every effort has been made to provide accurate and up to date information, the information contained in this User Guide should be used for guidance purposes only and does not form the part of any contract.
<![endif]>Introduction 1
www.bardac.com |
5 |
|
<![endif]>Introduction 1
|
|
Optidrive ODE-2 User Guide Revision 3.10 |
|
1. |
Introduction....................................................................................................................................................................... |
7 |
|
|
1.1. |
Important Safety Information |
7 |
2. General Information and Ratings ....................................................................................................................................... |
8 |
||
|
2.1. |
Identifying the Drive by Model Number |
8 |
|
2.2. |
Drive Model Numbers |
8 |
3. |
Mechanical Installation...................................................................................................................................................... |
9 |
|
|
3.1. |
General |
9 |
|
3.2. |
Before Installation |
9 |
|
3.3. |
UL Compliant Installation |
9 |
|
3.4. |
Mechanical Dimensions and Mounting – IP20 Open Units |
9 |
|
3.5. |
Guidelines for Enclosure Mounting – IP20 Units |
9 |
|
3.6. |
Mechanical Dimensions – IP66 (Nema 4X) Enclosed Units |
10 |
|
3.7. |
Guidelines for mounting (IP66 Units) |
10 |
|
3.8. |
Gland Plate and Lock Off |
11 |
|
3.9. |
Removing the Terminal Cover |
11 |
|
3.10. |
Routine Maintenance |
11 |
4. |
Power Wiring ................................................................................................................................................................... |
12 |
|
|
4.1. |
Grounding the Drive |
12 |
|
4.2. |
Wiring Precautions |
12 |
|
4.3. |
Incoming Power Connection |
13 |
|
4.4. |
Drive and Motor Connection |
13 |
|
4.5. |
Motor Terminal Box Connections |
13 |
|
4.6. |
Motor Thermal overload Protection. |
14 |
|
4.7. |
Control Terminal Wiring |
14 |
|
4.8. |
Connection Diagram |
14 |
|
4.9. |
Using the REV/0/FWD Selector Switch (Switched Version Only) |
15 |
|
4.10. |
Control Terminal Connections |
15 |
5. |
Operation......................................................................................................................................................................... |
16 |
|
|
5.1. |
Managing the Keypad |
16 |
|
5.2. |
Terminal Control |
16 |
|
5.3. |
Keypad Control |
16 |
6. |
Parameters ...................................................................................................................................................................... |
17 |
|
|
6.1. |
Standard Parameters |
17 |
|
6.2. |
Extended Parameters |
18 |
|
6.3. |
Adjusting the Voltage / Frequency (V/f) characteristics |
20 |
|
6.4. |
P-00 Read Only Status Parameters |
21 |
7. Analog and Digital Input Configurations........................................................................................................................... |
22 |
||
|
7.1. |
Terminal Mode (P-12 = 0) |
22 |
|
7.2. |
Keypad Mode (P-12 = 1 or 2) |
23 |
|
7.3. |
Modbus Control Mode (P-12 = 4) |
24 |
|
7.4. |
User PI Control Mode |
24 |
|
7.5. |
Motor Thermistor Connection |
24 |
8. |
Modbus RTU Communications ......................................................................................................................................... |
25 |
|
|
8.1. |
Introduction |
25 |
|
8.2. |
Modbus RTU Specification |
25 |
|

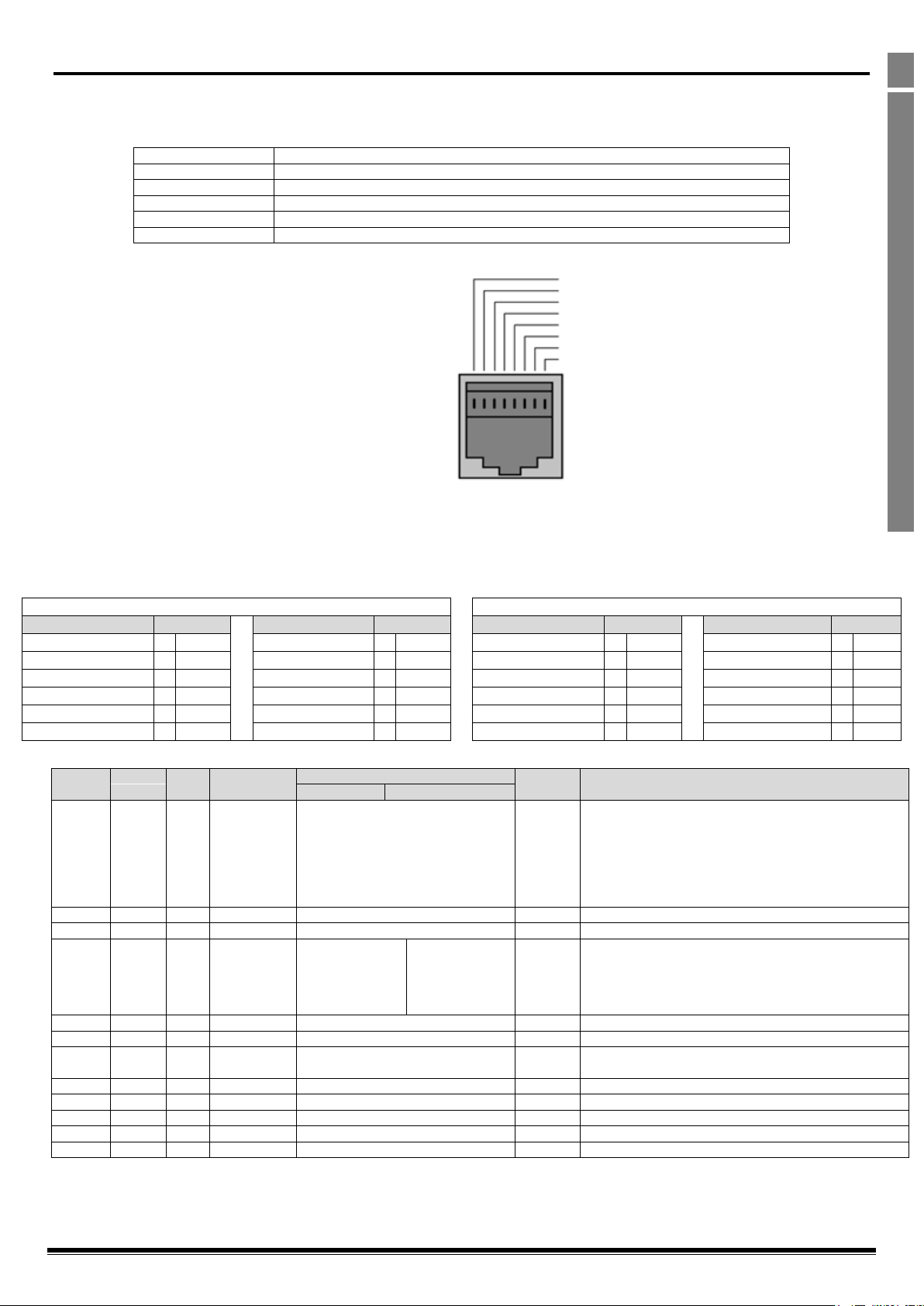

8.3. |
RJ45 Connector Configuration |
25 |
|
8.4. |
Modbus Telegram Structure |
25 |
|
8.5. |
Modbus Register Map |
25 |
9. |
Technical Data.................................................................................................................................................................. |
26 |
|
|
9.1. |
Environmental |
26 |
|
9.2. |
Rating Tables |
26 |
|
9.3. |
Additional Information for UL Compliance |
27 |
10. |
Trouble Shooting ......................................................................................................................................................... |
28 |
|
|
10.1. |
Fault Code Messages |
28 |
|
|
6 |
www.bardac.com |
|
Optidrive ODE-2 User Guide Revision 3.10
1. Introduction
1.1.Important Safety Information
Please read the IMPORTANT SAFETY INFORMATION below, and all Warning and Caution information elsewhere.
Danger : Indicates a risk of electric shock, which, if not |
Danger : Indicates a potentially hazardous situation |
avoided, could result in damage to the equipment and |
other than electrical, which if not avoided, could result |
possible injury or death. |
in damage to property. |
This variable speed drive product (Optidrive) is intended for professional incorporation into complete equipment or systems as part of a fixed installation. If installed incorrectly it may present a safety hazard. The Optidrive uses high voltages and currents, carries a high level of stored electrical energy, and is used to control mechanical plant that may cause injury. Close attention is required to system design and electrical installation to avoid hazards in either normal operation or in the event of equipment malfunction. Only qualified electricians are allowed to install and maintain this product.
System design, installation, commissioning and maintenance must be carried out only by personnel who have the necessary training and experience. They must carefully read this safety information and the instructions in this Guide and follow all information regarding transport, storage, installation and use of the Optidrive, including the specified environmental limitations.
Do not perform any flash test or voltage withstand test on the Optidrive. Any electrical measurements required should be carried out with the Optidrive disconnected.
Electric shock hazard! Disconnect and ISOLATE the Optidrive before attempting any work on it. High voltages are present at the terminals and within the drive for up to 10 minutes after disconnection of the electrical supply. Always ensure by using a suitable multimeter that no voltage is present on any drive power terminals prior to commencing any work.
Where supply to the drive is through a plug and socket connector, do not disconnect until 10 minutes have elapsed after turning off the supply.
Ensure correct earthing connections. The earth cable must be sufficient to carry the maximum supply fault current which normally will be limited by the fuses or MCB. Suitably rated fuses or MCB should be fitted in the mains supply to the drive, according to any local legislation or codes.
Ensure correct earthing connections and cable selection as per defined by local legislation or codes. The drive may have a leakage current of greater than 3.5mA; furthermore the earth cable must be sufficient to carry the maximum supply fault current which normally will be limited by the fuses or MCB. Suitably rated fuses or MCB should be fitted in the mains supply to the drive, according to any local legislation or codes.
Do not carry out any work on the drive control cables whilst power is applied to the drive or to the external control circuits.
Within the European Union, all machinery in which this product is used must comply with Directive 98/37/EC, Safety of Machinery. In particular, the machine manufacturer is responsible for providing a main switch and ensuring the electrical equipment complies with EN60204-1.
The level of integrity offered by the Optidrive control input functions – for example stop/start, forward/reverse and maximum speed is not sufficient for use in safety-critical applications without independent channels of protection. All applications where malfunction could cause injury or loss of life must be subject to a risk assessment and further protection provided where needed.
The driven motor can start at power up if the enable input signal is present.
The STOP function does not remove potentially lethal high voltages. ISOLATE the drive and wait 10 minutes before starting any work on it. Never carry out any work on the Drive, Motor or Motor cable whilst the input power is still applied.
The Optidrive can be programmed to operate the driven motor at speeds above or below the speed achieved when connecting the motor directly to the mains supply. Obtain confirmation from the manufacturers of the motor and the driven machine about suitability for operation over the intended speed range prior to machine start up.
Do not activate the automatic fault reset function on any systems whereby this may cause a potentially dangerous situation.
IP66 drives provide their own pollution degree 2 environments. IP20 drives must be installed in a pollution degree 2 environment, mounted in a cabinet with IP54 or better.
Optidrives are intended for indoor use only.
When mounting the drive, ensure that sufficient cooling is provided. Do not carry out drilling operations with the drive in place, dust and swarf from drilling may lead to damage.
The entry of conductive or flammable foreign bodies should be prevented. Flammable material should not be placed close to the drive
Relative humidity must be less than 95% (non-condensing).
Ensure that the supply voltage, frequency and no. of phases (1 or 3 phase) correspond to the rating of the Optidrive as delivered.
Never connect the mains power supply to the Output terminals U, V, W.
Do not install any type of automatic switchgear between the drive and the motor
Wherever control cabling is close to power cabling, maintain a minimum separation of 100 mm and arrange crossings at 90 degrees Ensure that all terminals are tightened to the appropriate torque setting
Do not attempt to carry out any repair of the Optidrive. In the case of suspected fault or malfunction, contact Bardac Drives Sales Partner for further assistance.
<![endif]>Introduction 1
www.bardac.com |
7 |
|
<![endif]>General Information and Ratings 2
Optidrive ODE-2 User Guide Revision 3.10
2. General Information and Ratings
This chapter contains information about the Optidrive E2 including how to identify the drive
2.1.Identifying the Drive by Model Number
Each drive can be identified by its model number, as shown in the table below. The model number is on the shipping label and the drive nameplate. The model number includes the drive and any options.
|
ODE |
|
- |
2 |
- |
1 |
2 |
037 |
- |
1 |
K |
B |
1 |
2 |
|
|
|
|
Product Family |
|
|
|
|
|
|
|
|
|
|
|
|
IP Rating |
|
2 = IP20 |
|
||
Generation |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
X = IP66 Non Switched |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Y = IP66 Switched |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dynamic Brake Transistor 1 = Not Fitted |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 = Internal Transistor |
|
Frame Size |
|
|
|
|
|
|
|
|
|
|
Filter Type |
0 = No Filter |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A = Internal 400V EMC Filter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
B = Internal 230V EMC Filter |
|
|
Input Voltage 1 = 110 – 115 |
|
|
|
|
|
|
|
|
Power Type |
|
K = kW |
|||||||
2 = 200 – 240 |
|
|
|
|
|
|
|
|
|
|
|
|
|
H = HP |
||||
4 = 380 - 480 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Power Rating |
|
|
|
|
|
|
|
|
No. Of Input Phases |
|
|
|
||||||
2.2.Drive Model Numbers
110-115V ±10% - 1 Phase Input - 3 Phase 230V Output (Voltage Doubler)
|
kW Model Number |
|
kW |
HP Model Number |
HP |
Output Current (A) |
Frame Size |
||
|
|
|
|
|
|
||||
|
With Filter |
Without Filter |
With Filter |
Without Filter |
|||||
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
N/A |
|
N/A |
|
N/A |
ODE-2-11005-1H01# |
0.5 |
2.3 |
1 |
|
|
|
|
|
|
|
|
|
|
|
N/A |
|
N/A |
|
N/A |
ODE-2-11010-1H01# |
1 |
4.3 |
1 |
|
|
|
|
|
|
|
|
|
|
|
N/A |
|
N/A |
|
N/A |
ODE-2-21015-1H04# |
1.5 |
5.8 |
2 |
|
|
|
|
|
|
|
|
|
|
|
200-240V ±10% - 1 Phase Input |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
kW Model Number |
|
kW |
HP Model Number |
HP |
Output Current (A) |
Frame Size |
||
|
|
|
|
|
|
||||
|
With Filter |
Without Filter |
With Filter |
Without Filter |
|||||
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
ODE-2-12037-1KB1# |
ODE-2-12037-1K01# |
0.37 |
ODE-2-12005-1HB1# |
ODE-2-12005-1H01# |
0.5 |
2.3 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-12075-1KB1# |
ODE-2-12075-1K01# |
0.75 |
ODE-2-12010-1HB1# |
ODE-2-12010-1H01# |
1 |
4.3 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-12150-1KB1# |
ODE-2-12150-1K01# |
1.5 |
ODE-2-12020-1HB1# |
ODE-2-12020-1H01# |
2 |
7 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-22150-1KB4# |
ODE-2-22150-1K04# |
1.5 |
ODE-2-22020-1HB4# |
ODE-2-22020-1H04# |
2 |
7 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-22220-1KB4# |
ODE-2-22220-1K04# |
2.2 |
ODE-2-22030-1HB4# |
ODE-2-22030-1H04# |
3 |
10.5 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
N/A |
ODE-2-32040-1K04#2) |
4.0 |
N/A |
ODE-2-32050-1H04#2) |
5 |
16 |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
200-240V ±10% - 3 Phase Input |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
kW Model Number |
|
kW |
HP Model Number |
HP |
Output Current (A) |
Frame Size |
||
|
|
|
|
|
|
||||
|
With Filter |
Without Filter |
With Filter |
Without Filter |
|||||
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
N/A |
ODE-2-12037-3K01# |
0.37 |
N/A |
ODE-2-12005-3H01# |
0.5 |
2.3 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
N/A |
ODE-2-12075-3K01# |
0.75 |
N/A |
ODE-2-12010-3H01# |
1 |
4.3 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
N/A |
ODE-2-12150-3K01# |
1.5 |
N/A |
ODE-2-12020-3H01# |
2 |
7 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-22150-3KB4# |
ODE-2-22150-3K04# |
1.5 |
ODE-2-22020-3HB4# |
ODE-2-22020-3H04# |
2 |
7 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-22220-3KB4# |
ODE-2-22220-3K04# |
2.2 |
ODE-2-22030-3HB4# |
ODE-2-22030-3H04# |
3 |
10.5 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-32040-3KB4# |
ODE-2-32040-3K04# |
4.0 |
ODE-2-32050-3HB4# |
ODE-2-32050-3H04# |
5 |
18 |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
380-480V ±10% - 3 Phase Input |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
kW Model Number |
|
kW |
HP Model Number |
HP |
Output Current (A) |
Frame Size |
||
|
|
|
|
|
|
||||
|
With Filter |
Without Filter |
With Filter |
Without Filter |
|||||
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
ODE-2-14075-3KA1# |
ODE-2-14075-3K01# |
0.75 |
ODE-2-14010-3HA1# |
ODE-2-14010-3H01# |
1 |
2.2 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-14150-3KA1# |
ODE-2-14150-3K01# |
1.5 |
ODE-2-14020-3HA1# |
ODE-2-14020-3H01# |
2 |
4.1 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-24150-3KA4# |
ODE-2-24150-3K04# |
1.5 |
ODE-2-24020-3HA4# |
ODE-2-24020-3H04# |
2 |
4.1 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-24220-3KA4# |
ODE-2-24220-3K04# |
2.2 |
ODE-2-24030-3HA4# |
ODE-2-24030-3H04# |
3 |
5.8 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-24400-3KA4# |
ODE-2-24400-3K04# |
4 |
ODE-2-24050-3HA4# |
ODE-2-24050-3H04# |
5 |
9.5 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-34055-3KA4# |
ODE-2-34055-3K04# |
5.5 |
ODE-2-34075-3HA4# |
ODE-2-34075-3H04# |
7.5 |
14 |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-34075-3KA4# |
ODE-2-34075-3K04# |
7.5 |
ODE-2-34100-3HA4# |
ODE-2-34100-3H04# |
10 |
18 |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
ODE-2-34110-3KA421) |
ODE-2-34110-3K0421) |
11 |
ODE-2-34150-3HA421) |
ODE-2-34150-3H0421) |
15 |
24 |
3 |
|
|
|
Replace the # on the end of the part number with the relevant IP code designation shown in figure 1 |
|
|
|
||||
|
Note |
1) |
11kW / 15HP drives are available in IP20 enclosures only |
|
|
|
|
||
|
|
2) |
Model not UL Approved |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
www.bardac.com |
|
|
Optidrive ODE-2 User Guide Revision 3.10 |
|
||
3. Mechanical Installation |
|
|||
| <![if ! IE]> <![endif]>3 |
||||
|
|
|
||
3.1. |
General |
|
||
| <![if ! IE]> <![endif]>Mechanical |
||||
|
The Optidrive should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting using the integral |
|||
|
||||
|
mounting holes or DIN Rail clip (Frame Sizes 1 and 2 only). |
|
||
|
The Optidrive must be installed in a pollution degree 1 or 2 environment only. |
|
||
|
Do not mount flammable material close to the Optidrive |
|
||
|
Ensure that the minimum cooling air gaps, as detailed in section 3.5 and 3.7 are left clear |
<![if ! IE]> <![endif]>Installation |
||
|
Ensure that the ambient temperature range does not exceed the permissible limits for the Optidrive given in section 9.1 |
|||
|
||||
|
Provide suitable clean, moisture and contaminant free cooling air sufficient to fulfil the cooling requirements of the Optidrive |
|
||
3.2. |
Before Installation |
|
||
|
Carefully Unpack the Optidrive and check for any signs of damage. Notify the shipper immediately if any exist. |
|
||
|
Check the drive rating label to ensure it is of the correct type and power requirements for the application. |
|
||
|
To prevent accidental damage always store the Optidrive in its original box until required. Storage should be clean and dry and within |
|
||
|
the temperature range –40°C to +60°C |
|
||
3.3. |
UL Compliant Installation |
|
||
Refer to section 9.3 on page 27 for Additional Information for UL Compliance.
3.4.Mechanical Dimensions and Mounting – IP20 Open Units
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drive |
A |
|
|
B |
|
C |
D |
|
|
E |
|
F |
|
G |
|
H |
|
I |
|
J |
Weight |
||||||||
Size |
mm |
|
in |
mm |
|
in |
mm |
in |
mm |
|
in |
mm |
|
in |
mm |
in |
mm |
|
in |
mm |
|
in |
mm |
in |
mm |
|
in |
Kg |
lb |
1 |
173 |
|
6.81 |
160 |
|
6.30 |
109 |
4.29 |
162 |
|
6.38 |
5 |
|
0.20 |
123 |
4.84 |
82 |
|
3.23 |
50 |
|
1.97 |
5.5 |
0.22 |
10 |
|
0.39 |
1 |
2.2 |
2 |
221 |
|
8.70 |
207 |
|
8.15 |
137 |
5.39 |
209 |
|
8.23 |
5.3 |
|
0.21 |
150 |
5.91 |
109 |
|
4.29 |
63 |
|
2.48 |
5.5 |
0.22 |
10 |
|
0.39 |
1.7 |
3.8 |
3 |
261 |
|
10.28 |
246 |
|
9.69 |
- |
- |
247 |
|
9.72 |
6 |
|
0.24 |
175 |
6.89 |
131 |
|
5.16 |
80 |
|
3.15 |
5.5 |
0.22 |
10 |
|
0.39 |
3.2 |
7.1 |
Mounting Bolts |
|
|
|
|
|
All Frame Sizes |
|
4 x M4 (#8) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
Tightening Torques |
|
|
|
|
All Frame Sizes |
|
Control Terminals |
|
|
|
|
0.5 Nm (4.5 lb-in) |
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
Power Terminals |
|
|
|
|
1 Nm (8.85 lb-in) |
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
3.5.Guidelines for Enclosure Mounting – IP20 Units
IP20 drives are suitable for use in pollution degree 1 environments, according to IEC-664-1. For pollution degree 2 or higher environments, drives should be mounted in a suitable control cabinet with sufficient ingress protection to maintain a pollution degree 1 environment around the drive.
Enclosures should be made from a thermally conductive material.
Ensure the minimum air gap clearances around the drive as shown below are observed when mounting the drive.
Where ventilated enclosures are used, there should be venting above the drive and below the drive to ensure good air circulation. Air should be drawn in below the drive and expelled above the drive.
In any environments where the conditions require it, the enclosure must be designed to protect the Optidrive against ingress of airborne dust, corrosive gases or liquids, conductive contaminants (such as condensation, carbon dust, and metallic particles) and sprays or splashing water from all directions.
High moisture, salt or chemical content environments should use a suitably sealed (non-vented) enclosure.
The enclosure design and layout should ensure that the adequate ventilation paths and clearances are left to allow air to circulate through the drive heatsink. Bardac Drives recommend the following minimum sizes for drives mounted in non-ventilated metallic enclosures:-
www.bardac.com |
9 |
|
Loading...
