INSTALLATION INSTRUCTIONS

WALL MOUNTED

PACKAGE AIR CONDITIONERS

MODELS

W17A2 W17L2

W18A2 W18L2

W24A2 W24L2

W30A2 W30L2

W36A2 W36L2

W42A2 W42L2

W48A2 W48L2

W60A2 W60L2

W70A2 W70L2

Bard Manufacturing Company, Inc.

Manual :

2100-581B

Bryan, Ohio 43506

Supersedes:

2100-581A

Since 1914...Moving ahead just as planned.

File:

Volume III Tab 16

Date:

11-25-13





Manual

2100-581B





Page

1 of 26

Contents

Getting Other Information and Publications

3

Wall Mount General Information



Wall Mount Model Nomenclature...............................

4

Shipping Damage......................................................

4

General ..................................................................

4

Duct Work..................................................................

5

Filters ..................................................................

5

Fresh Air Intake.........................................................

5

Condensate Drain .....................................................

5

Installation Instructions



Wall Mounting Information.........................................

6

Mounting the Unit......................................................

6

Clearances Required.................................................

6

Minimum Clearances.................................................

6

Wiring – Main Power...............................................

14

Wiring – Low Voltage Wiring....................................

14

Figures





Figure 1

Fresh Air Damper Assembly.....................

5

Figure 2

Unit Dimensions........................................

7

Figure 3A

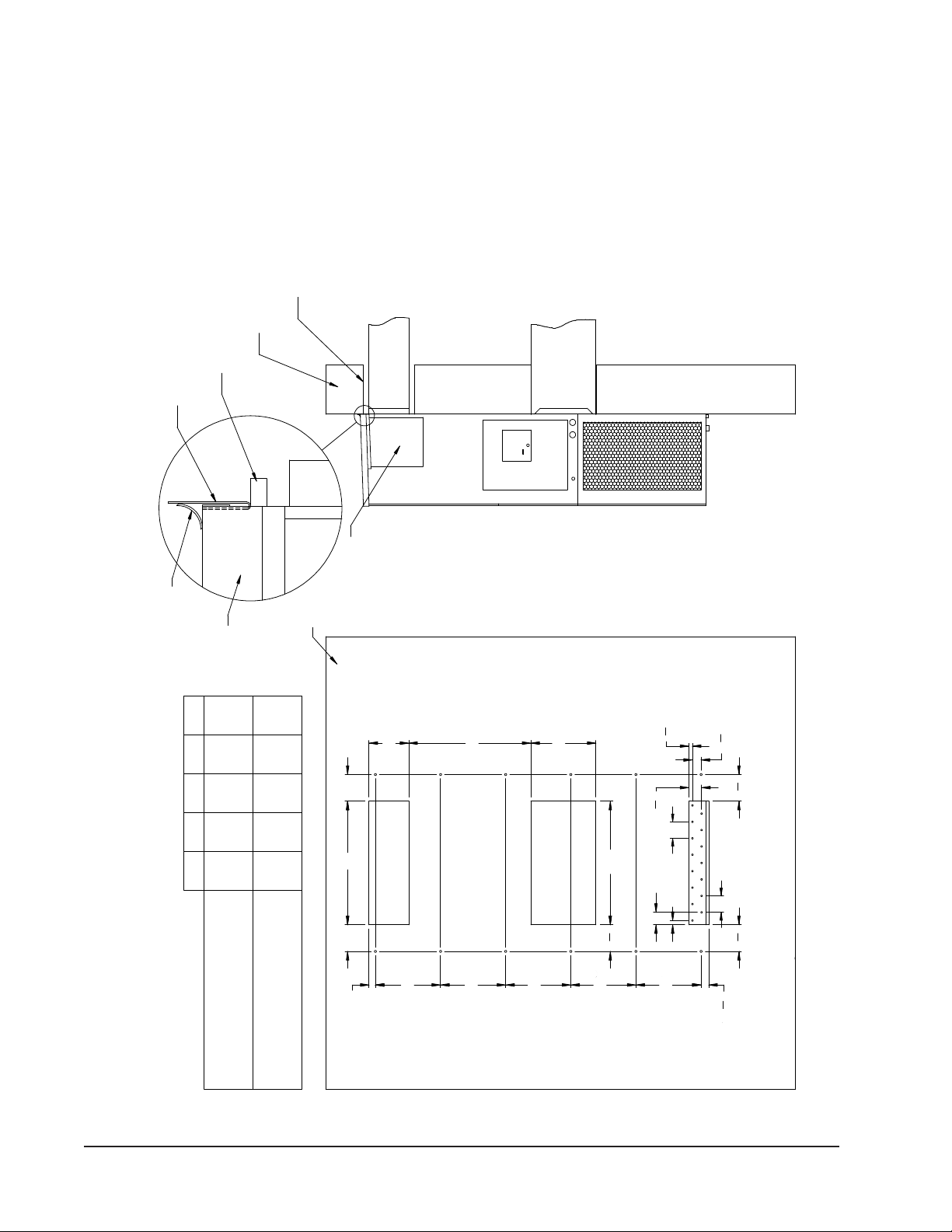

Mounting Instructions................................

8

Figure 3B

Mounting Instructions - W17 – 36.................

9

Figure 3C

Mounting Instructions - W42, 48, 60, 70.....

10

Figure 4

Electric Heat Clearance..........................

11

Figure 5

Wall Mounting Instructions......................

12

Figure 6

Wall Mounting Instructions......................

12

Figure 7

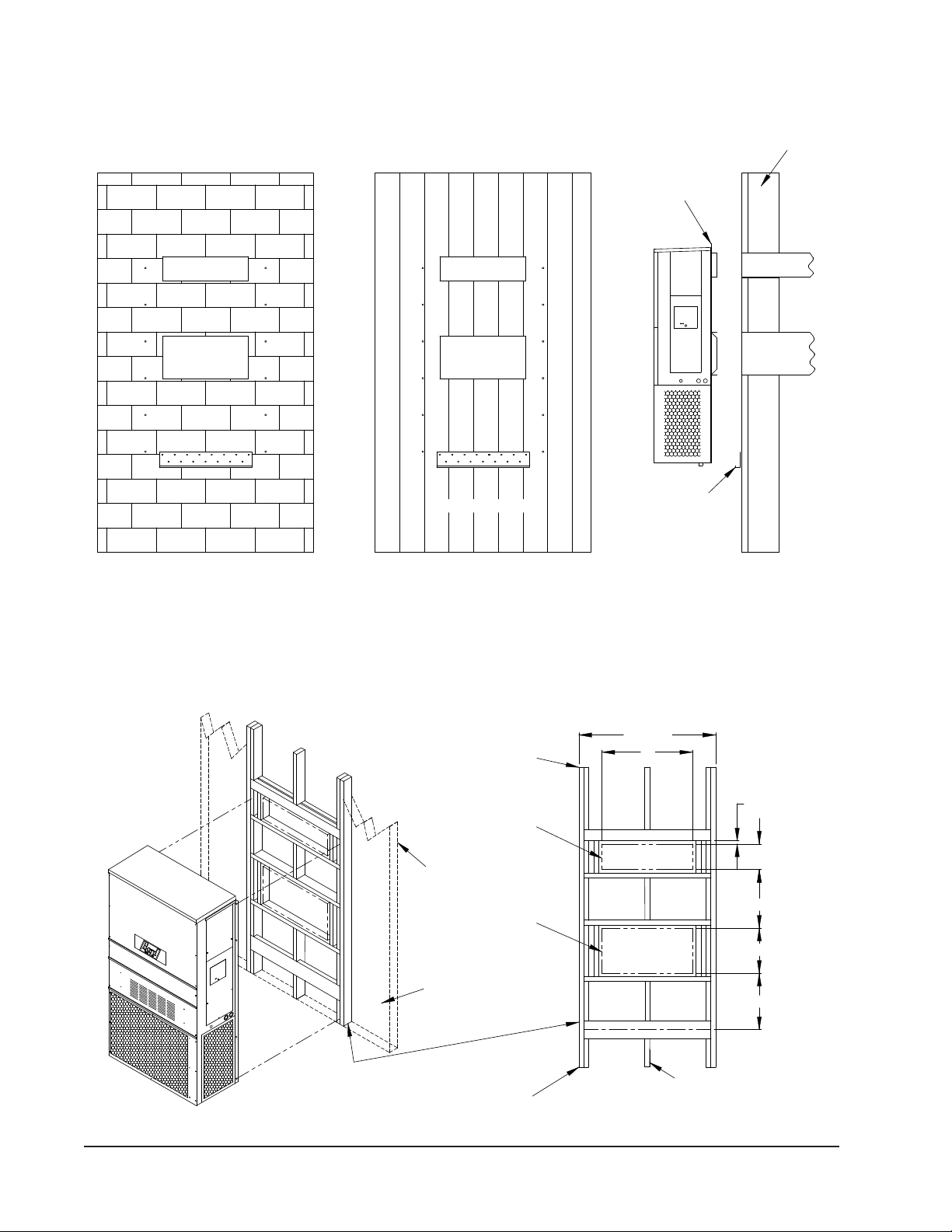

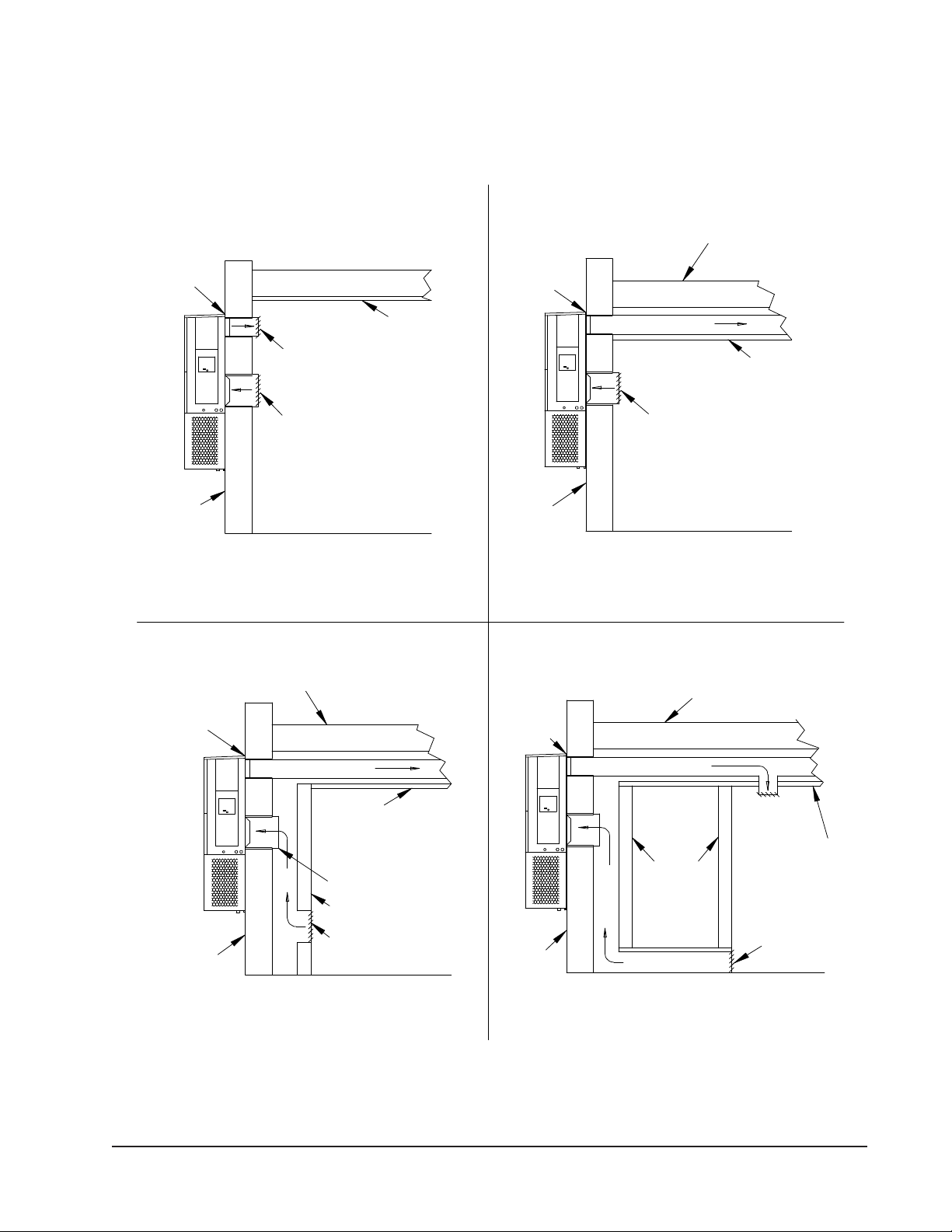

Common Wall Mounting Installations......

13

Figure 8

Fan Blade Setting...................................

18

Start Up



General ................................................................

15

Topping Off System Charge....................................

15

Safety Practices.......................................................

15

Important Installer Note...........................................

16

High Pressure Switch..............................................

16

Three Phase Scroll Compressor.............................

16

Phase Monitor.........................................................

16

Condenser Fan Operation.......................................

16

Service Hints...........................................................

16

Sequence of Operation............................................

17

Compressor Control Module....................................

17

Adjustments.............................................................

17

Pressure Service Ports............................................

17

Troubleshooting



Fan Blade Setting Dimensions................................

18

R-410A Refrigerant Charge.....................................

18

Removal of Fan Shroud...........................................

18

Tables







Table

1

Fan Blade Dimensions............................

18

Table

2

Cooling Pressure....................................

19

Table

3

Electrical Specifications W**A.................

20

Table

4

Electrical Specifications W**L.................

21

Table

5

Recommended Airflow............................

22

Table

6

Indoor Blower Performance....................

22

Table

7

Maximum ESP Electric Heat Only..........

22

Table

8

Electric Heat...........................................

23

Table

9A

Optional Accessories — Right Hand.......

24

Table 9B

OptionalAccessories — Left Hand.............

25

Table

10

Vent & Control Options...........................

26

Manual

2100-581B

Page

2 of 26

GETTING OTHER INFORMATION AND PUBLICATIONS

These publications can help you install the air conditioner or heat pump. You can usually find these at your local library or purchase them directly from the publisher. Be sure to consult current edition of each standard.

National Electrical Code........................

ANSI/NFPA 70

Standard for the Installation...............

ANSI/NFPA 90A

of Air Conditioning and Ventilating Systems

Standard for Warm Air........................

ANSI/NFPA 90B

Heating and Air Conditioning Systems

Load Calculation for ..........................

ACCA Manual J

Residential Winter and Summer Air Conditioning

Duct Design for Residential...............

ACCA Manual D

Winter and Summer Air Conditioning and Equipment

Selection

FOR MORE INFORMATION, CONTACT THESE PUBLISHERS:

ACCA

Air Conditioning Contractors of America



1712 New Hampshire Ave. N.W.



Washington, DC 20009



Telephone: (202) 483-9370



Fax: (202) 234-4721

ANSI

American National Standards Institute



11 West Street, 13th Floor



New York, NY 10036



Telephone: (212) 642-4900



Fax: (212) 302-1286

ASHRAE American Society of Heating, Refrigeration

and Air Conditioning Engineers, Inc.

1791 Tullie Circle, N.E.

Atlanta, GA 30329-2305

Telephone: (404) 636-8400

Fax: (404) 321-5478

NFPA

National Fire Protection Association



Batterymarch Park



P.O. Box 9101



Quincy, MA 02269-9901



Telephone: (800) 344-3555



Fax: (617) 984-7057

Manual

2100-581B

Page

3 of 26

WALL MOUNT GENERAL INFORMATION

AIR CONDITIONER WALL MOUNT MODEL NOMENCLATURE

W 42 A 2 – A 10

MODEL NUMBER

CAPACITY

17- 1½ Ton

18- 1½ Ton

24- 2 Ton

30- 2½ Ton

36- 3 Ton

42- 3½ Ton

48- 4 Ton

60- 5 Ton

70- 6 Ton

REVISIONS

KW

VOLTS & PHASE

A - 230/208/60/1

B - 230/208/60/3

C - 460/60/3

A - Right Hand Air Conditioner

L - Left Hand Air Conditioner

VENTILATION OPTIONS

X - Barometric Fresh Air Damper (Standard) B - Blank-off Plate

M - Motorized Fresh Air Damper

V - Commercial Ventilator - Motorized with Exhaust

R- Energy Recovery Ventilator - Motorized with Exhaust (See Spec. Sheet S3397)

S- Economizer - School Versions, Enthalpy

W - Economizer - Equipment Building, Enthalpy

T - Economizer - Equipment Building, DB Temp.

X

X

X



X



X



A























































CONTROL MODULES

























(See Spec. Sheet S3397)









































COIL OPTIONS





COLOR OPTIONS





X - Standard





X - Beige (Standard)



1

- Phenolic Coated Evaporator





1

- White











2 - Phenolic Coated Condenser





4

- Buckeye Gray





3 - Phenolic Coated Evaporator





5

- Desert Brown











and Condenser





6

- Dark Bronze























OUTLET OPTIONS





A - Aluminum





S - Stainless Steel

X - Front (Standard)















T - Top Outlet (W30A, W36A Only)

FILTER OPTIONS

























X

- One Inch Throwaway (Standard)













W - One Inch Washable



















P

- Two Inch Pleated

























NOTE: Vent options X, B and M are without exhaust capability. May require separate field supplied barometric relief in building.

SHIPPING DAMAGE

Upon receipt of equipment, the carton should be checked for external signs of shipping damage. If damage is found, the receiving party must contact the last carrier immediately, preferably in writing, requesting inspection by the carrier’s agent.

GENERAL

The equipment covered in this manual is to be installed by trained, experienced service and installation technicians.

The refrigerant system is completely assembled and charged. All internal wiring is complete.

The unit is designed for use with or without duct work. Flanges are provided for attaching the supply and return ducts.

These instructions explain the recommended method to install the air cooled self-contained unit and the electrical wiring connections to the unit.

These instructions and any instructions packaged with any separate equipment required to make up the entire air conditioning system should be carefully read before beginning the installation. Note particularly “Starting Procedure” and any tags and/or labels attached to the equipment.

While these instructions are intended as a general recommended guide, they do not supersede any national and/or local codes in any way. Authorities having jurisdiction should be consulted before the installation is made. See Page 3 for information on codes and standards.

Size of unit for a proposed installation should be based on heat loss calculation made according to methods

of Air Conditioning Contractors of America (ACCA). The air duct should be installed in accordance with the Standards of the National Fire Protection Association for the Installation of Air Conditioning and Ventilating Systems of Other Than Residence Type, NFPA No. 90A, and Residence Type Warm Air Heating and Air Conditioning Systems, NFPA No. 90B. Where local regulations are at a variance with instructions, installer should adhere to local codes.

Manual

2100-581B

Page

4 of 26

DUCT WORK

All duct work, supply and return, must be properly sized for the design airflow requirement of the equipment.

Air Conditioning Contractors of America (ACCA) is an excellent guide to proper sizing. All duct work or portions thereof not in the conditioned space should be properly insulated in order to both conserve energy and prevent condensation or moisture damage.

Refer to Maximum ESP of operation Electric Heat Table 7.

Design the duct work according to methods given by the Air Conditioning Contractors of America (ACCA). When duct runs through unheated spaces, it should be insulated with a minimum of one inch of insulation. Use insulation with a vapor barrier on the outside of the insulation. Flexible joints should be used to connect the duct work to the equipment in order to keep the noise transmission to a minimum.

Models W17 - W24 as approved for zero inch clearance to the supply duct. For model series W30, W36, W42, W48, W60 and W70 a 1/4 inch clearance to combustible material for the first three feet of duct attached to the outlet air frame is required. See Wall Mounting Instructions and Figures 3 and 4 for further details.

Ducts through the walls must be insulated and all joints taped or sealed to prevent air or moisture entering the wall cavity.

Some installations may not require any return air duct. A metallic return air grille is required with installations not requiring a return air duct. The spacing between louvers on the grille shall not be larger than 5/8 inch.

Any grille that meets with 5/8 inch louver criteria may be used. It is recommended that Bard Return Air Grille Kit RG2 through RG5 or RFG2 through RFG5 be installed when no return duct is used. Contact distributor or factory for ordering information. If using a return air filter grille, filters must be of sufficient size to allow a maximum velocity of 400 fpm.

FILTERS

A 1-inch throwaway filter is standard with each unit. The filter slides into position making it easy to service. This filter can be serviced from the outside by removing the filter access panel. A 1-inch washable filter and 2-inch pleated filter are also available as optional accessories. The internal filter brackets are adjustable to accommodate the 2-inch filter by bending two (2) tabs down on each side of the filter support bracket.

FRESH AIR INTAKE

All units are built with fresh air inlet slots punched in the service door.

If the unit is equipped with a fresh air damper assembly, the assembly is shipped already attached to the unit. The damper blade is locked in the closed position.

To allow the damper to operate, the maximum and minimum blade position stops must be installed. See Figure 1.

All capacity, efficiency and cost of operation information is based upon the fresh air blank-off plate in place and is recommended for maximum energy efficiency.

The blank-off plate is available upon request from the factory and is installed in place of the fresh air damper shipped with each unit.

CONDENSATE DRAIN

A plastic drain hose extends from the drain pan at the top of the unit down to the unit base. There are openings in the unit base for the drain hose to pass through. In the event the drain hose is connected to a

drain system of some type, it must be an open or vented type system to assure proper drainage.

NOTE: If no return air duct is used, applicable installation codes may limit this cabinet to installation only in a single story structure.

FIGURE 1

FRESH AIR DAMPER

Manual

2100-581B

Page

5 of 26

INSTALLATION INSTRUCTIONS

WALL MOUNTING INFORMATION

1.Two holes for the supply and return air openings must be cut through the wall as shown in Figure 3.

2.On wood frame walls, the wall construction must be strong and rigid enough to carry the weight of the unit without transmitting any unit vibration.

3.Concrete block walls must be thoroughly inspected to insure that they are capable of carrying the weight of the installed unit.

MOUNTING THE UNIT

1.These units are secured by wall mounting brackets which secure the unit to the outside wall surface at both sides. A bottom mounting bracket, attached to skid for shipping, is provided for ease of installation, but is not required.

2.The unit itself is suitable for 0 inch clearance, but the supply air duct flange and the first 3 feet of supply air duct require a minimum of 1/4 inch

clearance to combustible material for model series W30, W36, W42, W48, W60 and W70. However, it is generally recommended that a 1-inch clearance is used for ease of installation and maintaining the required clearance to combustible material. See Figure 3 for details on opening sizes.

3.Locate and mark lag bolt locations and bottom mounting bracket location. See Figure 3.

4.Mount bottom mounting bracket.

5.Hook top rain flashing, attached to front - right of supply flange for shipping, under back bend of top.

Clearances Required for Service Access and Adequate Condenser Airflow

MODELS

LEFT

RIGHT

DISCHARGE

SIDE

SIDE

SIDE



W17A, W18A, W24A, W30A, W36A

15"

20"

10'









W17L, W18L, W24L, W30L, W36L

20"

15"

10'









W42A, W48A, W60A, W70A

20"

20"

10'









W42L, W48L, W60L, W70L

20"

20"

10'









NOTE: For side by side installation of two (2) W**A models there must be 20" between units. This can be reduced to 15" by using a W**L model (left side compressor and controls) for the left unit and

WA (right side compressor and controls) for right unit.

See W**A Specification S3397 & W**L Specification S3400.

WARNING

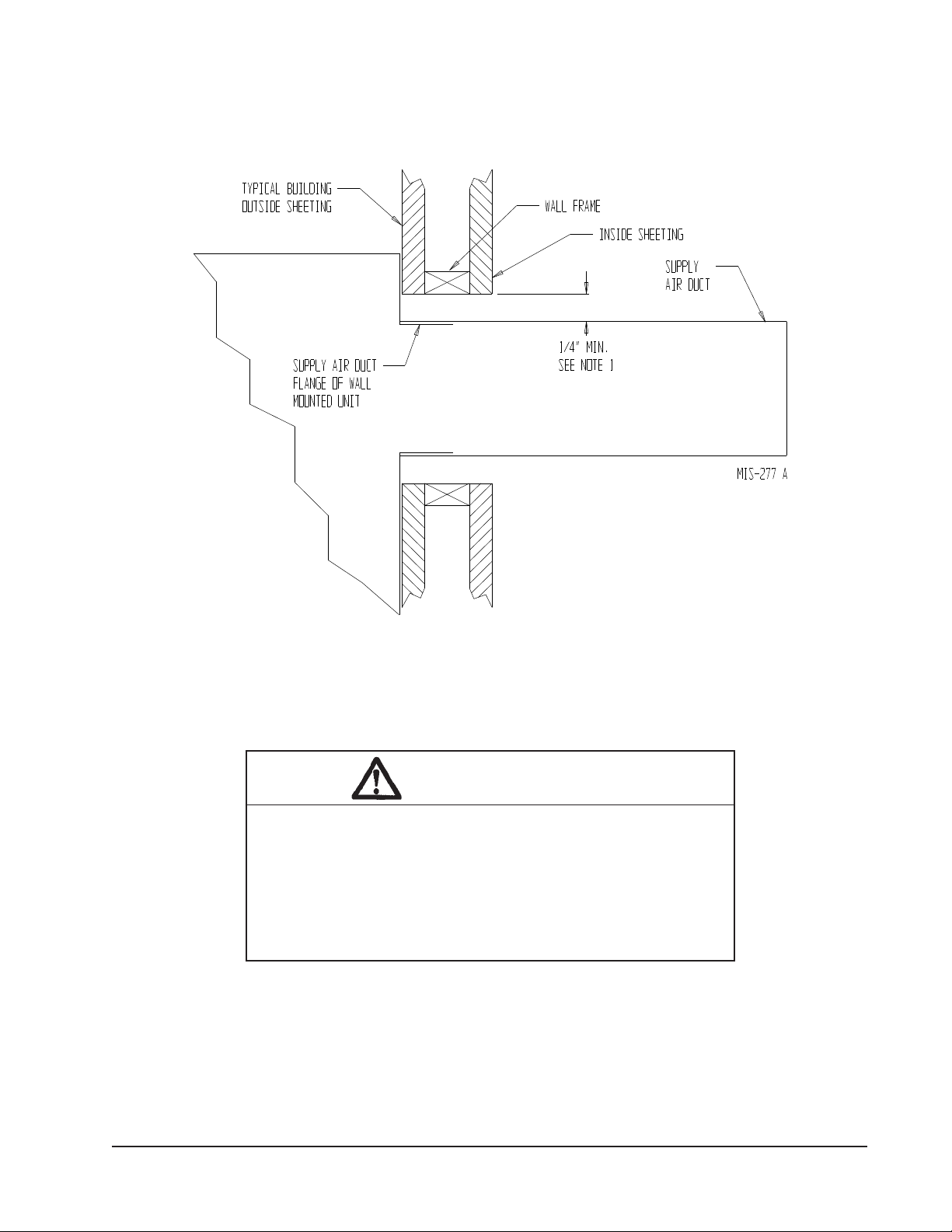

Failure to provide the 1/4 inch clearance between the supply duct and a combustible surface for the first 3 feet of duct can result in fire causing damage, injury or death.

6.Position unit in opening and secure with 5/16 lag bolts; use 7/8 inch diameter flat washers on the lag bolts.

7.Secure rain flashing to wall and caulk across entire length of top. See Figure 3.

8.For additional mounting rigidity, the return air and supply air frames or collars can be drilled and screwed or welded to the structural wall itself (depending upon wall construction). Be sure to observe required clearance if combustible wall.

9.On side-by-side installations, maintain a minimum of 20 inches clearance on right side to allow access to control panel and heat strips, and to allow proper airflow to the outdoor coil. Additional clearance may be required to meet local or national codes.

Minimum Clearances Required to Combustible Materials

MODELS

SUPPLY AIR DUCT

CABINET

FIRST THREE FEET

W17A, L / W18A, L / W24A, L

0"

0"







W30A, L / W36A, L

1/4"

0"







W42A, L / W48A, L

1/4"

0"

W60A, L / W70A, L





Manual

2100-581B

Page

6 of 26

FIGURE 2

Dimensions of Basic Unit for Architectural and Installation Requirements (Nominal)

MODEL

WIDTH

DEPTH

HEIGHT

SUPPLY

RETURN































(W)

(D)

(H)

A

B

C

B

E

F

G

I

J

K

L

M

N

O

P

Q

R

S

T



W17A, L













































W18A, L

33.300

17.125

70.563

7.88

19.88

11.88

19.88

35.00

11.00

25.75

20.56

26.75

28.06

29.25

27.00

2.63

34.13

22.06

10.55

4.19

12.00

5.00

W24A, L













































W30A, L

38.200

17.125

70.563

7.88

27.88

13.88

27.88

40.00

11.00

25.75

17.93

26.75

28.75

29.25

27.00

2.75

39.19

22.75

9.14

4.19

12.00

5.00

W36A, L













































W42A, L













































W48A, L

42.075

22.432

84.875

9.88

29.88

15.88

29.88

43.88

13.63

31.66

30.00

32.68

26.94

34.69

32.43

3.37

42.88

23.88

10.00

1.44

16.00

1.88

W60A, L













































W70A, L













































All dimensions are in inches. Dimensional drawings are not to scale.







Built In

D







E











1







O





W**A





Rain Hood

7.88





















31.88 1









4° Pitch



1







RIGHT

W



Heater



1.00





.44



UNIT





Access



2.13













Panel



Side Wall

Supply Air Opening

R







Electric



A





















Heat





Mounting













C. Breaker/







Brackets



















(Built In)





S







Disconnect







B







Access Panel



I



Top Rain













(Lockable)

















Hood for ERV and







Flashing





S





ECONWMS models







Shipping









only









Location







5.88

Filter Access Panel







C

H

Optional

Return Air Opening







Standard

3"



Electrical

S

F

Ventilation Air

flush vent







Entrances







door for





















non-ERV/





















Econ.















S





models

11"







































K











G

Condenser

Hood for

Low Voltage

Cond.



L







J









Electrical













Air Outlet

ECONWMT

Entrance

Air





M





S





models.

High Voltage

Inlet





P













Electrical





















Entrance













T



Front View





Side View

Drain



N

Back View

Bottom Installation











Q

Bracket

MIS-2487 G





















jOptional top outlet (factory installed only) for W30A and W36A models only.

W**L

LEFT

UNIT

Manual

2100-581B

Page

7 of 26

Page

Manual

26 of 8

581B-2100





FIGURE 3A

W17A2, W17L2, W18A2, W18L2, W24A2, W24L2

MOUNTING INSTRUCTIONS

3

13

"

7

1

"

20"

7

1

"





16





16







16

















Supply Opening





8"







12"





















































20 1

"





12"













2



























12"







Return Opening





12"







12"







20"





























12"

3"

3

81

"

1"

4"



1"

87 "

Typ.



5"











4"







2"

Typ.

2"











WallOpening andHoleLocationView

SEAL WITH BEAD





OF CAULKING ALONG





ENTIRE LENGTH OF TOP.

RAIN FLASHING





SUPPLIED



TOP

FOAM AIR SEAL





WALL STRUCTURE

WALL





HEATER ACCESS

SUPPLY AIR

PANEL

DUCT





RETURN AIR



OPENING







NOTES:





IT IS RECOMMENDED THAT A BEAD OF





SILICONE CAULKING BE PLACED BEHIND





THE SIDE MOUNTING FLANGES AND UNDER





TOP FLASHING AT TIME OF INSTALLATION.





W**A UNIT SHOWN, W**L UNIT





CONTROLS AND HEATER ACCESS





IS ON OPPOSITE (LEFT) SIDE.



Right SideView

MIS-3157

Page

Manual

26 of 9

581B-2100



















FIGURE 3B





















W30A2, W30L2, W36A2, W36L2





















MOUNTING INSTRUCTIONS









A

B

C

D





E

SEAL WITH BEAD





REQUIRED DIMENSIONS TO MAINTAIN













OF CAULKING ALONG

















ENTIRE LENGTH OF TOP.

RAIN FLASHING

1/4" MIN. CLEARANCE FROM

28 3/8

8 3/8

5 3/8

3 11/16

17 5/8





SUPPLIED



COMBUSTIBLE MATERIALS







































REQUIRED DIMENSIONS TO MAINTAIN

9 7/8

4 5/8

4 7/16

16 7/8

TOP

FOAM AIR SEAL

RECOMMENDED 1" CLEARANCE FROM 29 7/8





COMBUSTIBLE MATERIALS



















WALL STRUCTURE







































WALL





























1/4" CLEARANCE ON ALL























FOUR SIDES OF SUPPLY























AIR DUCT IS REQUIRED























FROM COMBUSTABLE



C

A



C













MATERIALS

D



Supply Opening



B







HEATER ACCESS

SUPPLY AIR













12"

















PANEL

DUCT



































E













12"























12"



Return Opening



14"









RETURN AIR













OPENING

























12"



28"

























3 1

"



















2 87 "

8

4"





7







NOTES:

12"

87 "







"





7



Typ.





8





IT IS RECOMMENDED THAT A BEAD OF

5 1

"

8 "

















SILICONE CAULKING BE PLACED BEHIND



















THE SIDE MOUNTING FLANGES AND UNDER

16



4"

















TOP FLASHING AT TIME OF INSTALLATION.























4

11

Typ.





11

"









W*R UNIT SHOWN, W*L UNIT

16 "







4 16









CONTROLS AND HEATER ACCESS























IS ON OPPOSITE (LEFT) SIDE.



WallOpening andHoleLocationView









Right SideView

MIS-3158

Page

Manual

of 10

2100

26

581B-





FIGURE 3C

W42A2, W42L2, W48A2, W48L2, W60A2, W60L2, W70A2, W70L2

MOUNTING INSTRUCTIONS











SEAL WITH BEAD













OF CAULKING ALONG

RAIN FLASHING











ENTIRE LENGTH OF

A

B

C

D

E

TOP.

SUPPLIED





REQUIRED DIMENSIONS TO MAINTAIN

30 1/2

10 1/2



6 1/4

1 1/4



29 3/4

TOP

FOAM AIR SEAL

1/4" MIN. CLEARANCE FROM































COMBUSTIBLE MATERIALS





















REQUIRED DIMENSIONS TO MAINTAIN

32

12



5 1/2

2



29



WALL STRUCTURE









RECOMMENDED 1" CLEARANCE FROM



















COMBUSTIBLE MATERIALS



















1/4" CLEARANCE ON ALL



















WALL



















FOUR SIDES OF SUPPLY





















AIR DUCT IS REQUIRED



C

A





C









FROM COMBUSTABLE

D











HEATER ACCESS

MATERIALS



















PANEL





Supply Opening





B







SUPPLY AIR













DUCT

16"







































16"











E









16"























Return Opening





16"







RETURN AIR





















OPENING

16" 1

6 21 "

30"













































1









NOTES:

16" 1



3"



3



87

"



IT IS RECOMMENDED THAT A BEAD OF

1"

4"

8 "





SILICONE CAULKING BE PLACED BEHIND





Typ.













THE SIDE MOUNTING FLANGES AND UNDER





















TOP FLASHING AT TIME OF INSTALLATION.

2 1 87 "

4"









1

"







Typ.







6 21 "

2 8

3







6 21 "

















1

Dimension is 21" on 95" tall units.











2

Dimension is 10" on T48H1 & T60H1.











3

Dimension is 6" on T48H1 & T60H1.











Wall Opening and Hole Location View

Right Side View



MIS-416 E

FIGURE 4

ELECTRIC HEAT CLEARANCE

W30A2, W30L2, W36A2, W36L2, W42A2, W42L2, W48A2, W48L2, W60A2, W60L2, W70A2, W70L2

NOTE 1: SIDE SECTION VIEW OF SUPPLY AIR

DUCT FOR WALL MOUNTED UNIT SHOWING 1/4

INCH CLEARANCE TO COMBUSTIBLE SURFACES.

WARNING

A minimum of 1/4 inch clearance must be maintained between the supply air duct and combustible materials. This is required for the first 3 feet of ducting.

It is important to insure that the 1/4 inch minimum spacing is maintained at all points.

Failure to do this could result in overheating the combustible material and may result in a fire causing damage, injury or death.

Manual

2100-581B

Page

11 of 26

FIGURE 5

WALL MOUNTING INSTRUCTIONS

SEE FIGURE 3 – MOUNTING INSTRUCTIONS



WALL STRUCTURE





FACTORY SUPPLIED





RAIN FLASHING.





MOUNT ON UNIT





BEFORE INSTALLATION

SUPPLY AIR

SUPPLY AIR

SUPPLY AIR

OPENING

OPENING

DUCT

RETURN AIR

RETURN AIR

RETURN AIR

OPENING

OPENING

OPENING















































































































































































































































































































































































































BOTTOM MOUNTING



























































































WOOD OR STEEL SIDING





































BRACKET. MOUNT ON























































WALL BEFORE























































INSTALLING UNIT.

































































CONCRETE BLOCK WALL INSTALLATION

WOOD FRAME WALL INSTALLATION

SIDE VIEW



MIS-548 A

FIGURE 6

WALL MOUNTING INSTRUCTIONS



ATTACH TO TOP



PLATE OF WALL



1.000" CLEARANCE



ALL AROUND DUCT



INTERIOR FINISHED WALL



OVER FRAME



1.000" CLEARANCE



ALL AROUND DUCT



EXTERIOR FINISH WALL



OVER FRAME

FRAMING MATERIAL



2 x 4'S, 2 x 6'S &/OR

ATTACH TO BOTTOM

STRUCTURAL STEEL

PLATE OF WALL

MIS-549 B



SEE UNIT DIMENSIONS, FIGURE 2,

FOR ACTUAL DIMENSIONS.

E + 1.000

B





1.000

SUPPLY DUCT



A

OPENING









I

RETURN DUCT

C

OPENING









K

2 x 6

C



L

THIS STRUCTURAL MEMBER

LOCATED TO MATCH STUD

SPACING FOR REST OF WALL.

A SECOND MEMBER MAY BE

REQUIRED FOR SOME WALLS.

Manual

2100-581B

Page

12 of 26

FIGURE 7

COMMON WALL MOUNTING INSTALLATIONS

SUPPLY DUCT MAY BE LOCATED IN AN ATTIC

OR BELOW CEILING RAFTERS AS SHOWN

RAIN



RAIN



FLASHING

RAFTERS



FLASHING

RAFTERS









FINISHED CEILING SURFACE



SUPPLY AIR DUCT



SUPPLY AIR DUCT



FINISHED CEILING SURFACE



W/ GRILLE





RETURN AIR



RETURN AIR





OPENING W/ GRILLE



OPENING W/ GRILLE









OUTSIDE



OUTSIDE



WALL







WALL









FREE AIR FLOW

DUCTED SUPPLY

NO DUCT

RETURN AT UNIT

SUPPLY DUCT MAYBE LOCATED IN AN ATTIC



SUPPLY DUCT MAYBE LOCATED IN AN ATTIC

OR BELOW CEILING RAFTERS AS SHOWN





OR BELOW CEILING RAFTERS AS SHOWN







RAIN



RAIN





FLASHING







RAFTERS

FLASHING

RAFTERS















SUPPLY AIR DUCT



SUPPLY AIR DUCT





FINISHED



LOWERED

SUPPLY AIR





CEILING



CEILING SURFACE





GRILLE



RETURN AIR





FINISHED CEILING







SURFACE



SPACE



CLOSET WALL



WALL SLEEVE



WALL





FALSE WALL









SLEEVE



OUTSIDE

RETURN AIR GRILLE

OUTSIDE

RAISED FLOOR

RETURN AIR



RETURN AIR

GRILLE

WALL



WALL



FALSE WALL INSTALLATION

CLOSET INSTALLATION

MIS-550 B

Manual

2100-581B

Page

13 of 26

WIRING – MAIN POWER

Refer to the unit rating plate for wire sizing information and maximum fuse or “HACR” type circuit breaker size. Each outdoor unit is marked with a “Minimum

Circuit Ampacity”. This means that the field wiring used must be sized to carry that amount of current. Depending on the installed KW of electric heat, there may be two field power circuits required. If this is the case, the unit serial plate will so indicate. All models are suitable only for connection with copper wire. Each unit and/or wiring diagram will be marked “Use Copper Conductors Only”. These instructions must be adhered to. Refer to the National Electrical Code (NEC) for complete current carrying capacity data on the various insulation grades of wiring material. All wiring must conform to NEC and all local codes.

The electrical data lists fuse and wire sizes (75° C copper) for all models including the most commonly used heater sizes. Also shown are the number of field power circuits required for the various models with heaters.

The unit rating plate lists a “Maximum Time Delay Relay Fuse” or “HACR” type circuit breaker that is to be used with the equipment. The correct size must be used for proper circuit protection and also to assure that there will be no nuisance tripping due to the momentary high starting current of the compressor motor.

The disconnect access door on this unit may be locked to prevent unauthorized access to the disconnect. To convert for the locking capability, bend the tab located in the bottom left-hand corner of the disconnect opening under the disconnect access panel straight out. This tab will now line up with the slot in the door. When shut, a padlock may be placed through the hole in the tab preventing entry.

See “Start Up” section for important information on three phase scroll compressor start ups.

See Tables 3 & 4 for Electrical Specifications.

WIRING – LOW VOLTAGE WIRING

All 230/208V, 1 phase and 3 phase equipment have dual primary voltage transformers. All equipment leaves the factory wired on 240V tap. For 208V operation, reconnect from 240V to 208V tap. The acceptable operating voltage range for the 240 and 208V taps are:

TAP

RANGE

240

253 – 216

208

220 – 187

NOTE: The voltage should be measured at the field power connection point in the unit and while the unit is operating at full load (maximum amperage operating condition).

For wiring size and connections, refer to Wiring Manual 2100-507.

Manual

2100-581B

Page

14 of 26

START UP

THESE UNITS REQUIRE R-410A REFRIGERANT AND POLYOL ESTER OIL.

GENERAL:

1.Use separate service equipment to avoid cross contamination of oil and refrigerants.

2.Use recovery equipment rated for R-410A refrigerant.

3.Use manifold gauges rated for R-410A(800 psi/250 psi low).

4.R-410A is a binary blend of HFC-32 and HFC-125.

5.R-410A is nearly azeotropic - similar to R-22 and R-12. Although nearly azeotropic, charge with liquid refrigerant.

6.R-410A operates at 40-70% higher pressure than R-22, and systems designed for R-22 cannot withstand this higher pressure.

7.R-410A has an ozone depletion potential of zero, but must be reclaimed due to its global warming potential.

8.R-410A compressors use polyolester oil.

9.Polyol Ester oil is hygroscopic; it will rapidly absorb moisture and strongly hold this moisture in the oil.

10.A liquid line dryer must be used - even a deep vacuum will not separate moisture from the oil.

11.Limit atmospheric exposure to 15 minutes.

12.If compressor removal is necessary, always plug compressor immediately after removal. Purge with small amount of nitrogen when inserting plugs.

TOPPING OFF SYSTEM CHARGE

If a leak has occurred in the system, Bard Manufacturing recommends reclaiming, evacuating (see criteria above), and charging to the nameplate charge. If done correctly, topping off the system charge can be done without problems.

With R-410A, there are no significant changes in the refrigerant composition during multiple leaks and recharges. R-410A refrigerant is close to being an azeotropic blend (it behaves like a pure compound or single component refrigerant). The remaining refrigerant charge, in the system, may be used after leaks have occurred and then “top-off” the charge by

utilizing the pressure charts on the inner control panel cover as a guideline.

REMEMBER: When adding R-410A refrigerant, it must come out of the charging cylinder/tank as a

liquid to avoid any fractionation, and to ensure optimal system performance. Refer to instructions for the cylinder that is being utilized for proper method of liquid extraction.

WARNING

Failure to conform to these practices could lead to damage, injury or death.

SAFETY PRACTICES:

1.Never mix R-410A with other refrigerants.

2.Use gloves and safety glasses, Polyol Ester oils can be irritating to the skin, and liquid refrigerant will freeze the skin.

3.Never use air and R-410A to leak check; the mixture may become flammable.

4.Do not inhale R-410A – the vapor attacks the nervous system, creating dizziness, loss of coordination and slurred speech. Cardiac irregularities, unconsciousness and ultimate death can result from breathing this concentration.

5.Do not burn R-410A. This decomposition produces hazardous vapors. Evacuate the area if exposed.

6.Use only cylinders rated DOT4BA/4BW 400.

7.Never fill cylinders over 80% of total capacity.

8.Store cylinders in a cool area, out of direct sunlight.

9.Never heat cylinders above 125°F.

10.Never trap liquid R-410A in manifold sets, gauge lines or cylinders. R-410A expands significantly at warmer temperatures. Once a cylinder or line is full of liquid, any further rise in temperature will cause it to burst.

Manual

2100-581B

Page

15 of 26

START UP (Continued)

IMPORTANT INSTALLER NOTE

For improved start up performance wash the indoor coil with a dish washing detergent.

HIGH PRESSURE SWITCH

All W**A/W**L wall mounted air conditioner series models are supplied with a remote reset for the high and low pressure switch. If tripped, this pressure switch may be reset by turning the thermostat off then back on again.

THREE PHASE SCROLL COMPRESSOR START UP INFORMATION

Scroll compressors, like several other types of compressors, will only compress in one rotational direction. Direction of rotation is not an issue with single phase compressors since they will always start and run in the proper direction.

However, three phase compressors will rotate in either direction depending upon phasing of the power. Since there is a 50-50 chance of connecting power

in such a way as to cause rotation in the reverse direction, verification of proper rotation must be made. Verification of proper rotation direction is made by observing that suction pressure drops and discharge pressure rises when the compressor is energized. Reverse rotation also results in an elevated sound level over that with correct rotation, as well as substantially reduced current draw compared to tabulated values.

Verification of proper rotation must be made at the time the equipment is put into service. If improper rotation is corrected at this time, there will be no negative impact on the durability of the compressor. However, reverse operation for over one hour may have a negative impact on the bearing due to oil pump out.

NOTE: If compressor is allowed to run in reverse rotation for an extended period of time, the compressor’s internal protector will trip.

All three phase compressors are wired identically internally. As a result, once the correct phasing is determined for a specific system or installation,

connecting properly phased power leads to the same Fusite terminal should maintain proper rotation direction.

The direction of rotation of the compressor may be changed by reversing any two line connections to the unit.

PHASE MONITOR

All units with three phase scroll compressors are equipped with a 3 phase line monitor to prevent compressor damage due to phase reversal.

The phase monitor in this unit is equipped with two LEDs. If the Y signal is present at the phase monitor and phases are correct the green LED will light.

If phases are reversed, the red fault LED will be lit and compressor operation is inhibited.

If a fault condition occurs, reverse two of the supply leads to the unit. Do not reverse any of the unit factory wires as damage may occur.

CONDENSER FAN OPERATION

NOTE: Certain models may be equipped with a low ambient control (LAC), and if so equipped, the condenser fan motor will have delayed start until system refrigerant operating pressure builds up. After starting, the fan motor may or may not cycle depending upon ambient conditions. This is normal operation.

Applies to W42, W48, W60 and W70 models only. The condenser fan motor on 230/208 volt, one and three phase, 60 HZ units is a two-speed motor that comes factory wired on high speed for peak performance. If ambient conditions permit, it can be reconnected to low speed (red wire) for lower sound level. See wiring diagram.

50 HZ models must have fan wired on low speed. These models are factory wired on low speed.

SERVICE HINTS

1.Caution owner/operator to maintain clean air filters at all times. Also, not to needlessly close off

supply and return air registers. This reduces airflow through the system, which shortens equipment service life as well as increasing operating costs.

2.Check all power fuses or circuit breakers to be sure they are the correct rating.

3.Periodic cleaning of the outdoor coil to permit full and unrestricted airflow circulation is essential.

Manual

2100-581B

Page

16 of 26

SEQUENCE OF OPERATION

COOLING – Circuit R-Y makes at thermostat pulling in compressor contactor, starting the compressor and outdoor motor. (See NOTE under Condenser Fan Operation if equipped with Low Ambient Control.) The G (indoor motor) circuit is automatically completed

by the thermostat on any call for cooling operation or can be energized by manual fan switch on subbase for constant air circulation. On a call for heating, circuit R-W1 make at the thermostat pulling in heat contactor for the strip heat and blower operation. On a call for second stage heat, R-W2 makes bringing on second heat

contactor, if so equipped.

COMPRESSOR CONTROL MODULE

The compressor control module is standard on all models covered by this manual. The compressor control module is an anti-short cycle/lockout timer with high and low pressure switch monitoring and alarm relay output.

Adjustable Delay On Make And Break Timer

On initial power up or anytime power is interrupted to the unit, the delay on make period begins, which will be 2 minutes plus 10% of the delay on break setting. When the delay on make is complete and the high pressure switch and low pressure switch is closed, the compressor contactor is energized. Upon shutdown, the delay on break timer starts and prevents restart until the

delay on break and delay on make periods have expired.

During routine operation of the unit with no power interruptions, the compressor will operate on demand

with no delay.

High Pressure Switch and Lockout Sequence

If the high pressure switch opens, the compressor contactor will de-energize immediately. The lockout timer will go into a soft lockout and stay in soft lockout until the high pressure switch closes and the delay on break time has expired. If the high pressure switch opens again in this same operating cycle, the unit will go into manual lockout condition and the alarm relay circuit will energize. Recycling the wall thermostat resets the manual lockout.

Low Pressure Switch, Bypass, and Lockout Sequence

If the low pressure switch opens for more than 120 seconds, the compressor contactor will de-energize and go into a soft lockout. Regardless the state of the low pressure switch, the contactor will reenergize after the delay on make time delay has expired. If the low pressure switch remains open, or opens again for longer than 120 seconds, the unit will go into manual lockout condition and the alarm relay circuit will energize.

Recycling the wall thermostat resets the manual lockout.

Alarm Relay Output

Alarm terminal is output connection for applications where alarm relay is employed. This terminal is powered whenever the compressor is locked out due to HPC or LPC sequences as described.

NOTE: Both high and low pressure switch controls are inherently automatic reset devices. The high pressure switch and low pressure switch cut out and cut in settings are fixed by specific air conditioner unit model. The lockout features, both soft and manual, are a function of the Compressor Control Module.

ADJUSTMENTS

Adjustable Delay on Make and Delay on Break Timer

The potentiometer is used to select Delay on Break time from 30 seconds to 5 minutes. Delay on Make (DOM) timing on power-up and after power interruptions is equal to 2 minutes plus 10% of Delay on Break (DOB) setting:

0.5 minute (30 seconds)

DOB = 123 second DOM

1.0 minute (60 seconds)

DOB = 126 second DOM

2.0 minute (120 seconds)

DOB = 132

second DOM

3.0 minute (180 seconds)

DOB = 138

second DOM

4.0 minute (240 seconds)

DOB = 144

second DOM

5.0 minute (300 seconds)

DOB = 150

second DOM

During routine operation of the unit with no power interruptions the compressor will operate on demand with no delay.

Typical Settings for Dual Unit Installation:

Unit 1: DOB set at 2 minutes, and DOM is 132 seconds Unit 2: DOB set at 4 minutes, and DOM is 144 seconds

PRESSURE SERVICE PORTS

High and low pressure service ports are installed on all units so that the system operating pressures can be observed. A pressure table can be found later in the manual covering all models. It is imperative to match the correct pressure table to the unit by model number. See Table 2.

Manual

2100-581B

Page

17 of 26

TROUBLESHOOTING

FAN BLADE SETTING DIMENSIONS

Shown in Figure 8 is the correct fan blade setting for proper air delivery across the outdoor coil. Refer to

Table 1 for unit specific dimension.

Any service work requiring removal or adjustment in the fan and/or motor area will require that the

dimensions below be checked and blade adjusted in or out on the motor shaft accordingly.

FIGURE 8

FAN BLADE SETTING

AIRFLOW

"A"

MIS-1724

TABLE 1

FAN BLADE DIMENSION

Model

Dimension

A



W17A2 / W17L2



W18A2 / W18L2

1.00"

W24A2 / W24L2



W30A2 / W30L2

1.25"

W36A2 / W36L2



W42A2 / W42L2



W48A2 / W48L2

1.75"

W60A2 / W60L2



W70A2 / W70L2



R-410A

REFRIGERANT CHARGE

This unit was charged at the factory with the quantity of refrigerant listed on the serial plate. AHRI capacity and efficiency ratings were determined by testing with this refrigerant charge quantity.

The following pressure tables show nominal pressures for the units. Since many installation specific situations can affect the pressure readings, this information should only be used by certified technicians as a guide for evaluating proper system performance. They shall not be used to adjust charge. If charge is in doubt, reclaim, evacuate and recharge the unit to the serial plate charge.

REMOVAL OF FAN SHROUD

1.Disconnect all power to the unit.

2.Remove the screws holding both grilles, one on each side of unit, and remove grilles.

3.Remove screws holding fan shroud to condenser and bottom. Nine (9) screws.

4.Unwire condenser fan motor.

5.Slide complete motor, fan blade, and shroud assembly out the left side of the unit.

6.Service motor/fan as needed.

7.Reverse steps to reinstall.

Manual

2100-581B

Page

18 of 26

TABLE 2

COOLING PRESSURE TABLE

Air Temperature Entering Outdoor Coil °F

Model

Return Air Temp

Pressure

75

80

85

90

95

100

105

110

115

120

(DB/WB)



























75/62

Low Side

124

126

128

130

132

133

135

137

138

140



High Side

321

340

362

384

409

434

461

490

521

553





W17A/L

80/67

Low Side

133

135

137

139

141

142

144

146

148

150

High Side

329

349

371

394

419

445

473

503

534

567







85/72

Low Side

138

140

142

144

146

147

149

151

153

155



High Side

341

361

384

408

434

461

490

521

553

587







75/62

Low Side

127

129

131

133

135

137

138

140

143

145



High Side

318

339

362

385

409

434

459

486

513

541





W18A/L

80/67

Low Side

136

138

140

142

144

146

148

150

153

155

High Side

326

348

371

395

419

445

471

498

526

555







85/72

Low Side

141

143

145

147

149

151

153

155

158

160



High Side

337

360

384

409

434

461

487

515

544

574







75/62

Low Side

119

121

122

124

127

129

131

133

135

137



High Side

340

361

383

407

432

459

488

518

550

583





W24A/L

80/67

Low Side

127

129

131

133

136

138

140

142

144

146

High Side

349

370

393

417

443

471

500

531

564

598







85/72

Low Side

131

134

136

138

141

143

145

147

149

151



High Side

361

383

407

432

459

487

518

550

584

619







75/62

Low Side

122

124

127

129

131

133

135

137

137

139



High Side

335

358

381

406

431

456

483

509

536

565





W30A/L

80/67

Low Side

130

133

136

138

140

142

144

146

147

149

High Side

344

367

391

416

442

468

495

522

550

579







85/72

Low Side

135

138

141

143

145

147

149

151

152

154



High Side

356

380

405

431

457

484

512

540

569

599







75/62

Low Side

120

122

124

126

129

130

132

134

135

136



High Side

339

366

392

418

446

473

501

529

558

586





W36A/L

80/67

Low Side

128

130

133

135

138

139

141

143

144

145

High Side

348

375

402

429

457

485

514

543

572

601







85/72

Low Side

132

135

138

140

143

144

146

148

149

150



High Side

360

388

416

444

473

502

532

562

592

622







75/62

Low Side

123

124

126

128

130

132

134

136

137

139



High Side

320

342

367

391

416

443

469

496

526

554





W42A/L

80/67

Low Side

132

133

135

137

139

141

143

145

147

149

High Side

328

351

376

401

427

454

481

509

539

568







85/72

Low Side

137

138

140

142

144

146

148

150

152

154



High Side

339

363

389

415

442

470

498

527

558

588







75/62

Low Side

117

119

121

123

125

127

129

131

133

135



High Side

355

378

403

427

454

482

510

539

570

603





W48A/L

80/67

Low Side

125

127

129

132

134

136

138

140

142

144

High Side

364

388

413

438

466

494

523

553

585

618







85/72

Low Side

129

131

134

137

139

141

143

145

147

149



High Side

377

402

427

453

482

511

541

572

605

640







75/62

Low Side

122

124

126

128

130

131

133

135

137

138



High Side

346

371

396

421

447

473

499

526

553

580





W60A/L

80/67

Low Side

131

133

135

137

139

140

142

144

146

148

High Side

355

380

406

432

458

485

512

539

567

595







85/72

Low Side

136

138

140

142

144

145

147

149

151

153



High Side

367

393

420

447

474

502

530

558

587

616







75/62

Low Side

118

121

122

123

125

127

129

131

132

134



High Side

349

371

395

419

444

470

497

525

553

583





W70A/L

80/67

Low Side

126

129

131

132

134

136

138

140

141

143

High Side

358

381

405

430

455

482

510

538

567

598







85/72

Low Side

130

134

136

137

139

141

143

145

146

148



High Side

371

394

419

445

471

499

528

557

587

619





Low side pressure ± 4 PSIG High side pressure ± 10 PSIG

Tables are based upon rated CFM (airflow) across the evaporator coil. If there is any doubt as to correct operating charge being in the system, the charge should be removed, system evacuated and recharged to serial plate charge weight.

NOTE: Pressuretablebasedonhighspeedcondenserfanoperation. Ifcondensingpressuresappearelevatedcheck condenser fan wiring. See “Condenser Fan Operation”.

Manual

2100-581B

Page

19 of 26

TABLE 3

Electrical Specifications — W**A Series





No.



Single Circuit









Dual Circuit













Rated



Minimum

Maximum







Field

Maximum

Field

Circuit

External Fuse

Field Power

Ground

MODEL

Volts &

Minimum

Power

External

Power

Ground

Ampacity

or Ckt. Breaker

Wire Size

Wire Size



Phase

Circuit



Circuits

Fuse or

Wire

Wire

























Ampacity

Ckt. A

Ckt. B

Ckt. A

Ckt. B

Ckt. A



Ckt. B

Ckt. A



Ckt. B







Ckt. Brkr.

Size





































W17, 18A2-A00,A0Z



1

16

20

12

12





















A05

230/208-1

1

30

30

10

10





















A08

1

46

50

8

10











































A10



1

56

60

6

10





















W24A2-A00, A0Z



1

21

30

10

10





















A04



1

25

30

10

10





















A05

230/208-1

1

30

30

10

10





















A08



1

46

50

8

10





















A10



1

56

60

6

10





















W24A2-B00, B0Z

230/208-3

1

15

20

12

12





















B06

1

22

25

10

10











































W24A2-C00, C0Z

460-3

1

9

15

14

14





















C06

1

11

15

14

14











































W30A2-A00*, A0Z*



1

24

35

8

10





















A05*



1

32

35

8

10





















A08

230/208-1

1

47

50

8

10





















A10*



1

58

60

6

10





















A15



1 or 2

84

90

4

8

58

26

60

30

6



10

10



10

W30A2-B00*, B0Z*



1

18

20

12

12





















B06

230/208-3

1

24

25

10

10





















B09*

1

33

35

8

10











































B15



1

51

60

6

10





















W30A2-C00*, C0Z*



1

11

15

14

14





















C06

460-3

1

12

15

14

14





















C09*

1

17

20

12

12











































C15



1

26

30

10

10





















W36A2-A00*, A0Z*



1

29

35

8

10





















A05*



1

32

35

8

10





















A08

230/208-1

1

47

50

8

10





















A10*



1

58

60

6

10





















A15



1 or 2

84

90

4

8

58

26

60

30

6



10

10



10

W36A2-B00*, B0Z*



1

23

30

10

10





















B06*

230/208-3

1

24

30

10

10





















B09*

1

33

35

8

10











































B15



1

51

60

6

10





















W36A2-C00*, C0Z*



1

11

15

14

14





















C06*

460-3

1

12

15

14

14





















C09*

1

16

20

12

12











































C15



1

26

30

10

10





















W42A2-A00, A0Z



1

32

50

8

10





















A05



1

32

50

8

10





















A10

230/208-1

1

58

60

6

10





















A15



1 or 2

84

90

4

8

58

26

60

30

6



10

10



10

A20



1 or 2

110

125

2

6

58

52

60

60

6



6

10



10

W42A2-B00, B0Z



1

24

35

8

10





















B09

230/208-3

1

33

35

8

10





















B15

1

51

60

6

10











































B18



1

60

60

6

10





















W42A2-C00, C0Z



1

12

15

14

14





















C09

460-3

1

17

20

12

12





















C15



1

26

30

10

10





















W48A2-A00, A0Z



1

39

50

8

10





















A05



1

39

50

8

10





















A10

230/208-1

1

58

60

6

10





















A15



1 or 2

84

90

4

8

58

26

60

30

6



10

10



10

A20



1 or 2

110

125

2

6

58

52

60

60

6



6

10



10

W48A2-B00, B0Z



1

27

40

8

10





















B09

230/208-3

1

33

40

8

10





















B15

1

51

60

6

10











































B18



1

60

60

6

10





















W48A2-C00, C0Z



1

13

20

12

12





















C09

460-3

1

17

20

12

12





















C15



1

26

30

10

10





















W60A2-A00, A0Z



1

42

60

8

10





















A05



1

42

60

8

10





















A10

230/208-1

1

60

60

6

10





















A15



1 or 2

86

90

3

8

60

26

60

30

6



10

10



10

A20



1 or 2

112

125

2

6

60

52

60

60

6



6

10



10

W60A2-B00, B0Z



1

28

40

8

10





















B09

230/208-3

1

35

40

8

10





















B15

1

53

60

6

10











































B18



2

N/A

N/A

N/A

N/A

35

28

40

30

8



10

10



10

W60A2-C00, C0Z



1

15

20

12

12





















C09

460-3

1

18

20

12

12





















C15



1

27

30

10

10





















W70A2-A00, A0Z



1

56

60

6

10





















A05



1

56

60

6

10





















A10

230/208-1

1

59

60

6

10





















A15



1 or 2

85

90

4

8

59

26

60

30

6



10

10



10

A20



1 or 2

111

125

2

6

59

52

60

60

6



6

10



10

W70A2-B00, B0Z



1

38

60

8

10





















B09

230/208-3

1

38

60

8

10





















B15

1

53

60

6

10











































B18



2

N/A

N/A

N/A

N/A

38

28

60

30

8



10

10



10

W70A2-C00, C0Z



1

19

30

10

10





















C09

460-3

1

19

30

10

10





















C15



1

27

35

18

10





















Maximum size of the time delay fuse or HACR type circuit breaker for protection of field wiring conductors.

Based on 75C copper wire. All wiring must conform to the National Electrical Code and all local codes.

These “Minimum Circuit Ampacity” values are to be used for sizing the field power conductors. Refer to the National Electrical code (latest version), Article 310 for power conductor sizing.

Caution: When more than one field power circuit is run through one conduit, the conductors must be derated. Pay special attention to note 8 of Table 310 regarding Ampacity Adjustment Factors when more than three (3) current carrying conductors are in a raceway.

* Top outlet supply option is available only factory installed and only on the selected models.

IMPORTANT: While this electrical data is presented as a guide, it is important to electrically connect properly sized fuses and conductor wires in accordance with the National Electrical Code and all local codes.

Manual

2100-581B

Page

20 of 26

TABLE 4

Electrical Specifications — W**L Series





No.



Single Circuit









Dual Circuit













Rated



Minimum

Maximum







Field

Maximum

Field

Circuit

External Fuse

Field Power

Ground

MODEL

Volts &

Minimum

Power

External

Power

Ground

Ampacity

or Ckt. Breaker

Wire Size

Wire Size



Phase

Circuit



Circuits

Fuse or

Wire

Wire

























Ampacity

Ckt. A

Ckt. B

Ckt. A

Ckt. B

Ckt. A



Ckt. B

Ckt. A



Ckt. B







Ckt. Brkr.

Size





































W17, 18L2-A00,A0Z



1

16

20

12

12





















A05

230/208-1

1

30

30

10

10





















A08

1

46

50

8

10











































A10



1

56

60

6

10





















W24L2-A00, A0Z



1

21

30

10

10





















A05

230/208-1

1

30

30

10

10





















A08

1

46

50

8

10











































A10



1

56

60

6

10





















W24L2-B00, B0Z

230/208-3

1

15

20

12

12





















B06

1

22

25

10

10











































W24L2-C00, C0Z

460-3

1

9

15

14

14





















C06

1

11

15

14

14











































W30L2-A00*, A0Z*



1

24

35

8

10





















A05*



1

32

35

8

10





















A08

230/208-1

1

47

50

8

10





















A10*



1

58

60

6

10





















A15



1 or 2

84

90

4

8

58

26

60

30

6



10

10



10

W30L2-B00*, B0Z*



1

18

20

12

12





















B09*

230/208-3

1

33

35

8

10





















B15



1

51

60

6

10





















W30L2-C00*, C0Z*



1

11

15

14

14





















C09*

460-3

1

17

20

12

12





















C15



1

26

30

10

10





















W36L2-A00*, A0Z*



1

29

35

8

10





















A05*

230/208-1

1

32

35

8

10





















A10*

1

58

60

6

10











































A15



1 or 2

84

90

4

8

58

26

60

30

6



10

10



10

W36L2-B00*, B0Z*



1

23

30

10

10





















B09*

230/208-3

1

33

35

8

10





















B15



1

51

60

6

10





















W36L2-C00*, C0Z*



1

11

15

14

14





















C09*

460-3

1

16

20

12

12





















C15



1

26

30

10

10





















W42L2-A00, A0Z



1

32

50

8

10





















A05

230/208-1

1

32

50

8

10





















A10

1

58

60

6

10











































A15



1 or 2

84

90

4

8

58

26

60

30

6



10

10



10

W42L2-B00, B0Z



1

24

35

8

10





















B09

230/208-3

1

33

35

8

10





















B15



1

51

60

6

10





















W42L2-C00, C0Z



1

12

15

14

14





















C09

460-3

1

17

20

12

12





















C15



1

26

30

10

10





















W48L2-A00, A0Z



1

39

50

8

10





















A05

230/208-1

1

39

50

8

10





















A10

1

58

60

6

10











































A15



1 or 2

84

90

4

8

58

26

60

30

6



10

10



10

W48L2-B00, B0Z



1

27

40

8

10





















B09

230/208-3

1

33

40

8

10





















B15



1

51

60

6

10





















W48L2-C00, C0Z



1

13

20

12

12





















C09

460-3

1

17

20

12

12





















C15



1

26

30

10

10





















W60L2-A00, A0Z



1

42

60

8

10





















A05

230/208-1

1

42

60

8

10





















A10

1

60

60

6

10











































A15



1 or 2

86

90

3

8

60

26

60

30

6



10

10



10

W60L2-B00, B0Z



1

28

40

8

10





















B09

230/208-3

1

35

40

8

10





















B15



1

53

60

6

10





















W60L2-C00, C0Z



1

15

20

12

12





















C09

460-3

1

18

20

12

12





















C15



1

27

30

10

10





















W70L2-A0Z



1

56

60

6

10





















A05

230/208-1

1

56

60

6

10





















A10

1

59

60

6

10











































A15



1 or 2

85

90

4

8

59

26

60

30

6



10

10



10

W70L2-B0Z



1

38

60

8

10





















B09

230/208-3

1

38

60

8

10





















B15



1

53

60

6

10





















W70L2-C0Z



1

19

30

10

10





















C09

460-3

1

19

30

10

10





















C15



1

27

35

18

10





















Maximum size of the time delay fuse or HACR type circuit breaker for protection of field wiring conductors.

Based on 75C copper wire. All wiring must conform to the National Electrical Code and all local codes.

These “Minimum Circuit Ampacity” values are to be used for sizing the field power conductors. Refer to the National Electrical code (latest version), Article 310 for power conductor sizing.

Caution: When more than one field power circuit is run through one conduit, the conductors must be derated. Pay special attention to note 8 of Table 310 regarding Ampacity Adjustment Factors when more than three (3) current carrying conductors are in a raceway.

* Top outlet supply option is available only factory installed and only on the selected models.

IMPORTANT: While this electrical data is presented as a guide, it is important to electrically connect properly sized fuses and conductor wires in accordance with the National Electrical Code and all local codes.

Manual

2100-581B

Page

21 of 26

TABLE 5

RECOMMENDED AIRFLOW



Nominal

Nominal

Recommended

Factory Speed

Model

Rated

Rated

Airflow Range

Connection



CFM *

ESP *









W17A, W17L

600

.40

550

- 725

Low













W18A, W18L

550

.45

550

- 725

Low

W24A, W24L

800

.30

700

- 950

Single

W30A, W30L

1000

.30

850 - 1300

High











W36A, W36L

1100

.20

930 - 1350

High

W42A, W42L

1400

.45

1600 - 1150

High













W48A, W48L

1550

.30

1750

- 1285

High

W60A, W60L

1700

.40

1950

- 1375

High













W70A, W70L

1700

.20

1950

- 1375

High

* Rated CFM and ESP on factory speed connection.

TABLE 6

INDOOR BLOWER PERFORMANCE

Speed



W17/18



W24



W30





W36





W42/48





W60





W70



High

Low

Single

High

Low

High

Low

High

Low

High

Low

High

Low

























































ESP

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

Dry

Wet

(Inch

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

Coil

H20)





















































0.0

1045

1025

760

745

990

970

1370

1285

910

885

1415

1275

955

925

1850

1800

1605

1555

2080

2015

1505

1460

2050

1845

1490

1400

0.1

1010

970

730

715

945

925

1305

1225

885

860

1350

1215

945

915

1775

1725

1545

1500

2020

1960

1450

1405

1970

1770

1425

1340

0.2

940

905

700

685

890

870

1225

1135

850

815

1265

1125

925

900

1685

1640

1460

1415

1925

1865

1395

1355

1905

1700

1375

1295

0.3

860

830

670

655

820

800

1115

1020

790

755

1190

1060

875

850

1590

1550

1390

1345

1870

1815

1340

1300

1830

1645

1225

1150

0.4

780

750

610

595

735

720

1005

910

695

660

1085

975

780

755

1495

1460

1310

1270

1755

1705

1225

1185

1725

1550

1140

1070

0.5

665

640

485

455

605

590

865

775

590

560

970

865

640

615

1400

1365

1225

1185

1660

1610

1125

1085

1500

1350

1050

985

TABLE 7

MAXIMUM ESP OF OPERATION

ELECTRIC HEAT ONLY



W17A/L,



















Model

W18A/L,



W30A/L, W36A/L



W42A/L, W48A/L

W60A/L, W70A/L



W24A/L



















Outlet

FRONT

FRONT

TOP



FRONT

FRONT

Speed

Single

High

Low

High



Low

High

Low

High

Low

-A0Z

.50

.50

.50

.50



.50

.50

.50

.50

.50

-A04







.50



.45









-A05

.50

.50

.50







.50

.50

.50

.50

-A08

.50

.50

.50















-A10



.50

.45

.50



.35

.50

.50

.50

.50

-A15



.40

.35







.50

.50

.50

.50

-A20













.50

.45

.50

.40

-B0Z

.50

.50

.50

.50



.50

.50

.50

.50

.50

-B06

.50

.50

.40















-B09



.50

.50

.45



.40

.50

.50

.50

.50

-B15



.45

.30







.50

.50

.50

.50

-B18













.50

.50

.50

.50

-C0Z



.50

.50

.50



.50

.50

.50

.50

.50

-C06



.50

.50















-C09



.50

.40

.45



.40

.50

.50

.50

.50

-C15



.45

.35







.50

.50

.50

.50

Values shown are for units equipped with standard 1-inch throwaway filter or 1-inch washable filter.

Derate ESP by .15 for 2-inch pleated filters.

Manual

2100-581B

Page

22 of 26

TABLE 8

ELECTRIC HEAT

Models

240V-1

208V-1

240V-3

208V-3

460V-3

KW

Amps

BTUH

Amps

BTUH

Amps

BTUH

Amps

BTUH

Amps

BTUH

4

16.7

13650

14.4

10240













5

20.8

17065

18.1

12800













6









14.4

20500

12.5

15360

7.2

20500

8

33.3

27300

28.8

20475













9









21.7

30600

18.7

23030

10.8

30700

10

41.6

34130

36.2

25600













12

















14.4

40950

15

62.5

51250

54.0

38400

36.2

51200

31.2

38400

18.0

51200

18









43.3

61430

37.5

46100





20

83.2

68260

72.1

51200













Manual

2100-581B

Page

23 of 26

TABLE 9A

OPTIONAL ACCESSORIES — RIGHT HAND





W17/18A2-A

W24A2-A W24A2-B W24A2-C W30A2-A W30A2-B

W30A2-C

W36A2-A W36A2-B W36A2-C W42A2-A

W42A2-B W42A2-C

W48A2-A W48A2-B W48A2-C

W60A2-A W60A2-B W60A2-C

W70A2-A W70A2-B W70A2-C



















































EHWA02-A05

X

X



























































































EHW02A-A08

X

X



























































































EHWA02A-A10

X

X



























































































EHWA24-A04



X



























































































EHWA24-B06





X

























































































EHWH24B-C06







X







































EHWA03-A05









X





X















































































EHWA03-A08









X





X































EHWA03-A10









X





X















































































EHWA03-A15









X





X































EHWA03-B06











X



















































































EHW36A-B06

















X





























EHWA03-B09











X





X



























KITS















































EHWA37-B15











X





X









































































EHWC03A-C06













X





X



































































HEATER















































EHWC03A-C09













X





X







































































EHWA03A-C12













X





X





















































































































EHWA03A-C15













X





X











































































EHWA05-A05





















X





X



















EHWA05-A10





















X





X





X





X























































EHWA05-A15





















X





X





X





X







EHWA05-A20





















X





X





X





X























































EHWA05-B09























X





X

















EHWA05-B15























X





X





X





X





















































EHW05A-B18



































X











EHWA05-B18























X





X

































































EHWA05A-C09

























X





X





X





X



















































EHWA05A-C15

























X





X





X





X



















































EHWA60-A05

































X





X























































EHW60A-B09



































X



























































EHW70A-B09









































X





















































EHW70A-B18









































X



BREAKERCIRCUIT(WMCB) & DISCONNECTPULL (WMPD)

WMCB-01B





X





















































































WMCB-08B

X







































X





WMCB-02A













































WMCB-02B











X



































WMCB-03A



X











































WMCB-04B

















X





























WMCB-05A









X





X































WMCB-05B























X





X

















WMCB-06B



































X



























































WMCB-08A





















X





X



































































WMCB-09A

































X





X























































WMPD-01C







X





X





X





X





X





X





X

































































































Manual

2100-581A

Page

24 of 26

TABLE 9B

OPTIONAL ACCESSORIES — LEFT HAND





W17/18L2-A

W24L2-A W24L2-B W30L2-A W30L2-B W30L2-C

W36L2-A W36L2-B W36L2-C

W42L2-A W42L2-B W42L2-C

W48L2-A W48L2-B

W48L2-C W60L2-A

W60L2-B W60L2-C W70L2-A

W70L2-B W70L2-C

















































EHWA02A-A05L

X

X























































































EHW02A-A08L

X

X























































































EHWA02-A10L

X

X









































EHWA24-B06L





X





















































































EHWA03-A05L







X





X































EHWA03-A08L







X



















































































EHWA03-A10L







X





X































EHWA03-A15L







X





X





























KITS













































EHWA03-B09L









X





X







































































EHWA37-B15L









X





X



































































HEATER













































EHWC03-C09L











X





X





































































EHWA03-C15L











X





X

















































































































EHWA05-A05L



















X





X





X



























































EHWA05-A10L



















X





X





X





X





















































EHWA05-A15L



















X





X





X





X





















































EHWA05-B09L





















X





X

















EHWA05-B15L





















X





X





X





X



















































EHWA05A-C09L























X





X





X





X



EHWA05A-C15L























X





X





X





X

















































EHWA60-A05L





































X







EHWA60-B09L

































X

























































EHW70A-B09L







































X

















































BREAKERCIRCUIT(WMCB) & DISCONNECTPULL (WMPD)

WMCB-01B





X

















































































WMCB-09B

X





































X





WMCB-02A











































WMCB-02B









X



































WMCB-03A



X









































WMCB-04B















X





























WMCB-05A







X





X































WMCB-05B





















X





X

















WMCB-06B

































X

























































WMCB-08A



















X





X



















WMCB-09A































X





X





















































WMPD-01C











X





X





X





X





X





X















































Manual

2100-581B

Page

25 of 26

TABLE 10

VENT & CONTROL OPTIONS

Part Number

Description

W17, W18, W24

W30, W36

W42, W48, W60, W70

CMC-14

ODT

X

X

X

CMC-15

Start Kit (230V 1-Phase)

X

X

X

CMC-23

DDC

X

X



CMC-24

DDC





X

CMC-28

LAC

X

X

X

BFAD-2

Barometric Fresh Air Damper - Standard

X





BOP-2

Blank Off Plate

X















MFAD-2

Motorized Fresh Air Damper

X















CRV-2

Commercial Ventilator - Spring Return

X















ECONWMS-E2

Economizer - School Version, Enthalpy

X





ECONWMT-E2

Economizer - Bldg. Equipment, Enthalpy

X





ECONWMT-T2

Economizer - Bldg. Equipment, DB Temp.

X





ERVF-A2

Energy Recovery Ventilator - 230 Volt

X















ERVF-C2

Energy Recovery Ventilator - 460 Volt

X















BFAD-3

Barometric Fresh Air Damper - Standard



X













BOP-3

Blank Off Plate



X



MFAD-3

Motorized Fresh Air Damper



X



CRVS-3

Commercial Ventilator - Spring Return



X



CRVP-3

Commercial Ventilator - Power Return



X



ECONWMS-E3

Economizer - School Version, Enthalpy



X



ECONWMT-E3

Economizer - Bldg. Equipment, Enthalpy



X



ECONWMT-T3

Economizer - Bldg. Equipment, DB Temp.



X



ERVF-A3

Energy Recovery Ventilator - 230 Volt



X



ERVF-C3

Energy Recovery Ventilator - 460 Volt



X



BFAD-5

Barometric Fresh Air Damper - Standard





X

BOP-5

Blank Off Plate





X

MFAD-5

Motorized Fresh Air Damper





X











CRVS-5

Commercial Ventilator - Spring Return





X











CRVP-5

Commercial Ventilator - Power Return





X











ECONWMS-E5

Economizer - School Version, Enthalpy





X

ECONWMT-E5

Economizer - Bldg. Equipment, Enthalpy





X

ECONWMT-T5

Economizer - Bldg. Equipment, DB Temp.





X

ERVF-A5

Energy Recovery Ventilator - 230 Volt





X











ERVF-C5

Energy Recovery Ventilator - 460 Volt





X











Manual

2100-581B

Page

26 of 26
