Bard PA13361-A, PA13361-B, PA13241-A, PA13301-A User Manual

INSTALLATION INSTRUCTIONS

SINGLE PACKAGE

AIR CONDITIONERS

MODELS

PA13241-A PA13301-A

PA13361-A PA13361-B

PA13422-A PA13422-B

PA13422-C PA13482-A

PA13482-B PA13482-C

PA13602-A PA13602-B

PA13602-C

	Bard Manufacturing Company, Inc.	Manual :	2100-467D
	Bryan, Ohio 43506	Supersedes:	2100-467C
	Since 1914 . . . Moving ahead just as planned.	File:	Volume II Tab 10
		Date:	08-12-08

© Copyright 2006

Manual	2100-467D
Page	1 of 25

CONTENTS

Getting Other Informations and Publications	........ 3
General Instructions
Important ................................................................	4
Shipping Damage ....................................................	4
General ................................................................	4
Field Installed Heater Packages (Optional) .............	4
Installation
Location ................................................................	9
Slab Mounting..........................................................	9
Typical Installations .........................................	9 & 12
Condensate Drain Trap .........................................	12
Air Filters ..............................................................	12
Wiring – Main Power .............................................	13
Wiring – 24V Low Voltage Control Circuit .............	13
Transformer Taps ...................................................	13
Thermostats ...........................................................	13

Figures
Figure 1	Unit Dimensions ......................................	8
Figure 2	Slab Mounting at Ground Level ............	10
Figure 3	Airflow and Service Access
	Clearances ............................................	10
Figure 4	Elevated Mounting Platform ...................	11
Figure 5	Condensate Drain Trap .........................	12
Figure 6	Low Voltage Wiring ...............................	14
Figure 7	Low Ambient Control Wiring .................	17
Figure 8	Fan Blade Setting .................................	18
Figure 9	Brazing Diagram ...................................	21
Figure 10	Control Disassembly .............................	23
Figure 11	Winding Test .........................................	23
Figure 12	Drip Loop ..............................................	23
Figure 13	Motor Connections ................................	24
Figure 14	Wiring (Connections/Voltage) ...............	25

Start Up and Operation
General ..............................................................	15
Topping Off System Charge...................................	15
Safety Practices.....................................................	15
Start Up Notes .......................................................	15
Three Phase Scroll Compressor Start Up
Information .............................................................	16
Sequence of Operation..........................................	16
Indoor Blower Motor ..............................................	16
Compressor Control Module ..........................	16 & 17
Adjustments ...........................................................	17
Low Ambient Control .............................................	17
Service and Troubleshooting
Service Hints .........................................................	18
Pressure Service Ports ..........................................	18
Refrigerant Charge ................................................	18
Fan Blade Settings ................................................	18
Pressure Tables .............................................	19 & 20
Suction and Discharge Tube Brazing ....................	21
Troubleshooting ECM Blower Motors .............	22-25

Tables
Table	1	Rated CFM & ESP ..................................	4
Table	2	Electrical Specifications ..........................	5
Table	3	Opt. Field Installed Heater Packages .....	6
Table	4	Opt. Field Installed Elec. Heater .............	7
Table	5	Filter Requirements & Sizes .................	12
Table	6	Thermostat Wire Size ...........................	13
Table	7	Wall Thermostats ..................................	13
Table	8	Fan Blade Setting Dimensions..............	18
Table	9	Indoor Blower Performance ..................	18
Table	10	Pressure Table ......................................	19
Table	11	Pressure Table ......................................	20

Manual	2100-467D
Page	2 of 25

Getting Other Information and Publications

These publications can help you install the air conditioner or heat pump. You can usually find these at your local library or purchase them directly from the publisher. Be sure to consult current edition of each standard.

National Electrical Code ......................	ANSI/NFPA 70
Standard for the Installation ..............	ANSI/NFPA 90A
of Air Conditioning and Ventilating Systems
Standard for Warm Air ......................	ANSI/NFPA 90B
Heating and Air Conditioning Systems
Load Calculation for ............................	ACCA Manual J
Residential Winter and Summer Air Conditioning
Duct Design for Residential ..............	ACCA Manual D

Winter and Summer Air Conditioning and Equipment

Selection

FOR MORE INFORMATION, CONTACT THESE PUBLISHERS:

ACCA	Air Conditioning Contractors of America
	1712 New Hampshire Ave. N.W.
	Washington, DC 20009
	Telephone: [phone]
	Fax: [phone]
ANSI	American National Standards Institute
	11 West Street, 13th Floor
	New York, NY 10036
	Telephone: [phone]
	Fax: [phone]

ASHRAE American Society of Heating, Refrigerating,

and Air Conditioning Engineers, Inc.

1791 Tullie Circle, N.E.

Atlanta, GA 30329-2305

Telephone: [phone]

Fax: [phone]

NFPA	National Fire Protection Association
	Batterymarch Park
	P.O. Box 9101
	Quincy, MA 02269-9901
	Telephone: [phone]
	Fax: [phone]

Manual	2100-467D
Page	3 of 25

GENERAL INSTRUCTIONS

IMPORTANT

The equipment covered in this manual is to be installed by trained, experienced service and installation technicians. All duct work, supply and return ducts, must be properly sized for the design airflow requirement of the equipment. ACCA is an excellent guide to proper sizing. All duct work or portions thereof not in the conditioned space should be properly insulated in order to both conserve energy and prevent condensation or moisture damage.

SHIPPING DAMAGE

Upon receipt of equipment, the carton should be checked for external signs of shipping damage. If damage is found, the receiving party must contact the last carrier immediately, preferably in writing, requesting inspection by the carrier’s agent.

FIELD INSTALLED HEATER PACKAGES (OPTIONAL)

These packaged air conditioners are manufactured without supplementary electric heaters. Supplementary heaters are available for simple, fast field installation.

A separate power circuit is required for the supplementary heaters.

IMPORTANT: Refer to Table 1 when designing duct work for maximum available static pressure with heater installed.

Refer to data shown in Table 3 and 4 for proper application information on all available heater combinations and what units they can be used with. It also shows the applicable circuit ampacities, fuse size, and wire size for each heater combination.

GENERAL

The refrigerant system is completely assembled and charged. All internal wiring is complete.

The unit is designed for use with or without duct work. Flanges are provided for attaching the supply and return ducts.

These instructions explain the recommended method to install the air cooled self-contained unit and the electrical wiring connections to the unit.

These instructions and any instructions packaged with any separate equipment required to make up the entire system should be carefully read before beginning the installation. Note particularly “Starting Procedure” and any tags and/or labels attached to the equipment.

While these instructions are intended as a general recommended guide, they do not supersede any national and/or local codes in any way. Authorities having jurisdiction should be consulted before the installation is made.

TABLE 1

RATED CFM AND EXTERNAL STATIC

PRESSURE (ESP)

Model	Rated	Recommended	Rated	Max.
No.	CFM	Airflow Range	ESP	ESP
PA1324	800	Note	0.18	0.50
PA1330	1000	Note	0.23	0.50
PA1336	1100	Note	0.23	0.50
PA1342	1450	Note	0.23	0.50
PA1348	1550	Note	0.28	0.50
PA1360	1750	Note	0.28	0.50

NOTE: ECM motors provide rated CFM up to 0.50 ESP

Manual	2100-467D
Page	4 of 25

TABLE 2

ELECTRICAL SPECIFICATIONS

	Model	PA13241-A	PA13301-A	PA13361-A	PA13361-B	PA13422-A	PA13422-B	PA13422-C	PA13482-A	PA13482-B	PA13482-C	PA13602-A	PA13602-B	PA13602-C
	Electric Rating –	230/208-60-1	230/208-60-1	230/208-60-1	230/208-60-3	230/208-60-1	230/208-60-3	460-60-3	230/208-60-1	230/208-60-3	460-60-3	230/208-60-1	230/208-60-3	460-60-3
	60 Hz – Circuit A
	Operating Voltage Range	197 - 253	197 - 253	197 - 253	187 - 253	197 - 253	187 - 253	414-506	197 - 253	187 - 253	414-506	197 - 253	187 - 253	414-506
	Minimum Circuit Ampacity	15	18	24	16	33	23	12	33	29	14	39	26	17
	BCSC	9	11	15	10	21	15	8	22	14	8	26	16	9
	Field Wire Size *	12	10	8	12	10	10	14	8	10	12	8	10	10
	Ground Wire Size	12	10	8	12	10	10	14	8	10	14	8	10	12
	Delay Fuse – Max. **	20	25	35	20	50	35	15	50	40	20	60	40	25
	Total unit Amps – 230/208	10.8/11.8	13.3/14.8	16.4/18.4	17.0/13.3	16.2/18.1	14.1/15.4	10.4	23.0/24.7	16.9/18.0	10.7	25.3/28.9	17.7/19.9	11.9
	Compressor – Circuit A
	Compressor Type	Recip.	Recip.	Recip.	Recip.	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll
	Volts	230/208	230/208	230/208	230/208	230/208	230/208	460	230/208	230/208	460	230/208	230/208	460
	Rated Load Amps	7.5/8.5	9.5/11	12/14	7.6/8.9	11.8/13.7	8.3/9.6	7.7	17/18.7	10.9/12	7.7	19.3/22.9	11.7/13.9	8.6
	Lock Rotor Amps	48/48	57/57	74/74	75/75	115/115	115/115	50	117/117	83.1/83.1	50	134/134	110/110	52
	Fan Motor and Condenser
	Fan Motor – HP/RPM	1/6 - 825	1/6 - 825	1/6 - 825	1/6 - 825	1/4 - 825	1/4 - 825	1/4 - 825	1/4 - 825	1/4 - 825	1/4 - 825	1/4 - 825	1/4 - 825	1/4 - 825
	Fan Motor Amps	1.1	1.1	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
	Fan – Dia./CFM	24"/2700	24"/2600	24"/2600	24"/2600	24"/3400	24"/3400	24"/3400	24"/3400	24"/3400	24"/3400	24"/3400	24"/3400	24"/3400
	Motor and Evaporator
	Blower Motor – HP/RPM *	1/3 - VS	1/2 - VS	1/2 - VS	1/2 - VS	1/2 - VS	1/2 - VS	1/2 - VS	3/4 - VS	3/4 - VS	3/4 - VS	3/4 - VS	3/4 - VS	3/4 - VS
	Blower Motor – Amps	2.2	2.7	3.3	3.3	3.9	3.9	3.9	4.5	4.5	4.5	5.0	5.0	5.0
	CFM Cooling	800	1000	1150	1150	1450	1450	1450	1550	1550	1550	1750	1750	1750
	Charge (R-410 oz.)	75	85	120	120	160	160	160	160	160	160	160	160	160
	Shipping Weight (pounds)	360	410	410	410	440	440	490	440	440	500	450	450	500

* VS = Variable Speed Programmable Motor

Page	Manual
25 of 5	467D-2100

Page	Manual
25 of 6	467D-2100

TABLE 3

OPTIONAL FIELD INSTALLED HEATER PACKAGES

ONLY TO BE USED WITH THE MODELS INDICATED

Heater Package

Volts &

Model

Phase

PA13241-A

PA13301-A

PA13361-A

PA13361-B

PA13422-A

PA13422-B

PA13422-C

PA13482-A

PA13482-B

PA13482-C

PA13602-A

PA13602-B

PA13602-C

EHP313-A05

240/208-1

X

X

X

EHP313-A10

240/208-1

X

X

X

EHP313-A15

240/208-1

X

X

EHP313-B09

240/208-3

X

EHP313-B15

240/208-3

X

EHP513-A05

240/208-1

X

X

X

EHP513-A10

240/208-1

X

X

X

EHP513-A15

240/208-1

X

X

X

EHP513-B09

240/208-3

X

X

X

EHP513-B15

240/208-3

X

X

X

EHP513-C09

460-3

X

X

X

EHP513-C15

460-3

X

X

X

Page	Manual
25 of 7	467D-2100

TABLE 4

OPTIONAL FIELD INSTALLED ELECTRIC HEATER TABLE

			Htr. KW & Capacity		Htr. KW & Capacity						Circuit B
			@ 240 Volts		@ 208 Volts			Heater
	Heater						240/208V
		Unit Volts						Internal
	Package						Htr.			3	1	2	2
		Phases						Circuit
									No. Field	Min.	Max. Over	Field
	Model No.		KW	BTUH	KW	BTUH	Amps
								Breaker	Circuits	Circuit	Current	Power	Ground
										Ampacity	Protection	Wiring	Wire Size
	EHP313-A05	240/208-1	5	17,100	3.75	12,800	20.8/18.1		1	26/23	30/25	10/10	10
	EHP313-A10	240/208-1	10	34,100	7.50	26,000	41.6/36.2	30/60	1	53/46	60/50	6/8	10
	EHP313-A15	240/208-1	15	51,200	11.25	38,400	62.5/54.1		1	79/68	80/70	4/4	8
	EHP513-A05	240/208-1	5	17,100	3.75	12,800	20.8/18.1		1	26/23	30/25	10/10	10
	EHP513-A10	240/208-1	10	34,100	7.50	26,000	41.6/36.2	30/60	1	53/46	60/50	6/8	10
	EHP513-A15	240/208-1	15	51,200	11.25	38,400	62.5/54.1		1	79/68	80/70	4/4	8
	EHP313-B09	240/208-3	9	30,700	6.75	23,000	21.7/18.7	None	1	28/24	30/25	10/10	10
	EHP313-B15	240/208-3	15	51,200	11.25	38,400	36.2/31.2		1	46/39	50/40	8/8	10
	EHP513-B09	240/208-3	9	30,700	6.75	23,000	21.7/18.7	None	1	28/24	30/25	10/10	10
	EHP513-B15	240/208-3	15	51,200	11.25	38,400	36.2/31.2		1	46/39	50/40	8/8	10
	EHP513-C09	480-3	9	30,700			10.8	None	1	14	15	14	14
	EHP513-C15	480-3	15	51,200			18		1	28	30	10	12

1Maximum size of the time delay fuse or HACR circuit breaker for protection of field wiring devices.

2Based on wire suitable for 75°C. Other wiring materials must be rated for marked “Minimum Circuit Ampacity” or greater. Based on 75°C copper wire. All wiring must conform to the National Electric Code and all local codes.

3These “Minimum Circuit Ampacity” values are to be used for sizing the field power conductors. Refer to the National Electric Code (latest revision), Article 310 for power conductor sizing.

IMPORTANT: While this electrical data is presented as a guide, it is important to electrically connect properly sized fuses and conductor wires in accordance with the National Electrical Code and all existing local codes.

FIGURE 1

DIMENSIONS OF UNITS

W

L

D

Compressor

access door

Control panel door

High voltage knockout

Low voltage knockout

Heater package knockout

Heater package access panel

Drain access

F

H

Blower motor
access door	47 11/16"

G

Condenser air intake grille

A

E

B

Supply opening

C

Return opening

Condenser fan

Condenser air intake grille

Unit Dimension Chart

	Unit		Supply Size		Return Size		Unit Overall Dimensions				Unit General Dimensions
			A	C	B	C	H (height)	L (length)	W (width)	D		E	F		G
PA/PH1324,1330,1336			5.875	32.875	13.875	32.875	26.25	53.25	38.125	23.25		1.125	1.375		35.625
PA/PH1342,1348,1360			9.875	37.875	15.875	37.875	33.25	55.25	42.375	30.25		1.5	2.375		38.125
														MIS-2142
Manual	2100-467D
Page	8 of 25

INSTALLATION

LOCATION

GENERAL

The unit must be located outside, or in a well ventilated area. It must not be in the space being heated or cooled. A sound absorbing material should be considered if the unit is to be installed in such a position or location that might cause transmission of sound or vibration to the living area or adjacent buildings.

SLAB MOUNTING

A minimum of 24 inches should be provided between the coil inlet and any building surfaces. Provide a minimum of three feet clearance on the service access side of the unit. See Figure 2.

TYPICAL INSTALLATIONS

1.ROOF MOUNTED – The unit is mounted on a sturdy base on the roof of the building. Return air to the unit is brought through a single return grille (grilles with built-in filters are best since they enable easy access for filter changing). Return air ducts are attached to the lower section of the front panel. Supply air is brought from the unit to attic duct work or to a furred down hall. Supply air duct is attached to the top of the front panel.

CAUTION: All outdoor duct work must be thoroughly insulated and weatherproofed. All attic duct work must be thoroughly insulated. Two inch thick insulation with suitable vapor barrier is recommended for both outdoor and attic runs.

In roof top installation, as in all installations, the air conditioner must be level from side to side. However, the unit should have a pitch along the length to assure complete external drainage of precipitation and of defrost condensate.

2.CRAWL SPACE – Duct work installed in crawl space must be well insulated and provided with a vapor barrier. In addition, the crawl space must be thoroughly ventilated and provided with a good vapor barrier as a ground cover. It is most desirable to install the unit will be outdoors rather than inside the crawl space, so that it will be readily accessible for service.

3.SLAB MOUNTED AT GROUND LEVEL – This type installation is ideal for homes with a slab floor construction where a roof mounted unit is not desired. The supply and return duct work can be run through a furred closet space.

4.THROUGH THE WALL – This type installation requires a suitable framework to be fabricated capable of withstanding the unit weight. Normally the unit will be insulated so as to minimize supply and return duct work.

Manual	2100-467D
Page	9 of 25

FIGURE 2

SLAB MOUNTING AT GROUND LEVEL

	The distance between	Air Outlet	Side
			View
1 inch clearance	outside wall and unit
	varies with installation
between duct and
	requirements.		Package Unit
any combustible
material if distance
between outside	Supply Duct
wall and unit is less
than 3 feet (needed
on electric heat			Mounting Slab
units only).
	Return Duct
			1/4 inch per foot
			slope away
			from building

Building

Ground Level

FIGURE 3

AIRFLOW AND SERVICE ACCESS CLEARANCES

								and Return Ducts
			Building
								Supply

Nearest Structure

	Control Panel		Compressor	Top
Heater Package				View
	Access	36" min.	Access
Access
Heater Package	Control Panel			24" min.
			Comp-		StructureNearest
				Inlet
			ressor
Blower				Air
and

Blower Motor

				Condenser fan
				and motor access
	Blower Service			from top.
		24" min.		Leave 60" min.
	Access			above fan.
			Air Inlet
			Nearest Structure	MIS-2143

Manual	2100-467D
Page	10 of 25

48" min.

48" min.

FIGURE 4

ELEVATED MOUNTING PLATFORM

* 12" min. if in 32°F or lower climate

Poured concrete, brick, or block

* 12" min. if in 32°F or lower climate

Metal frame

Platform can be as shown or solid

Both legs must rest on surface of platform

Both legs must rest

on surface of platform

MIS-2144

* AS REQUIRED

Manual	2100-467D
Page	11 of 25

5.OTHER INSTALLATIONS – Many other installations are possible with the packaged air conditioner. No matter what the installation, always consider the following facts:

A.Insure that the discharge air is not obstructed in any way so as to cause operation difficulties.

B.The indoor coil drain pan is equipped with a coupling that must be piped through a condensate drain trap to a suitable drain.

C.Always mount the unit is such a position that it may be easily reached for servicing and maintenance.

D.Insure that the unit is clear so that proper air flow over the outdoor coil will be maintained.

If this unit is operated in cooling below a 55° outdoor ambient temperature, the installation of low ambient controls (CMA-28) to unit is required.

CONDENSATE DRAIN TRAP

It is very important to provide a trap in the condensate drain line to allow a positive liquid seal in the line and assure correct drainage from the coil condensate pan.

Install condensate drain trap shown in Figure 8. Use drain connection size or larger. Do not operate unit without trap. Unit must be level or slightly inclined toward drain. With a trap installed on a unit located in an unconditioned area, water in the trap may freeze. It is recommended that the trap material be of a type that will allow for expansion of water when it freezes.

AIR FILTERS

Air filters for the return air side of the system are not provided as part of these models, and must be field supplied and installed as part of the final installation.

Prior thought should be given to return air location and placement of the air filter(s). The air filter(s) must be of adequate size and readily accessible to the operator of the equipment. Filters must be adequate in size and properly maintained for proper operation. If this is not done, excessive energy use, poor performance, and multiple service problems will result. It is impossible to oversize air filters. Generous sizing will result in cleaner air and coils as well as lower operating costs and extend the time between required changes. Table 5 shows minimum filter areas and recommended filter sizes. Actual filter sizes can vary with the installation due to single or multiple returns utilizing a filter/grille arrangement or being placed immediately ahead of the indoor coil face in the return air duct.

TABLE 5

FILTER REQUIREMENTS & SIZES

	Model No.	Minimum Filter Area	Recommended
			Size
	PA1324	462 Square Inches
	PA1330		15 x 30-5/8 x 1
		(3.21 Square Feet)
	PA1336
	PA1342	608 Square Inches
	PA1348		(2) 16 x 20 x 1
		(4.62 Square Feet)
	PA1360

NOTE: If roof hood accessory is to be used, information on air filters may be found under that heading in this manual. Air filters are supplied as part of that package.

FIGURE 5

CONDENSATE DRAIN TRAP

Manual	2100-467D
Page	12 of 25

WIRING – MAIN POWER

Refer to the unit rating plate for wire sizing information and maximum fuse size. Each outdoor unit is marked with a “Minimum Circuit Ampacity”. This means that the field wiring used must be sized to carry that amount of current. If field installed heaters are added to the basic unit, a second separate power supply circuit will be required. The heater rating plate located adjacent to the basic unit rating plate will show the appropriate circuit ampacity fuse size, etc. (Also see “Electrical Specifications” on pages 5 & 7.) All models are suitable for connection with copper wire only. These instructions must be adhered to. Refer to the National Electrical Code for complete current carrying capacity data on the various insulation grades of wiring material.

The electrical specifications list fuse and wire sizes (75°F copper) for all models including the most commonly used heater sizes.

The unit rating plate lists a “Maximum Time Delay Fuse” or “HACR” type circuit breaker that is to be used with the equipment. The correct size must be used for proper circuit protection and also to assure that there will be no nuisance tripping due to the momentary high starting current of the compressor.

WIRING – 24V LOW VOLTAGE CONTROL CIRCUIT

Five (5) wires should be run from thermostat subbase to the 24V terminal board in the unit. A five conductor, 18 gauge copper, color-coded thermostat cable is recommended. The connection points are shown in Figure 6.

TABLE 6

THERMOSTAT WIRE SIZE

			Maximum
			Distance
Transformer VA	FLA	Wire Gauge	In Feet
		20	45
		18	60
55	2.3	16	100
		14	160
		12	250

TRANSFORMER TAPS

230/208V, 1 phase and 3 phase equipment employ dual primary voltage transformers. All equipment leaves the factory wired on 240V tap. For 208V operation, reconnect from 240V to 208V tap. The acceptable operating voltage range for the 240 and 208V taps are:

TAP	RANGE
240	253 – 216
208	220 – 187

NOTE: The voltage should be measured at the field power connection point in the unit and while the unit is operating at full load (maximum amperage operating condition).

THERMOSTATS

See specific wiring information for the different models, heater KWs, and voltages on unit and heating wiring diagrams.

		TABLE 7
		WALL THERMOSTATS
	Thermostat	Predominant Features
	8403-057	1 stage Cool; 1 stage Heat
		heat-off-cool Fan: on-auto
	(TH3110D1040)
		Electronic Non-Programmable
	8403-058	2 stage Cool; 2 stage Heat
		Electronic Non-Programmable
	(TH5220D1151)
		Auto or Manual changeover
		3 stage Cool; 3 stage Heat
	8403-060	Programmable/Non-Programmable Electronic
	(1120-445)	HP or Conventional
		Auto or Manual changeover

IMPORTANT NOTE: Only the thermostats as shown above will work with this equipment. The thermostats and correct operation can be assured only by proper selection and application of these parts.

Manual	2100-467D
Page	13 of 25

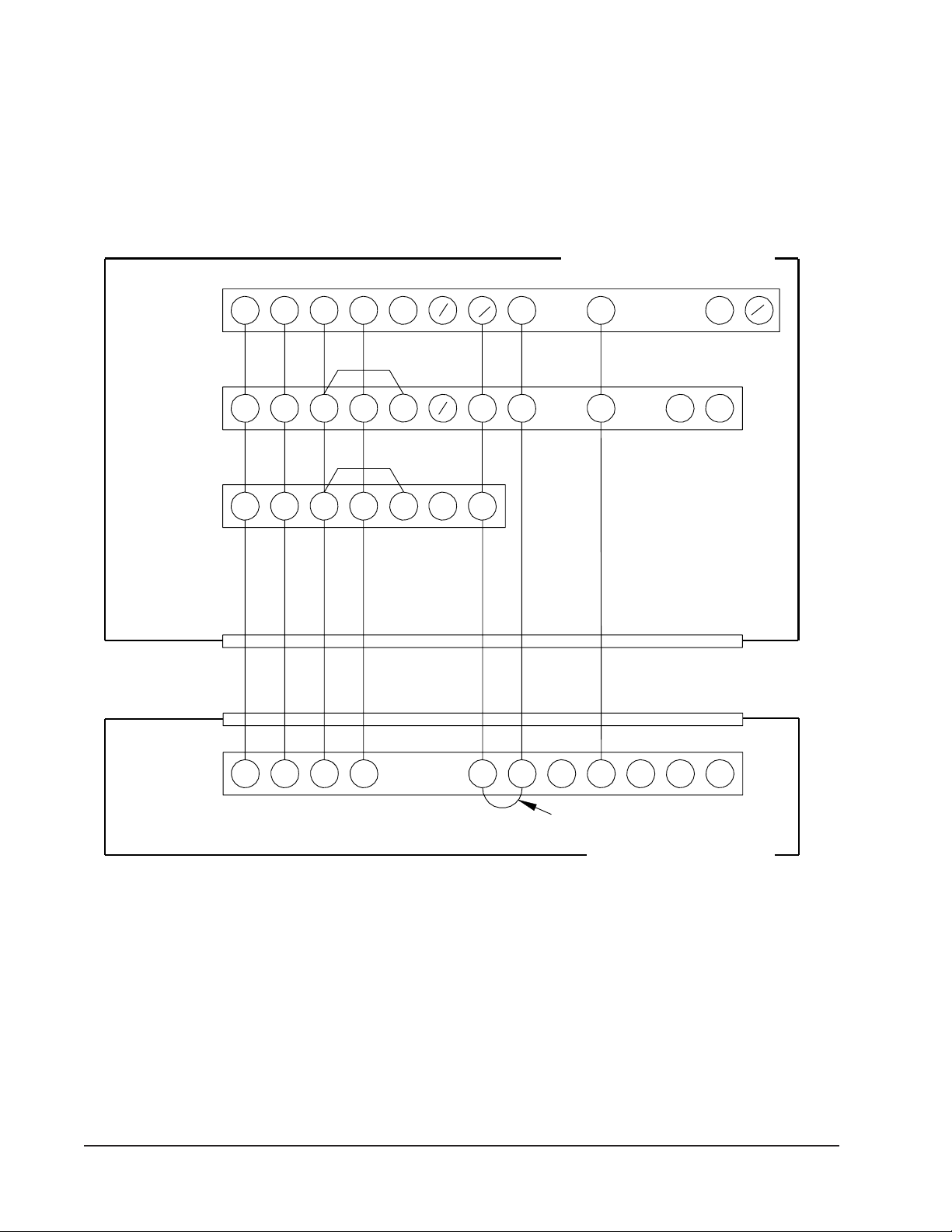

FIGURE 6

LOW VOLTAGE WIRING

Low Voltage Wiring

Thermostat Subbase

1120-445

C

G

R

Y1

Y2

O

W1

W2

L

A

D

B

E

YO

TH5220D1151

C

G

R

Y

RC

B

AUX

E

L

L

E

O

TH3110D1040

C

G

R

Y

RC

B

W

Unit 24V

Terminal

C

G

R

Y

W1

W2

1

2

3

E

F

Block

REMOVE JUMPER FOR 2 STAGE ELECTRIC

HEAT ON UNITS WITH 15 OR MORE KW

Unit Control Panel

MIS-2149 B

Manual	2100-467D
Page	14 of 25

START UP

These units require R-410A refrigerant and Polyol Ester oil.

GENERAL:

1.Use separate service equipment to avoid cross contamination of oil and refrigerants.

2.Use recovery equipment rated for R-410A refrigerant.

3.Use manifold gauges rated for R-410A (800 psi/250 psi low).

4.R-410A is a binary blend of HFC-32 and HFC-125.

5.R-410A is nearly azeotropic - similar to R-22 and R-12. Although nearly azeotropic, charge with liquid refrigerant.

6.R-410A operates at 40-70% higher pressure than R-22, and systems designed for R-22 cannot withstand this higher pressure.

7.R-410A has an ozone depletion potential of zero, but must be reclaimed due to its global warming potential.

8.R-410A compressors use Polyol Ester oil.

9.Polyol Ester oil is hygroscopic; it will rapidly absorb moisture and strongly hold this moisture in the oil.

10.A liquid line dryer must be used - even a deep vacuum will not separate moisture from the oil.

11.Limit atmospheric exposure to 15 minutes.

12.If compressor removal is necessary, always plug compressor immediately after removal. Purge with small amount of nitrogen when inserting plugs.

TOPPING OFF SYSTEM CHARGE

If a leak has occurred in the system, Bard Manufacturing recommends reclaiming, evacuating (see criteria above), and charging to the nameplate charge. Topping off the system charge can be done without problems.

With R-410A, there are no significant changes in the refrigerant composition during multiple leaks and recharges. R-410A refrigerant is close to being an azeotropic blend (it behaves like a pure compound or single component refrigerant). The remaining refrigerant charge, in the system, may be used after leaks have occurred and then “top-off” the charge by utilizing the charging charts on the inner control panel cover as a guideline.

REMEMBER: When adding R-410A refrigerant, it must come out of the charging cylinder/tank as a liquid to avoid any fractionation, and to insure optimal system

performance. Refer to instructions for the cylinder that is being utilized for proper method of liquid extraction.

SAFETY PRACTICES:

1.Never mix R-410A with other refrigerants.

2.Use gloves and safety glasses, Polyol Ester oils can be irritating to the skin, and liquid refrigerant will freeze the skin.

3.Never use air and R-410A to leak check; the mixture may become flammable.

4.Do not inhale R-410A – the vapor attacks the nervous system, creating dizziness, loss of coordination and slurred speech. Cardiac irregularities, unconsciousness and ultimate death can result from breathing this concentration.

5.Do not burn R-410A. This decomposition produces hazardous vapors. Evacuate the area if exposed.

6.Use only cylinders rated DOT4BA/4BW 400.

7.Never fill cylinders over 80% of total capacity.

8.Store cylinders in a cool area, out of direct sunlight.

9.Never heat cylinders above 125°F.

10.Never trap liquid R-410A in manifold sets, gauge lines or cylinders. R-410A expands significantly at warmer temperatures. Once a cylinder or line is full of liquid, any further rise in temperature will cause it to burst.

START UP NOTES

For improved start up performance, wash the indoor coil with dishwasher detergent.

Manual	2100-467D
Page	15 of 25

START UP AND OPERATION

THREE PHASE SCROLL COMPRESSOR START UP INFORMATION

(Model PA13361-B)

Scroll compressors, like several other types of compressors, will only compress in one rotational direction. Direction of rotation is not an issue with single phase compressors since they will always start and run in the proper direction.

However, three phase compressors will rotate in either direction depending upon phasing of the power. Since there is a 50-50 chance of connecting power in such a way as to cause rotation in the reverse direction, verification of proper rotation must be made. Verification of proper rotation direction is made by observing that suction pressure drops and discharge pressure rises when the compressor is energized. Reverse rotation also results in an elevated sound level over that with correct rotation, as well as, substantially reduced current draw compared to tabulated values.

Verification of proper rotation must be made at the time the equipment is put into service. If improper rotation is corrected at this time there will be no negative impact on the durability of the compressor. However, reverse operation for over one hour may have a negative impact on the bearing due to oil pump out.

NOTE: If compressor is allowed to run in reverse rotation for several minutes the compressor’s internal protector will trip.

All three phase scroll compressors are wired identically internally. As a result, once the correct phasing is determined for a specific system or installation, connecting properly phased power leads to the same Fusite terminals should maintain proper rotation direction.

The direction of rotation of the motor may be changed by reversing any two line connections to the unit.

(Models PA13422-B, -C; PA13482-B, -C;

PA13602-B, -C)

All units with three phase scroll compressors are equipped with a three phase line monitor to prevent compressor damage due to phase reversal.

The phase monitor in this unit is equipped with two LED’s. If the “Y” signal is present at the phase monitor and phases are correct, the green LED will light.

If phases are reversed, the red fault LED will be lit and compressor operation is inhibited.

If a fault condition occurs, reverse tow of the supply leads to the unit. Do not reverse any of the unit factory wires as damage may occur.

SEQUENCE OF OPERATION

BLOWER ONLY – When the “Fan” switch on the room thermostat is placed in the “On” position (circuit R-G makes), the blower will energize and run until the “Fan” switch is placed back into the “Auto” position. This will allow for constant air circulation at a lower airflow during times when the unit is not in operation for cooling or heating.

COOLING – On a call for cooling from the room thermostat (circuit R-Y makes), the blower will energize (circuit R-G is automatic when R-Y makes) as well as the compressor, and outdoor fan motor. Note that if the “Fan” switch on the room thermostat is in the “On” position and the blower is already in operation, then the motor will ramp up to the required speed for cooling.

HEATING (1st Stage) – On a call for heating from the room thermostat (circuit R-W1 makes), the blower will energize (circuit R-G is automatic when R-W1 makes). This will place the system into heating operation to maintain the thermostat set temperature. Note that if the “Fan” switch on the room thermostat is in the “On” position and the blower is already in operation, then the motor will ramp up to the required speed for heating.

HEATING (2nd Stage) – If the operation of the 1st Stage electric heaters will not maintain the set room temperature, then the thermostat will call for additional heat to help maintain the set temperature. On a call for second stage heating from the room thermostat (circuit R-W2 makes), additional electric heaters will be energized if installed.

INDOOR BLOWER MOTOR

These models feature a variable speed (ECM) motor providing high efficiency, low sound levels and soft start capabilities. The motor is self adjusting to provide the proper airflow rate at duct static pressures up to 0.50" WC without user adjustment or wiring changes.

On command from the wall thermostat the motor will start slowly and ramp up to full speed over a period of 10-15 seconds.

When the thermostat is satisfied the blower will operate for approximately 1 minute, and then slow down and stop.

COMPRESSOR CONTROL MODULE

The compressor control is an anti-short cycle/lockout timer with high and low pressure switch monitoring and alarm output.

Manual	2100-467D
Page	16 of 25

ADJUSTABLE DELAY-ON-MAKE AND BREAK TIMER

On a call for compressor operation the delay-on-make period begins which will be 10% of the delay-on-break setting. When the delay-on-make is complete and the high pressure switch (and low pressure switch if employed) is closed, the compressor contactor is energized. Upon shutdown, the delay-on-break timer starts and prevents restart until the delay-on-break and delay-on-make periods have expired.

HIGH PRESSURE SWITCH AND LOCKOUT

SEQUENCE (Standard Feature)

If the high pressure switch opens, the compressor contactor will de-energize immediately. The lockout timer will go into a soft lockout and stay in soft lockout until the high pressure switch closes and the delay-on- make time has expired. If the high pressure switch opens again in this same operating cycle the unit will go into manual lockout condition and the alarm circuit will energize. Recycling the wall thermostat resets the manual lockout.

LOW PRESSURE SWITCH, BYPASS, AND

LOCKOUT SEQUENCE (Standard Feature)

If the low pressure switch opens for more that 120 seconds, the compressor contactor will de-energize and go into a soft lockout. Regardless the state of the low pressure switch, the contactor will reenergize after the delay-on-make time delay has expired. If the low pressure switch remains open or opens again for longer than 120 seconds the unit will go into manual lockout condition and the alarm circuit will energize. Recycling the wall thermostat resets the manual lockout.

ALARM OUTPUT

Alarm terminal is output connection for applications where alarm signal is desired. This terminal is powered whenever compressor is locked out due to HPC or LPC sequences as described.

NOTE: Both high and low pressure switch controls are inherently automatic reset devices. The high pressure switch and low pressure switch cut out and cut in settings are fixed by specific air conditioner or heat pump unit model. The lockout features, both soft and manual, are a function of the Compressor Control Module.

ADJUSTMENTS

ADJUSTABLE DELAY-ON-MAKE AND DELAY-ON-BREAK TIMER

The potentiometer is used to select Delay-on-Break time from 30 seconds to 5 minutes. Delay-on-Make (DOM) timing on power-up and after power interruptions is equal to 2 minutes plus 10% of Delay-on-Break (DOB) setting:

0.5 minute	(30 seconds)	DOB = 123 second DOM
1.0 minute	(60 seconds)	DOB = 126 second DOM
2.0 minute (120 seconds)		DOB = 132 second DOM
3.0 minute (160 seconds)		DOB = 138 second DOM
4.0 minute (240 seconds)		DOB = 144 second DOM
5.0 minute (300 seconds)		DOB = 150 second DOM

LOW AMBIENT CONTROL

Optional Low Ambient Control

An optional low ambient control is available for both factory and field installed options. The low ambient control is to be applied to the PA13 Series models when operation below 55° outdoor conditions are anticipated. Without this device, the evaporating pressure would fall off, and the indoor coil would ice over.

The fan cycling control cycles the fan motor on, once the liquid refrigerant pressure reaches 350 psig, and off, once it has dropped to 225 psig. It will continue to cycle between these parameters depending on outdoor temperatures and the load/stage of the system.

This cycling maintains a minimum liquid pressure affecting the minimum suction pressure. This effect insures an evaporating temperature that is slightly above the point of ice formation on the evaporator.

This field installed option is Bard Part #CMA-28. See Figure 7.

FIGURE 7

LOW AMBIENT CONTROL WIRING

Manual	2100-467D
Page	17 of 25

SERVICE AND TROUBLESHOOTING

SERVICE HINTS

1.Caution homeowner to maintain clean air filters at all times. Also, not to needlessly close off supply and return air registers. This reduces airflow through the system which shortens equipment service life as well as increasing operating costs.

2.Check all power fuses or circuit breakers to be sure that they are the correct rating.

3.Periodic cleaning of the outdoor coil to permit full and unrestricted airflow circulation is essential.

PRESSURE SERVICE PORTS

High and low pressure service ports are installed on all units so that the system operating pressures can be observed. Pressure tables can be found later in this manual covering all models on cooling cycle. It is imperative to match the correct pressure table to the unit by model number.

FAN BLADE SETTINGS

Shown in Figure 8 are the correct fan blade setting dimensions for proper air delivery across the outdoor coil.

Any service work requiring removal or adjustment in the fan and/or motor area will require that the dimensions below be checked and blade adjusted in or out on the motor shaft accordingly.

FIGURE 8

FAN BLADE SETTING

"B"

“A”

MD-1417BC

REFRIGERANT CHARGE

The correct system R-410A charge is shown on the unit rating plate.

You can reference Tables 10 & 11 to validate proper system performance. However, it is recommended that if incorrect charge is suspected, the system be reclaimed, evacuated and charged to the nameplate quantity and type.

The nameplate charge quantity is optimized for thermal performance and efficiency of this self-contained package system.

TABLE 8

FAN BLADE SETTING DIMENSIONS

Model

Dimension "A"

PA1324

PA1330

PA1336

PA1342

3¼"

PA1348

PA1360

TABLE 9

INDOOR BLOWER PERFORMANCE 1

				2	3	4
	Model	Rated	MAX	Continuous	Rated	Rated
		ESP	ESP	Airflow	Cooling	Heating
					CFM	CFM
	PA1324	0.10	0.50	600	800	800
	PA1330	0.15	0.50	750	1000	1000
	PA1336	0.15	0.50	825	1100	1100
	PA1342	0.20	0.50	925	1400	1400
	PA1348	0.20	0.50	1025	1550	1550
	PA1360	0.20	0.50	1150	1650	1650

1Motor will deliver consistent CFM through voltage supply range with no deterioration (197-253V for all 230/208V models).

2 Continuous CFM is the total air being circulated during continuous (manual fan) mode.

3 Will occur automatically with a call for "Y" for cooling mode operation.

4 Will occur automatically with a call for "W1" for heating mode operation.

Manual	2100-467D
Page	18 of 25

Page	Manual
25 of 19	467D-2100

TABLE 10

PRESSURE TABLE

COOLING										Air Temperature Entering Outdoor Coil Degree F
	Return Air	Pressure	65°	70°	75°	80°	85°	90°	95°	100°	105°	110°	115°	120°	125°
Model	Temperature
	75° DB	Low Side	125	127	129	131	133	135	137	138	140	142	143	145	147
	62° WB	High Side	238	262	286	310	334	358	382	407	432	457	482	507	532
PA1324	80° DB	Low Side	134	136	138	140	142	144	146	148	150	151	153	155	157
	67° WB	High Side	244	269	293	318	343	367	392	418	443	469	494	520	546
	85° DB	Low Side	144	146	148	151	153	155	157	159	161	163	165	167	169
	72° WB	High Side	253	278	304	329	355	380	406	432	459	485	512	538	565
	75° DB	Low Side	126	128	131	133	135	137	139	141	143	145	148	150	152
	62° WB	High Side	246	267	289	310	332	353	374	402	429	457	484	512	539
PA1330	80° DB	Low Side	135	137	140	142	144	147	149	151	153	156	158	160	162
	67° WB	High Side	252	274	296	318	340	362	384	412	440	469	497	525	553
	85° DB	Low Side	145	148	150	153	155	158	160	163	165	167	170	172	174
	72° WB	High Side	261	284	306	329	352	375	397	427	456	485	514	543	573
	75° DB	Low Side	125	127	128	130	132	133	135	136	138	139	141	142
	62° WB	High Side	247	271	295	320	344	369	393	418	443	468	494	519
PA1336	80° DB	Low Side	134	136	137	139	141	142	144	146	147	149	150	152
	67° WB	High Side	253	278	303	328	353	378	403	429	455	480	506	532
	85° DB	Low Side	144	146	148	149	151	153	155	157	158	160	162	163
	72° WB	High Side	262	288	314	339	365	391	417	444	471	497	524	551

LOW SIDE PRESSURE +2 PSIG

HIGH SIDE PRESSURE +5 PSIG

Tables based upon rated CFM (airflow) across the evaporator coil.

If incorrect charge suspected (more than +2 psig suction, +5 psig liquid),

it is recommended refrigerant charge be reclaimed, system evacuated and charged to serial plate quantity.

(Continued on Page 20 in Table 11)

Page	Manual
25 of 20	467D-2100

TABLE 11

PRESSURE TABLE

	COOLING										Air Temperature Entering Outdoor Coil Degree F
		Return Air	Pressure	65°	70°	75°	80°	85°	90°	95°	100°	105°	110°	115°	120°	125°
	Model	Temperature
		75° DB	Low Side	126	128	129	131	132	134	136	137	138	140	141	142	143
		62° WB	High Side	242	265	288	311	334	357	380	409	437	466	494	523	551
	PA1342	80° DB	Low Side	135	137	138	140	142	143	145	146	148	149	151	152	153
		67° WB	High Side	248	272	295	319	343	366	390	419	448	478	507	536	565
		85° DB	Low Side	145	147	149	151	152	154	156	157	159	160	162	163	165
		72° WB	High Side	257	281	306	330	355	379	404	434	464	494	525	555	585
		75° DB	Low Side	125	127	128	129	130	132	133	134	136	137	139	140	142
		62° WB	High Side	239	263	287	311	335	359	383	410	438	465	492	520	547
	PA1348	80° DB	Low Side	134	135	137	138	139	141	142	144	145	147	148	150	152
		67° WB	High Side	245	270	294	319	344	368	393	421	449	477	505	533	561
		85° DB	Low Side	144	145	147	148	150	151	153	154	156	158	160	161	163
		72° WB	High Side	254	279	305	330	356	381	407	436	465	494	523	552	581
		75° DB	Low Side	124	125	126	127	128	129	130	131	131	132	133	134
		62° WB	High Side	224	254	285	315	345	375	406	431	456	480	505	530
	PA1360	80° DB	Low Side	133	134	135	136	137	138	139	140	141	141	142	143
		67° WB	High Side	230	261	292	323	354	385	416	442	467	493	518	544
		85° DB	Low Side	143	144	145	146	147	148	149	150	151	152	153	154
		72° WB	High Side	238	270	302	334	366	398	431	457	484	510	537	563

LOW SIDE PRESSURE +2 PSIG

HIGH SIDE PRESSURE +5 PSIG

Tables based upon rated CFM (airflow) across the evaporator coil.

If incorrect charge suspected (more than +2 psig suction, +5 psig liquid),

it is recommended refrigerant charge be reclaimed, system evacuated and charged to serial plate quantity.

SUCTION AND DISCHARGE TUBE BRAZING

Compliant Scroll compressors have copper plated steel suction and discharge tubes. These tubes are far more rugged and less prone to leaks than copper tubes used on other compressors. Due to different thermal properties of steel and copper, brazing procedures may have to be changed from those commonly used.

•To disconnect: heat joint Areas 2 and 3 slowly and uniformly until braze material softens and the tube can be pulled out of suction fitting. (See Figure 9.)

•To connect:

–Recommended brazing materials: silfos with minimum 5% silver or silver braze material with flux.

–Reinsert tube into fitting.

–Heat tube uniformly in Area 1 moving slowly to Area 2. When joint reaches brazing temperature, apply brazing material. (See Figure 9)

–Heat joint uniformly around the circumference to flow braze material completely around the joint.

–Slowly move torch into Area 3 to draw braze material into joint. (See Figure 9.)

–Do not overheat joint.

FIGURE 9

BRAZING DIAGRAM

Manual	2100-467D
Page	21 of 25

TROUBLESHOOTING GE ECM 2.3™ MOTORS

NOTE: Affects Models PA13241, PA13301, PA13361

CAUTION:

Disconnect power from unit before removing or replacing connectors, or servicing motor. To avoid electric shock from the motor’s capacitors, disconnect power and wait at least 5 minutes before opening motor.

Symptom Cause/Procedure

Motor rocks slightly when starting

Motor won’t start

• No movement

•This is normal start-up for ECM

•Check blower turns by hand

•Check power at motor

•Check low voltage (24 Vac R to C) at motor

•Check low voltage connections (G, Y, W, R, C) at motor

•Check for unseated pins in connectors on motor harness

•Test with a temporary jumper between R - G

•Check motor for tight shaft

•Perform motor/control replacement check

•Perform Moisture Check

• Motor rocks,	• Check for loose or compliant motor mount
but won’t start	• Make sure blower wheel is tight on shaft
	• Perform motor/control replacement check
Motor oscillates up	• It is normal for motor to oscillate with no
load & down while being	on shaft
tested off of blower
Motor starts, but
runs erratically
• Varies up and down	• Check line voltage for variation or “sag”
or intermittent	• Check low voltage connections
	(G, Y, W, R, C) at motor, unseated pins in
	motor harness connectors
	• Check “Bk” for erratic CFM command (in
	variable-speed applications)
	• Check out system controls, Thermostat
	• Perform Moisture Check
• “Hunts” or “puffs” at	• Does removing panel or filter reduce
high CFM (speed)	“puffing”?
	- Reduce restriction
	- Reduce max airflow
• Stays at low CFM	• Check low voltage (Thermostat) wires and
despite system call	connections
for cool or heat CFM	• Verify fan is not in delay mode; wait until
	delay complete
	• “R” missing/not connected at motor
	• Perform motor/control replacement check
• Stays at high CFM	• “R” missing/not connected at motor
	• Is fan in delay mode? - wait until delay time
	complete
	• Perform motor/control replacement check
• Blower won’t shut off	• Current leakage from controls into G, Y or W?
	Check for Triac switched thermostat or solid-
	state relay
Excessive noise	• Determine if it’s air noise, cabinet, duct or
	motor noise; interview customer, if necessary
• Air noise	• High static creating high blower speed?
	- Is airflow set properly?
	- Does removing filter cause blower to slow
	down? Check filter
	- Use low-pressure drop filter
	- Check/correct duct restrictions

Symptom Cause/Procedure

•Noisy blower or cabinet • Check for loose blower housing, panels, etc.

•High static creating high blower speed?

-Check for air whistling through seams in ducts, cabinets or panels

-Check for cabinet/duct deformation

•“Hunts” or “puffs” at • Does removing panel or filter reduce

high CFM (speed)	“puffing”?
	- Reduce restriction
	- Reduce max. airflow
Evidence of Moisture
• Motor failure or	• Replace motor and Perform Moisture
Check
malfunction has occurred
and moisture is present
• Evidence of moisture	• Perform Moisture Check
present inside air mover
Do	Don’t

•Check out motor, controls, wiring and connections thoroughly before replacing motor

•Orient connectors down so water can’t get in

-Install “drip loops”

•Use authorized motor and model #’s for replacement

•Keep static pressure to a minimum:

-Recommend high efficiency, low static filters

-Recommend keeping filters clean.

-Design ductwork for min. static, max. comfort

-Look for and recommend ductwork improvement, where necessary

•Size the equipment wisely

•Check orientation before inserting motor connectors

•Automatically assume the motor is bad.

•Locate connectors above 7 and 4 o’clock positions

•Replace one motor or control model # with another (unless an authorized replacement)

•Use high pressure drop filters some have ½" H20 drop!

•Use restricted returns

•Oversize system, then compensate with low airflow

•Plug in power connector backwards

•Force plugs

Moisture Check

•Connectors are oriented “down” (or as recommended by equipment manufacturer)

•Arrange harness with “drip loop” under motor

•Is condensate drain plugged?

•Check for low airflow (too much latent capacity)

•Check for undercharged condition

•Check and plug leaks in return ducts, cabinet

Comfort Check

•Check proper airflow settings

•Low static pressure for lowest noise

•Set low continuous-fan CFM

•Use humidistat and 2-speed cooling units

•Use zoning controls designed for ECM that regulate CFM

•Thermostat in bad location?

Manual	2100-467D
Page	22 of 25

TROUBLESHOOTING GE ECM2.3™ MOTORS CONT’D.

Replacing ECM Control Module

To replace the control module for the GE variable-speed indoor blower motor you need to take the following steps:

1. You MUST have the correct replacement module. The controls are factory programmed for specific operating modes. Even though they look alike, different modules may have completely different functionality.

USING THE WRONG CONTROL MODULE VOIDS ALL PRODUCT WARRANTIES AND MAY PRODUCE UNEXPECTED RESULTS.

2.Begin by removing AC power from the unit being serviced. DO NOT WORK ON THE MOTOR WITH AC POWER APPLIED. To avoid electric shock from the motor’s capacitors, disconnect power and wait at least 5 minutes before opening motor.

3.It is not necessary to remove the motor from the blower assembly, nor the blower assembly from the unit. Unplug the two cable connectors to the motor control assembly. There are latches on each connector. DO NOT PULL ON THE WIRES. The plugs remove easily when properly released.

4.Locate the screws that retain to the motor control bracket to the sheet metal of the unit and remove them. Remove two (2) nuts that retain the control to the bracket and then remove two (2) nuts that retain sheet metal motor control end plate. Refer to Figure 10.

5.Disconnect the three (3) wires interior of the motor control by using your thumb and forefinger squeezing the latch tab and the opposite side of the connector plug, gently pulling the connector. DO NOT PULL ON THE WIRES, GRIP THE PLUG ONLY. Refer to Figure 10.

6.The control module is now completely detached from the motor. Verify with a standard ohmmeter that the resistance from each motor lead (in the motor plug just removed) to the motor shell is >100K ohms. Refer to Figure 11. (Measure to unpainted motor end plate.) If any motor lead fails this test, do not proceed to install the control module. THE MOTOR IS DEFECTIVE AND MUST BE REPLACED. Installing the new control module will cause it to fail also.

	10
	Figure 3
	Control Disassembly
Only remove	From Motor
Hex Head Bolts	Push until
	Latch Seats
	Over Ramp
	Circuit
	Board

7.Verify that the replacement control is correct for your application. Refer to the manufacturer's authorized replacement list.

USING THE WRONG CONTROL WILL RESULT IN IMPROPER OR NO BLOWER OPERATION. Orient the control module so that the 3-wire motor plug can be inserted into the socket in the control. Carefully insert the plug and press it into the socket until it latches. A SLIGHT CLICK WILL BE HEARD WHEN PROPERLY INSERTED.

8.Reverse the steps #5, 4, 3 to reconnect the motor control to the motor wires, securing the motor control cover plate, mounting the control to the bracket, and mounting the motor control bracket back into the unit. MAKE SURE THE ORIENTATION YOU SELECT FOR REPLACING THE CONTROL ASSURES THE CONTROL'S CABLE CONNECTORS WILL BE LOCATED DOWNWARD IN THE APPLICATION SO THAT WATER CANNOT RUN DOWN THE CABLES AND INTO THE CONTROL. DO NOT OVERTIGHTEN THE BOLTS.

9.Plug the 16-pin control plug into the motor. The plug is keyed. Make sure the connector is properly seated and latched.

10.Plug the 5-pin power connector into the motor. Even though the plug is keyed, OBSERVE THE PROPER ORIENTATION. DO NOT FORCE THE CONNECTOR. It plugs in very easily when properly oriented. REVERSING THIS PLUG WILL CAUSE IMMEDIATE FAILURE OF THE CONTROL MODULE.

11.Final installation check. Make sure the motor is installed as follows:

a.Motor connectors should be oriented between the 4 o’clock and 8 o’clock positions when the control is positioned in its final location and orientation.

b.Add a drip loop to the cables so that water cannot enter the motor by draining down the cables. Refer to Figure 12.

The installation is now complete. Reapply the AC power to the HVAC equipment and verify that the new motor control module is working properly. Follow the manufacturer’s procedures for disposition of the old control module.

Figure 11

Figure 4

Winding Test

Motor Connector

(3-pin)

Motor

ECM 2.0

				Motor OK when
	Note:			R > 100k ohm
	Use the shorter
	bolts and
	alignment pin			12
	supplied when
				Figure 5
	replacing an			Drip Loop
	ECM 2.0	Motor Connector
	control.
		(3-pin)	Back of	Connector Orientation
	ECM		Control	Between 4 and 8 o'clock
	2.3/2.5	Control Connector
		(16-pin)
		Power Connector
		(5-pin)
		Hex-head Screws		Drip Loop

Manual	2100-467D
Page	23 of 25

TROUBLESHOOTING GE X13-SERIES ECM2.3™ MOTORS

NOTE: Bard Models PA13422, PA13482 & PA13602 contain the X13-Series Motors.

If the Motor is Running

1.It is normal for the motor to rock back and forth on start up. Do not replace the motor if this is the only problem identified.

2.If the system is excessively noisy, does not appear to change speeds in response to a demand (Heat, Cool, Other), or is having symptoms during the cycle such as tripping limit or freezing coil, check the following:

a.Wait for programmed delays to time out.

b.Ensure that the motors control inputs are wired to the factory supplied wiring diagram to insure motor is getting proper control signals and sequencing.

c.Remove the filter and check that all dampers, registers, and grilles are open and free flowing. If removing the filters corrects the problem, clean or replace with a less restrictive filter. Also check and clean the blower wheel or coil as

necessary.

d.Check the external static pressure (total of both supply and return) to insure that you are within the ranges as listed on the unit serial plate. If higher than allowed, additional duct work is needed.

e.If the motor does not shut off at the end of the cycle, wait for any programmed delays to time out (no more than 90 seconds). Also make sure that there is no call for “Continuous Fan” on the "G" terminal.

f.If the above diagnostics do not solve the problem, confirm the voltage checks in the next section below, then continue with the “Model X13 Communication Diagnostics”.

If the Motor is Not Running

1.Check for proper high voltage and ground at the (L/L1) (G) (N/ L2) connections at the motor (see Figure 13). Correct any voltage issues before proceeding to the next step. The X13 Motor is voltage specific. Only the correct voltage should be applied to the proper motor. Input voltage within plus or minus 10% of the nominal 230 VAC is acceptable.

2.If the motor has proper high voltage and ground at the (L/L1)

(G)(N/L2) connections, then continue with the “Model X13 Communication Diagnostics”.

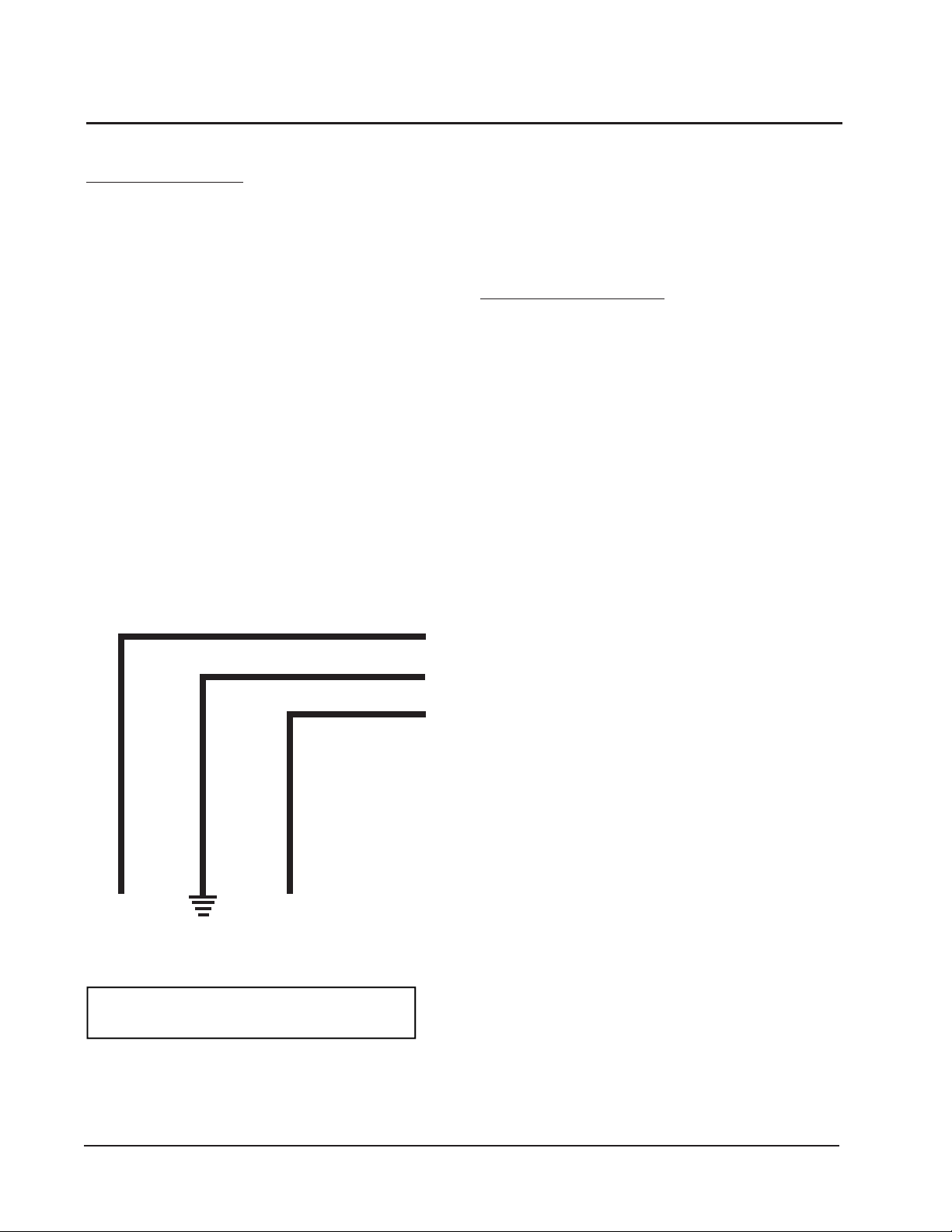

FIGURE 13

↓ ↓

L2 LINE	EARTH	L1 LINE
POWER	GROUND	POWER

NOTE: MOTOR IS CONSTANTLY

POWERED BY LINE VOLTAGE

Manual	2100-467D
Page	24 of 25

TROUBLESHOOTING GE X13-SERIES ECM2.3™ MOTORS CONT’D.

Model X13 Communication Diagnostics

The X13 motor is communicated through 24 VAC low voltage (Thermostat Control Circuit Wiring).

1. Start with unit wiring diagram to confirm proper connections and voltage (see Figure 14).

2. Initiate a demand from the thermostat and check the voltage between the common and the appropriate motor terminal (1-5). ("G" input is typically on terminal #1, but refer to wiring diagram!)

a.If the low voltage communication is not present, check the demand from the thermostat. Also check the output terminal and wire(s) from the terminal strip or control relay(s) to the motor.

b.If the motor has proper high voltage as identified above (Motor not Running #1), and proper low voltage to a programmed terminal, and is not operating, the motor is failed, and will require replacement.

FIGURE 14

24VAC Common

24VAC "R" Signal through thermostat output.

24VAC Common

24VAC "R" Signal through thermostat output.

Manual	2100-467D
Page	25 of 25
