Bard I42H1D, I60H1D, I30H1D, I42H1, I30H1, I36H1D, I48H1, I48H1D, I36H1, I60H1 User Manual

I-TEC SERIES

PACKAGED HEAT PUMP

INSTALLATION		Models:
INSTRUCTIONS	I30H1	I36H1	I42H1
	I48H1	I60H1
	I30H1D	I36H1D	I42H1D
	I48H1D	I60H1D

MIS-2957 A

Bard Manufacturing Company, Inc.	Manual:		2100-549G
Bryan, Ohio 43506	Supersedes:		2100-549F
Since 1914 . . . Moving ahead, just as planned.	File:		Vol. II Tab 14
	Date:		11-05-13
		Manual		2100-549G
		Page		1 of 59

CONTENTS

Getting Other Information and Publications
For more information, contact these publishers: ..........				3
General & ANSI Z535.5 Definitions .............................				4
I-TEC General Information
I-TEC Model Nomenclature ..........................................				5
Shipping Damage, Unit Removal From Skid ...............				8
Handling Unit After Removal From Skid .......................				8
Required Steps after Final Placement ..........................				9
Minimum Installation Height .........................................				9
Securing Unit to Structure & Seismic Considerations ..				9
Duct Work, Supply Duct Connections & Filters..........				17
Condensate Drain ......................................................				18
With No Vent Option and With CRV & ERV ...............				18
Installation Instructions
Mounting the Unit & Wiring — Main Wiring ................				21
Wiring—Low Volt. Wiring & Low Volt.Connections ....				22
Start Ups
R-410A Refrigerant Required .....................................				30
Topping Off System Charge .......................................				30
Safety Practices .........................................................				30
Description of Standard Equipment............................				31
Important Installer Note ..............................................				31
Phase Monitor ............................................................				31
Three Phase Scroll Compressor ................................				31
Figures
Figure 1		Unit Dimensions ..........................................		7
Figure 2A & 2B Unit on Lift & Unit Side ........................				8
Wall Mounting Bracket Location ....................................				9
Bracket Wall Sect. View & Wood Framed Install ........				10
Figure 3		Center of Gravity .......................................		11
Figure 4		Req. Clearances & Rec. Access ...............		12
Figure 5		Compressor Shipping Bolts .......................		13
Figure 6		Removal of Air Duct ...................................		13
Figure 7A		Ducted Application .....................................		14
Figure 7B		3" Riser Application ...................................		15
Figure 7C		6" Riser Application ...................................		16
Figure 8		Supply Duct Connections ..........................		17
Figure 9		Filter Location ............................................		17
Figure 10		Drain Locations .........................................		18
Figures 11A & 11B Unit Mounting .......................			19 & 20
Figure 12		Component Location .................................		21
Figure 13		Basic Heat Pump w/No Vent Pkg. .............		23
Figure 14		HP w/CRV, without CO2 Control .................		24
Figure 15		HP with CRV & CO2 Control ......................		25
Figure 16		HP with ERV, w/o CO2	Control ...................	26
Figure 17		HP with ERV & CO2 Control ......................		27
Figure 18		HP w/ERV & CO2 Control (Fully Mod.) ......		28
Figure 19		HP w/Comb. CRV & DB Econ. ("N" Vent) ....		29
Figure 20		Defrost Cycle .............................................		33
Figure 21		CRV Motor Speed/CFM Configuration ......		35
Figure 22		CRV Speed Change Terminal Access .......		36
Figure 23		Economizer Control Circuit ........................		38
Figure 24		Motor Speed / CFM Configuration .............		39
Fig. 25A		ERV Manual Mode "M" Terminal ...............		43
Fig. 25B		ERV Mod. Mode "P" Terminal ....................		43

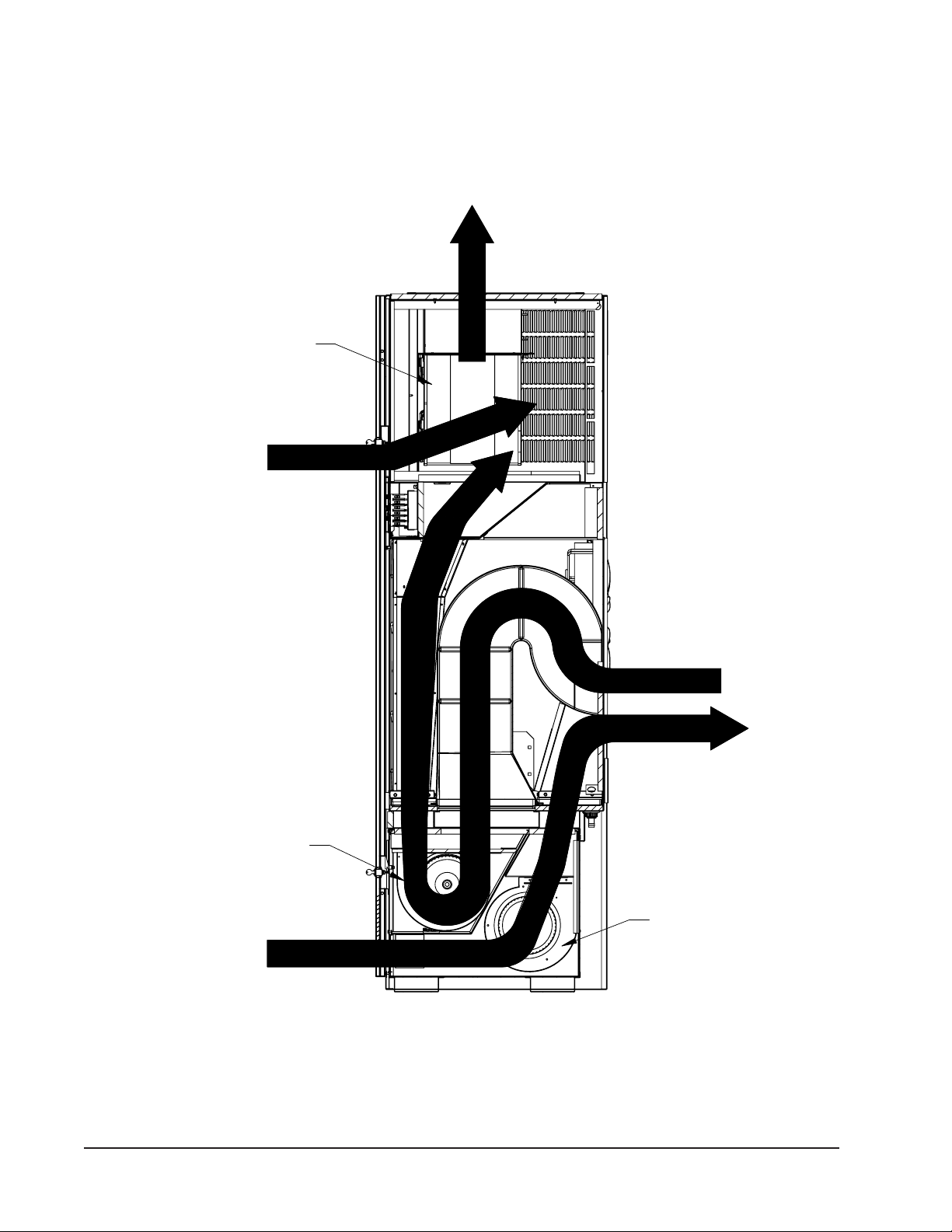

Figure 26		Ventilation Airflow Diagram ........................		44
Figure 27		ERV Control Access ..................................		45
Figure 28		Control Board Config./Setting ....................		46
Manual	2100-549G
Page	2 of 59

Service Hints ..............................................................			31
Sequence of Operation ..............................................			32
Pressure Service Ports ...............................................			32
Lowering Outdoor Fan Speed for Sound ....................			32
Defrost Cycle ..............................................................			33
I-TEC Commercial Room Ventilator System
Gen. Description, Control Wiring & Rec. Seq. ...........			34
Setting the Ventilation CFM Levels ............................			34
I-TEC Comb. CRV & Economizer Vent System
Description & Control Wiring ......................................			37
Setting the Ventilation CFM Levels ............................			37
Economizer Seq. of Operation ...................................			38
Heating & Vent Mode .................................................			39
I-TEC Energy Recovery Ventilator System
General Description & Control Wiring ........................			40
Recommended Control Sequences ...........................			41
Changing Ventilation CFM Rates in Manual Mode ....			41
Changing to Fully Modulating Mode ...........................			41
Configuring Control for ERV Mod. Control ............		47-48
Maintenance (Gen., Frequency, Clean & Perform.) .....		49-50
Troubleshooting
Solid State HP Control Troubleshooting Procedure ...			51
Checking Temperature Sensor ...................................			52
Troubleshooting ECM™ 142R Motor ................		43 & 54
Replacing the Motor ..................................................			54
Troubleshooting Indoor ECM™ Motor ..................		55-56
Fan Blade Setting Dimensions ...................................			57
Refrigerant Charge .....................................................			57
Figures (continued)
Figure 29 Hub Assembly w/Ball Bearings ..................			50
Figure 30	Control Disassembly .................................		56
Figure 31	Winding Test ..............................................		56
Figure 32	Drip Loop ...................................................		56
Figure 33 Control Connector Motor Half ....................			57
Tables
Table 1 Factory Built-In Electric Heat Table ..............			5
Table 1A Indoor Blower Performance ..........................			5
Table 2	Elec. Specifications .......................................		6
Center of Gravity Reference Table ..............................			11
Table 3 Operating Voltage Range ...........................			22
Table 4	Wall Thermostats ........................................		22

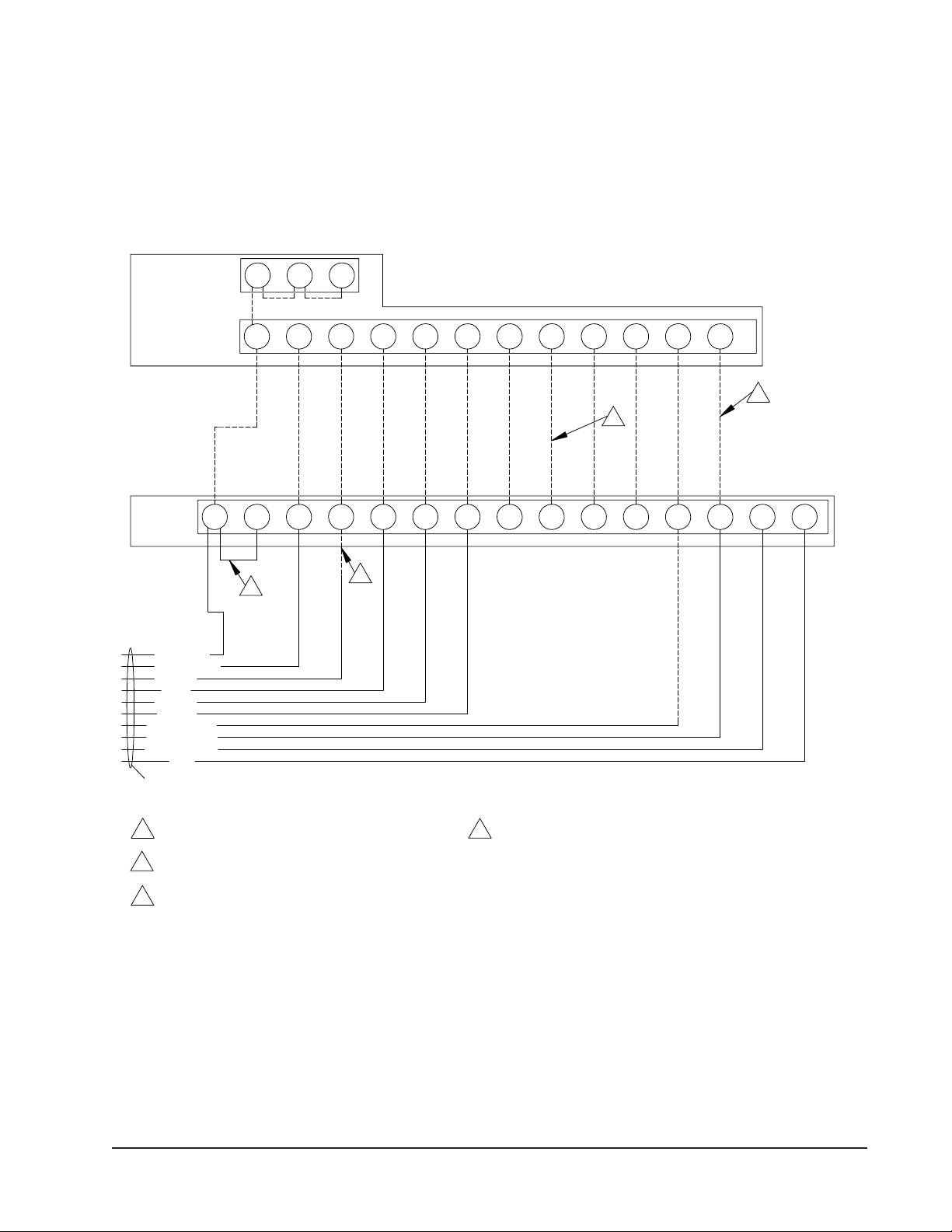

Low Voltage Connections for DDC Control .................			22
Performance & App. Data:
	Summer Cooling & Winter Heating ............		42
Table 5	Troubleshooting ..........................................		51
Table 6 Temp. vs Resistance of Temp. Sensor		.......	52
Table 7 Troubleshooting ECM™ 142R ....................			54
Table 8	Cooling Mode ..............................................		54
Table 9 Heat Pump Mode ........................................			54
Troubleshooting ECM™ Blower Motors ......................			57

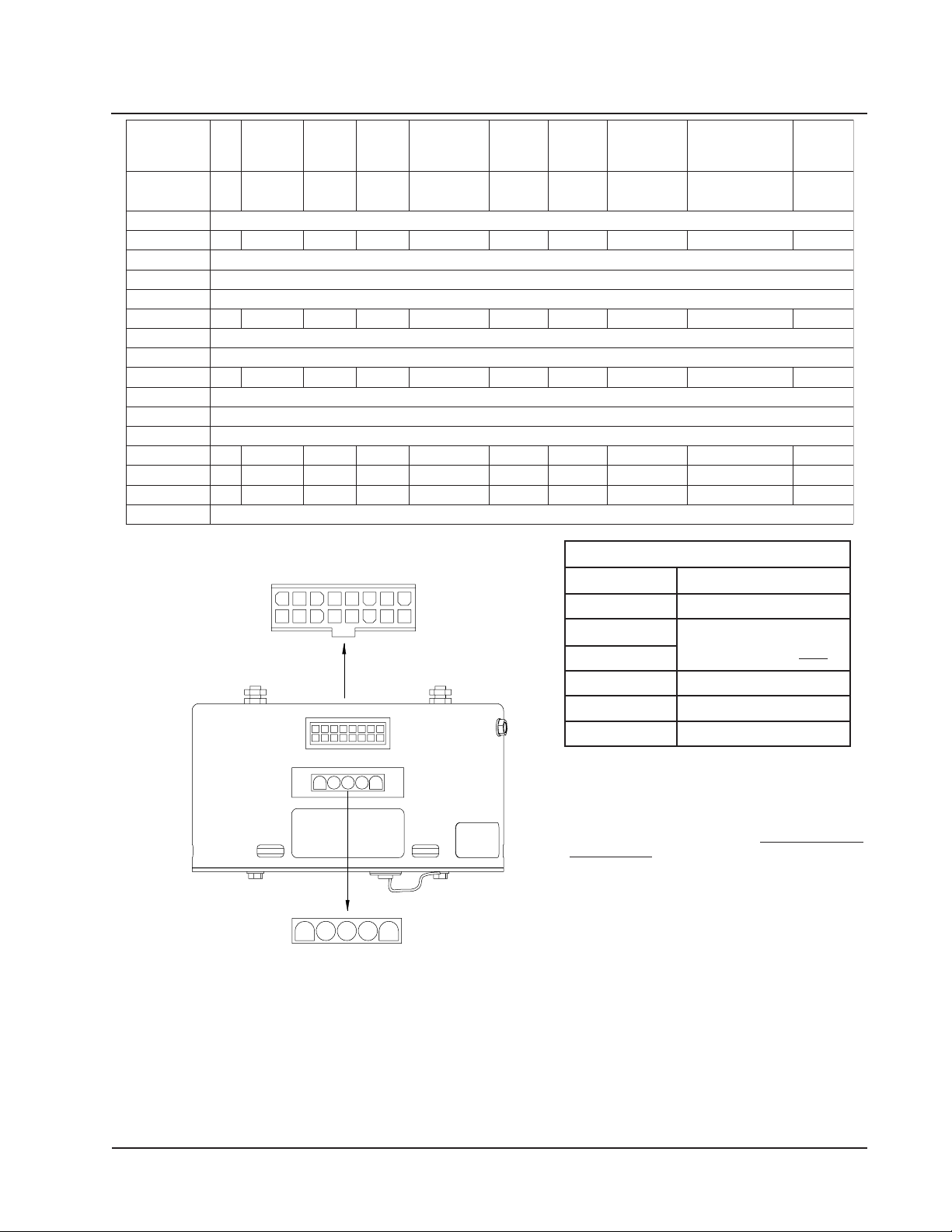

Power Connector ........................................................			57
Table 10A Pressures: Full Load Cooling .....................			58
Table 10B Pressures: Full Load Heating .....................			58
Table 11A Pressures: Part Load Cooling .....................			59
Table 11B Pressures: Part Load Heating ....................			59

GETTING OTHER INFORMATION AND PUBLICATIONS

These publications can help you install the air conditioner or heat pump. You can usually find these at your local library or purchase them directly from the publisher. Be sure to consult current edition of each standard.

National Electrical Code .....................	ANSI/NFPA 70
Standard for the Installation .............	ANSI/NFPA 90A
of Air Conditioning and Ventilating Systems
Standard for Warm Air ......................	ANSI/NFPA 90B
Heating and Air Conditioning Systems
Load Calculation for .......................	ACCA Manual J or
Winter and Summer	Manual N
Air Conditioning
Low Pressure, Low Velocity ........	ACCA Manual D or
Duct System Design	Manual Q

Winter and Summer Air Conditioning

FOR MORE INFORMATION, CONTACT THESE PUBLISHERS:

ACCA Air Conditioning Contractors of America

1712 New Hampshire Avenue

Washington, DC 20009

Telephone: [phone]

Fax: [phone]

ANSI	American National Standards Institute
	11 West Street, 13th Floor
	New York, NY 10036
	Telephone: [phone]
	Fax: [phone]

ASHRAE American Society of Heating, Refrigeration,

and Air Conditioning Engineers, Inc.

1791 Tullie Circle, N.E.

Atlanta, GA 30329-2305

Telephone: [phone]

Fax: [phone]

NFPA	National Fire Protection Association
	Batterymarch Park
	P.O. Box 9101
	Quincy, MA 02269-9901
	Telephone: [phone]
	Fax: [phone]

Manual	2100-549G
Page	3 of 59

GENERAL

The equipment covered in this manual is to be installed by trained, experienced service and installation technicians.

The I-TEC must be installed with the Bard manufactured IWS wall sleeve and ILG louver grille accessories. These are sold as separate accessories. Any substitutions will void the manufacturer’s warranty.

The unit is designed for use with or without ductwork. For use without ductwork, Plenum Box IPBDF8-color (8" height) or IPBDF12-color (12" height) is recommended.

These instructions explain the recommended method to install the air cooled self-contained unit and the electrical connections to it.

These instructions and any instructions packaged with any separate equipment required to make up the entire heating and air conditioning system should be carefully read before beginning the installation. Note particularly “Start Procedure” and any tags and/or labels attached to the equipment.

ANSI Z535.5 Definitions:

•Danger: Indicate[s] a hazardous situation which, if not avoided, will result in death or serious injury. The signal word “DANGER” is to be limited to the most extreme situations. DANGER [signs] should not be used for property damage hazards unless personal injury risk appropriate to these levels is also involved.

•Warning: Indicate[s] a hazardous situation which, if not avoided, could result in death or serious injury. WARNING [signs] should not be used for property damage hazards unless personal injury risk appropriate to this level is also involved.

•Caution: Indicate[s] a hazardous situation which, if not avoided, could result in minor or moderate injury. CAUTION [signs] without a safety alert symbol may be used to alert against unsafe practices that can result in property damage only.

•Notice: [this header is] preferred to address practices not related to personal injury. The safety alert symbol shall not be used with this signal word. As an alternative to “NOTICE” the word “CAUTION” without the safety alert symbol may be used to indicate a message not related to personal injury.

While these instructions are intended as a general recommended guide, they do not supersede any national and/or local codes in any way. Authorities having jurisdiction should be consulted before the installation is made. See Page 3 for information on codes and standards.

Size of unit for a proposed installation should be based on heat loss or heat gain calculation made according to methods of Air Conditioning Contractors of America (ACCA). The air duct should be installed in accordance with the Standards of the National Fire Protection Systems of Other Than Residence Type, NFPA No. 90A, and Residence Type Warm Air Heating and Air Conditioning Systems, NFPA No. 90B. Where local regulations are at a variance with instructions, installer should adhere to local codes.

Manual	2100-549G
Page	4 of 59

I-TEC Series General Information

I-TEC MODEL NOMENCLATURE

I 36 H

1 D A 0Z

R

P

4

X X

2

	MODEL				SYSTEM TYPE:
	SERIES
					HEAT PUMP
	NOMINAL					REVISION
	CAPACITY
	30	= 30,000 BTUH				SPECIAL UNITS
	36	=	36,000			(–) = Standard
	42	= 42,000				D = Dehum.
	48	=	48,000
	60	=	60,000

VOLTS & PHASE |

A= 230/208, 60-1

B= 230/208, 60-3

C= 460-60-3

CONTROLS

COLOR OPTIONS

ELECTRIC HEAT

X - Beige paint

X = 24V Terminal Block Only w/o

0Z = No heat w/breaker

1

- White paint

CompleteStat

04

= 4KW

1-Phase

4

- Gray paint

1 = CompleteStat THO (Temp,

05

= 5KW

1-Phase

Humidity & Occupancy)

06

= 6KW

3-Phase

2 = CompleteStat THO w/CO2

09

= 9KW

3-Phase

FILTER OPTIONS

3 = CompleteStat THO w/Ethernet

10

= 10KW 1-Phase

P = 2" Pleated MERV 8

4 = CompleteStat THO w/CO2 &

15

= 15KW 1 & 3-Phase

M = 2" Pleated MERV 11

Ethernet

18

= 18KW 3-Phase

N = 2" Pleated MERV 13

Note: CompleteStat must be field

20

= 20KW 1-Phase

installed & wired. All units have

24V terminal block.

VENTILATION OPTIONS

COIL TREATMENT

B = Blank-Off Plate

M = Multi-Speed CRV

X - Std. Hydrophilic Fin Evap. &

N = Comb. CRV & DB Economizer

Uncoated Alum. Cond. Coil

R = ERV

1 - Phenolic Coated ID Coil

RESERVED

2 - Phenolic Coated OD Coil

3 - Phenolic Coated ID & OD Coil

TABLE 1

FACTORY BUILT-IN ELECTRIC HEAT TABLE

	Models	I30H1-A		I30H1-B		I30H1-C	I36H1-A		I36H1-B		I36H1-C	I48H1-A		I48H1-B		I48H1-C	I60H1-A
							I42H1-A		I42H1-B		I42H1-C			I60H1-B		I60H1-C
	KW	240V-1	208V-1	240V-3	208V-3	460V-3	240V-1	208V-1	240V-3	208V-3	460V-3	240V-1	208V-1	240V-3	208V-3	460V-3	240V-1	208V-1
		BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH	BTUH
	4.0											13,652	10,239
	5.0	17,065	12,799				17,065	12,799				17,065	12,799				17,065	12,799
	6.0			20,478	15,359	20,478			20,478	15,359	20,478			20,478	15,359	20,478
	9.0			30,717	23,038	30,717			30,717	23,038	30,717			30,717	23,038	30,717
	10.0	34,130	25,598				34,130	25,598				34,130	25,598				34,130	25,598
	15.0						51,195	38,396	51,195	38,396	51,195	51,195	38,396	51,195	38,396	51,195	51,195	38,396
	18.0													61,434	46,076	61,434
	20.0											68,260	51,195				68,260	51,195

TABLE 1A

INDOOR BLOWER PERFORMANCE 1

			2			3	4
			Continuous	Rated 2nd	Rated 1st	5 - 9 KW	13.5 - 18
Model	Rated ESP	Max. ESP	CFM	Stage CFM	Stage CFM	CFM	KW CFM
I30H1	.15	0.50	500	900	650	700	1400
I36H1	.15	0.50	600	1150	850	700	1400
I42H1	.20	0.50	650	1300	950	700	1400
I48H1	.20	0.50	725	1500	1050	700	1400
I60H1	.20	0.50	850	1700	1200	700	1400

1 Motor will deliver consistent CFM through voltage supply range with no deterioration. 2 Continuous fan CFM is the total air being circulated during continuous fan mode.

3 Will operate at rated Full Load Airflow when operating with Heat Pump.

4Will occur automatically with a call for "W3" or "Emergency Heat" signal from the thermostat (Heat Pump Operation is terminated at this condition).

Manual	2100-549G
Page	5 of 59

TABLE 2

ELECTRICAL SPECIFICATIONS

					Single Circuit						Dual Circuit
		Rated	No. Field	Minimum	Maximum	Field		Minimum		Maximum		Field		Ground
	Model	Volts, Hertz	Power				Ground	Circuit		External Fuse		Power
				Circuit	External Fuse	Power								Wire
		and Phase	Circuits				Wire	Ampacity		or Ckt. Breaker		Wire Size
				Ampacity	or Ckt. Brkr.	Wire Size
								Ckt. A	Ckt. B	Ckt. A	Ckt. B	Ckt. A	Ckt. B	Ckt. A	Ckt. B
	I30H1-A0Z		1	22	35	8	10
	A05	230/208-1	1	48	50	8	10
	A10		1 or 2	74	80	4	8	48	30	50	30	8	10	10	10
	I30H1-B0Z		1	17	25	10	10
	B06	230/208-3	1	35	35	8	10
	B09		1	44	45	8	10
	I30H1-C0Z		1	9	10	14	14
	C06	460-3	1	18	20	12	12
	C09		1	22	25	10	10
	I36H1-A0Z		1	26	40	8	10
	A05	230/208-1	1	52	60	6	10
	A10		1 or 2	78	80	4	8	26	52	40	60	8	6	10	10
	1 A15		1 or 2	84	90	4	8	26	52	40	60	8	6	10	10
	I36H1-B0Z		1	22	30	10	10
	B06	230/208-3	1	40	45	8	10
	B09		1	49	50	8	10
	1 B15		1	51	60	6	10
	I36H1-C0Z		1	11	15	14	14
	C06	460-3	1	20	20	12	12
	C09		1	24	25	10	10
	1 C15		1	28	30	10	10
	I42H1-A0Z		1	30	45	8	10
	A05	230/208-1	1	56	60	6	10
	A10		1 or 2	82	90	4	8	56	26	60	30	6	10	10	10
	1 A15		1 or 2	82	90	4	8	56	52	60	60	6	6	10	10
	I42H1-B0Z		1	25	35	8	10
	B06	230/208-3	1	43	50	8	10
	B09		1	52	60	6	10
	1 B15		1	52	60	6	10
	I42H1-C0Z		1	12	15	14	14
	C06	460-3	1	21	25	10	10
	C09		1	26	30	10	10
	1 C15		1	28	30	10	10
	I48H1-A0Z		1	34	50	8	10
	A04		1	54	60	6	10
	A05	230/208-1	1 or 2	59	70	6	8	35	26	45	30	8	10	10	10
	A10		1 or 2	85	90	3	8	35	52	45	60	8	6	10	10
	1 A15		1 or 2	85	90	3	8	35	52	45	60	8	6	10	10
	1 A20		1 or 2	110	110	2	6	59	52	60	60	6	6	10	10
	I48H1-B0Z		1	26	35	8	10
	B06		1	44	50	8	10
	B09	230/208-3	1	53	60	6	10
	1 B15		1	53	60	6	10
	1 B18		1	53	60	6	10
	I48H1-C0Z		1	15	20	12	12
	C06		1	25	30	10	10
	C09	460-3	1	29	30	10	10
	1 C15		1	29	30	10	10
	1 C18		1	29	30	10	10
	I60H1-A0Z		1	44	60	8	10
	A05		1 or 2	70	80	4	8	44	26	60	30	8	10	10	10
	A10	230/208-1	1 or 2	96	100	3	8	44	52	60	60	8	6	10	10
	1 A15		1 or 2	96	100	3	8	44	52	60	60	8	6	10	10
	1 A20		1 or 2	112	120	2	6	60	52	60	60	6	6	10	10
	I60H1-B0Z		1	31	45	8	10
	B06		1	49	60	8	10
	B09	230/208-3	1	58	60	6	10
	1 B15		1	58	60	6	10
	1 B18		1 or 2	63	70	6	8	31	54	45	60	8	6	10	10
	I60H1-C0Z		1	15	20	12	12
	C06		1	25	30	10	10
	C09	460-3	1	29	30	10	10
	1 C15		1	29	30	10	10
	1 C18		1	29	30	10	10

These “Minimum Circuit Ampacity” values are to be used for sizing the field power conductors. Refer to the National Electric Code (latest revision), article 310 for power conductor sizing.

Caution: When more than one field power conductor circuit is run through one conduit, the conductors must be derated. Pay special attention to note 8 of table 310 regarding Ampacity Adjustment Factors when more than three conductors are in a raceway.

Maximum size of the time delay fuse or HACR type circuit breaker for protection of field wiring conductors. Based on 75°C copper wire. All wiring must conform to the National Electrical Code and all local codes. Maximum KW that can operate with heat pump on is 10KW for 1-Phase and 9KW for 3-Phase.

1 Represents Electric Heat Only. Electrical Control Circuit will lockout Heat Pump Operation.

Manual	2100-549G
Page	6 of 59

Page	Manual
59 of 7	549G-2100

						FIGURE 1
						UNIT DIMENSIONS
Top View					47 85 " Total Width
1				46 81 " With Sides Removed
			1			20" x 24" Supply Frame
3 4	"	11	4	"	20"	Unit Specification Sheet
28 41 "						26 43 "
	24"					3
						31 8 "
						Total Depth

2 41 "	Low Voltage
	Entrance

Front View

(2) 2"x24"x30" Return Air Filters

Control Panel

(2) Washable

Vent Intake

Air Filters

(2) 12" x 20" Vent Exhaust Air Filters

2"			High Voltage
11	7	"	Entrance
	8
Electric Heat
			Wire Channel
			(4) Lift-Off
			Hinges
			Locking
			Door Latch	94"
				Total
			Electrical	Height
			Disconnect

71 34 " 58" Upper

Section

				Locking
				Door Latch
											22			1	"
														4
						15		5		"	Lower
1								8			Section
			13 4			"

Right Side View

30" With Doors and

Sides Removed

Front Forklift Holes	Side Forklift Holes
(Remove Front Trim)	(Remove Sides)

(2) Return	Supply	Back View
Openings
	Air
Outer
Sleeve
Return		Return
Air		Air
		Outer
		Sleeve
Inner
Sleeve		Inner
		Sleeve

			71 21 "
				(2) Side
				Handles
				(2) Unit
				Drains
							(2) Opt.
24	1	"					Unit Drain
	2						Entrances
				8"
	3	3	"	3	81	"	3 81 "
		4

MIS-2917 A

SHIPPING DAMAGE

Upon receipt of equipment, the unit should be checked for external signs of shipping damage. The skid must remain attached until the unit is ready for installation. If damage is found, the receiving party must contact the last carrier immediately, preferably in writing, requesting inspection by the carrier’s agent.

UNIT REMOVAL FROM SKID

WARNING

This unit is heavy and requires more than one person to handle during installation and removal from the skid. Extreme caution must be taken to prevent injury to personnel and damage to the unit. Use appropriate safety equipment, including gloves when handling. Failure to do so may result in serious injury.

A forklift or a lift rated for the load (Figure 2A) is required to lift the unit off from the skid. This unit is top heavy and should never be tipped while moving it.

The I-TEC is designed to be lifted off the skid from the front or rear of the unit without having to remove any doors or side panels. See Figure 1 for fork openings. The shipping brackets on front and rear of the unit must be removed and discarded. The unit can now be lifted straight up and the skid can be slid out from underneath.

Tip unit from left side only.

Failure to do so may result in injury due to unit top-heaviness or compressor damage!

FIGURE 2A — UNIT ON LIFT

HANDLING UNIT AFTER REMOVAL FROM SKID

If a wide and tall enough opening exists, the I-TEC can be moved as a complete assembled unit. If not, it is designed to break down into two sections to allow it to pass through a 36 inch wide door.

1.Depress & release both top & bottom door latches and open doors.

2.Remove the doors by lifting straight up and off from the hinge pins.

3.Remove cabinet sides by first removing the four (4) sheet metal screws from the front (leading edge) of the side panel. The panel will not fall off. Swing the panel away from the chassis 20 to 30 degrees & then pull forward from the two (2) tabs supporting the rear edge.

4.On each side of the unit is a tie plate that secures the top and bottom sections with four (4) cap bolts. Using a ½ inch wrench or socket, remove these screws from both plates and set aside.

5.If the unit is equipped with a CRV or ERV, you must unplug the wire harness on the left-hand side of the control box.

6.A forklift or a lift rated for the load is required to lift the top section off from the bottom base. Do not attempt to do this manually. Failure to do so could result in the unit tipping over & causing bodily injury and/or damage to the unit.

7.The top section can be forked from either the RH or LH side. See Figure 1 for fork openings.

8.Carefully lift the top section straight up avoiding tipping.

9.Move the top section through the doorway and place on flat surface free of debris.

10.The bottom base can now be moved through the doorway the same way.

11.Reassemble the unit by reversing this procedure.

FIGURE 2B UNIT SIDE

É

ERV/CRV

HARNESS CONNECTION

		(4) CAP BOLTS
	FORK OPENING	É
	(Visible after
	removing tie plate)	É
		É

TIE PLATE

(Covers entire width; shortened for illustration purposes to show Fork Openings)

Manual	2100-549G
Page	8 of 59

REQUIRED STEPS AFTER FINAL PLACEMENT SECURING UNIT TO STRUCTURE

The compressor is secured to the base with two (2) bolts for shipping. Although the unit will perform as designed with the shipping bolts in place, there may be a noticeable additional noise and vibration noted. To obtain the lowest noise and vibration levels, remove the shipping bolts after the unit is in its final operating location. To gain access to the compressor, the compressor access panel must be removed (Figure 9). Once this panel is removed, the CRV/ERV air duct must be removed. See Figure 6.

The air duct is removed by pulling it straight toward you; there are no screws securing it in place. Both the top and bottom slide toward you at the same time (pull hard). Once removed, the compressor is visible as well as the tags on the shipping bolts (Figure 5).

After the compressor shipping bolts have been removed, the CRV/ERV air duct can be slid back in place and the compressor access panel attached.

MINIMUM INSTALLATION HEIGHT

The minimum installation height to the bottom of the roof or fixed ceiling for ducted applications is 9 ft. 7 in. This provides enough clearance to install the duct work. See Figure 7A.

The IWS Series wall sleeve has a built-in vertical adjustment to fit window sill heights from 31-34 inches. If additional height is required, two riser platform accessories are available. The IRP3 increases the unit height by 3 inches (Figure 7B) and the IRP6 by 6 inches (Figure 7C).

Several construction options are available for unit installation of the IZ Series. Serviceability and filter access must be considered before installing. See Figure 5D for required clearances and recommended service access dimensions.

Shipped with the I-TEC unit is a wall mounting bracket (screwed to shipping skid on backside of unit). This bracket can be utilized to secure the top portion of the unit to the wall using the appropriate field supplied hardware based upon the material you are fastening to.

(There are several offset holes, sized to accept up to a 1/4" diameter fastener that will easily allow you to hit studs on a framed wall.) See BRACKET SECTION VIEW for locating this top wall bracket which will need to be applied after the unit is located in the final position.

Additional/optional mounting holes for up to a 3/8" diameter fastener are also available in the backside of the unit. These can be accessed by:

•removing the air filters for the uppermost set

•removing the compressor section service door for the lower set

Refer to WOOD FRAMED INSTALLATION for additional framing required to secure unit to wall.

The additional/optional mounting holes will require a long extension to drive the fasteners.

SEISMIC CONSIDERATIONS

The I-TEC product features several locations for product securement but all site conditions are different. Consult with a licensed Seismic Engineer to advise of particular needs when attaching the I-TEC unit to the structure.

WALL MOUNTING BRACKET LOCATION

	2"
1 11/16"	43 3/8"

Ø1/4" BRACKET

3/4"

1 1/2"

7/8"

94" FROM BOTTOM OF BRACKET TO FLOOR WITHOUT RISER KIT

MIS-3029

Manual	2100-549G
Page	9 of 59

BRACKET WALL SECTION VIEW

		Optional
		Duct
			Optional Top		3				3"
		Outside	Bracket
	Ceiling				43 8	"
		Wall
			(4) optional Unit
	Optional		Mounting holes
		Telescoping		7			7
	Trim or		20		"	20		"	6"
		Wall Sleeve**		8			8
	Supply Duct
			Sleeve Mounting
	Box
			Hole Locations
			Centered on			Centered
			Opening

Outside					20"
			42-3/4" Min.
Wall
			43-1/4" Max.							94 81 "
		48" Min.			49		3	"
		48-1/2" Max.					8		21
Grille					20"			56		"
	Centered
	(4) optional Unit
	Mounting holes
Unit
	8"	20	7	8"	4	1611 "
31" Min.*			8 "
	1 1615 "
34" Max.								29	17	"
	*	20"		20"					32
	31" Min.
Floor	34" Max.		43 87 "
				Room Floor Level

		C	C
		L	L
	18 3/4	7 3/8	17.5"
	Right Side View		35"
		Front (Wall Only) View

*Higher Sill Heights Acheivable With Base Kit.

**Separate telescoping sleeves available for different wall thicknesses.

FLOOR MOUNTING HOLE & CENTERLINES

MIS-2918 C

WOOD FRAMED INSTALLATION (for Wall Attachment)

41.75

Inner wall

(4) Upper fastener holes

6.00

Unit

(4) lower fastener holes

56.50

8.00

29.56*

20.88

36.88 8.00

Floor * Height dimension shown without riser kit. If unit uses riser kit add appropriate dimension to height.

MIS-3072

Manual	2100-549G
Page	10 of 59

FIGURE 3

CENTER OF GRAVITY

CENTER OF GRAVITY

"Z"

"X"

"Y"

MIS-3269

	FRONT OF UNIT	LEFT SIDE	FLOOR TO CENTER	FLOOR TO CENTER
UNIT TESTED	DOOR TO CENTER	TO CENTER	CRV & ERV	NO VENT
	"X" Dimension	"Y" Dimension	"Z" Dimension	"Z" Dimension
I30H1-A, -B	14"	24"	43½"	47"
I30H1-C	14"	24¼"	43½"	47"
I36H1-A, -B	14"	24"	43½"	47"
I36H1-C	14"	24¼"	43½"	47"
I42H1-A, -B	14"	24"	43½"	47"
I42H1-C	14"	24¼"	43½"	47"
I48H1-A, -B	14"	24"	43½"	47"
I48H1-C	14"	24¼"	43½"	47"
I60H1-A, -B	14"	24"	43½"	47"
I60H1-C	14"	24¼"	43½"	47"

Manual	2100-549G
Page	11 of 59

FIGURE 4

REQUIRED CLEARANCES & RECOMMENDED ACCESS

WING WALL CONSTRUCTION TOP VIEW

12" MIN.		12" MIN.
CLOSET CONSTRUCTION TOP VIEW
		31 3/8"
12" MIN.		12" MIN.
12" MIN.	12" MIN.	RECOMMENDED SERVICE
			ACCESS DIMENSIONS
		12" MIN.	12" MIN.
48" MIN.		FOR LEFT	FOR RIGHT
		SIDE	SIDE
		ACCESS	ACCESS
LEFT CORNER CONSTRUCTION TOP VIEW

		FILTERS
		24" MIN.	24" MIN.
	0" REQUIRED		48"
	12" RECOMENDED
		MIN. FOR
		FILTER ACCESS
	RIGHT CORNER CONSTRUCTION TOP VIEW

0" REQUIRED

12" RECOMENDED

MIS-3273

Manual	2100-549G
Page	12 of 59

FIGURE 5

COMPRESSOR SHIPPING BOLTS

COMPRESSOR SHIPPING BOLT

É

COMPRESSOR

SHIPPING BOLT

É

FIGURE 6

REMOVAL OF AIR DUCT

CRV / ERV

AIR DUCT

Manual	2100-549G
Page	13 of 59

Page	Manual
of 14	2100
59	549G-

		FIELD SUPPLIED DUCT
	BOTTOM OF ROOF	TURNING VANES
	OR FIXED CEILING
		RECOMMENDED

SUSPENDED	20"
CEILING	MINIMUM

7'-9 3/4" UNIT HEIGHT

12" MINIMUM

4" MINIMUM FROM TOP OF UNIT TO DUCT BOTTOM

9'-7" MINIMUM

CLEARANCE RECOMMENDED TO BOTTOM OF ROOF OR FIXED CEILING

9'-2" MINIMUM REQUIRED INSTALLATION HEIGHT

FLOOR

MIS-2958 B

– APPLICATION DUCTED	7A FIGURE
UNIT BASIC

Page	Manual
59 of 15	549G-2100

BOTTOM OF ROOF

OR FIXED CEILING

SUSPENDED

20"

CEILING

MINIMUM

7'-9 3/4" UNIT HEIGHT

3" RISER

FIELD SUPPLIED DUCT

TURNING VANES

RECOMMENDED

12" MINIMUM

4" MINIMUM FROM TOP OF UNIT TO DUCT BOTTOM

9'-10" MINIMUM	9'-5"
CLEARANCE	MINIMUM
RECOMMENDED TO	REQUIRED
BOTTOM OF ROOF	INSTALLATION
OR FIXED CEILING	HEIGHT

FLOOR

MIS-2989 B

7B FIGURE APPLICATION RISER 3"

Page	Manual
of 16	2100
59	549G-

BOTTOM OF ROOF		FIELD SUPPLIED DUCT
OR FIXED CEILING		TURNING VANES
		RECOMMENDED

SUSPENDED	20"
CEILING	MINIMUM

7'-9 3/4" UNIT HEIGHT

12" MINIMUM

4" MINIMUM FROM TOP OF UNIT TO DUCT BOTTOM

10'-1" MINIMUM CLEARANCE RECOMMENDED TO BOTTOM OF ROOF OR FIXED CEILING

9'-8" MINIMUM REQUIRED INSTALLATION HEIGHT

FLOOR

6" RISER

MIS-2988 B

7C FIGURE APPLICATION RISER 6"

DUCT WORK

Any heat pump is more critical of proper operating charge and an adequate duct system than a straight air conditioning unit. All duct work must be properly sized for the design airflow requirement of the equipment. Air Conditioning Contractors of America (ACCA) is an excellent guide to proper sizing. All duct work or portions thereof not in the conditioned space should be properly insulated in order to both conserve energy and prevent condensation or moisture damage. When duct runs through unheated spaces, it should be insulated with a minimum of one inch of insulation. Use insulation with a vapor barrier on the outside of the insulation. Flexible joints should be used to connect the duct work to the equipment in order to keep the noise transmission to a minimum.

The I-TEC series heat pump has provision to attach a supply air duct to the top of the unit. Duct connection size is 20 inches x 24 inches. The flanges are shipped flat and must be bent upward using sheet metal flanging pliers. The duct work is field supplied. See Figure 8 for suggested attachment method.

Make sure to seal the slots in the bend-up flange at the time of securing your ductwork to the flange. This can be accomplished with either foil tape or caulk. Failing to do so may cause air leakage/whistling of air.

FIGURE 8

SUPPLY DUCT CONNECTIONS

20"	SUPPLY DUCT AND
24"	FASTENERS TO BE

FIELD SUPPLIED

BEND THE PROVIDED

SUPPLY FRAME FLANGES

UP FOR DUCT INSTALLATION

a floor mounted install (9'-9" with IRP3 riser & 10'-0" with IRP6 riser). The ICX10 extends 28" above the unit for a total height of 10'-2" for a floor mounted install (10'-5" with IRP3 riser & 10'-8" with IRP6 riser).

The unit is equipped with a variable speed indoor blower motor which increases in speed with an increase in duct static pressure. The unit will therefore deliver proper rated airflow up to the maximum ESP shown in Table 1A. However, for quiet operation of the air system, the duct static should be kept as low as practical, within the guidelines of good duct design.

FILTERS

Two 2-inch throw away filters (24 x 30) and two 1- inch throw away filters (12 x 20) are supplied with each unit. The 2-inch filters slide into brackets on both sides for the return air openings. The 1-inch filters are in the cabinet doors for the vent (room air) exhaust. If a CRV or ERV vent option is used, there are two (2) additional ½" (8 x 17) washable filters included with that option. See Figure 9 for specific locations. The filters are serviced from the inside of the building by opening the cabinet doors, and do not require any tools to access.

FIGURE 9

FILTER LOCATION

	24" X 30" X 2"
	FILTERS
É	INDOOR	É
	BLOWER
	ACCESS

MIS-2959

NOTE: Unit cabinet, supply air duct and duct free plenum are approved for “0” clearance to combustible material.

The I-TEC series heat pumps are designed for use with free return (non-ducted) and either duct free with the use of IPBDF Series Plenum Box (8" or 12") or a duct supply air system.

The IPBDF Plenum Box mounts on top of the unit and has both vertically and horizontally adjustable louvers on the front discharge grille.

When used with a ducted supply, an ICX9 or ICX10 Cabinet Extension may be used to conceal the ductwork above the unit to the ceiling. The ICX9 extends 20" above the unit for a total height of 9'-6" for

É

	COMPRESSOR
	ACCESS
	ACCESS TO
	WASHABLE
	FILTERS
É	É

VENT

OPTION

ACCESS

12" X 20" X 1"

FILTERS

É

Manual	2100-549G
Page	17 of 59

CONDENSATE DRAIN

There are two condensate drain connections from the condenser drain pan (compressor area). These are visible from the rear of the unit. Factory installed tubing connects the two drains at a tee connection and then a single drain hose with a barbed hose connector carries the condensate to the draining option of your choice. Enough tubing is provided to reach all drain options and can be cut down in length.

The unit is shipped from the factory with the drain line on the left-hand side as you look at the rear of the unit. The tubing can be removed from the drain connections and flipped for a right-hand drain. See Figure 10.

The drain can be routed directly through the floor or through the wall. There are also two optional drain locations in the lower rear back panel. See Figure 8.

The I-TEC design does not require a trap in the condensate disposal tubing. Check your local codes to see if a “P” trap is required.

For a stand pipe floor drain or through the wall, there is adequate hose length to reach anything located behind the unit. The lower rear portion of the cabinet is recessed approximately 4 inches allowing room for a “P” trap to be installed with the cabinet flush with the wall. Keep in mind, the drain line must be able to be removed from the unit if necessary to remove the unit from the wall.

Access plates are located on the rear of the unit for servicing the drain trap. See Figure 10. If the drain line is to be routed through an unconditioned space, it must be protected from freezing.

The condensate drain line can also be routed back into the unit through either the right-hand or left-hand optional drain locations on the rear of the unit. The hole is covered by insulation on the inside of the unit and will have to be cut away. Located inside the unit, about 12 inches in from the front on both the left and right side are drain holes in the bottom of the base. These holes are covered with insulation and are not visible. They are located very close to the side panels and can be found by pressing down on the insulation. Cut insulation away to expose the hole. A drain trap can now be installed inside of the cabinet, and the drain hose routed directly through the floor.

Once the I-TEC is installed, the rear drains exiting the condenser section can be easily serviced with removal of the pre-painted metal sides (lift-off doors, remove four [4] screws to remove side).

If side access is not available, the drain lines and trap can be serviced by removing either one of the drain access panels on the rear of the unit (in the ventialtion package area.) See Figure 10.

WITH NO VENT OPTION

To access the drain access panels in the rear of this section, simply remove the front door/cover from the box, and the plates are located in the rear of the box.

WITH COMMERCIAL ROOM VENTILATOR

1.Open hinged front doors.

2.Disconnect unit power to eliminate shock hazard.

3.Remove front cover/door of CRV vent package. (Can leave filter access panels in place.)

4.Unplug wires coming in on left side from upper unit section.

5.Unplug two wire harness from front (intake) blower.

6.Remove two (2) screws securing front (intake) blower and slide blower out of unit.

7.Remove four (4) screws that retian the partition behind/beneath intake blower removed in Step #6.

8.Rear drain access panels are now visible on both right-hand and left-hand sides in rear of box.

WITH ENERGY RECOVERY VENTILATOR

To access the rear drain access panels of this section:

1.Open hinged front doors.

2.Disconnect unit power to eliminate shock hazard.

3.Remove front cover/door of ERV vent package. (Can leave filter access panels in place.)

4.Unplug wires coming in on left side from upper unit section.

5.Unplug heat recovery cassette on the side you wish to access, and slide cassette out the front of the unit.

6.Remove two (2) screws securing partition on outboard side of cassette and remove.

7.Rear drain access panels are now visible on both right-hand and left-hand sides in rear of box.

FIGURE 10 — DRAIN LOCATIONS

(2) Unit Drains

Drain Access

Locations

8"

3 83 "	3 83 "
(2)	Optional
Unit Drain
Entrances
(2)OPTIONAL
DRAIN HOLES	WALL

	7 3/16"
16 1/2"
	18 3/4"
OPTIONAL FLOOR
MOUNTING HOLES
35"
40 43 "	MIS-2960 B

Manual	2100-549G
Page	18 of 59

FIGURE 11A

UNIT MOUNTING

Use (12) Field Supplied Concrete or Wood Screws to Secure Outer Sleeve to Structure.

IMPORTANT!

Apply liberal amount of caulk to back of flange before installing.

Use (6) 3/4" Long

REF. Self Tapping Screws

A to Attach Inner Sleeve

to Outer Sleeve

IMPORTANT!

Apply Caulk bead to entire perimeter seam between inner and outer sleeve.

Use (12) 3/4" Long

REF. Self Tapping Screws

Bto Attach Inner Sleeve to Unit Back

Use (6) 3/4" Long

REF. Screws to Attach

C Exhaust Sleeve to

Unit Fan Shroud

REF.

(16) 5/16" - 3/4" SELF TAPPING A AND B

	(6) 5/16" - 3/4" NON-TAPPING	REF.
		C
	(4) 5/16" - 1/2" NON-TAPPING	REF.
		D

IMPORTANT!

Use care when inserting screws to not damage gasketing material. Doing so may compromise water seal between unit and sleeve.

Pull Inner Frame

Out Until Flush

With Grille Mounting

Angle

Use (4) 1-1/2" Long Screws to Attach Louver Grille to Outer Sleeve.

Use (4) 1/2" Long

Screws to Attach

REF. frame to Exhaust

D Sleeve

MIS-3014

Manual	2100-549G
Page	19 of 59

OUTSIDE WALL (INSULATED)

AREA BETWEEN WALL AND SLEEVE (INSULATED)

OUTDOOR GRILLE

SLEEVE

FILL INSULATION

DRAIN AREA INSULATED WITH 6" BATT MATERIAL

FIGURE 11B

UNIT MOUNTING

INSIDE WALL (SIZE VARIES)

I-TEC UNIT

INTERIOR FLOOR

MIS-2928 B

Manual	2100-549G
Page	20 of 59

INSTALLATION INSTRUCTIONS

MOUNTING THE UNIT

The wall sleeve is attached to the I-TEC unit from the outside of the building. See Figures 11A & 11B. Refer to wall sleeve Manual 2100-562 supplied with sleeve.

Following are the steps for attaching the I-TEC to the wall sleeve.

1.Lift the unit into place making sure that it is aligned side to side.

2.Push the unit back until the rear panel touches the sleeve gasket.

3.This unit must be level from side to side and from front to back. If adjustments are necessary, shim up under the base rails with sheets of metal or any substance not affected by moisture.

4.Attach the sleeve to the unit using the ten (10) ¾" long self-tapping screws supplied with the sleeve.

5.The exhaust sleeve has three (3) ¾" long screw slots in each side flange. Line these up with the screw engagement holes in the fan panel. Attach using six

(6)¾" long pointed sheet metal screws supplied with the sleeve. Extend the sleeve out until it is flush with the louver grill attachment angles.

6.Lock the sleeve in place using two (2) ½" long pointed sheet metal screws on each side by shooting through the slot into a pre-punched hole.

7.A bottom trim piece is shipped loose for installation beneath the doors. Attach the trim piece to the unit with screws provided.

8.The compressor is secured to the base with two

(2)bolts for shipping. Both bolts are identified with a tag. Remove shipping bolts (Figure 5).

WIRING – MAIN POWER

Refer to the unit rating plate and/or Table 2 for wire sizing information and maximum fuse or “HACR Type” circuit breaker size. Each unit is marked with a “Minimum Circuit Ampacity”. This means that the field wiring used must be sized to carry that amount of current. Depending on the installed KW of electric heat, there may be two field power circuits required. If this is the case, the unit serial plate will so indicate. All models are suitable only for connection with copper wire. Each unit and/or wiring diagram will be marked “Use Copper Conductors Only suitable for at least 75°C”. THESE INSTRUCTIONS MUST BE ADHERED TO. Refer to the National Electrical Code (NEC) for complete current carrying capacity data on the various insulation grades of wiring material. All wiring must conform to NEC and all local codes.

The electrical data lists fuse and wire sizes (75°C copper) for all models, including the most commonly used heater sizes. Also shown are the number of field power circuits required for the various models with heaters.

The unit rating plate lists a “Maximum Time Delay Relay Fuse” or “HACR Type” circuit breaker that is to be used with the equipment. The correct size must be used for proper circuit protection, and also to assure that there will be no nuisance tripping due to the momentary high starting current of the compressor motor.

See “START UP” section for information on three phase scroll compressor start-ups.

The field wiring conduit connections are located on the top right-hand corner of the unit with a wire raceway to feed the wires down to the circuit breaker(s). See Figure 12.

FIGURE 12

COMPONENT LOCATION

ELECTRIC HEAT

WIRE RACEWAY

INDOOR BLOWER

EVAPORATOR COIL

LOW VOLTAGE

CONTROL PANEL

REFRIGERANT PORT

CONDENSER COIL

OUTDOOR FAN

COMPRESSOR

VENT OPTION

Manual	2100-549G
Page	21 of 59

WIRING – LOW VOLTAGE WIRING

230/208V, 1 PHASE AND 3 PHASE EQUIPMENT DUAL PRIMARY VOLTAGE TRANSFORMERS.

All Equipment leaves the factory wired on 240V tap. For 208V operation, reconnect from 240V to 208V tap. The acceptable operating voltage range for the 240 and 208V taps are as noted in Table 3.

TABLE 3 — OPERATING VOLTAGE RANGE

TAP	RANGE
240V	253 – 216
208V	220 – 187

NOTE: The voltage should be measured at the field power connection point in the unit and while the unit is operating at full load (maximum amperage operating condition).

The standard unit includes a remote thermostat connection terminal strip. See Figures 13 through 19 for connection diagrams. Compatible thermostats are listed in Table 4.

TABLE 4 — WALL THERMOSTATS

	Thermostat	Predominant Features
		3 stage Cool; 3 stage Heat
	8403-060	Programmable/Non-Programmable Electronic
	(1120-445)	HP or Conventional
		Auto or Manual changeover
	8403-067	Carbon Dioxide Sensor with LCD for
	(CDT-2W40-LCD-RLY)	Sensor Readings
		3 Stage Heat, 3 Stage Cool, Prog/NonProg, HP or Conv,
	CS9B-THO	Auto or Manual Changeover, Humidity Sensor w/
		dehumidification, Motion Sensor w/ Intelligent Learning
		Control, BACnet-compatible
		3 Stage Heat, 3 Stage Cool, Prog/NonProg, HP or Conv,
	CS9B-THOC	Auto or Manual Changeover, Humidity Sensor w/
		dehumidification, CO2 Sensor, Motion Sensor w/
		Intelligent Learning Control, BACnet-compatible
		3 Stage Heat, 3 Stage Cool, Prog/NonProg, HP or Conv,
	CS9BE-THO	Auto or Manual Changeover, Humidity Sensor w/
		dehumidification, Motion Sensor, Intelligent Learning
		Control, BACnet-compatible, Ethernet-compatible
		3 Stage Heat, 3 Stage Cool, Prog/NonProg, HP or Conv,
		Auto or Manual Changeover, Humidity Sensor w/
	CS9BE-THOC	dehumidification, CO2 Sensor, Motion Sensor w/
		Intelligent Learning Control, BACnet-compatible,
		Ethernet-compatible

LOW VOLTAGE CONNECTIONS

These units use a grounded 24 volt AC low voltage circuit. “G” terminal is the fan input.

“Y1” terminal is the compressor part load input. “Y2” terminal is the compressor full load input.

“B/W1” terminal is the reversing valve input.

The reversing valve must be energized for heating mode.

“R” terminal is 24 VAC hot.

“C” terminal is 24 VAC grounded.

“L” terminal is compressor lockout output. This terminal is activated on a high or low pressure trip and condensate overflow trip by the electronic heat pump control. This is a 24 VAC output.

“W2” terminal is first stage electric heat (if equipped). First stage electric heat can be operated simultaneously with the heat pump operating.

“A” terminal is the ventilation input. This terminal energizes any factory installed ventilation option.

“W3” terminal is second stage electric heat. When “W3” terminal is energized, it locks out compressor operation to limit discharge air temperature and required branch circuit ampacity.

“D” terminal is the dehumidification mode (on models so equipped).

NOTE: For total and proper control using DDC, a minimum of 9 controlled outputs are needed when above 10KW Electric Heat is employed with ventilation, a total of 8 controlled outputs with below 10KW Electric Heat with Ventilation, 7 controlled outputs below 10KW Electric Heat with no ventilation, 7 controlled outputs with no Electric Heat, but with ventilation, and 6 controlled outputs with no electric heat and no ventilation. If Dehumidification Model & Vent, 10 controlled outputs are needed when above 10KW Electric Heat is employed with ventilation.

LOW VOLTAGE CONNECTIONS FOR DDC CONTROL

Fan Only

Cooling Part Load

Cooling Full Load

HP Heating Part Load

HP Heating Full Load

HP Heating Full Load + Electric Heat

(up to 10KW)

Heating with Bank #1 Electric Heat Only

Emergency Heat (Heat pump operation is negated for this condition)

Ventilation

Dehumidification *

* Models with Dehumidification Only

Energize G

Energize G, Y1

Energize G, Y1, Y2

Energize G, Y1, B/W1

Energize G, Y1, Y2, B/W1

Energize G, Y1, Y2, B/W1, W2

Energize G, W2

Energize G, W2, W3

Energize A

Energize G, D

GENERAL

This unit is equipped with a variable speed ECM motor. The motor is designed to maintain rated airflow up to the maximum static allowed. It is important that the blower motor plugs are not plugged in or unplugged while the power is on. Failure to remove power prior to unplugging or plugging in the motor could result in motor failure.

CAUTION

Do not plug in or unplug blower motor connectors while the power is on. Failure to do so may result in motor failure.

Manual	2100-549G
Page	22 of 59

FIGURE 13

BASIC HEAT PUMP WITH NO VENTILATION PACKAGE

SC	SC	SC
Completestat
Model #CS9B-THO or
Model #CS9BE-THO
24V	COM	G	Y1	Y2	O/B W2 W1/E	L	A	D
							2	3

	Thermostat	R	C	G	Y1	Y2 O/B W2 W1/E	L	A	YO/D
	Bard #8403-060
								2	3

Low
R	RT	C	G	Y1	Y2 B/W1 W2 W3	L	A	D	6	3	4

Voltage

Term. Strip

1

1Factory installed jumper. Remove jumper and connect to N.C fire alarm

2Not needed below 15KW

3 Additional wire required for dehumidification models

MIS-3016

Manual	2100-549G
Page	23 of 59

FIGURE 14

HEAT PUMP WITH CRV, WITHOUT CO2 CONTROL

SC SC SC

Completestat

Model #CS9B-THO or

Model #CS9BE-THO

24V COM G

Y1

Y2 O/B W2 W1/E

L

A

D

2

3

	Thermostat	R	C	G	Y1	Y2 O/B W2 W1/E	L	A	YO/D
	Bard #8403-060
								2	3

Low

R

RT

C

G

Y1

Y2

B/W1 W2

W3

L

A

D

6

3

4

Voltage

Term. Strip

1

5

4

RED/WHITE

BLACK/WHITE

ORANGE

BROWN/WHITE

CRV Wiring Harness

1Factory installed jumper. Remove jumper and connect to N.C fire alarm circuit if emergency shutdown required.

4 Connect to "G" terminal when thermostat has "Occupancy Signal".

2Not needed below 15KW.

3Additional wire required for dehumidification models.

5Install a jumper between "G" and "A" only when thermostat without "Occupance Signal" is used.

MIS-3017

Manual	2100-549G
Page	24 of 59

FIGURE 15

HEAT PUMP WITH CRV AND CO2 CONTROL

SC SC SC

Completestat

Model #CS9B-THO or

Model #CS9BE-THO

24V COM G

Y1

Y2 O/B W2 W1/E

L

A

D

								2		3
										NOTE: Bard 8403-060
										thermostat must be
	Thermostat	R	C	G	Y1	Y2 O/B W2 W1/E	L	A	YO/D	in programmed
										operation mode and
	Bard #8403-060
										in programmed fan
										mode for ventilation
										to function.
								2		3

	Low	R	RT	C
	Voltage
	Term. Strip
			1
	RED/WHITE
	BLACK/WHITE
	ORANGE
	BROWN/WHITE

G

Y1

Y2 B/W1 W2 W3

L

A

D

6

3

4

5 2

4

1

5

CRV Wiring Harness

1Factory installed jumper. Remove jumper and connect to N.C fire alarm circuit if emergency shutdown required.

2Not needed below 15KW.

3Additional wire required for dehumidification models.

6	6

6 CO2 Control

Bard #8403-067

4Connect to "G" terminal when thermostat has "Occupancy Signal".

5Install a jumper between "G" and "A" only when thermostat without "Occupance Signal" is used.

6If CS9B-THOC or CS9BE-THOC is used, connect "Brown/White" directly to "A" and do not use seperate CO2 controller.

MIS-3018

Manual	2100-549G
Page	25 of 59

FIGURE 16

HEAT PUMP WITH ERV, WITHOUT CO2 CONTROL

SC SC SC

Completestat

Model #CS9B-THO or

Model #CS9BE-THO

24V COM G

Y1

Y2 O/B W2 W1/E

L

A

D

								2		3
										NOTE: Bard 8403-060
										thermostat must be
	Thermostat									in programmed
		R	C	G	Y1	Y2 O/B W2 W1/E	L	A	YO/D	operation mode and
	Bard #8403-060
										in programmed fan
										mode for ventilation
										to function.
								2		3

Low

R

RT

C

G

Y1

Y2

W2

W3

L

A

D

6

3

4

Voltage

B/W1

Term. Strip

1

5

4

RED/WHITE

BLACK/WHITE

ORANGE

BROWN/WHITE

PINK

PURPLE

ERV Wiring Harness

1Factory installed jumper. Remove jumper and connect to N.C fire alarm circuit if emergency shutdown required.

4 Connect to "G" terminal when thermostat has "Occupancy Signal".

2Not needed below 15KW.

3Additional wire required for dehumidification models.

5Install a jumper between "G" and "A" only when thermostat without "Occupance Signal" is used.

MIS-3019

Manual	2100-549G
Page	26 of 59

FIGURE 17

HEAT PUMP WITH ERV AND CO2 CONTROL (ON/OFF CYCLING)

SC SC SC

Completestat

Model #CS9B-THO or

Model #CS9BE-THO

24V COM G

Y1

Y2 O/B W2 W1/E

L

A

D

								2		3
										NOTE: Bard 8403-060
										thermostat must be
	Thermostat									in programmed
		R	C	G	Y1	Y2 O/B W2 W1/E	L	A	YO/D	operation mode and
	Bard #8403-060
										in programmed fan
										mode for ventilation
										to function.
								2		3

Low

R

RT

C

G

Y1

Y2

W2

W3

L

A

D

6

3

4

Voltage

B/W1

Term. Strip

1

5

2

4

1

RED/WHITE

BLACK/WHITE

6

5

ORANGE

BROWN/WHITE

PINK

PURPLE

6

ERV Wiring Harness

6 CO2 Control

Bard #8403-067

	1	Factory installed jumper. Remove jumper and connect	4 Connect to "G" terminal when thermostat has "Occupancy Signal".
		to N.C fire alarm circuit if emergency shutdown required.

2	Not needed below 15KW.	5
3 Additional wire required for dehumidification models.		6

Install a jumper between "G" and "A" only when thermostat without "Occupance Signal" is used.

If CS9B-THOC or CS9BE-THOC is used, connect "Brown/White" directly to "A" and do not use seperate CO2 controller.

MIS-3020

Manual	2100-549G
Page	27 of 59

FIGURE 18

HEAT PUMP WITH ERV AND CO2 CONTROL (FULLY MODULATING)

SC SC SC

Completestat

Model #CS9B-THO or

Model #CS9BE-THO

24V COM G

Y1

Y2 O/B W2 W1/E

L

A

D

								2		3
										NOTE: Bard 8403-060
										thermostat must be
	Thermostat	R	C	G	Y1	Y2 O/B W2 W1/E	L	A		in programmed
									YO/D	operation mode and
	Bard #8403-060
										in programmed fan
										mode for ventilation
										to function.
								2		3

Low

R

RT

C

G

Y1

Y2

W2

W3

L

A

D

6

3

4

Voltage

B/W1

Term. Strip

1

5

2

4

1

RED/WHITE

BLACK/WHITE

3

ORANGE

BROWN/WHITE

PINK

PURPLE

CO2 Control

ERV Wiring Harness

Bard #8403-067

1Factory installed jumper. Remove jumper and connect to N.C fire alarm circuit if emergency shutdown required.

2	Not needed below 15KW.	4
3 Additional wire required for dehumidification models.		5

Connect to "G" terminal when thermostat has "Occupancy Signal".

Install a jumper between "G" and "A" only when thermostat

without "Occupance Signal" is used.

MIS-3021 A

Manual	2100-549G
Page	28 of 59

FIGURE 19

HEAT PUMP WITH COMBINATION CRV AND DB ECONOMIZER (“N” VENT CODE)

Only Recommend Bard CS9B-THOC or CS9BE-THOC as Require 3 Heating/Cooling Stages

SC SC SC

Completestat

Model #CS9B-THOC or

Model #CS9BE-THOC

24V

COM

G

Y0

Y1

Y2

O/B

W2

W1/E

L

A

D

3

2

Low

R

RT

C

G

6

7

8

W2

W3

L

A

D

Y1

Y2

Voltage

B/W1

Term. Strip

4

1

RED/WHITE

BLACK/WHITE

ORANGE

GRAY

YELLOW

PURPLE

BROWN/WHITE

PURPLE/WHITE

YELLOW/BLACK

BLUE

CRV/ECON Wiring Harness

1Factory installed jumper. Remove jumper and connect to N.C fire alarm circuit if emergency shutdown required.

2Not needed below 15KW.

3Additional wire required for dehumidification models.

4 Connect orange wire to "G" terminal

MIS-3270

Manual	2100-549G
Page	29 of 59

START UP

THESE UNITS REQUIRE R-410A REFRIGERANT AND POLYOL ESTER OIL.

GENERAL:

1.Use separate service equipment to avoid cross contamination of oil and refrigerants.

2.Use recovery equipment rated for R-410A refrigerant.

3.Use manifold gauges rated for R-410A (800 psi/250 psi low).

4.R-410A is a binary blend of HFC-32 and HFC-125.

5.R-410A is nearly azeotropic - similar to R-22 and R-12. Although nearly azeotropic, charge with liquid refrigerant.

6.R-410A operates at 40-70% higher pressure than R-22, and systems designed for R-22 cannot withstand this higher pressure.

7.R-410A has an ozone depletion potential of zero, but must be reclaimed due to its global warming potential.

8.R-410A compressors use Polyol Ester oil.

9.Polyol Ester oil is hygroscopic; it will rapidly absorb moisture and strongly hold this moisture in the oil.

10.A liquid line dryer must be used - even a deep vacuum will not separate moisture from the oil.

11.Limit atmospheric exposure to 15 minutes.

12.If compressor removal is necessary, always plug compressor immediately after removal. Purge with small amount of nitrogen when inserting plugs.

TOPPING OFF SYSTEM CHARGE

If a leak has occurred in the system, Bard Manufacturing recommends reclaiming, evacuating (see criteria above), and charging to the nameplate charge. However, if done correctly, topping off the system charge can be done without problems.

With R-410A, there are no significant changes in the refrigerant composition during multiple leaks and recharges. R-410A refrigerant is close to being an azeotropic blend (it behaves like a pure compound or single component refrigerant). The remaining refrigerant charge, in the system, may be used after leaks have occurred and then “top-off” the charge by utilizing the charging charts on the inner control panel cover as a guideline.

REMEMBER: When adding R-410A refrigerant, it must come out of the charging cylinder/tank as a liquid to avoid any fractionation, and to insure optimal system performance. Refer to instructions for the cylinder that is being utilized for proper method of liquid extraction.

WARNING

Failure to conform to these practices could lead to injury or death.

SAFETY PRACTICES:

1.Never mix R-410A with other refrigerants.

2.Use gloves and safety glasses. Polyol Ester oils can be irritating to the skin, and liquid refrigerant will freeze the skin.

3.Never use air and R-410A to leak check; the mixture may become flammable.

4.Do not inhale R-410A – the vapor attacks the nervous system, creating dizziness, loss of coordination and slurred speech. Cardiac irregularities, unconsciousness and ultimate death can result from breathing this concentration.

5.Do not burn R-410A. This decomposition produces hazardous vapors. Evacuate the area if exposed.

6.Use only cylinders rated DOT4BA/4BW 400.

7.Never fill cylinders over 80% of total capacity.

8.Store cylinders in a cool area, out of direct sunlight.

9.Never heat cylinders above 125°F.

10.Never trap liquid R-410A in manifold sets, gauge lines or cylinders. R-410A expands significantly at warmer temperatures. Once a cylinder or line is full of liquid, any further rise in temperature will cause it to burst.

Manual	2100-549G
Page	30 of 59

START UP

DESCRIPTION OF STANDARD

EQUIPMENT

Solid State Electronic Heat Pump Control

Provides efficient 30, 60 or 90-minute defrost cycle. A thermistor sensor and speed up terminal for service along with a 8-minute defrost override are standard on the electronic heat pump control. By default, the I-TEC are factory shipped on the 90-minute defrost cycle.

High / Low Pressure Switch

Provides refrigerant circuit high pressure and loss of charge protection. Includes lockout circuit built into heat pump control that is resettable from room thermostat.

Five Minute Compressor Time Delay

Provides short cycle protection for the compressor which extends compressor life. Built into the electronic heat pump control as standard.

Dual Sensor Condensate Overflow

Senses and provides system shut down if draining issue causes water level to rise in either drain pan.

Low Ambient Control

The low ambient control permits cooling operation down to 0°F outdoor ambient.

IMPORTANT INSTALLER NOTE

For improved start-up performance, wash the indoor coil with a dishwasher detergent.

PHASE MONITOR

All units with three phase scroll compressors are equipped with a 3 phase line monitor to prevent compressor damage due to phase reversal.

The phase monitor in this unit is equipped with two LEDs. If the Y signal is present at the phase monitor and phases are correct the green LED will light and the compressor contactor is allowed to energize.

If phases are reversed, the red fault LED will be lit and compressor operation is inhibited.

If a fault condition occurs, reverse two of the supply leads to the unit. Do not reverse any of the unit factory wires as damage may occur.

THREE PHASE SCROLL COMPRESSOR START UP INFORMATION

Scroll compressors, like several other types of compressors, will only compress in one rotational direction. Direction of rotation is not an issue with single phase compressors since they will always start and run in the proper direction.

However, three phase compressors will rotate in either direction depending upon phasing of the power. Since there is a 50-50 chance of connecting power in such a way as to cause rotation in the reverse direction, verification of proper rotation must be made.

Verification of proper rotation direction is made by observing that suction pressure drops and discharge pressure rises when the compressor is energized.

Reverse rotation also results in an elevated sound level over that with correct rotation, as well as, substantially reduced current draw compared to tabulated values.

Verification of proper rotation must be made at the time the equipment is put into service. If improper rotation is corrected at this time there will be no negative impact on the durability of the compressor. However, reverse operation for even one hour may have a negative impact on the bearing due to oil pump out.

All three phase scroll compressors used in the I-TEC series are wired identically internally. As a result, once the correct phasing is determined for a specific system or installation, connecting properly phased power leads to the same Fusite terminal should maintain proper rotation direction. The direction of rotation of the motor may be changed by reversing any two line connections to the unit.

SERVICE HINTS

1.Caution user to maintain clean air filters at all times. Also, not to needlessly close off supply air registers. This may reduce airflow through the system, which shortens equipment service life as well as increasing operating costs and noise levels.

2.Switching to heating cycle at 75°F or higher outside temperature may cause a nuisance trip of the remote reset high pressure switch. Turn thermostat off, then on to reset the high pressure switch.

3.The heat pump wall thermostats perform multiple functions. Be sure that all function switches are correctly set for the desired operating mode before trying to diagnose any reported service problems.

4.Check all power fuses or circuit breakers to be sure they are the correct rating.

5.Periodic cleaning of the outdoor coils to permit full and unrestricted airflow circulation is essential.

6.Annual maintenance is required to make sure that all of the systems are functioning properly.

a.Check to make sure that the drains are not obstructed in any way.

b.Remove any debris in the condenser section of the unit.

c.Inspect and wash outdoor coils as necessary.

7.All motors are sealed and require no oiling.

Manual	2100-549G
Page	31 of 59

SEQUENCE OF OPERATION

COOLING PART LOAD – Circuit R-Y1 makes at thermostat pulling in compressor contactor, starting the compressor and outdoor motor. The G (indoor motor) circuit is automatically completed on any call for cooling operation or can be energized by manual fan switch on subbase for constant air circulation.

COOLING FULL LOAD – Circuit R-Y1 & Y2 makes at the thermostat energizing the 2nd stage solenoid in the compressor. The default position of the compressor staging solenoid is non-energized. The compressor will run at low capacity until this solenoid is energized.

HEATING STAGE 1 – A 24V solenoid coil on reversing valve controls heating cycle operation. Two thermostat options, one allowing “Auto” changeover from cycle to cycle and the other constantly energizing solenoid coil during heating season and thus eliminating pressure equalization noise except during defrost, are to be used. On “Auto” option a circuit is completed from R-B and R-Y1 on each heating “on” cycle, energizing reversing valve solenoid and pulling in compressor contactor starting compressor and outdoor motor. R-G also make starting indoor blower motor. Heat pump heating cycle now in operation. The second option has no “Auto” changeover position, but instead energizes the reversing valve solenoid constantly whenever the system switch on subbase is placed in “Heat” position, the “B” terminal being constantly energized from R. A thermostat demand for Stage 1 heat completes R-Y1 circuit, pulling in compressor contactor starting compressor and outdoor motor. R-G also make starting indoor blower motor.

HEATING STAGE 2 – Circuit R-Y1 & Y2 makes at the thermostat energizing the 2nd stage solenoid in the compressor.

PRESSURE SERVICE PORTS

High and low pressure service ports are installed on all units so that the system operating pressures can be observed. Pressure tables can be found later in the manual covering all models. It is imperative to match the correct pressure table to the unit by model number. Upper and lower service doors must be attached to obtain proper reading.

LOWERING OUTDOOR FAN SPEED for SOUND

Supplied in the Literature Assembly is a Fan Control Resistor Assembly that can be installed to lower the fan speed for reduced sound performance. This Resistor Assembly is to be installed in series with the Outdoor Fan Control Thermistor to change the temperature curve that the fan logic control sees.

It is anticipated that you will see a 2-3% drop in system capacity and efficiency when this resistor is installed.

To install the Resistor Assembly:

1.Locate Fan Control Resistor Assembly in Literature Packet hanging on right inside door of unit.

2.Throw main power disconnect to the “OFF” position to eliminate risk of injury or death due to electrical shock.

3.Remove four (4) screws that retain the control panel cover to the unit.

4.Locate Fan Logic Control Board.

5.Locate one of the red leads of the Fan Control Thermistor where it attaches to the Fan Logic Control and remove it.

6.Install resistor in-line with the thermistor lead removed in Step #5, and then connect back onto the Fan Logic Control Board.

Manual	2100-549G
Page	32 of 59

DEFROST CYCLE

The defrost cycle is controlled by temperature and time on the solid state heat pump control. See Figure 20.

When the outdoor temperature is in the lower 40°F temperature range or colder, the outdoor coil temperature is 32°F or below. This coil temperature is sensed by the coil temperature sensor mounted near the bottom of the outdoor coil. Once coil temperature reaches 30°F or below, the coil temperature sensor sends a signal to the control logic of the heat pump control and the defrost timer will start accumulating run time.

After 30, 60 or 90 minutes of heat pump operation at 30°F or below, the heat pump control will place the system in the defrost mode. Factory default setting is 90 minutes.

During the defrost mode, the refrigerant cycle switches back to the cooling cycle, the outdoor motor stops, electric heaters are energized, and hot gas passing through the outdoor coil melts any accumulated frost. When the temperature rises to approximately 57°F, the coil temperature sensor will send a signal to the heat pump control which will return the system to heating operations automatically.

If some abnormal or temporary condition such as a high wind causes the heat pump to have a prolonged defrost cycle, the heat pump control will restore the system to heating operation automatically after 8 minutes.

The heat pump defrost control board has an option of 30, 60 or 90-minute setting. All models are shipped from the factory on the 90-minute pin. If special circumstances require a change to another time, remove the wire from the 90-minute terminal and reconnect to the desired terminal.

The manufacturer’s recommendation is for 90-minute defrost cycles. Refer to Figure 20.

There is a cycle speed up jumper on the control. This can be used for testing purposes to reduce the time between defrost cycle operation without waiting for time to elapse.

Use a small screwdriver or other metallic object, or another ¼ inch QC, to short between the SPEEDUP terminals to accelerate the HPC timer and initiate defrost.

Be careful not to touch any other terminals with the instrument used to short the SPEEDUP terminals. It may take up to 15 seconds with the SPEEDUP terminals shorted for the speedup to be completed and the defrost cycle to start.

As soon as the defrost cycle kicks in remove the shorting instrument from the SPEEDUP terminals.

Otherwise the timing will remain accelerated and run through the 1-minute minimum defrost length sequence in a matter of seconds and will automatically terminate the defrost sequence.

There is an initiate defrost jumper (sen jump) on the control that can be used at any outdoor ambient during the heating cycle to simulate a 0° coil temperature.

This can be used to check defrost operation of the unit without waiting for the outdoor ambient to fall into the defrost region.

By placing a jumper across the SEN JMP terminals (a ¼ inch QC terminal works best) the defrost sensor mounted on the outdoor coil is shunted out & will

activate the timing circuit. This permits the defrost cycle to be checked out in warmer weather conditions without the outdoor temperature having to fall into the defrost region.

In order to terminate the defrost test the SEN JMP jumper must be removed. If left in place too long, the compressor could stop due to the high pressure control opening because of high pressure condition created by operating in the cooling mode with outdoor fan off. Pressure will rise fairly fast as there is likely no actual frost on the outdoor coil in this artificial test condition.

There is also a 5-minute compressor time delay function built into the HPC. This is to protect the compressor from short cycling conditions. The board’s LED will have a fast blink rate when in the compressor time delay. In some instances, it is helpful to the service technician to override orspeedupthistimingperiod,andshortingouttheSPEEDUP terminals for a few seconds can do this.

FIGURE 20

DEFROST CYCLE

		SW	SW
		1	2	TIME (SEC)
		OFF	OFF	30
	LOW PRESSURE BYPASS TIMER SWITCH	ON	OFF	60
		OFF	ON	120*
	*(FACTORY SETTING 120 SECONDS)
		ON	ON	180

OFF

ON

ACCUMULATED DEFROST TIME TIMER

(FACTORY SETTING 60 MIN.)

(FACTORY SETTING 90 MIN.)

MIS-2668 A

Manual	2100-549G
Page	33 of 59

I-TEC COMMERCIAL ROOM VENTILATOR SYSTEM

GENERAL DESCRIPTION

The I-TEC Commercial Room Ventilator (CRV) is designed to be used with all Bard I-TEC models. The only intent of this device is to provide the required ventilation by delivering fresh air to meet I.A.Q. (Indoor Air Quality) requirements. In the installed application, this system also includes exhaust provisions which are balanced with the intake air to maintain building pressurization requirements of ASHRAE 62.1 Standard.

Ventilation is accomplished with (2) blower/motor assemblies for maximum ventilation at low sound levels. The intake and exhaust blowers are programmed independently and are balanced to maintain a slight positive pressurization in accordance to ASHRAE 62.1 Standard.

The I-TEC CRV is also provided with filters to reduce the required service needed and to further improve the I.A.Q. The exhaust air blowers are protected by disposable filters, and the intake air blowers are protected by washable filters. Both are accessible without the need for tools.

CONTROL WIRING

The I-TEC CRV comes wired from the factory set to 375 CFM of ventilation. Care must be taken when deciding how to control the operation of the ventilator. When designing the control circuit for the ventilator, the following requirements must be met.

1.The indoor blower must be run whenever the I-TEC CRV is run.

2.Select and configure the correct CFM ventilation level that the I-TEC CRV needs to operate and configure the system to this level following later instructions within this section. Over ventilating serves no useful purpose and significantly affects the overall efficiency of the heat pump system. System operating costs would also increase.

3.Run the I-TEC CRV only during periods when the conditioned space is occupied. Running the ventilation during unoccupied periods wastes energy, decreases the expected life of the CRV, and can result in large moisture buildup in the structure. Running the CRV when the structure is unoccupied allows moisture to build up in the structure because there is little or no cooling load. Thus, the air conditioner is not running enough to remove the excess moisture being brought in. Use a control system that in some way can control the system based upon occupancy.

Operating the I-TEC CRV during unoccupied periods can result in a build up of excess moisture in the structure.

RECOMMENDED CONTROL SEQUENCES

Several possible scenarios are listed below:

1.Use a programmable electronic thermostat with auxiliary terminal to control the CRV based on daily programmed occupance periods. Bard markets and recommends Bard Part #8403-060 programmable electronic thermostat.

2.Use Bard CompleteStat™ that incorporates temperature, humidity and occupancy control with learning capability into a single device. No programming required.

3.Use a DDC control system to control the CRV based upon a room occupancy schedule to control the CRV.

4.Tie the operation of the CRV into the light switch. The lights in a room are usually on only when occupied.

5.Use a manual timer that the occupants turn to energize the CRV for a specific number of hours.

6.Use a programmable mechanical timer to energize the CRV and indoor blower during occupied periods of the day.

NOTE: The ventilation package comes with a blower interlock function, but is disabled when it is shipped from the factory in case you do not utilize a thermostat with an occupancy output, or a occupancy sensor and must tie "A" terminal to "G" terminal to drive the ventilation package. If you do have a thermostat or control that does drive occupancy output, you will need to remove the tape from the orange wire located in the low voltage terminal box, and connect it to the "G" terminal to activate this function. (See Figures 13-19.)

SETTING THE VENTILATION CFM LEVELS

The I-TEC CRV has four pre-set levels of ventilation CFM available. These are 300, 375, 450 and 525 CFM of ventilation air. The I-TEC CRV is shipped from the factory set on the 375 CFM ventilation level. To change between these four different levels of provided ventilation CFM, first refer to Figure 21 to look up the corresponding CFM needed for the intake and exhaust blowers to meet the design criteria and determine which “speed/wire color” is needed. Then, perform the following steps.

	!	WARNING
	HAZARD OF ELECTRICAL SHOCK.
	ELECTRICAL SHOCK CAN RESULT
	IN SERIOUS INJURY OR DEATH.		-2
	DISCONNECT THE REMOTE
			-754
	ELECTRIC POWER SUPPLY OR
			7961
	SUPPLIES BEFORE SERVICING.

1.Open front swinging doors of main unit (by popping front door latches).

2.Throw main power disconnect to the “OFF” position to eliminate risk of injury or death due to electrical shock.

3.Remove six (6) screws holding front CRV door in place (See Figure 22).

4.Locate “Brown Wire with White Trace” that has a black terminal on the end where it connects to the terminal strip (See Figure 21).

5.Move “Brown Wire with White Trace” to the corresponding CFM level needed in accordance with Figure 21.

Manual	2100-549G
Page	34 of 59

FIGURE 21

CRV MOTOR SPEED/CFM CONFIGURATION

VENT OPTION INTAKE/EXHAUST SPEEDS

WIRE COLOR	SPEED	NOM. CFM
BLACK	HI	525
BLUE	MED-HI	450
ORANGE	MED-LO	375
RED	LO	300

TO CHANGE SPEEDS, MOVE BROWN WIRE WITH WHITE TRACE.

7961-755-2

BROWN/WHITE

Move brown/white wire to corresponding motor speed for required ventilation CFM. Factory setting is Medium Lo (375 CFM).

HI	SPEEDS
MED. HI
MED. LO	MOTOR

LO

7961-7554

BLACK

BLUE

ORANGE

RED

MIS-3022 A

Manual	2100-549G
Page	35 of 59

FIGURE 22

CRV SPEED CHANGE TERMINAL ACCESS

CRV INTAKE BLOWER

NOTE: CRV EXHAUST

BLOWER IS BEHIND

INTAKE BLOWER

REMOVE (5) SCREWS FROM

CRV DOOR TO ACCESS CRV

COMPONENTS

MIS-3023

BLOWER SPEED

CONTROL LOCATION

BLOWER

SPEED

CONTROL

BLOWER REMOVED

FOR CLARITY

Manual	2100-549G
Page	36 of 59

I-TEC COMBINATION CRV & ECONOMIZER VENTILATION SYSTEM

DESCRIPTION

The I-TEC combination Commercial Room Ventilator (CRV) and Dry Bulb Economizer is designed to be used with all Bard I-TEC models. This ventilation package and its control provides two (2) roles:

•It will provide the required ventilation by delivering fresh air to meet I.A.Q. (Indoor Air Quality) requirements through CRV portion of the device.

•It will provide up to 525 CFM of free outdoor cooling CFM when the outdoor ambient temperature is below the outdoor thermostat setpoint.

Operating the I-TEC CRV during unoccupied periods can result in a build up of excess moisture in the structure.

SETTING THE VENTILATION CFM LEVELS

The I-TEC CRV has four (4) pre-set levels of ventilation CFM available. These are 300, 375, 450 and 525 CFM of ventilation air. This ventilation package is shipped from the factory set on the 375 CFM ventilation level while the Economizer portion is set on the 525 CFM ventilation level. To change between these four different levels of provided ventilation CFM, refer to Figure 24 to look up the corresponding CFM needed for the intake and exhaust blowers to meet the design criteria and determine which “speed/wire color” is needed.

Perform the following steps:

1.Open front swinging doors of main unit (by popping front door latches).

Ventilation is accomplished with (2) blower/motor assemblies for maximum ventilation at low sound levels. The intake and exhaust blowers are programmed independently and are balanced to maintain a slight positive pressurization in accordance to ASHRAE 62.1 Standard.

The Ventilation Package is also provided with filters to reduce the required service needed and to further improve the I.A.Q. The exhaust air blowers are protected by disposable filters, and the intake air blowers are protected by washable filters. Both are accessible without the need for tools.

CONTROL WIRING

Refer to Low Voltage Connection (Figure 19).

Reference Figure 23 for Control Sequence of Operation.

Open disconnect to shut all power OFF before doing this! Failure to do so could result in injury or death due to electrical shock.

2.Throw main power disconnect to the “OFF” position to eliminate risk of injury or death due to electrical shock.

3.Remove six (6) screws holding front CRV door in place (see Figure 22).

4.For CRV blower speed, locate “Brown Wire with White Trace” that has as black terminal on the end where it connects to the terminal strip (see Figure 24).

5.Move the “Brown Wire with White Trace” to the corresponding CFM level needed in accordance with Figure 24.

6.For Economizer Blower Speed, locate “Pink Wire” that has a black terminal on the end where it connects to the terminal strip (see Figure 24).

7.Move the “Pink” to the corresponding CFM level needed in accordance with Figure 24.

Manual	2100-549G
Page	37 of 59

I-TEC ECON. SEQUENCE OF OPERATION

If outdoor temperature is below outdoor thermostat setpoint

On call from CompleteStat for first stage cooling:

•“YO” thermostat signal powers vent blower motors at Economizer Speed/Airflow (black – 525 CFM) through NC contacts of Relay “R1” (“Dehum Relay”).

On call from CompleteStat for first and second stage cooling:

•“YO” thermostat signal powers vent blower motors at Economizer Speed/Airflow (black – 525 CFM) through NC contacts of Relay “R1” (“Dehum Relay”).

•“Y1” thermostat signal powers “Y1” terminal on unit low voltage terminal strip through NC contacts of relay “R2” (“High Ambient Relay”).

On call from CompleteStat for first, second and third stage cooling:

•“YO” thermostat signal powers vent blower motors at Economizer Speed/Airflow (black – 525 CFM) through NC contacts of Relay “R1” (“Dehum Relay”).

•“Y1” thermostat signal powers “Y1” terminal on unit low voltage terminal strip through NC contacts of relay “R2” (“High Ambient Relay”).

•“Y2” thermostat signal powers “Y2” terminal on unit low voltage terminal strip through NC contacts of relay “R2” (“High Ambient Relay”).

FIGURE 23 ECONOMIZER CONTROL CIRCUIT

	UNIT LOW
	VOLTAGE
THERMOSTAT	TERMINAL
SIGNALS	STRIP
			R2
Y2	8	6	3
	Y2
			R3
		COM	NO
			R2
	R	8	5
			R4
		COM	NO
	G
	Y1		R2
		7	1
Y1	7		R2
		7	4
D	D
			R1
YO	6	NC	COM
	C
A	A

R1 = DEHUM RELAY

R2 = HIGH AMBIENT RELAY

R3 = FULL LOAD RELAY

R4 = BLOWER INTERLOCK RELAY

FIELD WIRE

FACTORY WIRE

If outdoor temperature is above outdoor thermostat setpoint

On call from CompleteStat for first stage cooling:

•“YO” thermostat signal powers relay coil “R2”. “R2” relay then closes NO contact between “R” and “Y1” at low voltage terminal strip engaging stage 1 mechanical cooling. NC contacts of relay “R2” that connects thermostat “Y1” to “Y1” on low voltage terminal strip is opened to eliminate feedback.

On call from CompleteStat for first and second stage cooling:

•“YO” thermostat signal powers relay coil “R2”. “R2” relay then closes NO contact between “R” and “Y1” at low voltage terminal strip engaging stage 1 mechanical cooling. NC contacts of relay “R2” that connects thermostat “Y1” to “Y1” on low voltage terminal strip is opened to eliminate feedback.

•“Y1” thermostat signal powers relay coil “R3” through now closed relay contacts “R2” closing contacts between “R” and “Y2” at low voltage terminal strip.

•“Y2” thermostat signal will do nothing, as NC contacts of relay “R2” are now opened to eliminate any feedback to thermostat.

Dehumidification Mode

On call from CompleteStat for dehumidification:

•“D” thermostat signal powers relay coil “R1” (Dehum. Relay). “R1” relay, then opens NC contact between “YO” and outdoor thermostat.

This will then negate any ECONOMIZER SPEED SIGNAL from energizing the ventilation package.

“Y1” & “Y2” thermostat signals will pass through NC contacts of Relay “R2” (“High Ambient Relay”) as relay coil “R2” will be rendered inoperable by “R1” contacts opening. Normal cooling calls can then still apply to override Dehum. call.

R3

R1

R2

ECON VENT SPEED

R4

CRV VENT SPEED

MIS-3272

Manual	2100-549G
Page	38 of 59

HEATING MODE OPERATION

CompleteStat should never energize “YO” terminals in conjunction with “B”, so relay “R2” will never energize, and neither will Economizer Ventilation Speed.

“Y1” and “Y2” signals will pass through NC contacts of relay “R2” contacts, and all heating operations will be normal.

VENTILATION MODE

The call for ventilation will never be disrupted with this control circuit. Anytime “A” signal from CompleteStat is present, the “VENTILATION SPEED” of the vent package will be energized. “A” Signal from thermostat will also energize relay “R4” (“Blower Interlock Relay”) completing a circuit from “R” to “G” through the “NO” contacts to ensure blower operations on the ventilation call.

FIGURE 24

MOTOR SPEED/CFM CONFIGURATION

VENT OPTION INTAKE/EXHAUST SPEEDS

WIRE COLOR	SPEED	NOM. CFM
BLACK	HI	525
BLUE	MED-HI	450
ORANGE	MED-LO	375
RED	LO	300

TO CHANGE SPEEDS, MOVE BROWN WIRE WITH WHITE TRACE.

7961-755-2

Move pink wire to corresponding motor

speed for required economizer operation CFM. Factory setting is High (525 CFM).

PINK

BROWN/WHITE

Move brown/white wire to corresponding motor speed for required ventilation CFM. Factory setting is Medium Lo (375 CFM).

HI	SPEEDS
MED. HI
MED. LO	MOTOR

LO

7961-7554

BLACK

BLUE

ORANGE

RED

MIS-3271

Manual	2100-549G
Page	39 of 59

I-TEC ENERGY RECOVERY VENTILATOR SYSTEM

GENERAL DESCRIPTION

The I-TEC Energy Recovery Ventilator (ERV) was designed to provide energy efficient, cost effective ventilation to meet I.A.Q (Indoor Air Quality) requirements while still maintaining good indoor comfort and humidity control for a variety of applications such as schools, classrooms, lounges, conference rooms and others. It provides a constant supply of fresh air for control of airborne pollutants including CO2, smoke, radon, formaldehyde, excess moisture, virus and bacteria.

The ERV incorporates patented rotary heat exchanger technology to remove both heat and moisture. The package consists of unique rotary Energy Recovery Cassettes that can be easily removed for cleaning or maintenance. It has two 15-inch diameter heat transfer wheels for efficient heat transfer. The heat transfer wheels use a permanently bonded dry dessicant coating for total heat recovery.

The I-TEC ERV is also provided with filters to reduce the required service needed and to extend the life of the heat recovery wheels. The exhaust air blower is protected by disposable filters, and the intake air blower is protected by washable filters. Both are accessible without the need for tools.

Ventilation is accomplished with (2) blower/motor assemblies for maximum ventilation at low sound levels. The intake and exhaust blowers can be independently adjusted to maintain desired building pressurization conditions. The rotating wheels provide the heat transfer effectively during both summer and winter conditions. Provides required ventilation to meet the requirements of ASHRAE 62.1 Standard.

NOTE: During operation below 5°F outdoor temperature, freezing of moisture in the heat transfer wheel can occur. Consult the factory if this possibility exists.

The I-TEC ERV can be controlled in different ways. It can be turned ON/OFF with an occupancy control, thermostat, or CO2 control. It can also be configured for fully-modulating variable speed with a CO2 control to only bring in the minimal amount of ventilation required (helping to minimize sound levels and ventilation load on the structure).

CONTROL WIRING

The I-TEC ERV comes wired from the factory ready to operate in manual mode (ON/OFF cycling) and set to 375 CFM of ventilation. Care must be taken when deciding how to control the operation of the ventilator. When designing the control circuit for the ventilator, the following requirements must be met.

1.The indoor blower must be run whenever the I-TEC ERV is run.

2.Select and configure the correct CFM ventilation level that the I-TEC ERV needs to operate and configure the system to this level following later instructions within this section. Over ventilating serves no useful purpose and significantly affects the overall efficiency of the heat pump system. System operating costs would also increase.

3.Run the I-TEC ERV only during periods when the conditioned space is occupied. Running the ERV during unoccupied periods wastes energy, decreases the expected life of the ERV, and can result in large moisture buildup in the structure. The ERV removes 60-70% of the moisture in the incoming air, not 100% of it. Running the ERV when the structure is unoccupied allows moisture to build up in the structure because there is little or no cooling load. Thus, the air conditioner is not running enough to remove the excess moisture being brought in. Use a control system that in some way can control the system based upon occupancy.

Operating the I-TEC ERV during unoccupied periods can result in a build up of excess moisture in the structure.

Manual	2100-549G
Page	40 of 59

RECOMMENDED CONTROL SEQUENCES

Several possible scenarios are listed below:

1.Use a programmable electronic thermostat with auxiliary terminal to control the ERV based on daily programmed occupance periods. Bard markets and recommends Bard Part #8403-060 programmable electronic thermostat.

2.Use a motion sensor in conjuntion with a mechanical thermostat to determine occupancy in the structure. Bard markets the CS2000A for this use.

3.Use a DDC control system to control the ERV based upon a room occupancy schedule to control the ERV.

4.Tie the operation of the ERV into the light switch. The lights in a room are usually on only when occupied.

5.Use a manual timer that the occupants turn to energize the ERV for a specific number of hours.

6.Use a programmable mechanical timer to energize the ERV and indoor blower during occupied periods of the day.

NOTE: The ventilation package comes with a blower interlock function, but is disabled when it is shipped from the factory in case you do not utilize a thermostat with an occupancy output, or a occupancy sensor and must tie "A" terminal to "G" terminal to drive the ventilation package. If you do have a thermostat or control that does drive occupancy output, you will need to remove the tape from the orange wire located in the low voltage terminal box, and connect it to the "G" terminal to activate this function. (See Figures 13-19.)

CHANGING VENTILATION CFM RATES IN MANUAL MODE

	!	WARNING
	HAZARD OF ELECTRICAL SHOCK.
	ELECTRICAL SHOCK CAN RESULT
	IN SERIOUS INJURY OR DEATH.		-2
	DISCONNECT THE REMOTE
			-754
	ELECTRIC POWER SUPPLY OR
			7961
	SUPPLIES BEFORE SERVICING.

To adjust the airflow ventilation rate, first refer to Figure 25A to look up the “FLOW INDEX” needed for the intake and exhaust blowers for the CFM you require. Then, perform the following steps:

1.Open front swinging doors of main unit (by popping front door latches).

2.Throw main power disconnect to the “OFF” position to eliminate risk of injury or death due to electrical shock.

3.Remove five (5) screws holding front ERV door in place (See Figure 27).

4.Remove ERV Control Panel Cover by removing four (4) screws (See Figure 27).

5.Locate two 0-10Vdc Motor Control Boards in control panel (See Figure 28).

6.On intake Motor Control Board, observing “GREEN STATUS LIGHT”, turn manual adjust potentiometer “CCW” to increase “FLOW INDEX” or CW to reduce “FLOW INDEX” to

match desired setting.

NOTE: After long pause, the green status light will blink long-blinks for the “TEN COUNT” of the “FLOW RATE INDEX”, then immediately followed by fast blinks which indicate the second digit. For example, a Flow Index of 23 would be two long blinks, followed by 3 fast blinks of the “GREEN STATUS LIGHT”.

7.On exhaust Motor Control Board, observing “GREEN STATUS LIGHT”, turn manual adjust potentiometer “CCW” to increase “FLOW INDEX” or CW to reduce “FLOW INDEX” to

match desired setting.

NOTE: Same “GREEN STATUS LIGHT” blink as Step #6.

CHANGING TO FULLY MODULATING MODE

If you want to operate the ERV in fully variable mode (Fig. 25B) (only run at required speed to maintain set-point CO2 levels), you will need to configure the ERV to the following:

1.Open front swinging doors of main unit (by popping front door latches).

2.Throw main power disconnect to the “OFF” position to eliminate risk of injury or death due to electrical shock.

3.Remove ERV Control Panel Cover by removing four (4) screws (See Figure 27).

4.Locate two 0-10Vdc Motor Control Boards in control panel (See Figure 28).

5.Pull jumper pins from “M” terminals, and move to “P” terminals (See Figure 28).

6.Connect “+” 0-10Vdc output from CO2 control to Terminal #3 (along with pink wire), and connect “-” to Terminal #4 (along with purple wire) of unit low voltage terminal strip.

7.Follow the directions supplied with the CO2 control to configure the control appropriately.

Manual	2100-549G
Page	41 of 59

PERFORMANCE AND APPLICATION DATA

SUMMER COOLING PERFORMANCE (INDOOR DESIGN CONDITIONS 75°DB/62°WB)

Ambient			VENTILATION RATE 450 CFM							VENTILATION RATE 375 CFM							VENTILATION RATE 300 CFM
O.D.			65% EFFICIENCY							66% EFFICIENCY								67% EFFICIENCY
DB/
WB	F	VLT	VLS	VLL	HRT		HRS	HRL	VLT	VLS	VLL	HRT		HRS	HRL	VLT	VLS	VLL	HRT		HRS	HRL
	75	21465	14580	6884	13952		9477	4475	17887	12150	5737	11805		8018	3786	14310	9720	4590	9587		6512	3075
105	70	14580	14580	0	9477		9477	0	12150	12150	0	8018		8018	0	9720	9720	0	6512		6512	0
	65	14580	14580	0	9477		9477	0	12150	12150	0	8018		8018	0	9720	9720	0	6512		6512	0
	80	31590	12150	19440	20533		7897	12635	26325	10125	16200	17374		6682	10692	21060	8100	12960	14110		5427	8683
	75	21465	12150	9314	13952		7897	6054	17887	10125	7762	11805		6682	5123	14310	8100	6210	9587		5427	4160
100	70	12352	12150	202	8029		7897	131	10293	10125	168	6793		6682	111	8235	8100	135	5517		5427	90
	65	12150	12150	0	7897		7897	0	10125	10125	0	6682		6682	0	8100	8100	0	5427		5427	0
	60	12150	12150	0	7897		7897	0	10125	10125	0	6682		6682	0	8100	8100	0	5427		5427	0
	80	31590	9720	21870	20533		6318	14215	26325	8100	18225	17374		5345	12028	21060	6480	14580	14110		4341	9768
	75	21465	9720	11744	13952		6318	7634	17887	8100	9787	11805		5345	6459	14310	6480	7830	9587		4341	5246
95	70	12352	9720	2632	8029		6318	1711	10293	8100	2193	6793		5345	1447	8235	6480	1755	5517		4341	1175
	65	9720	9720	0	6318		6318	0	8100	8100	0	5345		5345	0	6480	6480	0	4341		4341	0
	60	9720	9720	0	6318		6318	0	8100	8100	0	5345		5345	0	6480	6480	0	4341		4341	0
	80	31590	7290	24300	20533		4738	15794	26325	6075	20250	17374		4009	13365	21060	4860	16200	14110		3256	10854
	75	21465	7290	14175	13952		4738	9213	17887	6075	11812	11805		4009	7796	14310	4860	9450	9587		3256	6331
90	70	12352	7290	5062	8029		4738	3290	10293	6075	4218	6793		4009	2784	8235	4860	3375	5517		3256	2261
	65	7290	7290	0	4738		4738	0	6075	6075	0	4009		4009	0	4860	4860	0	3256		3256	0
	60	7290	7290	0	4738		4738	0	6075	6075	0	4009		4009	0	4860	4860	0	3256		3256	0
	80	31590	4860	26730	20533		3159	17374	26325	4050	22275	17374		2672	14701	21060	3240	17820	14110		2170	11939
	75	21465	4860	16605	13952		3159	10793	17887	4050	13837	11805		2672	9132	14310	3240	11070	9587		2170	7416
85	70	12352	4860	7492	8029		3159	4870	10293	4050	6243	6793		2672	4120	8235	3240	4995	5517		2170	3346
	65	4860	4860	0	3159		3159	0	4050	4050	0	2672		2672	0	3240	3240	0	2170		2170	0
	60	4860	4860	0	3159		3159	0	4050	4050	0	2672		2672	0	3240	3240	0	2170		2170	0
	75	21465	2430	19035	13952		1579	12372	17887	2025	15862	11805		1336	10469	14310	1620	12690	9587		1085	8502
80	70	12352	2430	9922	8029		1579	6449	10293	2025	8268	6793		1336	5457	8235	1620	6615	5517		1085	4432
	65	4252	2430	1822	2764		1579	1184	3543	2025	1518	2338		1336	1002	2835	1620	1215	1899		1085	814
	60	2430	2430	0	1579		1579	0	2025	2025	0	1336		1336	0	1620	1620	0	1085		1085	0
	70	12352	0	12352	8029		0	8029	10293	0	10293	6793		0	6793	8235	0	8235	5517		0	5517
75	65	4252	0	4252	2764		0	2764	3543	0	3543	2338		0	2338	2835	0	2835	1899		0	1899
	60	0	0	0	0		0	0	0	0	0	0		0	0	0	0	0	0		0	0

WINTER HEATING PERFORMANCE (INDOOR DESIGN CONDITIONS 70°F DB)

	Ambient			VENTILATION RATE
		450 CFM		375 CFM		300 CFM
	O.D.
		80% EFFICIENCY		81% EFFICIENCY		82% EFFICIENCY
	DB/°F	WVL	WHR	WVL	WHR	WVL	WHR
	65	2430	1944	2025	1640	1620	1328
	60	4860	3888	4050	3280	3240	2656
	55	7290	5832	6075	4920	4860	3985
	50	9720	7776	8100	6561	6480	5313
	45	12150	9720	10125	8201	8100	6642
	40	14580	11664	12150	9841	9720	7970
	35	17010	13608	14175	11481	11340	9298
	30	19440	15552	16200	13122	12960	10627
	25	21870	17496	18225	14762	14580	11955
	20	24300	19440	20250	16402	16200	13284
	15	26730	21384	22275	18042	17820	14612

LEGEND:

VLT	=	Ventilation Load – Total
VLS	=	Ventilation Load – Sensible
VLL	=	Ventilation Load – Latent
HRT	=	Heat Recovery – Total
HRS	=	Heat Recovery – Sensible
HRL	=	Heat Recovery – Latent
WVL	=	Winter Ventilation Load
WHR =		Winter Heat Recovery

Note: All performance data is based on operating intake and exhaust blower on the same speed.

Manual	2100-549G
Page	42 of 59

FIGURE 25A

ERV “MANUAL MODE” JUMPER PIN ON “M” TERMINAL

			To adjust the airflow ventilation rate (NO CO2
		FLOW INDEX (Light	CONTROL/NON-MODULATING) , determine the "FLOW
	ERV CFM	Blink Code)	INDEX" needed for the intake and exhaust blowers for
	450	100	the CFM you require.
	425	89	1.> Locate two 0-10Vdc Motor Control Boards in control panel
	400	83
	375	76	2.> On intake Motor Control Board, observing "GREEN STATUS
	350	59	LIGHT", turn manual adjust potentiometer (with a small phillips-head
			screwdriver) "CCW" to increase "FLOW INDEX" or CW to reduce
	325	50	"FLOW INDEX" to match desired setting. (NOTE: After long pause,
			the green status light will blink long-blinks for the "TEN COUNT" of
	300	40	the "FLOW RATE INDEX", which then is immediately followed by
	275	32	fast blinks which indicate the second digit. For example, a Flow
			Index of 23 would be two long blinks, followed by 3 fast blinks of
			the "GREEN STATUS LIGHT".)
	250	25
	225	12	3.> On exhaust Motor Control Board, observing "GREEN STATUS
	200	9	LIGHT", turn manual adjust potentiometer (with a small phillips-head
			screwdriver) "CCW" to increase "FLOW INDEX" or CW to reduce
	175	4	"FLOW INDEX" to match desired setting. (Same GREEN STATUS
	150	1	LIGHT blink (refer to Step #5))

FIGURE 25B

ERV “MODULATING MODE” JUMPER PIN ON “P” TERMINAL

		Vdc Signal
	CFM	from CO2
		Control
	450	10
	425	8.87
	400	8.31
	375	7.61	After determining the air volume
			rates needed for the intended
	350	6.73
			application (Maximum &
	325	5.91	Minimum), the table
			immediately to the left will allow
	300	5.15
			for you to program your CO2
	275	4.58	control output voltages in
	250	4.06	correlation to the CO2 levels you
			wish to control when Bard Part #
	225	2.91	8403-067 CO2 Control is applied.
	200	2.57
	175	2.24
	150	1.74
	125	0.96
	100	0.77

Manual	2100-549G
Page	43 of 59

FIGURE 26

VENTILATION AIRFLOW DIAGRAM

SUPPLY

BLOWER

Return Air

VENT

INTAKE

BLOWER

Indoor Air

Supply Air

Outdoor Air

VENT

EXHAUST

BLOWER

MIS-3024

Manual	2100-549G
Page	44 of 59

FIGURE 27 ERV ACCESS

ERV INTAKE

BLOWER

NOTE: ERV

EXHAUST

BLOWER IS

BEHIND INTAKE

BLOWER

ERV CASSETTE

ASSEMBLIES

REMOVE (5) SCREWS FROM ERV DOOR TO ACCESS ERV COMPONENTS

MIS-3025

ERV CONTROL PANEL LOCATION

Manual	2100-549G
Page	45 of 59

FIGURE 28

CONTROL BOARD CONFIGURATION/SETTING

ECM Motor Control Cable

To Automation

Control Signal

Controller

Signal Common

0-2,000 RPM

RPM Out

= 0-10Vdc

Aux

Common

Signal Common,

Power

24Vac/dc

Aux Common &

Neutral/Common are

internally connected

24Vac/dc

Class II Power Source

Neutral/Common

Earth neutral/Common

at transformer

for electrical safety.

Move jumper pin to “P” position to allow variable ventilation control using 4-20MA CO2 controller

Board mode pins factory shipped on “M” pin for On/Off control scheme using “A” signal on low voltage control board.

“Red” status light (on when unit has power)

“Green” signal light continuously indicates the flow index the blower is producing. After a pause, the lamp will flash out long digits which will indicate the “TENS” count, which is immediately followed by short flashes between 1 and 99. For example, a flow index of 23 would yield two long flashes and three short flashes.

CONFIGURING BARD PART #8403-067 CO2 CONTROL for ERV MODULATING CONTROL

BARD PART #8403-067

Manual adjust screw. Use when operating in manual mode (“M” jumper installed) along with the “GREEN SIGNAL LIGHT” to adjust to the required CFM of ventilation. CW rotation reduces the “FLOW INDEX”, CCW rotation increases the “FLOW INDEX”.

Carbon Dioxide and Temperature Transmitters accurately monitorthe CO2concentration and temperature in schools, office buildings, and otherindoor environments to help achieve LEED® certification.

SPECIFICATIONS

Range: CO2: 0 to 2000 or 0 to 5000 ppm (depending on model) Temperature: 32 to 122°F (0 to 50°C).

Accuracy: ±40 ppm + 3% of reading.

Temperature Dependence: ±8 ppm / °C at 1100 ppm. Non-Linearity: 16 ppm.

Pressure Dependence: 0.13% of reading per mm of Hg. Response Time: 2 minutes for 99% step change.

Ambient Operating Temperature: 32 to 122°F (0 to 50°C). Ambient Operating Humidity: 10 to 95% RH (noncondensing).

Power Requirements: 16 to 35 VDC / 19 to 28 VAC. Power Consumption: Average: 2 watts; Peak: 3.75 watts. Sensor: Single beam, dual-wave length NDIR.

Output:

Current: 4 to 20 mA (max 500 Ω);

Voltage: 0 to 5 VDC or 0 to 10 VDC (min 500 Ω); Relay: SPST NO 2A @ 30 VDC;

RTD or thermistor per r-t curves (depending on model) Weight: 5.6 oz (158.8 g)

WARNING Disconnect power supply before installation to prevent electrical shock and equipment damage.

Make sure all connections are in accordance with the job wiring diagram and in accordance with national and local electrical codes. Use copper conductors only.

CAUTION Use electrostatic discharge precautions (e.g., use of wrist straps) during installation and wiring to prevent equipment damage.

CAUTION Avoid locations where severe shock or vibration, excessive moisture or corrosive fumes are present.

CAUTION Do not exceed ratings of this device, permanent damage not covered by warranty may result.

	NOTICE	Upon powering the transmitter, the firmware version will flash on
		the display. A warm up period of 30 minutes is required for the
		transmitter to adjust to the current CO2 concentration.

NOTICE Self calibration feature of the transmitter requires exposure to normal outdoor equivalent carbon dioxide level once every thirty days.

Manual	2100-549G
Page	46 of 59

CONFIGURING BARD PART #8403-067 CO2 CONTROL for ERV MODULATING CONTROL (Continued)

MOUNTING

1.Push tab on bottom of cover and lift cover from back plate.

2.Select the mounting location, away from diffusers, lights or any external influences.

3.Mount transmitter on a vertical surface to a standard electrical box using the two #6 M2C type screws provided.

4.Pull wires through sub base hole and make necessary connections.

5.Reattach cover to base plate.

WIRING

Use maximum 18 AWG wire for wiring to terminals. Refer to Figures 13-19 for wiring information.

SELECTION OF VOLTAGE OUTPUTS

Prior to wiring, verify the voltage selector jumpers on jumpers PJ1 and PJ2 are set to voltage (See Figure below).

CURRENT/VOLTAGE OUTPUT

SELECTION JUMPER (PJ1 & PJ2)

VOLTAGE

OUTPUT

CV

Next, move jumper PJ5 to the 0-10V range (See Figure below).

OUTPUT RANGE SELECTION JUMPER PJ5

0 to 10 V

0 to 20 mA

EDITING MENU PARAMETERS

Before any adjustment can be made to the transmitter, the Menu Lockout Jumper (PJ4) must be set to the “On” position (See Figure below).

MENU LOCKOUT JUMPER

ENABLED DISABLED

MENU MENU

PJ4	PJ4
ON OFF	ON OFF

Finish installing/wiring the control. Then, refer to Figure 20 and the building ventilation specifications to decide what the maximum ventilation rate desired is and what the minimum/maximum voltage signal is required for those levels.

Next, enter the control programming stage listed below once the system is powered-up to configure the control.

ACCESSING MENU PARAMETERS

Step 1: To enter the menu structure, press U and V simultaneously for 5 seconds (display

will show RON parameter).

Step 2: Press	U or	V to cycle between
menu items.
Step 3: Press	to edit the value for the
displayed menu item (SET will appear on
display).
Step 4: Press	U or	V to adjust the value of
the menu item.
Step 5: Press	to save the changes (SET will

disappear).

Step 6: Repeat Steps 2 through 5 for each of the parameters.

Step 7: To exit the menu at any time, press and hold U and V simultaneously for 5

seconds or wait 10 seconds without pushing any buttons.

Manual	2100-549G
Page	47 of 59

MENU DESCRIPTIONS

RON Relay on set point

Sets the CO2 concentration which the optional relay is energized.

Low limit: 0 PPM Factory setting: 1000 PPM

High limit: 2000/5000 PPM (depending on model)

ROF Relay off set point

Sets the CO2 concentration which the optional relay is de-energized. Setting value lower than RON provides direct action for detecting high concentrations of CO2. Setting value higher than RON provides indirect action for detecting low concentrations of CO2. U or V on the LCD display will be lit to indicate when the relay is energized.

Low limit: 0 PPM Factory setting: 950 PPM

High limit: 2000/5000 PPM (depending on model)

DSP Display configuration

Determines the LCD display configuration during normal operation. The LCD display can indicate the CO2 concentration and the temperature, the CO2 concentration only or the temperature only. The factory default is to display both the temperature and the CO2 concentration.

CT CO2 concentration and temperature C CO2 concentration only

T Temperature only

UNI Units selection

Temperature and barometric pressure measurements can be displayed in US engineering units or SI engineering units. The factory default is to display US engineering units.

US units	F for temperature and in Hg for
	barometeric pressure
SI units	C for temperature and hPa for
	barometric pressure

COL CO2 low output range

Sets the CO2 concentration for the lowest output (4 mA or 0 VDC).

Low limit: 0 PPM Factory setting: 0 PPM

High limit: 2000/5000 PPM (depending on model)

COH CO2 high output range

Sets the CO2 concentration for the highest output (20 mA, 5 VDC or 10 VDC). When COH is set above COL, the transmitter is direct acting and the output will increase with an increase in CO2 level. When COH is below COL, the transmitter is reverse acting and the output will increase with a decrease in CO2 level.

Low limit: 0 PPM

Factory setting: 2000/5000 PPM (depending on model) High limit: 2000/5000 PPM (depending on model)

TOL Temperature low output range

Sets the temperature for the lowest output (4 mA or 0 VDC).

Low limit: 32.0°F / 0.0°C Factory setting: 32.0°F / 0.0°C High limit: 122.0°F / 50.0°C

TOH Temperature high output range

Sets the temperature for the highest output (20 mA, 5 VDC or 10 VDC). When TOH is set above TOL, the transmitter is direct acting and the output will increase with an increase in temperature. When TOH is below TOL, the transmitter is reverse acting and the output will increase with a decrease intemperature.

Low limit: 32.0°F / 0.0°C Factory setting: 122.0°F / 50.0°C High limit: 122.0°F / 50.0°C

BAR Barometric pressure

Sets the typical barometric pressure for the location where the transmitter is mounted. The factory setting is for standard pressure at sea level. Adjusting the barometric pressure gives a more accurate measurement, especially at higher elevations.

Low limit: 20.0 in Hg / 600 hPa Factory setting: 29.9 in Hg / 1013 hPa High limit: 32.0 in Hg / 1100 hPa

Manual	2100-549G
Page	48 of 59

ENERGY RECOVERY VENTILATOR MAINTENANCE

GENERAL INFORMATION

The ability to clean exposed surfaces within air moving systems is an important design consideration for the maintenance of system performance and air quality. The need for periodic cleaning will be a function of operating schedule, climate, and contaminants in the indoor air being exhausted and in the outdoor air being supplied to the building. All components exposed to the airstream, including energy recovery wheels, may require cleaning in most applications.

Rotary counterflow heat exchanges (heat wheels) with laminar airflow are “self-cleaning” with respect to dry particles. Smaller particles pass through; larger particles land on the surface and are blown clear as the flow direction is reversed. For this reason, the primary need for cleaning is to remove films of oil-based aerosols that have condensed on energy transfer surfaces. Buildup of material over time may eventually reduce airflow. Most importantly, in the case of desiccant coated (enthalpy) wheels, such films can close off micron sized pores at the surface of the desiccant material, reducing the efficiency with which the desiccant can absorb and desorb moisture.

FREQUENCY

In a reasonably clean indoor environment such as a school, office building, or home, experience shows that reductions of airflow or loss of sensible (temperature) effectiveness may not occur for ten or more years. However, experience also shows that measurable changes in latent energy (water vapor) transfer can occur in shorter periods of time in commercial, institutional and residential applications experiencing moderate occupant smoking or with cooking facilities. In applications experiencing unusually high levels of occupant smoking, such as smoking lounges, nightclubs, bars and restaurants, washing of energy transfer surfaces, as frequently as every six months, may be necessary to maintain latent transfer efficiency. Similar washing cycles may also be appropriate for industrial applications involving the ventilation of high levels of smoke or oil-based aerosols such as those found in welding or machining operations, for example. In these applications, latent efficiency losses of as much as 40% or more may develop over a period of one to three years.

CLEANABILITY AND PERFORMANCE

In order to maintain energy recovery ventilation systems, energy transfer surfaces must be accessible for washing to remove oils, grease, tars and dirt that can impede performance or generate odors. Washing of the desiccant surfaces is required to remove contaminate buildups that can reduce adsorption of water molecules. The continued ability of an enthalpy wheel to transfer latent energy depends upon the permanence of the bond between the desiccant and the energy transfer surfaces.

Bard wheels feature silica gel desiccant permanently bonded to the heat exchange surface without adhesives; the desiccant will not be lost in the washing process. Proper cleaning of the Bard energy recovery wheel will restore latent effectiveness to near original performance.

MAINTENANCE PROCEDURES

NOTE: Local conditions can vary and affect the required time between routine maintenance procedures, therefore all sites (or specific units at a site) may not have the same schedule to maintain acceptable performance. The following timetables are recommended and can be altered based on local experience.

QUARTERLY MAINTENANCE

1.Inspect mist eliminator/prefilter and clean if necessary. This filter is located in the fresh air intake hood on the front of the unit. This is an aluminum mesh filter and can be cleaned with water and any detergent not harmful to aluminum.

2.Inspect wall mount unit filter and clean or replace as necessary. This filter is located either in the unit, in a return air filter grille assembly, or both. If in the unit it can be accessed by removing the lower service door on the front of the unit. If in a return air filter grille, by hinging the grille open to gain access.

3.Inspect energy recovery ventilator for proper wheel rotation and dirt buildup. This can be done in conjunction with Item 2 above. Energize the energy recovery ventilator after inspecting the filter and observe for proper rotation and/or dirt buildup.

4.Recommended energy recovery wheel cleaning procedures follow Steps 5 through 8.

5.Disconnect all power to unit. Remove the lower service door of the wall mount unit to gain access to the energy recovery ventilator.

6.Remove the front access panel on the ventilator. Unplug amp connectors to cassette motors. Slide energy recovery cassette out of ventilator.

7.Use a shop vacuum with brush attachment to clean both sides of the energy recovery wheels.

8.Reverse shop vacuum to use as a blower and blow out any residual dry debris from the wheel.

NOTE: Discoloration and staining of the wheel does not affect its performance. Only excessive buildup of foreign material needs to be removed.

9.If any belt chirping or squealing noise is present, apply a small amount of LPS-1 or equivalent dry film lubricant to the belt.

Manual	2100-549G
Page	49 of 59

ANNUAL MAINTENANCE

1.Inspect and conduct the same procedures as outlined under Quarterly Maintenance.

2.To maintain peak latent (moisture) removal capacity, it is recommended that the energy recovery wheels be sprayed with a diluted nonacid based evaporator coil cleaner or alkaline detergent solution such as 409.

NOTE: Do not use acid based cleaners, aromatic solvents, temperatures in excess of 170° F or steam. Damage to the wheel may result.

Do not disassemble and immerse the entire heat wheel in a soaking solution, as bearing and other damage may result.

3.Rinse wheel thoroughly after application of the cleaning solution, and allow to drain before reinstalling.

4.No re-lubrication is required to heat wheel bearings of the drive motor, or to the intake and exhaust blower motors.

5.If any belt chirping or squealing noise is present, apply a small amount of LPS-1 or equivalent dry film lubricant to the belt.

FIGURE 29

Manual	2100-549G
Page	50 of 59

TROUBLESHOOTING

SOLID STATE HEAT PUMP CONTROL TROUBLESHOOTING PROCEDURE

1.NOTE: A thorough understanding of the defrost cycle sequence is essential. Review that section earlier in this manual prior to troubleshooting the control. Turn on AC power supply to unit.

2.Turn thermostat blower switch to “fan on” – the indoor blower should start. (If it doesn’t, troubleshoot indoor unit and correct problem.)

3.Turn thermostat blower to “auto” position. Indoor blower should stop.

4.Set system switch to “heat” or “cool”. Adjust thermostat to call for heat or cool. The indoor blower, compressor and outdoor fan should start.

NOTE: If there was no power to 24 volt transformer, the compressor and outdoor fan motor will not start for 5 minutes. This is because of the compressor short cycle protection.

CODES	FUNCTION
Slow Blink	Normal Operation
Fast Blink	Compressor Time Delay
1 Blink	Low Pressure Switch Failure
2 Blink	High Pressure Switch Failure
	or Condensate Overflow
	Switch Activated
3 Blink	Defrost Mode Active
4 Blink	High Pressure Soft Lockout

TABLE 5

TROUBLESHOOTING

		Symptom		Description, Check & Possible Causes	What & How to Check / Repair
	Compressor will		1. Check for LED illumination.		Yes = go to Step #2; No = go to Step #3
	not start (heating		Is there an LED illuminated on the board (flashing)?
	or cooling)
			2. Check for error codes.		Yes = go to Step #4; No = go to Step #8
			Is the LED flashing a Code?
			3. Check for power at board.		Yes = go to Step #13; No = go to Step #9
			Is there 24 volts AC between R and C?
			4. Check codes.		Code "1", go to Step #6; Code "2", go to Steps #7A & #7B; Fast Blink, go to Step #5
			What code is blinking?
			5. Compressor delay active.		Check for proper operation; if still needed, go back to Step #1.
			Wait for 5 minute delay or jump board's "speed up pins".
			6. Low pressure fault.		Check wiring circuit and unit pressures.
			7A.	High pressure fault.	Check wiring circuit and unit pressures.
			7B.	Condensate overflow fault.	Check upper indoor coil drains; check lower outdoor coil drains; check main drain line.
			8. Check for Compressor input signal.		Yes = go to Step #10; No = go to Step #11
			Is there 24 volts AC between Y and C?
			9. No power to board.		The unit either does not have unit voltage, the transformer is bad or the unit wiring is incorrect.
			10. Check for Compressor output signal.		Yes = go to Step #12; No = go to Step #13
			Is there 24 volts AC between CC & C?
			11. No "Y" compressor input signal.		Check thermostat wiring, incorrect phase of unit (see section on Phase Monitor), and finally
					unit wiring.
			12. No "CC" compressor output signal.		Check compressor contactor for proper operation and finally check compressor.
			13.	Faulty board.	Replace defrost board.
	Fan outdoor motor		Heat pump control defective		Check across fan relay on heat pump control. (Com-NC)
	does not run				Replace heat pump control.
	(cooling or heating
			Motor defective		Check for open or shorted motor winding. Replace motor.
	except during
			Motor capacitor defective		Check capacitor rating. Check for open or shorted capacitor. Replace capacitor.
	defrost)
	Reversing valve		Heat pump control defective		Check for 24V between RV-C and B-C.
	does not energize				1. Check control circuit wiring.
	(heating only)				2. Replace heat pump control
			Reversing valve solenoid coil defective		Check for open or shorted coil.
					Replace solenoid coil.
	Unit will not go		Temperature sensor or heat pump control defective		Disconnect temperature sensor from board and jumper across "SPEEDUP" terminals and "SEN
	into defrost				JMP" terminals. This should cause the unit to go through a defrost cycle within one minute.
	(heating only)				1. If unit goes through defrost cycle, replace temperature sensor.
					2. If unit does not go through defrost cycle, replace heat pump control.
	Unit will not come		Temperature sensor or heat pump control defective.		Jumper across "SPEEDUP" terminal.
	out of defrost				This should cause the unit to come out of defrost within one minute.
	(heating only)				1. If unit comes out of defrost cycle, replace temperature sensor.
					2. If unit does not come out of defrost cycle, replace heat pump control.

Manual	2100-549G
Page	51 of 59

CHECKING TEMPERATURE SENSOR

1.Disconnect temperature sensor from board and from right-hand outdoor coil.

2.Use an ohmmeter and measure the resistance of the sensor. Also use ohmmeter to check for short or open.

3.Check resistance reading to chart of resistance use sensor ambient temperature. (Tolerance of part is ± 10%.)

4.If sensor resistance reads very low, then sensor is shorted and will not allow proper operation of the heat pump control.

5.If sensor is out of tolerance, shorted, open, or reads very low ohms then it should be replaced.

TABLE 6

TEMPERATURE (F) VS RESISTANCE (R) OF TEMPERATURE SENSOR

F	R	F	R	F	R	F	R	F	R
-25.0	196871	5.0	72910	35.0	29986	65.0	13474	95.0	6531
-24.0	190099	6.0	70670	36.0	29157	66.0	13137	96.0	6383
-23.0	183585	7.0	68507	37.0	28355	67.0	12810	97.0	6239
-22.0	177318	8.0	66418	38.0	27577	68.0	12492	98.0	6098
-21.0	171289	9.0	64399	39.0	26823	69.0	12183	99.0	5961
-20.0	165487	10.0	62449	40.0	26082	70.0	11883	100.0	2827
-19.0	159904	11.0	60565	41.0	25383	71.0	11591	101.0	4697
-18.0	154529	12.0	58745	42.0	24696	72.0	11307	102.0	5570
-17.0	149355	13.0	56985	43.0	24030	73.0	11031	103.0	5446
-16.0	144374	14.0	55284	44.0	23384	74.0	10762	104.0	5326
-15.0	139576	15.0	53640	45.0	22758	75.0	10501	105.0	5208
-14.0	134956	16.0	52051	46.0	22150	76.0	10247	106.0	5094
-13.0	130506	17.0	50514	47.0	21561	77.0	10000	107.0	4982
-12.0	126219	18.0	49028	48.0	20989	78.0	9760	108.0	4873
-11.0	122089	19.0	14590	49.0	20435	79.0	8526	109.0	4767
-10.0	118108	20.0	46200	50.0	19896	80.0	9299	110.0	7663
-9.0	114272	21.0	44855	51.0	19374	81.0	9077	111.0	4562
-8.0	110575	22.0	43554	52.0	18867	82.0	8862	112.0	4464
-7.0	107010	23.0	42295	53.0	18375	83.0	8653	113.0	4367
-6.0	103574	24.0	41077	54.0	17989	84.0	8449	114.0	7274
-5.0	100260	25.0	39898	55.0	17434	85.0	8250	115.0	4182
-4.0	97064	26.0	38757	56.0	16984	86.0	8057	116.0	4093
-3.0	93981	27.0	37652	57.0	16547	87.0	7869	117.0	4006
-2.0	91008	28.0	36583	58.0	16122	88.0	7686	118.0	3921
-1.0	88139	29.0	35548	59.0	15710	89.0	7507	119.0	3838
0.0	85371	30.0	34545	60.0	15310	90.0	7334	120.0	3757
1.0	82699	31.0	33574	61.0	14921	91.0	7165	121.0	3678
2.0	80121	32.0	32634	62.0	14544	92.0	7000	122.0	3601
3.0	77632	33.0	31723	63.0	14177	93.0	6840	123.0	3526
4.0	75230	34.0	30840	64.0	13820	94.0	6683	124.0	3452

Manual	2100-549G
Page	52 of 59

TROUBLESHOOTING ECM™ 142R OUTDOOR FAN MOTOR

! WARNING

EXPOSED MOVING PARTS.

DISCONNECT ALL ELECTRICAL

POWER BEFORE SERVICING.

FAILURE TO DO SO CAN RESULT

IN SEVERE INJURY OR AMPUTATION.

	!	WARNING
	HAZARD OF ELECTRICAL SHOCK.
	ELECTRICAL SHOCK CAN RESULT
	IN SERIOUS INJURY OR DEATH.		-1
	DISCONNECT THE REMOTE
			-755
	ELECTRIC POWER SUPPLY OR
			7961
	SUPPLIES BEFORE SERVICING.

1.In normal operation, this motor may rock back and forth on start up. Do not replace if this is the only symptom identified.

2.If the system is operating properly, but the motor appears to run slower than it should, the motor is good. High efficiency systems with optimized fan blades are engineered to run slow to decrease noise. The Bard I-TEC Series models also adjust fan speed based upon varied outdoor ambient conditions to optimize sound and unit efficiency.

3.If the system is noisy, freezing up, running a high head pressure, tripping the high pressure switch or compressor overload, check the following:

a.Ensure cleanliness of condenser coil(s) and fan blade/shroud.

b.Confirm the fan blade is not bent or deformed, isn't rubbing on the shroud, and that it is tight on the motor shaft. Also ensure the motor is secure in its mounting system, and the mounting system is secure to the unit.

Do not operate motor without fan blade attached. Such operations will cause the motor to oscillate up and down.

You must obtain the correct replacement motor from the manufacturer that is a direct replacement for the failed motor.

USING THE WRONG MOTOR VOIDS ALL WARRANTIES AND MAY PRODUCE UNEXPECTED RESULTS.

c.The Bard I-TEC is equipped with a low ambient control pressure switch. This pressure switch completes the 24VAC Common feed to the outdoor fan motor control in cooling mode. If this switch is defective, or if the outdoor air temperature is too cold to raise the head pressure to the 325# switch closing set-point, or the system charge is too low, this could be the cause of the issue. (In heat pump {heating} mode, the low ambient fan cycling control is bypassed.)

d.If motor is not running, go to next section.

4.If the motor does not appear to be running at the proper speed or does not shut off, refer to the next section for voltage checks to determine if the motor is getting the proper input signals.

If the motor IS NOT receiving any communication, troubleshoot the communication issue using the diagnostic table for the Fan Logic Control.

a.This motor uses a 7 wire harness to control the motor.

Manual	2100-549G
Page	53 of 59

TROUBLESHOOTING ECM™ 142R OUTDOOR FAN MOTOR

•Line power is connected as follows: “Red Wire” connects to “L1” “Black Wire” connects to “L2”

“Green/Yellow Wire” connects to “Ground”

•Control power is connected as follows: “Blue Wire” connects to Fan Relay of the Defrost Logic Control, and subsequently connects to 24VAC Common through the Fan Logic Control Board. “Yellow Wire” connects to “Y” on the Fan Logic Control Board. “White Wire” connects to “W” on the Fan Logic Control Board. “Orange Wire” connects to “O” on the Fan Logic Control Board.

NOTE: A combination of the "Yellow", "White" and "Orange" wires being energized (with 24V "R" signal) determines five (5) different speeds the fan motor will operate at. The Fan Logic Control Board uses an outdoor thermistor sensor to determine the speed the fan should operate. It also utilizes the "B" reversing valve input for heat pump mode to determine speed should operate.

TABLE 7

TROUBLESHOOTING ECM™ 142R OUTDOOR FAN MOTOR

	Check Line Power to Motor	Check between Red and Black Wires for Line Power
		Verify Ground by checking Green Wire to L1 and L2 Line Power
		Check "BR" terminal of Fan Logic Control Board
	Check for 24VAC common	Check "Blue" Fan Lead on "Fan Relay Terminal" of "Defrost Logic Control"
		** Is not energized in cooling mode until Low Ambient Fan Cycling Control is closed
	signal to motor (against
	Transformer "R" Signal)	by 325 PSIG refrigerant pressure.
		** Circuit is completed automatically when "B" is energized on the Fan Logic Control
		Board

Check 24VAC "hot" outputs (to "Blue" on Fan Logic Control) to motor. See the following tables based upon outdoor temperature and model of operation.

TABLE 8	TABLE 9
COOLING MODE	HEAT PUMP MODE

O.D. Temp Sensor	24VAC Signals Between
Below 55°F	Orange to Blue
Between 56° - 69°F	White to Blue
Between 70° - 85°F	Yellow to Blue
Between 86° - 112°F	Orange and White to Blue
Above 112°F	White and Yellow to Blue

O.D. Temp Sensor	24VAC Signals Between
Above 56°F	Orange to Blue
Between 55° - 30°F	White to Blue
Between 29° - 14°F	Yellow to Blue
Below 13°F	Orange and White to Blue

If the output signals are not matching the specified temperature range, then go to Table #6 and verify the thermistor output curve. If the motor is receiving proper communications and proper high voltage power, and is still not running, proceed with Motor Replacement. (When checking the resistance/temperature curve, don’t forget about the optional 2.2k ohm fan control resistor assembly.)

REPLACING THE MOTOR

This motor is replaced in one piece. The control cannot be replaced separately from the motor. Even if the control is remotely located, the replacement part will be a new control with harness and new motor.

You must have the correct replacement motor from the manufacturer that is a direct replacement for the failed motor.

USING THE WRONG MOTOR VOIDS ALL PRODUCT WARRANTIES AND MAY PRODUCE UNEXPECTED RESULTS.

Always mount the replacement motor and control according to the manufacturers specifications using all required hardware to reduce vibration. Make sure all wires are free of the fan blade and not pinched in mountings or cabinet through points.

Manual	2100-549G
Page	54 of 59

TROUBLESHOOTING INDOOR ECM™ BLOWER MOTORS

CAUTION:

Disconnect power from unit before removing or replacing connectors, or servicing motor. To avoid electric shock from the motor’s capacitors, disconnect power and wait at least 5 minutes before opening motor.

Symptom Cause/Procedure

Motor rocks slightly when starting

Motor won’t start

• No movement

•This is normal start-up for ECM

•Check blower turns by hand

•Check power at motor

•Check low voltage (24 Vac R to C) at motor

•Check low voltage connections (G, Y, W, R, C) at motor

•Check for unseated pins in connectors on motor harness

•Test with a temporary jumper between R - G

•Check motor for tight shaft

•Perform motor/control replacement check

•Perform Moisture Check

•Motor rocks, but won’t start

Motor oscillates up

load & down while being tested off of blower

Motor starts, but runs erratically

•Varies up and down or intermittent

•Check for loose or compliant motor mount

•Make sure blower wheel is tight on shaft

•Perform motor/control replacement check

•It is normal for motor to oscillate with no on shaft

•Check line voltage for variation or “sag”

•Check low voltage connections

(G, Y, W, R, C) at motor, unseated pins in motor harness connectors

•Check “Bk” for erratic CFM command (in variable-speed applications)

•Check out system controls, Thermostat

•Perform Moisture Check

• “Hunts” or “puffs” at	• Does removing panel or filter reduce
high CFM (speed)	“puffing”?
	- Reduce restriction
	- Reduce max airflow

•Stays at low CFM despite system call for cool or heat CFM

•Stays at high CFM

•Blower won’t shut off

•Check low voltage (Thermostat) wires and connections

•Verify fan is not in delay mode; wait until delay complete

•“R” missing/not connected at motor

•Perform motor/control replacement check

•“R” missing/not connected at motor

•Is fan in delay mode? - wait until delay time complete

•Perform motor/control replacement check

•Current leakage from controls into G, Y or W? Check for Triac switched thermostat or solidstate relay

Excessive noise	• Determine if it’s air noise, cabinet, duct or
	motor noise; interview customer, if necessary
• Air noise	• High static creating high blower speed?
	- Is airflow set properly?
	- Does removing filter cause blower to slow
	down? Check filter
	- Use low-pressure drop filter
	- Check/correct duct restrictions

Symptom Cause/Procedure

•Noisy blower or cabinet • Check for loose blower housing, panels, etc.

•High static creating high blower speed?

-Check for air whistling through seams in ducts, cabinets or panels

-Check for cabinet/duct deformation

•“Hunts” or “puffs” at high CFM (speed)

Evidence of Moisture

•Motor failure or

malfunction has occurred and moisture is present

•Evidence of moisture present inside air mover

•Does removing panel or filter reduce “puffing”?

-Reduce restriction

-Reduce max. airflow

•Replace motor and Perform Moisture Check

•Perform Moisture Check

Do

•Check out motor, controls, wiring and connections thoroughly before replacing motor

•Orient connectors down so water can’t get in

-Install “drip loops”

•Use authorized motor and model #’s for replacement

•Keep static pressure to a minimum:

-Recommend high efficiency, low static filters

-Recommend keeping filters clean.

-Design ductwork for min. static, max. comfort

-Look for and recommend ductwork improvement, where necessary

•Size the equipment wisely

•Check orientation before inserting motor connectors

Don’t

•Automatically assume the motor is bad.

•Locate connectors above 7 and 4 o’clock positions

•Replace one motor or control model # with another (unless an authorized replacement)

•Use high pressure drop filters some have ½" H20 drop!

•Use restricted returns

•Oversize system, then compensate with low airflow

•Plug in power connector backwards

•Force plugs

Moisture Check

•Connectors are oriented “down” (or as recommended by equipment manufacturer)

•Arrange harness with “drip loop” under motor

•Is condensate drain plugged?

•Check for low airflow (too much latent capacity)

•Check for undercharged condition

•Check and plug leaks in return ducts, cabinet

Comfort Check

•Check proper airflow settings

•Low static pressure for lowest noise

•Set low continuous-fan CFM

•Use humidistat and 2-speed cooling units

•Use zoning controls designed for ECM that regulate CFM

•Thermostat in bad location?

Manual	2100-549G
Page	55 of 59

TROUBLESHOOTING INDOOR ECM™ BLOWER MOTORS (Cont’d.)

Replacing ECM Control Module

To replace the control module for the GE variable-speed indoor blower motor you need to take the following steps:

1. You MUST have the correct replacement module. The controls are factory programmed for specific operating modes. Even though they look alike, different modules may have completely different functionality.

USING THE WRONG CONTROL MODULE VOIDS ALL PRODUCT WARRANTIES AND MAY PRODUCE UNEXPECTED RESULTS.

2.Begin by removing AC power from the unit being serviced. DO NOT WORK ON THE MOTOR WITH AC POWER APPLIED. To avoid electric shock from the motor’s capacitors, disconnect power and wait at least 5 minutes before opening motor.

3.It is not necessary to remove the motor from the blower assembly, nor the blower assembly from the unit. Unplug the two cable connectors to the motor control assembly. There are latches on each connector. DO NOT PULL ON THE WIRES. The plugs remove easily when properly released.

4.Locate the screws that retain to the motor control bracket to the sheet metal of the unit and remove them. Remove two (2) nuts that retain the control to the bracket and then remove two (2) nuts that retain sheet metal motor control end plate. Refer to Figure 30.

5.Disconnect the three (3) wires interior of the motor control by using your thumb and forefinger squeezing the latch tab and the opposite side of the connector plug, gently pulling the connector. DO NOT PULL ON THE WIRES, GRIP THE PLUG ONLY. Refer to Figure 30.

6.The control module is now completely detached from the motor. Verify with a standard ohmmeter that the resistance from each motor lead (in the motor plug just removed) to the motor shell is >100K ohms. Refer to Figure 31. (Measure to unpainted motor end plate.) If any motor lead fails this test, do not proceed to install the control module. THE MOTOR IS DEFECTIVE AND MUST BE REPLACED. Installing the new control module will cause it to fail also.

7.Verify that the replacement control is correct for your application. Refer to the manufacturer's authorized replacement list.

USING THE WRONG CONTROL WILL RESULT IN IMPROPER OR NO BLOWER OPERATION. Orient the control module so that the 3-wire motor plug can be inserted into the socket in the control. Carefully insert the plug and press it into the socket until it latches. A SLIGHT CLICK WILL BE HEARD WHEN

PROPERLY INSERTED.

8.Reverse the steps #5, 4, 3 to reconnect the motor control to the motor wires, securing the motor control cover plate, mounting the control to the bracket, and mounting the motor control bracket back into the unit. MAKE SURE THE ORIENTATION YOU SELECT

FOR REPLACING THE CONTROL ASSURES THE CONTROL'S CABLE CONNECTORS WILL BE LOCATED DOWNWARD IN THE APPLICATION SO THAT WATER CANNOT RUN DOWN THE CABLES AND INTO THE CONTROL. DO NOT OVERTIGHTEN THE BOLTS.

9.Plug the 16-pin control plug into the motor. The plug is keyed. Make sure the connector is properly seated and latched.

10.Plug the 5-pin power connector into the motor. Even though the plug is keyed, OBSERVE THE PROPER ORIENTATION. DO NOT FORCE THE CONNECTOR. It plugs in very easily when properly oriented. REVERSING THIS PLUG WILL CAUSE

IMMEDIATE FAILURE OF THE CONTROL MODULE.

11.Final installation check. Make sure the motor is installed as follows:

a.Motor connectors should be oriented between the 4 o’clock and 8 o’clock positions when the control is positioned in its final location and orientation.

b.Add a drip loop to the cables so that water cannot enter the motor by draining down the cables. Refer to Figure 32.

The installation is now complete. Reapply the AC power to the HVAC equipment and verify that the new motor control module is working properly. Follow the manufacturer's procedures for disposition of the old control module.

			Figure 30		Figure 31
			Figure 3		Figure 4
		Control Disassembly			Winding Test
				Motor Connector
	Only remove		From Motor	(3-pin)
	Hex Head Bolts	Push until
		Latch Seats
		Over Ramp
			Circuit
			Board
	ECM 2.0		Motor
					Motor OK when
	Note:				R > 100k ohm
	Use the shorter
	bolts and
	alignment pin				Figure 32
	supplied when				Figure 5
	replacing an				Drip Loop
	ECM 2.0		Motor Connector
	control.		(3-pin)	Back of	Connector Orientation
	ECM			Control	Between 4 and 8 o'clock
	EON		Control Connector
	2.3/2.5
	5.0		(16-pin)
			Power Connector
			(5-pin)
			Hex-head Screws		Drip Loop
Manual	2100-549G
Page	56 of 59

TROUBLESHOOTING ECM™ BLOWER MOTORS (Cont’d.)

		Continuous				Dehum.			Heat Pump	Heat Pump
MODE of	OFF	Blower	Part Load	Full Load			Part Load	Full Load	Full Load with	Full Load with	Emergency
						Mode
OPERATION		(Ventilation	Cooling	Cooling			Heat Pump	Heat Pump	1st Bank of	1st & 2nd Bank of	Heat Mode
		Mode)			(when equipped)				Electric Heat	Electric Heat
Thermostat			"G",	"G",			"G", "B",	"G", "B",	"G", "Y1",	"G", "Y1", "Y2",	"G",
24 VAC	—	"G"				"D"
			"Y1", "Y2"	"Y1", "Y2"			"Y1"	"Y1, "Y2"	"Y2", "B", "W1"	"B", "W2", "W3"	"W2", "W3"
Input Signals
Pin #1	24 VAC "C" (Common) Signal, Always Energized
Pin #2									X
Pin #3	24 VAC "C" (Common) Signal, Always Energized
Pin #4	Not Used
Pin #5	Not Used
Pin #6			X	X		X	X	X	X	X
Pin #7	Not Used
Pin #8	Not Used
Pin #9							X	X	X
Pin #10	Not Used
Pin #11	Not Used
Pin #12	24 VAC Hot "R" Signal, Always Energized
Pin #13										X	X
Pin #14				X		X	X		X	X
Pin #15		X	X	X		X	X	X	X	X	X
Pin #16	Not Used

FIGURE 33

CONTROL CONNECTOR MOTOR HALF

9 10 11 12 13 14 15 16

1

2

3

4

5

6

7

8

POWER CONNECTOR *

PWB HEADER	AMP 1-350945-0
PIN	Description
1	Jumper Pin 1 to Pin 2 for

2120VAC Line Input Only **

3Chassis Ground

4AC Line

5AC Line

*Suggested mating connector Housing — AMP 350809-1 Contact — AMP 350537-1

**WARNING — Applying 240VAC line input with PIN 1 to PIN 2 jumper in place will permanently damage unit!

MIS-2839

POWER CONNECTOR	1 2 3 4 5
MOTOR HALF

FAN BLADE SETTING DIMENSIONS

The position of the fan blade should be flush with the leaving face of the orifice plate. Check to make sure the blades do not extend beyond the rear casing of the unit. Spin the blade by hand to make sure it does not hit the ring.

REFRIGERANT CHARGE

This unit was charged at the factory with the quantity of refrigerant listed on the serial plate. AHRI capacity and efficiency ratings were determined by testing with this refrigerant charge quantity. The following pressure tables show nominal pressures and temperatures for the units. Since many installation specific situations can affect the pressure readings, this information should only be used by certified technicians as a guide for evaluating proper system performance. They shall not be used to adjust charge. If charge is in doubt, reclaim, evacuate and recharge the unit to the serial plate charge.

Manual	2100-549G
Page	57 of 59

TABLE 10A

FULL LOAD COOLING PRESSURE/TEMPERATURE

		RETURN					AIR TEMPERATURE ENTERING OUTDOOR COIL °F
		AIR
				55	60	65	70	75	80	85	90	95	100	105	110	115	120	125
	MODEL	TEMP.	PRESSURE
		75 DB	Low Side	117	118	120	121	123	124	126	128	129	130	132	133	135	136	137
		62 WB	High Side	202	224	246	267	289	310	332	354	375	399	423	448	472	496	520
	I30H1	80 DB	Low Side	130	131	133	134	136	139	140	141	142	144	145	147	148	150	151
		67 WB	High Side	201	225	248	271	294	315	345	362	386	411	436	461	486	510	535
		85 DB	Low Side	145	146	148	149	151	152	154	156	157	159	160	162	164	165	167
		72 WB	High Side	210	233	256	278	301	323	346	369	391	416	442	467	492	517	542
		75 DB	Low Side	126	127	129	130	131	132	134	135	136	137	138	139	141	142	143
		62 WB	High Side	209	231	252	274	295	317	338	360	381	405	429	452	476	500	524
	I36H1	80 DB	Low Side	139	140	142	143	144	146	147	148	149	150	152	153	154	155	157
		67 WB	High Side	208	231	254	277	300	327	358	370	392	417	441	466	490	515	539
		85 DB	Low Side	154	155	157	158	159	160	162	163	164	165	167	168	170	171	172
		72 WB	High Side	217	240	262	285	307	330	352	375	397	422	447	471	496	521	540
		75 DB	Low Side	122	123	125	127	128	130	131	133	134	135	136	137	138	139	140
		62 WB	High Side	218	238	258	279	299	319	339	360	380	404	428	452	476	500	524
	I42H1	80 DB	Low Side	134	136	138	139	141	142	144	146	147	148	149	150	151	152	153
		67 WB	High Side	217	239	260	282	304	326	355	369	391	416	440	465	490	514	539
		85 DB	Low Side	139	140	142	143	144	145	147	148	149	150	151	152	153	154	155
		72 WB	High Side	226	247	269	290	311	332	353	375	396	421	446	471	496	521	546
		75 DB	Low Side	125	126	127	128	129	129	130	131	132	134	135	136	138	139	140
		62 WB	High Side	203	225	248	271	293	316	339	361	384	411	437	464	491	517	544
	I48H1	80 DB	Low Side	136	138	139	140	141	143	144	145	147	148	150	151	153	154	156
		67 WB	High Side	208	231	254	276	299	321	351	367	390	417	444	471	498	526	553
		85 DB	Low Side	148	149	151	153	154	156	158	159	161	162	164	166	167	169	171
		72 WB	High Side	215	238	261	284	307	331	354	377	400	428	456	484	512	539	567
		75 DB	Low Side	123	124	124	125	126	127	128	129	129	131	132	133	134	135	136
		62 WB	High Side	218	241	265	289	312	336	360	383	407	434	462	489	516	544	571
	I60H1	80 DB	Low Side	134	135	137	138	139	140	141	142	143	145	146	147	148	150	151
		67 WB	High Side	224	248	271	295	319	341	373	389	413	441	469	497	524	552	580
		85 DB	Low Side	146	147	148	150	151	153	154	156	157	159	160	161	163	164	166
		72 WB	High Side	231	255	279	303	327	352	376	400	424	453	481	510	538	567	595

TABLE 10B

FULL LOAD HEATING PRESSURE/TEMPERATURE

		RETURN					AIR TEMPERATURE ENTERING OUTDOOR COIL °F
		AIR
				0	5	10	15	20	25	30	35	40	45	50	55	60	65	70
	MODEL	TEMP.	PRESSURE
	I30H1	70° DB	Low Side	33	40	48	55	63	70	78	85	91	98	107	116	125	134	143
			High Side	247	257	267	277	287	296	306	316	317	319	345	371	398	424	451
	I36H1	70° DB	Low Side	30	38	45	52	59	67	74	81	89	97	105	112	120	127	135
			High Side	244	252	259	267	275	283	290	298	305	311	320	328	337	345	354
	I42H1	70° DB	Low Side	34	40	47	54	60	67	74	81	88	95	102	109	116	123	130
			High Side	255	263	271	278	286	294	301	309	314	319	325	331	337	343	349
	I48H1	70° DB	Low Side	33	40	47	54	60	67	74	81	89	97	106	114	122	130	138
			High Side	268	276	285	293	301	309	318	326	334	342	349	356	363	370	377
	I60H1	70° DB	Low Side	38	42	46	50	54	58	63	67	80	94	102	110	118	127	135
			High Side	290	294	297	300	303	306	310	313	335	357	366	375	384	393	402

Manual	2100-549G
Page	58 of 59

TABLE 11A

PART LOAD COOLING PRESSURE/TEMPERATURE

		RETURN					AIR TEMPERATURE ENTERING OUTDOOR COIL °F
		AIR
				55	60	65	70	75	80	85	90	95	100	105	110	115	120	125
	MODEL	TEMP.	PRESSURE
		75 DB	Low Side	127	128	129	129	130	131	132	133	134	135	137	138	140	141	143
		62 WB	High Side	184	206	227	249	270	292	313	334	356	380	403	427	451	475	498
	I30H1	80 DB	Low Side	141	141	142	143	143	144	144	145	146	147	149	151	152	154	156
		67 WB	High Side	187	209	231	252	274	293	322	338	361	385	409	433	457	481	505
		85 DB	Low Side	154	154	155	156	156	157	157	158	159	161	162	164	166	168	170
		72 WB	High Side	194	216	237	259	280	302	323	344	366	390	415	439	464	488	512
		75 DB	Low Side	131	133	134	136	137	139	140	142	143	144	145	146	148	149	150
		62 WB	High Side	188	209	230	250	271	292	313	333	354	378	403	427	452	476	500
	I36H1	80 DB	Low Side	145	146	148	149	150	152	153	154	155	156	158	159	160	161	163
		67 WB	High Side	191	212	233	254	275	295	323	338	359	384	409	433	458	483	508
		85 DB	Low Side	158	159	161	162	163	164	166	167	168	169	171	172	173	175	176
		72 WB	High Side	198	219	240	260	281	302	323	343	364	389	414	439	464	489	515
		75 DB	Low Side	126	128	130	132	134	136	138	139	141	142	143	144	145	146	147
		62 WB	High Side	192	212	233	253	274	294	315	335	356	379	402	426	449	472	496
	I42H1	80 DB	Low Side	140	141	143	145	146	148	150	151	153	154	155	156	157	158	159
		67 WB	High Side	195	216	236	257	278	299	326	340	361	384	408	432	455	479	503
		85 DB	Low Side	144	145	147	148	150	151	152	154	155	156	157	158	159	160	161
		72 WB	High Side	202	223	243	264	284	304	325	345	366	390	414	438	462	486	510
		75 DB	Low Side	129	130	131	132	133	133	134	135	136	137	139	140	142	143	144
		62 WB	High Side	183	205	226	248	269	291	313	334	356	381	407	432	458	484	509
	I48H1	80 DB	Low Side	140	141	142	144	145	146	148	149	151	152	154	155	157	158	160
		67 WB	High Side	187	209	230	252	274	295	324	339	361	387	413	439	465	491	517
		85 DB	Low Side	154	155	157	158	160	161	162	164	165	167	168	170	172	173	175
		72 WB	High Side	189	212	234	257	280	303	325	348	371	397	424	451	477	504	530
		75 DB	Low Side	127	127	128	128	129	130	130	131	131	133	134	135	136	137	139
		62 WB	High Side	196	218	240	261	283	305	326	348	370	396	422	448	474	500	526
	I60H1	80 DB	Low Side	137	138	139	140	142	142	143	144	146	147	148	150	151	152	154
		67 WB	High Side	200	222	244	266	288	310	339	353	375	402	428	454	481	507	534
		85 DB	Low Side	152	153	153	154	155	156	157	158	159	161	162	164	165	167	168
		72 WB	High Side	203	226	249	271	294	317	340	363	385	412	440	467	494	521	548

TABLE 11B

PART LOAD HEATING PRESSURE/TEMPERATURE

		RETURN					AIR TEMPERATURE ENTERING OUTDOOR COIL °F
		AIR
				0	5	10	15	20	25	30	35	40	45	50	55	60	65	70
	MODEL	TEMP.	PRESSURE
	I30H1	70° DB	Low Side	40	47	54	61	68	75	83	90	97	104	115	125	135	146	156
			High Side	239	249	258	268	278	288	297	307	311	315	328	341	353	366	378
	I36H1	70° DB	Low Side	36	44	51	58	65	73	80	87	96	104	114	123	133	142	152
			High Side	233	241	248	255	262	270	277	284	292	299	307	315	322	330	338
	I42H1	70° DB	Low Side	37	45	52	60	67	75	82	90	96	103	110	118	126	134	142
			High Side	242	250	258	265	273	281	288	296	303	309	316	323	331	338	345
	I48H1	70° DB	Low Side	35	43	51	59	67	75	83	92	98	105	115	124	134	143	153
			High Side	265	271	277	282	288	293	299	305	318	331	340	348	357	365	374
	I60H1	70° DB	Low Side	38	45	52	60	67	74	82	89	96	104	113	122	131	140	149
			High Side	263	272	281	291	300	309	318	327	336	345	356	366	377	387	398

Manual	2100-549G
Page	59 of 59
