Barco SLM R8 Specifications

SLM R8

For Mid-size Theater Presentations

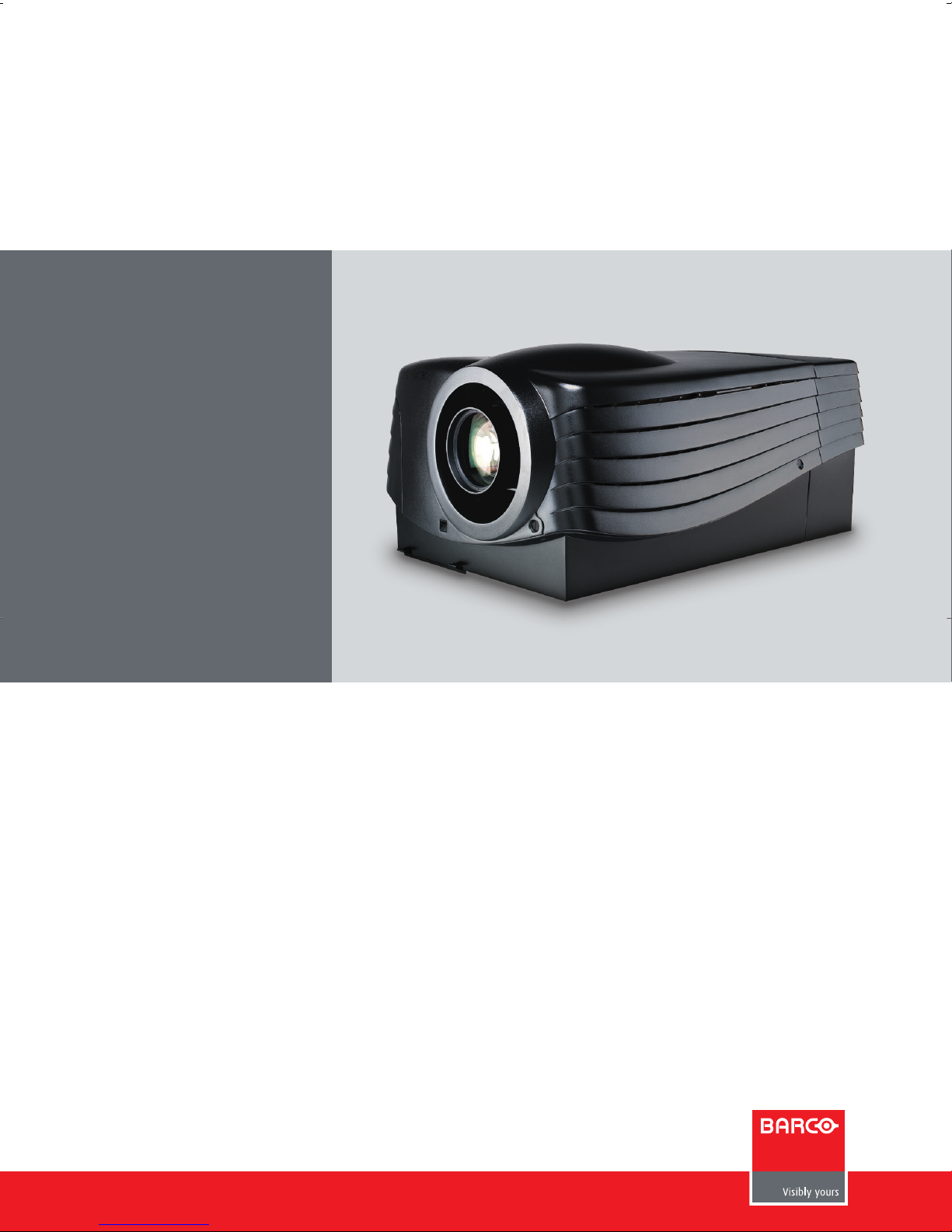

Compact, yet exceptionally powerful, the SLM R8 projector is
ideally suited for professional standard theater presentations
on screens of up to 10m (33ft) wide. Ideal for digital
advertising in the auditorium, business presentations and for
HD movie screenings.

Featuring the proven reliability of the highest resolution Texas
Instruments 3-chip DLP™ technology, the SLM R8 combines a
powerful 8000 ANSI lumens light output with a range of
features that set new standards in reliability, ease of operation,
operating flexibility and low cost maintenance.

Superb performance, every time

A unique combination of an advanced high contrast Movie­Mode for added depth and film-like image quality combined
with a modular construction for a quick lamp change ensures
both superb presentation quality… and that the show always
goes on.

Professional Presentation Flexibilty

While a wide range of analog and digital inputs ensure
compatibility with all existing and known future STV and HDTV
standards, “click-and-play” lenses ensure that the projector can
be set for any presentation in just seconds to ensure a quick set
up and professional presentation quality every time.

www.barco.com

Specifications SLM R8

585 mm / 23"

429mm / 16.9"

815mm / 34.5"

Light Output

8000 ANSI lumens

Brightness Uniformity

> 90% for the total screen area

Digital Micro Mirror Device™

Three high resolution SXGA DMDs

Resolution

1280 x 1024 (SXGA)

Lamp

2.0 kW Xenon
Typical lifetime: 1000 hours
Maximum lifetime: 500 hours

Contrast Ratio

Standard mode - 800:1
Movie mode - 1600:1

Lens Shift

Motorized V shift: up to 100%
Motorized H shift: up to 65%

Lens Type Throw Ratio

Fixed Lens (Manual Focus):
TLD (1.2:1)

1.2
Motorized Zoom and Focus:
TLD (1.6-2.0:1) 1.6-2.0
TLD (2.0-2.8:1) 2.0-2.8
TLD (2.8-5.0:1) 2.8-5.0

Remote Control

All controls are accessible through a
soft-touch panel, a user-friendly back-lit
infrared remote control of

• Source switching

• User settings per source

• Installation and service adjustments

Other Features

• Seamless switching with cross-fade
effects

• Click-and-play “fast swap” lenses

• Built-in light shutter

• Modular construction

Compatibility

• Pixel map processor for computers
and work-stations with a resolution of
up to 1600 x 1200 pixels

• All current video sources in Composite,
S-VHS, RGB or Component or Serial
Digital Format

• All currently proposed HDTV, extended
and improved television standards
(Eureka 95, Hi-Vision, ACTV, IDTV,
EDTV, …)

• Most Macintosh computers

• Two digital input slots to allow for
direct digital interfacing with current
SD & HD inputs

Fixed Inputs

2 Multifunctional 5-cable inputs
for the connection of RGB analog
signals with standard sync (BNC
connectors) or tri-level sync, sync on
green or separate sync, Standard Video
signals, S-VHS signals Standard Digital
Input

• 2 Multistandard DVI

• SDI input (Serial Digital Input)

Optional Digital Inputs

One free digital input slot for optional
input modules:

• SDI

• HD – SDI

Communication

• RS232 or RS422 loop-through input
(D9-connector) for PC based projector
control

• Panel link (2 x in, 1 x out)

• Communication input (D9-connector)
for peripherals

• 3 Pin male XLR connector for wired
remote (standard remote)

• 3 Pin female XLR connector for bi­directional communication
(ruggedized remote)

Power Consumption

2550 Watt

AC Power

230V (tolerance 200V – 240V)

Weight

Net weight 57kg / 126lbs

Order Information

SLM R8 R9002830
TLD (1.2:1) manual focus R9840770
TLD (1.6-2.0:1)
motor focus + zoom R9840670
TLD (2.0-2.8:1)
motor focus + zoom R9840680
TLD (2.8-5.0:1)
motor focus + zoom R9840690
TLD (0.8:1) manual focus R9840900
TLD (5.0:1-8.0:1)
motor focus + zoom R9840910
SDI R9840110
HD-SDI R9840450

Barco Projection Systems is an
ISO 9001 registered company

The information and data given are typical for the equipment described.
However any individual item is subject to change without prior notice.

www.barco.com

Digital Light Processing,
DLP, Digital Micromirror
Device, DMD are
trademarks of Texas
Instruments Incorporated.

ITEA

Barco Digital Cinema
is a member of the
International Theater
Equipment
Association

Barco Digital Cinema – Belgium

Noordlaan 5, 8520 Kuurne

Tel: [phone] Fax: [phone]

e-mail: [email protected]

Barco Inc. – USA

3240 Town Point Drive, Kennesaw, GA 30144

Tel: [phone] Fax: [phone]

e-mail: [email protected]

www.d-cine.barco.com

Ref.no. R599549 – September ’03 – Printed in Belgium
