RLM G5i Performer

Owner’s manual

R9010320

R5976815/02 02/06/2006

Page 2

Barco nv Events

aan 5, B-8520 Kuurne

Noordl Phone: +32 56.36.89.70 Fax: +32 56.36.88.24

sales.events@barco.com

E-mail: Visit us at the web: www.barco.com

PrintedinBelgium

Page 3

1. PACKAGING AND DIMENSIONS

Overview

• Box content

• Projector Packaging

• Dimensions

1.1 Box content

CEE7

European power plug to connect the power cord to the wall outlet.

ANSI 73.11

American power plug to connect the power cord to the wall outlet.

Content

• 1 RLM G5i Performer projector (weight ± 30 kg or 67 lbs)

• 1 remote control unit RCU + 2 batteries.

• 2 power cables with outlet plug type CEE7 and ANSI 73.11.

• 1 owners manual

• 1 safety manual

1. Packaging and Dimensions

1.2 Projector Packaging

Way of Packaging

The projector is packed in a carton box. To provide protection during transportation, the projector is surrounded with foam. The package is secured with banding and fastening clips.

To unpack

1. Is your projector packed with a fastening clips? If yes, release the fastening clips (image 1-1) If no, go to step 3

2. Remove the banding. Handle as shown in the drawing and continue with step 4.

3. Cut the binding ribbons.

4. Take the projector out of its shipping carton and place it on a table. (image 1-2)

R5976815 RLM G5I PERFORMER 02/06/2006

Page 4

1. Packaging and Dimensions

PULL

TO OPE

Image 1-1

Image 1-2 Projector packaging

Save the original shipping carton and packing material, they will be necessary if you ever have to ship your projector. For maximum protection, repack your projector as it was originally packed at the factory.

2 R5976815 RLM G5I PERFORMER 02/06/2006

Page 5

1.3 Dimensions

12 461

[

]

[

]

Side view

Image 1-3 Side view

1. Packaging and Dimensions

,091

2,3

[]

316,5

11,406

289,7

[]

]

4,5

,965

Front view

[1.69]

180

[7.09]

93.5

[3.68]

Image 1-4 Front view

705

[27.76]

51.9

2.04

R5976815 RLM G5I PERFORMER 02/06/2006 3

Page 6

1. Packaging and Dimensions

[13.96]

Bottom view

[

1 3

2 ]

[

2 ]

Image 1-5 Bottom view

170

[6.69]

6 0

6 ]

1 3

120

[4.72]60[2.36]

[2.36]

354.5

170

[6.69]

[1.07]

120

[4.72]

27.2

200

[7.87]

76.8°

188.8

[0.079]

]

. 2

[

3 1

[

492.4

[7.43]

] 2

[19.39]

]

. 5

[

4 R5976815 RLM G5I PERFORMER 02/06/2006

Page 7

Top view

460

[27 87]

122.5

[4.82]

[18.11]

1. Packaging and Dimensions

122.5

[4.82]

570

[22.44]

Image 1-6 To p v ie w

82.5

[3.25]

705

540

[21.26]

82.5

[3.25]

707.8

R5976815 RLM G5I PERFORMER 02/06/2006 5

Page 8

1. Packaging and Dimensions

6 R5976815 RLM G5I PERFORMER 02/06/2006

Page 9

2. Installation Guidelines

2. INSTALLATION GUIDELINES

Overview

• Safety Warnings

• General

• Projector Configuration

• Safety Area around projector

• Lenses

• Battery Insertion in the Remote Control

• Stacking projectors

• Rigging points and accessories

WARNING: Before installing the projector, read first the safety instructions in the safety manual delivered

with the projector and also the safety pages in this manual.

2.1 Safety Warnings

Mercury Vapor Warnings

Keep the following warnings in mind when using the projector. The lamp used in the projector contains mercury. In case of a lamp rupture, explosion there will be a mercury vapor emission. In order to minimize the potential

• Ensure the projector is installed only in ventilated rooms.

• Replace the lamp module before the end of its operational life.

• Promptly ventilate the room after a lamp rupture, explosion has occurred, evacuate the room (particularly in case of a pregnant woman).

• Seek medical attention if unusual health conditions occur after a lamp rupture, explosion, such as headache, fatigue, shortness of breath, chest-tightening coughing or nausea.

risk of inhaling mercury vapors:

2.2 General

WARNING: Before installing the projector, read first the safety instructions.

Ambient Temperature Conditions.

Careful consideration of things such as image size, ambient light level, projector placement and type of screen to use are critical to the optimum use of the projection system.

Max. ambient temperature : 35°C or 95 °F

Min. ambient temperature : 10 °C or 50 °F

The projector will not operate if ambient air temperature falls outside this range (10°C- 35°C or 50°F-95°F).

Storage temperature: -35°C to +65°C (-31°F to 149°F)

Humidity Conditions

Storage: 0 to 98 % RH Non-condensing

Operation: 0 to 95 % RH Non-condensing

CAUTION: Harmful Environmental Contamination Precaution

R5976815 RLM G5I PERFORMER 02/06/2006 7

Page 10

2. Installation Guidelines

Environment

Do not install the projection system in a site near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity. Be aware that room heat rises to the ceiling; check that temperature near the installation site is not excessive.

Environment condition check

A projector must always be mounted in a manner which ensures the free flow of clean air into the projectors ventilation inlets. For installations in environments where the projector is subject to airborne contaminants such as that produced by smoke machines or similar (these deposit a thin layer of greasy residue upon the projectors internal optics and imaging electronic surfac performance), then it is highly advisable and desirable to have this contamination removed prior to it reaching the projectors clean air supply. Devices or structures to extract or shield contaminated air well away from the projector are a prerequisite, if this is not a feasible solution then measures to relocate the projector to a clean air environment should be considered.

Only ever use the manufacturer’s recommended cleaning kit which has been specifically designed for cleaning optical parts, never use industrial strength cleaners on the projector’s optics as these will degrade optical coatings and damage sensitive optoelectronics components. Failure to take suitable precautions to protect the projector from the effects of persistent and prolonged air contaminants will culminate in extensive and irreversible ingrained optical damage. At this stage cleaning of the internal optical units will be non-effective and impracticable. Damage of this nature is under no circumstances covered under the manufacturer’s warranty and may deem the warranty null and void. In such a case the client shall be held solely responsible for all costs incurred during any repair. It is the clients responsibility to ensure at all times that the projector is protected from the harmful effects of hostile airborne particles in the environment of the projector. The manufacturer reserves the right to refuse repair if a projector has been subject to wantful neglect, abandon or improper use.

Special Care for Laser Beams

Special care should be used when DLP projectors are used in the same ro of a laser beam on to the lens can severely damage the Digital MicroMirror Devices™ in which case there is a loss of warranty

om as performant laser equipment. Direct or indirect hitting

es, degrading

Which screen type ?

There are two major categories of screens used for projection equipment. Those used for front projected images and those for rear projection applications.

Screens are rated by how much light they reflect (or transm of light projected toward them. The ‘GAIN’ of a screen is the term used. Front and rear screens are both rated in terms of gain. The gain of screens range from a white matte screen with a gain of 1 (x1) to a brushed aluminized screen with a gain of 10 (x10) or more. The choice between higher and lower gain scre called the Viewing angle. In considering the type of screen to choose, determine where the viewers will be located and go for the highest gain screen possible. A high gain screen will provide a brighter picture but reduce the viewing angle. For more information about screens, contact your local screen suppli

er.

it in the case of rear projection systems) given a determined amount

ens is largely a matter of personal preference and another consideration

What image size? How big should the image be?

The projector is designed for projecting an image size : min 1.00m (3.3ft) to max 15 m (49.2ft) (depending on the ambient light conditions), with an aspect ratio of 4 to 3.

2.3 Projector Configuration

Which configuration can be used?

The projector can be installed to project images in four different configurations:

• Front/table

• Rear/table

• Front/ceiling

• Rear/ceiling

Positioning the projector

The projector should be installed perpendicular with the screen on a distance PD and water leveled in both directions. The mounting positions in the following images are shown for a nominal lens position.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 11

2. Installation Guidelines

Image 2-1 Front-Ceiling configuration

A Side view B Top view CBackview PD Distance projector - screen

R5976815 RLM G5I PERFORMER 02/06/2006

Page 12

2. Installation Guidelines

Image 2-2 Front-Table configuration

A Side view B Top view CBackview PD Distance projector - screen

2.4 Safety Area around projector

Safety area

Make sure the projector is located so that the air inlets and outlets for the cooling system are not obstructed.

Image 2-3 Air flow, safety area

10 R5976815 RLM G5I PERFORMER 02/06/2006

Page 13

2.5 Lenses

Overview

• Lenses

• Lens formulas

• Lens installation

• Cleaning the lens

2.5.1 Lenses

Available lenses

2. Installation Guidelines

Lenses

RLD(0.8)

RLD(1.5-1.8)

RLD(1.8-2.25)

RLD(2.25-3.0)

RLD(3.0-4.5)

RLD(4.5-7.0)

TLD lenses can be used on the projector together with the optional Lens Adapter kit TLD/RLM (order number : R9832650).

Order number

R9832640

R9832642

R9832643

R9832644

R9832645

R9832646

2.5.2 Lens formulas

Formulas

Metric Formulas (meter) Inch formulas (inch)

RLD(0.8) PD = 0.82 x SW + 0.03 PD = 0.82 x SW + 1.18

Wide

PD = 1.4847 x SW + 0.17 PD = 1.4847 x SW + 6.693RLD(1.5-1.8)

(default lens)

Te le

Wide

Te le

Wide

Te le

Wide

Te le

Wide

Te le

PD = 1.8331 x SW - 0.14 PD = 1.8331 x SW - 5.512

PD = 1.8054 x SW - 0.05 PD = 1.8054 x SW - 1.969RLD(1.8-2.25)

PD = 2.2725 x SW - 0.06 PD = 2.2725 x SW - 2.362

PD = 2.27 x SW - 0.08 PD = 2.27 x SW - 3.15RLD(2.25-3.0)

PD = 3.07 x SW - 0.17 PD = 3.07 x SW - 6.69

PD = 2.88 x SW + 0.06 PD = 2.88 x SW + 2.36RLD(3.0-4.5)

PD = 4.45 x SW + 0.06 PD = 4.45 x SW + 2.36

PD = 4.3061 x SW + 0.23 PD = 4.3061 x SW + 9.055RLD(4.5-7.0)

PD = 6.9359 x SW + 0.09 PD = 6.9359 x SW + 3.543

2.5.3 Lens installation

The default lens is standard mounted on the projector when it arrives on your location.

R5976815 RLM G5I PERFORMER 02/06/2006 11

Page 14

2. Installation Guidelines

How to replace with another lens?

Follow the next procedure:

1. Move the handle (A) of the lens anchor system to the left and take out the lens.

2. Take the new lens assembly out of its packing material and remove the lens caps on both sides.

3. Push the lens, motors at the top, in the lens block gap horizontally, lining up the motor connector on the lens with the connector

on the lens block (B). (image 2-4)

Caution: On a table mounted projector, hold the projector when pushing the lens into the lens block to avoid sliding off from

4. Move the handle (A) of the lens anchor system to the right (front view, table mount) to lock the lens.

Image 2-4

the table.

2.5.4 Cleaning the lens

To minimize the possibility of damage to optical coatings, or scratches to lens surfaces, we have developed recommendations for clean. FIRST, we recommend you try to remove any m it off with clean, dry deionized air. DO NOT use any liquid to clean the lenses.

aterial from the lens by blowing

Necessary tools

To ra ys e eTMcloth (delivered together with the lens kit). Order numbe

r : R379058.

Howtocleanthelens?

Proceed as follow :

1. Always wipe lenses with a CLEAN Toraysee

2. Always wipe lenses in a single direction.

Warning: Do not wipe back and forwards across the lens surface as this tends to grind dirt into the coating.

3. Do not leave cleaning cloth in either an open room or lab coat pocket, as doing so can contaminate the cloth.

4. If smears occur when cleaning lenses, replace the cloth. Smears are the first indication of a dirty cloth.

cloth.

CAUTION: Do not use fabric softener when washing the cleaning cloth or softener sheets when drying the

cloth.

Do not use liquid cleaners on the cloth as doing so will contaminate the cloth.

Other lenses can also be cleaned safely with this TorayseeTMcloth.

2.6 Battery Insertion in the Remote Control

Where to find the batteries

The batteries are not placed in the remote control to avoid remote control operation in its package, resulting in a shorter battery life time.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 15

2. Installation Guidelines

How to install the batteries

1. Push the cover tab (A) with the fingernail a little backwards and pull upwards the cover top (B). (image 2-5)

2. Slide the cover forwards to remove. (image 2-6)

3. Push the battery body towards the spring and lift it up to remove. (image 2-7)

4. Insert two AA size batteries, making sure the polarities match the + and – marks inside the battery compartment (image 2-7).

5. Insert the lower tab of the battery cover in the gap at the bottom of the remote control, and press the cover until it clicks in place

(image 2-6).

Image 2-6 Battery cover removal

Image 2-5 Battery cover unlock

Image 2-7 Battery removal

2.7 Stacking projectors

What is possible?

Up to 2 projectors can be stacked on each other without using extra tools or accessories.

How to stack?

Handle as follow:

1. Put the second projector on the first one so that base plate of the second projector matches with the rigging socket of the first

jector. (image 2-8)

pro

2. Turn the rigging sockets of the second projector counter clockwise until they are free to move up and down. (image 2-9)

3. Secure the projectors on each other by bringing the free part of the second projector into the socket of the first projector and turn

a quarter clockwise while pushing downwards until it clicks in.

4. For ceiling mounted configurations, mount a security cable between the lowest projector and the upper projector. (image 2-10)

Warning: Be sure the safe working loud of the used security cables and connectors are enough to support one projector. Refer

to the supplier of the security cable for safety details.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 16

2. Installation Guidelines

Image 2-8 Stacking two projectors

Image 2-9 Closing the rigging sockets

Image 2-10 Mounting the securi

ty chain

14 R5976815 RLM G5I PERFORMER 02/06/2006

Page 17

2. Installation Guidelines

2.8 Rigging points and accessories

2.8.1 Overview

Clamps

Slots are made in the carry handle frame for easy inserting the overlockers and for easy adjusting the clamps position so that this position matches with the rigging points.

Consult a professional structural engineer prior to suspending the ceiling mount from a structure not intended for that use. Always ensure the working load limit of the structure supporting the projector.

WARNING: When mounting the projector to the ceiling or to a rigging system, always mount security chains.

Complete documentation

For a complete documentation consult manual R5976746.

2.8.2 Mounting the clamps

Necessary tools

Wrench 17 mm

Steps to be taken

1. Insert the mushroom head square neck bolt into the mounting hole (1). (image 2-11)

2. Slide the bolt into the groove until the exact position is reached (2).

3. Slide a washer on the bolt (3).

4. Secure with a first nut (4).

5. Turn a second nut on the bolt (5).

6. Turn the movable connecting-piece almost fully onto the bolt. Stops with a sma

second nut so that the movable connecting-piece is still turnable (5).

7. Turn now the connecting-piece into the direction of the lens and secure this position by turning up the second nut. (image 2-12)

8. Turn the clamp on the movable connecting-piece.

ll distance between the clamp assembly and the

R5976815 RLM G5I PERFORMER 02/06/2006

Page 18

2. Installation Guidelines

Image 2-11 Mounting the clamps fixation

Image 2-12 Mounting the rigging clamp

16 R5976815 RLM G5I PERFORMER 02/06/2006

Page 19

3. Connections

3. CONNECTIONS

Overview

• Power connection

• Input Source Connections

• 5-Cable input

• Composite Video Input

• S-Video input

• Digital Visual Interface (DVI) input

• Computer input (RGB analog)

• Serial Digital Interface

• Communication connection

• Extended configuration

3.1 Power connection

AC power (mains) cord connection

Use the supplied power cord to connect your projector to the wall outlet.

Plug the female power connector into the male connector at the back of the projector. Fixate the power plug with the power cord clamp.

The power input is auto-ranging from 90 to 240 VAC.

Image 3-1 Power connection

1 Power input 2 Power cord clamp 3 ON/OFF switch

Fuses

For continued protection against fire hazard :

• refer replacement to qualified service personnel

• ask to replace with the same type of fuse.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 20

3. Connections

3.2 Input Source Connections

Overview

• Input section

• Input facilities

3.2.1 Input section

Input Layers

The input section is divided in layers, each of them regrouping several inputs, this architecture allows the input section to be upgraded at any time with an optional analog or digital layer.

1. Layer 1: analog layer containing analog data and video inputs.

2. Layer 2: a hybrid layer containing 2 digital and 1 analog input.

3. Layer 3 : SDI and interconnection.

4. Layer 4 : is interconnection layer, with XLR connection and an optional Ethernet connection.

3.2.2 Input facilities

overview

• 5–cable input

- component video (PR/Y/PB)

-RGBS

• composite video

•S-Video

• Digital Visual Input (DVI)

• Computer (analog RGB)

• Serial Digital Input with loop through connection

R5976815 RLM G5I PERFORMER 02/06/2006

Page 21

3. Connections

R/PR

G/Y B/PB Hs/Cs Vs VIDEO

DVI ANALOG RGB RS 232/422 IN

POWER WIRELESS

RS 232/422 OUT

RECEIVER

10 BASE-T

Image 3-2 Input facilities

L1 Layer 1 = RGBHV + Composite Video + S-Video L2 Layer 2 = DVI + Computer + RS232IN + RC (wired remote control) L3 Layer 3 = SDI in and out + RS232OUT + Power wireless receiver L4 Layer 4 = Two way hardwired remote + Ethernet

S-VIDEO

R.C.

SDI IN SDI OUT

PUSH

TWO WAY

HARDWIRED REMOTE

3.3 5-Cable input

Input specifications

The 5-cable input section is made of 5 BNC input terminals.

0.7 Vpp ± 3dB

75 Ω terminated

R5976815 RLM G5I PERFORMER 02/06/2006

Page 22

3. Connections

Image 3-3 5-cable input

R/PR

POWER WIRELESS

G/Y B/PB Hs/Cs Vs VIDEO

DVI ANALOG RGB RS 232/422 IN

RS 232/422 OUT

RECEIVER

10 BASE-T

SDI IN SDI OUT

PUSH

TWO WAY

S-VIDEO

R.C.

HARDWIRED REMOTE

Component Video

In Component Video the term component describes a number (3) of elements that are needed to make up the video picture, these components are R-Y/Y/B-Y. A co needed for the color picture in a single channel of information

mposite video signal on the other hand contains all the information

Which signals can be connected ?

Signals/Input BNC

RGBHV

RGsB

RGBS

Component

Beside the standard RGB, component and sync signals, the extended mode of the 5 Cable input makes pro-

ssing of additional signals possible.

PR Y PB

B H V

- -

How to select a source on the 5 cable input ?

ess 1 on the RCU

1. Pr

Note: Another way for selecting this input is via Source on the local keypad or via the Menu

1. data or video

20 R5976815 RLM G5I PERFORMER 02/06/2006

Page 23

3. Connections

Component Video signals (PR/Y/PB)

Some interfaces use progressive output signals with a double line frequency of 32 kHz. The video decoder used for the video signals is not appropriate for these signals since it can only handle 15 kHz signals. This signal has therefore to be internally redirected, this is done in the Source selection menu by selecting Dataon BNC’s instead of Component video and by selecting Pr/Y/Pb in the advanced settings of the Image file menu.

3.4 Composite Video Input

Input specifications

The Composite video input section is made of 1 BNC input terminal. Connect Composite video signals from a VCR, OFF air si decoder, etc..

1.0 Vpp ± 3dB

75 Ω terminated

No loop through

gnal

R/PR

POWER WIRELESS

G/Y B/PB Hs/Cs Vs VIDEO

DVI ANALOG RGB RS 232/422 IN

RS 232/422 OUT

RECEIVER

10 BASE-T

SDI IN SDI OUT

PUSH

TWO WAY

S-VIDEO

R.C.

HARDWIRED REMOTE

Image 3-4 Composite Video indica tion

How to select a Composite Video Input ?

1. Press 3 on the RCU

Note: Another way f or selecting this input is via Source on the local keypad or via the Menu.

The projector allows the input of more composite video signals (up to 7 composite video signals) when using the 5 cable input in extended

R5976815 RLM G5I PERFORMER 02/06/2006 21

configuration. Press 3 to browse through the possible video sources.

Page 24

3. Connections

3.5 S-Video input

Input specification

R/PR

G/Y B/PB Hs/Cs Vs VIDEO

DVI ANALOG RGB RS 232/422 IN

POWER WIRELESS

RS 232/422 OUT

RECEIVER

10 BASE-T

Image 3-5 S-Video indication

Pin configuration 4 pin connector

S-VIDEO

R.C.

SDI IN SDI OUT

PUSH

TWO WAY

HARDWIRED REMOTE

Image 3-6

For S-Video

pin 1 : earth (ground) luminance pin 1 : earth (ground) video Y

pin 2 : earth (ground) chrominance pin 2 : earth (ground) video C

pin 3 : luminance signal (Y) 1Vpp

pin 4 : chrominance signal (C) 300mVpp pin 4 : video C signal

Chrominance

The color component of a video signal that includes information about tint and saturation.

Luminance

The component of a video signal that includes information about its brightness.

22 R5976815 RLM G5I PERFORMER 02/06/2006

±3dB

For Video

pin 3 : video Y signal

Page 25

Which signal can be connected ?

Standard S-Video (S-VHS) with separate Y (luma) and C (chroma) signals.

InextendedmodealsoCompositevideocanbeconnectedtotheS-Videoplug.

How to select the S-Video input ?

1. Press 4 on the RCU

Note: Another way f or selecting this input is via Source on the local keypad or via the Menu.

The projector allows the input of more S-Video signals (up to 3 S-Video signals) via the S-Video extended configuration.

3.6 Digital Visual Interface (DVI) input

DVI

Digital Visual Interface is a display interface developed in response to the proliferation of digital flat panel displays.

The digital video connectivity standard that was developed by DDWG (Digital Display Work Group). This connection standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins that handles both digital and analog video. This standard uses TMDS (Transition Minimized Differential Signal) from Silicon Image and DDC (Display Data Channel) from VESA (Video Electronics Standards Association).

DVI can be single or dual link.

3. Connections

Input specifications

Single link DVI

Differential input voltage: 200 mV - 800 mV

R5976815 RLM G5I PERFORMER 02/06/2006

Page 26

3. Connections

R/PR

G/Y B/PB Hs/Cs Vs VIDEO

DVI ANALOG RGB RS 232/422 IN

POWER WIRELESS

RS 232/422 OUT

RECEIVER

10 BASE-T

Image 3-7 DVI indication. DVI-I type connector analog link

(4 pins at the right side of the connector) not supported.

Pin assignment for the DVI connector.

Pin 1

TMDS DATA2-

S-VIDEO

R.C.

SDI IN SDI OUT

PUSH

TWO WAY

HARDWIRED REMOTE

Pin 13

TMDS DATA3+

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8 Not connected Pin 20

Pin 9

Pin 10

Pin 11

Pin 12

TMDS DATA2+

TMDS DATA2/4 Shield

TMDS DATA4-

TMDS DATA4+

DDC Clock

DDC Data

TMDS DATA1-

TMDS DATA1+

TMDS DATA1/3 Shield

TMDS DATA3-

Pin14 +5Power

Pin 15

Pin 16 Hot Plug Detect

Pin 17

Pin 18

Pin 19

Pin 21

Pin 22

Pin 23

Pin 24

How to select the DVI Input ?

1. Press 5 on

Note: Another way f or selecting this input is via Source on the local keypad or via the Menu.

the RCU

Ground (for +5V)

TMDS DATA0-

TMDS DATA0+

TMDS DATA0/5 Shield

TMDS DATA5-

TMDS DATA5+

TMDS Clock Shield

TMDS Clock+

TMDS Clock-

R5976815 RLM G5I PERFORMER 02/06/2006

Page 27

3.7 Computer input (RGB analog)

Input specification

TTL sync input : U

RGB input = 0.7 V

min

=2.0V

±3dB

3. Connections

R/PR

G/Y B/PB Hs/Cs Vs VIDEO

DVI ANALOG RGB RS 232/422 IN

POWER WIRELESS

RECEIVER

10 BASE-T

Image 3-8 Analog RG B input

What can be connected ?

•RGBHV

•RG

RS 232/422 OUT

S-VIDEO

R.C.

SDI IN SDI OUT

PUSH

TWO WAY

HARDWIRED REMOTE

CompositesynconlypossibleonGreen

How to select a computer input ?

1. Press 2 on the RCU

Note: Another way f or selecting this input is via Source on the local keypad or via the Menu.

3.8 Serial Digital Interface

SDI

Serial Digital Interface

R5976815 RLM G5I PERFORMER 02/06/2006 25

Page 28

3. Connections

Input specifications

SDI input : BNC

SDI output : BNC (= loop through)

typical : 0.8 Vpp

75Ω terminated

output impedance: 75Ω

R/PR

POWER WIRELESS

G/Y B/PB Hs/Cs Vs VIDEO

DVI ANALOG RGB RS 232/422 IN

RS 232/422 OUT

RECEIVER

10 BASE-T

SDI IN SDI OUT

PUSH

TWO WAY

S-VIDEO

R.C.

HARDWIRED REMOTE

Image 3-9 SDI in - out

How to select the SDI input

1. Press 7 on the RCU

Note: Another way f or selecting this input is via Source on the local keypad or via the Menu.

3.9 Communication connection

Overview

• RS232 IN connection

• Wireless receiver

3.9.1 RS232 IN connection

What can be connected to the RS232/422 IN connection ?

The RS232 IN connection allows the projector to communicate with a computer e.g. IBM PC or Apple Macintosh.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 29

3. Connections

R/PR

DVI ANALOG RGB RS 232/422 IN

POWER WIRELESS

RECEIVER

10 BASE-T

Image 3-10 RS232/422 communication

a RS232/422 IN b RS232/422 OUT

G/Y B/PB Hs/Cs Vs VIDEO

RS 232/422 OUT

SDI IN SDI OUT

PUSH

(b)

TWO WAY

HARDWIRED REMOTE

S-VIDEO

R.C.

(a)

Applications of the RS232/422 connection

Remote control:

• easy adjustment of projector via IBM PC (o

• address range from 0 to 255.

• allow storage of multiple projector configurations and set ups.

• wide range of control possibilities.

Data communication: sending data to the projector or copying the data from the projector to the computer.

r compatible) or MAC connection.

What can be connected to the RS232/422 OUT connection ?

The output is a loop through output for RS232/422 signal and can be connected to the RS232/422 IN of the next projector.

To set up the baud rate of the projector, see chapter Installation menu, RS baudrate.

3.9.2 Wireless receiver

What can be connected ?

The optional wireless receiver f to the RS232/422 IN. With these tools, it is possible to control the projector from a distance without using cables.

or the optional rugged remote control can be connected to the Power wireless receiver output and

R5976815 RLM G5I PERFORMER 02/06/2006

Page 30

3. Connections

R/PR

DVI ANALOG RGB RS 232/422 IN

POWER WIRELESS

RECEIVER

10 BASE-T

Image 3-11 Wireless receiver connection

G/Y B/PB Hs/Cs Vs VIDEO

RS 232/422 OUT

SDI IN SDI OUT

PUSH

TWO WAY

HARDWIRED REMOTE

S-VIDEO

R.C.

3.10 Extended configuration

Overview

• Introduction

• 5-cable extended configuration

• S-Video extended configuration

• Summarizing

3.10.1 Introduction

What can be done ?

The extended configuration allows to connect multiple equal source types to the inputs and allow switching between this wide range of input signals.

3.10.2 5-cable extended configuration

What can be done ?

Beside the standard RGB, composite & sync signals, the extended capabilities of the 5-cable inputs make treatment of additional signals possible:

• a composite video signal may be connected to 4 of the 5 BNC’s (beside the standard video BNC input)

• a S-Video signal can be connected

R5976815 RLM G5I PERFORMER 02/06/2006

Page 31

Inputs

3. Connections

Signals

RGBHV

RGSB

RGBS

Component

S-Video

PR Y PB

- - - -

S-Video C

Composite VIDEO

Composite

Table 3-4 Extended configuration of the 5-cable input: the first column gives the possible signals, and the first row the 5 cable input connectors (+ the standard Video BNC).

- -

- - - -

- - - - -

VIDEO

B H V

- - -

- -

- - -

- - - -

VIDEO

- - -

VIDEO

How to set up the 5-cable extended configuration ?

1. Connect the video or S-video source to the desired BNC connector

Note: In some cases an adapter cable is required (image 3-12, image 3-13, image 3-14)

VIDEO

R/PR

G/Y B/PB Hs/Cs Vs VIDEO

Chroma

S-Video 2

Image 3-12 Connecting an S-Video signal on the Vs &

S-VIDEO

Luma

Video BNC

R/PR

G/Y B/PB Hs/Cs Vs VIDEO

Chroma Luma

S-Video 3

Image 3-13 Connecting an S-Video signal on the R&B

S-VIDEO

BNC

R/PR

G/Y B/PB Hs/Cs Vs VIDEO S-VIDEO

Video R Video G

Image 3-14 Connecting composite Video signals on the 5-cable input

Video B

Video VS Video

Multiple video signals can not be visualized simultaneously since there is only one decoder.

3.10.3 S-Video extended configuration

What can be done ?

Beside the standard luminance (Y) and chrominance (C) signals, the advanced capabilities of the S-Video input make treatment of additional signals possible:

• 2 composite video signal may be connected.

Inputs

Signals

S-Video

Composite Video

Table 3-5 Extended configuration of the S-Video input: the first column gives the possible signals, and the first row the S-Video inputs pins.

Video

R5976815 RLM G5I PERFORMER 02/06/2006 29

Page 32

3. Connections

How to set up the S-Video extended configuration ?

1. Connect the video sources to the desired connector (image 3-15)

Note: An adapter cable is required

R/PR

G/Y B/PB Hs/Cs Vs VIDEO

S-VIDEO

Video Y

Video C

Image 3-15 Connecting 2 composite Video signals to the S-Video connector

Luma

Chroma

Multiple video signals can not be visualized simultaneously since there is only one decoder.

3.10.4 Summarizing

Composite video signals

A composite video signal can be entered via 7 different inputs, which gives you 7 different video signals (optional video input not included).

1. Video R : via 1st BNC

2. Video G : via 2nd BNC

3. Video B : via 3rd BNC

4. Video VS : via 5th BNC

5. Video : via the standard composite video BNC input

6. Video Y : via S-Video input

7. Video C : via S-Video input

Key 3 on the RCU allows to browse through the active video inputs, each hit moves to the next active video input. The first hit on key 3 selects the last selected video input.

S-Video signals

An S-Video source can be connected in 3 different ways, through 3 different inputs.

1. S-Video 1: via the standard S-Video input

2. S-Video 2 : via the 5

3. S-Video 3 : via the 1st and the 3rd BNC

Key 4 on the RCU allows to browse through the active S-Video inputs, each hit moves to the next active video input. The first hit on key 4 selects the last selected video input.

BNC and the standard Composite Video input

R5976815 RLM G5I PERFORMER 02/06/2006

Page 33

4. GETTING STARTED

Overview

• Terminology overview

• Switching on

• Lamp runtime

• Switching to standby

• Switching off

• Temperature error DMD

•UsingtheRCU

• Projector address

• Controlling the projector

• Quick lens adjustment

• Digital Zoom

• Quick Picture in Picture selection

4.1 Terminology overview

Overview

The following table gives an overview of the different functionalities of the keys.

4. Getting Started

R5976815 RLM G5I PERFORMER 02/06/2006

Page 34

4. Getting Started

BACK

PIP

DIGI

ZOOM

PHASE

TINT

COLOR

BRIGHTN

CONTR

ENTER

LOGO

TEXT

PAUSE

AUTO IMAGE

SDI

SB-PC

DVI

VIDEO S-VIDEO

RGB

Image 4-1

Image 4-2

LENS

ZOOM

LENS

FOCUS

LENS

SHIFT

VOL

Led 1

Led 2

Led 3

32 R5976815 RLM G5I PERFORMER 02/06/2006

Page 35

No. Key name Description

4. Getting Started

1 Function keys

2 MENU Menu key, to enter or exit the Tool bar menu.

3 Address key

LOGO key allows to recall the stored Logo (not in PiP mode)

PAU SE to stop projection for a short time, press ’PAUSE’. The image disappears but full power is

STBY standby button, to start projector when the power switch is switched on and to switch off the

TEXT to des-activate or activate the on screen dialog boxes and menus.

AUTOIMAGE Auto image, to center the image on the active DMD surface.

9 Digit buttons direct input selection.

SOURCE button this button allows to switch through the active (scanned) inputs

10 Lens control

VOL Used as lens shift left - right.

12 Picture controls use these buttons to obtain the desired picture analog level.

user programmable keys with functions for direct access.

(recessed key), to enter the address of the projector (between 0 and 9). Press the recessed address key with a pencil, followed by pressing one digit button between 0 and 9.

retained for immediate restarting.

projector without switching off the power switch.

Attention : Switching to Standby. When the projector is running and you want to go to standby, press the standby key for 2 seconds.

use these buttons to obtain the desired ZOOM, SHIFT, FOCUS.

DIGI ZOOM allows a digital Zoom of a part of the image

14 FREEZE

15 PIP

16 ENTER

Cursor keys Cursor Keys on RCU or on the local keypad : to make menu selections or to access the

BACK to leave the selected menu or item (go upwards to previous menu).

EFFECTS

PIP ADJUST allows to select a PiP window and change its configuration on screen

RC operating indication lights up when a button on the remote control is pressed. (This is a visual indicator to

22 IR receiver IR receiver

Led 1 IR acknowledgement

Led 2 Hardware error

press to freeze the projected image.

allows to activate the PICTURE IN PICTURE mode

to confirm an adjustment or selection in the MENU.

On the local keypad and the RCU, the ENTER button additionally accesses the PIP window re-size function

menu bar.

not yet implemented

check the operation of the remote control)

Green

Red

Standby

Led 3

R5976815 RLM G5I PERFORMER 02/06/2006 33

Cool down sequence: flickers 60 seconds after switching to standby

rescue program (software error)

Page 36

4. Getting Started

4.2 Switching on

How to switch on.

1. Press the power switch to switch on the projector.

- When ’0’ is pushed in, the projector is switched off.

- When ’1’ is pushed in, the projector is switched on

The projector starts in standby mode, LED1 is red.

Starting image projection.

1. Press Standby key once on the local keypad or on the remote control.

Note: It may take about 60 secon ds before image projection, i.e. no projection until the completion of several operations (soft-

ware initialization,...).

Note: If the Security mode is enabled, a text box will be displayed for PIN code entry, see Security setting in the Installation

Note: If Identification screen is on, the Identification screen will be displayed during start up.

CAUTION: Pushing the standby key too long, might cause the projector to shut down right after an image is

displayed.

4.3 Lamp runtime

To generalize for the different projector types, x refers here to the maximum run time of the lamp. The maximum run time is given in the specifications.

Lamp runtime indication while running

Independently of the lamp mode, when the total runtime of an active lamp (lamp 1 for example) is (x -30) hours or more, a warning message will be displayed.

WARNING !!!

LAMP 1: 1471 hrs

LAMP 2: 1400 hrs

Image 4-3 warning message

This warning message will be repeated at the next start up. Press BACK or MENU to remove the message.

The total lifetime of the lamp (single lamp) for a safe operation type of lamp. Call a Barco authorized service technician for lamp replacement.

Lamp management when the lamp runtime is reached in the different lamp modes is indicated in the next image.

is x hours max., do not use it longer. Always replace with a same

R5976815 RLM G5I PERFORMER 02/06/2006

Page 37

Lamp Status

4. Getting Started

OFF

Lamp 1

X(Lamp Take Over)

X-30 (WARNING)

Lamp 2

Lamp Status

OFF

Image 4-4 Lamp runtime management

A Single lamp mode B Dual lamp mode x Maximum lamp runtime

In single mode, a lamp switch will be executed as far as the second

WARNING: Using a lamp for more than x hours is dangerous a

The lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician.

Lamp 1 +Lamp 2

Runtime(hrs)

2X (ALERT)

2X-30 (WARNING)

Runtime(hrs)

X (ALERT)

X-30 (WARNING)

lamp has not reached its maximum runtime.

s the lamp could explode.

4.4 Switching to standby

Howtoswitchtostandby?

1. Press Standby to switch the projector to standby.

Switching to Standby. When the projector is running and you want to go to standby, press the standby key for 2 seconds until the message ’Saving data, please wait’ is displayed. Do not press any longer on the standby key otherwise the projector will restart.

4.5 Switching off

How to switch off the projector?

1. Press first Standby.

2. Let cool down the projector until the fans stop blowing, at least 15 min.

3. Switch off the projector with the power switch.

4.6 Temperature error DMD

Overview

When the temperature of one of the DMD is too low or too high the projector will be switched automatically to standby. Before switching to standby, the foll Automatic shutdown is activated.’.

owing message appears for 3 seconds on the screen : ’DMD out of operating temperature range.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 38

4. Getting Started

Ambient temperature range within the operating temperature range of the DMD is situated : +10°C and +40°C.

4.7 Using the RCU

Pointing to a reflective screen

1. Point the front of the RCU to the reflective screen surface. (image 4-5)

IR Sensor (C)

Remote Control (A)

Screen (B)

Image 4-5 Pointing RCU to the screen

A Remote control BScreen C IR sensor

When using the remote control, make sure you are within the effective operating distance.

The operating distance may be up to 15 m (50ft).

The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control and the IR sensor.

Hardwired Remote input

1. Plug one end of the remote cable in the connector on the bottom of the RCU. (image 4-6)

2. Plug the other end in the connector in the front

Specifications of the RC input

=9V

-U

-I

=80mA

max

• Internal IR receivers can be disabled:

mono jack : on plug in of the jack

stereo jack : on plug in or using an external switch bringing the right channel (B) to ground level. (image 4-7)

panel of the projector labelled RC.

Image 4-6 Hardwired remote control

36 R5976815 RLM G5I PERFORMER 02/06/2006

Page 39

Image 4-7 Stereo jack pin configuration

A tip: Left channel B ring: right channel C screen: common (GND) Dexternalswitch 1Stereojack 2 Mono jack

4. Getting Started

The Remote connecti

on uses a standard two wire cable terminated on each end with a 3.5 mm male

(mono/stereo) phone jack.

This cable is not delivered but is available in most electronic or audio shops.

Directly to one of the IR sensors

1. When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line).

The remote control unit will no function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the projector IR sensor. (image 4-8)

IR Sensor (C)

45° 45°

3 F

5 F

S E

H R

O R

G H

LEB

Image 4-8 Remote control to IR sensor

A IR sensor on front B IR sensor on top C IR sensor

F 1

2 A D J

F 3

F 4

P A U

9 0

3 4

P H

A S

E S H A R P N

O R

H T

C O N T

A L A N C

E V O L

IR Sensor on Front (A)

F 1

A D J

P A

U S E

T E X

9 0

H A S

S H A

R P

3 4

C O

L O R

R I

G H T

T R

B A

L A

N C E

V O L

IR Sensor on Top (B)

F 3

F 4

F 5

E X I T

Optional two way hard-wired remote to XLR input

1. Plug one end of the twisted pare cable with XLR connector in the two way remote. (image 4-9)

2. Plug the other end in the XLR connector on the projector.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 40

4. Getting Started

Image 4-9 Two way hard-wired remote

4.8 Projector address

Overview

• Address setting

• Displaying and Programming addresses into the RCU

4.8.1 Address setting

Projector address

Address installed in the projector to be individually controlled.

Common address

Default address. Projector will always execute the command coming from a RCU programmed with that common address.

Why a projector address ?

As more than one projector can be installed in a room, the separate projector should be separately addressable with an RCU or computer. Therefor each projector has its own address.

Set up an individual Projector Address.

The set up of a projector address can be done via the software.

Projector controlling.

Every projector requires an individual address between 0 and 255 which can be set in the Installation menu.

Whentheaddressisset,theprojectorcanbecontrolledby:

• RCU for addresses between 0 and 9.

• computer, e.g. IBM PC (or compatible), Apple MAC, etc. for addresses between 0 and 255.

A projector will respond to a RCU set to the common address ’0’ regardless of what address is set in the projector itself (common address of projector should also be “0” ).

The RCU is default programmed with address 0 , ’common a

ddress’.

If it is necessary to control a specific projector, the address is between 0 and 9). The projector with the corresponding address will listen to that specific RCU.

Some projectors may operate in domestic environments where other equipments may listen to the common address “0” , therefore the common address can also be set to “1”.

38 R5976815 RLM G5I PERFORMER 02/06/2006

n enter the projector address into the RCU (only when that

Page 41

4.8.2 Displaying and Programming addresses into the RCU

Displaying the Projector Address on the Screen.

1. Press the Address key (recessed key on the RCU) with a pencil.

The projector’s address will be displayed in a ’Text box’

To continue using the RCU with that specific address, it is necessary to enter the same address with the digit buttons (address between 0 and 9) within 5 seconds after pushing the address key. For example : if the Address key displays projector address 003, then press "3" digit button on the RCU to set the RCU’s address to match the projector’s address. Do not press 0–0–3 . This will address the remote control to ’0’ and control all projectors in the room. If the address is not entered within 5 seconds, the RCU returns to its default address (zero address) and controls then all projectors in the room.

Address 0 (or 1) should always allow communication with the projector since it is a common address.

Displaying the Projector Address in Standby

1. Press the Address key (recessed key on the RCU) with a pencil.

All the LED’s on top of the projector go out.

The LED3 starts blinking green. The number of blinking stands for the number of hundreds. After that LED2 starts blinking for the number of tens. Finally LED3 starts blinking for the number of units. If the blinking is done, the original status of the LEDs restored.

4. Getting Started

4.9 Controlling the projector

Input Selection

Key in the corresponding slot number with the digit keys on the RCU. The selected source will be displayed.

Input Selection with alternative custom file (slot extension)

It is possible to select the same input but with another settings (another custom file will be loaded). Howtodoit:

1. Press first 0 on the RCU. The Slot extension menu will be displayed.

2. Enter the two digits. First digit is custom file sequence and the second digit is the input. E.g. 33, the third custom file will be loaded for source 3. If it does not exist, it will be created. The same input can be loaded with 9 different input sources. E.g. for source 3, the input can be from 13 over 23 to 93.

Image 4-10 Image 4-11

Picture Controls

When an ima on the screen (only if Textbox in the Display Setup menu is ON). The length of the bar scale and the value of the numeric indication indicate the current memorized setting for this source. The bar scale changes as the arrows on the RCU are pressed or the + or button

The picture settings are saved in the image file.

ge control is pressed, a text box with a bar scale, icon and function name of the control, e.g. ’brightness...’ appears

s on the local keypad.

Image 4-12

R5976815 RLM G5I PERFORMER 02/06/2006 39

Page 42

4. Getting Started

Brightness

Contrast Use the + button for a higher contrast.

Color Use the + button for richer colors.

Tint (Hue) Tint is only active for Video and S-Video when using the NTSC 4.43 or NTSC 3.58 system.

Sharpness Use the + button for a sharper picture.

Phase Use the + or - button to adjust the phase.

Gamma Use the + button for a higher gamma

Freeze

Use the + button for a higher brightness.

Use the - button for a lower brightness.

Use the - button for lower contrast.

Use the - button for lighter colors.

Use the + button

Use the - button.

Use the - button for a softer picture.

Use the - button for a lower gamma

Press Freeze to freeze the displayed image.

The Pause Key

When the Pause key is pressed, the image projection is stopped, the mechanical shutter is closed.

To restart the image projection:

•PressPAUSE key

4.10 Quick lens adjustment

Overview

• Lens Adjustment via Control Buttons on Projector

• Lens Adjustment via Menu Bar

• Direct Lens Adjustment (RCU)

4.10.1 Lens Adjustment via Control Buttons on Projector

How to enter the adjustment menu.

1. Press the control button

The lens adjustment menu appears on the screen, requesting for ZOOM/FOCUS alignment.

2. Press button

Note: For the alignment, a lens adjustment t

the lens adjustment test pattern.

3. Press the corresponding arrows (A1) or (A2) on the adjust button, as indicated in front of the menu items, for alignment.

4. Press control button

Lens

(C).

(B) to toggle between ZOOM/FOCUS and Vert. Hor. SHIFT menu.

est pattern can be activated: togglecontrol but ton

(D) to leave the lens adjustment menu. (image 4-13)

Lens

R5976815 RLM G5I PERFORMER 02/06/2006

Page 43

4. Getting Started

Image 4-13 Lens Adjustment

Lens adjustment

Use

↑

and ↓ for vertical shift

Use

←

Lens adjustment

and → for horizontal shift

Press <enter> for ZOOM/FOCUS

Press <LOGO> or <LENS>

for test pattern

Use

↑

and ↓ for zoom

←

and → for focus

Use

Press <enter> for SHIFT mode

Press <LOGO> or <LENS>

for test pattern

Lens adjustment

Use ↑ and ↓ for vertical shift

Use ← and → for horizontal shift

Press <enter> for ZOOM/FOCUS

Press <LOGO> or <LENS>

for test pattern

Lens adjustment

↑

and ↓ for zoom

Use

Use ← and → for focus

Press <enter> for SHIFT mode

Press <LOGO> or <LENS>

for test pattern

1 Button panel on projector 2 Menu Zoom/Focus and Vertical & Horizontal shift 3 Same menus inserted in lens adjustment test pattern

4.10.2 Lens Adjustment via Menu Bar

How to enter the adjustment menu.

1. Press the MENU button (A) on the Remote Control.

The menu bar (1) appears on top of the image. (image 4-14)

2. Press → (A1) on adjust button to select menu item Installation.

A text box appears with the first item Lens adjustment selected (reversed text)

3. Press ENTER button (B) to activate the lens adjustment menu (2).

The lens adjustment menu appears on the screen, requesting for ZOOM/FOCUS alignment.

4. Press ENTER button (B) to toggle between ZOOM/FOCUS and Vert. Hor. SHIFT menu (2).

Note: For the alignment, a lens adjustment test pattern can be activated: toggle button (C) to activate or deactivate the lens

adjustment test pattern (3).

5. Press the corresponding arrows (A1) or (A2) on the adjust button, as indicated in front of the menu items, for alignment.

6. Press control button (D) to leave the lens adjustment menu.

...... Installation ......

Lens adjustment Projector address

......

Lens adjustment

Image 4-14 Lens adjustment via menu

R5976815 RLM G5I PERFORMER 02/06/2006 41

Use

↑

and ↓ for vertical shift

←

and → for horizontal shift

Use

Press <enter> for ZOOM/FOCUS

Press <LOGO> or <LENS>

for test pattern

Lens adjustment

Use

↑

and ↓ for zoom

←

and → for focus

Use

Press <enter> for SHIFT mode

Press <LOGO> or <LENS>

for test pattern

Lens adjustment

Use

Use ← and → for horizontal shift

Press <enter> for ZOOM/FOCUS

Press <LOGO> or <LENS>

for test pattern

Lens adjustment

Press <enter> for SHIFT mode

Press <LOGO> or <LENS>

for test pattern

↑

and ↓ for vertical shift

Use ↑ and ↓ for zoom

Use ← and → for focus

Page 44

4. Getting Started

4.10.3 Direct Lens Adjustment (RCU)

Lens adjustment button on the Remote Control

On the Remote Control three buttons with double action are provided, allowing direct alignment for lens ZOOM, FOCUS and VERTICAL SHIFT. For Horizontal Shift, some projectors use the VOL button.

1. Press LENS ZOOM button [-] or [+] (A) for correct image size on the screen.

2. Press LENS FOCUS button [-] or [+] (C) for an overall focus of the image.

3. Press LENS SHIFT button ↑ or ↓ (B) for correct vertical position of the image on the screen. (image 4-15)

4. Press VOL button [-] or [+] (D) for correct horizontal position of the image on the screen.

[-] button = left shift

[+] button = right shift

Image 4-15 Lens adjustment with RCU

4.11 Digital Zoom

What can be done ?

The Digital Zoom key on the RCU allows to zoom in or out on one particular part of the image.

Digital zoom cannot be performed on a logo.

How to zoom ?

1. Press ← or → on the Digital Zoom key on the remote control to zoom the center of the image.

2. Use the ↑, ↓, → or ← to pan the image. (image 4-16)

3. Press ENTER to confirm.

Note: While in the digital zoom function, use BACK to return.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 45

4. Getting Started

Image 4-16 Digital zoom

A Normal image B Digital zoom out C Digital zoom in D Panning of the zoomed image

To return to the normal image, press MENU, go to Tools, select PiP select and check Full screen.

4.12 Quick Picture in Picture selection

Quick selection

1. Press PiP key on the RCU immediately followed by the corresponding layout number (between 1 and 9).

E.g. : to the third layout, press PiP + 3. The number of the layout which has to be entered is the same as the number between the brackets in the menubar → Tools →

PiP select.

To go back to full screen, enter the source number of the source which must be displayed full screen.

R5976815 RLM G5I PERFORMER 02/06/2006 43

Page 46

4. Getting Started

44 R5976815 RLM G5I PERFORMER 02/06/2006

Page 47

5. Getting used with the menu structure

5. GETTING USED WITH THE MENU STRUCTURE

Overview

• How to start up the menus

• Using the menu

• Using the Dialog boxes

• Using the menus via the built-in LCD panel

5.1 How to start up the menus

PC like menu structure

The RLM G5i Performer has a build in “PC like” menu bar which allows easy access to different parameters for setting up the projector.

How to activate

1. Press MENU on the RCU.

The menu bar will be displayed on the screen.

Menu items which are greyed out are not accessible for the current displayed source.

5.2 Using the menu

Menu Layout

The existence of a submenu is indicated by a white arrow, e.g. Settings has a submenu. E.g. Brightness is an item of the Image menu and has no submenu.

Three suspension points indicate that the menu item hides a dialog box or a text box.

Image 5-1

The menus inserted in this manual are always full menus: all the items are visible.

Greyed out menus or items are not available for the current selected source or current software version.

R5976815 RLM G5I PERFORMER 02/06/2006 45

Page 48

5. Getting used with the menu structure

How to pull down a menu ?

1. Use ↓ to pull down a menu.

How to pull down a submenu ?

1. Use → to pull down a submenu.

How to exit the submenu ?

1. Press BACK to exit a submenu.

Press MENU to exit the menu

5.3 Using the Dialog boxes

How to use the dialog boxes ?

Some parameters are modified by means of a dialog box, where selections can be made and/or values can be entered.

The values can be entered in several ways:

Entering numeric values using the numeric keys on the remote control

1. Press ENTER to activate the input field. (image 5-2)

2. Key in the desired value.

Image 5-2

Entering numeric values using the arrow keys on the remote control

1. Press ENTER to activate the input field.

2. Press ← or → to select the digit to be changed. (image 5-3)

3. Press ↓ or ↑ to increase or decrease the value.

Image 5-3

Entering numeric values using the arrow keys on the local keypad

1. Press ENTER to activate the input field.

2. Press ← or → to select the digit to be changed.

3. Press ↓ or ↑ to increase or decrease the value.

To confirm the changes always press ENTER.

Use ↓ or ↑ to browse between the different fields.

46 R5976815 RLM G5I PERFORMER 02/06/2006

Page 49

5. Getting used with the menu structure

In some cases an alphanumeric value (file name, ...) has to be entered. Use ↑ or ↓ to scroll through the character values once the input field is activated.

Following characters can be browsed in this particular order:

Decimal scroll list: 0123456789

Signed decimal scroll list: 0123456789-

ASCII scrolllist:ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789+-*/&@#.;.abcdefghijklmnopqrstuvwxyz

5.4 Using the menus via the built-in LCD panel

HowtousethemenuontheLCDpanel?

1. Press ENTER on the local key path or MENU on the RCU to start up the menu structure.

2. Use the ← or → to scroll through the main menus (equals the menu bar of the on screen menus).

3. Use the ↓ or ↑ to scroll through the sub menus.

When the items are listed with 3 points or an arrow, the dialog box content of that item will be displayed on the display when ENTER is pressed. The ↓ or ↑ can be used to scroll through the content.

4. To go to a sub menu of a sub menu, press first the right arrow key and then the up or down arrow keys t

the third line of the display.

o display the items on

To return one step, press EXIT. To jump out of the menu structure, press MENU on the RCU.

R5976815 RLM G5I PERFORMER 02/06/2006 47

Page 50

5. Getting used with the menu structure

48 R5976815 RLM G5I PERFORMER 02/06/2006

Page 51

6. SOURCE SELECTION

Overview

• Source Selection overview

• The use of icons

• Source selection

• Selecting a data source on the 5-cable input

• Composite Video

• S-Video selection

• The Video Selector

6.1 Source Selection overview

Source selection overview

•DataonBNC’s

• Component Video

• RG(s)B Video

•PC

• Composite Video

- Video

- Video VS

- Video R

- Video G

- Video B

- Video Y

- Video C

•S-Video

- S-Video 1

- S-Video 2

- S-Video 3

•DVI

•SDI

• Logo

• Video selector...

6. Source Selection

6.2 The use of icons

Overview

A white bullet in front of a menu item (source) indicates that this source is an active source. When picture in picture is used, up to 4 white bullet can be found on the menu drop down.

The digit icon in front of an item, indicates the shortcut key on the RCU.

6.3 Source selection

Selecting a source

The Source selection menu allows to select one of the different sources. Another method to select an input source is via the remote control using the numeric keys or by using the local keypad.

How to select a source ?

1. Press MENU to activate the menu bar.

2. Press ↓ to pull down the Source Selection menu.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 52

6. Source Selection

3. Use ↑ or ↓ to select one of the different sources (Press → to pull down if the item has a submenu).

4. Press ENTER to confirm your choice.

On the screen appears now the selected source with at the same time for a few seconds a text box with source information. (image 6-1)

Video source 1

Video

Video625.c06

Image 6-1 Source indication

6.4 Selecting a data source on the 5-cable input

What can be connected to the 5-cable input

The following source can be connected to the 5-cable input in normal mode:

•DataonBNC’s

• Component Video

•RG(s)B

The position of the icon “1” will always indicate which BNC configuration is selected.

How to set the correct source

1. Press MENU to activate the menu bar.

2. Press ↓ to pull down the Source Selection menu.

3. Use ↑ or ↓ to select one of the 3 possible sources. (image 6-2)

When to select :

DATA on BNC’s When a data signal is connected to the BNC’s

Component Video When a video signal of the type (PR/Y/PB) is connected on the BNC’s

RG(s)B Video When RGB video signal with Sync on green or sync on H is connected on the BNC’s.

This signal is routed to the video circuit and is projected in a Video Window.

Image 6-2

When selecting “1” with the remote control, the pr

50 R5976815 RLM G5I PERFORMER 02/06/2006

edefined source type will be displayed.

Page 53

6. Source Selection

6.5 Composite Video

Possible connections

In normal mode, one video source can be connected to the video input.

In extended mode, up to 7 different video sources can be connected to the normal video input, or to the extended 5-cable input or to the S-Video.

When the extended mode is not switched on, the on screen menu will have another layout with less selection possibilities.

How to select one of 7 different composite video inputs when in extended mode

1. Press MENU to activate the menu bar.

2. Press ↓ to pull down the Source Selection menu.

3. Use ↑ or ↓ to select Composite video.

4. Press → to pull down the submenu.

5. Use ↑ or ↓ to select one of the different video inputs. (image 6-3)

6. Press ENTER to confirm your choice.

A white bullet will indicate the selected composite video source. This source will be displayed on the screen.

Image 6-3

The composite video sources can also be selected using the video selector or via the dedicated key 3 on the RCU. Key 3 allows to browse through the active video inputs when the extended mode is checked in Video Selector..

Multiple video signals cannot be visualized simultaneously since there is only one decoder.

6.6 S-Video selection

When the extended mode is not switched on, the on screen menu will have another layout with less selection possibilities.

How to select one of the 3 S-Video inputs ?

1. Press MENU to activate the menu bar.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 54

6. Source Selection

2. Press ↓ to pull down the Source Selection menu.

3. Use ↑ or ↓ to select S-Video.

4. Press → to pull down the submenu.

5. Use ↑ or ↓ to select one of the different S-Video inputs. (image 6-4)

6. Press ENTER to confirm your choice.

A white bullet indicates the selected S-Video source. This source will be displayed on the screen.

Image 6-4

The S-Video sources can also be selected using the video selector or via the dedicated key 4 on the RCU. Key 4 allows to browse through the active S-Video inputs when the extended mode is checked in Video Selector.

6.7 The Video Selector

Video Selector

The Video Selector is a graphical interface which allows an overview of the different video inputs (Composite Video and S-Video) and whether they are active (signal connected) or not as well as the selection of these different signals.

Video selector modes

The video selector has two modes:

• standard mode : the video selectable video inputs are the standard composite video & S-Video input

• extended mode : several BNC connections are added and can be selected as video inputs or S-Video inputs.

How to switch the mode

1. Press MENU to activate the menu bar.

2. Press ↓ to pull down the Source Selection menu.

3. Use ↑ or ↓ to select Video selector... .(image6-5)

A message will be displayed and followed by a graphical user interface.

4. Use the arrow keys to select the Extended check box.

5. Press ENTER to disable or enable the extended mode.

Check Extended to switch to extended mode. Uncheck Extended to switch to standard mode.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 55

Image 6-5

How to select an input on the Video Selector

1. Use ← or → to browse through the different inputs.

2. Press ENTER to select.

Use MENU or BACK to exit the Video Selector.

Graphical interface

6. Source Selection

Image 6-6

A BNC or S-Video connector on the video selector can be in one of following conditions:

• A: connector disabled

• B: connector enabled but inactive (no video signal present on connector)

• C: connector enabled & active (video sig

nal present on connector)

• D: connector enabled active & selected

• E: connector enabled & active & focused (browser positioned on connector)

A source can also be selected via the dedicated key 9 on the RCU. Key 9 allows to browse through the active inputs.

R5976815 RLM G5I PERFORMER 02/06/2006 53

Page 56

6. Source Selection

54 R5976815 RLM G5I PERFORMER 02/06/2006

Page 57

7. GENERAL MENU

Overview

• General Menu overview

• Pause

• Freeze

• Standby Timer

• Identification

7.1 General Menu overview

General Menu structure

• Pause

• Freeze

• Standby timer...

• Identification

7. General Menu

7.2 Pause

Interrupting the image projection

With the Pause function, the image projection can be stopped, the projector remains with full power for immediate restart. The projection is interrupted by means of a mechanical shutter cutting the light beam.

How to interrupt the image projection ?

1. Press MENU to activate the menu bar.

2. Press → to select General.

3. Press ↓ to pull down the General menu.

4. Use ↑ or ↓ to select Pause.(image7-1)

5. Press ENTER to activate the Pause function.

A brief sound indicates that the shutter has been activated.

Image 7-1

The image projection can also be interrupted using the PAUSE key on the RCU.

To restart the image : press PAUSE.

7.3 Freeze

Freezing the image

With the Freeze function, the image can be frozen. To restart the image, reuse the Freeze function or press the FREEZE button on the remote control.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 58

7. General Menu

Howtofreezetheimage?

1. Press MENU to activate the menu bar.

2. Press → to select General.

3. Press ↓ to pull down the General menu.

4. Use ↑ or ↓ to select Freeze. (image 7-2)

5. Press ENTER to activate the Freeze function.

Image 7-2

The image can also be frozen using the FREEZE key on the RCU.

7.4 Standby Timer

Purpose of the Standby Timer

If there is no signal, and the standby timer is enabled, a dialog box is displ time.

Image 7-3

The countdown time can be set in a dialog box in a range from 180 to 3600 seconds (default value = 300). The Timer can also be disabled.

How to enable the standby timer ?

1. Press MENU to activate the menu bar.

2. Press → to select General.

3. Press ↓ to pull down the General menu.

4. Use ↑ or ↓ to select Standby Timer.(image7-4)

5. Press ENTER to activate the function.

On the screen appears a dialog box. (image 7-5)

6. Use ↑ or ↓ to select Enabled .

A box surrounds the selected item.

7. Press ENTER to activate.

8. Use ↑ or ↓ to browse to the input field.

9. Use ← or → , the numeric keys on the remote or the keypad to change the countdown setting.

10.Press MENU or BACK to exit or to go back to the previo

us menu.

ayed and the projector will shut down after a determined

R5976815 RLM G5I PERFORMER 02/06/2006

Page 59

Image 7-4

Image 7-5

7.5 Identification

7. General Menu

The projector’s identification screen

The identifi

These are:

•Projectorty

• Projector address

• Software version controller unit

• RS232 Baudrate

• Serial number of projector

cation screen displays the projector’s main characteristics

How to display the identification screen ?

1. Press MENU to activate the menu bar.

2. Press → to select General.

3. Press ↓ to pull down the General menu.

4. Use ↑ or ↓ to select Id

5. Press ENTER to activate the function.

The Identification screen will be displayed. (image 7-7)

6. Press MENU or BACK to exit or to go back to the previous menu

entification. (image 7-6)

Image 7-6

R5976815 RLM G5I PERFORMER 02/06/2006 57

Page 60

7. General Menu

Image 7-7

58 R5976815 RLM G5I PERFORMER 02/06/2006

Page 61

8. IMAGE MENU

Overview

• Image menu overview

• Settings

• Aspect ratio

• Show native resolution

• Keystone correction

• Color Temperature

• Filmmode detection

•Blanking

• Input Balance

• AGC on Video

• Manual Gain Control

8. Image Menu

R5976815 RLM G5I PERFORMER 02/06/2006

Page 62

8. Image Menu

8.1 Image menu overview

Overview

• Settings

- Contrast

- Brightness

-Color

-Tint

- Sharpness

- Gamma

-Phase

- Noise Reduction

• Aspect ratio

-Auto

- [4:3]

- [16:9]

- [5:4]

- [2.35]

- [2.88]

- [1.78]

-Custom

• Show native resolution

-On

-Off

• Keystone...

• Color temperature

- Projector white

- Computer

- Video

-Film

- Broadcast

- Custom Preset...

- Custom...

• Film mode detection

-On

-Off

•Blanking

• Input Balance

-Black..

- White...

-Preset

• AGC on Video

-On

-Off

• Manual Gain Control...

R5976815 RLM G5I PERFORMER 02/06/2006

Page 63

8. Image Menu

8.2 Settings

Overview

• Contrast

• Brightness

• Color

• Tint (hue)

• Sharpness

• Gamma

• Phase

• Noise reduction

What can be done?

Correct image settings are important for a good image reproduction.

The image settings are made through a dialog box with a scroll bar. Minimal, maximal and the actual values are indicated. These settings can also be done directly via the RCU’s dedicated buttons, except for the sharpness.

Image 8-1

Image 8-2

8.2.1 Contrast

About Contrast

The contrast function is used to adjust the contrast between the light and dark areas of the displayed image.

How to change the contrast

1. Press MENU to activate the menu bar. (image 8-3)

2. Press → t

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select settings.

5. Press → to pull down the menu.

6. Use ↑ or ↓ to select Contrast.

7. Press ENTER.

A slider box

8. Use ← or → to change the contrast.

o select the Image item.

appears.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 64

8. Image Menu

The higher the value, the higher the contrast. Or, click in the input box and enter the desired value with the numeric keys.

Image 8-3

8.2.2 Brightness

About Brightness

The Brightness function is used to adjust the overall light output.

How to change the Brightness ?

1. Press MENU to activate the menu bar. (image 8-4)

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select settings.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select Brightness.

7. Press ENTER

A slider box appears.

8. Use ← or → to change the brightness.

The higher the value, the higher the brightness. Or, click in the input box and enter the desired value with the numeric keys.

Image 8-4

62 R5976815 RLM G5I PERFORMER 02/06/2006

Page 65

8.2.3 Color

About Color setting

The color function is used to adjust color saturation levels.

How to change the Color ?

1. Press MENU to activate the menu bar. (image 8-5)

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select settings.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select Color.

7. Press ENTER .

A slider box appears.

8. Use ← or → to change the color.

The higher the value, the higher the color. Or, click in the input box and enter the desired value with the numeric keys.

8. Image Menu

Image 8-5

8.2.4 Tint (hue)

About Tint

The Tint function is used to adjust color hue to obtain true c NTSC color system is used. For PAL and SECAM sources, Tint is not accessible.

olor reproduction and is only active for Video and S-Video when the

How to change the Tint ?

1. Press MENU to activate the menu bar. (image 8-6)

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select settings.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select Tint.

7. Press ENTER .

A slider box appears.

8. Use ← or → to change the tint.

The higher the value, the higher the tint. Or, click in the input box and enter the desired value with the numeric keys.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 66

8. Image Menu

Image 8-6

8.2.5 Sharpness

About Sharpness

The sharpness function is used to adjust the image sharpness of video signals.

How to change the sharpness ?

1. Press MENU to activate the menu bar. (image 8-7)

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select settings.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select Sharpness.

7. Press ENTER.

A slider box appears.

8. Use ← or → to change the sharpness.

The higher the value, the higher the sharpness. Or, click in the input box and enter the desired value with the numeric keys.

Image 8-7

8.2.6 Gamma

About Gamma

Gamma is an image quality enhancement function that offers a richer image by brightening the already darker portions of the image without altering the brightness of t

he brighter portions (contrast feeling enhanced).

R5976815 RLM G5I PERFORMER 02/06/2006

Page 67

How to change the Gamma

1. Press MENU to activate the menu bar. (image 8-8)

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select settings.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select Gamma.

7. Press ENTER .

A slider box appears.

8. Use ← or → to change the gamma value.

Or, click in the input box and enter the desired value with the numeric keys.

Note: Default value of gamma : 2.2

8. Image Menu

Image 8-8

8.2.7 Phase

About Phase adjustment

When displaying computer patterns or graphics (RGB or YUV signals in picture (mis-sampling) may occur, causing horizontal stripes in portions of the screen. When this jitter occurs, adjust ’Phase’ for optimum image.

Image 8-9 Jittering on image

) which are very detailed (tilting, vertical stripes, etc. ), jitter

How to change the Phase ?

1. Press MENU to activate the menu bar. (image 8-10)

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select settings.

5. Press → to pull down the menu.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 68

8. Image Menu

6. Use ↓ or ↑ to select Phase.

7. Press ENTER .

A slider box appears.

8. Use ← or → to change the Phase and refine the jitter.

Or, click in the input box and enter the desired value with the numeric keys.

Note: Don’t mix up with wrong number of total pixels. If the jitter doesn’t disappear with the phase adjustment, check the total

number of pixels. (Best image = pixel on pixel off pattern. For example: shut down screen of a PC)

Image 8-10

8.2.8 Noise reduction

About Noise reduction

Reduces noise and pixel jitter in all video sources.

How to change the Noise reduction ?

1. Press MENU to activate the menu bar. (image 8-11)

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select settings.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select Noise reduction.

7. Press ENTER .

A slider box appears

8. Use ← or → to change the noise level.

The higher the value, the higher the noise reduction. Or, click in the input box and enter the desired value with the numeric keys.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 69

Image 8-11

8.3 Aspect ratio

Aspect ratio is greyed out when the Full Screen Representation function in Disp lay Setup is switched ON or when the Show Native Resolution function in Imag e is switched ON.

8. Image Menu

What can be done ?

The aspect ratio setting forces the projector to project an image using a defined aspect ratio

Aspect ratio Description

Auto

4:3

16:9

5:4

2.35

2.88

1.78

Custom Custom aspect ratio can be set up

Some examples:

Type of input sig ratio settings. The arrow indicates the correct setting for the mentioned source.

Calculates an aspect ratio based on the information stored in the images files.

Standard television format

Wide screen television format / anamorphic format

Workstation format

Cine Scope 35 mm

Wide screen television format / anamorphic format

Selecting Auto in case of a Video source may shrink the image horizontally or vertically

nal is indicated above each image row. The image row shows how the image will be projected in the different aspect

R5976815 RLM G5I PERFORMER 02/06/2006

Page 70

8. Image Menu

4/3

Video Signal Pal/Secam

Video Signal NTSC

Video Signal 16/9

5/4

16/9 Auto

RGB Signal

Image 8-12 Some examples for aspect ratio

How to change the Aspect ratio ?

1. Press MENU to activate the menu bar. (image 8-13)

2. Press → to select Image.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Aspect ratio.

5. Press ENTER to confirm.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 71

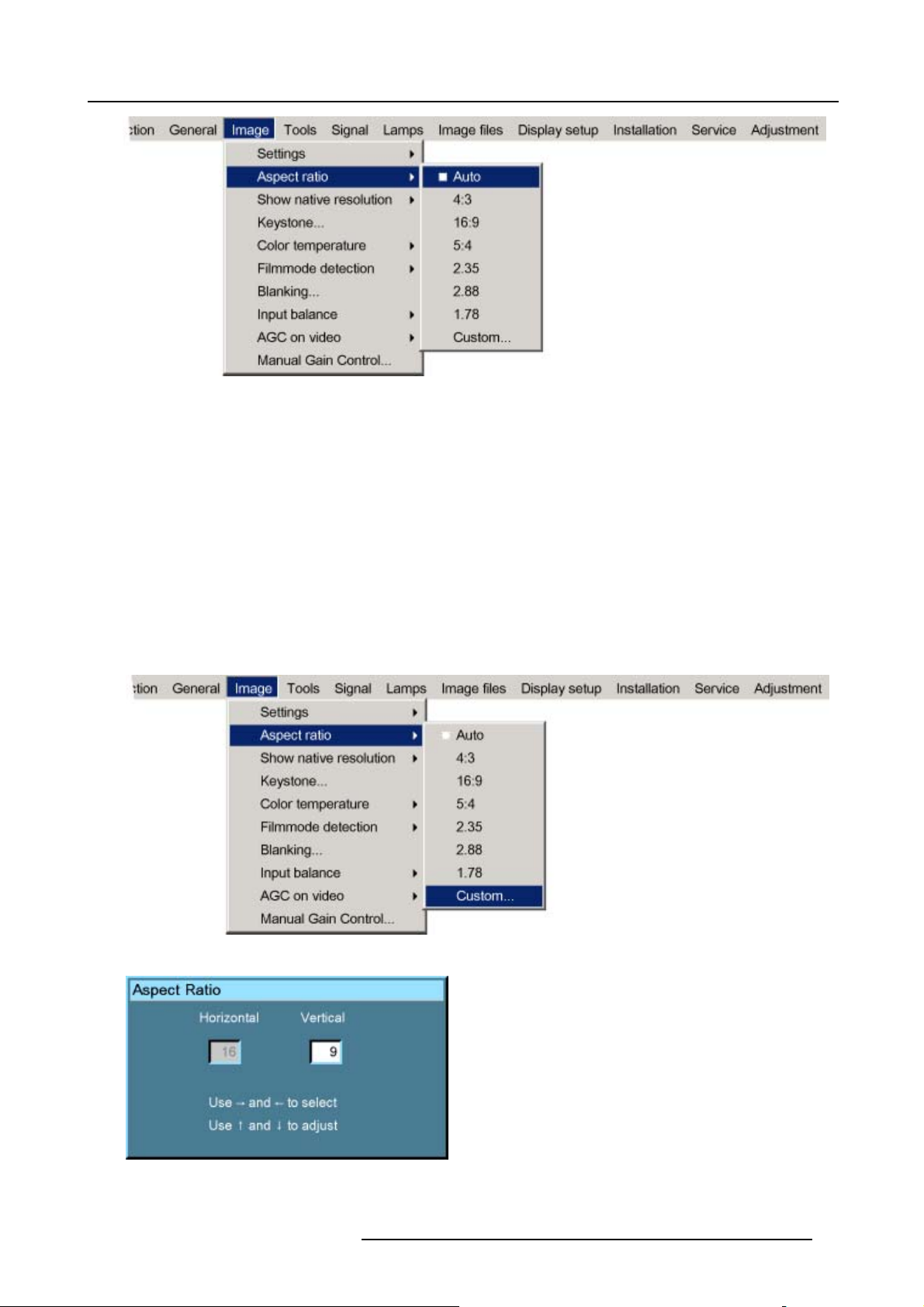

Image 8-13

How to set up a custom Aspect ratio ?

1. Press MENU to activate the menu bar. (image 8-14)

2. Press → to select Image.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Aspect ratio.

5. Press ↓ to select custom....

6. Press ENTER to confirm.

The Custom aspect ratio dialog box will be displayed. (image 8-15)

7. Use ← or → to select Horizontal or Vertical.

8. Use ↑ or ↓ to adjust until the desired aspect ratio is obtained.

Or, press ENTER and enter the desired value with the digit keys.

8. Image Menu

Image 8-14

Image 8-15

R5976815 RLM G5I PERFORMER 02/06/2006 69

Page 72

8. Image Menu

8.4 Show native resolution

Show native resolution overrules the Full Screen Representation function in Display Setu p.

Show native resolution is greyed out for video signals.

DMD

Digital Micromirror Device

What can be done

The aim here is to always show the resolution of the source independently of the resolution of the DMD panels.

Image 8-16

When the show native resolution function is in the ON position, the projector handles the source as follows:

Source

Name Ratio Resolution Ratio Resolution

XGA

SXGA

SXGA+

UXGA

4:3 1024x768 4:3 1024x768 normal image projected

5:4 1280x1024 5:4 1280x1024

4:3 1400x1050 4:3 1400x1050

4:3 1600x1200 4:3 1600x1200

Projected image

part of the image displayed, image scroll possible

How to enable the “Show native resolution” function?

1. Press MENU to activate the menu bar.

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Show native resolution. (image 8-17)

5. Press → to pu

ll down the menu.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 73

6. Use ↓ or ↑ to select On.

7. Press ENTER .

A white bullet shows the selection.

Image 8-17

When Show Native Resolution is in the ON position, scrolling of the image is possible with the arrow keys on the remote control.

8. Image Menu

8.5 Keystone correction

What can be done ?

The Keystone adjustment is used to align the image, this can be necessary when projecting under a non standard angle

Image 8-18 Keystone adjustment

A Top adjustment of the keystone B Bottom adjustment of the keystone

How to perform a Keystone correction ?

1. Press MENU to activate the menu bar.

2. Press → to select Image.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Keystone. (image 8-19)

5. Press ENTER to confirm.

A slider box is displayed . (image 8-20)

6. Use ← or → to adjust the keystone.

Or, enter the desired value with the numeric keys.

The top and bottom adjustments affect the image differently.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 74

8. Image Menu

Image 8-19

Keystone

Top

255

Bottom

255

Image 8-20

8.6 Color Temperature

What can be done ?

The color temperature can be selected according to the type of source:

There are 6 different preset color temperatures:

• Projector white

• computer : 9300 K

• Video : 6500 K

• Film : 540

• Broadcast : 3200 K

• Custom Preset value

The first 5 calibrated presets can be selected and will provide optimum color tracking, the projector allows however the setting of a personal preset color temperature, this is done in Custom Preset. Next to that Custom Preset a Custom value, which is only valid for that moment, can be set in Custom.

Differ

A Custom Preset color temperature is any color temperature set by the user and saved for later use. This value can be recalled in the same way as a calibrated value.

Custom is used when the user wants to use a variation on a calibrated color temperature. This custom setting remains available

another preset is selected which will overwrite the current custom values.

until

Projector white will provide maximum projector light output.

ence between Custom Preset and Custom

o select a preset color temperature ?

How t

1. Press MENU to activate the menu bar.

2. Press → to select the Image item. (image 8-21)

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Color temperature.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 75

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select the desired preset color temperature.

7. Press ENTER to confirm.

The color temperature of the image is adapted and a white bullet shows the active setting in the menu bar.

Image 8-21

8. Image Menu

How to store a customer created color temperature on Custom Preset?

1. Press MENU to activate the menu bar.

2. Press → to select the Image item. (image 8-22)

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Color temperature.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select Custom Preset.

7. Press ENTER to confirm.

A slider box for the x-coordinate is displayed as well as a wizard text box in the lower part of the screen. (image 8-23) Adjust first x and then y.UseColor button to toggle between x and y

The color temperature value will be stored for later use.

.(image8-24)

Image 8-22

R5976815 RLM G5I PERFORMER 02/06/2006 73

Page 76

8. Image Menu

Image 8-23

1000

200

Change between x and y with <COLOR>

Image 8-24

the x and y coordinate changes between 0.00 and 1.00. For practical reasons, the values on the slider box are multiplied by 1000.

How to start up the custom color temperature ?

1. Press MENU to activate the menu bar.

2. Press → to select the Image item. (i

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Color temperature.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select custom.

7. Press ENTER to confirm.

A slider box for the x-coordinate is Adjust first x and then y.UseColor button to toggle between x and y. (image 8-27)

Once another preset is selected, the current value is lost.

mage 8-25)

displayed as well as a wizard text box in the lower part of the screen. (image 8-26)

Image 8-25

Image 8-2

1000

200

Change between x and y with <COLOR>

Image 8-27

the x and y coordinate changes between 0.00 and 1.00. For practical reasons, the values on the slider box are multiplied by 1000.

74 R5976815 RLM G5I PERFORMER 02/06/2006

Page 77

8.7 Filmmode detection

What can be done ?

Some sources like common DVD material are derived from cinema 24 Hz sources (2/2 or 3/2 pull down method).

The filmmode detection insures that these converted signals are shown without artefacts.

This function may cause undesired effects on standard sources, therefore it can be disabled (OFF) at any time

2:2 pull-down

The process of transferring 24-frames/sec film format into video by repeating each frame (used for PAL DVD’s) as two video fields. ( AD )

3:2 pull-down

Method used to map the 24 fps of film onto the 30 fps (60 fields) or 25 fps (50 fields), so that one film frame occupies three video fields, the next two, etc. It means the two fields of every other video frame come from different fil making operations such as rotoscoping impossible, and requiring care in editing. Some sophisticated equipment can unravel the 3:2 sequence to allow frame-by-frame treatment and subsequently re-compose 3:2. The 3:2 sequence repeats every five video frames and four film frames, the latter identified as A-D. Only f frame and so exists at one time code only, making it the editable point of the video sequence.

8. Image Menu

m frames

ilm frame A is fully on a video

Artefacts

Undesirable elements or defects in a video picture. These may occur naturally in the video process and must be eliminated in order to achieve a high-quality picture. Most common in analog are cross color and cross luminance. Most common in digital are macroblocks, which resemble pixelation of the video image.

Enabling/disabling the filmmode detection

1. Press MENU to activate the menu bar.

2. Press → to select the Image item. (image 8-28)

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select F ilmmode detection.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to enable or disable the Filmmode detection.

7. Press ENTER.

A white bullet shows the active setting.

Image 8-28

R5976815 RLM G5I PERFORMER 02/06/2006 75

Page 78

8. Image Menu

8.8 Blanking

What can be done ?

Blanking adjustments affect only the edges of the projected image and are used to frame the projected image on the screen and to hide or black out unwanted information (or noise). A ’0’ indicates no blanking.

Which blanking adjustments are available ?

• top blanking

• bottom blanking

• right blanking

• left blanking

Image 8-29 Blanking

A Top blanking B Bottom blanking C Left blanking D Right blanking

Adjusting the blanking

1. Press MENU to activate the menu bar.

2. Press → to select the Image item. (image 8-30)

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Blanking.

5. Press ENTER to confirm.

The Blanking pop-up menu appears. (image 8-31)

6. Use ← or → to select Enabled or Disabled.

Enabled Blanking adjustment is possible

Disabled Blanking adjustment is not possible

R5976815 RLM G5I PERFORMER 02/06/2006

Page 79

8. Image Menu

7. Use the ↑ or ↓ keys to select Top, Bottom, Left or Right blanking and change the value with ← or → until the desired blanking is

obtained. Or, use the ↑ or ↓ keys to select Top, Bottom, Left or Right blanking and press ENTER to change the value indication to a input field and enter a new value with the keyboard. Press ENTER to accept this value. (image 8-32)

Image 8-30

Image 8-31 Image 8-32

8.9 Input Balance

Overview

• Introduction to Input Balance

• Adjusting the input balance

• Input balance for YPrPb signals

8.9.1 Introduction to Input Balance

Introduction: Unbalanced color signals

When transporting signals, there is always a risk of deterioration of the information contained in the signals.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 80

8. Image Menu

In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 8-33 , we are quite sure that the amplitude of these color signals is subject to alterations.

An example of alteration may be a DC component added to the signal, in the form of a DC offset repositioning the black level, since this black level (“brightness”) will become crucial later on (clamping circuit) it will result in “black not being black”.

Another value that is subject to alteration is the amplitude of the signal, resulting in an altered “Gain” of the signal (“white level” or contrast).

The alterations of the three color signals will happen independently i.e. the colors will end to be unbalanced, image 8-34

0.7V

Image 8-33

Black level

∆

Image 8-34

One can conclude here that a good color tracking can only be met by using three previously (input) balanced color signals

Analog D

The analog color signals must pass through an Analog/Digital conversion circuit prior to any digital processing in the PMP.

A typical ADC transforms the analog value into an 8 bit coded digital signal.

The graphic shows that when converting a signal containing a DC offset component the range of the converter is not optimally used.

igital Conversion

ADC

∆

∆Β

Black level

∆

Image 8-35

One can conclude here that a good data conversion can only be met by using three previously (input) balanced color signals

255

i2 : video information

i1 : superfluous information

Black level

The objective of input balancing

The objective in input balancing is to “set” the same black level and the same white level for the three colors of a particular input source.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 81

8. Image Menu

Black level setting : brightness

White level setting : contrast

The same absolute black and white level for the three colors allow the same reference for Brightness and contrast control of the picture !

These two references also set the range in which the ADC will work for that particular source (this explains also why each input balance setting is linked to a particular source and thus saved in the image file).

8.9.2 Adjusting the input balance

How can it be done ?

To balance the three color signals of a particular source there are conditions; in fact we must know the black and the white level of the source i.e. :

1. The source in question must be able to generate a white signal, ideally a 100% white (background) full screen pattern

2. The source in question must be able to generate a black signal, ideally a 100% black (background) full screen pattern

Image 8-36

White balance : In the projector, we will set the contrast for each color until we get a 100% light output picture when projecting a 100% white image (image A)

Black balance : In the projector, we will set the brightness for eac 100% black image (image B).

The changeover from min to max is indicated by the apparition of bright spots also called “digital noise”

An alternative to a full screen White/black pattern is the standard gray scale pattern, the white bar will be used for white balance and the black bar for black balance.

h color until we get a 0% light output picture when projecting a

Image 8-37

R5976815 RLM G5I PERFORMER 02/06/2006 79

Page 82

8. Image Menu

Black balance

1. Press MENU to activate the menu bar.

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Input balance.

5. Press → to pull down the menu.

6. Use ↓ or ↑ to select Black balance. (image 8-38)

7. Adjust the red black level on a minimal value (image 8-39, image 8-40)

8. Adjust the blue black level on a minimal value

Note: Thisminimal value is not necessary , provided that the 2 other colorsare notinfluencing toomuch the color to be adjusted,

in fact the aim is to minimize the effect of the two other colors since there is a risk of reaching too soon the 50% transition due to the contribution of these two other colors signals.

9. Adjust the Green black level until bright spots appear on the screen.

10.Adjust the Blue black level until bright spots appear on the screen.

11.Adjust the Red black level until bright spots appear on the screen.

The projected image should now be noisy full black

Image 8-38

Input black balance Red

Image 8-39

127

Change color between Red Green and Blue with <COLOR>

Image 8-40

If one uses a gray scale pattern, the bright spots should appear in the black bar.

Performing White input balance

1. Connect the source you want to project.

2. Select a white pattern (or gray scale as alternative).

3. Press MENU t

4. Press → to select the Image item.

5. Press ↓ to pull down the Image menu.

o activate the menu bar.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 83

8. Image Menu

6. Use ↑ or ↓ to select Input balance.

7. Press → to pull down the menu.

8. Use ↓ or ↑ to select White balance. (image 8-41)

9. Adjust the Red white level (gain) on a minimal value. (image 8-42)

10.Adjust the blue white level (gain) on a minimal value

Note: Thisminimal value is not necessary , provided that the 2 other colorsare notinfluencing toomuch the color to be adjusted,

in fact the aim is to minimize the effect of the two other colors since there is a risk o f reaching too soon the transition (bright spots) due to the contribution of these two other colors signals.

11.Adjust the Green white level (gain) until bright spots appear on the screen

12.Adjust the Blue white level (gain) until bright spots appear on the screen

13.Adjust the Red white level (gain) until bright spots appear on the screen

The projected image should now be noisy neutral grey.

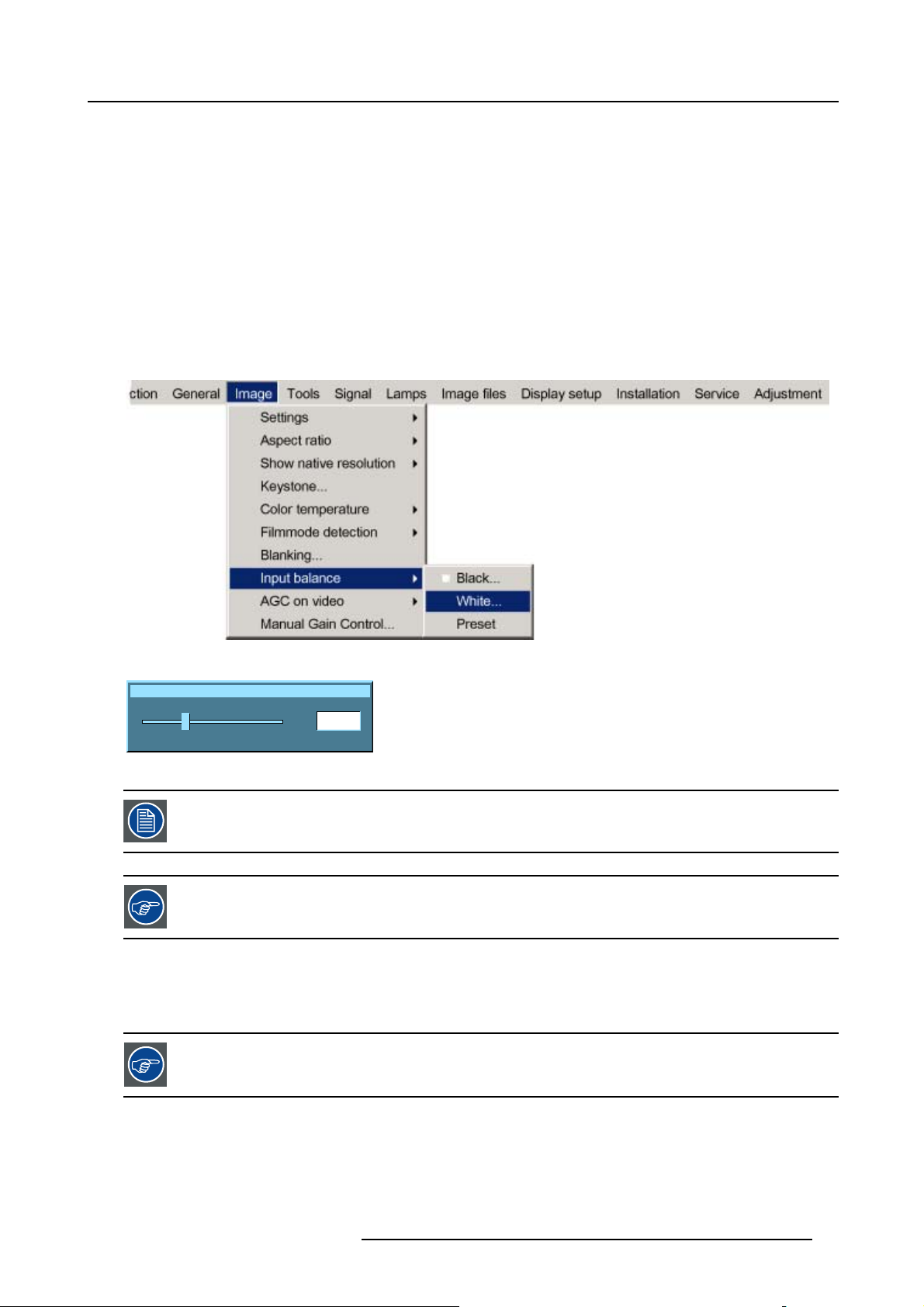

Image 8-41

Input white balance Red

Image 8-42

127

If one uses a gray scale pattern, the bright spots should appear in the white bar.

Selecting Preset restores the factory input balance setting

8.9.3 Input balance for YPrPb signals

Remark on the input balance of a component video source

Before starting the Input Balance procedure, generate a signal with dominant white parts.

R5976815 RLM G5I PERFORMER 02/06/2006 81

Page 84

8. Image Menu

Input balance is also available for a component video source under following conditions:

• A component video signal is present on the BNC’s.

• ”Data on BNC’s” is selected in the Source selection m en u.

• Pr/Y/Pb is selected in the Advanced menu of the corresponding image file.

The procedure is the same as for a data source except:

• The white balance happens only on Green. Adjust until bright spots appear in the image.

Image 8-43

• The black balance happens on the three colors. The PR and PB connector have to be removed from the input. Adjust until noise appears in the image.

Image 8-44

8.10 AGC on Video

AGC

Automatic Gain Control: allows an automatic amplitude (gain) control of the incoming video signal

AGC is only for Video signals.

Enabling/disabling the AGC

1. Press MENU to activate the menu bar.

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select AGC on Video.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 85

5. Press → to pull down the menu.

6. Use ↓ or ↑ to enable or disable the AGC.

7. Press ENTER to confirm. (image 8-45)

A white bullet shows the active setting.

Image 8-45

8. Image Menu

The AGC can be disturbing in case of Macrovision encoded signals, therefore t at any time

he AGC can be disabled (OFF)

8.11 Manual Gain Control

What can be done ?

When AGC on Video is disabled, the gain of the incoming video signal can be set manually. The manual gain control must be done on an external pattern with white areas (grey scale bar patter

How to set the Manual Gain Control ?

1. Press MENU to activate the menu bar.

2. Press → to select the Image item.

3. Press ↓ to pull down the Image menu.

4. Use ↑ or ↓ to select Manual Gain Control. (image 8-46)

5. Press ENTER to confirm.

A scroll bar is displayed. (image 8-47)

6. Use ← or → to adjust the gain so that uniform white parts in the image are obtained.

Or, use the numeric keys to enter the desired value.

n).

R5976815 RLM G5I PERFORMER 02/06/2006

Page 86

8. Image Menu

Image 8-46

Image 8-47

84 R5976815 RLM G5I PERFORMER 02/06/2006

Page 87

9. TOOLS MENU

Overview

• Overview of the Tools menu

• Introduction to PiP

• PiP select

• PiP add window

• PiP remove window

• PiP layout

•PiPAdjust

9.1 Overview of the Tools menu

Overview

• PiP select

- Full-screen

-2by2raster

- PiP layout 1

- PiP layout 2

- PiP layout 3

• PiP add window...

• PiP remove window...

• PiP layout

-Save

-Saveas

- Rename

-Delete

• PiP adjust

9. Tools Menu

9.2 Introduction to PiP

PiP

PiP stands for "Picture in Picture" and allows to display multiple windows containing each of them an image. The windows may be of the video or data type.

What are the different possibilities within the PiP mode ?

The input section of the RLM G5i Performer projector allows a multitude of combinations of different input signals which may be projected in the 4 windows of the PiP screen.

The PiP mode allows independent settings for each window:

• Image settings : contrast, brightness, tint, color, ...

• Vertical and horizontal shift of each window all over the screen

• Re-sizing of the window

• Digital Zoom

R5976815 RLM G5I PERFORMER 02/06/2006

Page 88

9. Tools Menu

The different PiP configurations

• Full screen

The full screen is used to display one of the selected sources. Browse through the sources with the PiP Adjust button on the remote control.

•2-by-2raster

The screen is divided into 4 subscreens containing 1 Video, 2 Data sources and 1 SDI source.

Image 9-1

• PiPlayout1to3

These are factory layouts, they can be edited and saved.

• Personal layouts

Beside the 2 fixed layouts and the 3 factory layouts, you can create 5 additional (personal) layouts.

2. fixed layout

3. factory layouts

86 R5976815 RLM G5I PERFORMER 02/06/2006

Page 89

9. Tools Menu

PiP dedicated buttons

• PiP Adjust : this button allows to focus on one particular window, this window is shown with a white frame surrounding the selected window. A source identification box is displayed in the right lower corner.

Image 9-2

Press PiP Adjust button to move the frame to the next window. This can also be done via PiP Adjust in the Tools menu.

• PiP: this button allows to browse through the different configurations, it has the same function as PiP select in the Tools menu.

Since there is only one decoder, when in 2-by-2 configuration, and only video 1 is displayed, this source will be duplicated at the same position as SDI.

9.3 PiP select

What is possible ?

With PiP select it is possible to switch from one layout to another.

The PiP configuration can also be selected via the dedicated PiP key on the RCU.

How to change the PiP configuration ?

1. Press MENU to activate the menu bar.

2. Press → to select the Tools item.

3. Press ↓ to pull down the Tools menu.

4. Use ↑ or ↓ to select PiP select.

5. Press → to pull down the menu.

6. Use ↑ or ↓ to select the desired configuration. (image 9-3)

7. Press ENTER.

A white bullet shows the active layout.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 90

9. Tools Menu

Image 9-3

9.4 PiP add window

What can be done ?

It is possible to add a window to the existing windows (maximum 4), therefore a source must be sel

Sources which are already used are not selectable. If for instance the PiP layout contains a component video then component video will be not selectable.

Once added, the window may be changed in several ways to meet particular needs:

• repositioning

• re-sizing

• changing the order

ected.

Image 9-4 Add PiP Window

A Select source for window B Window added C Move window D Z-ordering possible

How to add a window ?

1. Press MENU to activate the menu bar.

2. Press → to select the Tools item.

3. Press ↓ to pull down the Tools menu.

4. Use ↑ or ↓ to select PiP add window. (image 9-5)

5. Press ENTER.

The source selection menu is displayed. (image 9-6)

In the lower part of the screen appears a 4 steps wizard.

6. Select the source you want to display in the window with the ↑ and ↓ . (image 9-7)

7. Resize the new window with the 4 arrow keys. (image 9-8)

8. Position the window on the screen with the 4 arrow keys. (image 9-9)

R5976815 RLM G5I PERFORMER 02/06/2006

Page 91

9. Change the viewing order of the displayed images (z-order) with the ↑ and ↓ . (image 9-10)

Image 9-5

9. Tools Menu

Source selection

Data on BNC's Video selector SDI DVI PC

Image 9-6

Pip Wizard step 2 : Resize this new window with ↑↓

Image 9-8

Pip Wizard step 3 : Position this new window with ↑↓

Image 9-9

Pip Wizard step 4 : Change the order of this new window with ↑↓

Image 9-10

9.5 PiP remove window

Pip Wizard step 1 : Select the source you want to display in the window...

Image 9-7

←→

How to remove a window ?

1. Press MENU to activate the menu bar.

2. Press → to select the Tools item.

3. Press

4. Use ↑ or ↓ to select PiP remove window. (image 9-11)

5. Press ENTER .

6. Press PiP ADJUST to move the frame along the different windows until the desired window is selected.

7. Press EN

R5976815 RLM G5I PERFORMER 02/06/2006

↓ to Pull down the Tools menu.

In the lower part of the screen appears a wizard. (image 9-12)

The selected window appears surrounded with a white frame.

TER to remove that window.

Page 92

9. Tools Menu

Image 9-11

Select window with <PiP ADJUST> → Press <ENTER> to remove

Image 9-12

9.6 PiP layout

Overview

•PiPSave

• PiP rename layout

• PiP delete layout

9.6.1 PiP Save

What can be done ?

The active layout can be saved or "saved as".

When a new layout is

A fixed layout can b

saved it is added to the PiP select menu.

e edited (re-sizing, re-positioning,...) but it can not be saved under its original name.

How to save a layout ?

1. Press MENU to activate the menu bar.

2. Press → to select the Tools item. (image 9-13)

3. Press ↓ to pull down the Tools menu.

4. Use ↑ or ↓ to select PiP layout.

5. Press → to pull do

6. Use ↑ or ↓ to select PiP save or save as.

7. Press ENTER.

If save as has been selected, a dialog box is displayed. (image 9-14)

Press ENTER to select the input field.

Use ← or → to enter the name and exit with BACK or MENU. (numeric values can be added with the remote control) If save has been sel

wn the menu.

ected, a message box is displayed. (image 9-15)

R5976815 RLM G5I PERFORMER 02/06/2006

Page 93

Image 9-13

9. Tools Menu

Save PiP layout

Layout name:

Full-screen

Image 9-14

9.6.2 PiP rename layout

What can be done ?

Thenonfixedlay

The maximal length of the name is 12 characters.

outs (factory and personal layouts) can be renamed .

A fixed layout can not be renamed

How to rename a layout ?

1. Press MENU to activate the menu bar.

2. Press → to select the Tools item. (image 9-16)

3. Press ↓ to pull down the Tools menu.

4. Use ↑ or ↓ to sel

5. Press → to pull down the menu.

6. Use ↑ or ↓ to select Rename.

7. Press ENTER.

A dialog box is displayed. (image 9-17)

8. Use ↑ or ↓ to select the layout to be renamed.

9. Press ENTER to se

A dialog box is displayed. (image 9-18)

Press ENTER to activate the input box.

Use ← or → to enter the name and exit with BACK or MENU (numeric values can be entered with the remote control).

ect PiP layout.

lect.

Message

Current layout has been saved Press <ENTER> or <EXIT> to return

Image 9-15

Image 9-16

R5976815 RLM G5I PERFORMER 02/06/2006 91

Page 94

9. Tools Menu

Rename PiP layout

PIP Layout 1 PIP Layout 2 PiP Layout 3 Own layout 1 Own layout 2

Image 9-17

Rename PiP layout

New name:

Own layout 1

Image 9-18

9.6.3 PiP delete layout

What can be done ?

The non fixed layouts (factory and personal layouts) can be deleted.

The fixed layouts and the active layout can not be deleted

How to delete a layout ?

1. Press MENU to activate the menu bar.

2. Press → to select the Tools item.

3. Press ↓ to pull down the Tools menu .

4. Use ↑ or ↓ to select P

5. Press → to pull down the menu.

6. Use ↑ or ↓ to select Delete.

7. Press ENTER.

A dialog box is displayed. (image 9-19)

8. Use ↑ or ↓ to select the layout to be deleted.

9. Press ENTER to confir

The layout is deleted and disappears from the dialog box.

iP layout.

Delete PiP layout

PIP Layout 1 PIP Layout 2 PiP Layout 3 Own layout 1 Own layout 2

Image 9-19

9.7 PiP Adjust

What can be done ?

ust allows to browse through the windows in the active layout, a white frame indicates the window which has the focus.

PiP adj

This way, independent settings (picture settings, ...) are possible for each window.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 95

This can also be done by using the dedicated PiP Adjust key on the RCU

Image 9-20 PiP adjust in c ase of 2-by-2 layout

A Data1 window has the focus, new settings will only affect Data1 window B Video1 window has the focus, new settings will only affect Video1 window

9. Tools Menu

PiP adjust

1. Press MENU to activate the menu bar.

2. Press → to select the Tools item. (image 9-21)

3. Press ↓ to pull down the Tools menu.

4. Use ↑ or ↓ to select PiP Adjust.

5. Press ENTER.

The menu disappears.

6. Press ENTER to move the focus to the next window (clockwise rotation).

If you press BACK or if you wait 5 seconds the menu is displayed again.

Image 9-21

How to adjust a window in the layout ?

1. Use the PiP Adjust key or function in the menu to choose the window to be adjusted.

2. Press ENTER.

All actions can be taken on the focused window.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 96

9. Tools Menu

94 R5976815 RLM G5I PERFORMER 02/06/2006

Page 97

10. SIGNAL MENU

Overview

• Overview of the Signal menu

• Switching mode

• Output Frame rate

• Background

10.1 Overview of the Signal menu

Overview

• Switching mode

-Seamless

-Boxin

- Box out

- Shift in left

- Shift in right

- Shift in top

- Shift in bottom

- Vertical curtain open

- Vertical curtain close

- Horizontal curtain open

- Horizontal curtain close

- Fade in out

- Random

• Output frame rate

- Synchronous

-50Hz

-60HZ

• Background

-Blue

-Black

10. Signal menu

10.2 Switching mode

Switching from one source to another

To minimize undesired effects when switching from one source to another, one can use the Seamless switching mode. Beside Seamless switching there is a wide choice of several effects which render the source

How to select a switching mode ?

1. Press MENU to activate the Tool bar.

2. Press → to select the Signal item. (image 10-1)

3. Press ↓ to pull down the Signal menu.

4. Use ↑ or ↓ to select Switching mode.

5. Press → to pull down the menu.

6. Use ↑ or ↓ to select the desired switching mode.

7. Press ENTER.

A white bullet shows the active effect.

The next source switching will be done using the selected effect.

R5976815 RLM G5I PERFORMER 02/06/2006

switching transitions more enjoyable.

Page 98

10. Signal menu

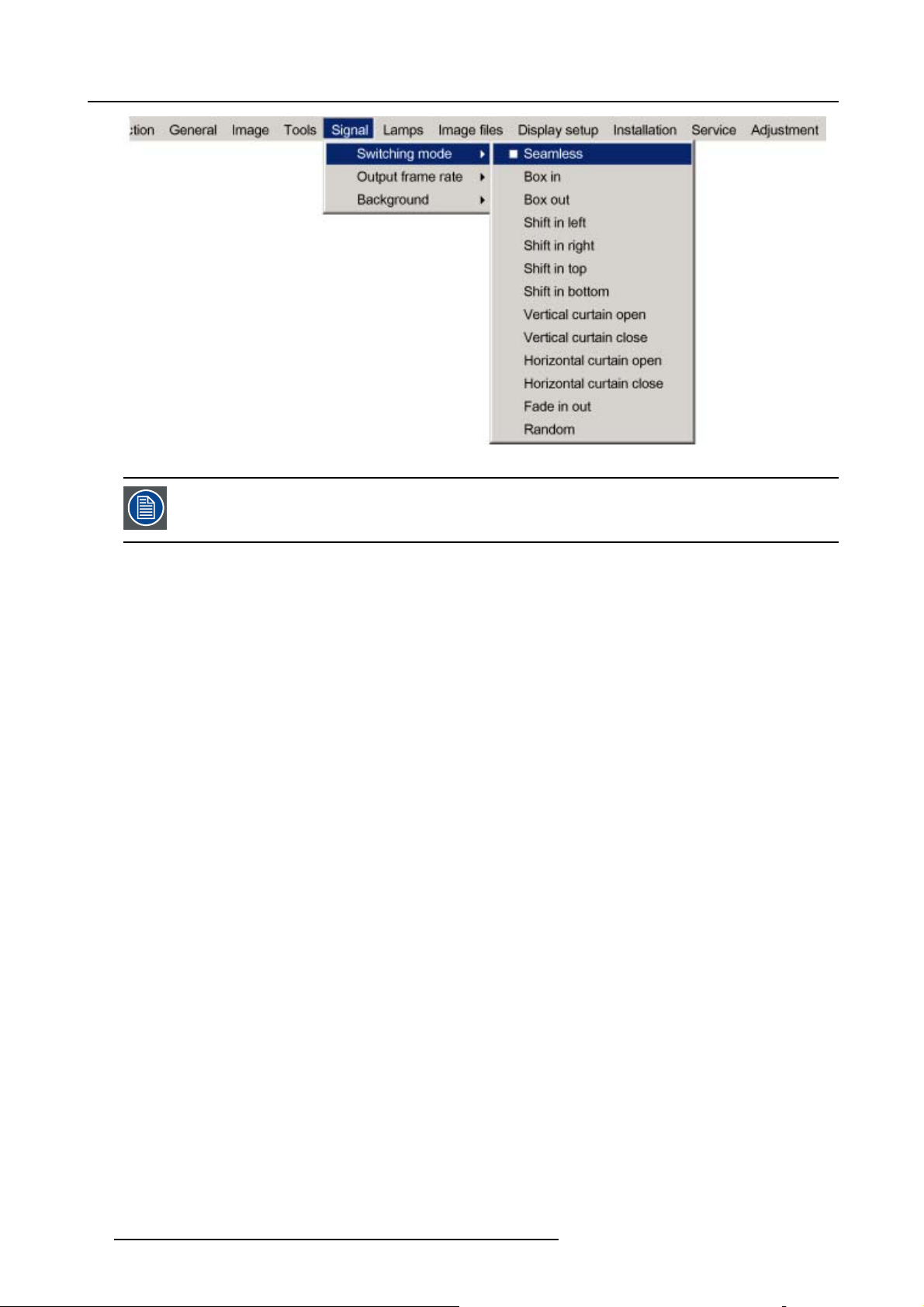

Image 10-1

The Random mode will select a new switching mode at each source switching i.e. there will never be 2 successive source switchings with the same effect.

The Seamless switching mode is not used in the Random mode.

Note on Fade in/out

In some cases, depending on the sources to be switched, the fade in/out effect is impossible or may not occur.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 99

10. Signal menu

Image 10-2

* Video may be Composite video/ S-Video / SDI

• dark arrow : fade in/out effect possible

• dotted arrow : undetermined case, fade in/out effect may take place or not

• striked out arrow : fade effect impossible

The switching effects are only possible in the full screen mode

10.3 Output Frame rate

What can be done ?

To avoid transition effects when switching from a source with a frame rate of 50 Hz to a source with frame rate of 60 Hz or vice versa, set the output frame rate to one typical frequency. The default value for this setting is synchronous, that means that the output frame rate follows the input source. When the source is 50 Hz, the output will be 50 Hz, when the source is 60 Hz, the output will be 60 Hz, but transition effects can occur. When set to e.g. 50 Hz, all sources will be displayed with an output frame rate of 50 Hz. 60 Hz sources will miss some frames.

How to change ?

1. Press MENU to activate

2. Press → to select the Signal item. (image 10-3)

3. Press ↓ to pull down the Signal menu.

the Tool bar.

R5976815 RLM G5I PERFORMER 02/06/2006

Page 100

10. Signal menu

4. Use ↑ or ↓ to select Output frame rate.

5. Press → to pull down the menu.

6. Use ↑ or ↓ to select the desired frame rate.

The following choices are possible:

- synchronous : the output follows the input frame rate.

- 50 Hz : output is always displayed with a frame rate of 50 Hz

- 60 Hz : output is always displayed with a frame rate of 60 Hz

7. Press ENTER.

Image 10-3

10.4 Background

Purpose

If there is no signal connected to the projector, the background will be a black or a blue screen depending on the backgroundsettings.

How to change the background ?

1. Press MENU to activate the Tool bar.

2. Press → to select the Signal item. (image 10-4)

3. Press ↓ to pull down the Signal menu.

4. Use ↑ or ↓ to select Background.

5. Press → to pull down the menu.

6. Use ↑ or ↓ to select the desired background.

7. Press ENTER.

Image 10-4

When there is no signal connected, the projector will also star shuts down after the predetermined time.

t its standby timer countdown (if enabled) and

98 R5976815 RLM G5I PERFORMER 02/06/2006

Barco RLM G5i + Performer User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
