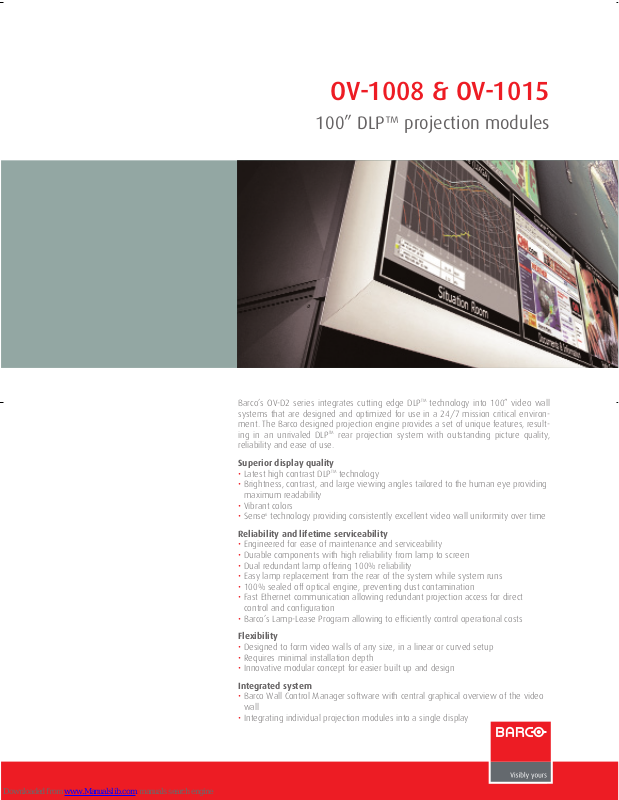

Page 1
Barco’s OV-D2 series integrates cutting edge DLPTMtechnology into 100” video wall
systems that are designed and optimized for use in a 24/7 mission critical environment. The Barco designed projection engine provides a set of unique features, resulting in an unrivaled DLP
TM
rear projection system with outstanding picture quality,
reliability and ease of use.
Superior display quality
• Latest high contrast DLP
TM
technology
• Brightness, contrast, and large viewing angles tailored to the human eye providing
maximum readability
• Vibrant colors
• Sense
6
technology providing consistently excellent video wall uniformity over time
Reliability and lifetime serviceability
• Engineered for ease of maintenance and serviceability
• Durable components with high reliability from lamp to screen
• Dual redundant lamp offering 100% reliability
• Easy lamp replacement from the rear of the system while system runs
• 100% sealed off optical engine, preventing dust contamination
• Fast Ethernet communication allowing redundant projection access for direct
control and configuration
• Barco’s Lamp-Lease Program allowing to efficiently control operational costs
Flexibility
• Designed to form video walls of any size, in a linear or curved setup
• Requires minimal installation depth
• Innovative modular concept for easier built up and design
Integrated system
• Barco Wall Control Manager software with central graphical overview of the video
wall
• Integrating individual projection modules into a single display
OV-1008 & OV-1015
100” DLP™ projection modules
Page 2

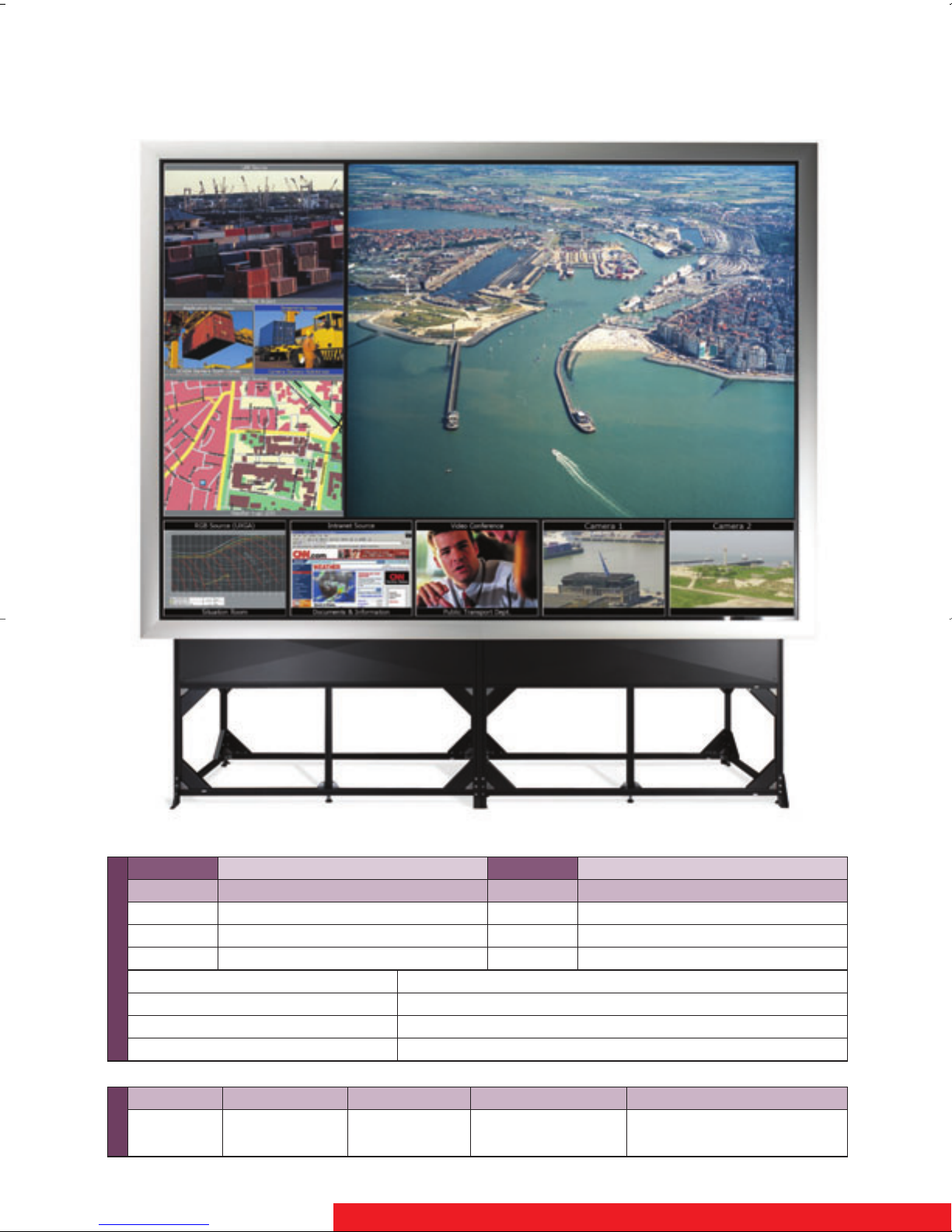

Features of the OV-1008 and OV-1015
100”
OV-1008 Beta OV-1015 Beta
Power Luminance (cd/m2 | ftL) (1) Power Luminance (cd/m2 | ftL) (1)
120 W 165 | 48 120 W 185 | 54
132 W 180 | 53 132 W 206 | 60
180 W 250 | 73 180 W 280 | 82
Interscreen gap
< 0.2 mm by patented stitch concept
Humidity conditions Up to 90% non condensing (2)
Temperature conditions 10°C-30°C | 50°F-86°F (2)
Storing conditions
0°C-40°C | 32°F-105°F
Screens
Screen type Brightness Viewing angle Full viewing angle Half gain angle (h. | v.)
Beta
Medium Medium 180° ±35°| ±12°
(1) @ 6500 K, values are approx 50% @ 3200 K - (2) depending on wall configuration
Page 3

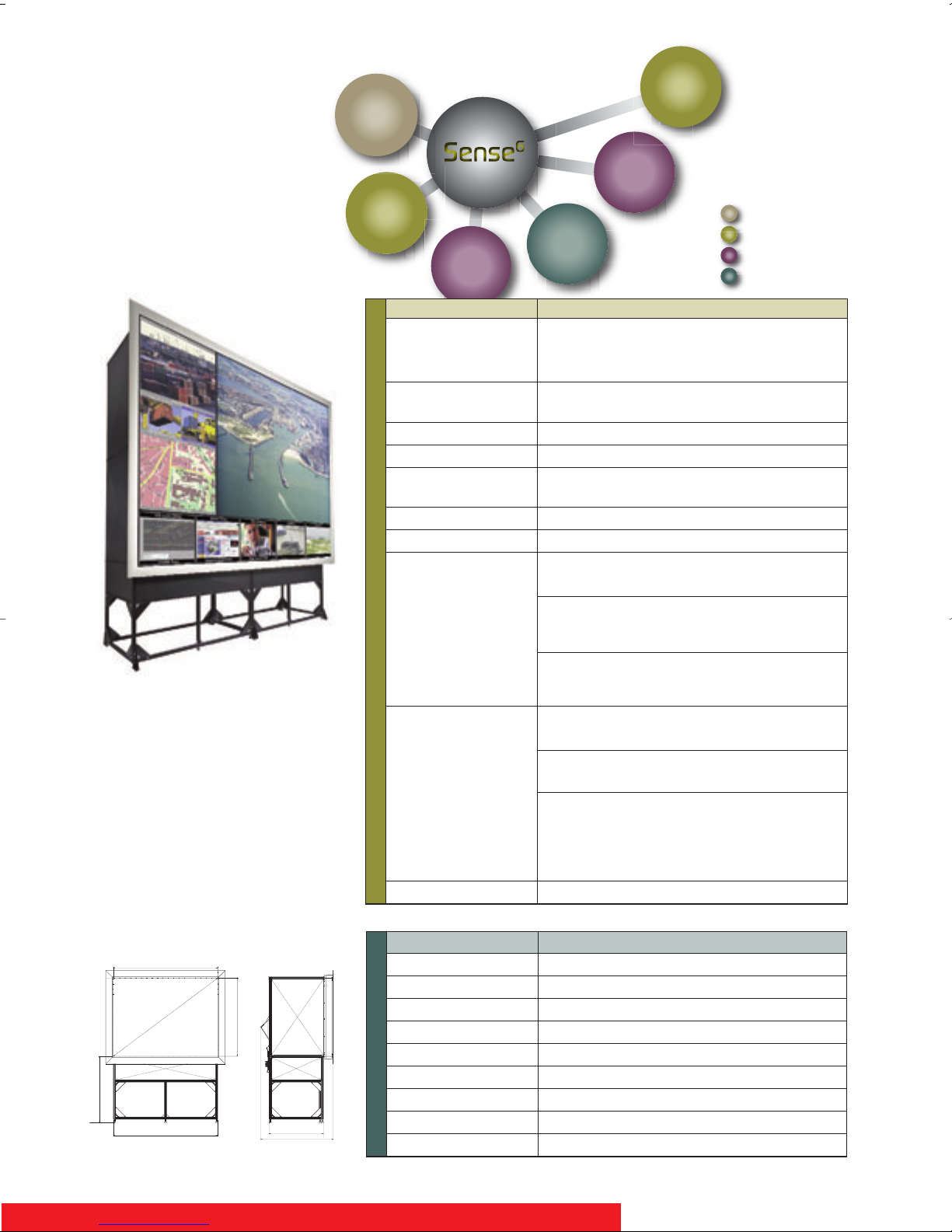

intracube uniformity
brightness locking
color locking
gray locking
Optical
dimmer
Intracube
uniformity
Primary
color adjust
Dynamic
brightness
feedback
Gray
locking
Dynamic
color
feedback
Sense
6
Sense
6
(Optional)
Color shift between
projection modules
over time
Shift in ΔE* over time < 3 (with color lock)
On-screen brightness
uniformity
Very high brightness and color uniformity
ANSI 9 brightness min.
97%
ANSI 13 brightness typ.
95%
Projector color/
brightness uniformity
ΔE* intercube typ.
< 6
ΔE* intracube typ.
< 3
Brightness locking
Makes brightness of all projection modules equal at all
times without operator intervention
High Dynamic Range (HDR) by optical dimming
preserves contrast, independent of brightness level
or lamp life
Active dynamic brightness sensor feedback technology
measures brightness and serves as input to the optical
dimmer
Color locking
Makes color of all projection modules equal at all times
without operator intervention
Primary Color Adjust is a color algorithm that adjusts color
to a common color target in red, green, blue and white
Active dynamic color sensor feedback technology collects
color information from all projection modules. The True
Color Sensor measures the complete spectrum rather than
just red, green and blue and is based upon the standard
spectral function according to CIE 1931 (optional)
Gray locking
Makes gray levels equal across projection modules
Dimensions
OV-1008 & OV-1015
Width W
2032 mm | 80”
Height H
1524 mm | 60”
Diagonal R
100” nominal
D1
1239 mm | 48.8”
Full depth D2
1400 mm | 55.1”
Aspect ratio
4:3
Standard height SH
1288 mm | 50.7”
Min screen height SH
565 mm
Weight/module
273.5 kg | 602 lbs
W
H
R
SH
D2
D1
Page 4
www.barco.com
Ref. no. R599020SS0708R002
Barco is an ISO 9001 registered company.
The information and data given are typical for the equipment described.
However any individual item is subject to change without any notice. The latest version of this product sheet can
be found on www.barco.com
DLP™ technology by Texas Instruments offers crystal clear images with superior quality. DLP, Brilliant Color are
trademarks of Texas Instruments.
Contact Barco
Europe, Middle-East, Africa: +32 56 26 20 09
USA: +1 678 475 8000
Latin America: +55 11 38421656
Japan: +81 3 5762 8727
China: +86 400 88 22726
Display capabilities
OV-1008 OV-1015
Resolution XGA SXGA
+
1024 x 768 1400 x 1050
TruePixel TruePixel
Absolute resolution 13 dpi 17.5 dpi
Lum. flux @ 6500 K @132W
875 1000
Dynamic contrast 4800:1 5100:1
Color 100% EBU 100% EBU
White point 6500 K, natural lighting (1)
Imaging device
DMD chip
OV-1008: 0.7” LVDS ±12° DarkChip3, BrilliantColor™
OV-1015: 0.95” LVDS ±12° DarkChip3, BrilliantColor™
Pixel accuracy
PixelTrue display, shows each pixel true to the input pixels
without scaling or smoothing effects
MTBF of DMD
Typ. 650,000 hours
Life-time of DMD
Typ. > 100,000 hours
Image retention
No image retention or burn-in
Lamps
Lamps
Choice between 120 W, 132 W and 180 W
Lamp life (2) 120 W 132 W 180 W
10,000 hrs 6,000 hrs 6,000 hrs
Lamp redundancy
Cold standby or hot standby with redundant power supply
Automatic lamp switch by auto sensing lamp failure
Lamp replacement
Defect lamp can be hot-swapped without image loss
Lamp switch
Dynamic feedback of brightness and color readjust video
wall to equal performance
Switching time
< 1.5 seconds
I-lamp
Intelligent lamp carries a.o. lamp life information & spectrum
Color wheel
Color wheel, rotation speed & lifetime
Color wheel cartridge with MTTR < 5 minutes
3x speed for better image representation
Air bearing with rating of 50,000 hours
Power
AC input voltage
100-240 VAC, 60-50 Hz
Power (W) 120 W 132 W 180 W
Cold standby < 250 < 275 < 335
Hot standby < 390 < 430 < 550
Heat dissipation (BTU/h)
120 W 132 W 180 W
Cold standby < 850 < 900 < 1145
Hot standby < 1325 < 1375 < 1875
Signal
Signal input/output
Dual DVI-D in/Dual DVI-D out with loop through
Pixel clock
162 MHz
Input frequency
Multi sync 30-75 Hz
Genlock range
Genlock in 49-61 Hz range
Supported input resolutions
VGA, SVGA, XGA, SXGA, SXGA+, UXGA,
1080p DVI-D format (with scaler)
Cropping
Yes
Scaling (optional)
Up- and down scaling
Communications
Barco Wall Control Manager
Graphical representation of video wall on operator PC
Integrates separate projection modules into a single
display, allowing a.o. Sense
6
Client – server architecture provides central video wall
logic with multiple access from multiple sites
Health status in the blink of an eye and support
for trouble shooting
Configuration of different settings
Wall control by the operator
Multiple access levels
Direct ethernet access
Projection modules settings and control over CAT5 cable
through standard ethernet browser
Easy and fast firmware upgrade over Ethernet
Autodiagnostics
Low level projector self test
Integration to third party equipment
External video wall control from different devices through
SOAP based API
(1) Special 3200 K option for backdrop • (2) Lamp manufacturer specs @ IEC 61947-1 test conditions
Technical specifications OV-1008 & OV-1015
