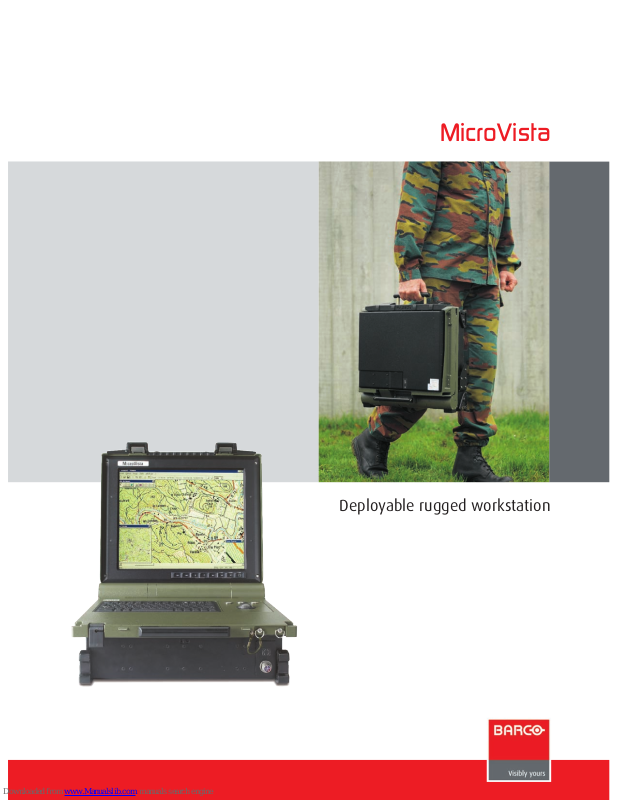

MicroVista

Processing where you need it

Based on its broad range of rugged visualization
components for defense and security applications,
Barco has developed M

ICROVISTA, an advanced deployable

workstation for operation in mission-critical environments.
The multi-functional M

ICROVISTA workstation combines

high-end computing power with rugged display
technology into a functional, single person transportable
operator station, offering processing power wherever you
need it.

Depending on your application, you can opt for a
rugged display, ranging from 17” to 20” and
with resolutions up to 1600x1200, from our
extensive range of fi eld-proven display units. The
integrated compact Display Processing Module (DPM)
provides computing power through state-of-the-art Intel

®

Pentium

®

technology. MICROVISTA is available in tabletop or

bulkhead confi guration.

Field-proven technology

The MICROVISTA workstation integrates Barco’s qualifi ed
technology, thus providing a truly low-risk solution for mission­critical decision making. The use of fi eld-proven components
ensures low lifecycle cost, fl exible upgradability and optimum
support throughout the entire workstation’s lifetime.

High-resolution display quality

During your missions, you can rely on Barco’s state-of-the-art
rugged display technology. Depending on specifi c platform
requirements and space issues, M

ICROVISTA can be equipped with

a compact 17” display or a larger, high-resolution 19” or 20”
screen.

Rapid deployability

The stand-alone MICROVISTA offers a perfect solution for mission
planning, mission support and post-mission analysis in a single,
deployable unit. Thanks to its compact and lightweight design,

M

ICROVISTA is rapidly deployable and easily transportable. The

optional rugged frame allows for fast and easy mounting into
various vehicle applications.

Optional frame for fast and easy mounting

Why choose MICROVISTA?

• Available with various display sizes and resolutions

• Low weight and compact dimensions

• Fully qualifi ed to high ruggedization levels

• Expandable design

• Rapid deployability

• Single person transportability

• COTS management over the product lifetime

User-friendly human machine interface

To provide maximum user-comfort, MICROVISTA can be equipped
with a broad range of customizable input devices and
peripherals. In its basic confi guration, M

ICROVISTA features a

sealed rugged backlit keyboard, a Hula point pointing device,
a practical indicator panel and space for up to 6 functional
pushbuttons. These can be supplemented by a three-button
trackball, touch-screen device, etc.

High-end processing power

MICROVISTA incorporates Barco’s powerful Display Processing
Module (DPM), which brings operators the high-end processing
power they need to complete their mission. To offer maximum
fl exibility for integration, the DPM can be mounted under the
desktop (tabletop) or behind the display module (bulkhead).

User-friendly, front-accessible USB and audio connection

BarcoView

Pres. Kennedypark 35

B-8500 Kortrijk, Belgium

Phone: [phone]

Fax: [phone]

[e-mail]

BarcoView, LLC

3059 Premiere Parkway

Duluth, Georgia, 30097-4905, USA

Phone: [phone]

Fax: [phone]

[e-mail]

BarcoView-TEXEN

7 Rue Roger Camboulives - BP 1226

F-31037 Toulouse, France

Phone: [phone]

Fax: [phone]

Barco Orthogon AG

Hastedter Osterdeich 222
28207 Bremen, Germany

Phone: [phone]
Fax: [phone]
[e-mail]

Technical Specifi cations

CONFIGURATIONS

• Tabletop version: the computer is integrated underneath the keyboard

• Bulkhead version: 19” rack mount confi guration with the computer module behind the
display

CPU/Speed: Intel® Pentium® M 1.1 GHz and 1.6 GHz
RAM memory: 512 or 1024 MB
Graphics memory: 32 MB UMA
Operating system: Windows

®

2000, Windows® XP, Linux
Standard I/O: 4 x serial ports, 2 x Ethernet 10/100 Base TX, 2 x PS2,
1 x IEEE 1394, 2 USB
Additional I/O: 4 x serial ports, 2 x USB 2.0, 1 x Gigabit Ethernet,
1 x IEEE 1394, 1 x SCSI, Audio I/O, Micro in
Harddisk module: 20 GB or 30 GB
Compact Flash memory: Up to 8 GB
Expansion slots: PMC and PC-104+
Video input: 1 PAL / NTSC / RS-170A video from choice of 4
Power supply: 28 VDC or 115 VAC
UPS: 5 minutes autonomy, allowing proper shut down
Sensitive data erase function: Optional
Desktop front connectors: Audio and USB
Desktop confi guration: Keyboard, Hula point and LEDs, trackball option
Transportability: Carrying handle

www.barcodefense.com

In search of continuous improvement

Ref. D-P-MIC-0505

Technical specifi cations are subject to change without prior notice

Low temperature:
High temperature:
Vibration:

Shocks:

Transit drop:
Altitude operational:
Altiture storage:
Humidity:
Dripproof:
Fungus:
Salt fog:
Sand & dust:
EMI/EMC:
IEC 950:

Air cooled version

0°C
+55°C
2g MIL-E-5400 T, Curve IIa,
airborne
Mil STD-167-1 type 1 Naval

Mil-STD 810 F
30 g 12.5 ms (half sinus)
MIL-S 901 D (with dampers)
40 cm drop
10000 ft
25000 ft
95% @ 60°C
Compliant
Compliant
Compliant (mechanical)

Mil-STD 461 E - Naval
Compliant

Sealed version

-25 °C
+55°C (+71°C start up)
5g MIL-E-5400 T, curve IIIa,
airborne
MIL-STD-810 F Composite
wheeled vehicule
Mil-STD 810 F
40g 11 ms (saw tooth)
MIL-S 901 D (with dampers)
40 cm drop
25000 ft
40000 ft
95% @ 60°C
Watertight - IP65
Compliant
Compliant
Compliant
Mil-STD 461 E - Ground army
Compliant
