Solaris LC40

Owners Manual

R9004120 (Events)

R9004125 (Media)

R5976672/04 13/01/2005

Barco nv Media Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.83.86 E-mail: media@barco.com Visit us at the web: www.barco.com

Barco nv Events

laan 5, B-8520 Kuurne

Noord Phone: +32 56.36.89.70 Fax: +32 56.36.88.24

events@barco.com

E-mail: Visit us at the web: www.barco.com

PrintedinBelgium

Changes

Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.

This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this publication; these changes are incorporated in new editions of this publication.

All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or stored in a retrieval system without the prior written consent of Barco.

Trademarks

Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respecti All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products or their manufactures.

ve holders.

Table of contents

TABLE OF CONTENTS

1. Safety Instructions.................................................................................................. 3

1.1 General instructions . .. ................................................................................................................ 3

1.2 Electrical Safety....................................................................................................................... 3

1.3 Protection on Servicing ............................................................................................................... 4

1.4 Safety onCleaning.................................................................................................................... 5

1.5 Safety onShipping.................................................................................................................... 5

1.6 On installation site..................................................................................................................... 5

2. Packaging and Dimensions ....................................................................................... 7

2.1 Box content............................................................................................................................ 7

2.2 Packaging ............................................................................................................................. 7

2.3 Dimensions............................................................................................................................ 8

3. Installation Guidelines.............................................................................................11

3.1 General ............................................................................................................................... 11

3.2 Solaris LC40configurations.......................................................................................................... 11

3.3 Battery Insertion inthe Remote Control............................................................................................. 12

4. Connections.........................................................................................................13

4.1 Power connection . ...................................................................................................................13

4.2 Input source connections . ...........................................................................................................13

4.2.1 Input facilities . . . ...............................................................................................................13

4.2.2 Digital Visual Interface (DVI) input ............................................................................................14

4.2.3 RGB analog input . . . ...........................................................................................................16

4.2.4 Serial Digital Interface.........................................................................................................17

4.2.5 Compact PC module . .. . .. ....................................................................................................17

4.2.6 Video input module . ...........................................................................................................18

4.2.7 DVI input module (optional) . .. ................................................................................................20

4.2.8 HD-SDI input module (optional) . .. ............................................................................................21

4.2.9 RGB input module (optional) .. ................................................................................................22

4.2.10 Audio pré-amp input (optional) ................................................................................................23

4.3 RGB out atnative screen resolution (WXGA).......................................................................................24

4.4 Communication Connections . . . .....................................................................................................25

4.4.1 RS232 IN/OUT.................................................................................................................25

4.5 Cablecover...........................................................................................................................25

5. Getting Started......................................................................................................27

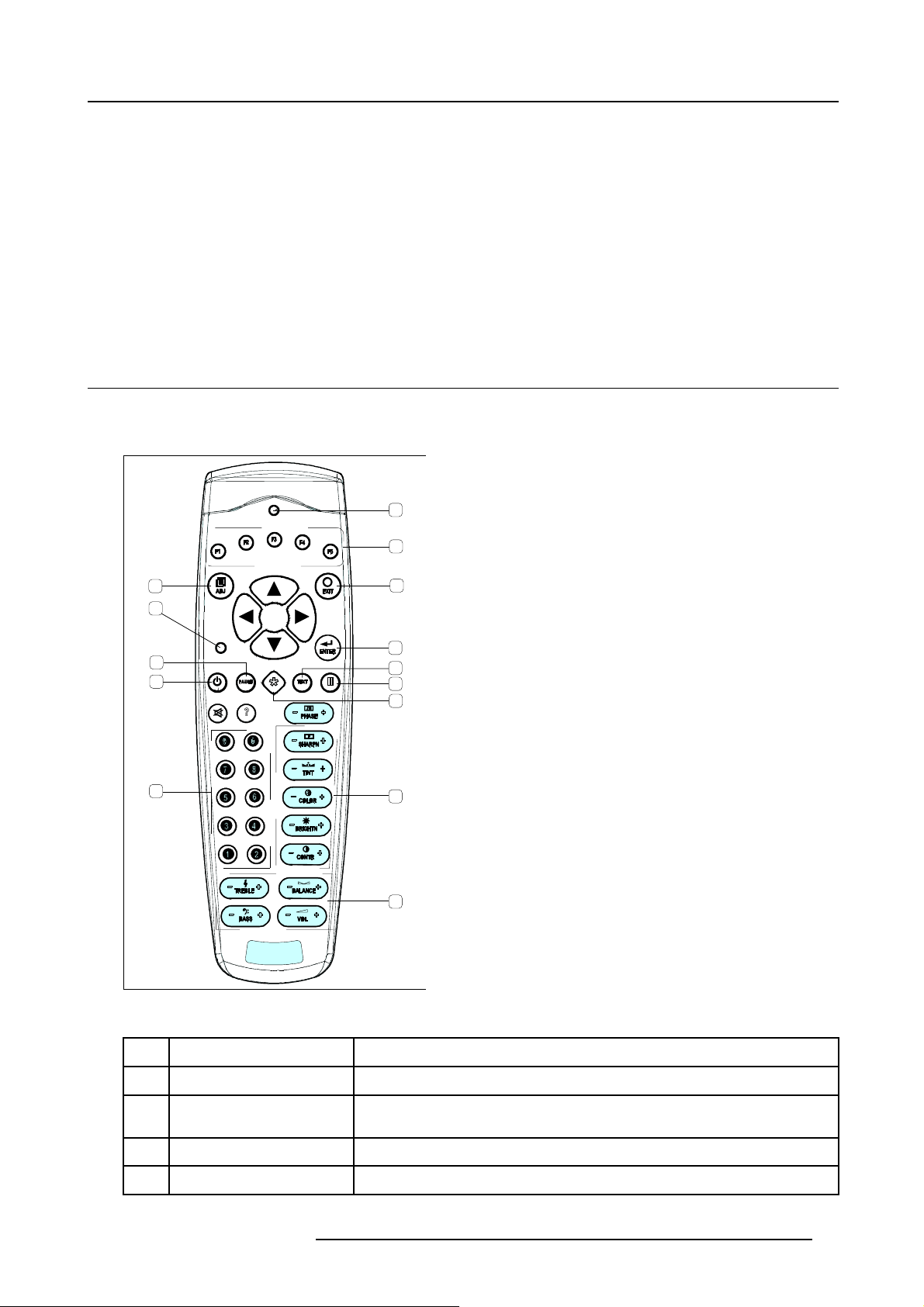

5.1 Terminology overview RCU ..........................................................................................................27

5.2 Switching ON/OFF ...................................................................................................................28

5.3 UsingtheRCU .......................................................................................................................29

5.4 LCD panel address...................................................................................................................30

5.4.1 IR address . . ...................................................................................................................30

5.4.2 Displaying and Programming IR addresses into the RCU . ..................................................................30

5.4.3 RS232 address ................................................................................................................30

5.4.4 ControllingtheSolarisLC40 with the RCU ...................................................................................30

5.5 Locking the Solaris LC40 for IR signals .............................................................................................32

5.6 Quickaccess to Picture in Picture...................................................................................................32

6. Getting used to the Menu Structure ............................................................................35

6.1 How tostart up the menus...........................................................................................................35

6.2 Usingthemenus .....................................................................................................................35

6.3 Adjusting a control in a Slider box ..................................................................................................36

7. Input Selection ......................................................................................................37

7.1 Startupthe Input Selection..........................................................................................................37

7.2 Selecting an Input Source ...........................................................................................................37

7.3 Configuring input 2 ...................................................................................................................38

7.4 Selecting Compact PC...............................................................................................................38

8. Image Settings......................................................................................................41

8.1 ImageSettings Menu overview......................................................................................................41

8.2 Aspect Ratio..........................................................................................................................41

8.3 Brightness ............................................................................................................................42

8.4 Contrast...............................................................................................................................43

8.5 ColorSaturation......................................................................................................................43

8.6 Tint (hue) . . ...........................................................................................................................44

8.7 Sharpness .. ..........................................................................................................................44

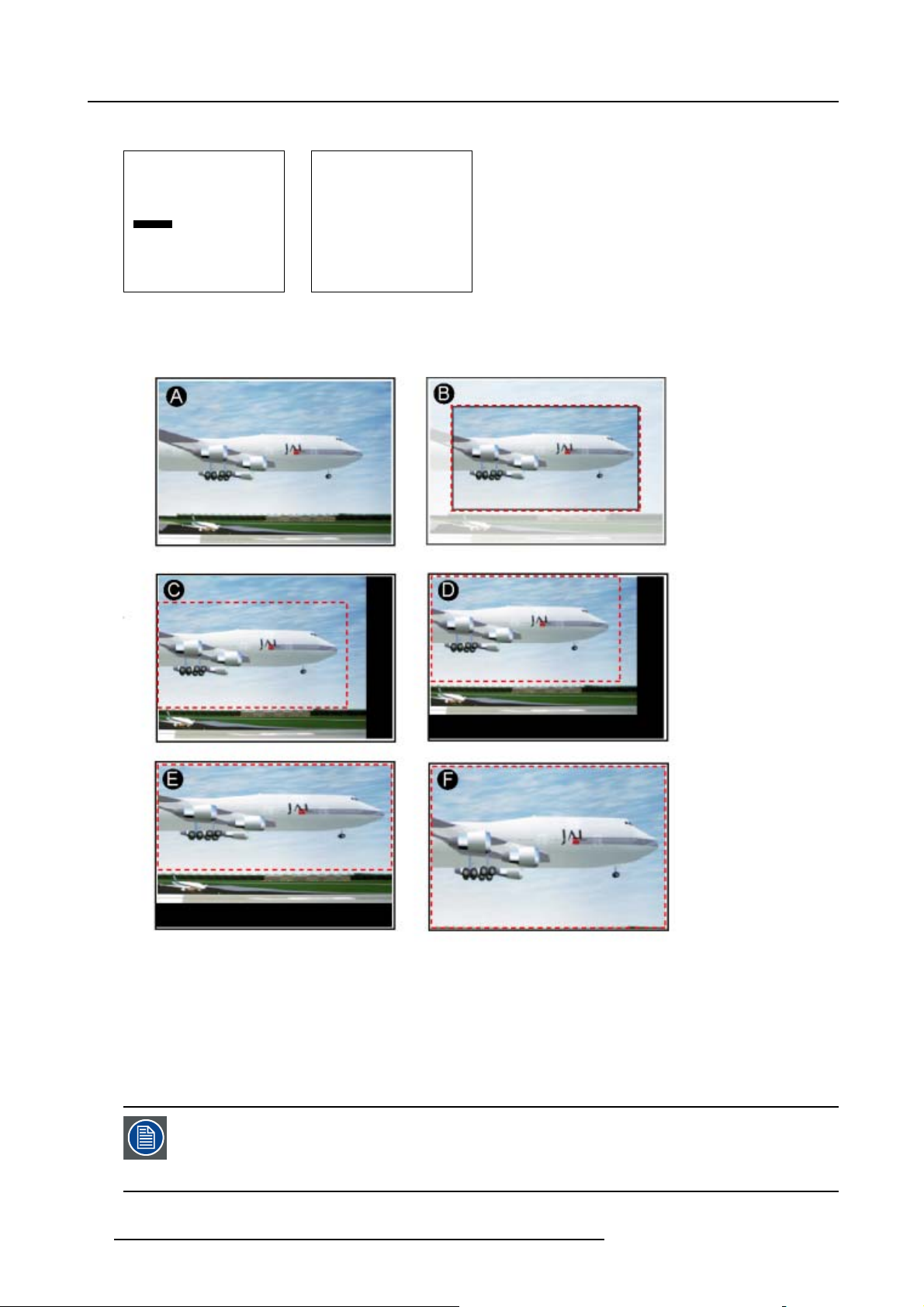

8.8 Viewport ..............................................................................................................................45

8.8.1 About Viewport. ................................................................................................................45

8.8.2 Viewport creation ..............................................................................................................45

8.8.3 Automatic Viewportfunction...................................................................................................48

8.8.4 Total pixelssetup ..............................................................................................................49

8.9 Phase.................................................................................................................................49

R5976672 SOLARIS LC40 13/01/2005

Table of contents

9. Audio Settings ......................................................................................................51

9.1 Audiosettings menu overview.......................................................................................................51

9.2 Startingup the audiocontrols........................................................................................................51

9.3 Volumecontrol .......................................................................................................................51

9.4 Balance control.......................................................................................................................52

9.5 Bass control ..........................................................................................................................52

9.6 Treble control.........................................................................................................................53

9.7 Subwoofer control....................................................................................................................53

10.PiP Settings .........................................................................................................55

10.1 Introduction to PiP. ...................................................................................................................55

10.2 Select PiP input . . . ...................................................................................................................55

10.3 PiP size...............................................................................................................................56

10.3.1 Scale ...........................................................................................................................56

10.3.2 Horizontal size.................................................................................................................57

10.3.3 Vertical size....................................................................................................................57

10.4 PiP position...........................................................................................................................58

11.Compact PC Control...............................................................................................61

11.1 Displaycontrolby Compact PC......................................................................................................61

12.Advanced Settings.................................................................................................63

12.1 AdvancedSettings menu overview..................................................................................................63

12.2 Gamma ...............................................................................................................................63

12.3 Color Temperature ...................................................................................................................64

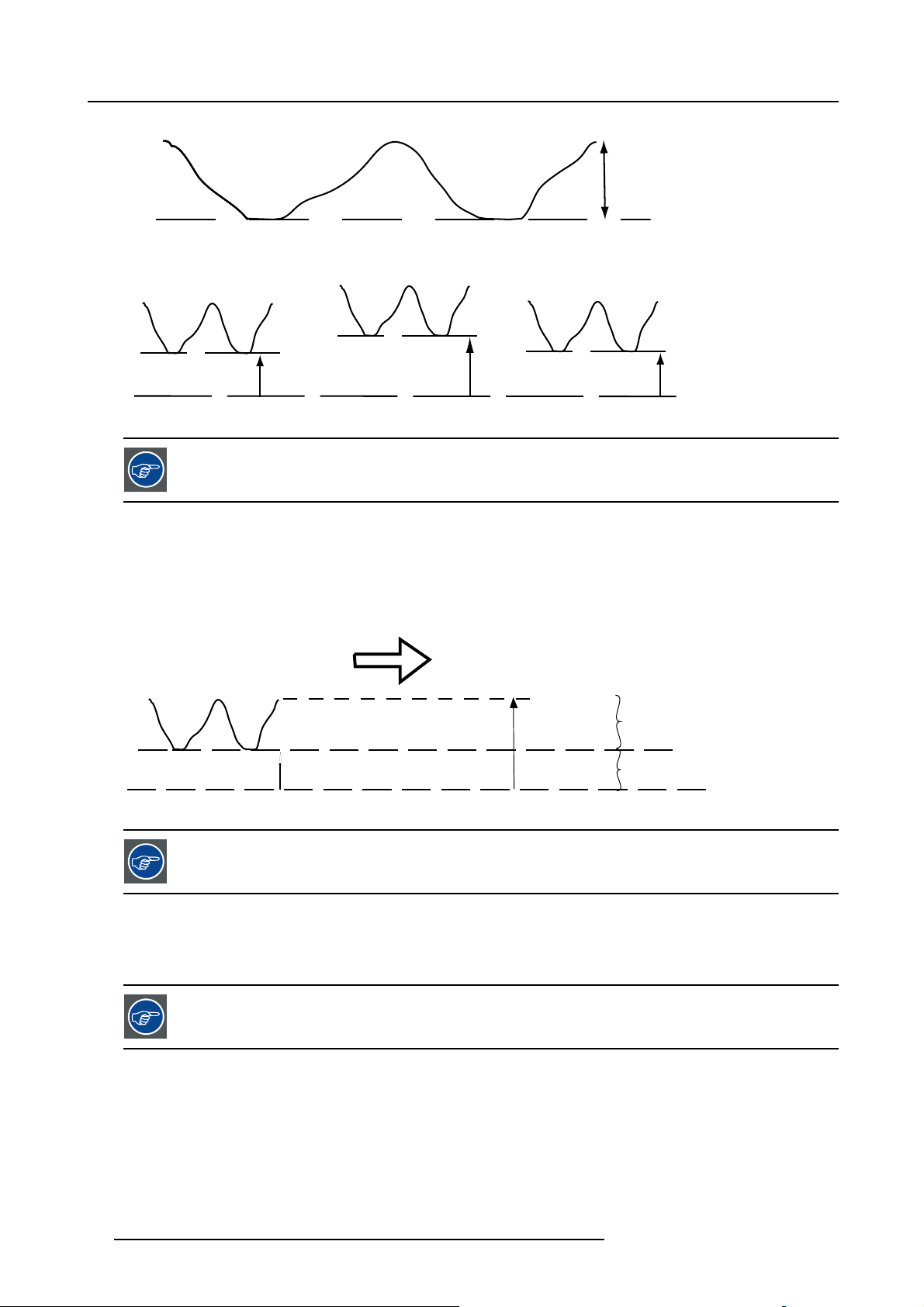

12.4 Input Balance. . . . .. ...................................................................................................................65

12.4.1 Introduction to Input Balance . . ................................................................................................65

12.4.2 Adjustingtheinput balance ...................................................................................................67

12.5 Noise Reduction......................................................................................................................68

12.6 Filmmode detection..................................................................................................................69

12.7 Video Gain............................................................................................................................70

12.8 DisplaySettings ......................................................................................................................70

12.8.1 Rotate..........................................................................................................................71

12.8.2 Backlight.......................................................................................................................71

12.9 Installation............................................................................................................................72

12.9.1 File Services...................................................................................................................72

12.9.1.1 Introduction to image files . .............................................................................................72

12.9.1.2 Load file set up..........................................................................................................73

12.9.1.3 Loading a specific file...................................................................................................73

12.9.2 When no Signal . ...............................................................................................................74

12.9.3 Language Selection ...........................................................................................................75

12.9.4 Tiled setup .....................................................................................................................75

12.10Service................................................................................................................................77

12.10.1Identification screen ...........................................................................................................77

12.10.2IR address . . ...................................................................................................................78

12.10.3Serial communication..........................................................................................................78

12.10.3.1RS232 address. .. . . . ....................................................................................................79

12.10.3.2Changing the baudrate for RS232 communication . . ..................................................................79

12.10.4IR locking ......................................................................................................................80

12.10.4.1Locking the display......................................................................................................80

12.10.4.2Changing your PIN code................................................................................................80

12.10.5Restore Factory Defaults......................................................................................................81

A. Standard Source Set up Files ....................................................................................83

A.1 Tableoverview .......................................................................................................................83

B. Optional Mounting Equipment ...................................................................................85

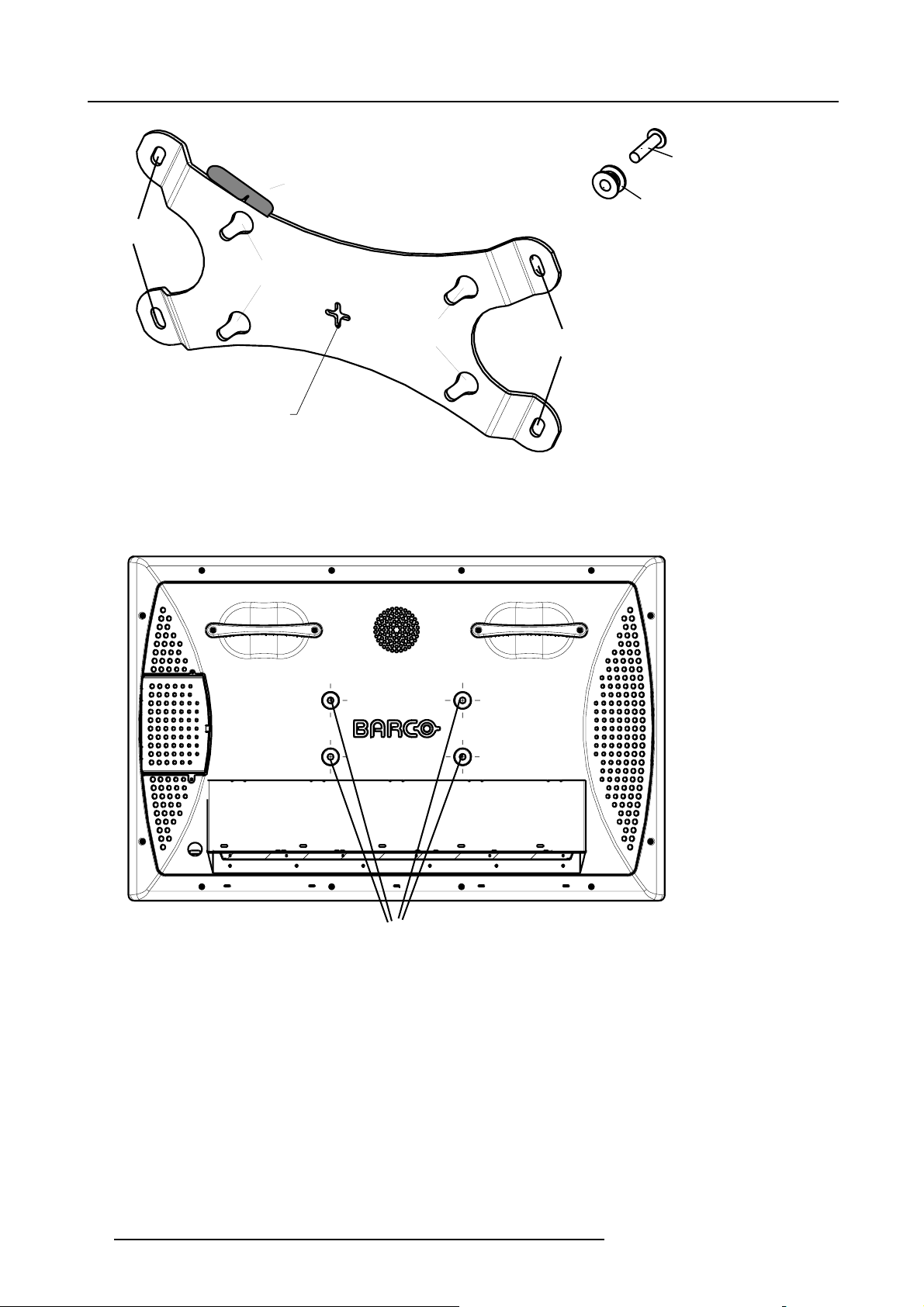

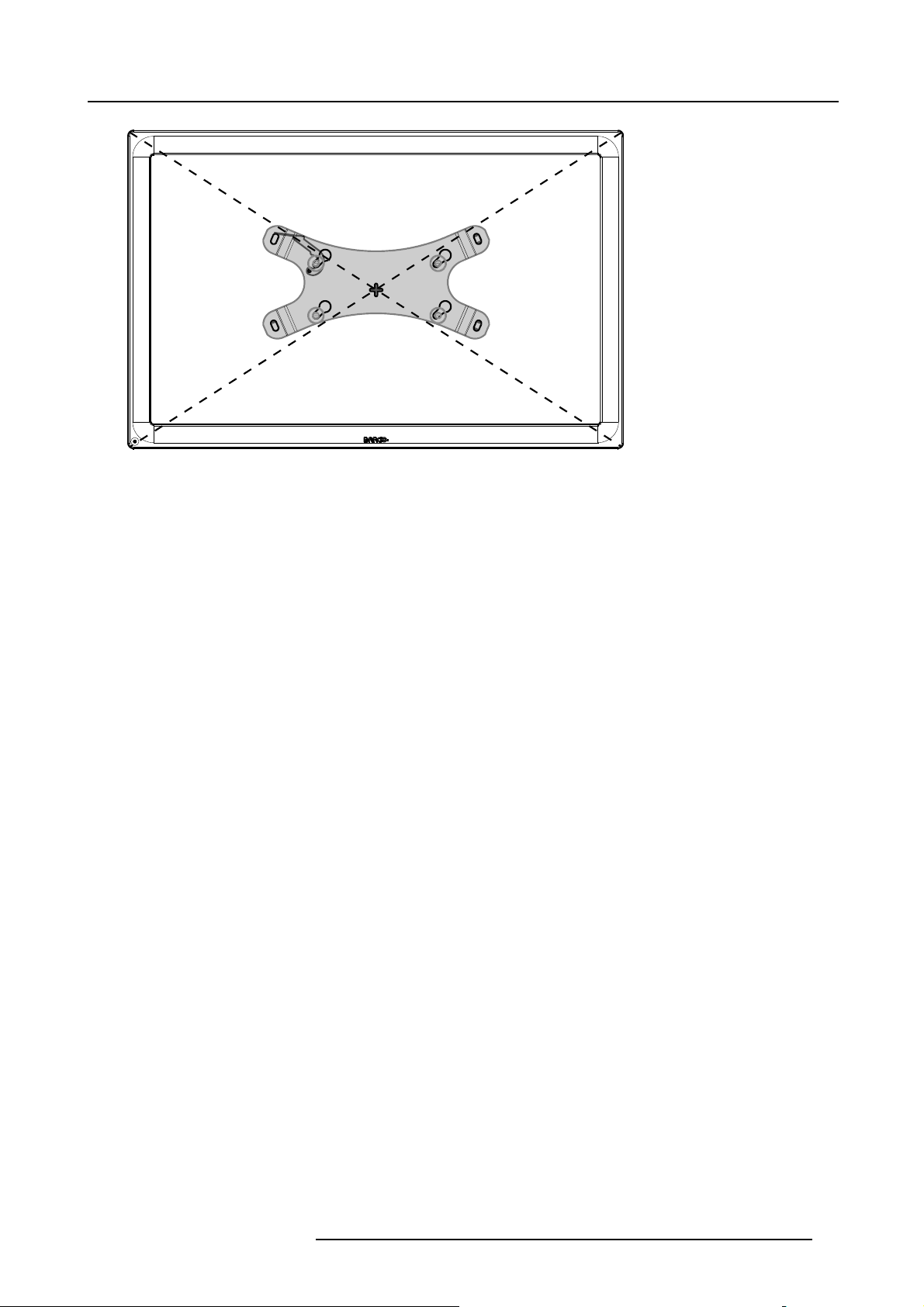

B.1 Wall Mounting Support ...............................................................................................................85

B.1.1 Kit content......................................................................................................................85

B.1.2 Horizontal Wall Mounting Support ............................................................................................85

B.1.3 Vertical Wall Mounting Support . . .............................................................................................87

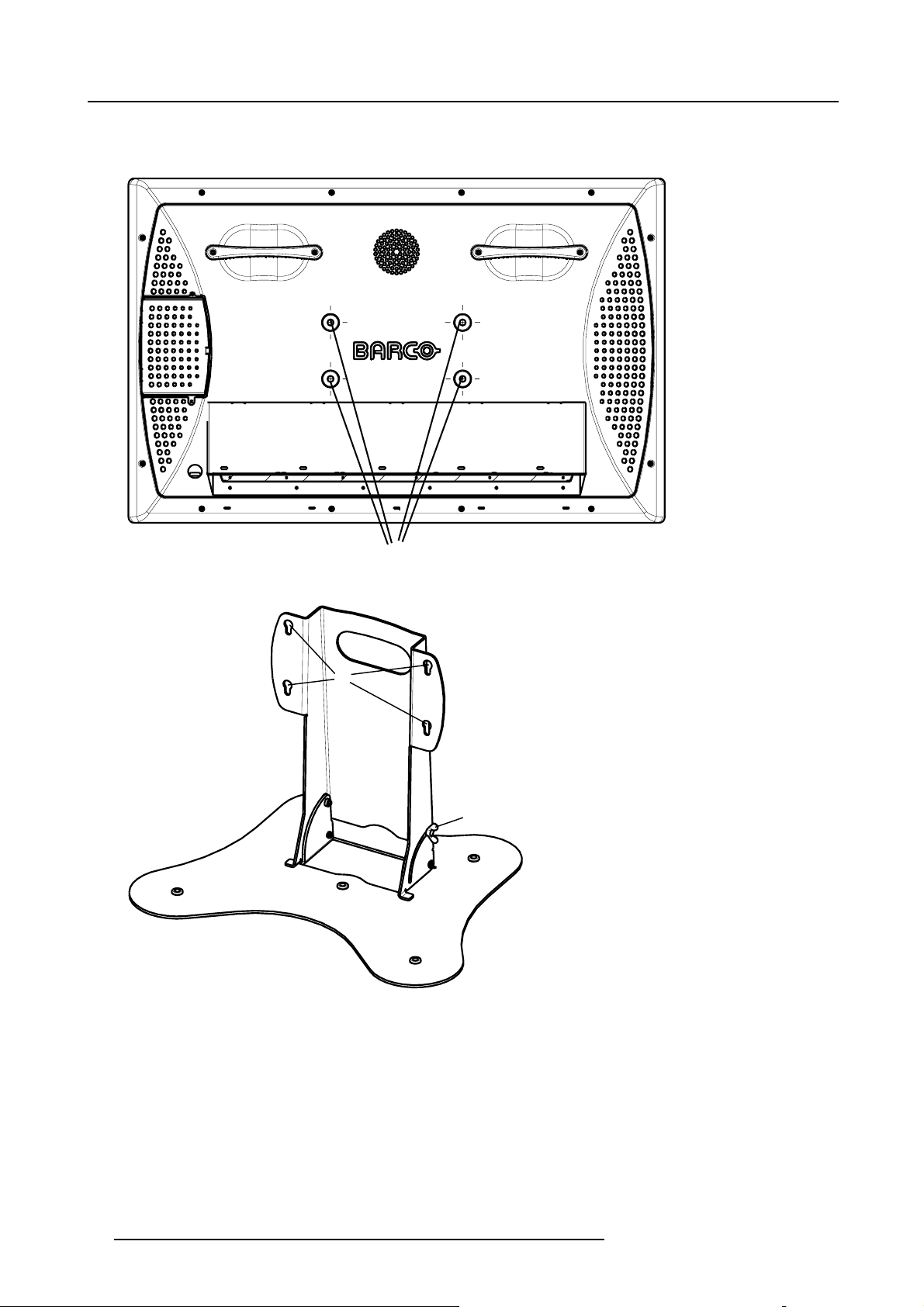

B.2 Table mounting support .. . ...........................................................................................................89

C. Specifications .......................................................................................................91

C.1 Specifications Solaris LC40..........................................................................................................91

Glossary .................................................................................................................93

Index......................................................................................................................95

2 R5976672 SOLARIS LC40 13/01/2005

1. Safety Instructions

1. SAFETY INSTRUCTIONS

1.1 General instructions

Scope

This document includes safety considerations of the Solaris LC40. Throughout this manual, the term SERVICE PERSONNEL refers to persons having appropriate technical training and experience necessary to be knowledgeable of potential hazards to which they are exposed (including, but not limited to HIGH VOLTAGE ELECTRIC and ELECTRONIC CIRCUITRY and HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL, AUTHORIZED to operate the installed digital video distribution system.

General safety instructions

• Before operating your Solaris LC40, please read this manual thoroughly, and retain it for future use.

• Installation and preliminary adjustments should be performed by qualified service personnel or authorized service dealers.

• All warnings on the system parts and in the documentation manual should be adhered to.

• All instructions for operating and use of this equipment must be followed precisely.

• All local installation codes should be adhered to.

Owner’s Record

The part number and serial number are indicated on the registration plate which is located at the rear of the Solaris LC40.

Record this number here. Refer to that whenever you call upon your dealer regarding these products.

Name Parts Number

Solaris LC40

Serial Number

Dealer

Shock Hazard

The lightning flash with an arrowhead within a triangle is intended to tell the user that parts inside this product are risk of electrical shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and/or servicing instructions are included in the technical documentation f this equipment.

Image 1-1

1.2 Electrical Safety

Ratings & Grounding

• These products should be operated from an AC power source. Check if the mains voltage and the load matches the product electrical ratings.

• A grounded three-core power cable has to be used. Connect the power cord by inserting it in a grounded electrical outlet, making sure that the cord is properly grounded.

• If you are unable to install the AC Requirements, contact your electrician. Do not defeat the purpose of the grounding.

• Always connect this appliance to an electrically grounded outlet. Never use a ground bypass (cheater) adapter.

R5976672 SOLARIS LC40 13/01/2005

1. Safety Instructions

General

• Always plug power cord into appliance before plugging into outlet.

• Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

• Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Never yank cord to pull plug from outlet. Grasp plug and pull to disconnect.

• Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged - until it has been examined by a qualified serviceman.

• Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

• If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cord rated for less amperage than the appliance may overheat.

• Let appliance cool completely before storing. Remove cord from appliance when storing.

• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock.

• Never spill liquid of any kind on the product. Should any liquid or solid object fall into the cabinet, unplug the set an checked by qualified service personnel before resuming operations.

• Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges.

1.3 Protection on Servicing

dhaveit

WARNING: Attempts to alter the factory-set internal controls or to change other control settings not specially

discussed in this manual can lead to permanent damage to the Unit and cancellation of the warranty

Servicing

Do not attempt to service the installed modules yourself, as opening or removing covers may expose you to dangerous voltage potential and risk of electric shock! Refer all projector service to a qualified service center.

Call for service in the following conditions :

• When the power cord or plug is damaged or frayed.

• If liquid has been spilled into the modules.

• If the product has been exposed to rain or water.

• If the product does not operate normally when the operating instructions a covered by the operating instructions since improper adjustment of the other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation;

• If the product has been dropped or the cabinet has been damaged;

• If the product exhibits a distinct change in performance, indicating a need for service.

re followed. Adjust only those controls that are

Replacement Parts

When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards. Unauthorized substitutions may void warranty.

Safety Check

Upon completion of any service or repairs to these modules, ask the service technician to perform safety checks to determine that the modules are in proper operating condition.

Protection

Please do not disassemble or modify LCD module to avoid the possibility of electric shock, damage of electronic components, scratch at display surface and invasion of foreign particles. In addition, such activity may result in fire accident due to burning of electronic component. LCD module disassembled or modified by customer is out of warranty.

Please be careful in handling of display with broken glass. When the display glass breaks, please pay attention not to injure your fingers. The display surface has the plastic film a will injure your fingers. Also Lamp (Cold Cathode Fluorescent Lamp) is made of glass, therefore please pay attention in the same way.

Please do not touch the fluid flown out of broken display glass. If the fluid should stick to hand or clothes, wipe off with soap or alcohol immediately and then wash it with water. If the fluid should get in eyes, wash eyes immediately with pure water for more than 15 minutes and then consult the doctor.

Lamp contains mercury inside. Please follow regulations or rules established by local autonomy at its disposal.

ttached, which prevents dispersion of glass pieces, however touching broken edge

R5976672 SOLARIS LC40 13/01/2005

1. Safety Instructions

1.4 Safety on Cleaning

Cabinet

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

To keep the cabinet looking brand-new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution. Never use strong solvents, such as thinner or benzine, or abrasive cleaners, since these will damage the cabinet.

Display surface

Contamination of display surface. When display surface of LCD module is contaminated, please wipe the surface softly with

cotton swab or clean cloth. If it is not enough, please take it away with cellophane tape or wipe the surface with cotton swab or clean cloth containing benzine. In this case, please be careful so that benzine does not get in inside of LCD module, because it may be damaged.

Water drop on LCD surface. Please do not leave LCD module with water drop. When the display surfa wipe it off with cotton swab or soft cloth immediately, otherwise display surface will be deteriorated. If water gets in inside of LCD module, circuit may be damaged.

ce gets water drop, please

1.5 Safety on Shipping

Original Shipping package

Save the original shipping packing material; they will come in handy if you ever have to ship one of your installed modules. For maximum protection, repack your set as it was originally packed at the factory.

1.6 On installation site

Transportation

• Any transportation of the unopened unit in its packaging should be done by two persons.

• In transportation or storage of products in original packing warning is also indicated on the side of the carton.

• For transportation or storage, observe the warnings and instructions on the side of the carton.

Nearby equipment

If air conditioning ducts or lamps, etc. are located near the installation site, the attendant dust, extreme temperatures, humidity, and condensation may become sources of trouble. Please take sufficient steps to avoid this.

Safety locations

Do not install the unit where it may be easily touched or leaned against. Avoid locations subject to high vibrations or severe impacts.

Mechanical stress. Please be careful not to apply cause break of display glass and Lamp or may be the cause for failure.

Pressure to display surface. Please be careful not to apply strong pressure to display surface. Such pressure may cause scratches at surface or may be the cause of failure.

Protection against scratch. Please be careful n please do not put heavy or hard material on display surface, and do not stack LCD modules. Polarizer at front surface can be easily scratched.

Temperature dependence of display. Response speed (optical response) of LCD display is dependent on temperature. Under low temperature, response speed is slower. Also brightness and chromaticity change slightly depending on temperature.

strong mechanical stress like drop or shock to LCD module. Such stress may

ot to hit, press or rub the display surface with hard material like tools. In addition,

Remaining of image

Displaying the same pattern for long time may cause remaining of image even after changing the pattern. This is not a failure but will disappear with time.

, NEVER stack more than the number stated on the carton box. This

Lightning conditions

• Consider existing lightning and sunlight angles when creating the installation layout. Extremely bright lightning can reduce the visibility and the quality of the displayed image.

• In extremely bright surroundings, adjusting screen intensity may not result in perceptibly brightener images. Keep in mind that extreme intensity settings can reduce system service life.

R5976672 SOLARIS LC40 13/01/2005

1. Safety Instructions

Installation partially outdoors

The unit is designed for indoor use, and is not suited for open-air use. Installation in locations that are even partially exposed to the elements may lead to malfunctions or breakdown caused by any of the following:

• Water and dust

• Changes in temperature and humidity

• Salt-bearing wind

R5976672 SOLARIS LC40 13/01/2005

2. PACKAGING AND DIMENSIONS

Overview

• Box content

• Packaging

• Dimensions

2.1 Box content

Content

Standard delivered for :

R9004120 R9004125

2. Packaging and Dimensions

• 1 Solaris LC40 (weight : 24.5 kg)

• 2 power cables with outlet plug type CEE7 and ANSI

73.11

• 1 owners manual

• 1 remote control

• 1 video input

CEE7

European power plug to connect the power cord to the wall outlet.

ANSI 73.11

American power plug to connect the pow

er cord to the wall outlet.

• 1 Solaris LC40 (weight : 24.5 kg)

• 2 power cables with outlet plug type CEE7 and ANSI

73.11

• 1 owners manual

2.2 Packaging

Way of Packaging

The Solaris LC40 is packed in a carton box. To provide protection during transportation, the Solaris LC40 is surrounded with foam. The packaging is secured wi

To unpack

1. Release the fastening clips.

2. Remove the banding.

3. Take the Solaris LC40 out of its shipping carton.

th banding and fastening clips.

Save the original shipping carton and packing material, they will be necessary if you ever have to ship your panel. For maximum protection, repack your panel as it was originally packed at the factory.

R5976672 SOLARIS LC40 13/01/2005 7

2. Packaging and Dimensions

2.3 Dimensions

Front view

518.25

610

Image 2-1 Front view

Back view

452.5

234

863

950

100

610

950

Image 2-2 Back view

8 R5976672 SOLARIS LC40 13/01/2005

Bottom view

Image 2-3 Bottom view

2. Packaging and Dimensions

7 0 1

R5976672 SOLARIS LC40 13/01/2005 9

2. Packaging and Dimensions

10 R5976672 SOLARIS LC40 13/01/2005

3. INSTALLATION GUIDELINES

Overview

• General

• Solaris LC40 configurations

• Battery Insertion in the Remote Control

3.1 General

Environmental conditions

• Operating temperature : 5° to 40°C (41° to 104°F)

• Humidity : max 85%

3.2 Solaris LC40 configurations

Different configurations

The Solaris LC40 can be used in two different configurations, landscape and portrai

The portrait configuration is only possible with the optional Rotator module (order number : R9842362)

3. Installation Guidelines

Image 3-1 Landscape configuration

When using in landscape, the infra red receiver must be in the lower left corner.

When using in portrait, the infra red receiver must be in the upper left corner.

Applications

The Solaris LC40 can be used as stand alone display or as part of a network of displays.

R5976672 SOLARIS LC40 13/01/2005

Image 3-2 Portrait configuration

3. Installation Guidelines

3.3 Battery Insertion in the Remote Control

Where to find the batteries

The batteries are not placed in the remote control to avoid remote control operation in its package, resulting in a shorter battery life time.

How to install the batteries

1. Push the cover tab (A) with the fingernail a little backwards and pull upwards the cover top (B). (image 3-3)

2. Slide the cover forwards to remove. (image 3-4)

3. Push the battery body towards the spring and lift it up to remove. (image 3-5)

4. Insert two AA size batteries, making sure the polarities match the + and – marks inside the battery compartment (image 3-5).

5. Insert the lower tab of the battery cover in the gap at the bottom of the remote control, and press the cover until it clicks in place

(image 3-4).

Image 3-4 Battery cover removal

Image 3-3 Battery cover unlock

Image 3-5 Battery removal

12 R5976672 SOLARIS LC40 13/01/2005

4. CONNECTIONS

Overview

• Power connection

• Input source connections

• RGB out at native screen resolution (WXGA)

• Communication Connections

• Cable cover

4.1 Power connection

AC power (mains) cord connection

Use the supplied power cord to connect your LCD panel to the wall outlet.

Plug the female power connector into the male connector at the back of the LCD panel.

The power input is auto-ranging from 90 to 240 VAC.

4. Connections

4.2 Input source connections

Overview

• Input facilities

• Digital Visual Interface (DVI) input

• RGB analog input

• Serial Digital Interface

• Compact PC module

• Video input module

• DVI input module (optional)

• HD-SDI input module (optional)

• RGB input module (optional)

• Audio pré-amp input (optional)

4.2.1 Input facilities

Input panel view

Image 4-1 Input panel view

LAN

RS232

OUT IN

RGB out (1280x768)

RGBHV

RGB analog

SDI

HVINOUT

D E

DVI

Overview standard available inputs

Ref

A DVI DVI digital

R5976672 SOLARIS LC40 13/01/2005 13

Input connector

Source

DVI analog

4. Connections

Ref

Input connector

Source

RGB analog (BNC) RGB

C SDI SDI

Overview optional inputs

Ref

E Video sources Video input Video

Input slot Input module

Universal input for data sources

DVI input DVI digital

RGB input RGB

HD-SDI input HD-SDI

Audio input

Source

DVI analog

Audioin(L+R),audioout(L+ Subwoofer)

S-Video

Component video

RGB Video (15 kHz)

R+

4.2.2 Digital Visual Interface (DVI) input

DVI

Digital Visual Interface is a display interface developed in response to the proliferation of digital flat panel displays.

The digital video connectivity standard that was developed by DDWG (Digital Display Work Group). This connection standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins that handles both digital and analog video. This standard uses TMDS (Transition Minimized Differential Signal) from Silicon Image and DDC (Display Data Channel) from VESA (Video Electronics Standards Association).

DVI can be single or dual link.

Input specifications

LAN

Image 4-2 Standard DVI input

Pixel clock : 25 .. 165 MHz

Horizontal sync range : 15 .. 110 kHz

Vertical sync range : 23 .. 125 Hz

Max. input format : UXGA (1600x1200) @ 60 Hz

RS232

OUT IN

RGB out (1280x768)

RGBHV

x768)

HV R

DVI

RGB analog

SDI

HVINOUT

R5976672 SOLARIS LC40 13/01/2005

DVI-Digital

• Single link

• Differential input voltage : 200mV - 800mV

DVI-Analog

• RGB input = 0.7 V

• TTL sync input : U

min

±3dB

=2.5V

Pin assignment for the DVI connector.

4. Connections

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

TMDS DATA2-

TMDS DATA2+

TMDS DATA2/4 Shield

TMDS DATA4-

TMDS DATA4+

DDC Clock

DDC Data

Pin 15

Pin 16 Hot Plug Detect

Pin 17

Pin 18

Pin 19

Pin 20

Pin 21

Pin 8 Analog Vert sync Pin 22

Pin 9

Pin 10

Pin 11

Pin 12

Pin 13

TMDS DATA1-

TMDS DATA1+

TMDS DATA1/3 Shield C1

TMDS DATA3- C2 Analog Green

TMDS DATA3+ C3

Pin14 +5Power

Pin 23

Pin 24

C4 Analog Hor Sync

C5 Ground

How to select the DVI input via the RCU?

1. Press 7 on the RCU.

The internal system detects automatically the DVI s and switched on, the digital DVI source will be displayed.

ource. If at the same time a digital DVI and analog DVI source is connected

Ground (for +5V)

TMDS DATA0-

TMDS DATA0+

TMDS DATA0/5 Shield

TMDS DATA5-

TMDS DATA5+

TMDS Clock Shield

TMDS Clock+

TMDS Clock-

Analog Red

Analog Blue

How to select the DVI input via the menu structure?

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-1)

2. Turn the thumb wheel or use the up or down arrow keys to select Input selection.

The input selection menu will be displayed. (me

3. Turn the thumb wheel or use the up or down arrow keys to select 7DVI.

4. Press the thumb wheel or press ENTER on the RCU.

The internal system detects automatically the DVI source. If at the same time a digital DVI and analog DVI source is connected and switched on, the digital DVI source will be displayed.

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 4-1

1. Video

2. RGB

3. S-Video

4. HD-SDI/DVI/Audio/RGB

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Back

Menu 4-2

R5976672 SOLARIS LC40 13/01/2005 15

nu 4-2)

Select input

4. Connections

4.2.3 RGB analog input

Input specifications

Image 4-3 RGB analog input

LAN

RS232

OUT IN

RGB out (1280x768)

RGBHV

Pixel clock : 20 .. 165 MHz

Horizontal sync range : 15 .. 110 kHz

Vertical sync range : 23 Hz .. 125 Hz

Max input format : UXGA (1600x1200) @ 60 Hz

RGBHV inputs : 0.7V

±3 dB

Possible input sources

RGB inputs

RGBHV

RGBS

RGsB

DVI

RGB analog

SDI

HVINOUT

SDI

HVINOUT

Inputs

B H V

- -

How to select the RGB

source via the RCU?

1. Press 6 on the RCU.

The system scans the RGB analog input for a RGB input signal and detects automatically the sync.

How to select the RGB source via the menu structure

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-3)

2. Turn the thumb wheel or use the up or down arrow keys to select Input selection.

The input selection m

3. Turn the thumb wheel or use the up or down arrow keys to select 6RGB.

4. Press the thumb wheel or press ENTER on the RCU.

The internal system detects automatically the sync position (separate sync or sync on green).

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 4-3

enu will be displayed. (menu 4-4)

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI/DVI/Au

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Back

Menu 4-4

dio/RGB

16 R5976672 SOLARIS LC40 13/01/2005

4.2.4 Serial Digital Interface

Specifications

4. Connections

Image 4-4 SDI input

LAN

RS232

OUT IN

RGB out (1280x768)

RGB HV

DVI

RGB analog

HVINOUT

SDI

SMPTE259M compatible serial digital signals only.

SDI input : BNC

SDI output : BNC (= loop through)

Typical : 0.8 V

75 Ω terminated

Output impedance : 75 Ω

How to select the SDI input with the RCU?

1. Press 5 on the RCU

How to select the SDI input via the menu structure?

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-5)

2. Turn the thumb wheel or use the up or down arrow keys to select Input selection.

The input selection menu will be displayed. (menu 4-6)

3. Turn the thumb wheel or use the up or down arrow keys to select 5SDI.

4. Press the thumb wheel or press ENTER on the RCU.

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 4-5

Menu 4-6

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI/DVI/Audio/RGB

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Back

4.2.5 Compact PC module

Overview

The compact PC module is internally connected display. No external source connections are necessary. When input 8 is selected, the compact PC image will be displayed on the screen.

This input slot is NOT hot-pluggable. Make sure the system is switched off before inserting or removing a Compact PC module!

R5976672 SOLARIS LC40 13/01/2005 17

4. Connections

How to select with the RCU.

1. Press 8 on the RCU

How to select the Compact PC via the menu structure?

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-7)

2. Turn the thumb wheel or use the up or down arrow keys to select Input selection.

The input selection menu will be displayed. (menu 4-8)

3. Turn the thumb wheel or use the up or down arrow keys to select 8 Compact PC.

4. Press the thumb wheel or press ENTER on the RCU.

Solaris LC40

Select input

Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 4-7

Input Selection

1. Video

2. RGB

3. S-Video

4. DVI

5. SDI

6. RGB

7. DVI

8. Compact PC

Configure input 2 Back

Menu 4-8

4.2.6 Video input module

This input slot is NOT hot-pluggable. Make sure the system is switched off before inserting or removing an input module!

Specifications

PAL B, G, D, H, I and N, combination PAL N, PAL M, NTSC M, NTSC-Japan, NTSC 4.43 and SECAM

Video : 1 Vpp ± 3dB

S-Video : Y= 1 V

CrYCbHV inputs : -0.5Vppto 0.5V

± 3dB, C = 300mV

Possible inputs

VIDEO

Image 4-5 Video input module

Y/C C

YCBVV

IN OUT

Inputs

RGB inputs

(15 kHz)

Component inputs

RGBS

RGsB

CrYCbS

CrYsC

Y/C

–

– –

out

–

18 R5976672 SOLARIS LC40 13/01/2005

4. Connections

Video

Composite

– – – –

Video

S-Video S-Video S-Video

– – – – –

Pin configuration 4 pin connector

View on input module :

Image 4-6

For S-Video

pin 1 : earth (ground) luminance pin 1 : earth (ground) video Y

pin 2 : earth (ground) chrominance pin 2 : earth (ground) video C

pin 3 : luminance signal (Y) 1Vpp ±3dB

pin 4 : chrominance signal (C) 300mVpp pin 4 : video C signal

Chrominance

The color component of a video signal that includes information about tint and saturation.

For Video

pin 3 : video Y signal

Video

–

Luminance

The component of a video signal that includes information about its brightness.

How to configure the input 2

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-9)

2. Turn the thumb wheel or use the up or down arrow keys to select Input Selection.

The input selection menu will be displayed. (menu 4-10)

3. Turn the thumb wheel or use the up or down arrow keys to select Configure input 2.

The configuration window will be displayed. (menu 4-11)

4. Turn the thumb wheel or use the up or down arrow keys to select the corresponding input.

YUV

SYUV C

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

rYsCb

rYCb

source

S source

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI/DVI/Audio/RGB

5. SDI

6. RGB

7. DVI

8. Compact PC

Configure input 2

Back

Configuration Input 2

YUV SYUV SRGB RGsB

BACK

Menu 4-9

How to select an input via the RCU

1. For video : press 1 on the RCU.

For Component/RGB input : press 2 on the RCU.

R5976672 SOLARIS LC40 13/01/2005

Menu 4-10

Menu 4-11

4. Connections

For S-Video : press 3 on the RCU.

How to select an input via the menu structure

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-12)

2. Turn the thumb wheel or use the up or down arrow keys to select Input selection.

The input selection menu will be displayed. (menu 4-13)

3. Turn the thumb wheel or use the up or down arrow keys to select the corresponding input (Video or S-Video or Component).

4. Press the thumb wheel or press ENTER on the RCU.

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 4-12

Menu 4-13

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI/DVI/Audio/RGB

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Back

Loop through connection for Video

The composite video input (Vin) is connected in loop through with the V

4.2.7 DVI input module (optional)

This input slot is NOT hot-pluggable. Make sure the system is switched off before inserting or removing an input module!

Specifications

. This signal can be used to connect to the next device.

out

DVI

Image 4-7

As this module has the same specifications as the standard DVI input, "Digital Visual Interface (DVI) input", page 14 for the further specifications.

The optional input is automatically detected by the system and correctly filled out in the menu structure.

How to select with the RCU.

1. Press 4 on the RCU

How to select the DVI input via the menu structure?

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-14)

2. Turn the thumb wheel or use the up or down arrow keys to select Input selection.

The input selection menu will be displayed. The correct input will be filled out immediately in input selection 4. (menu 4-15)

3. Turn the thumb wheel or use the up or down arrow keys to select 4DVI.

R5976672 SOLARIS LC40 13/01/2005

4. Press the thumb wheel or press ENTER on the RCU.

4. Connections

Solaris LC40

Select input

Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 4-14

Input Selection

1. Video

2. RGB

3. S-Video

4. DVI

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Back

Menu 4-15

4.2.8 HD-SDI input module (optional)

This input slot is NOT hot-pluggable. Make sure the system is switched off before inserting or removing an input module!

Specifications

INPUT

SDI/HDSD I

Image 4-8 HD-SDI input module

SDI/HD-SDI input 1: BNC

SDI/HD-SDI input 2: BNC

Auto input detection between input 1 and input 2

SDI/HD-SDI output : BNC (= loop through)

Typical : 0.8 V

75 Ω terminated

Output impedance : 75 Ω

INPUT

OUT

How to configure the HD-SDI input

1. Press the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-16)

2. Turn the thumb wheel or use the up or down arrow keys to select Input Selection.

The input selection menu will be displayed. (menu 4-17)

3. Turn the thumb wheel or use the up or down arrow keys to select Configure HD-SDI.

The configuration window will be displayed. Depending on a previous setting, two different view are possible. (menu 4-18)

4. To set the selection automatic, select Automatic select and press ENTER to toggle to [Yes]. (menu 4-20)

5. Select Priority and press ENTER to toggle between [input 1] and [input 2].

When two input signals are connected, the one set in Select input will have priority.

6. To set the selection on non automatic, select Automatic Select and press ENTER to toggle to [No]. (menu 4-21)

7. Select Select input and press ENTER to toggle between [input 1] and [input 2].

R5976672 SOLARIS LC40 13/01/2005

4. Connections

Only the signal on the selected input will be displayed.

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 4-16

Configure HD-SDI

Automatic select [Yes]

Priority [input 1] Back

Menu 4-20

Menu 4-17

Menu 4-21

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Configure HD-SDI

Back

Configure HD-SDI

Automatic select [No]

Select input [input 1] Back

Configure HD-SDI

Automatic select [Yes] Priority [input 1]

Back

Menu 4-18

Configure HD-SDI

Automatic select [No] Select input [input 1]

Back

Menu 4-19

How to select with the RCU.

1. Press 4 on the RCU

How to select the SDI/HD-SDI input via the menu structure?

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-22)

2. Turn the thumb wheel or use the up or down arrow keys to select Input selection.

The input selection menu will be displayed. The correct input will be filled out immediately in input selection 4. (menu 4-23)

3. Turn the thumb wheel or use the up or down arrow keys to select 4 HD-SDI.

4. Press the thumb wheel or press ENTER on the RCU.

Solaris LC40

Select input

Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 4-22

1. Video

2. RGB

3. S-Video

4. HD-SDI

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2 Configure HD-SDI

Back

Menu 4-23

4.2.9 RGB input module (optional)

This input slot is NOT hot-pluggable. Make sure the system is switched off before inserting or removing an input module!

Select input

22 R5976672 SOLARIS LC40 13/01/2005

Specifications

4. Connections

Image 4-9

RGBHV inputs : 0.7Vpp±3 dB

BHV

How to select with the RCU.

1. Press 4 on the RCU

How to select the RGB input via the menu structure?

1. Press on the thumb wheel or press ENTER on the RCU to activate the menus.

The main menu will be displayed on the screen. (menu 4-24)

2. Turn the thumb wheel or use the up or down arrow keys to select Input selection.

The input selection menu will be displayed. The correct input will be filled out immediately in input selection 4. (menu 4-25)

3. Turn the thumb wheel or use the up or down arrow keys to select 4RGB.

4. Press the thumb wheel or press ENTER on the RCU.

Solaris LC40

Select input

Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Input Selection

1. Video

2. RGB

3. S-Video

4. RGB

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Back

Menu 4-24

Menu 4-25

4.2.10 Audio pré-amp input (optional)

This input slot is NOT hot-pluggable. Make sure the system is switched off before inserting or removing an input module!

Specifications

L R

AUDIO

Image 4-10 Audio input

Left and right input channel : maximum 2.5V

Input Left-Right impedance : 50 kΩ

Left and right output : maximum 2.5V

Output Left-Right impedance : 1 kΩ

Output subwoofer impedance : 1 kΩ

OUT

SUBW

R5976672 SOLARIS LC40 13/01/2005

4. Connections

Adjustment steps :

• Treble / bass : from -14dB to +14dB, steps of 2dB

• Balance : from -79dB to 0dB, steps of 1dB

• Volume adjustable in steps of 0.5dB

• Subwoofer out in steps of 1dB

Output specifications

Left and right output channel + subwoofer channel.

Use of the audio pré-amp module

Stereo audio

Input

source

AUDIO

OUT

SUBW

Audio amplifier

Output

Solaris with Audio module

Image 4-11 Principle drawing use of audio pré-amp module

The Solaris audio module must be mounted between the audio source (DVD player, video source,...) and the audio destination (audio amplifier, active speakers ...). In this configuration, the user can control both video and audio parameters from one place (the Solaris OSD menu or any other control device attached to the Solaris s

erial port).

This module is NOT an audio amplifier.

4.3 RGB out at native screen resolution (WXGA)

Output

The processed signal, rotated or not rotated is available

Be aware of the rotation setting of the next Solaris LC40. When the output is already rotated, do not rotate the input image again in the next Solaris LC40.

in screen format for loop through to the next Solaris LC40.

LAN

Image 4-12 RGB out on panel resolution

RS232

OUT IN

RGB out (1280x768)

RGB HV

RGB out (1280x768)

RGBHV

RGB analog

SDI

HVINOUT

DVI

24 R5976672 SOLARIS LC40 13/01/2005

Although this is a standard analog RGBHV output, it is only meant to be used by another Solaris displays. The output signals are not CRT-compatible, so they may not display correctly on a standard monitor

4.4 Communication Connections

4.4.1 RS232 IN/OUT

What can be connected to the RS232 IN connection ?

The RS232 IN connection allows the Solaris LC40 to communicate with a computer e.g. IBM PC or Apple Macintosh.

4. Connections

RS232IN RS232OUT

RS232

Control PC

Image 4-13 RS232 connection

Applications of the RS232 connection

Remote control:

• easy adjustment of LCD panel via IBM PC (or compatible) or MAC connection.

• RS232 address range from 0 to 255.

• allow storage of multiple LCD panel configurations and set ups.

• wide range of control possibilities.

RS232 OUT

To make a loop through connection with other Solaris LC40’s.

4.5 Cable cover

RS232IN

Why cable cover

With the cable cover, all connections are protected to be disconnected.

Mounting the cable cover.

1. Slide the cover over the connections.

2. Push the cover hooks into the holes. (ima

3. Slide the cover to the right.

4. Fix this position by turning in the screw on the left side.

R5976672 SOLARIS LC40 13/01/2005

ge 4-14)

4. Connections

Image 4-14 Mounting cable cover

26 R5976672 SOLARIS LC40 13/01/2005

5. GETTING STARTED

Overview

• Terminology overview RCU

• Switching ON/OFF

•UsingtheRCU

• LCD panel address

• Locking the Solaris LC40 for IR signals

• Quick access to Picture in Picture

5.1 Terminology overview RCU

Overview

The following table gives an overview of the different functionalities of the keys on the RCU.

5. Getting Started

Compact PC

DVI

SDI RGB

S-Video

Video

Image 5-1 RCU

Controls function description

Function Description

Ref.

1 Adjust button To enter the adjustment menus or the le

2 Address button

To match the Remote Control with the Solaris LC40 that you are addressing (number

ave the adjustment menus.

between 0 and 9).

3 Pause button To blank the image.

Standby button To power up/down the Solaris LC40.

R5976672 SOLARIS LC40 13/01/2005 27

5. Getting Started

Function Description

Ref.

Digit buttons Allows to directly select sources.

RC operation indication Lights up when a button on the remote control is pressed (Visual indication of remote

Function keys

• 0. No source

1. Video

• 2. configurable input 2

•3.S-Video

• 4. Optional input

•5.SDI

•6.RGB

•7.DVI

• 8. Compact PC

9. Prefix for PiP source selection

control operation – Battery check).

The function keys are reserved for picture in picture (PIP) functionality.

F1 : PiP left corner bottom

F2 : PiP left corner top

F3 : Split screen

F4 : PiP right corner top

F5 : PiP right corner bottom

8 EXIT button To go up one step in the menu structure.

9 ENTER button

10 TEXT

11 FREEZE

* Button Aspect ratio toggle button for the actual image

13 Picture controls Allow to optimize the picture reproduction

Table 5-1

To enter the adjustment menus or to confirm an adjustment with the adjustment menus.

When text is on, press TEXT to switch off OSD display. Press TEXT again, OSD appears as defined in the OSD configuration window.

Press to freeze the image

5.2 Switching ON/OFF

Main power up

1. When the Solaris LC40 was switched off when it was in standby, it will start up in standby. Continue with the standby procedure.

2. When the Solaris LC40 was displaying an image

From standby to a real image with the RCU

1. Press the standby key, the same source will be displayed as before the Solaris LC40 went in standby

Or, press the digit number of the source you want to display.

when switched off, it will start on the same source as it was playing on.

From standby to a real image with the thumb wheel

1. Press once on the thumb wheel, the same sou

rce will be displayed as before the Solaris LC40 went in standby.

Switching to Standby with the RCU

1. Press the standby button on the RCU.

Thelastusedsourcewillbestoredtostartuponthatsource.

Switching to Standby with the thumb wheel

1. Press the thumb wheel once.

The main menu will be displayed. (menu 5-1)

R5976672 SOLARIS LC40 13/01/2005

2. Turn the thumb wheel to scroll through the menu and select Standby.

3. Press the thumb wheel.

The display goes in standby.

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby

Back

Menu 5-1

Power off

1. The display is showing an image. Switch off with the main switch.

The last used source will be stored to start up on that source when switching on.

2. Go first to standby and then switch off with the main switch.

The Solaris LC40 will always start up in standby.

5. Getting Started

5.3 Using the RCU

Pointing to the IR sensor.

1. When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line).

The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the Solaris LC40 IR sensor. (image 5-2)

3 F

5 F

G H

45°

Image 5-2 IR angle

45°

5 F

O R

O N

O L

R5976672 SOLARIS LC40 13/01/2005 29

5. Getting Started

5.4 LCD panel address

Overview

• IR address

• Displaying and Programming IR addresses into the RCU

• RS232 address

• Controlling the Solaris LC40 with the RCU

5.4.1 IR address

Why a IR address ?

As more than one Solaris LC40 can be installed in a room, the separate Solaris LC40 should be separately addressable with an RCU. Therefor each Solaris LC40 has its own address.

Set up an individual IR Address.

The set up of a LCD panel IR address can be done via the software.

Solaris LC40 controlling.

Every Solaris LC40 requires an individual address between 0 and 9 which can be set in the Service menu.

When the address is set, the Solaris LC40 can be controlled by the remote control:

If it is necessary to control a specific LCD panel, then enter the LCD panel address into the RCU (only when that address is between 0 and 9). The Solaris LC40 with the corresponding address will listen to that specific RCU.

5.4.2 Displaying and Programming IR addresses into the RCU

Displaying the LCD panel IR Address on the Screen.

1. Press the Address key (recessed key on the RCU) with a pencil.

The Solaris LC40’s address will be displayed in a ’Text box’

To continue using the RCU with that specific address, it is necessary to enter the same address with the digit buttons (address between 0 and 9) within 5 seconds after pushing the Address key displays LCD panel IR address 003, then press "3" digit button on the RCU to set the RCU’s address to match the LCD panel’s IR address. Do not press 0–0–3 . This will address the remote control to ’0’ and control all LCD panels in the room. If the address is not entered default address (zero address) and controls then all LCD panels in the room.

the address key. For example : if

within 5 seconds, the RCU returns to its

5.4.3 RS232 address

WhyaRS232address?

As the Solaris LC40 can be controlled by a computer, the separate Solaris LC40 should be separately addressable. Therefor each Solaris LC40 has its own address.

Set up an individual RS232 Address.

The set up of a LCD panel RS232 address can be done via the software.

Solaris LC40 controlling.

Every Solaris LC40 requires an individual address between 0 and 255 which can be set in the Service menu.

When the address is set, the Solaris LC40 can be contr

olled by a computer:

5.4.4 Controlling the Solaris LC40 with the RCU

Input Selection

Key in the corresponding slot number with the di

git keys on the RCU. The selected source will be displayed.

R5976672 SOLARIS LC40 13/01/2005

5. Getting Started

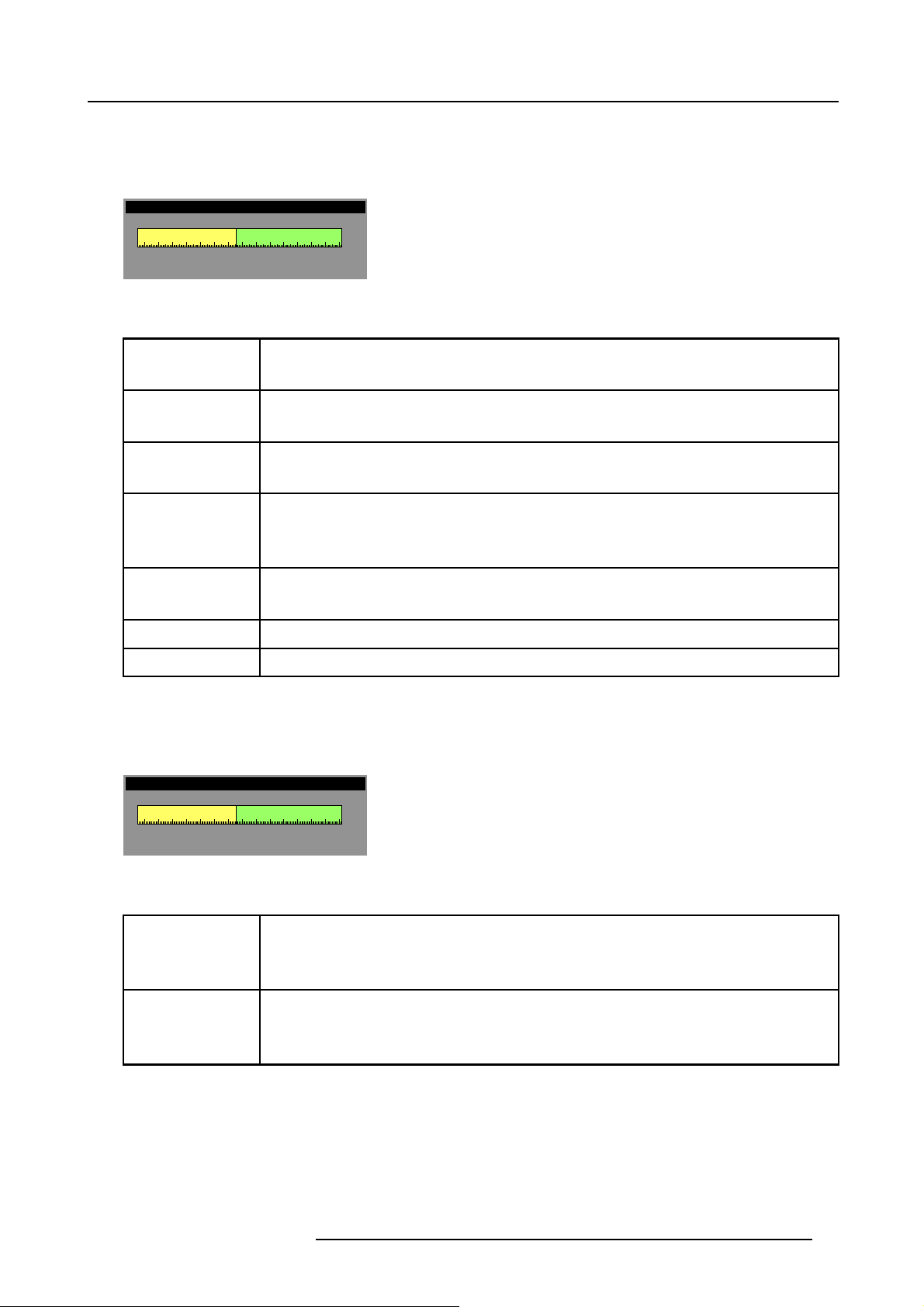

Picture Controls

When an image control is pressed, a text box with a bar scale, icon and function name of the control, e.g. ’brightness...’ appears on the screen (only if OSD is ON). The length of the bar scale and the value of the numeric indication indicate the current memorized setting for this source. The bar scale changes as the arrows on the RCU are pressed.

Brightness : 128

Image 5-3 Brightness setting

255

The picture settings are saved in the image file.

Brightness

Use the + button for a higher brightness.

Use the - button for a lower brightness.

Contrast Use the + button for a higher contrast.

Use the - button for lower contrast.

Color Use the + button for richer colors.

Use the - button for lighter colors.

Tint (Hue) Tint is only active for Video and S-Video when using the NTSC 4.43 or NTSC 3.58 system.

Use the + button

Use the - button.

Sharpness Use the + button for a sharper picture.

Use the - button for a softer picture.

Phase Use the + or - button to adjust the phase.

Freeze

Press Freeze to freeze the displayed image.

Audio Controls

When an audio control is pressed, a text box with a bar scale, icon and function name of the control, e.g. ’volume...’ appears on the screen (only if OSD is ON). The length of the bar scale and the value of the numeric indication indicate the current memorized setting for this source. The bar scale changes as the arrows on the RCU are pressed.

Volume : 128

Image 5-4 Volu me c ontro l

255

The audio settings are saved in the image file.

Volume Volume control adjusts the volume.

Use the + button for a higher volume.

r volume.

Bass

Use the - button for a lowe

Bass control adjusts the bass level (low tones).

Use the + button for more low tones.

Use the - button for less low tones.

R5976672 SOLARIS LC40 13/01/2005 31

5. Getting Started

Treble

Treble control adjusts the treble level (high tones).

Use the + button for more high tones.

Use the - button for less high tones.

Balance

Is only effective if a external amplifier with loudspeakers is connected to the audio output. The balance control adjust the sound level between the left and the right box.

Use the + button for a higher sound level on the right box than on the left one.

Use the - button for a higher sound level on the left box than on the right one.

The Pause Key

When the Pause key is pressed, the display is blanked.

To redisplay the image:

•PressPAUSE key

5.5 Locking the Solaris LC40 for IR signals

What is possible ?

The Solaris LC40 can be locked for any IR signal. When locked, IR signals send to the display will be ignored by the display. Unlocking is possible via the remote control by entering a 4 digit PIN code. The default factory PIN code is “0000”.

This default PIN code or any other entered PIN code can be changed at anytime, see "Changing your PIN code", page 80

How to lock ?

1. Press ENTER on the RCU or press the thumb

The main menu will be displayed. (menu 5-2)

2. Select Service and press ENTER or the thumb wheel.

The service menu will be displayed. (menu 5-3)

3. Select IR locking and press ENTER. The IR locking menu will be displayed. (menu 5-4)

4. Select Locking [off] and press ENT

ER to toggle to [on].

As you cannot use the back button anymore, the menu will disappear after a few seconds.

Your display is locked for IR signals.

wheel once.

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 5-2

Identification IR address : 004 Serial communication

IR locking

Restore factory defaults Back

Menu 5-3

Service

Enter key

Locking : [off]

Back

Menu 5-4

IR locking

How to unlock ?

1. Point your RCU to the display and enter the 4 digit PIN code with the digit keys on the RCU.

When your PIN code is correct, all functions are accessible.

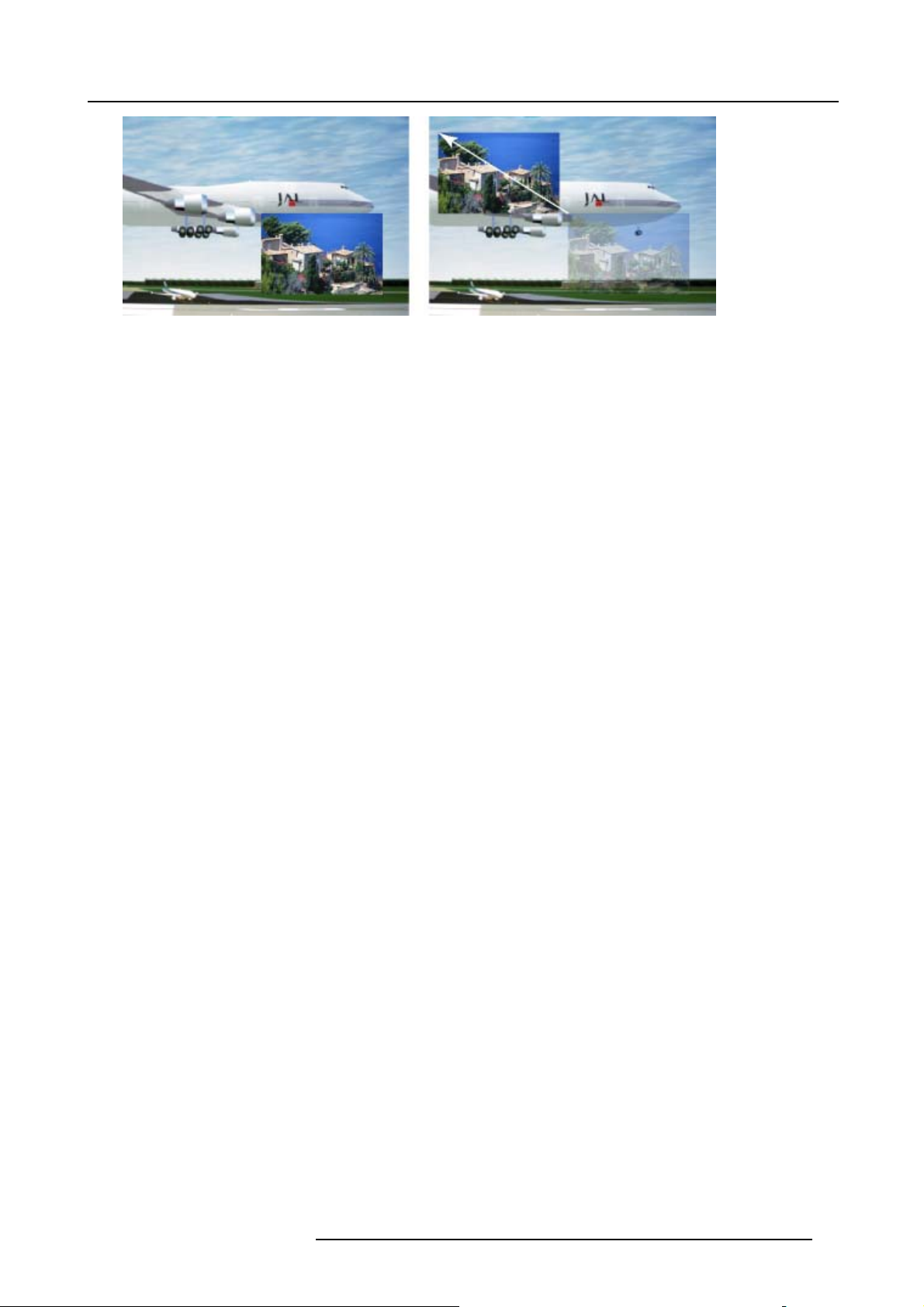

5.6 Quick access to Picture in Picture

Quick PiP source selection

Before selecting the source number (between 1 and 8) enter first 9, immediately followed by the source number.

R5976672 SOLARIS LC40 13/01/2005

5. Getting Started

E.g. to show source 4 in a PiP window, enter 94 with the digits on the RCU. The selected source will be displayed on the same place as it was previously displayed during previous PiP session.

A PiP source is always displayed in landscape.

Use of the function keys

When PiP is active, the following function are available when the key is pressed:

F1 first time PiP window in left bottom corner. Small version.

F2 second time

F2 first time PiP window in left top corner. Small version.

F2 second time

F3 first time Split screen.

F3 second time

F4 first time PiP window in right top corner. Small version.

F4 second time PiP window in right top corner. Enlarged version.

F5 first time PiP window in right bottom corner. Small version.

F5 second time PiP window in right bottom corner. Enlarged version.

PiP window in left bottom corner. Enlarged version.

PiP window in left top corner. Enlarged version.

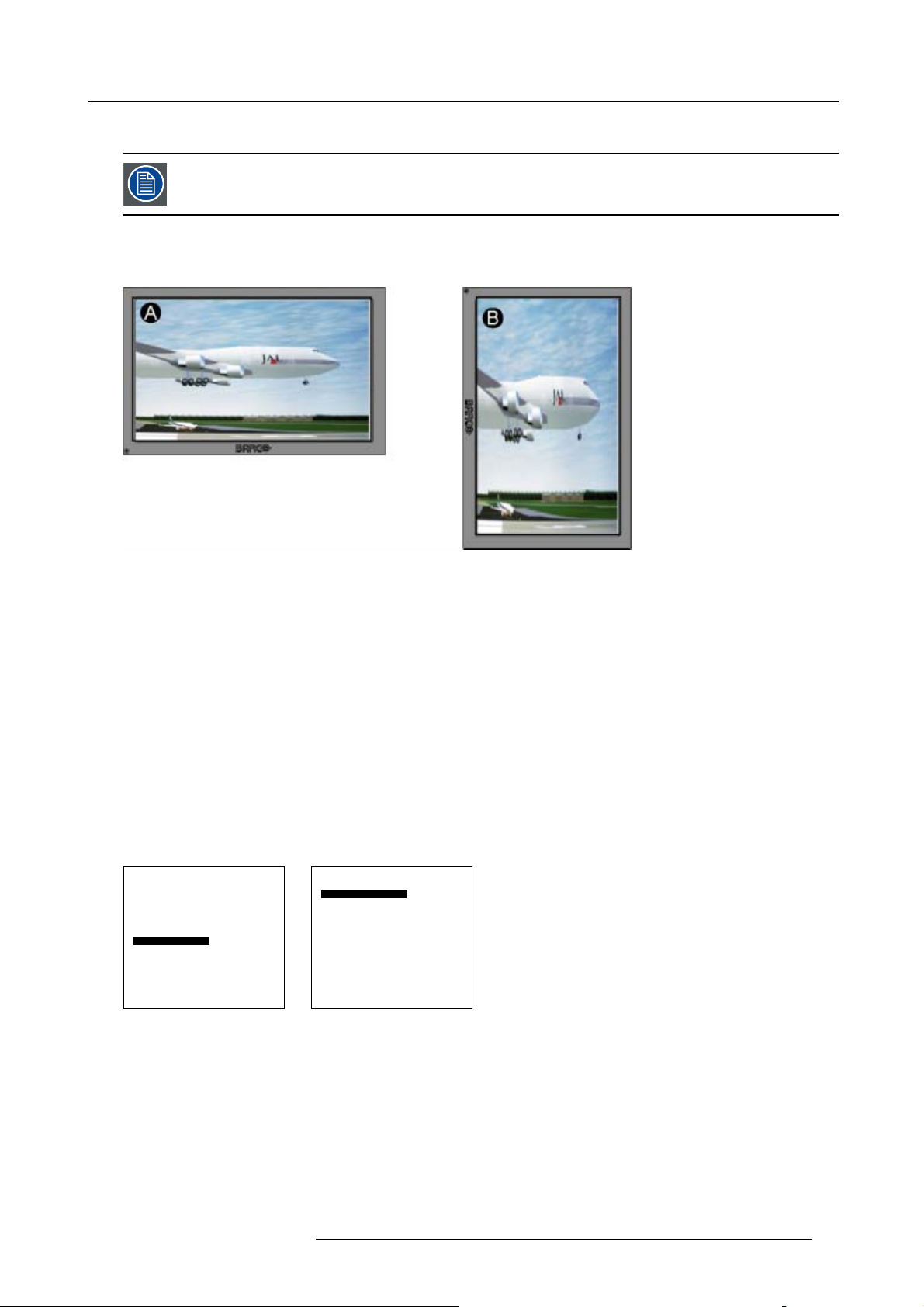

For a landscape display : PiP source left, master source right.

For a portrait display : PiP source top, master source bottom.

Split screen.

The position of the sources will be swapped.

R5976672 SOLARIS LC40 13/01/2005 33

5. Getting Started

34 R5976672 SOLARIS LC40 13/01/2005

6. Getting used to the Menu Structure

6. GETTING USED TO THE MENU STRUCTURE

Overview

• How to start up the menus

• Using the menus

• Adjusting a control in a Slider box

6.1 How to start up the menus

Box menu structure

The Solaris LC40 has a box based menu structure with a parent - child relationship. When selecting an item in parent menu box (higher level) it opens a child menu box (lower level) in which you can make other selections or it activates an adjustment.

How to start up

1. Press ENTER or ADJUST on the RCU Or, press on the thumb wheel on the back side of the panel. (menu 6-1)

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 6-1

6.2 Using the menus

Layout

Non selectable items are grayed out in the menuboxes. When scrolling through the menu box content, the cursor jumps over the grayed out items.

Selectinganitem

1. Use the up or down arrow keys on the RCU to select the desired item and press ENTER to select

Tip: When on the first item, push once on the up arrow key to select the last item in the list, or w

push the down arrow key once again to select the first item.

Or, turn the thumb wheel until the desired item is selected and press the thumb wheel.

Tip: When onthe first item, turn the wheel leftto arriveon the last item, or when on the lastitem ( Back), turn the wheel a little

further to arrive on the first item.

Go one level up

1. Press EXIT Or, select Back and press ENTER or press the thumb wheel.

Escape from the menus

1. Press ADJUST on the RCU.

hen on the last item (Back),

The explanation of the menu structure in the next chapters will be done using the RCU. Of course, everything is possible with the thumb wheel.

R5976672 SOLARIS LC40 13/01/2005 35

6. GettingusedtotheMenuStructure

6.3 Adjusting a control in a Slider box

Adjusting with normal speed.

1. Press the ↑ or ↓ keys to adjust a bar scale with normal speed. This adjustment is a fine adjustment.

The bar scale will move in the corresponding direction. (image 6-1)

Brightness : 128

Image 6-1 Slider box adjustment

255

Short cuts for faster navigation in the slider box.

1. Press the digit keys 0 to 9 to make the slider setting jump to 0 to 90%.

E.g. pressing 5 jumps to the slider’s center position.

This adjustment is a coarse adjustment and can be followed with a fine adjustment with the arrow keys.

R5976672 SOLARIS LC40 13/01/2005

7. INPUT SELECTION

Overview

• Start up the Input Selection

• Selecting an Input Source

• Configuring input 2

• Selecting Compact PC

7.1 Start up the Input Selection

Steps to be taken

1. Press ENTER or ADJUST to start up the menus. (menu 7-1)

2. Select Select input.

3. Press ENTER. The Select input menu appears. (menu 7-2)

7. Input Selection

Solaris LC40

Select input

Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 7-1

Menu 7-2

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI/DVI/Audio/RGB

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Back

Remarks

When no module is inserted in the video input slot, line one indicate No module. There will be no indication next to line 2

Select input

1. No module

4. HD-SDI

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2

Back

Menu 7-3

Line 4 will indicate the exact input name as the software detects itself the inserted input. The possibilities are : HD-SDI, DVI, RGB or Audio. When Audio is indicated in the menu, it will be grayed out as this is not an image source.

and 3.

7.2 Selecting an Input Source

Steps to be taken

1. Scroll through the menu until the desired source is highlighted, e.g. SDI. (menu 7-4)

Note: Input 2 can be configured depending on the input source.

R5976672 SOLARIS LC40 13/01/2005

7. Input Selection

2. Press ENTER to select.

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI

5. SDI

6. RGB

7. DVI

8. Compact PC Configure input 2 Configure HD-SDI

Back

Menu 7-4

7.3 Configuring input 2

Steps to be taken

1. Select Configure input 2 and press ENTER. (menu 7-5)

The configuration window will be displayed. (menu 7-6)

2. Select the corresponding input and press ENTER.

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI/DVI/Audio/RGB

5. SDI

6. RGB

7. DVI

8. Compact PC

Configure input 2

Back

Menu 7-5

Configuration Input 2

YUV SYUV SRGB RGsB

BACK

Menu 7-6

7.4 Selecting Compact PC

Overview

When Compact PC is selected, the content of the compact PC will be displayed on the display.

Custom applications running on this PC can now be displayed.

No external connection between the Compact PC and the Solaris LC40 is necessary except for the Ethernet connection when the internal hub is used. Source connections are connected internally by inserting the compact PC in its docking slot.

Steps to be taken

1. Select Compact PC. (menu 7-7)

2. Press ENTER to activate.

The compact PC content will be displayed.

Select input

1. Video

2. RGB

3. S-Video

4. HD-SDI

5. SDI

6. RGB

7. DVI

8. Compact PC

Configure input 2 Configure HD-SDI

Back

Menu 7-7

38 R5976672 SOLARIS LC40 13/01/2005

7. Input Selection

For further functionality of the Compact PC, see user manual of the Compact PC.

When no compact PC is inserted in the docking slot, a message no signal will be displayed and the display remains on input 8 until a new input is selected or the When no signal function activates.

R5976672 SOLARIS LC40 13/01/2005 39

7. Input Selection

40 R5976672 SOLARIS LC40 13/01/2005

8. IMAGE SETTINGS

Overview

• Image Settings Menu overview

• Aspect Ratio

• Brightness

• Contrast

• Color Saturation

• Tint (hue)

• Sharpness

• Viewport

• Phase

8.1 Image Settings Menu overview

Image settings menu

Aspect ratio

-16/9

-15/9

-4/3

- 4/3 zoom

- Letterbox

- Non linear

- Horizontal shift

- Horizontal size

- Vertical shift

-Verticalsize

• Brightness

• Contrast

• Color saturation

•Tint

• Sharpness

• Viewport

• Phase

8. Image Settings

8.2 Aspect Ratio

What can be done ?

The aspect ratio setting forces the Solaris LC40 to display an image using a defined aspect ratio.

Aspect ratio Description

16/9 Wide screen television format / anamorfic format, stretched format

15/9 Native display format

4/3 Standard television format

4/3 zoom Standard television format enlarged

Letterbox

Non linear

How to change the aspect ratio?

1. Select Imag e Settings.

R5976672 SOLARIS LC40 13/01/2005

Standard television format including a 16 by 9 image format

Smart stretched format.

8. Image Settings

2. Press ENTER to select.

Image settings menu will be displayed (menu 8-1)

3. Select Aspect ratio.

4. Press ENTER.

The aspect ratio menu will be displayed. (menu 8-2)

Image Settings

Aspect ratio

Brightness Contrast (Color) Saturation Tint Sharpness Viewport Phase

Back

Menu 8-1

Menu 8-2

16/9 15/9 4/3 4/3 zoom Letterbox Non linear

Hor shift Hor size Vert shift Vert size

Back

Aspect Ratio

Shift and size of the image

Within the chosen aspect ratio (except for non linear), the image can be shifted vertically and horizontally or it can be resized in both directions.

Steps to be taken

1. Select the desired action.

2. Press ENTER to activate.

3. Use the arrow keys to execute the selected function.

8.3 Brightness

About Brightness

The brightness function is used to adjust the overall light output.

How to change the Brightness ?

1. Select Imag e Settings.

2. Press ENTER to select.

Image settings menu will be displayed (menu 8-3)

3. Select Brightness.

4. Press ENTER to activate.

A slider box appears.

5. Use the ↑ or ↓ to change the brightness.

The higher the value, the higher the brightness.

Image Settings

Aspect ratio

Brightness

Contrast (Color) Saturation Tint Sharpness Viewport Phase

Back

Menu 8-3

42 R5976672 SOLARIS LC40 13/01/2005

8.4 Contrast

About Contrast

The Contrast function is used to adjust the contrast between the light and dark areas of the displayed image.

How to change the Contrast ?

1. Select Imag e Settings.

2. Press ENTER to select.

Image settings menu will be displayed (menu 8-4)

3. Select Contrast.

4. Press ENTER to activate.

A slider box appears.

5. Use the ↑ or ↓ to change the contrast.

The higher the value, the higher the contrast.

Image Settings

Aspect ratio Brightness

Contrast

(Color) Saturation Tint Sharpness Viewport Phase

Back

8. Image Settings

Menu 8-4

8.5 Color Saturation

About Color Saturation

The Color Saturation function is used to adjust color saturation levels.

How to change the Color Saturation ?

1. Select Imag e Settings.

2. Press ENTER to select.

Image settings menu will be displayed (menu 8-5)

3. Select Co lor Saturation.

4. Press ENTER to activate.

A slider box appears.

5. Use the ↑ or ↓ to change the Color Saturation.

The higher the value, the higher the color.

Image Settings

Aspect ratio Brightness Contrast

(Color) Saturation

Tint Sharpness Viewport Phase

Back

Menu 8-5

R5976672 SOLARIS LC40 13/01/2005 43

8. Image Settings

8.6 Tint (hue)

About Tint (hue)

The Tint function is used to adjust color hue to obtain true color reproduction and is only active for Video and S-Video when the NTSC color system is used. For PAL and SECAM sources, tint is not accessible.

How to change the Tint ?

1. Select Imag e Settings.

2. Press ENTER to select.

Image settings menu will be displayed (menu 8-6)

3. Select Tint.

4. Press ENTER to activate.

A slider box appears.

5. Use the ↑ or ↓ to change the Tint.

The higher the value, the higher the tint.

Image Settings

Aspect ratio Brightness Contrast (Color) Saturation

Tint

Sharpness Viewport Phase

Back

Menu 8-6

8.7 Sharpness

About Sharpness

The Sharpness function is used to adjust the image sharpness of video signals.

How to change the Sharpness ?

1. Select Imag e Settings.

2. Press ENTER to select.

Image settings menu will be displayed (menu 8-7)

3. Select Sharpness.

4. Press ENTER to activate.

A slider box appears.

5. Use the ↑ or ↓ to change the Sharpness.

The higher the value, the higher the sharpness.

Image Settings

Aspect ratio Brightness Contrast (Color) Saturation Tint

Sharpness

Viewport Phase

Back

Menu 8-7

44 R5976672 SOLARIS LC40 13/01/2005

8. Image Settings

8.8 Viewport

Overview

• About Viewport

• Viewport creation

• Automatic Viewport function

• Total pixels setup

8.8.1 About Viewport

Overview

A viewport is a window on the input source. The source content will be cropped to the dimensions of that viewport window. The information in that window will be used for further signal processing.

A viewport is determined by its start position and its width and height.

Image 8-1 Viewport

A Input signal B Viewport creation C Cropped input signal at native resolution of display

8.8.2 Viewport creation

Start up of the viewport creation

1. Select Imag e Settings.

2. Press ENTER to select.

Image settings menu will be displayed. (menu 8-8)

3. Select Viewport.

4. Press ENTER to activate.

R5976672 SOLARIS LC40 13/01/2005

8. Image Settings

The Viewport menu will be displayed. (menu 8-9)

Image Settings

Aspect ratio Brightness Contrast (Color) Saturation Tint Sharpness

Viewport

Phase Back

Menu 8-8

Horizontal start Width Vertical start Height Total pixels

Automatic Back

Menu 8-9

Viewport

Different steps to create a viewport.

Image 8-2 Creation of a viewport, views on the screen while ad justing

A Input signal B Desired image on the screen (viewport) C Horizontal start position D Vertical start position E Set up of viewport width F Set up of viewport height

Viewport creation only works correctly when the total pixels and total lines settings in the viewport menu are more or less correct: The other settings (Horizontal start, horizontal size, vertical start, vertical size) depend on these two settings. The software does not a

llow ’horizontal start’ + ’horizontal size’ to be larger than ’total pixels’. So, if the menu does not allow you to shift the image far enough, or set the image wide enough, it is very likely that the total amount of pixels is set too low. The same goes for the vertical parameters.

46 R5976672 SOLARIS LC40 13/01/2005

Creating a horizontal start position

1. Select Horizon tal start. (menu 8-10)

2. Press ENTER to activate.

A slider bar will be displayed. The maximum indicated values are in pixels and depends on input source.

3. Use the ↑ or ↓ to set up the horizontal start position.

When set up the start position the image will move horizontally on the screen, see image 8-2 part C.

Viewport

Horizontal start

Width Vertical start Height Total pixels

Automatic Back

Menu 8-10

Creating a vertical start position

1. Select Vertical start. (menu 8-11)

2. Press ENTER to activate.

A slider bar will be displayed. The maximum indicated values are in lines and depends on input source.

3. Use the ↑ or ↓ to set up the vertical start position.

When set up the vertical start position the image will move vertically on the screen, see image 8-2 part D.

8. Image Settings

Viewport

Horizontal start Width

Vertical start

Height Total pixels

Automatic Back

Menu 8-11

Creating the viewport width

1. Select Width. (menu 8-12)

2. Press ENTER to activate.

A slider bar will be displayed. The actual viewport setting will indicated.

3. Use the ↑ or ↓ to set up the width of the viewport.

When set up the width of viewport, the image will be rescaled to the width of the LCD panel, see image 8-2 part E.

Viewport

Horizontal start

Width

Vertical start Height Total pixels

Automatic Back

Menu 8-12

Creating the viewport height

1. Select Height. (menu 8-13)

R5976672 SOLARIS LC40 13/01/2005

8. Image Settings

2. Press ENTER to activate.

A slider bar will be displayed. The actual viewport setting will indicated.

3. Use the ↑ or ↓ to set up the height of the viewport.

When set up the height of viewport, the image will be rescaled to the height of the LCD panel, see image 8-2 part F.

Viewport

Horizontal start Width Vertical start

Height

Total pixels Automatic Back

Menu 8-13

8.8.3 Automatic Viewport function

About the Automatic function

When the automatic viewport function is selected, the reproduced image returns to the active area of the input signal.

Image 8-3 Viewport automatic

A Actual viewport image B Automatic viewport to active area

Automatic viewport detection only works correctly when the total pixelsand totallines settings in the viewport menu are more or less correct: The other settings (Horizontal start, horizontal size, vertical start, vertical size) depend on these two settings. The software does not allow ’horizontal start’ + ’horizontal size’ to be larger than ’total pixels’. The same goes for the vertical parameters. So in the rare case the input source causes the wrong file to be selected, and that file happens to have a much too low setting for either of the two values ’total pixels’ or ’total lines’, the automatic viewport function will not function correctly, because it will be limited to the range in the ’total pixels’ and ’total lines’ values.

Steps to be taken

1. Select Automatic. (menu 8-14)

2. Press ENTER to activate.

R5976672 SOLARIS LC40 13/01/2005

8. Image Settings

A message will be displayed while the Solaris LC40 examines the input signal : “Detection busy”.

The image jumps to the active area within the input signal.

Viewport

Horizontal start Width Vertical start Height Total pixels

Automatic

Back

Menu 8-14

8.8.4 Total pixels setup

About total number of pixels

Enter the total number of pixels in regard with the total number of pixels in your source. When the total number of pixels is not correct (small differentiation), artifacts in the form of dark bars will be visible in the image. The more visible bars in the image, the more is the differentiation from the correct value.

Image 8-4 Total number of pixels

A Image with wrong total number of pixels B Correct adjusted image

How to set up

1. Select Total pixels. (menu 8-15)

2. Press ENTER to activate.

A slider bar will be displayed. The actual total pixel setting will inidcated.

3. Use the ↑ or ↓ to set up the total pixels.

Viewport

Horizontal start Width Vertical start Height

Total pixels

Automatic Back

Menu 8-15

8.9 Phase

About Phase adjustment

When displaying computer patterns or graphics (RGB or YUV signals) which are very detailed (tilting, vertical stripes, etc. ), jitter in picture (mis-sampling) may occur, causing horizontal stripes in portions of the screen. Whe optimum image.

R5976672 SOLARIS LC40 13/01/2005

n this jitter occurs, adjust ’Phase’ for

8. Image Settings

Image 8-5 Jittering on image

How to change the Phase ?

1. Select Imag e Settings.

2. Press ENTER to select.

Image settings menu will be displayed (menu 8-16)

3. Select Phase.

4. Press ENTER to activate.

A slider box appears.

5. Use the ↑ or ↓ to change the Phase and refine the jitter.

The higher the value, the higher the sharpness.

Image Settings

Aspect ratio Brightness Contrast (Color) Saturation Tint Sharpness Viewport

Phase

Back

Menu 8-16

50 R5976672 SOLARIS LC40 13/01/2005

9. AUDIO SETTINGS

Overview

• Audio settings menu overview

• Starting up the audio controls

• Volume control

• Balance control

• Bass control

• Treble control

• Subwoofer control

Audio settings are only active when the Solaris LC40 is equipped with an audio pre-amplifier input board.

9.1 Audio settings menu overview

Overview

9. Audio Settings

• Volume

•Balance

•Bass

• Treble

• Subwoofer

9.2 Starting up the audio controls

Steps to be taken

1. Press ENTER to enter the menu structure.

The main menu will be displayed. (menu 9-1)

2. Select Audio settings.

3. Press ENTER to activate.

The Audio settings menu will be displayed. (menu 9-2)

Solaris LC40

Select input Image settings

Audio settings

PiP settings Compact PC Control Advanced settings

Standby Back

Volume Balance Bass Treble Subwoofer

Back

Audio settings

Menu 9-1

Menu 9-2

9.3 Volume control

Steps to be taken

1. Select Volume in the Audio settings menu. (menu 9-3)

2. Press ENTER to activate.

R5976672 SOLARIS LC40 13/01/2005

9. Audio Settings

A slider bar will be displayed.

3. Use the ↑ or ↓ to adjust the volume to the desired level.

Audio settings

Volume

Balance Bass Treble Subwoofer

Back

Menu 9-3

9.4 Balance control

Steps to be taken

1. Select Balance in the Audio settings menu. (menu 9-4)

2. Press ENTER to activate.

A slider bar will be displayed.

3. Use the ↑ or ↓ to adjust the balance of the audio output.

Audio settings

Volume

Balance

Bass Treble Subwoofer

Back

Menu 9-4

9.5 Bass control

Steps to be taken

1. Select Bass in the Audio settings menu. (menu 9-5)

2. Press ENTER to activate.

A slider bar will be displayed.

3. Use the ↑ or ↓ to adjust the bass (low tones) to the desired level.

Audio settings

Volume Balance

Bass

Treble Subwoofer

Back

Menu 9-5

52 R5976672 SOLARIS LC40 13/01/2005

9.6 Treble control

Steps to be taken

1. Select Treble in the Audio settings menu. (menu 9-6)

2. Press ENTER to activate.

A slider bar will be displayed.

3. Use the ↑ or ↓ to adjust the treble (high tones) to the desired level.

Audio settings

Volume Balance Bass

Treble

Subwoofer Back

Menu 9-6

9.7 Subwoofer control

9. Audio Settings

Steps to be taken

1. Select Subwoofer in the Audio settings menu. (menu 9-7)

2. Press ENTER to activate.

A slider bar will be displayed.

3. Use the ↑ or ↓ to adjust the subwooder volume to the desired level.

Audio settings

Volume Balance Bass Treble

Subwoofer

Back

Menu 9-7

R5976672 SOLARIS LC40 13/01/2005 53

9. Audio Settings

54 R5976672 SOLARIS LC40 13/01/2005

10. PiP Settings

10. PIP SETTINGS

Overview

• Introduction to PiP

• Select PiP input

• PiP size

• PiP position

10.1 Introduction to PiP

PiP

PiP stands for "Picture in Picture" and allows to display multiple windows containing each of them an image. The windows may be of the video or data type.

What is possible ?

The Solaris LC40 allows to add one extra image (window) as picture in picture to the displayed image. This inserted image can be re-sized and repositioned on the screen.

The type of the inserted image depends on the type of the full image.

When the full image is e.g. a video source, only an insertion of non video source is possible.

10.2 Select PiP input

What can be done ?

The inserted image can be selected out of the list of available sources. The sources which cannot be selected depending the type of the master source are grayed out.

When no PiP is desired, select no PiP source.

How to select

1. Press ENTER or ADJUST to start up the menus. (menu 10-1)

2. Select PiP settings.

3. Press ENTER to select.

The PiP settings menu will be displayed. (menu 10-2)

4. Select Select PiP input.

5. Press ENTER to select

The Select PiP input window will be displayed. (menu 10-3)

Depending on the master source, some sources will be grayed out and are not selectable.

6. Select the desired PiP source.

The selected PiP source appears on the same place with the same settings as it was previously displayed during a previous PiP display.

When No PiP source is selected. PiP will be disabled.

Solaris LC40

Select input Image settings Audio settings

PiP settings

Compact PC Control Advanced settings

Standby Back

PiP settings

Select PiP input

PiP size PiP position

Back

Select PiP input

1. Video

2. RGB

3. S-Video

4. HD-SDI/DVI/Audio/RGB

5. SDI

6. RGB

7. DVI

8. Compact PC

0. No PiP source Back

Menu 10-1

Menu 10-2

Menu 10-3

R5976672 SOLARIS LC40 13/01/2005 55

10. PiP Settings

10.3 PiP size

What can be done ?

The size of the PiP window can be changed. That can be done proportionally in both directions or individually for width and height

Overview

•Scale

• Horizontal size

• Vertical size

10.3.1 Scale

How to scale

1. Press ENTER or ADJUST to start up the menus. (menu 10-4)

2. Select PiP settings.

3. Press ENTER to select.

The PiP settings menu will be displayed. (menu 10-5)

4. Select PiP size.

5. Press ENTER to select.

The PiP size menu will be displayed. (menu 10-6)

6. Select Scale.

7. Press ENTER to select.

8. Use the arrow keys to scale the PiP window.

The scaling will be done proportionally. The center of the window is fixed. The window be enlarged or reduced at the four corners at the same time. (image 10-1)

Solaris LC40

Select input Image settings Audio settings

PiP settings

Compact PC Control Advanced settings

Standby Back

Menu 10-4

Image 10-1 Scaling PiP window

PiP settings

Select PiP input

PiP size

PiP position Back

Menu 10-5

Scale

Hor size Ver size

Back

Menu 10-6

PiP size

When the horizontal size or vertical size is extremely out of proportion and window will be re-sized with an aspect ratio equal of those of the display (15:9).

the scale is activated, the PiP

56 R5976672 SOLARIS LC40 13/01/2005

10.3.2 Horizontal size

How to size horizontally

1. Press ENTER or ADJUST to start up the menus. (menu 10-7)

2. Select PiP settings.

3. Press ENTER to select.

The PiP settings menu will be displayed. (menu 10-8)

4. Select PiP size.

5. Press ENTER to select.

The PiP size menu will be displayed. (menu 10-9)

6. Select Hor size.

7. Press ENTER to select.

8. Use the ← or → keys to size the PiP window horizontally.

The center of the PiP image is taken as reference to enlarge or reduce the horizontal size. The indicated value is a percentage of the total PiP window size. (image 10-2)

10. PiP Settings

Solaris LC40

Select input Image settings Audio settings

PiP settings

Compact PC Control Advanced settings

Standby Back

Menu 10-7

Image 10-2 Horizontal size PiP window

10.3.3 Vertical size

PiP settings

Select PiP input

PiP size

PiP position Back

Menu 10-8

Scale

Hor size

Ver size Back

Menu 10-9

PiP size

How to size horizontally

1. Press ENTER or ADJUST to start up the menus. (menu 10-10)

2. Select PiP settings.

3. Press ENTER to select.

The PiP settings menu will be displayed. (menu 10-11)

4. Select PiP size.

5. Press ENTER to select.

The PiP size menu will be displayed. (menu 10-12)

6. Select Ver size.

7. Press ENTER to select.

8. Use the ↑ or ↓ keys to size the PiP window vertically.

R5976672 SOLARIS LC40 13/01/2005

10. PiP Settings

The center of the PiP image is taken as reference to enlarge or reduce the vertical size. The indicated value is a percentage of the total PiP window size. (image 10-3)

Solaris LC40

Select input Image settings Audio settings

PiP settings

Compact PC Control Advanced settings

Standby Back

Menu 10-10

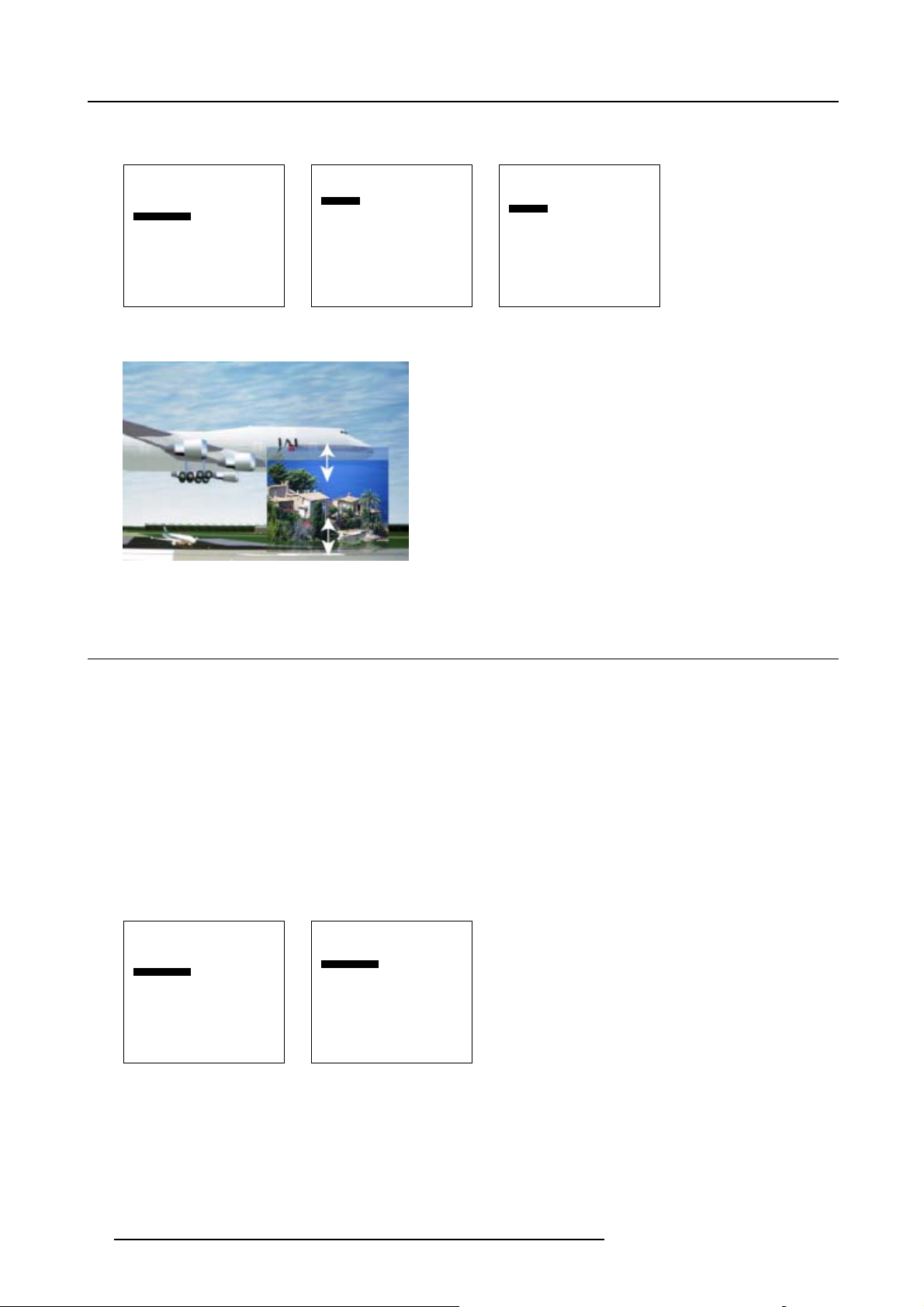

Image 10-3 Vertical size PiP window

PiP settings

Select PiP input

PiP size

PiP position Back

Menu 10-11

Scale Hor size

Ver size

Back

Menu 10-12

PiP size

10.4 PiP position

What can be done ?

The PiP window can be moved to any place on the display.

How to move

1. Press ENTER or ADJUST to start up the menus. (menu 10-13)

2. Select PiP settings.

3. Press ENTER to select.

The PiP settings menu will be displayed. (menu 10-14)

4. Press ENTER to select.

5. Use the arrow keys to move the PiP window to the desired position.

The bar scale indicated the position of the middle of the PiP window in comparison with the middle of the display. (image 10-4)

Solaris LC40

Select input Image settings Audio settings

PiP settings

Compact PC Control Advanced settings

Standby Back

Menu 10-13

Menu 10-14

PiP settings

Select PiP input PiP size

PiP position

Back

58 R5976672 SOLARIS LC40 13/01/2005

Image 10-4 Positioning PiP window

10. PiP Settings

R5976672 SOLARIS LC40 13/01/2005 59

10. PiP Settings

60 R5976672 SOLARIS LC40 13/01/2005

11. Compact PC Control

11. COMPACT PC CONTROL

Overview

• Display control by Compact PC

11.1DisplaycontrolbyCompactPC

About display control

The display can be controlled by its internal processor or by an optional inserted compact PC. When the compact PC has granted the control all IR signals coming from the RCU will be switched through to the compact PC for further processing.

How to grant control to the compact PC ?

1. Press ENTER to enter the menu structure.

The main menu will be displayed. (menu 11-1)

2. Select Compa ct PC Control.

Note: These selection is only available when the Solaris LC40 is displayed the output of theCompact PC (input selection 8 ).

3. Press ENTER to grant the control to the Compact PC.

The compact PC menu will be displayed.

Solaris LC40

Select input Image settings Audio settings PiP settings

Compact PC Control

Advanced settings Standby Back

Menu 11-1

Normally with the EXIT key you can go one step upwards in the menu structure and return on this way to the main menu of the internal processor. If it does not work, use the ADJUST key to force the return to the main menu.

R5976672 SOLARIS LC40 13/01/2005 61

11. Compact PC Control

62 R5976672 SOLARIS LC40 13/01/2005

12. ADVANCED SETTINGS

Overview

• Advanced Settings menu overview

• Gamma

• Color Temperature

• Input Balance

• Noise Reduction

• Film mode detection

• Video Gain

• Display Settings

• Installation

•Service

12.1 Advanced Settings menu overview

Overview

• Gamma

Color temperature

- Display white

- Computer

- Video

-Film

- Broadcast

- Custom balance

• Input balance

• Noise reduction

• Film mode

• Video AGC

Display settings

- Rotate

- Backlight

Installation

- File service

- When no signal

- OSD configuration

Service

- Identification screen

- Service password

-IRaddress

Serial communication

RS232 address

Baudrate

- Terminal diagnosis

- I2C diagnosis

12. Advanced Settings

12.2 Gamma

About Gamma

Gamma is an image quality enhancement function that offers a richer image by brightening the darker portions of the image without altering the brightness of the brighter portions.

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

How to change the gamma

1. Select Advanced Settings.

2. Press ENTER to activate.

The Advanced Settings menu will be displayed. (menu 12-1)

3. Select Gamma.

4. Press ENTER to select.

The Gamma menu will be displayed. The actual value will be indicated with a *. (menu 12-2)

5. Select the desired value and press ENTER.

Advanced Settings

Gamma

Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation Service

Back

Menu 12-1

1.0

1.3

1.6

1.9

* 2.2

2.5

2.8

3.1 Back

Menu 12-2

Gamma

12.3 Color Temperature

What can be done ?

The color temperature can be selected according to the type of source:

There are 5 different preset color temperatures:

• Display white

• computer : 9300 K

• Video : 6500 K

• Film : 5400 K

• Broadcast : 3200 K

These calibrated presets can be selected and will provide optimum color tracking, the display allows however th color temperature, this is done in Custom balance

e setting of a personal

How to select a preset color temperature.

1. Select Advanced Settings.

2. Press ENTER to activate.

The Advanced Settings menu will be displayed. (menu 12-3)

3. Select Color Temperature.

4. Press ENTER to activate.

The Color temperature menu will be displayed. (menu 12-4)

The actual color temperature will be indicated by a *.

5. Use ↑ or ↓ to select the desired color temperature.

6. Press ENTER to confirm the selection.

R5976672 SOLARIS LC40 13/01/2005

The color temperature of the image is adapted and a * shows the active setting.

12. Advanced Settings

Advanced Settings

Gamma

Color Temperature

Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation Service

Back

Menu 12-3

Color Temperature

Display White Computer [9300K] Video [6500K] Film [5400K] Broadcast [3200K] Custom Balance

Back

Menu 12-4

How to adjust the custom color balance.

1. Select Advanced Settings.

2. Press ENTER to activate.

The Advanced Settings menu will be displayed. (menu 12-5)

3. Select Color Temperature.

4. Press ENTER to activate.

The Color temperature menu will be displayed. (menu 12-6)

The actual color temperature will be indicated by a *.

5. Use ↑ or ↓ to select Custom Balance.

The Custom balance menu will be displayed. (menu 12-7)

6. Select respectively Gain red, Gain greenand Gain blue and adjust with the arrow keys until the desired custom color balance is

obtained.

Advanced Settings

Gamma

Color Temperature

Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation Service

Back

Menu 12-5

Color Temperature

Display White Computer [9300K] Video [6500K] Film [5400K] Broadcast [3200K]

Custom Balance

Back

Menu 12-6

Gain red Gain green Gain Blue

Back

Menu 12-7

Custom Balance

12.4 Input Balance

Overview

• Introduction to Input Balance

• Adjusting the input balance

12.4.1 Introduction to Input Balance

Introduction: Unbalanced color signals

When transporting signals, there is always a risk of deterioration of the information contained in the signals.

In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 12-1 , we are quite sure that the amplitude of these color signals is subject to alterations.

An example of alteration may be a DC component added to the signal, in the form of a DC offset repositioning the black level, since this black level (“brightness”) will become crucial later on (clamping circuit) it will result in “black not being black”.

Another value that is subject to alteration is the amplitude of the signal, resulting in an altered “Gain” of the signal (“white level” or contrast).

The alterations of the three color signals will happen independently i.e. the colors will end to be unbalanced, image 12-2

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

0.7V

Image 12-1

Image 12-2

∆

One can conclude he color signals

∆

re that a good color tracking can only be met by using three previously (input) balanced

∆Β

Black level

Analog Digital Conversion

Black level

The analog co

A typical ADC transforms the analog value into an 8 bit coded digital signal.

The graphic shows that when converting a signal containing a DC offset component the range of the converter is not optimally used.

lor signals must pass through an Analog/Digital conversion circuit prior to any digital processing in the PMP.

ADC

∆

Image 12-3

One can conclude here that a good data conversion can only be met by using three previously (input) balanced color signals

255

i2 : video information

i1 : superfleous information

Black level

The objective of input balancing

The objective in input balancing is to “set” the same black level and the same white level for the three colors of a particular input source.

Black level setting : brightness

White level setting : contrast

The same absolute black and white level for the three colors allow the same reference for Brightness and contrast control of the picture !

These two references also set the range in which the ADC will work for that particular source (this explains also why each input balance setting is linked to a particular source and thus saved in the image file).

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

12.4.2 Adjusting the input balance

How can it be done ?

To balance the three color signals of a particular source there are conditions; in fact we must know the black and the white level of the source i.e. :

1. The source in question must be able to generate a white signal, ideally a 100% white (background) full screen pattern

2. The source in question must be able to generate a black signal, ideally a 100% black (background) full screen pattern

Image 12-4

White balance : In the projector, we will set the contrast for each color until we get a 100% light output picture when displaying a 100% white image (image A)

Black balance : In the projector, we will set the brightness for each color until we get a 0% light output picture when displaying a 100% black image (image B).

The changeover from min to max is indicated by the apparition of bright spots also called “digital noise”

An alternative to a full screen White/black pattern is the standard gray scale pattern, the white bar will be used for white balance and the black bar for black balance.

Image 12-5

Black balance

1. Select Advanced Settings.

2. Press ENTER to activate.

The Advanced Settings menu will be displayed. (menu 12-8)

3. Select Inp u t Balance .

The Input Balance selection menu will be displayed. (menu 12-9)

4. Select Black balance and press ENTER to acti

The black balance menu will be displayed. (menu 12-10)

5. Adjust the Brightness to a maximum value until there is no green noise visible in the black areas.

6. Select Black balance red and press ENTER.

A slider bar appears. Adjust with the ↑ or ↓ until there is no red noise visible in the black areas.

7. Select Black balance blue and press ENTER.

R5976672 SOLARIS LC40 13/01/2005

vate.

12. Advanced Settings

A slider bar appears. Adjust with the ↑ or ↓ until there is no blue noise visible in the black areas.

Advanced Settings

Gamma Color Temperature

Input Balance

Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation Service

Back

Menu 12-8

Menu 12-9

Input Balance

Black balance

White balance Back

Black Balance

Black balance red Black balance blue

Back

Menu 12-10

White balance

1. Select Advanced Settings.

2. Press ENTER to activate.

The Advanced Settings menu will be displayed. (menu 12-11)

3. Select Inp u t Balance .

The Input Balance selection menu will be displayed. (menu 12-12)

4. Select White balance and press ENTER to activate.

The white balance menu will be displayed. (menu 12-13)

5. Adjust the Contrast to a maximum value until the green noise becomes visible in the white areas and return one step.

6. Select White balance red and press ENTER.

A slider bar appears. Adjust with the ↑ or ↓ until there the red noise becomes visible in the white areas and return one step.

7. Select Whitebalanceblueand press ENTER.

A slider bar appears. Adjust with the ↑ or ↓ until there the blue noise becomes visible in the white areas and return one step.

Advanced Settings

Gamma Color Temperature

Input Balance

Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation Service

Back

Menu 12-11

Menu 12-12

Input Balance

Black balance

White balance

Back

White Balance

White balance red White balance blue

Back

Menu 12-13

12.5 Noise Reduction

About Noise reduction

Reduces noise and pixel jitter in all video sources.

Noise reduction can be done manually or automatic. When set to automatic, the processor itself selects the best noise reduction level for the actual displayed image.

Switching between manual and automatic

1. Select Advanced Settings.

2. Press ENTER to activate.

The Advanced Settings menu will be displayed. (menu 12-14)

3. Select Noise Reduction.

The noise reduction menu will be displayed. (menu 12-15)

4. Select Manually or Automatic and press ENTER to toggle between [Manually] or [Automatic].

R5976672 SOLARIS LC40 13/01/2005

When Automatic is selected, the Adjust option is grayed out.

12. Advanced Settings

Advanced Settings

Gamma Color Temperature Input Balance

Noise Reduction

Film mode detection [ON] Video AGC Display Settings Installation Service

Back

Menu 12-14

Adjust

[Manually]

Back

Menu 12-15

Noise Reduction

Adjusting the noise reduction manually.

1. Check first if the noise reduction is set to manually. If yes, go to step 2 If no, Select first automatic and press ENTER to toggle to manually.

2. Select Adjust.

A slider bar will be displayed with the actual noise level reduction.

3. Use ↑ or ↓ to adjust the noise level to the desired value.

The higher the value, the higher the noise reduction.

12.6 Film mode detection

What can be done ?

Some sources like common DVD material are derived from cinema 24 Hz sources (2/2 or 3/2 pull down method).

The film mode detection insures that these converted signals are shown without artefacts.

This function may cause undesired effects on standard sources, therefore it can be disabled (OFF) at any time

2:2 pull-down

The process of transferring 24-frames/sec film format into video by repeating each frame (used for PAL DVD’s) as two video fields. ( AD )

3:2 pull-down

Method used to map the 24 fps of film onto the 30 fps (60 fields) or 25 fps (50 fields), so that one film frame occupies three video fields, the next two, etc. It means the two fields of every other video frame come from different film frames making operations such as rotoscoping impossible, and requiring care in editing. Some sophisticated equipment can unravel the 3:2 sequence to allow frame-by-frame treatment and subsequently re-compose 3:2. The 3:2 sequence repeats every five video frames and four film frames, the latter identified as A-D. Only film frame A is fully on a video frame and so exists at one time code only, making it the editable point of the video sequence.

How to switch the film mode

1. Select Advanced Settings.

2. Press ENTER to activate.

The Advanced Settings menu will be displayed. (menu 12-16)

3. Select Film mode detection.

4. Press ENTER to toggle between [on] and [off].

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

[on] : film mode detection is enabled.

[off] : film mode detection is disabled.

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction

Film mode detection [ON]

Video AGC Display Settings Installation Service

Back

Menu 12-16

12.7 Video Gain

About Video Gain

The automatic gain control for video and S-Video sources can be switched off. Then it is possible to adjust the gain manually. When a YUV video signal, no AGC is available but the video gain can be adjusted.

How to adjust the video gain manually

1. Select Advanced Settings.

2. Press ENTER to activate.

The Advanced Settings menu will be displayed. (menu 12-17)

3. Select Video gain.

The Video gain menu will be displayed. (menu 12-18)

4. For Video and S-Video, select AGC. For YUV video, step 6.

5. Press ENTER to toggle between [ON] and [OFF].

Automatic gain control active, no manual video gain adjustment possible.

Automatic gain control is disabled, manual video gain control is possible.

OFF

6. To adjust the video gain control, select Video gain.

A slider box appears.

7. Use ↑ or ↓ to change the video gain.

Nominal position : 100

Adjustable between 50 and 150.

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON]

Video AGC

Display Settings Installation Service

Back

Menu 12-17

AGC : [OFF]

Video gain Back

Menu 12-18

12.8 Display Settings

Overview

Video Gain

• Rotate

• Backlight

R5976672 SOLARIS LC40 13/01/2005

12.8.1 Rotate

Rotate is only available when the optional rotator module is inserted in the Solaris LC40.

About rotate

With the rotate function it is possible to go from a normal landscape image to a portrait image.

12. Advanced Settings

Image 12-6 Display rotation

A Landscape B Portrait, with same input image

If you do not change anything to the viewport, the image will be compressed and stretched until it fills the display.

How to activate a rotation

1. Select Advanced Settings.

2. Press ENTER to activate. The Advanced Settings menu will be displayed. (menu 12-19)

3. Select Display Settings.

4. Press ENTER to activate. The Display settings menu will be displayed. (menu 12-20)

5. Select Rotate.

6. Press ENTER to toggle between Landscape and portrait.

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC

Display Settings

Installation Service

Back

Display Settings

Rotate : landscape

Backlight Back

Menu 12-19

Menu 12-20

12.8.2 Backlight

About backlight

The backlight function can be used to adjust the display brightness for the different environment conditions. E.g. when installed in an environment with a lot of light the backlight should be increased.

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

How to change the backlight ?

1. Select Advanced Settings.

2. Press ENTER to activate. The Advanced Settings menu will be displayed. (menu 12-21)

3. Select Display Settings.

4. Press ENTER to activate. The Display settings menu will be displayed. (menu 12-22)

5. Select Backlight.

6. Press ENTER to activate.

A slider bar will be displayed with the actual backlight level filled out.

7. Use ↑ or ↓ to adjust the backlight level to desired level.

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC

Display Settings

Installation Service

Back

Menu 12-21

Rotate : landscape

Backlight

Back

Menu 12-22

12.9 Installation

Overview

• File Services

• When no Signal

• Language Selection

• Tiled setup

12.9.1 File Services

12.9.1.1 Introduction to image files

Display Settings

Introduction

An image file contains the main characteristics of a source (number of active lines,...). The displays’s memory contains a list of files corresponding to the most common sources, these are the standard files (file extension= *.s). When a new source corresponds to one of these files, a custom file (file extension=*.C) is created and saved for future use.

The maximum number of custom files that can be created is 63, the four last files are systematically overwritten.

When there is a little difference, the file can also be loaded and then edited until the source specs are reached.

The Load Automatic function creates automatically the best suited image file (custom file) for a new source.

72 R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

Possible file manipulations

The possible file manipulations are :

• Load : installation of a file for a new source

12.9.1.2 Load file set up

About load file

With load file, a file containing source specific settings for that source, will be loaded. This load file can be done automatically by the system or manually by the user. When done automatically, the file which corresponds the best with the input source will be loaded. The priority will be given to a custom file. If no custom file is found, a standard file will be loaded.

Howtosettheloadfileproperty?

1. Select Advanced Settings.

2. Press ENTER to activate. The Advanced Settings menu will be displayed. (menu 12-23)

3. Select Installation.

4. Press ENTER to activate. The Installation menu will be displayed. (menu 12-24)

5. Select File services.

6. Press ENTER to activate.

The File services menu will be displayed. (menu 12-25)

7. Select Load [Automatic] or Load [Manually].

8. Press ENTER to toggle between Automatic and Manually.

Automatic

Manually

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings

Installation

Service Back

Menu 12-23

The most corresponding file will be loaded automatically.

The operator has the possibility to load a specific file.

12.9.1.3 Loading a specific file

How to load a specific file

1. Select Advanced Settings.

2. Press ENTER to activate. The Advanced Settings menu will be displayed. (menu 12-26)

3. Select Installation.

4. Press ENTER to activate. The Installation menu will be displayed. (menu 12-27)

5. Select File services.

6. Press ENTER to activate.

The File services menu will be displayed. (menu 12-28)

7. Select Load file.

The load file menu will be displayed. (menu 12-29)

File Service

When no signal Language Tile setup

Back

Menu 12-24

Installation

Load file

Load [automatic]

Back

Menu 12-25

File Service

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

8. If you want to load from a list of matching file, select List matching files. If you want to load from the all available files, select List all files.

9. Select the desired file and press ENTER.

While scrolling through the files, the image will be online adapted.

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings

Installation

Service Back

Menu 12-26

Menu 12-27

Installation

File Service

When no signal Language Tile setup

Back

File Service

Load file

Load [automatic] Back

Menu 12-28

12.9.2 When no Signal

About When no signal

The Solaris LC40 can switch automatically to standby after a certain time when no signal is available on the inputs.

When no signal set up

1. Select Advanced Settings.

2. Press ENTER to activate. The Advanced Settings menu will be displayed. (menu 12-30)

3. Select Installation.

4. Press ENTER to activate. The Installation menu will be displayed. (menu 12-31)

5. Select When no signal.

6. Press ENTER to activate. The When no signal menu will be displayed. (menu 12-32)

7. Select Standby [off] or Standby [on] and press ENTER to toggle the When no display setting.

Load File

List matching files List all files

Back

Menu 12-29

off

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings

Installation

Service Back

Menu 12-30

when no input signal, the display stay on. when no input signal, the display goes to standby when the time installed in Delay is past.

Advanced Settings

Menu 12-31

Installation

File Service

When no signal

Language Tile setup

Back

Delay set up

When no signal is St andby [on]:

1. Select Delay. (menu 12-33)

2. Press ENTER to activate.

The delay entering menu appears. (menu 12-34)

The first digit is highlighted.

3. Enter a new delay time with the digit keys on your RCU

When no signal

Standby : [off] Delay (min) : 5

Back

Menu 12-32

74 R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

Or, turn the thumb wheel to change the first digit. Press the thumb wheel to enter the selected value and to jump to the next digit. Handle in the same way for the second digit.

When no signal

Standby : [off]

Delay (min) : 5

Back

Menu 12-33

Menu 12-34

Shutdown delay

Enter new value 05

12.9.3 Language Selection

What can be done ?

The OSD language can be changed to one of the available languages.

How to change the language

1. Select Advanced Settings.

2. Press ENTER to activate. The Advanced Settings menu will be displayed. (menu 12-35)

3. Select Installation.

4. Press ENTER to activate. The Installation menu will be displayed. (menu 12-36)

5. Press ENTER to activate.

The language menu will be displayed. (menu 12-37)

The * indicates the actual active language.

6. Select the desired language and press ENTER.

The OSD will change to the selected language.

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings

Installation

Service Back

Menu 12-35

12.9.4 Tiled setup

This set up has to be done for each tile (display) in the configuration.

Tiled setup toggle

1. Select Advanced Settings.

2. Press ENTER to activate. The Advanced Settings menu will be displayed. (menu 12-38)

3. Select Installation.

File Service When no signal

Language

Tile setup Back

Menu 12-36

Installation

*English

Français Deutsch Español

Back

Menu 12-37

Language

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

4. Press ENTER to activate. The Installation menu will be displayed. (menu 12-39)

5. Press ENTER to activate. The Tile setup menu will be displayed. (menu 12-40)

6. Select Tiled setup [yes] or [no].

7. Press ENTER to toggle between [yes] or [no].

[yes]

[no]

The display is configured for a tiled setup.

The display is configured as a stand alone display.

When [yes] is selected, the complete set up can be finished.

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings

Installation

Service Back

Menu 12-38

Menu 12-39

Installation

File Service When no signal Language

Tile setup

Back

Menu 12-40

Set up of the complete configuration

1. Select Rows just below Complete set. (menu 12-41)

2. Press ENTER to select.

3. Enter the number of the rows available in the tiled configuration.

Maximum rows allowed : 99

4. Select Columns just below Complete set. (menu 12-42)

5. Press ENTER to select.

6. Enter the number of the columns available in the tiled configuration.

Maximum columns allowed : 99

Tiled setup

Tiled setup : [yes]

Complete setup has:

Rows: 3 Columns: 3

This panel is:

Row: 1 Colomn: 1

Back

Tiled setup

Tiled setup : [yes] Complete setup has:

Rows: 3

Columns: 3

This panel is:

Row: 1 Colomn: 1

Back

Menu 12-41

Menu 12-42

Tiled setup

Tiled setup : [yes] Complete setup has:

Rows: 3

Columns: 3

This panel is:

Row: 1 Colomn: 1

Back

Tile set up

1. Select Row just below This panel is. (menu 12-43)

2. Press ENTER to select.

3. Enter the row number in which the display (tile) is situated. (image 12-7)

4. Select Column just below This panel is. (menu 12-44)

5. Press ENTER to select.

R5976672 SOLARIS LC40 13/01/2005

6. Enter the column number in which the display (tile) is situated.

12. Advanced Settings

Tiled setup

Tiled setup : [yes] Complete setup has:

Rows: 3 Columns: 3

This panel is:

Row: 1

Colomn: 1

Back

Menu 12-43

Image 12-7

Tiled setup

Tiled setup : [yes] Complete setup has:

Rows: 3 Columns: 3

This panel is:

Row: 1

Colomn: 1

Back

Menu 12-44

Practical example to set up the configuration.

• Start with the first display and give it a IR address. Enter a logical pin code for the IR unlocking and set the IR locking on.

As the PIN code contains four digits, use e.g. the first 2 digits to indicate the row and the second 2 digits to indicate the colomn.

• Set display per display on the same IR address, enter the logical PIN code and set the IR locking on.

• Unlock now the first display and set up the tile configuration and all other adjustments for that display. Set IR locking back on

ON and continue with the next display.

12.10Service

Overview

• Identification screen

• IR address

• Serial communication

• IR locking

• Restore Factory Defaults

12.10.1Identification screen

The display’s identification screen

The identification screen displays the display’s main characteristics.

These are :

• Display type

• IR address

• RS232 address

• Serial number of the display

• Run time since first start up

• Software version

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

How to display the identification screen ?

1. Press ENTER to activate the menu structure.

2. Select Advanced Settings and press ENTER to activate.

The advanced settings menu will be displayed. (menu 12-45)

3. Select Service.

4. Press ENTER to select.

The service menu will be displayed. (menu 12-46)

5. Select Id entification.

6. Press ENTER to display the identification screen. (menu 12-47)

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation

Service

Back

Menu 12-45

Identification

IR address : 004 Serial communication IR locking Restore factory defaults

Back

Menu 12-46

12.10.2IR address

How to change the IR address ?

1. Press ENTER to activate the menu structure.

2. Select Advanced Settings and press ENTER to activate.

The advanced settings menu will be displayed. (menu 12-48)

3. Select Service.

4. Press ENTER to select.

The service menu will be displayed. (menu 12-49)

5. Select IR address.

6. Press ENTER. The IR address box opens. (menu 12-50)

7. Use ↑ or ↓ to change the value. Or, enter the desired value with the digit keys on the RCU. Or, turn the thumb wheel until the desired value is displayed and press the thumb wheel.

Service

Identification

Solaris LC40 IR address : 4 RS232 address : 1 Serial number : 00000000 Runtime (h:mm) : 1:03 Soft version : 1.0

link : oct 10 2003

Back

Menu 12-47

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation

Service

Back

Menu 12-48

Identification

IR address : 004

Serial communication IR locking Restore factory defaults

Back

Menu 12-49

12.10.3Serial communication

Overview

• RS232 address

• Changing the baudrate for RS232 communication

Service

Enter new value

Menu 12-50

IR address

R5976672 SOLARIS LC40 13/01/2005

12.10.3.1RS232 address

How to change the RS232 address ?

1. Press ENTER to activate the menu structure.

2. Select Advanced Settings and press ENTER to activate.

The advanced settings menu will be displayed. (menu 12-51)

3. Select Service.

4. Press ENTER to select.

The service menu will be displayed. (menu 12-52)

5. Select Serial communication.

6. Press ENTER.

The serial communication menu opens. (menu 12-53)

7. Select RS232 address and press ENTER.

The RS232 address change menu opens. (menu 12-54)

The first digit will be highlighted.

8. To change the address : Use ↑ or ↓ to change the value.

For a highlighted value, use ↑ or ↓ to change this value or enter the desired value with the digit keys on the R

To go to the next digit : use the ← or → to highlight another value.

12. Advanced Settings

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation

Service

Back

Menu 12-51

Identification IR address : 004

Serial communication

IR locking Restore factory defaults

Back

Menu 12-52

Service

Baudrate : [57600] Back

Menu 12-53

12.10.3.2Changing the baudrate for RS232 communication

How to change the baudrate ?

1. Press ENTER to activate the menu structure.

2. Select Advanced Settings and press ENTER to activate.

The advanced settings menu will be displayed. (menu 12-55)

3. Select Service.

4. Press ENTER to select.

The service menu will be displayed. (menu 12-56)

5. Select Serial communication.

6. Press ENTER.

The serial communication menu opens. (menu 12-57)

7. Select Baudrate.

8. Press ENTER to scroll through the different possible values.

Serial Communication

RS232 address : 001

RS232 address

Enter new value : [001]

Back

Menu 12-54

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

Possible values:

- 9600

- 19200

- 30400

- 57600

- 115200

- 230400

Advanced Settings

Gamma Color Temperature Input Balance Noise Reduction Film mode detection [ON] Video AGC Display Settings Installation

Service

Back

Menu 12-55

Identification IR address : 004

Serial communication

IR locking Restore factory defaults

Back

Menu 12-56

Service

12.10.4IR locking

Overview

• Locking the display

• Changing your PIN code

12.10.4.1Locking the display

How to lock ?

1. Press ENTER on the RCU or press the thumb wheel once.

The main menu will be displayed. (menu 12-58)

2. Select Service and press ENTER or the thumb wheel.

The service menu will be displayed. (menu 12-59)

3. Select IR locking and press ENTER. The IR locking menu will be displayed. (menu 12-60)

4. Select Locking [off] and press ENTER to toggle to [on].

As you cannot use the back button anymore, the menu will disappear after a few seconds.

Your display is locked for IR signals.

Serial Communication

RS232 address : 001

Baudrate : [57600]

Back

Menu 12-57

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 12-58

Identification IR address : 004 Serial communication

IR locking

Restore factory defaults Back

Menu 12-59

Service

Enter key

Locking : [off]

Back

Menu 12-60

IR locking

12.10.4.2Changing your PIN code

What is possible ?

Your PIN code can be changed at anytime to a new PIN code. With this procedure you can also change the factory installed PIN code.

Factory default PIN code : 0000

R5976672 SOLARIS LC40 13/01/2005

12. Advanced Settings

How to change ?

1. Press ENTER on the RCU or press the thumb wheel once.

The main menu will be displayed. (menu 12-61)

2. Select Service and press ENTER or the thumb wheel.

The service menu will be displayed. (menu 12-62)

3. Select IR locking and press ENTER. The IR locking menu will be displayed. (menu 12-63)

4. Select Enter key and press ENTER.

The IR key window opens. (menu 12-64)

The first digit will be highlighted.

5. To change the value : Use ↑ or ↓ to change the value.

For a highlighted value, use ↑ or ↓ to change this value or enter the desired value with the digit keys on the RCU

To go to the next digit : use the ← or → to highlight another value.

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 12-61

Identification IR address : 004 Serial communication

IR locking

Restore factory defaults Back

Menu 12-62

Service

Enter key

Locking : [off] Back

Menu 12-63

IR locking

12.10.5Restore Factory Defaults

What is possible ?

With the factory defaults setting it is possible to return to the factory stored settings for the display.

Howtoreturntofactorydefaults

1. Press ENTER on the RCU or press the thumb wheel once.

The main menu will be displayed. (menu 12-65)

2. Select Service and press ENTER or the thumb wheel.

The service menu will be displayed. (menu 12-66)

3. Select Restore factory defaults and press ENTER. The Restore factory defaults menu will be displayed. (menu 12-67)

4. Do you want to continue? If yes, Select Continue and press ENTER.

A confirmation window will be displayed. (menu 12-68) If no, select Back and press ENTER.

5. If you are sure to reset to the factory default, select Yes and press ENTER.

The factory defaults will be restored.

Enter new value 0000

Menu 12-64

IR key

Solaris LC40

Select input Image settings Audio settings PiP settings Compact PC Control Advanced settings

Standby Back

Menu 12-65

Identification IR address : 004 Serial communication IR locking

Restore factory defaults

Back

Menu 12-66

Service

Restore factory defaults

Restoring factory default will erase all user settings

Back

Continue

Menu 12-67

Restore factory defaults

Are you sure?

Yes

Menu 12-68

R5976672 SOLARIS LC40 13/01/2005 81

12. Advanced Settings

82 R5976672 SOLARIS LC40 13/01/2005

A. STANDARD SOURCE SET UP FILES

A.1 Table overview

Table

The following standard source files are pre-programmed in the display.

A. Standard Source Set up Files

Name

none

interlaced

1 63556 263 858 240 675

Line duration3To ta l l in e s

To ta l p i xe l s

Active lines

Active pixels

vid525_2 1 63556 262 858 445 663

ntsc_osd 0 63556 262 858 226 650

vid625_2 1 64000 313 864 548 679

pal_osd 0 64000 312 864 274 662

pro_pal 0 32000 625 864 570 686

sdi_525 1 63556 262 858 232 690

sdi_625 1 64000 312 864 275 690

vga_txt

vga_gr

0 31777 449 900 400 720

0 31777 525 800 480 640

vga75iso 0 25397 525 800 480 640

vga_72v 0 26416 520 832 480 640

svga_56v 0 28445 625 1024 600 800

svga_60v 0 26400 628 1056 600 800

svga_72v 0 20799 667 1040 600 800

xga_60 0 20678 806 1344 768 1024

wsga_60 0 20370 818 1676 768 1280

xga_70v 0 17799 806 1328 768 1024

xga_70 0 17528 815 1368 768 1024

xga_75

xga75_gs

0 16372 806 1408 768 1024

0 16750 801 1328 768 1024

xga_72 0 17200 808 1376 768 1024

ews_50 0 19102 1047 1680 1024 1280

ews_60v 0 15709 1056 1728 1024 1280

ews_72 0 12992 1069 1690 1024 1280

ews_75

0 12504 1066 1688 1024 1280

sunews67 0 13949 1067 1632 1024 1280

1. Name : name of file, contains the settings

2. 0 = not interlaced, 1 = interlaced

3. Line duration in ns

4. Total lines in one field

5. Total pixels in one horizontal line

6. Active lines in one field

7. Active pixels in one horizontal line

R5976672 SOLARIS LC40 13/01/2005 83

A. Standard Source Set up Files

sunews76 0 12326 1066 1664 1024 1280

sg_60_1 0 15649 1065 1680 1024 1280

pro_ntsc

ews_60 0 15649 1064 1680 1024 1280

sg_50 0 16000 1250 2085 1200 1600

sg_60_4 0 13333 1250 2085 1200 1600

1600_60v 0 13333 1250 2160 1200 1600

1600_65v 0 12308 1250 2160 1200 1600

1600_70v 0 11429 1250 2160 1200 1600

s1600_67 0 11200 1334 2240 1280 1600

hd_60p 0 22222 750 1650 720 1280

hd_30i 1 29630 563 2200 540 1920

hd_25i 1 35556 562 2640 540 1920

hd_24sf

ews_85 0 10971 1072 1728 1024 1280

1280sqr 0 12550 1328 1506 1280 1280

0 31777 525 910 480 735

1 37037 562 2750 540 1920

84 R5976672 SOLARIS LC40 13/01/2005

B. OPTIONAL MOUNTING EQUIPMENT

Overview

• Wall Mounting Support

• Table mounting support

B.1 Wall Mounting Support

B.1.1 Kit content

Overview

B. Optional Mounting Equipment

Image B-1

B.1.2 Horizontal Wall Mounting Support

How to mount

1. Use the center cross (A) which indicates the middle of the Solaris LC40 to mark the drill holes (B) for the wall support. The diagonals of the Solaris LC40 must cross each ot

Note: Attention, always mount the bracked with handle D at the top side.

2. Put the security handle (D) right up.

3. Slide a wall spacer over each bolt. (image B-3)

4. Turn the four bolts into the backside of the Solaris LC40 (A). (image B-4)

5. Hook the Solaris LC40 with the four bolts into the h

6. Slowly lower the panel until it rest on the support.

7. Close the security handle by pushing it to the left.

Your panel is mounted to the wall. (image B-5)

her in the center of the center cross, see image B-5. image B-2)

oles (C) of wall mount (image B-2).

R5976672 SOLARIS LC40 13/01/2005

B. Optional Mounting Equipment

Image B-3

A Wall mount

spacer

B Wall mount bolt

Image B-2 Wall mount support

Image B-4

86 R5976672 SOLARIS LC40 13/01/2005

Image B-5 Final result

B.1.3 Vertical Wall Mounting Support

B. Optional Mounting Equipment

How to mount

1. Use the center cross (A) which indicates the middle of the Solaris LC40 to mark the drill holes (B) for the wall support. The diagonals of the Solaris LC40 must cross each other in the center of the center cross, see image B-9. image B-6)

Note: Attention, always mount the bracket in the way that handle D on the left side.

2. Put the security handle (D) to the left.

3. Slide a wall spacer over each bolt. (image B-7)

4. Turn the four bolts into the backside of the Solaris LC40 (A). (image B-8)

5. Hook the Solaris LC40 with the four bolts into the holes (C) of wall mount (image B-2).

6. Slowly lower the

7. Close the security handle by pushing it to the left.

Your panel is mounted to the wall. (image B-9)

panel until it rest on the support.

R5976672 SOLARIS LC40 13/01/2005

B. Optional Mounting Equipment

Image B-6

Image B-7

A Wall mount

spacer

B Wall mount bolt

Image B-8

88 R5976672 SOLARIS LC40 13/01/2005

B. Optional Mounting Equipment

Image B-9 Final result

B.2 Table mounting support

How to use

1. Turn in a little bid four bolt on the backside of the Solaris LC40 (A). (image B-10)

2. Hook the panel into the mounting holes of the table mount support (A). (image B-11)

3. Slowly lower the panel until it rest on the support.

4. Secure by fixing the four bolts.

5. For easily cable connection, loosen wing nut B and turn the panel until it lays down.

The cables can be connected in an easy way. When finished, turn it back in its original position and secure wing bolt B.

R5976672 SOLARIS LC40 13/01/2005

B. Optional Mounting Equipment

Image B-10

Image B-11

90 R5976672 SOLARIS LC40 13/01/2005

C. SPECIFICATIONS

C.1 Specifications Solaris LC40

Overview

C. Specifications

Tech nology

Hor. viewing angle

Vert. viewing angle

Lifetime

Weight

Contrast Ratio

Brightness 450NIT

Aspect Ratio 15:9

Power Requirements

Power consumption

Operating T° 5°C to 40°C (41°F to 104°F)

Regulation Compliance UL, CE

Native resolution

Active screen area

Active screen diagonal

Colors

TFT LCD

170°

typical 50.000h

25kg / 55.1lbs

600:1

Input: 85V-264V (50Hz-60Hz)

270W (330W including Compact PC)

1280 x 768 (W-XGA)

862mm x 517mm (33.9" x 20.4")

1010mm (39.6")

16.8 million

Standard inputs for R9004120 DVI, RGBHV (on BNC), SDI

Video PAL/NTSC/SECAM (CVBS in/out; S-Video in; YUV in)

Standard inputs for R9004125 DVI, RGBHV (on BNC), SDI

Humidity

Control Control over IP (including internal hub for LAN applications)

Max. 85%

RS232 control

On Screen Display (OSD)

IR Remote control

R5976672 SOLARIS LC40 13/01/2005 91

C. Specifications

92 R5976672 SOLARIS LC40 13/01/2005

GLOSSARY

2:2 pull-down

The process of transferring 24-frames/sec film format into video by repeating each frame (used for PAL DVD’s) as two video fields. (AD)

3:2 pull-down

ANSI 73.11

American power plug to connect the power cord to the wall outlet.

CEE7

European power plug to connect the power cord to the wall outlet.

Chrominance

The color component of a video signal that includes information about tint and saturation.

Glossary

DVI

Digital Visual Interface is a display interface developed in response to the proliferation of digital flat panel displays.

The digital video connectivity standard that was developed by DDW two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins that handles both digital and analog video. This standard uses TMDS (Transition Minimized Differential Signal) from Silicon Image and DDC (Display Data Channel) from VESA (Video Electronics Standards Associatio

DVI can be single or dual link.

Luminance

The component of a video signal that includes information about its brightness.

PiP

PiP stands for "Picture in Picture" and allows to display multiple windows containing each of them an image. The windows may be of the video or data type.

G (Digital Display Work Group). This connection standard offers

n).

R5976672 SOLARIS LC40 13/01/2005

Glossary

94 R5976672 SOLARIS LC40 13/01/2005

INDEX

Index

Address 30

Program 30

RCU 30

setting 30

IR address 30 RS232 address 30

Advanced settings 63–65, 68–72, 74–75, 77–80

Color temperature 64 Display settings 70–71

Backlight 71

Rotate 71 Film mode detection 69 Gamma 63 Input balance 65 Installation 72, 74–75

File services 72

Language 75

Tiled setup 75

When no signal 74 Menu overview 63 Noise reduction 68 Service 77–80

Baudrate 79

Identification screen 77

IR address 78

IR locking 80

RS232 address 79

Serial communication 78 Video Gain 70

Aspect ratio 41 Audio settings 51–53

Balance control 52 Bass control 52 Overview 51 Start up 51 Subwoofer control 53 Treble control 53 Volume control 51

Balance control 52

Menu structure 52

Bass control 52

Menu structure 52

Brightness 42

Cable cover 25 Color Saturation 43 Color temperature 64–65

Custom balance 65 Preset values 64

Communication connections 25

RS232 25

Compact PC control 61

Display control 61

Configuring input 2 19, 38 Connections 13

Input sources 13 Power 13

Contrast 43

Dimensions 7–8 Display settings 70–71

Backlight 71 Rotate 71

DVI 14–15

Pin configuration 15 Specifications 14

Electrical Safety 3

Factory defaults 81 Film mode detection 69

Gamma 63 Getting started 27–30

LCD panel address 30 RCU 27

Terminology 27 Switching Off 28 Switching On 28 Using the RCU 29

Image settings 41–45, 48–49

Aspect ratio 41 Brightness 42 Color Saturation 43 Contrast 43 Menu overview 41 Phase 49 Sharpness 44 Tint (hue) 44 Viewport 45, 48–49

About 45

Automatic 48

Creation 45

To ta l p i xe ls 49

Input balance 65, 67

Adjust 67 Introduction 65

Input connections 14, 16–18, 20–23

Audio pré-amp 23 Compact PC 17 DVI 14, 16 DVI input 20

Optional module 20 HD-SDI input 21

Optional module 21 RGB input 22

Optional module 22 SDI 17 Video input 18

Input facilities 13 Input selection 37–38

Compact PC 38 Configuring input 2 38 Source selection 37 Start up 37

Input sources 13

Input facilities 13

Installation 5, 72–75

File services 72–73

Introduction to image files 72

Load file 73

Load specific file 73 Language 75 Safety precautions 5 Tiled setup 75

R5976672 SOLARIS LC40 13/01/2005

Index

When no signal 74

Installation Guidelines 11

Configurations 11

General 11 IR address 30 IR locking 32

Language setup 75 LCD panel 30, 32

Controlling 30

IR locking 32 Loop through connection 24

RGB output 24

Menu structure 35–36

Slider box 36

Start up 35

Use 35 Mounting equipment 85, 87, 89

Table mounting support 89

Wall mounting support 85, 87

Horizontal 85 Vertical 87

Noise reduction 68

Packaging 7

Box content 7

Way of 7 Phase 49 PIN code 80

Change 80 PiP 32, 55–58

Function keys 32

Introduction 55

PiP position 58

PiP size 56–57

Horizontal size 57 Scale 56

Vertical size 57 Quickaccesskeys 32 Select PiP input 55

PiP position 58 PiP settings 55–58

PiP position 58 PiP size 56–57

Horizontal size 57

Scale 56

Vertical size 57 Select PiP input 55

PiP size 56–57

Horizontal size 57 Scale 56 Vertical size 57

S-Video 19

Pin configuration 19 Safety 3 Safety Instructions 3–5

General 3

On cleaning 5

On Shipping 5

Protection on Servicing 4 Select PiP input 55 Service 77–81

Baudrate 79

Factory defaults 81

Identification screen 77

IR address 78

IR locking 80

Display 80

PIN code 80 RS232 address 79 Serial communication 78

Sharpness 44 Slider box 36 Specifications 91 Standard Source Set up Files 83

Table overview 83

Subwoofer control 53

Menu structure 53

Switching off 28–29

Power off 29 To standby 28

Switching Off 28 Switching On 28

From standby 28 Main power up 28

Table mounting support 89 Tiled setup 75 Tint (hue) 44 Treble control 53

Menu structure 53

Using the RCU 29

Video Gain 70 Viewport 45, 47–49

About 45 Automatic 48 Creation 45 Height 47 Horizontal start 47 To ta l p i xe ls 49 Vertica l start 47 Width 47

Volume control 51

Menu structure 51

RCU 27

Terminology 27

Remote control 12

Battery insertion 12

RS232 address 30

Wall mount support 85

Kit content 85

Wall mounting support 85, 87

Horizontal 85 Vertical 87
