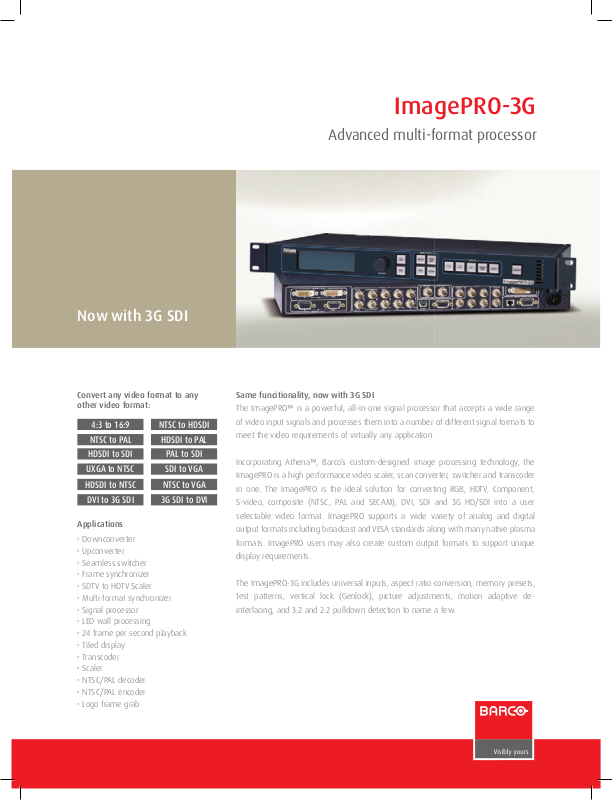

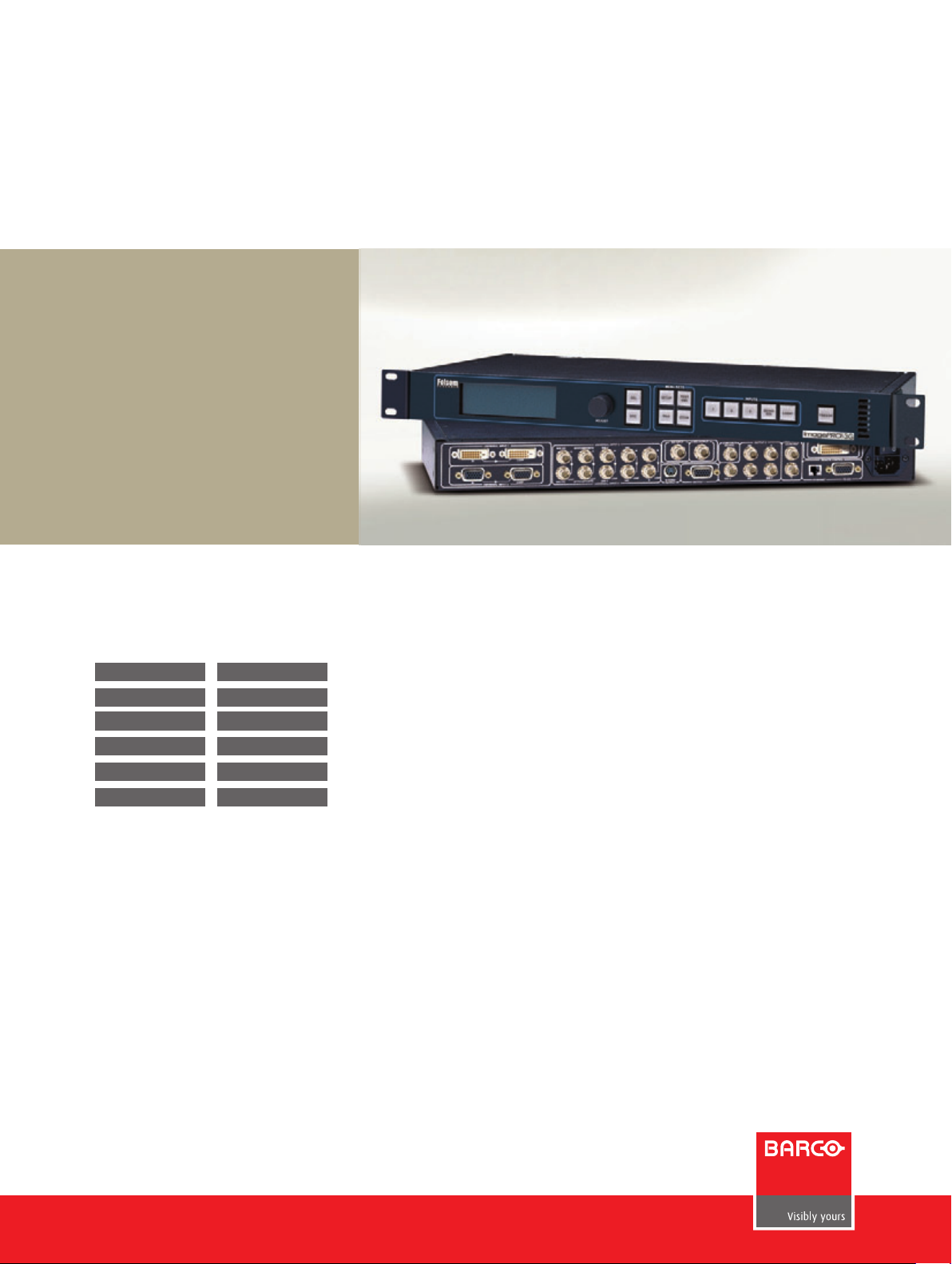

Now with 3G SDI
ImagePRO-3G
Advanced multi-format processor
Convert any video format to any
other video format:
4:3 to 16:9 NTSC to HDSDI
NTSC to PAL HDSDI to PAL
HDSDI to SDI PAL to SDI
UXGA to NTSC
HDSDI to NTSC
DVI to 3G SDI
Applications
• Downconverter
• Upconverter
• Seamless switcher
• Frame synchronizer
• SDTV to HDTV Scaler
• Multi-format synchronizer
• Signal processor
• LED wall processing
• 24 frame per second playback
• Tiled display
• Transcoder
• Scaler
• NTSC/PAL decoder
• NTSC/PAL encoder
• Logo frame grab
SDI to VGA
NTSC to VGA
3G SDI to DVI
Same funcitionality, now with 3G SDI
The ImagePRO™ is a powerful, all-in-one signal processor that accepts a wide range
of video input signals and processes them into a number of different signal formats to
meet the video requirements of virtually any application.
Incorporating Athena™, Barco’s custom-designed image processing technology, the
ImagePRO is a high performance video scaler, scan converter, switcher and transcoder
in one. The ImagePRO is the ideal solution for converting RGB, HDTV, Component,
S-video, composite (NTSC, PAL and SECAM), DVI, SDI and 3G HD/SDI into a user
selectable video format. ImagePRO supports a wide variety of analog and digital
output formats including broadcast and VESA standards along with many native plasma
formats. ImagePRO users may also create custom output formats to support unique
display requirements.
The ImagePRO-3G includes universal inputs, aspect ratio conversion, memory presets,
test patterns, vertical lock (Genlock), picture adjustments, motion adaptive deinterlacing, and 3:2 and 2:2 pulldown detection to name a few.
Page 2
Technology brief
Athena™ scaler
Athena™ is a high-performance image
processing technology, that provides the
highest possible image quality while
minimizing processing delays. The architecture supports 1:1 video sampling and
processes video at 10-bits per color channel to maintain image fi delity. Horizontal
and vertical fi ltering techniques are used
to provide crisp, clean images to support
both extreme upconversion and downconversion operations such as prescaling for LED applications.
What is 3G?
The ImagePRO 3G supports the new
SMPTE 424M protocol for SDI inputs and
outputs. Previously, HDSDI only supported 1080i @60. 3G SDI provides for
the transmission of 1080p HD signals
running up to 60 fps signals over a
single coaxial cable. Professional grade
cable can carry these signals out to 130
meters (425 feet). By supporting progressive HD signals, the ImagePRO can
reduce processing latency to only a few
milliseconds.
Aspect ratio conversion and control
Wide-screen formats are becoming increasingly popular. It is often necessary
to convert video between formats with
different inherent aspect ratios. For example, wide-screen material shot in 16:9
format is often converted for display on
a standard television screen with a 4:3
aspect ratio. ImagePRO supports conversion between image formats in all common aspect ratios. In addition, user control of custom aspect ratios is provided.
Pan and zoom
ImagePRO supports fl exible pan and
zoom operations. The Pan and Zoom
controls can be used to see very fi ne
detail in an area of interest of the input
image or to compress an input image to
form a very small output window.
Genlock/Vertical lock
True blackburst genlock capability with
SCH-phase adjustment is provided for
the broadcast quality NTSC and PAL output. All output formats including HDTV
may be vertically locked to the blackburst signal. HV Lock capability is provided to allow the output to be locked to
externally applied high resolution sync
signals. When a non-broadcast output
is selected, the Vertical Lock feature can
be enabled to lock the output frame rate
to the input frame rate or an externally
supplied vertical sync. Vertical locking
eliminates frame rate conversion problems that would otherwise result in motion artifacts or allows multiple units to
have their outputs timed together.
Memory presets
ImagePRO has 64 independent memory
presets. The memories save sizing, centering, detail, contrast, and brightness
information.
Enhanced digital processing
10-bit processing provides improved
signal-to-noise ratio and preserves dynamic range to improve image fi delity.
This is especially apparent in dark regions and areas of smooth, slightly varying tonal values.
Standard features
• 3G/HD/SD SDI input with loop-through
• HDSDI input
• Three universal inputs accept
RGBHV/RGBS/RGsB computer video,
component video (SD or HDTV),
s-video, or composite video with loopthrough
• Outputs: 2x RGB or component video,
composite video, s-video, DVI-D,
HDSDI, 3G/HD/SD SDI

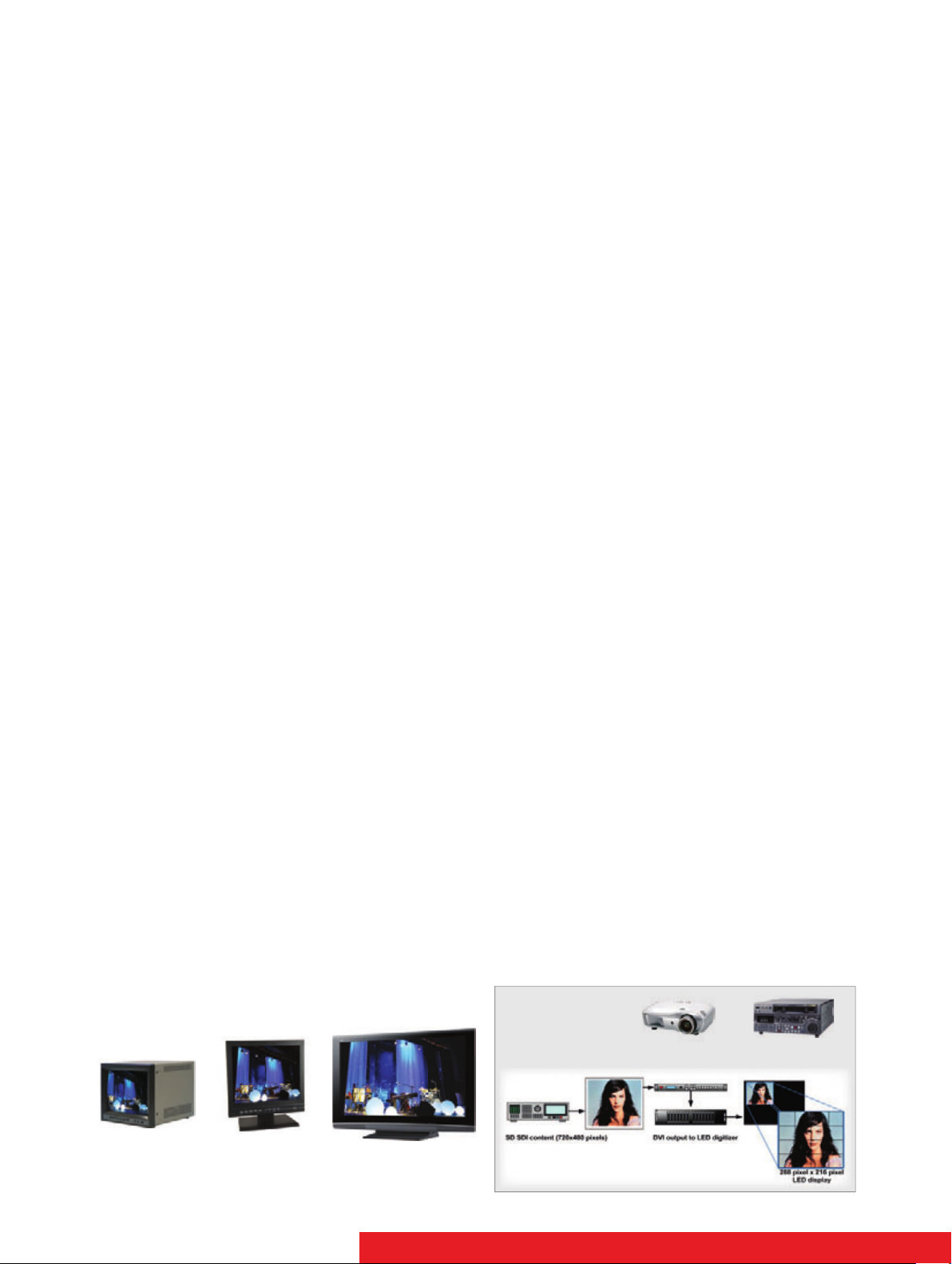

Applications
NTSC/PAL Monitor
VGA/UXGA
• User-defi ned aspect ratio conversion
and adjustments
• Pan and zoom
• Freeze
• 10-bit processing
• Motion Adaptive and Field to Frame
de-interlacing modes
• 3:2 pulldown detection for NTSC
and 2:2 fi lm detection for PAL video
sources
Other applications:
LED displays
Widescreen/HD
• Built-in control compatibility with the
Encore suite of products.
• Decodes NTSC, PAL and SECAM
• Ethernet for real-time control
• Encodes NTSC and PAL
• Genlock, H/V Lock and VLock
• Executive mode: protects system
confi guration settings during use
• 64 independent memory presets
• Backed by three-year warranty
Video projector
NTSC/PAL/HD VTR
Page 3
The ultimate video problem solver
Rack mount
hardware
Electro-Luminescent Display
for easy display of all menu
items
Universal analog/DVI input
Universal analog input
Input 1 Loop
Easy adjustment of all
set-up parameters
Universal
Analog input
Menu Keys
Allows user control
of all menu functions,
including set-up
Backlit Input Selection
buttons
3G/HD/SD SDI
3G/HD/SD SDI
SDI/HDSDI Source Select
Logo Store/Recall
Source Freeze
freezes selected
video source
Composite video output
RGB/Component/Composite
video (HD or SD)
DVI output
Input 2 Loop
Universal analog input
Input 3 Loop

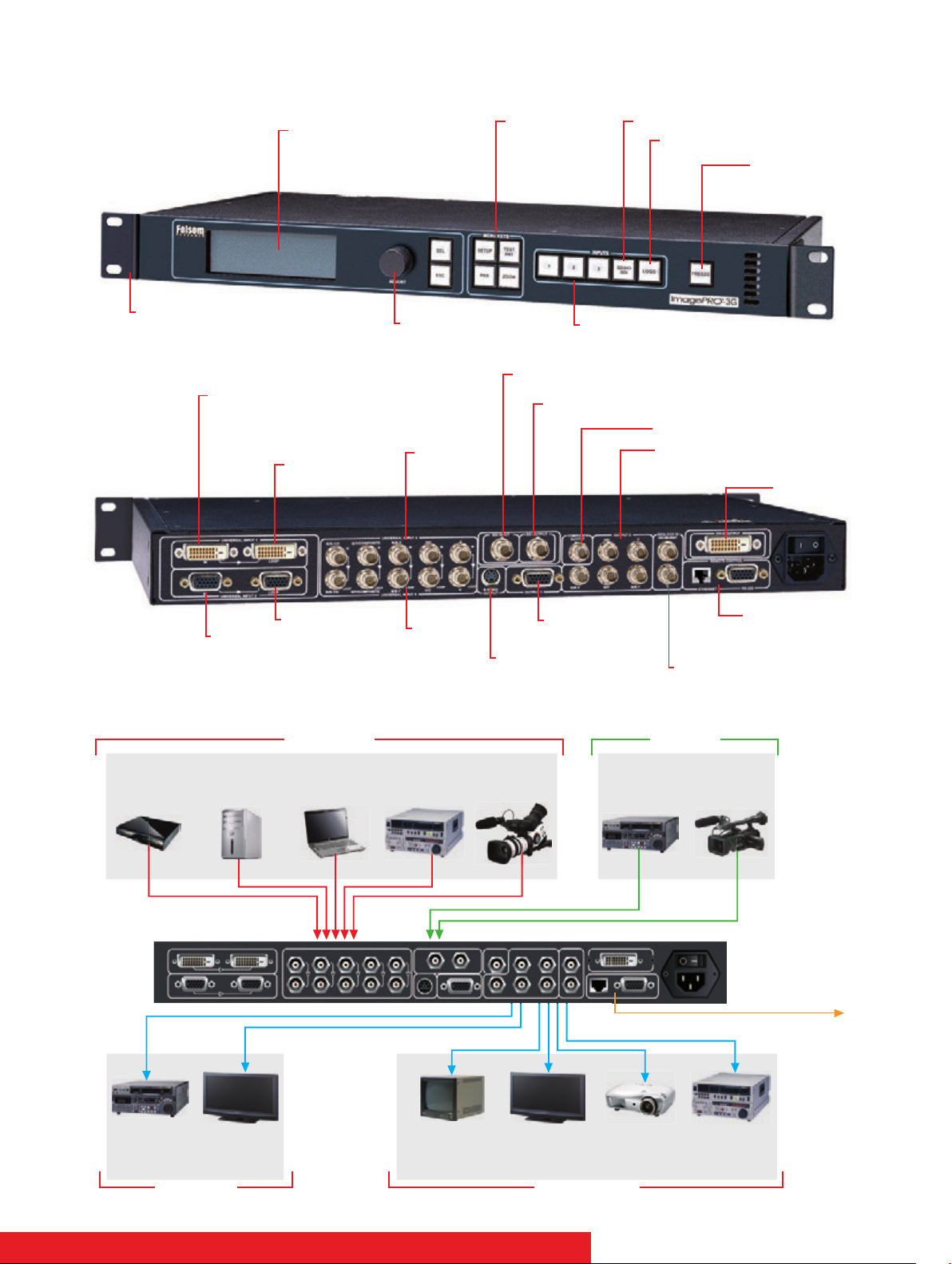

ImagePRO-3G connectivity diagram
VIDEO INPUTS HD INPUTS
DVD Player
(NTSC/PAL)
PC/Mac
(DVI)
PC
(VGA/UXGA)
VTR
(NTSC/PAL/SDI)
S-Video output
Camera
(NTSC/PAL/SDI)
Analog output
HD Player
RS-232/485 and
Ethernet remote
control
Genlock In/Through
HD Camera
Serial Control
(RS232/Ethernet)
HD Recorder
HD OUTPUTS
HD Monitor
Monitor
(NTSC/PAL)
Plasma
Display
VIDEO OUTPUTS
Video
Projector
VTR
(NTSC/PAL)
Page 4
Specifications
INPUTS
Universal analog input types 3x high bandwidth video channels support RGBHV/RGBS/RGsB computer video, component video (SD or
HDTV), S-video, or composite video
Universal analog input connectors Input 1 on a DVI-I connector, Input 2 a HD-15 connector and Input 3 on a five BNC connectors.
All inputs are with buffered loop-throughs
Digital serial video input (SDI) 1x 3G/HD/SD SDI input on BNC connector.
Digital video (DVI) input 1x input 1 on DVI-I connector supports both universal analog and DVI input with loop-through
SMPTE SMPTE 424M, 292M, 259M-C
Input definition range 640x480 (VGA), 800x600 (SVGA), 1024x768 (XGA), 1280x1204 (SXGA), 1440x900, 1600x1200 (UXGA),
1680x1050, 1920x1200 (WUXGA), 2048x1080 (2K), HDTV 480p, 720p, 1080p, 1080i, 875 RS-343, 525 RS-170
Standard resolution video input NTSC, PAL or SECAM
Horizontal frequency 15 kHz to 120 kHz
Vertical frequency 25 Hz to 120 Hz
Input termination 75 Ohm
Input sync Sync-on-Video, Separate C or H/V
External sync (genlock) input Blackburst, Computer H/V Sync or C-sync, or tri-level at HD on a BNC
OUTPUTS
1x RGB or component video (SD or HDTV) (HD-15 connector)
1x RGB or component video (SD or HDTV) or composite video (five BNC connectors)
1x Composite video (BNC connector)
1x S-video (4-pin mini-DIN connector)
1x 3G/HD/SD SDI
1x DVI output (DVI-D connector)
1x SMPTE 424M, 292M, 259M-C
Standard resolution video output NTSC, PAL
High resolution output supported VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1204), UXGA (1600x1200), WUXGA
(1900x1200)
For LCD/plasma displays 1280x768, 1365x768, 1365x1024. HDTV 480p, 720p, 1080p, 1080i. 875 RS-343,
525 RS-170
User definable video output formats supported
Sync RGBHV, RGBS, RGsB, TTL level, polarity selectable, HDTV Tri-level sync supported
Output impedance 75 ohm
OTHER
Remote control Ethernet connection (with TCP/IP) or RS-232 serial port; built-in compatibility with Encore
Dimensions Height: 1.5"; Width: 17" (43.2 cm) or 19" (48.3 cm) with rack-mount option; Depth: 14"
Weight 9 lbs. (shipping weight: 13 lbs)
Input power 100-240 VAC, 47-63 Hz
Environmental Temperature: 0-40° C; humidity: 0-95% noncondensing
Warranty All video products are designed and tested to the highest quality standards and are backed by a full three-
year parts and labor warranty.
