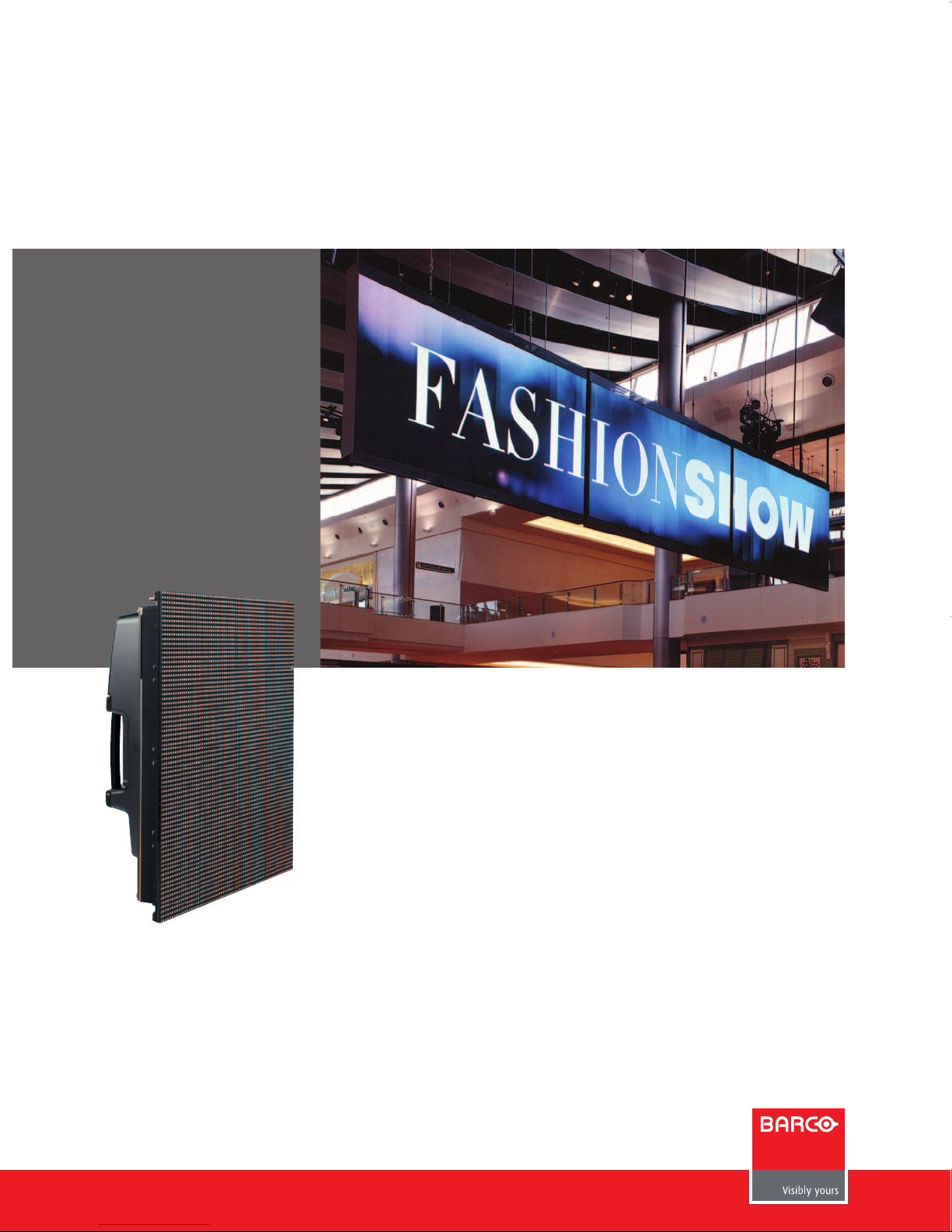

Indoor LED display solutions
Barco’s indoor LED display product range - the ILite MD - delivers images with
high brightness and unequalled contrast levels as well as superb color uniformity. With its slim, sleek design, the ILite MD allows the build up of almost
any shape and size display and is ideal for use in smaller indoor locations with
restricted viewing distances.
Renowned for their ultimate picture quality, Barco’s indoor LED display products
have been awarded numerous industry awards over the past few years.
Following resolutions are available: 3mm, 6mm, 8mm, 10mm and 12mm.
More than just an indoor LED display product, the ILite MD LED display range
is ideally suited for countless applications - from indoor locations that deserve
a touch of glamour such as retail stores, showrooms or corporate lobbies, to
large venues such as entertainment areas and sports arenas.
ILite MD
Page 2
Achieving perfection in image quality and system reliability
Fully engineered and manufactured by Barco,
the ILite MD is the most advanced in LED display
technology and design quality. An extremely
stringent selection of the SMT (surface mount
technology) LED components together with
Barco’s extensive experience in image processing guarantees
ultimate picture quality, longevity and low cost of ownership.
The indoor LED display range, available in 3mm, 6mm, 8mm,
10mm and 12mm resolutions, offers the perfect solution for
generating the ultimate picture in all bright indoor environments. The ILite MD display range offers many benefits not
found in other display technologies.
• Unequalled brightness & extreme viewing angles
Using state-of-the-art SMT LED technology, the Barco ILite MD
range offers a high resolution display delivering high brightness, even at extreme viewing angles. Half of the full brightness is still perceived at viewing angles of 145 degrees from
the surface of the display. The ILite MD products also offer an
extreme fill factor, which delivers perfect images, even at
short viewing distances!
high brightness, even at extreme viewing angles
• True color reproduction & authentic video quality
The ILite MD display modules incorporate LED System Color
Signature, Barco’s Proprietary True Color Reproduction
TM
and
True Motion Reproduction technology, which ensure accurate
color uniformity and smoother, flicker-free video. Whether it
is used as a video board, or for data content and messaging,
the ILite MD display product offers the perfect picture over
the life-time of the display.
Barco’s True Color Reproduction
Technology ensures color accuracy and
consistancy across the entire screen and
across time
• Slim, modular design
The ILite MD’s slim, light-weight, modular design offers both
flexibility in the shape and design of a display. This enables
the displays to be built in areas with restricted available
space. For fixed installations, the ILite MD is placed in a
rugged structure that easily integrates in any environment.
This self-supporting structure allows for easy service access,
guaranteeing minimum down time and minimum time to
repair per display. Tiles can also be ‘hot-swapped’, ensuring
uninterrupted performance of the display during repair.
• Ultimate system reliability
Using Total Quality Management techniques in both component
sourcing & manufacturing as well as product design ensures
a quality product that delivers a secure long-term investment.
Every ILite MD module is also equipped with an embedded
PC, which provides it with intelligence and processing upgradability. Add to that each tile’s built-in innovative heat management system, and Barco’s ILite MD display products offer a
high-quality product with a longer life-time, ensuring lower
cost of ownership than many of its competitors.
Page 3
Sources DVD CD-rom Video PC ...
Image Processing Control PC
Digitizer
Fiber Transmitter
Image Transmission
Fiber Receiver
LED Display

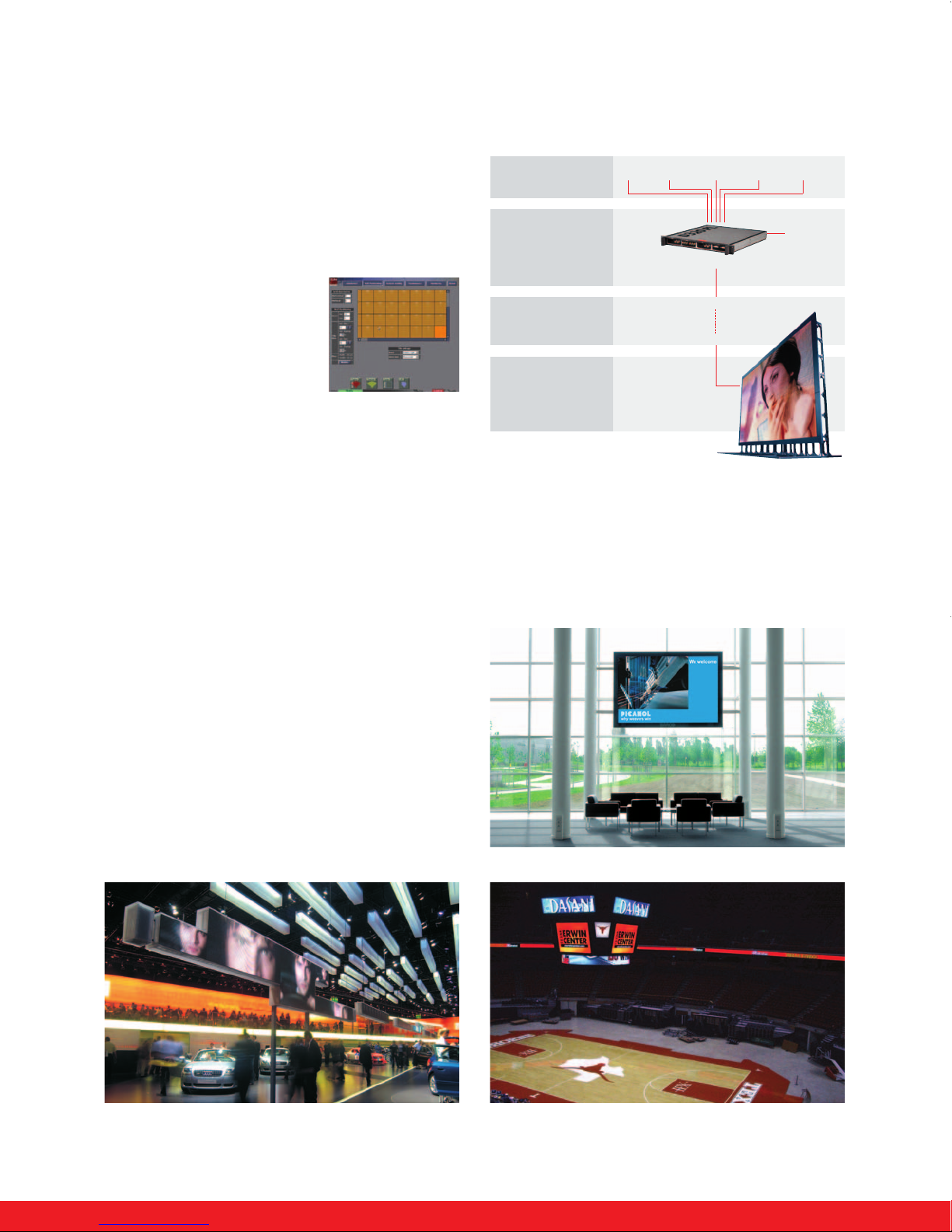

A complete display solution
The ILite MD range is more than just the best range of indoor
LED displays available. Its integrated concept - from image processing and transmission to the application specific mounting
structure - allows for fast set-up, easy service and full control
over both video and data sources.
Combined with Barco’s
application software for
display management and
control, the indoor LED
display products provide
a complete solution for
visualization in various
indoor environments.
Barco’s ILite MD display range offers many different resolution
options that are suitable to a variety of applications in the
rental & staging market as well as for fixed indoor installations:
• Corporate lobbies
• Entertainment venues
• Museums & visitors centres
• Sports arenas
• Retail venues
Countless applications
Head Quarters Picanol, Belgium
University of Texas, Austin, Texas
•• •• •
•
•
Audi booth at IAA, Frankfurt 2003
XLite Toolset -
LED display configuration software
Page 4

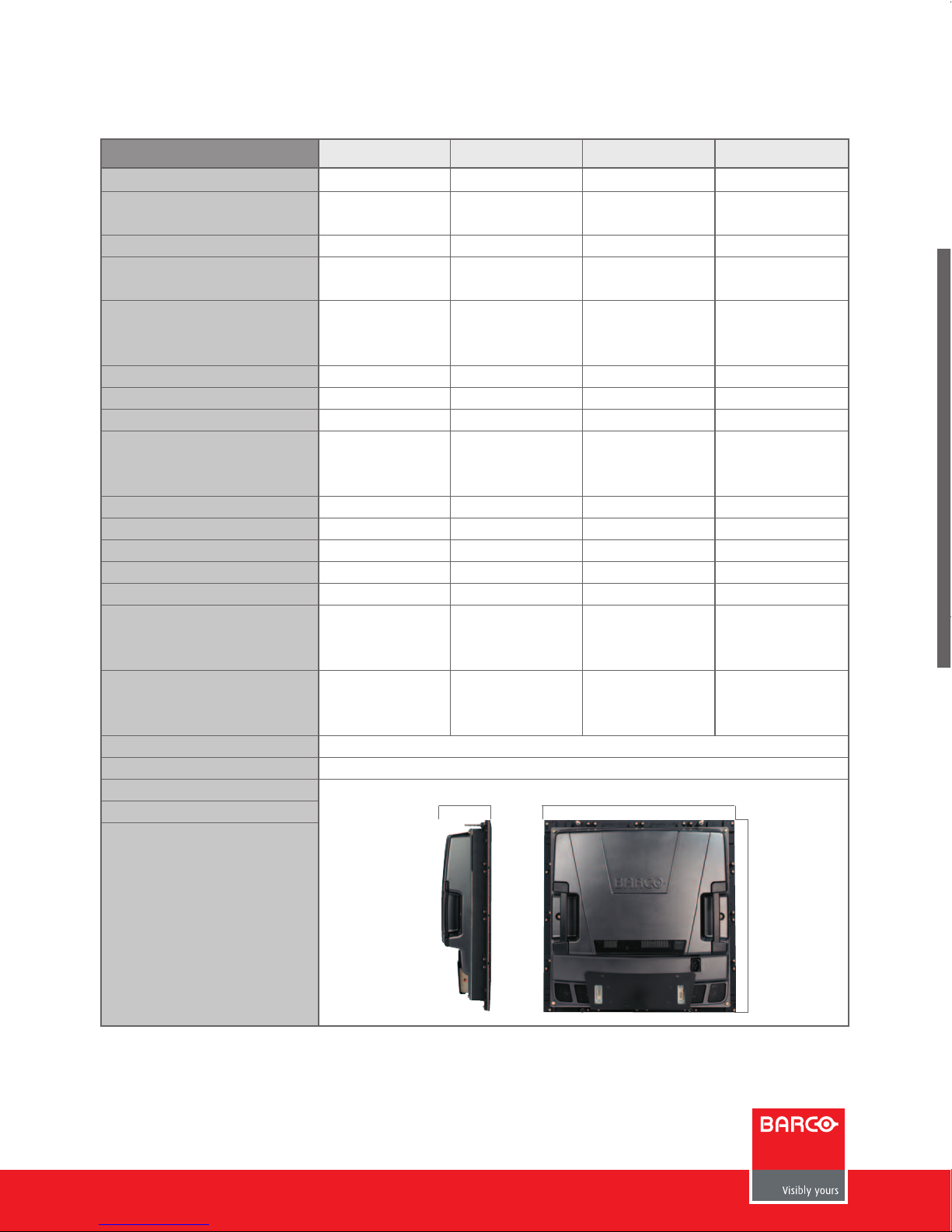

ILite 6 MD ILite 8 MD ILite 10 MD ILite 12 MD
Pixel pitch 6 mm 8 mm 10 mm 12 mm
Brightness 1,800 NIT 1,800 NIT 1,800 NIT 1,800 NIT
(Display callibrated at 6500°K) 1,500 NIT 1,500 NIT 1,500 NIT 1,500 NIT
LED configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel density 25,920/m2 (2,410/ft2) 15,680/m2 (1,458/ft2) 9,680/m2 (900/ft2) 6,480/m2 (602/ft2)
5,184/tile (72x72) 3,136/tile (56x56) 1,936/tile (44x44) 1,296/tile (36x36)
Viewing angle (min. 50% brightness)
• Horizontal 145° + 145° + 145° + 145° +
• Vertical 145° + 145° + 145° + 145° +
Contrast ratio 950:1 950:1 950:1 950:1
Lifetime (typical use) 100,000 h 100,000 h 100,000 h 100,000 h
Lifetime (full white - half brightness) 45,000 h 45,000 h 45,000 h 45,000 h
Power consumption / tile
• maximum 400 W 400 W 400 W 400 W
• average 100 W 100 W 100 W 100 W
Weight / tile (including structure) 13 kg (28.7 lbs) 13 kg (28.7 lbs) 13 kg (28.7 lbs) 13 kg (28.7 lbs)
Processing (color) 14 bit/color +12 bit/color +12 bit/color +12 bit/color
Processing (greyscale) 8 bit/color 8 bit/color 8 bit/color 8 bit/color
Colors 4.4 trillion 68.7 billion 68.7 billion 68.7 billion
Refresh rate (PAL/NTSC) minimum 400 Hz 400 Hz 400 Hz 400 Hz
Temperature
• operating 0 - 40°C (32 - 104°F) 0 - 40°C (32 - 104°F) 0 - 40°C (32 - 104°F) 0 - 40°C (32 - 104°F)
• storage -20 - 60°C (-4 - 140°F) -20 - 60°C (-4 - 140°F) -20 - 60°C (-4 - 140°F) -20 - 60°C (-4 - 140°F)
Humidity
• operating 35 - 85% 35 - 85% 35 - 85% 35 - 85%
• storage 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Source compatibility S-Video - Composite - YUV - RGB - SDI - HDSDI - Data DVI up to SXGA
Certification UL - CE - TUV Class A
Dimensions
Ordering information
• ILite 6 MD R9004046
• ILite 8 MD R9004066
• ILite 10 MD R9004056
• ILite 12 MD R9004110
ILite MD specifications
127 mm (5”) 448 mm (17.6”)
448 mm (17.6”)
For full details on Barco’s ILite 3,
please refer to the ILite 3 brochure
[ref R599717]
www.media.barco.com
Ref.no. R5995601 - August 2004
