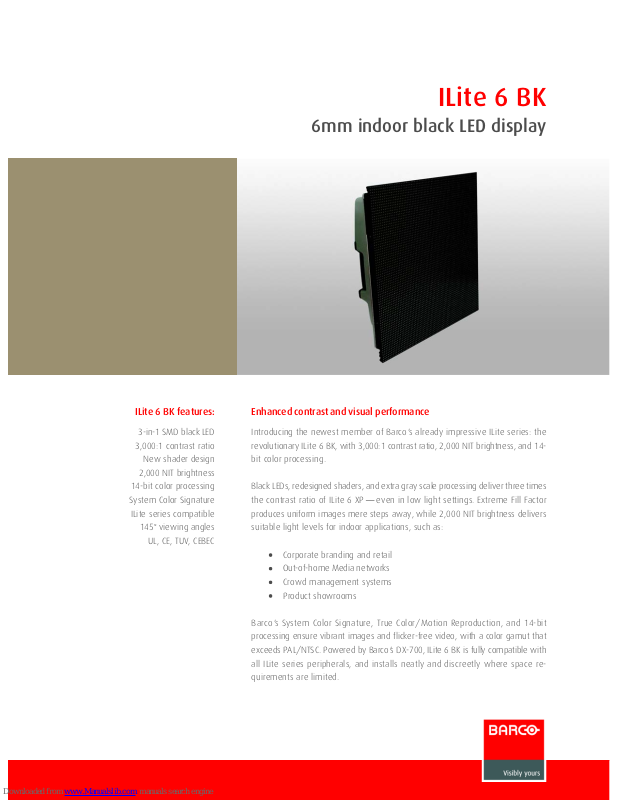

Page 1
ILite 6 BK
Enhanced contrast and visual performance
Introducing the newest member of Barco's already impressive ILite series: the
revolutionary ILite 6 BK, with 3,000:1 contrast ratio, 2,000 NIT brightness, and 14bit color processing.
Black LEDs, redesigned shaders, and extra gray scale processing deliver three times
the contrast ratio of ILite 6 XP even in low light settings. Extreme Fill Factor
produces uniform images mere steps away, while 2,000 NIT brightness delivers
suitable light levels for indoor applications, such as:
Corporate branding and retail
Out-of-home Media networks
Crowd management systems
Product showrooms
Barco's System Color Signature, True Color/Motion Reproduction, and 14-bit
processing ensure vibrant images and flicker-free video, with a color gamut that
exceeds PAL/NTSC. Powered by Barco's DX-700, ILite 6 BK is fully compatible with
all ILite series peripherals, and installs neatly and discreetly where space requirements are limited.
6mm indoor black LED display
ILite 6 BK features:
3-in-1 SMD black LED
3,000:1 contrast ratio
New shader design
2,000 NIT brightness
14-bit color processing
System Color Signature
ILite series compatible
145 viewing angles
UL, CE, TUV, CEBEC
Page 2
448mm (17.6 )
127mm (5 )
448mm (17.6 )
ILite 6 BK
Pixel pitch 6mm
Brightness (display callibrated at 6500 K ) 2,000 NIT
LED configuration 3-in-1 SMD
Pixel density 5,184/tile (72 x 72)
Viewing angle
horizontal >145
vertical >145
Contrast ratio 3,000:1
Lifetime (full white - half brightness) 45,000 hrs
Power consumption/tile
maximum 355 W
average 156 W
Weight/tile 10.8 kg (23.8 lbs)
Color processing 14-bit/color
Colors 4.4 trillion
Refresh rate (PAL/NTSC) minimum 400 Hz
Temperature
operating 0 to 40
(32 F to 104 F )
storage -20 to 60
(-4 F to 140 F )
Humidity
operating 35% to 85%
storage 10% to 90%
D320 input compatibility (modules) S-Video, Composite, YUV, RGB, SDI, HDSDI, Data DVI up to UXGA
Certification CE, CB, CEBEC, TUV, ETL
Order information R9010251
Dimensions (W x H x D) 448 x 448 x 127 mm
ILite 6 BK specifications
Ref. No.: R599303 - March 2008
While the information and data given are typical for the
equipment described, product specifications are subject to
change without notice. The latest version of this product
sheet can be found at www.barco.com.
