Indoor LED display solutions
ILite
Barco’s indoor LED display product range - the ILite - delivers images with
unequalled brightness and contrast levels as well as superb color uniformity. With
its slim, sleek design, the ILite allows the build up of almost any shape and size
display.
Purpose built for life on the road, Barco’s indoor LED modules form part of a total
rental solution that includes rugged rental structures, sturdy flight cases as well as
a powerful, user-friendly processor, which allows you to have your display
installed and calibrated in no time.
Renowned for its ultimate picture quality, the ILite display products have been
awarded numerous industry awards over the past few years. The ILite range
comes in the following resolutions: 3mm, 6mm, 8mm and 10mm.
The ILite LED display range is ideally suited for countless applications - from indoor
events that deserve a touch of glamour such as product launches, major trade
shows or fashion shows, to entertainment events such as music tours, broadcast
and film.
Page 2

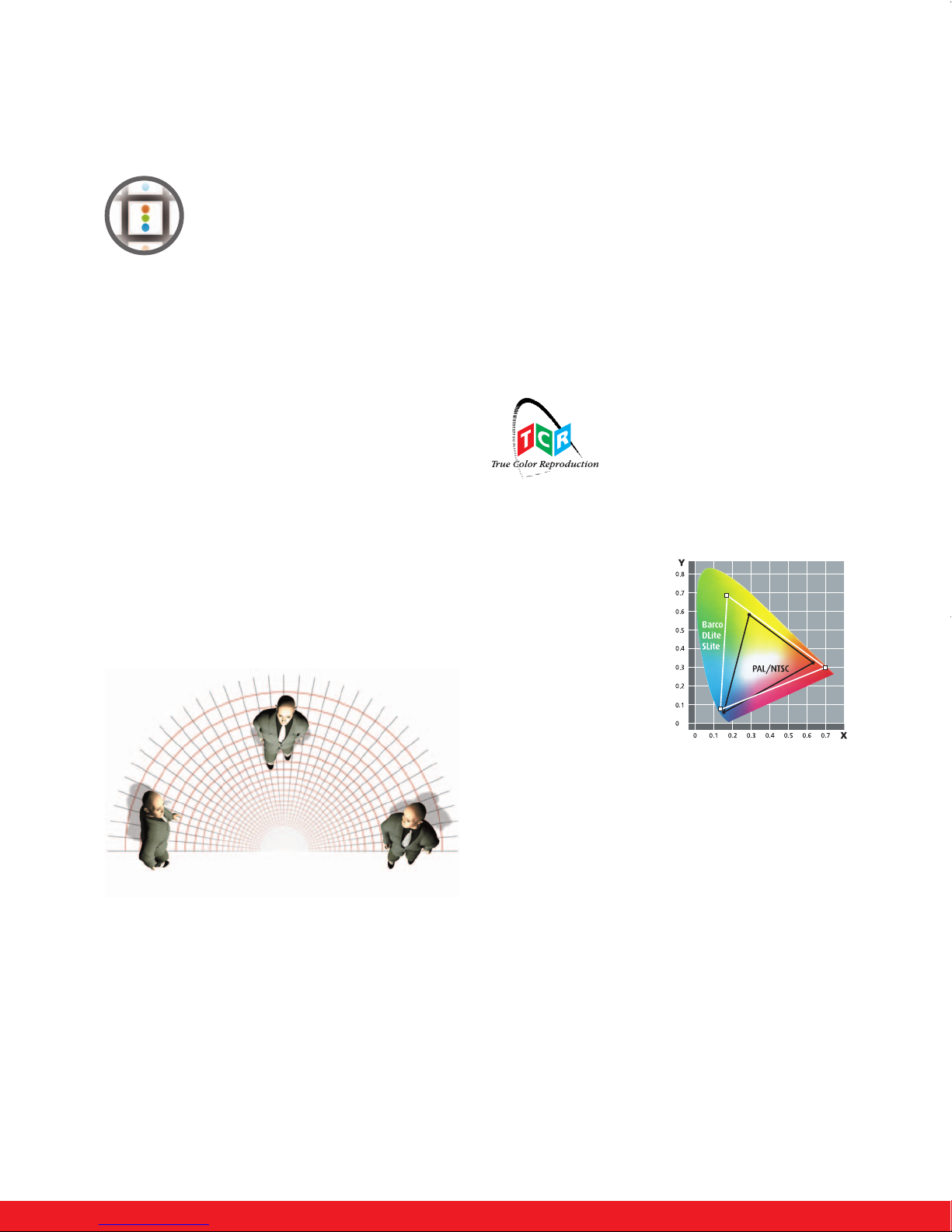

True color reproduction & authentic video quality
The ILite display products incorporate Barco’s proprietary LED
System Color Signature, True Color Reproduction™ and True
Motion Reproduction technology, which ensure accurate color
uniformity and smoother, flicker-free video. Whether it is used
for image magnification or for data content, the ILite display
products offer the perfect picture over the lifetime of the display.
Barco’s True Color Reproduction
Technology ensures color accuracy and
consistancy across the entire screen and
over time
• System Color Signature
Monitors individual LED
color signature, overall
runtime and temperature
thresholds
• True Color Reproduction
Barco’s expertise in color
processing ensures that
an extensive range of
colors can be shown and
adjusted to PAL/NTSC
standards or beyond.
• Advanced 14-Bit Processing
Both the ILite 6 XP and ILite 3 feature advanced 14-bit processing, which results in even greater color depth and uniformity,
allowing the displays to show vibrant images with even deeper
and more uniform colors across the entire surface of the display.
The extra processing power also provides more grey-scales, a
critical requirement when displays are used at low brightness
levels such as found in broadcast applications.
• Pixel Based Motion Compensation
For fast moving items without motion blur.
Achieving perfection in image quality and system reliability
Fully engineered and manufactured by Barco,
the ILite offers the most advanced in LED display
technology and design quality. An extremely
stringent selection of the LED components together with
Barco’s extensive experience in image processing guarantees
ultimate picture quality, colour uniformity and total system reliability.
The ILite indoor LED display range, available in 3mm, 6mm,
8mm and 10mm resolutions, offers the perfect solution for
generating the ultimate picture in all bright indoor environments. The ILite display range offers many benefits not found
in other display technologies.
Unequalled brightness & extreme viewing angles
Using state-of-the-art SMD LED technology, the Barco ILite range
offers a high resolution display delivering high brightness, even
at extreme viewing angles. Half of the full brightness is still
perceived at viewing angles of 145 degrees from the surface of
the display. The ILite products also offer an extreme fill factor,
which delivers perfect images at viewing distances as short as
3 meters (10 feet)!
high brightness, even at extreme viewing angles
Page 3

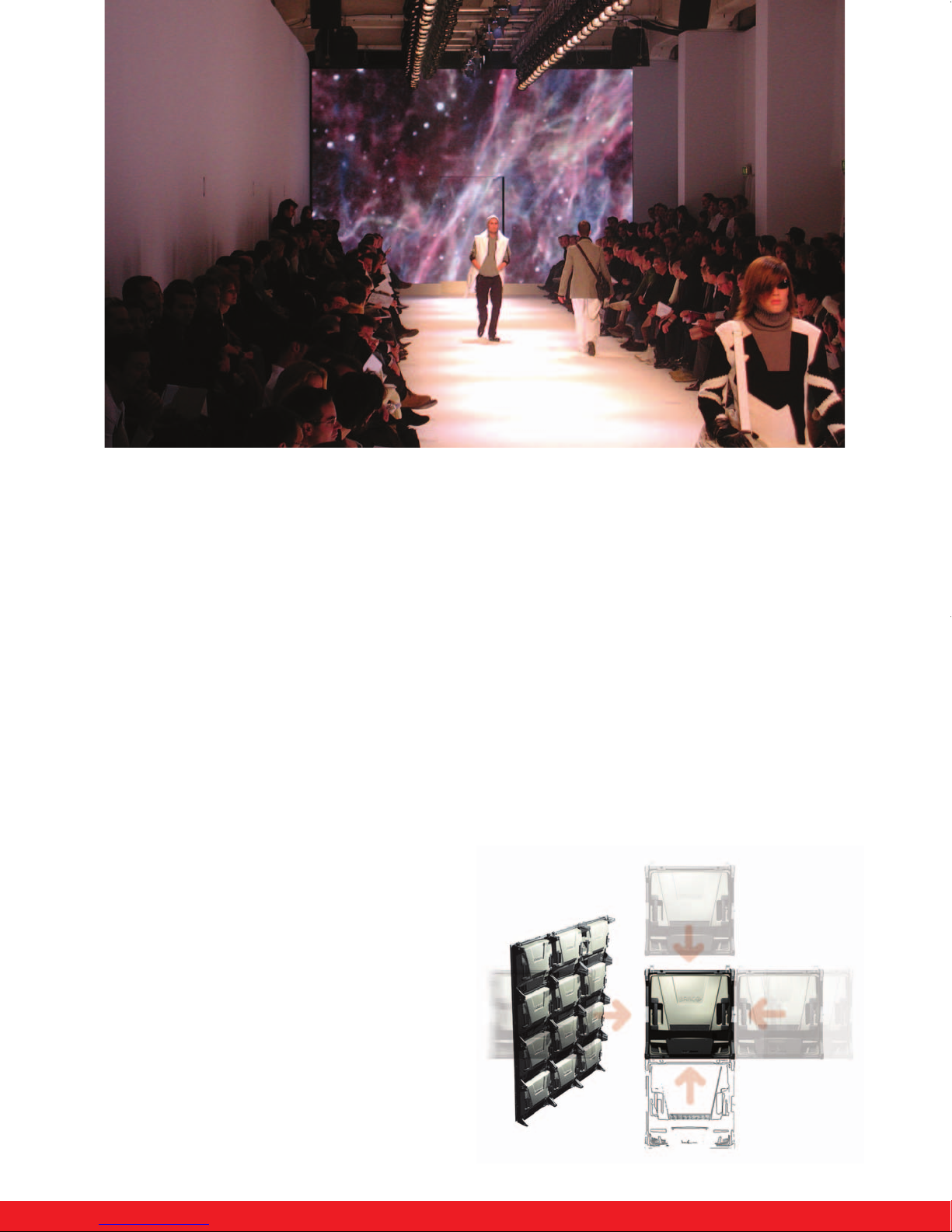

Durable and reliable
• Endurance tested LED modules
All Barco’s LED modules conform to the highest engineering
standards and are endurance tested to ensure maximum system integrity.
• Advanced heat management system
Each LED module is purpose build to minimize internal heat
build-up by inclusion of an advanced heat management system.
The system encompasses heat sinks, heat sensors and internal
fans, ensuring that the tile’s components always operate
even at high temperatures.
• Ultimate system reliability
Barco’s integrated quality control approach in both component
sourcing & manufacturing as well as product design ensures
a quality product that delivers a secure long-term investment.
Flexibility through modularity
• Flexibility and seamless images
The ILite’s slim, light-weight modular design delivers optimal
flexibility and truly seamless images each and every time
you erect your display.
• Ease of configuration
Barco’s built-in intelligence allows the system to configure
itself regardless of the shape, size or aspect ratio. Video or
data content can come from a variety of sources without
having to undergo unnecessary scaling.
• Ease of service
State of the art mechanical design allows ease of servicing of
modules while the same built-in “intelligence” enables autoconfiguration and hot-swap of tiles without interrupting the
performance of the display, guaranteeing minimum downtime to repair the display.
STS Communication | Exte Fashion Show
Page 4

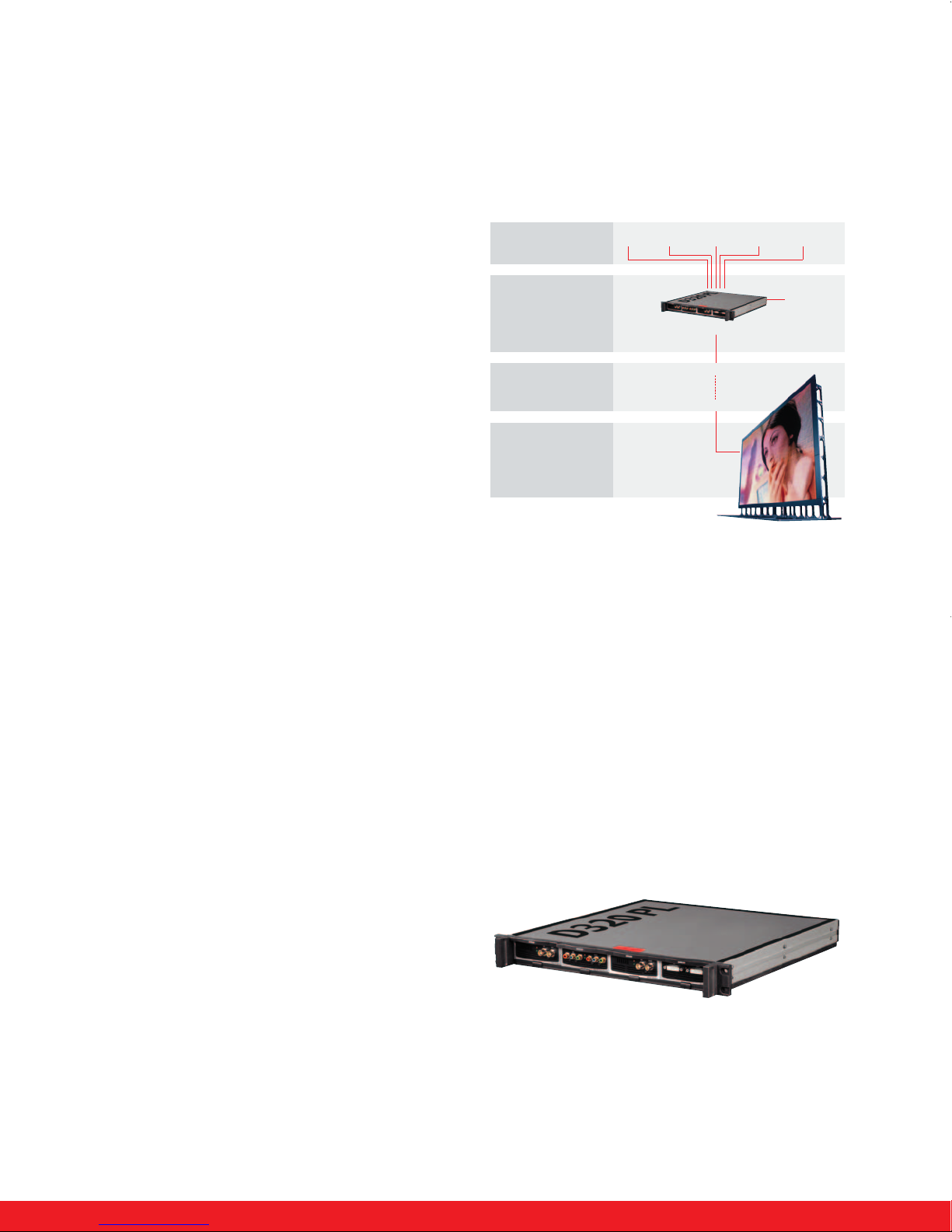

Barco’s ILite displays are controlled by an advanced image control system which includes Barco’s range of D320 digitizers and
its proprietary XLite toolset software, allowing you to display
and control your display content at the simple touch of a button.
Transport of the data stream from digitizer to display is via a
standard data cable. If the display is some distance away from
the source /digitizer, the data is transmitted by means of a
high-speed fiber-link, which transmits up to 1.2 Gigabits per
second.
Powerful D320 processor platform
Barco’s D320 digitizer delivers advanced image processing that
allows the display to accept a multitude of data and video sources.
• Four interchangeable input modules per D320
• Stackable an infinite number of times, allowing up to
4 sources to be displayed on as many screens as there are
digitizers in the stack.
• Capable of being daisy-chained to a maximum of 64 units,
allowing 256 sources to be displayed on a single screen.
• Combinations of stacking and daisy-chaining possible.
• Input formats mixed as required, while each source can
also be individually scaled.
Sources DVD CD-rom Video PC ...
Image Processing Control PC
(XLite Toolset)
Digitizer
Fiber Transmitter
Image Transmission
Fiber Receiver
LED Display
•• • • •
•
•
Powerful processing & user-friendly control
Scaling/compressing capability of the Barco D320 digitizer and
the ‘distributed processing’ concept assure compatibility with
all resolutions and aspect ratios. Due to the Lock-mode functionality, no external frame rate conversion is required, thereby
eliminating the risk of artifacts.
Barco’s D320 digitizer also allows for various on-screen image
manipulations, including chroma-keying, alpha-blending, zooming and more.
Page 5
Ambient Environmental
Controller
Processor type
Working space
Fiber Link LED Wall type
ILite
Sources
Advanced installation and control software

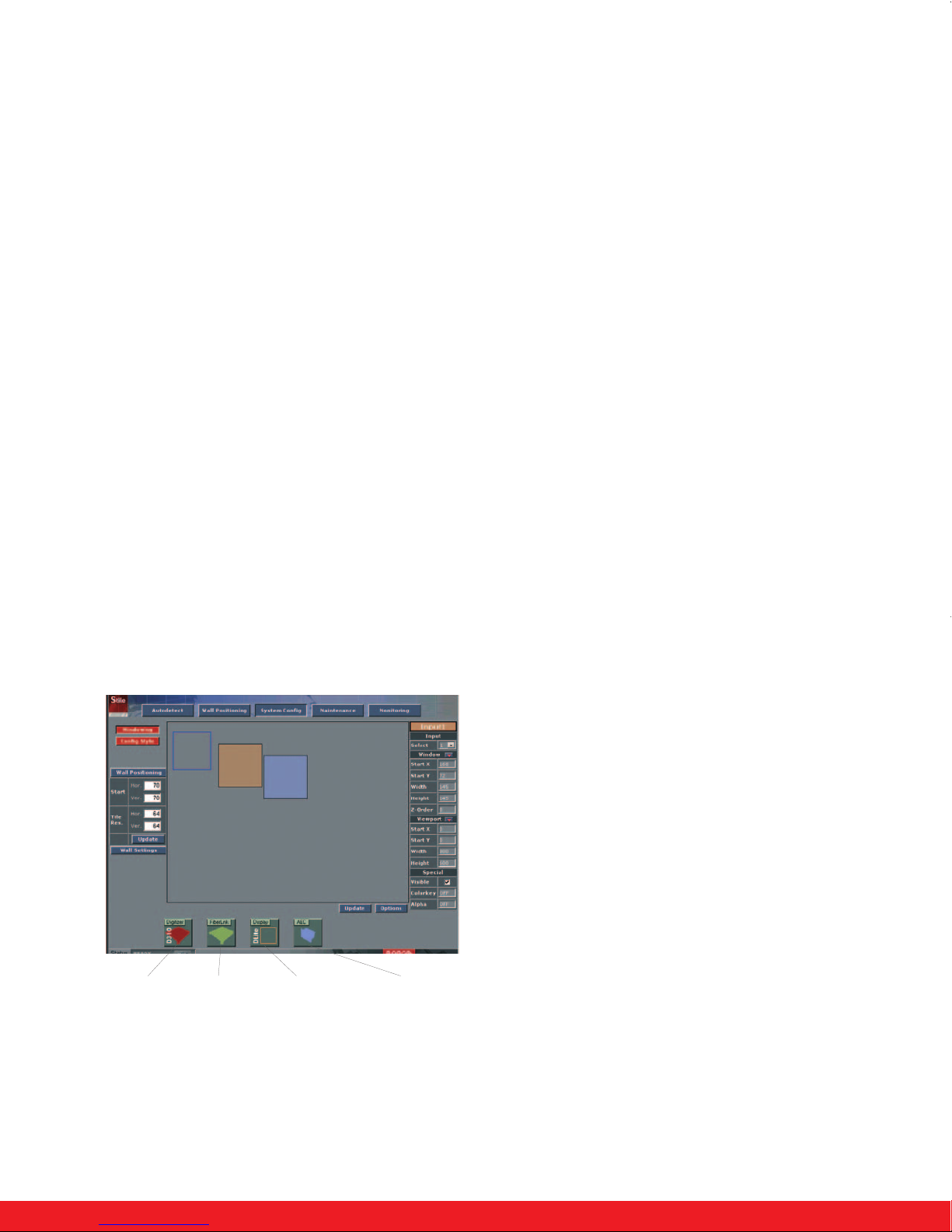

Barco’s XLite Toolset is an integrated software package, which
provides you with a user-friendly, intuitive, graphical interface
for fast installation, system calibration as well as layout configuration and control of your display.
• Installation & calibration
The XLite software makes installation and calibration of your
display system as easy as can be.
In a number of easy steps your LED display will be automatically configured and calibrated for optimal installation and
superior image quality.
Each display generates and maintains its own database,
which includes specific information on each of the individual
tiles, such as its unique “System Color Signature”, including
serial number and operating hours. With this information the
tiles can easily be calibrated for color uniformity across the
entire display.
• Layout configuration & control
The XLite toolset also provides user-friendly system configuration as well as layout configuration and control.
An extensive range of image controls and adjustments are also
available to the end user for various types of input signals.
These include:
• Full control over equalization
• Filters
• Tint
• Saturation
• Luma Tracking
• Luminance Delay
• Dynamic Stabilizer
• Clip to Sub-black (removing black wash-out)
• Full control of Gamma Curves.
• Maintenance & monitoring
The status of the display is constantly monitored by the XLite
toolset.
This diagnostic capability tracks any potential errors that may
occur inside a tile and typical environmental changes such as
temperature, power drops, etc.
Sources can be arranged (‘Z’ order) in any order, up to 64 layers.
Each source can be made invisible, have color values adjusted, and transparency adjusted.
Page 6

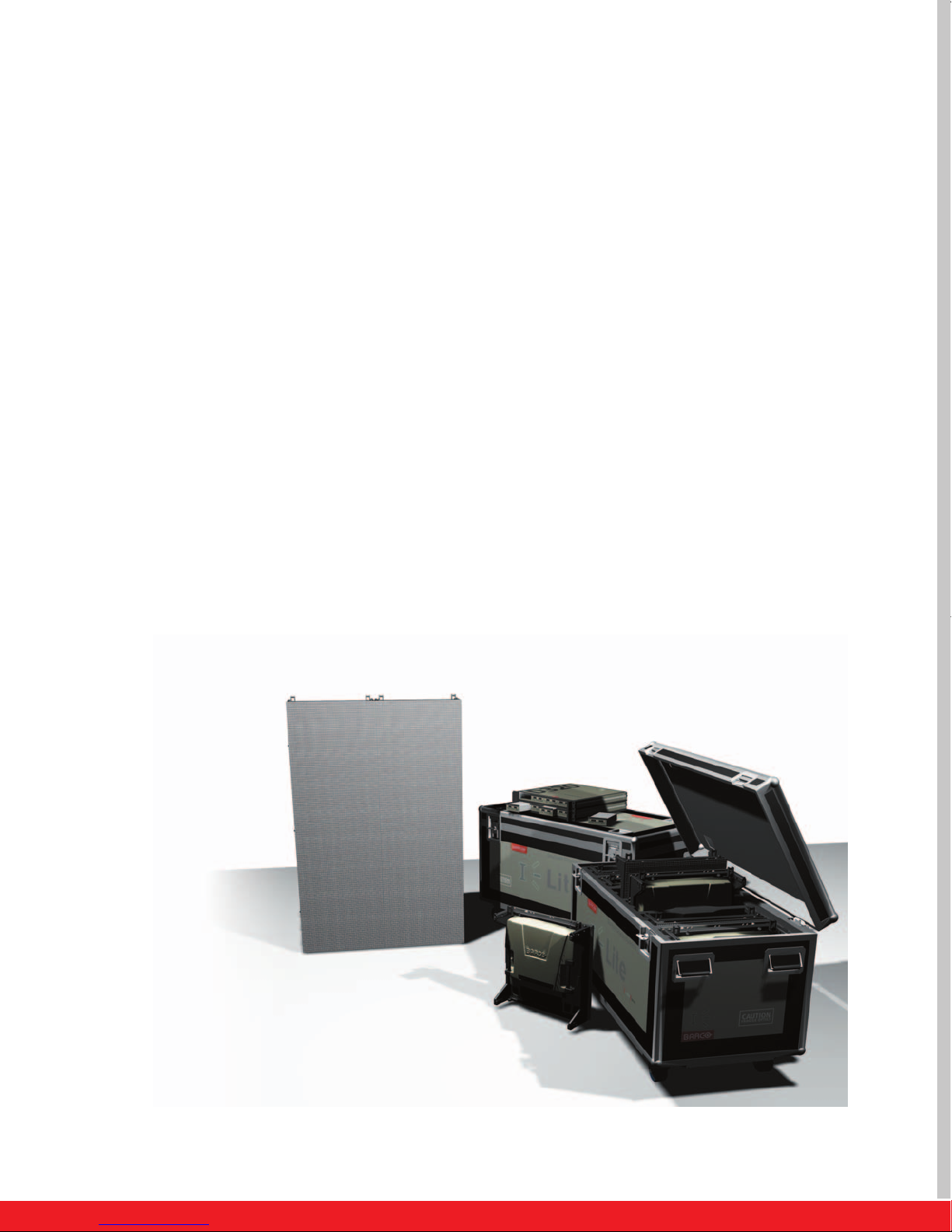

The total rental solution
The ILite LED modules form part of Barco’s total rental solution,
which includes sturdy flightcases, rugged rental structures and
various mounting or set-up devices.
• Rugged rental structures
ILite modules come with rugged rental structures, which
allow the tiles to be clicked together simply and quickly to
form a seamless display in no time.
• Easy set-up and tear-down
With its specially engineered truss beams and foot systems,
Barco’s LED displays are purpose built for fast, easy set-up
and repeated relocations.
• TUV safety certified rental structures and accessories
All Barco’s rental mechanics comply with the highest TUV
standards, providing you with complete peace of mind that
your installations meet the highest safety standards.
Fully cross-rentable
As part of Barco’s total rental solution, the ILite LED modules
are fully cross-rentable, allowing you to maximise the return on
your investment.
• Each tile features Barco’s proprietary True Color
Reproduction System and System Color Signature™
technology, which ensure true color rendering of the
display from delivery through the entire lifetime of the
display.
• This technology also allows you to mix and match tiles
of different batches and various run-time ages to obtain
a seamless display with a perfect image every single
time.
• Each individual LED within each cluster has its color
characteristics and brightness robotically measured at
Barco’s factory before being installed on an EEPROM on
each tile.
• Every time a wall in erected, the information stored in
the EEPROM is read by the D320 digitizer as its processes
and distributes the signal to the display.
• Each individual LED then undergoes individual color and
brightness corrections to ensure a uniform image across
the entire display.
Page 7
Countless applications
IAA | Creative Technology STS Communication | Valentino Fashion Show
ETF | Geneva Car Show
Abalos Audiovisuales | Exhibition SpainDeutsche Telecom
| Gahrens + Battermann
Kylie Minogue | XL Video
Geneva Car Show | Creative Technology (cover)
Page 8
www.events.barco.com

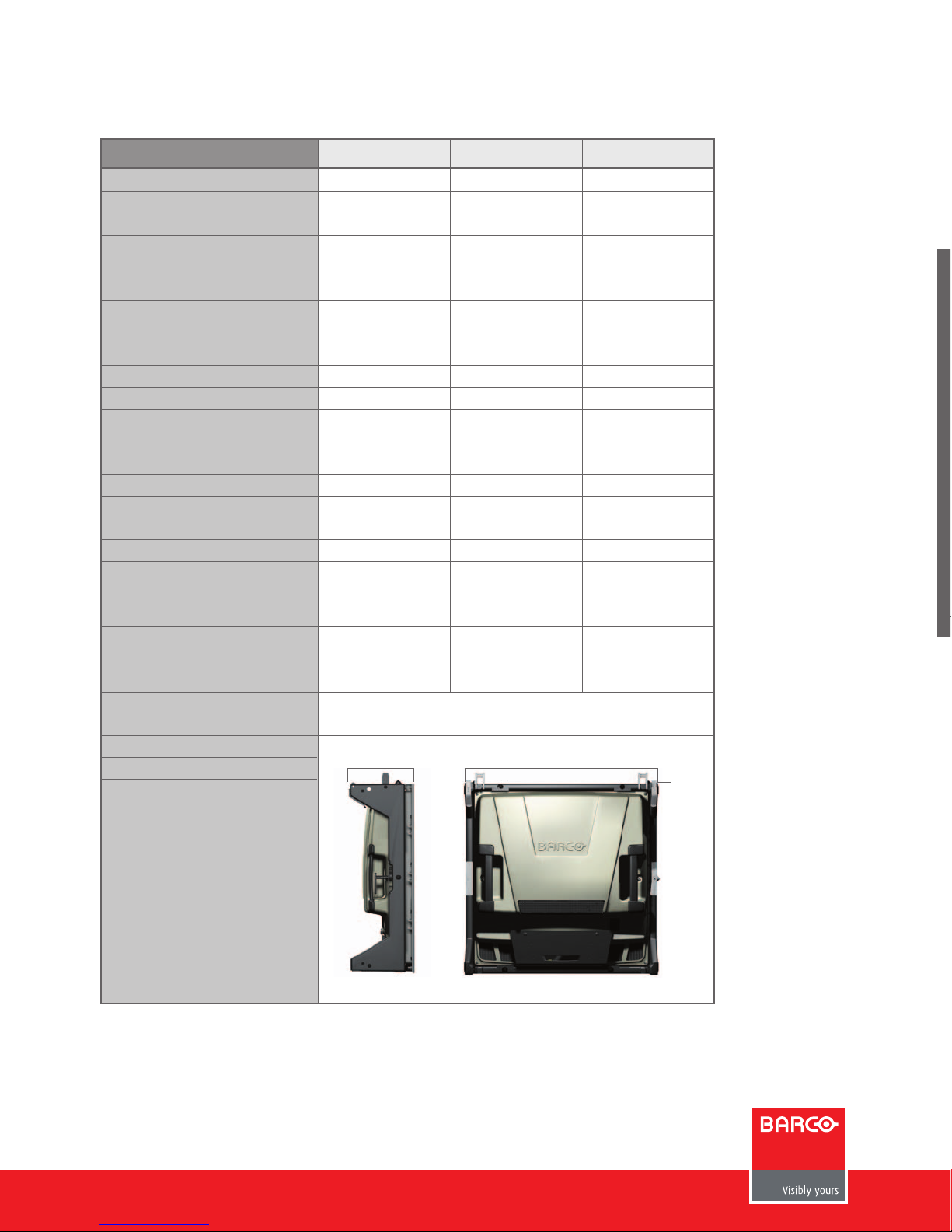

ILite specifications
Ref.no. R599560 - May 2004
Barco Projection Systems is an ISO 9001 registered company.
The information and data given are typical for the equipment described.
However any individual item is subject to change without any notice.
The latest version of this product sheet can be found on www.events.barco.com.
For full details on Barco’s ILite 3,
please refer to the ILite 3 brochure
[ref R599717]
149,5 mm (5.89”)
448 mm (17.6”)
448 mm (17.6”)
ILite 6 XP ILite 8 ILite 10
Pixel pitch 6 mm 8 mm 10 mm
Brightness 2500 NIT 2500 NIT 2500 NIT
(Display callibrated at 6500°K) 2000 NIT 2000 NIT 2000 NIT
LED configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel density 25.920/m2 (2410/ft2) 15.680/m2 (1458/ft2) 9.680/m2 (900/ft2)
5.184/tile (72x72) 3.136/tile (56x56) 1.936/tile (44x44)
Viewing angle (min. 50% brightness)
• Horizontal 145° + 145° + 145° +
• Vertical 145° + 145° + 145° +
Contrast ratio 950:1 950:1 950:1
Lifetime (full white - half brightness) 45 000 h 45 000 h 45 000 h
Power consumption / tile
• maximum
400 W 400 W 400 W
• average 100 W 100 W 100 W
Weight / tile (including structure) 13 Kg (28,7 lbs) 13 Kg (28,7 lbs) 13 Kg (28,7 lbs)
Processing (Color) 14 bit/color 12 bit/color 12 bit/color
Colors 4,4 trillion 68,7 billion 68,7 billion
Refresh rate (PAL/NTSC) minimum 400 Hz 400 Hz 400 Hz
Temperature
• operating 0 - 40°C (32 - 104°F) 0 - 40°C (32 - 104°F) 0 - 40°C (32 - 104°F)
• storage -20 - 60°C (-4 - 140°F) -20 - 60°C (-4 - 140°F) -20 - 60°C (-4 - 140°F)
Humidity
• operating 35 - 85% 35 - 85% 35 - 85%
• storage 10 - 90% 10 - 90% 10 - 90%
D320 input compatibility (modules) S-Video - Composite - YUV - RGB - SDI - HDSDI - Data DVI up to UXGA
Certification UL - CE - TUV - FCC Class A
Dimensions
Ordering information
• ILite 6 XP R9010250
• ILite 8 R9004060
• ILite 10 R9004050
Barco Events
Noordlaan 5, 8520 Kuurne - Belgium
Tel. +32 56 36 80 47 - Fax + 32 56 36 88 24
email: [email protected]
Loading...
