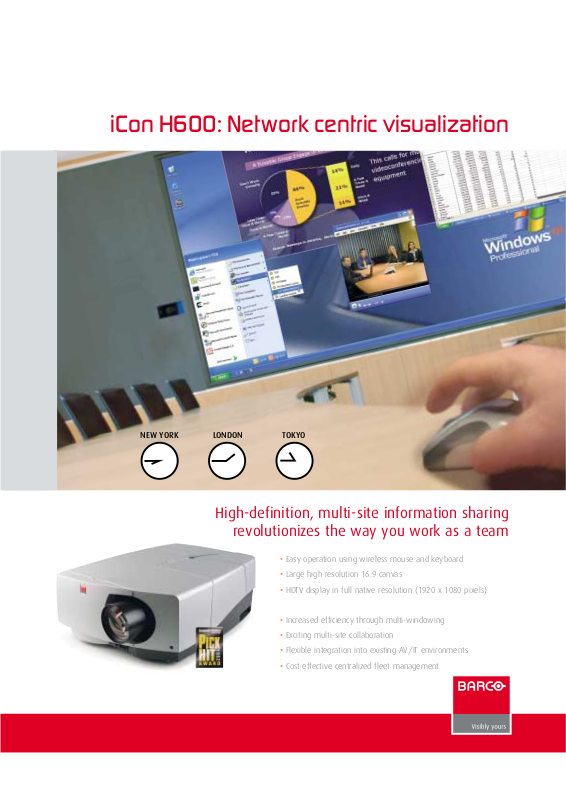

Barco iCon H600 Product Sheet

High-definition, multi-site information sharing

revolutionizes the way you work as a team

iCon H600: Network centric visualization

• Easy operation using wireless mouse and keyboard

• Large high resolution 16:9 canvas

• HDTV display in full native resolution (1920 x 1080 pixels)

• Increased efficiency through multi-windowing

• Exciting multi-site collaboration

• Flexible integration into existing AV/IT environments

• Cost-effective centralized fleet management

NEW YORK

LONDON

TOKYO

Linking several ICONs to an
existing network brings
high-definition
multi-windowing to
multi-site meetings.

Application range:

• Analysis and decision rooms

• Classrooms

• Product development and design

rooms

• Multi-site presentations

• HDTV 16:9 video display

• Corporate lobbies and boardrooms

• Museums

Unprecedented native HDTV 16:9 wide-screen
(1920 x 1080 pixels)

Barco iCon H600

Flexible integration

Simultaneous display of all
information sources needed

Intuitive understanding of complex
relationships between all information
displayed leads to more accurate
analysis and faster decision making,
resulting in a faster Return On
Investment (ROI).

resolution display capabilities

Easy and intuitive
operation using
Windows XP

• The ICON is equipped with a power-
ful, upgradeable Pentium 4-based
platform display server

• Operation through the familiar
Windows™ XP desktop interface
enables users to control all content
with a mouse and keyboard, elimi­nating the need for a
traditional remote control.

• The

ICON’s desktop remains visible

as backdrop, with freely positional
windows on top, showing other
video and data sources.

• Information is effortlessly obtained
from the company’s network to the
projector and is as easy to use as
your own laptop.

• Access is password protected
which also makes it possible to
limit visitor’s access, as desired.

Book your meetings
via iCon

Look at the ICON’s shared Outlook
agenda and book the time you need
in a free slot. You can have a
complete overview of what’s going
on in all networked visualization
sites. The

ICON automatically powers

up to display your welcome slide and
shuts down after the meeting.

Up to four external video or data
windows can be added to the

ICON‘s

internal computer windowing
capabilities.

Exciting multi-site collaboration with high

Barco iCon H600: network centric visualization

Ease-of-use Increased efficiency Un

Immediate access to all sources and files through the familiar
Windows™ XP interface, by simply using mouse and keyboard.

Stream your desktop over LAN
to the projector and fully control
your PC from the meeting room,
thanks to Barco’s Proximity
Desktop utility.

Freely position and scale the window

to suit your specific presentation needs
Any window layout can be saved and
recalled from the Windows desktop.

Display various sources:

DVD-player, HDTV video, document
camera, laptop, ...

Save expensive travelling time.

Meet with all persons and teams
as if they were present. You see
their body language and reac­tions and can share all informa­tion on a large 16:9 canvas.

Automatically launch and give a
presentation from a remote loca­tion.

Changes made to a spreadsheet in an
office in Europe can be viewed real­time in the office in the US, and vice
versa.

For campus environments the
Barco

ICON visually links facilities

and interlinks between different
campuses.

Retrieve any file from the network

straight from the

ICON, eliminating the

need to bring along laptops to
meetings.

Wide 16:9 screen f

s

Stream video content over the network.

Frequently used video content can even be
saved on the hard disk of the projector to
be retrieved upon demand.

Virtual meetings
Increase business
efficiency

NEW YORK

Give you
remote l

Native HDTV
1920 x 1080 pixels

More and more companies adopt the
HDTV format for showing impressive
company videos. The latest state-of­the-art computer hardware shifts to
more eye-friendly 16:9 viewing.
Barco’s

ICON gives you the best of both

worlds.

Cost-effective
centralized fleet
management

Due to the integrated server in the
projector, a fleet of projectors can be
fully controlled over the network from
the central IT Helpdesk. There is no
need for support staff to run to mee­ting rooms to adjust projector settings.
These adjustments can be made
remotely and instantly (over the net­work) right from their desks. This
results in an improved support from
Help Desk.

All visualization sites centrally managed

rmat

LAN/WAN

Unlimited connectivity,
flexible network
integration

The ICON’s integrated server is easily
adapted to the user’s existing
network infrastructure, enabling
instant, collaborative meetings
between remote meeting sites.
Campus environments can easily be
expanded, at little or no cost.

The

ICON’s easy integration and

flexibility, combined with superior
features, ensures superior return on
investment.

Control over a projector can be
passed instantly over LAN to any
meeting location.

DATA OR MEDIA SERVER

TOKYO

LONDON

Setup, monitor and manage all

ICONS worldwide, from your

central IT/AV department

presentation from any

cation

www.presentation.barco.com

iCon H600 Technical specifications

Light output

6000 ANSI lumens
Brightness uniformity: >95%

Contrast ratio

800:1 (ANSI, full white - full black)

LCD panels

3 x 1.65" polysilicon LCD panel with
native HDTV resolution (1920x1080
pixels)

Lamp

2 x 300 Watt UHP lamp
Lifetime: 1000 hrs per lamp

Available lenses

• Fixed lenses:

- QFD (0.85:1) not available yet

- QFD (1.27:1) R9840400

- QFD (2.5:1) R9840290

- QFD (7.0:1) R9840410

• Zoom lenses:

- QHD (1.4 - 2.0:1) R9849930

- QFD (2.1 - 3.0:1) R9840390

- QFD (3.4 - 4.5:1) R9840060

- QFD (4.5 - 6.0:1) R9840100

Lens shift range

Vertical: -120% to 120%
Horizontal: -50% to +50%

On board display server:

• Provides native 1920 x 1080 pixels

resolution

• Pentium 4 2,6 Ghz, 1 Gigabyte DDR

RAM, 40 Gigabyte harddisk
(upgradeable)

• 2 x PCMCIA slot for Wireless LAN

cards, memory cards, extensions for
inputs and outputs, Bluetooth

• 2 USB connectors

• PS2 connector

• 2 x 10/100 Mb/s Ethernet RJ-45

connector

• 1x RS-232C (D-9 connector)

• Included software:

- Windows™ XP Pro operating system

- BARCO Server software
pre-installed on the internal display
server

- BARCO Client software to be
installed on external PCs or laptops
for remote control over a LAN or file
transmission over a LAN

Standard inputs

• Layer 1: RGBHV or Component;
Composite video; S-Video

• Layer 2: RGBHV or Component;
Composite video; S-Video

• Layer 3: DVI and VGA (on D15)

• Layer 4: Available for optional
inputs

Optional inputs

The following input boards can be
placed on any of the 4 layers:

• RGBHV or Component input;
Composite video input; S-Video input

• DVI input and VGA input (on D15)

• SDI and HDSDI input and loop
through

Outputs:

• DVI out (1920 x 1080 @ 60 Hz) of
full screen composed image
(including ext. source windows)

• Monitor out on D15 (1920 x 1080
@ 60 Hz) displaying the server image

Communication

• 1x RS-232C (D-9 connector)

• mini-jack for wired remote control

Compatibility:

All current video sources
All current HDTV sources
All computer graphics sources with a
pixel clock up to 275 Mhz (VGA, XGA,
SXGA, SXGA+, UXGA, QXGA: 2048 x
1536 pixels)
DVI up to UXGA and HDTV resolution
HD-SDI, SDI optionally available

AC Power

90V - 255V (50 Hz - 60Hz)

Net weight

35 kg (77 lbs)

Dimensions

(D x W x H, without cable basket)
679 x 567 x 282 mm
(26.73 x 22.32 x 11.10 inch)

Order information

ICON H600 R9011114

Replacement lamp R9841824
Dual lamp package R9841825
Ceiling mount R9849940
Ceiling mount bar short R9841260
Ceiling mount bar long R9841261

Ref n° R599781 February 2005
