The BarcoGraphics 9200 is an
ultra-high brightness LCD light-
valve graphics projector.
Equipped with an extremely
powerful, state-of-the-art optical
system, based on a 1500 Watt
metal-halide lamp and high
resolution XGA LCD panels, the
BarcoGraphics 9200 offers an
incredible light output of 4,000
lumens full white. This makes it a
powerful display device for
demanding applications in high
ambient light conditions such as
simulation, CAD/CAM, process
control and virtual reality.
Ultra-High Brightness, High Resolution
LCD Light-Valve Graphics Projector
BARCOGRAPHICS 9200
Unequalled compatibility
• Video sources (PAL, SECAM, NTSC 3.58, NTSC 4.43)
in Composite, S-VHS, Component (Y, R-Y, B-Y) and
RGB format
• Most computer signals from PC graphics boards: CGA,
EGA, VGA, S-VGA, XGA, up to S-XGA (1,280 x 1,024
pixels)
• Most Macintosh computers
• Electronic workstations with a resolution up to 1,280 x
1,024 pixels
• Most computer sources with a pixel clock <135 MHz
Extremely high brightness optical system
The BarcoGraphics 9200 is based on an innovative,
highly efficient optical system, which is capable of
delivering extremely bright projected images on
screens up to 15 m (50 ft.) wide.
• Powerful 1500 Watt metal-halide lamp
• Three active matrix 5.8” LCD panels with a resolution
of 1,024 x 768 pixels
Ultimate flexibility
• Wide range of high definition lenses
• User adjustable geometry corrections (keystone, image
size,shift...)
• Built-in test patterns
• Freeze facility
• Can be easily installed in table or ceiling mount
configuration and can project onto any front or rear
screen
• Dual or triple mount configurations
Page 2
Ultra-high brightness, high resolution
LCD graphics projector
stacked configuration on a single
screen. User adjustable geometry
corrections (keystone, image size,
shift,...) provide perfect image
geometry for non-standard
applications.
The BarcoGraphics 9200 is
based on an innovative high
efficiency optical system, with
a powerful 1500 Watt metalhalide lamp and three active
matrix 5.8” LCD panels with a
resolution of 1,024 x 768 pixels.
A proprietary, state-of-the-art
pre-polariser polarises the light
from the lamp in an extremely
efficient way before it reaches
the LCD panels. The light
polarised in the other direction
is reflected on the pre-polariser
and absorbed by the lamp.
This system guarantees a
highly efficient polarisation of
the light and eliminates
excessive thermal dissipation of
the polariser on the LCD panel.
Ultra-high brightness optical system
The BarcoGraphics 9200 is equipped
with a proprietary, ultra-high
brightness 1500 Watt metal-halide
lamp, which offers an extremely high
light output throughout the lifetime of
the lamp.
Logical on-screen menus
The BarcoGraphics 9200 features
logical on-screen menus,
accessible through a convenient
backlit infrared remote control
unit.
A freeze facility and built-in test
patterns provide superior control
and unmatched versatility.
Intelligent Pixel Map
Processor
Equipped with a high-performance, proprietary Pixel Map
Processor, the BarcoGraphics 9200
is compatible with a wide range
of computer data and graphics
standards including CGA, EGA,
VGA, SuperVGA (800x600), XGA
(1,024x768) and S-XGA
(1,280x1,024), as well as
workstations with resolutions up
to 1,280x1,024 pixels.
The Pixel Map Processor converts
all incoming signals to the full
resolution of the LCD panels in
order to maximise the light
output and resolution of the
projector.
The Pixel Map Processor
calculates every pixel to be
displayed by means of state-ofthe-art digital signal processing
techniques. The result is optimal
picture quality, with smooth and
exceptionally readable characters.
Flexible installation
configurations
The BarcoGraphics 9200 can be
used in front or rear screen
installations, and in table or
ceiling mount configurations. In
addition, the projector can be
integrated in a dual or triple

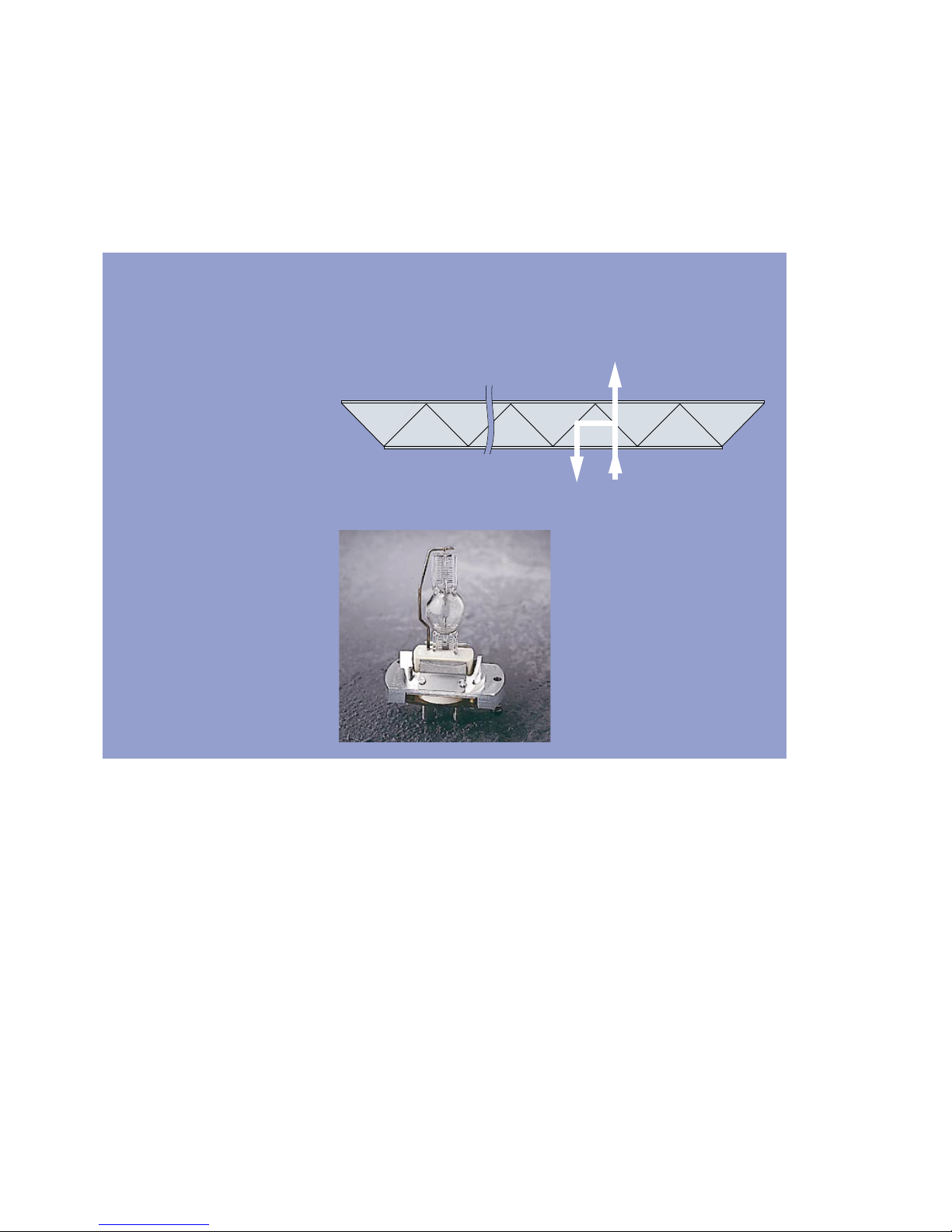

P-polarised light
to LCD panel
S-polarised light
Unpolarised light
from the lamp
Pre-polariser
Page 3
Screen sizes
Min.: 1 m x 0.75 m (3.3’ x 2.5’)
Max.: 15 m x 11.25 m (50’ x 37.5’)
Contrast ratio
>160:1 (on 5x4 B/W checkerboard)
>300:1 (full white/full black)
Remote control
All controls are accessible
through a soft-touch panel or a
user-friendly backlit infrared
remote control.
• Source switching
• User settings per source
• Installation and service
adjustments

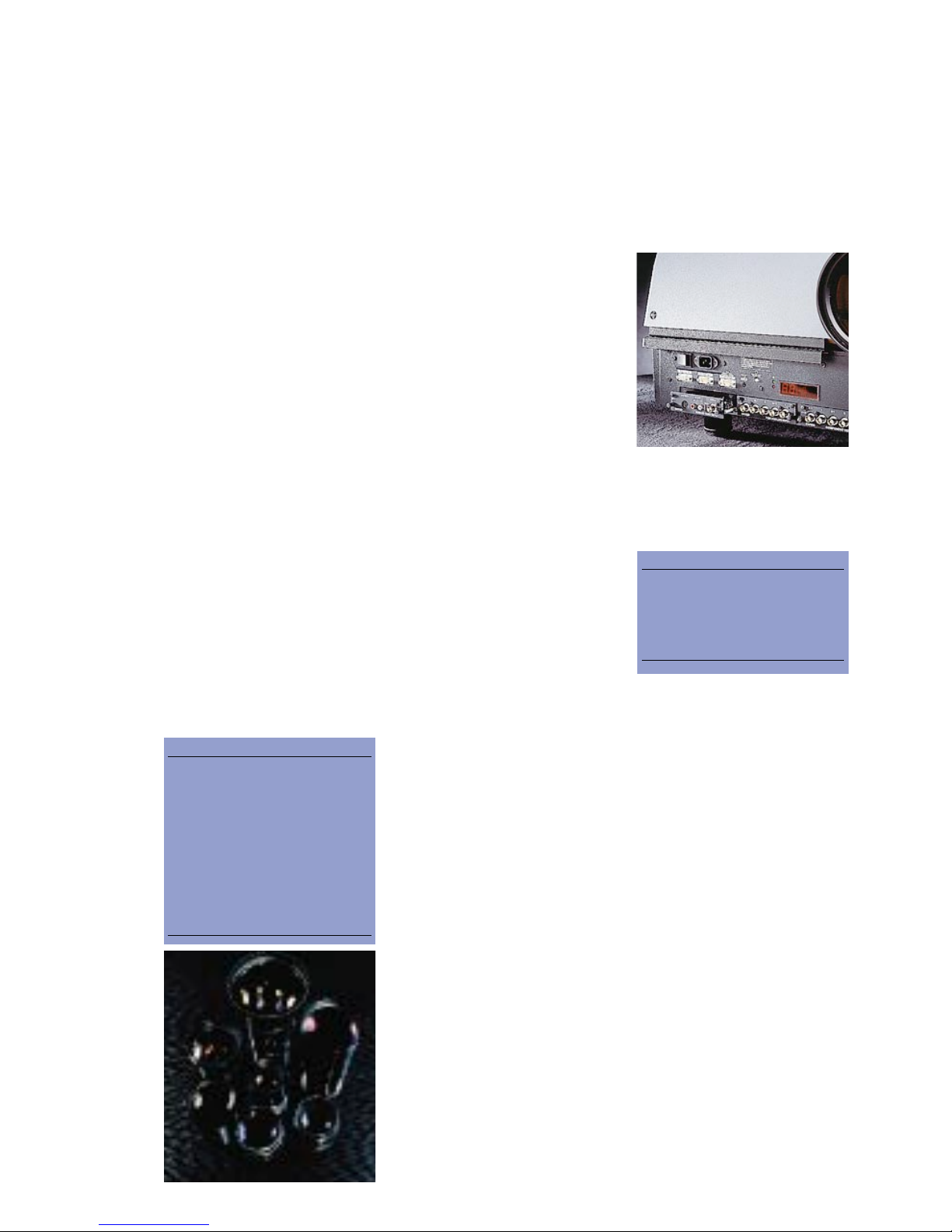

Inputs
The projector has 4 input slots.
Four different types of input
modules are available:
• Video / S-Video input:
Video on BNC, S-Video on 4-pin
mini-DIN connector
• Component Video input
(Y, R-Y, B-Y, S) on 4 BNC connectors
• RGB analog input with standard
sync (BNC connectors), sync on
green or separate sync
• RGB analog input with tri-level
sync (BNC connectors), sync on
green or separate sync
Furthermore, there are:
• RS232 loop-through input (D9connector) for PC based projector
control
• Communication input (D9connector) for peripherals
Compatibility
The BarcoGraphics 9200 is
compatible with:
• All current Video sources (PAL,
SECAM, NTSC 3.58, NTSC 4.43) in
Composite, S-VHS, RGB or
Component forms
• All currently proposed HDTV,
extended and improved
television standards (Eureka 95,
Hi-Vision, ACTV, IDTV, EDTV,...)
• All computer graphics formats
from CGA, EGA, VGA (640x480),
S-VGA (800x600), XGA
(1,024x768) up to S-XGA (1,280x
1,024 pixels)
• Most Macintosh computers
• Electronic workstations with a
resolution up to 1,280 x 1,024
pixels
• Most sources with a pixel clock
<135 MHz
Light output
4,000 lumens full white
3,500 ANSI lumens
Brightness uniformity:
> 80% for the total screen area.
LCD panels
3 active matrix LCD panels
(5.8” diagonal), with a resolution
of 1,024 x 768 pixels, resulting in
an overall resolution of almost
2.4 million pixels, and selected for
a minimum of pixel defects.
(1)
Lamp
1500 Watt metal-halide lamp
Typical lifetime: 1,000 hours with
a brightness uniformity of 80 %
Available lenses
• Fixed focal length lenses are
available with a throw ratio of
1.2, 2.2, 3.3, 4.0, 5.0 or 7.0:1.
• Variable focus lenses:
- throw distance= 1.5 - 3 times
the screen width
- throw distance= 3 - 5.3 times
the screen width
• Anamorphic lens with a throw
ratio of 3.5:1 (16:9 aspect ratio)
• Lens with a very short throw
ratio of 0.9:1, for use with a
special version of the
BarcoGraphics 9200.
Technical specifications
The BarcoGraphics 9200 has a
modular input design which
accommodates a variety of input modules
for different video and computer sources.
Input modules Order Nr
Video/S-Video R9827900
RGB analog (standard sync)
R9827910
RGB analog (tri-level sync)
R9827920
Component Video R9827930
Special features
• Extensive geometry adjustments
(image size, shift, keystone,...),
also addressable through RS232
communication port
• Built-in freeze facility
• Internal test patterns
(crosshatch, colour bars,
greyscale,...)
• External auto-diagnostics with
2 x 7 segment LED display
• Built-in help menus
• Intuitive on-screen display:
Installation and service screens,
barscale display of user settings,
on-screen display of selected
source
• Adjustable leveling feet
• Colour temperature adjustment
(3200K, 6500K, 9500K or custom)
• Optional light shutter blanks
image when paused
• An optional multifunctional
frame facilitates carrying the
projector and protects it against
impacts. It also allows quick and
easy set-up of the projector for
dual or triple stacked applications
• Optional built-in adjustable lens
holder, ideal for dual or triple
stacked configurations
(1) Further information is available on request.
(2) Requires special version of the BarcoGraphics
9200
Lens type Order Nr
HD (1.2:1) R9829200
HD (2.2:1) R9829060
HD (3.3:1) R9829075
HD (4:1) R9829145
HD (5:1) R9829180
HD (7:1) R9829090
HD (1.5-3:1) (zoom) R9829150
HD (3-5.3:1) (zoom) R9829190
WHD (3.5:1) (anamorphic)
R9829320
HD (0.9:1)
(2)
R9829550
Page 4
Ref. no. R599436-March ‘97 - Printed in Belgium
BARCO Projection Systems - Head Office
Noordlaan 5 8520 Kuurne, Belgium
Tel: +32 / 56 / 368 211 Fax: +32 / 56 / 351 651
E-mail: [email protected]
Visit Barco at the web: http://www.barco.com
Safety regulations
The BarcoGraphics 9200 complies
with UL1950 and EN60950
Electromagnetic interference
The BarcoGraphics 9200 complies
with FCC Rules & Regulations,
part 15 Class A and CE EN55022
Class A
Warm-up time
Less than 3 minutes to meet full
specifications
AC power
Power factor pre-regulated SMPS,
240 VAC±10%/50-60 Hz
Power consumption
Max. 2,000 watts [230 VAC/9 A]
Weight
(3)
Net weight 85 kg (187 lbs)
Shipping weight 115 kg (254 lbs)
Accessories included
• Infrared remote control
• Owner’s & installation manual
• Power cord with CEE (7)VII plug
Order information
BarcoGraphics 9200
(3)
R9001320
RCVDS 05 source selector
230 V: R9827880
120 V: R9827889
VS05 Video/HDTV source selector
R9827890
Remote infrared receiver
R9827515
Multifunctional frame R9829650
Ceiling mount CM 100 LCD
• With pulley system R9829620
• Without pulley system R9829621
1500 W metal-halide lamp
R9829525
Service tool kit R9829241
Light shutter R9829270
(3) Without lens nor inputs. Lenses ans inputs are
sold separately
(4) With HD(4.0:1) lens. Dimensions for other
lenses are available on a separate data sheet
BARCO Projection Systems is an ISO9001 registered
company.
The information and data given are typical for the
equipment described. However any individual
item is subject to change without any notice.

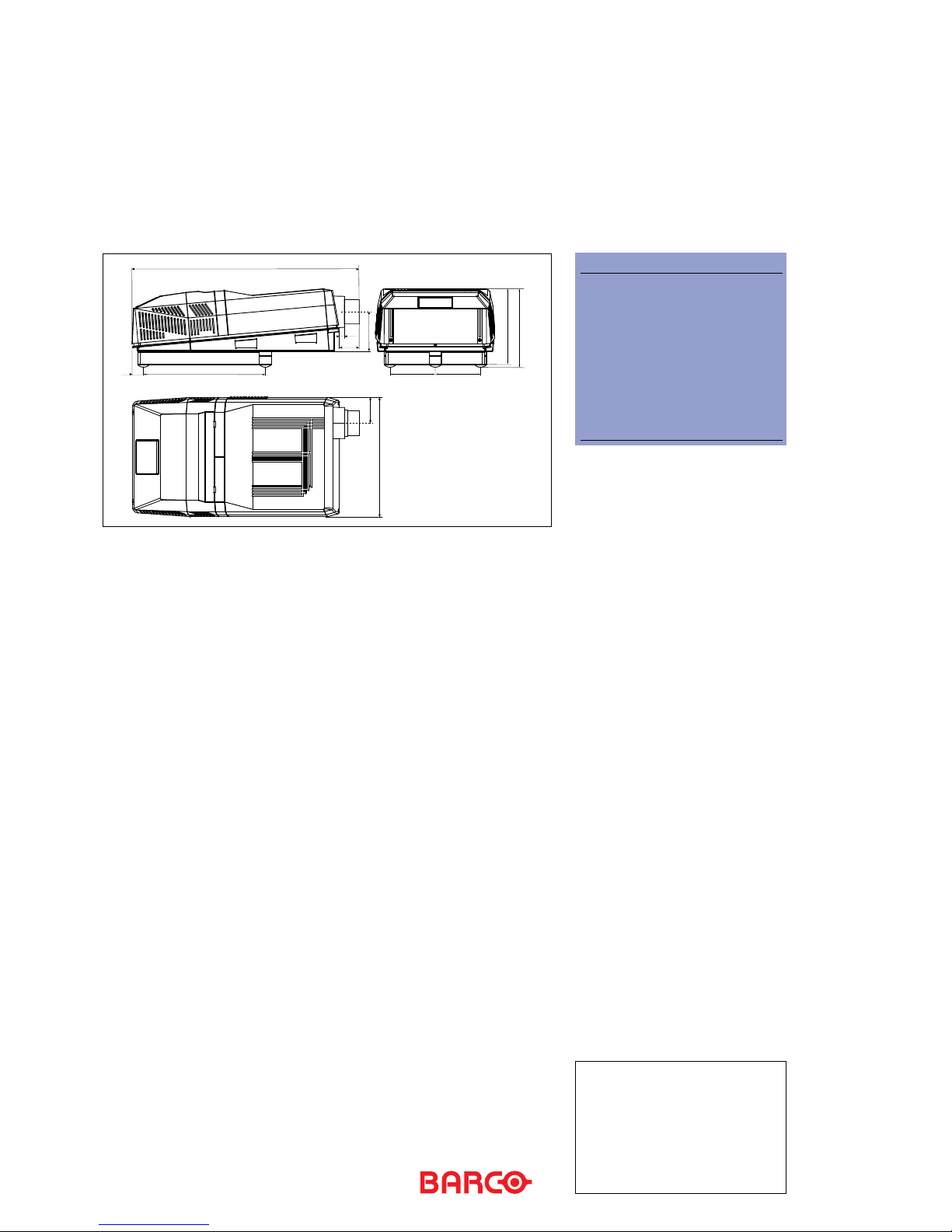

Dimensions mm inch
L1
(4)
1,209-1,259 47.60-49.57
L2 702 27.64
L3 42 1.65
L4
(4)
110-160 4.33-6.30
L5 27 1.06
W1 630 24.8
W2 135 5.31
W3 284 11.18
H1 422 16.61
H2 399 15.71
H3 209 8.23
W1
W2
H1
H3
L4
L5
L1
W3
W3
H2
L2L3
