Barco GRAPHICS 8100LC User Manual

Download

BARCO PROJECTION SYSTEMS

GRAPHICS

8100LC

R9001109

OWNER'S MANUAL

Date: 130696

Rev. : 01

Art. No. :R5975646A

Due to constant research, the information in this manual is subject to change without notice.

Trademarks are the rights of their respective owners. Printed in Belgium

Table of Contents

WARNINGS & SAFETY INSTRUCTIONS ........................................................................................................................................ 1-1

AVERTISSEMENTS & PRESCRIPTIONS DE SECURITE ............................................................................................................... 1-1

UNPACKING & DIMENSIONS ......................................................................................................................................................... 2-1

Unpacking ............................................................................................................................................................................. 2-2

Projector dimensions ............................................................................................................................................................2-3

Battery installation in the RCU. ............................................................................................................................................. 2-4

INSTALLATION GUIDELINES ......................................................................................................................................................... 3-1

Installation guidelines ........................................................................................................................................................... 3-2

* Environment .................................................................................................................. .....................................................3-2

* What about ambient light ? .................................................................................................................................................3-2

* Which screen type? ............................................................................................................................................................3-3

* What image size? How big should the image be? ............................................................................... ..............................3-3

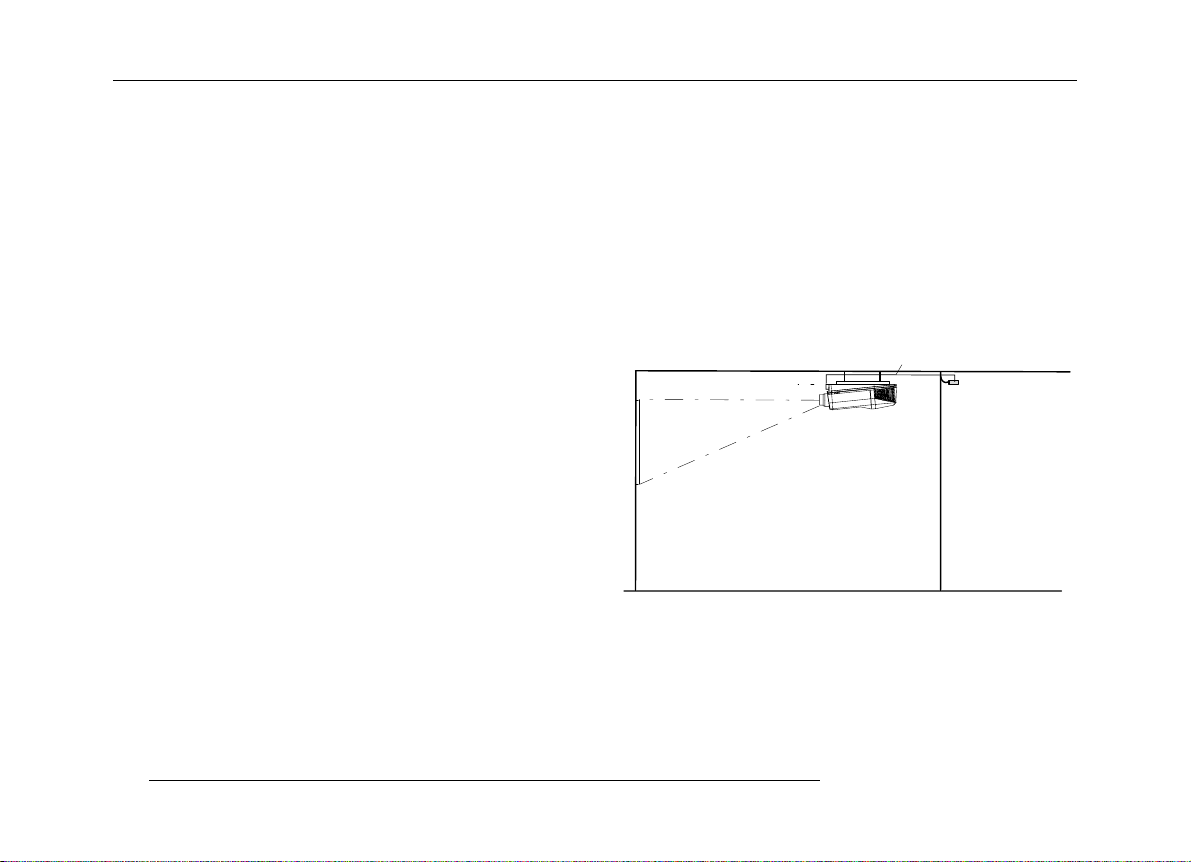

* Where to install the projector? ............................................................................................................................................3-4

* How to install a projection lens? .........................................................................................................................................3-6

INSTALLATION SET UP ..................................................................................................................................................................4-1

LOCATION AND FUNCTION OF CONTROLS ................................................................................................................................. 5-1

Front panel terminology ........................................................................................................................................................ 5-2

Control Panel Terminology ....................................................................................................................................................5-3

POWER CONNECTION ................................................................................................................................................................... 6-1

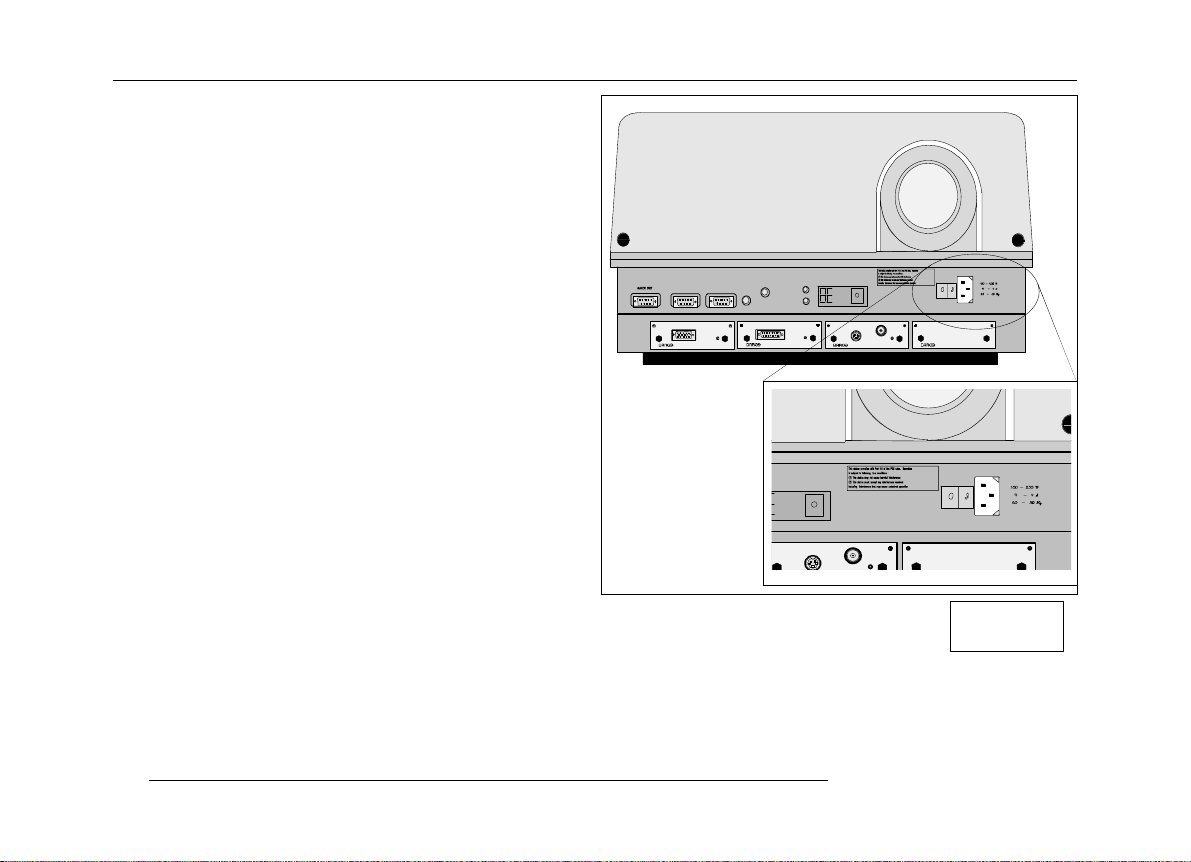

Power cord connection..........................................................................................................................................................6-2

Fuses ...................................................................................................................................................................................6-2

Switching on .........................................................................................................................................................................6-3

Switching to stand-by ............................................................................................................................................................6-4

Switching off .........................................................................................................................................................................6-4

INPUT MODULE CONNECTIONS ................................................................................................................................................... 7-1

Input connections..................................................................................................................................................................7-2

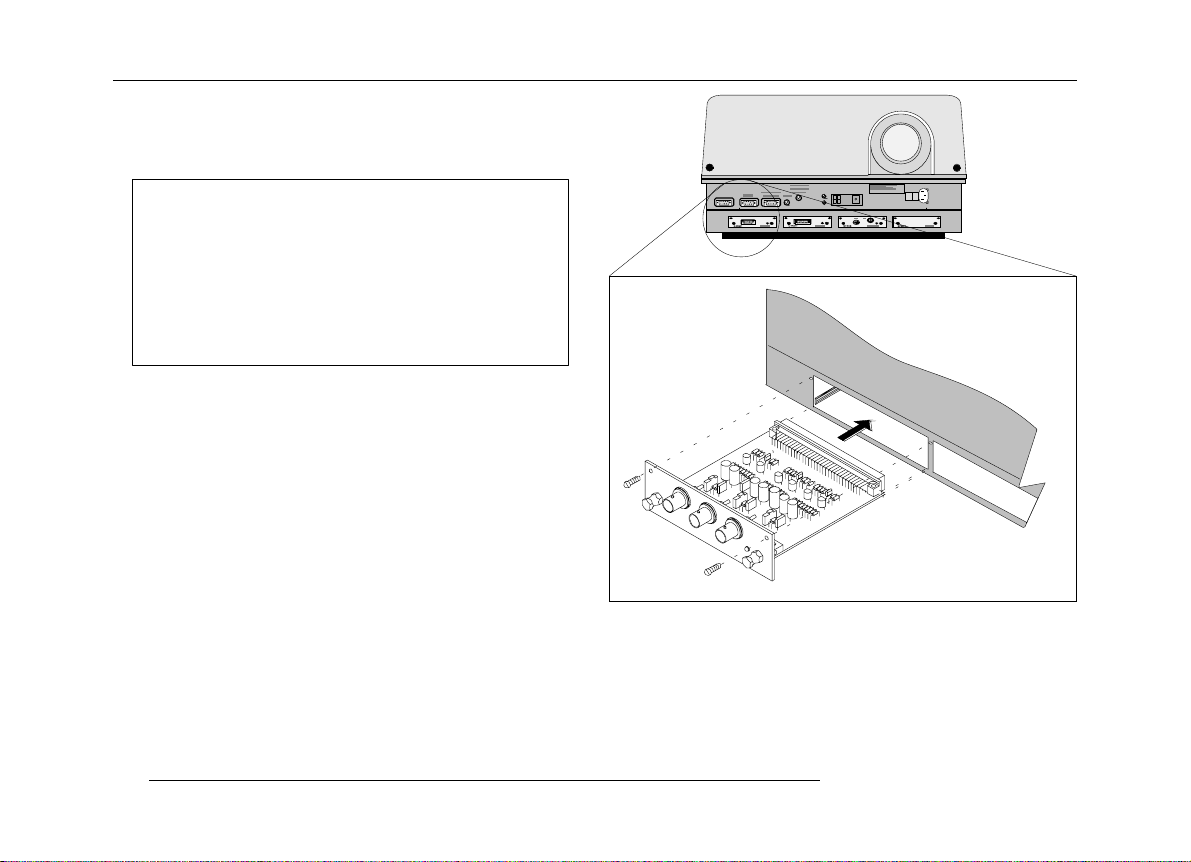

Input module insertion into the BARCOGRAPHICS 8100LC :................................................................................................7-2

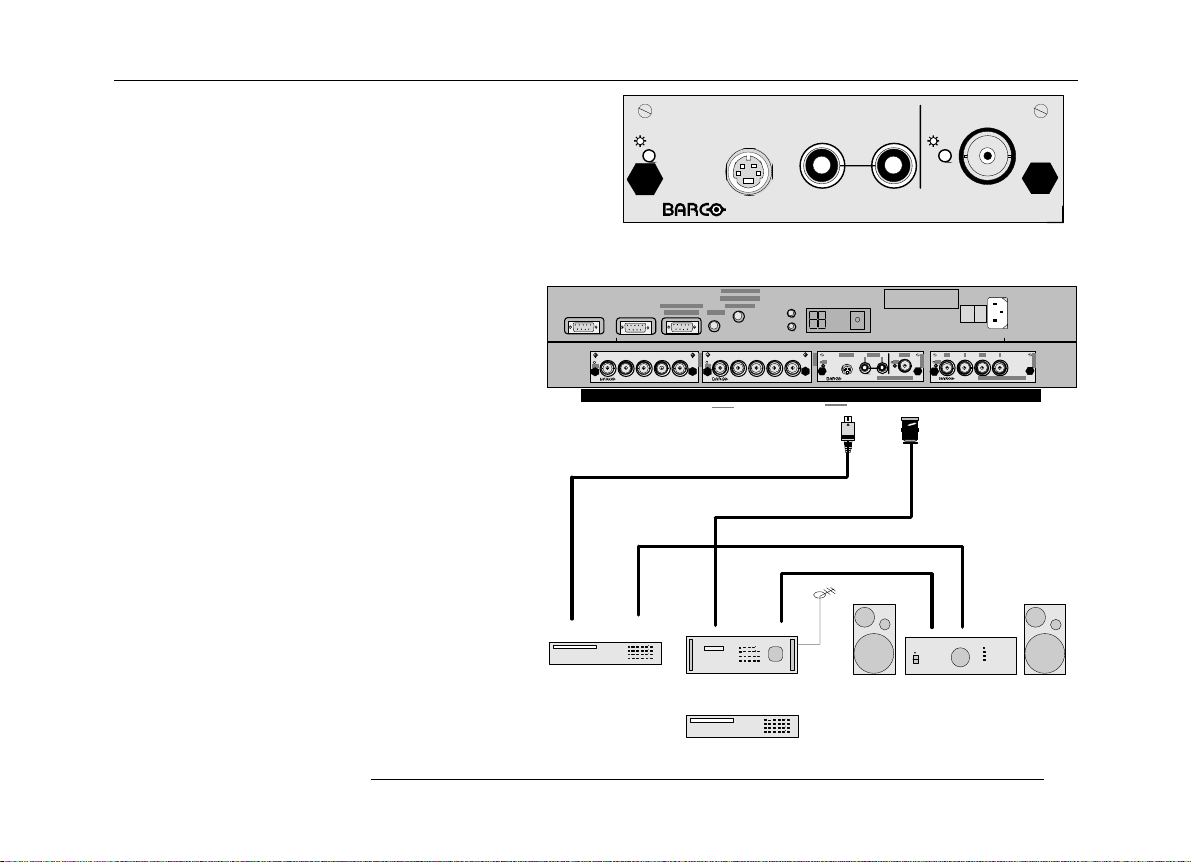

Video/S-video input module .................................................................................................................................................. 7-3

5975646A BARCOGRAPHICS 8100LC 130696

i-1

Table of Contents

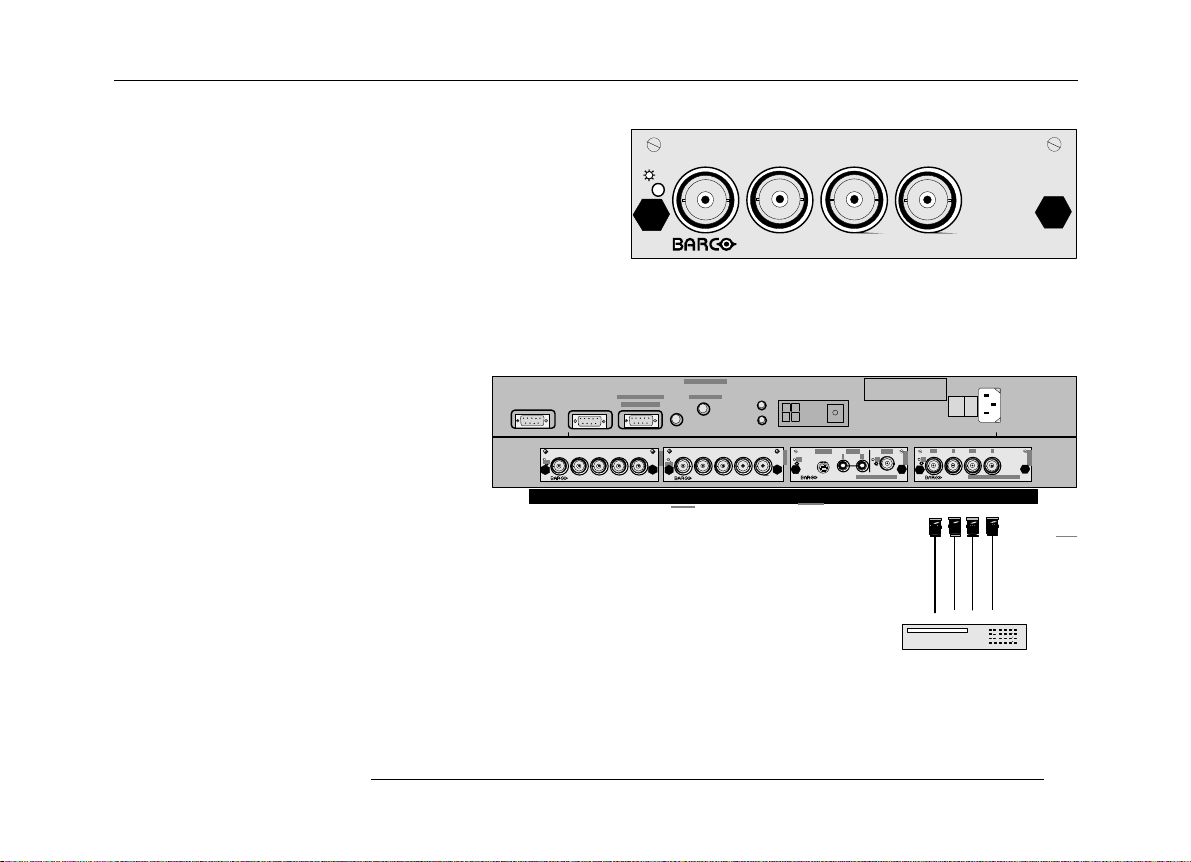

RGB analog input module. ....................................................................................................................................................7-6

Component input module. .....................................................................................................................................................7-9

RGB3S/RG3sB input module. .............................................................................................................................................7-11

Connecting a computer, e.g. IBM PC (or compatible), Apple Macintosh to the RS 232 input of the projector. ......................7-13

Set up of the baud rate for communication with a computer. ..............................................................................................7-13

Connecting a RCVDS 800 or RCVDS 05 to the BARCOGRAPHICS 8100LC. .....................................................................7-14

Connecting a VS05 to the BARCOGRAPHICS 8100LC. ................................................................................. .................... 7-14

Connecting an IR Remote Receiver 800 to the BARCOGRAPHICS 8100LC. ......................................................................7-14

CONTROLLING ...............................................................................................................................................................................8-1

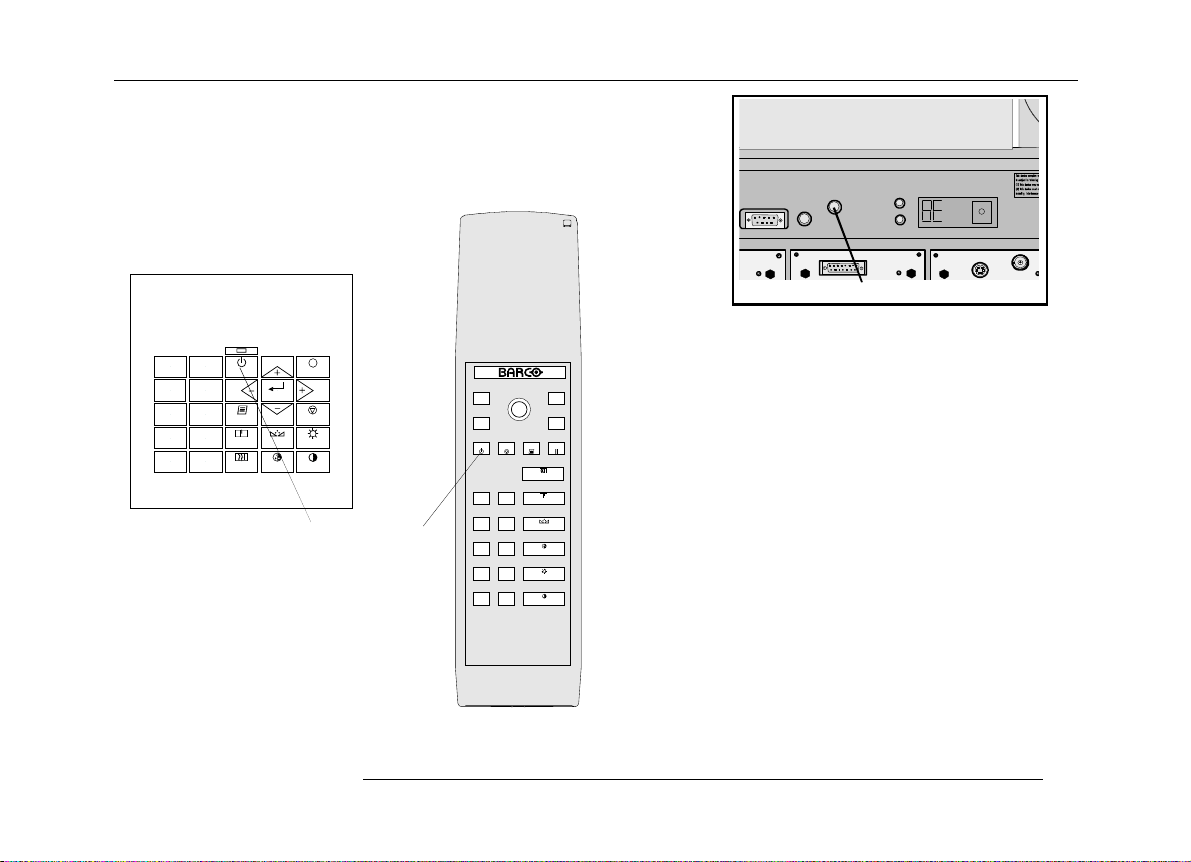

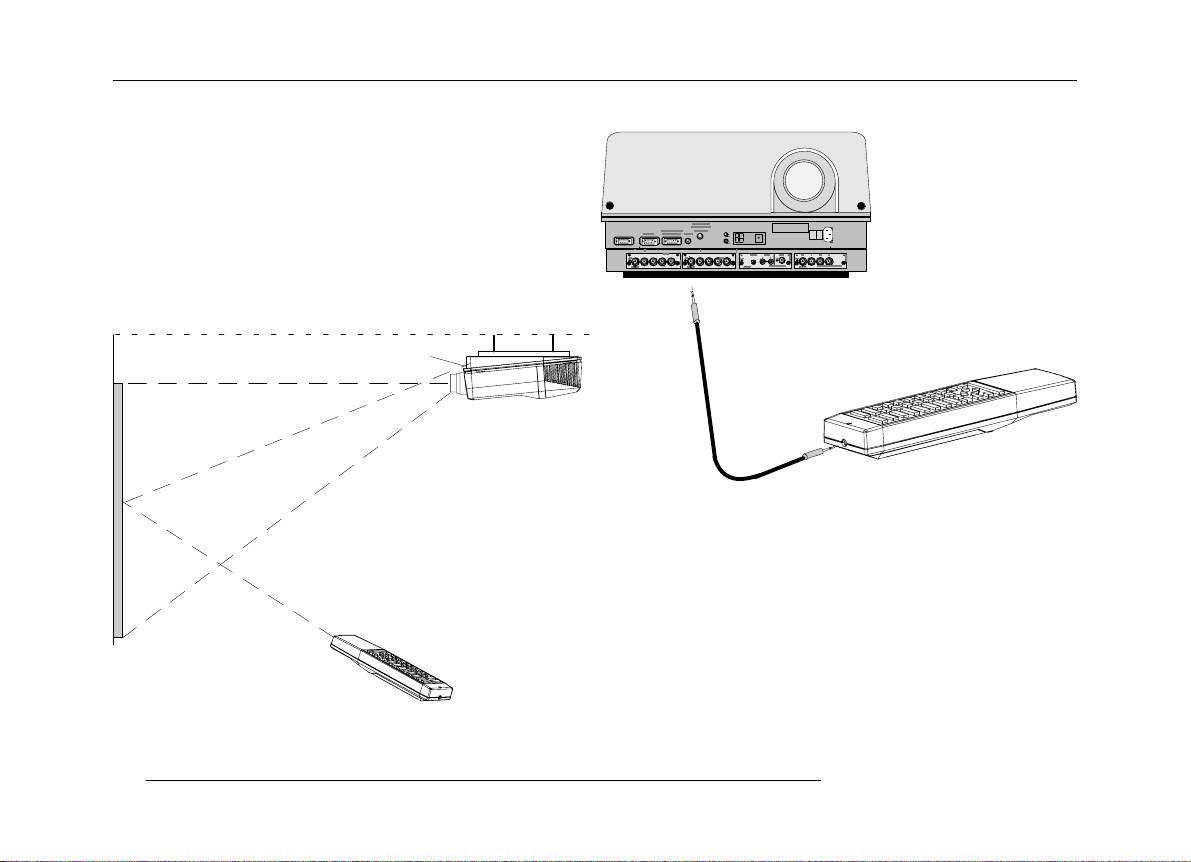

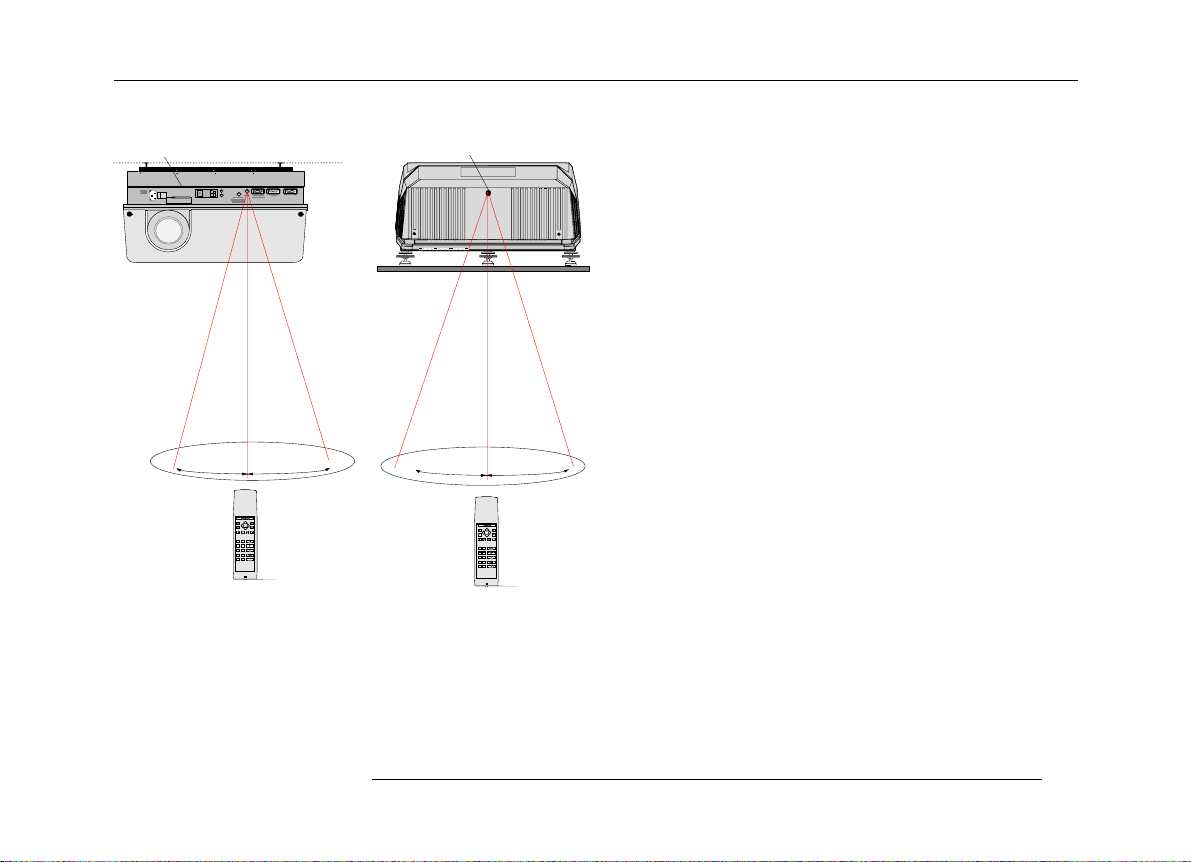

How to use the RCU? ...........................................................................................................................................................8-2

Projector address..................................................................................................................................................................8-3

How to display a projector address?......................................................................................................................................8-4

How to program an address into the RCU? ........................................................................................................................... 8-4

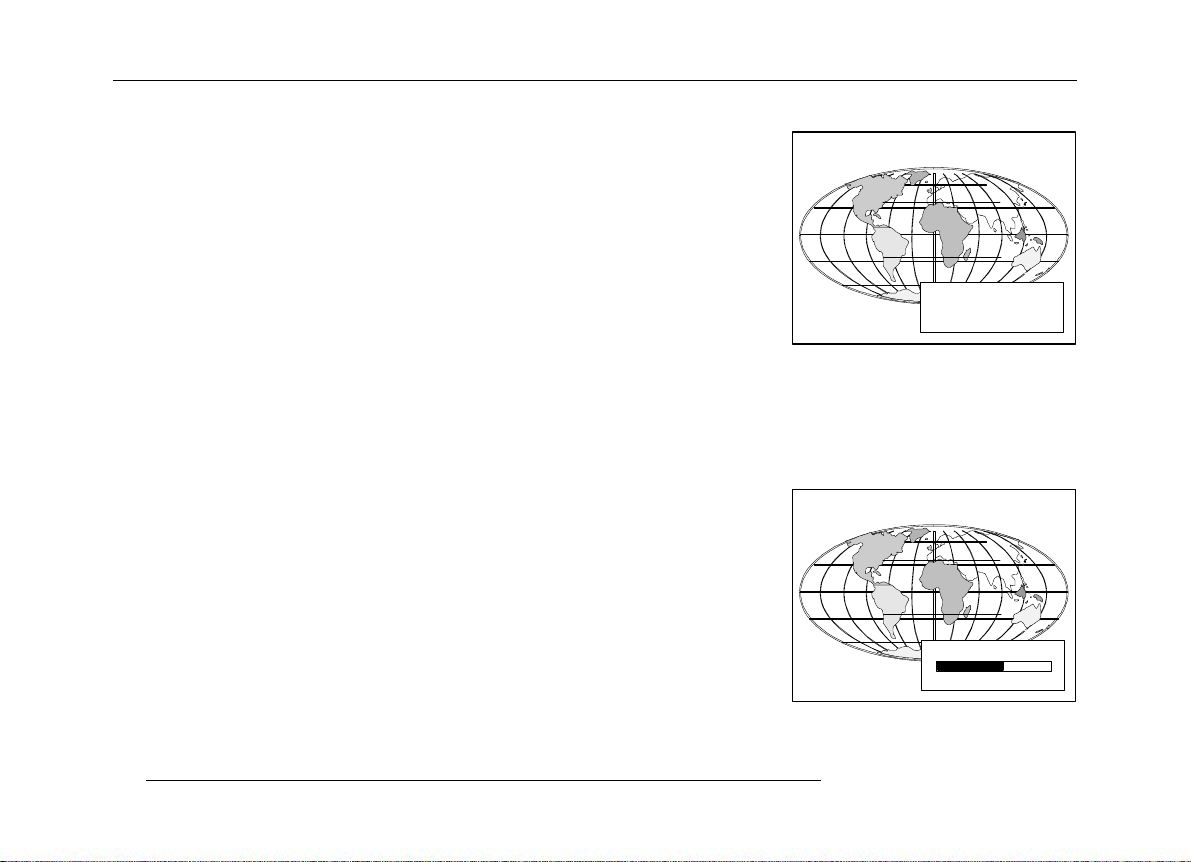

Picture controls with direct access. ....................................................................................................................................... 8-4

START UP OF THE ADJUSTMENT MODE .....................................................................................................................................9-1

Adjustment Mode ..................................................................................................................................................................9-2

GUIDED ADJUSTMENT MODE ..................................................................................................................................................... 10-1

RANDOM ACCESS ADJUSTMENT MODE ................................................................................................................................... 11-1

Starting up the Random Access Adjustment Mode .............................................................................................................11-2

File service .........................................................................................................................................................................11-3

Load file..............................................................................................................................................................................11-4

Edit file................................................................................................................................................................................11-5

Rename ..............................................................................................................................................................................11-9

Copy .................................................................................................................................................................................11-10

Delete ............................................................................................................................................................................... 11-11

File Options ...................................................................................................................................................................... 11-12

Picture Tuning ..................................................................................................................................................................11-12

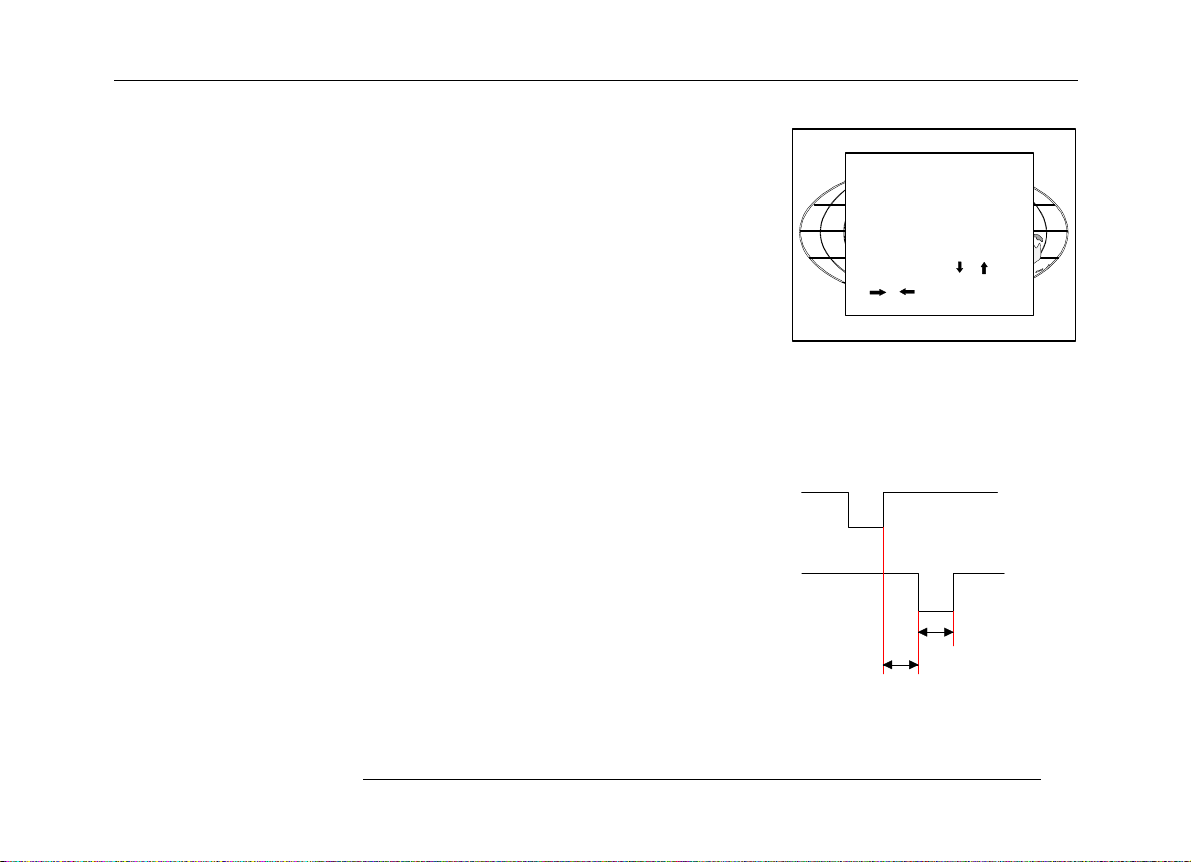

Sync slow/fast................................................................................................................................................................... 11-13

Still Video .........................................................................................................................................................................11-13

Color Balance ...................................................................................................................................................................11-14

i-2

5975646A BARCOGRAPHICS 8100LC 130696

Table of Contents

Gamma.............................................................................................................................................................................11-15

Geometry..........................................................................................................................................................................11-16

Shift .......................................................................................................................... ........................................................11-16

Size ..................................................................................................................................................................................11-17

Side keystone ...................................................................................................................................................................11-18

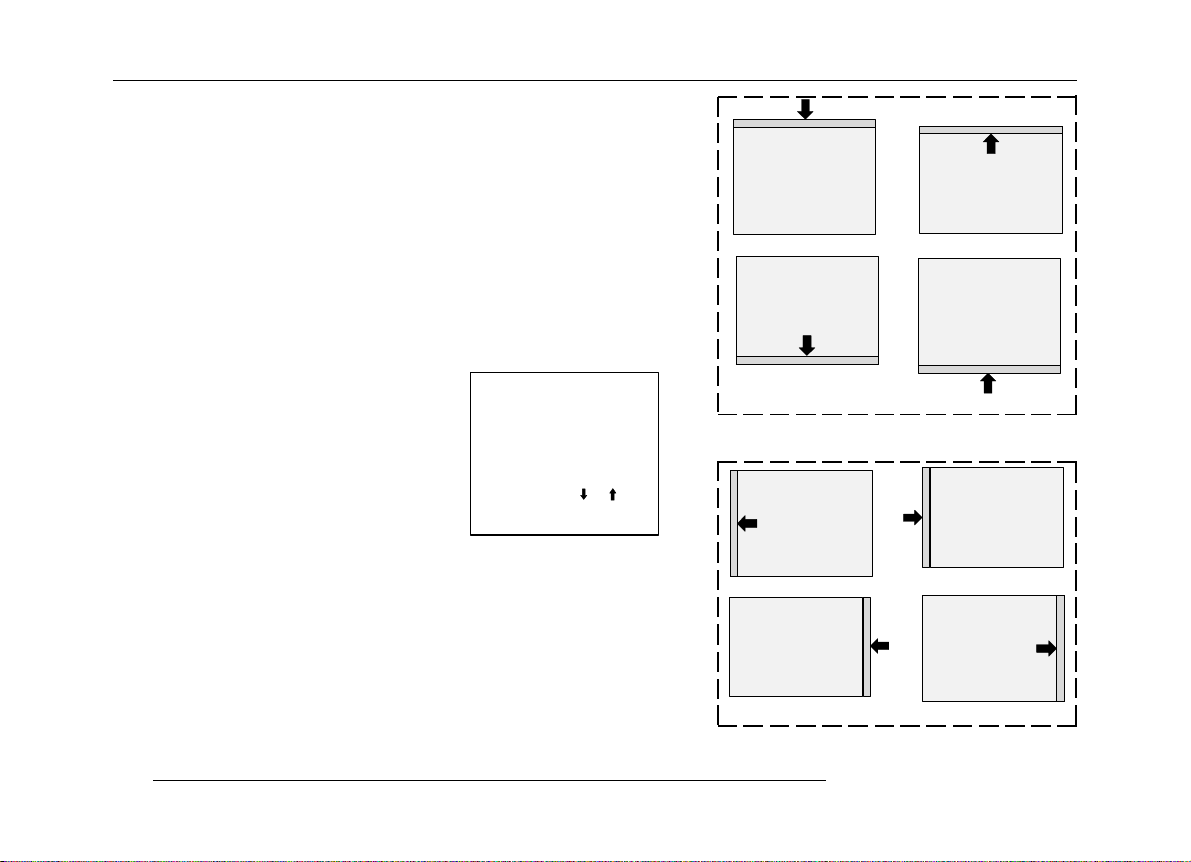

Blanking............................................................................................................................................................................11-19

Options .............................................................................................................................................................................11-21

INSTALLATION .............................................................................................................................................................................12-1

Starting up the Installation Mode.........................................................................................................................................12-2

Input Slots ..........................................................................................................................................................................12-3

Convergence ......................................................................................................................................................................12-4

Configuration ......................................................................................................................................................................12-9

Internal Patterns .................................................................................................................................................................12-9

Configuration ......................................................................................................................................................................12-9

SERVICE MODE ............................................................................................................................................................................ 13-1

Starting up the Service Mode..............................................................................................................................................13-2

Identification ....................................................................................................................................................................... 13-5

Change Password...............................................................................................................................................................13-7

How to enable or disable the password function ? ...............................................................................................................13-7

How to change the password ? ...........................................................................................................................................13-9

Change Language .............................................................................................................................................................. 13-9

Change Projector Address ................................................................................................................................................ 13-10

Change Baudrate PC ........................................................................................................................................................ 13-10

Reset Lamp Runtime ........................................................................................................................................................13-11

Lamp Run Time History .................................................................................................................................................... 13-12

Panel Adjustments ............................................................................................................................................................ 13-13

Preset Input Balance......................................................................................................................................................... 13-14

60 Hz tracking................................................................................................................................................................... 13-15

I2C diagnosis. ................................................................................................................................................................... 13-16

OPTIONAL EQUIPMENT ............................................................................................................................................................... 14-1

IR Receiver 800 ..................................................................................................................................................................14-2

5975646A BARCOGRAPHICS 8100LC 130696

i-3

Table of Contents

Hardwired RCU. ..................................................................................................................................................................14-2

RCVDS 800 / RCVDS 05 ....................................................................................................................................................14-3

VS05 .................................................................................................................................................................................. 14-3

MAGIK Interface .................................................................................................................................................................14-4

Adapter and communication cables .................................................................................................................................... 14-4

Ceiling Mount Kit CM100 ....................................................................................................................................................14-5

Projector Transport Handle .................................................................................................................................................14-6

Projector Frame for Dual or Triple Configurations.............................................................................. .................................. 14-6

Multifunctional flight case ....................................................................................................................................................14-7

Mechanical Shutter ............................................................................................................................................................. 14-8

Adjustable lensholder..........................................................................................................................................................14-8

Appendix A : Standard source set up files. ...................................................................................................................................... A-1

Appendix B : Battery replacement in the RCU. ................................................................................... ............................................. B-1

Appendix C : Focusing the lens ....................................................................................................................................................... C-1

Appendix D : Lens Cleaning Procedure ........................................................................................................................................... D-1

Appendix E : Source numbers 90 - 99 ............................................................................................................................................. E-1

Appendix F : Lenses ....................................................................................................................................................................... F-1

i-4

5975646A BARCOGRAPHICS 8100LC 130696

WARNINGS

AVERTISSEMENTS

Safety instructions

Prescriptions de securite

On safety

Securite

On installation

Installation

On servicing

Entretien et reparation

On cleaning

Nettoyage

On repacking R

e-emballage

Safety Instructions

5975646A BARCOGRAPHICS 8100LC 220496

On illumination

clairage

1-1

Prescription de sécurtié Remarque sur la Sécurité

Les projecteurs sont fabriqués conformément aux exigences des normes de sécurité internationales IEC950, UL 1950 et CSA C22.2 No. 950. Ces normes de sécurité sont imposées aux équipements de la technologie informatique incluant les équipements électriques.

Ces normes de sécurité imposent des exigences importantes sur l’emploi des composantes, des matériaux et de l’isolation dont la sécurité est critique, afin de protéger l’utilisateur contre le risque d’une décharge électrique et d’avoir accès aux parties sous tension. Les normes de sécurité aussi imposent des limitations concernant la hausse de la température interne et externe, les niveaux de radiation, la stabilité et la force mécanique, la construction du cadre métallique à l’intérieure et la protection contre les risques d’incendie.

Les épreuves auxquelles l’équipement a été subi assurent la sécurité totale de l’utilisateur, même lorsque l’équipement ne fonctionne pas normalement.

Instructions pour l’installation

Lire ce manuel complètement avant de mettre l’appareil en fonctionnement et le conserver pour consultation ultérieure.

L’installation et les réglages préliminaires devraient être faits par du personnel qualifié BARCO ou par des agents autorisés du service BARCO.

DONNEES POUR LE PROPRIETAIRE

Le numéro de pièce et le numéro de série sont situés à l’arrière du projecteur. Copier ces numéros dans les espaces prévus ci-dessous. Se référer à ces numéros chaque fois que vous consultez votre agent BARCO concernant cet appareil.

NUMERO DE PIECE :

NUMERO DE SERIE :

AGENT :

1-2

5975646A BARCOGRAPHICS 8100LC 220496

Safety Instructions

Notice on safety

Projectors are built in accordance with the requirements of the international safety standards IEC950, UL 1950 and CSA C22.2 No. 950, which are the safety standards of information technology equipment including electrical business equipment.

These safety standards impose important requirements on the use of safety critical components, materials and isolation, in order to protect the user or operator against the risk of electric shock and energy hazard, and having access to live parts. Safety standards also impose to the internal and external temperature rises, radiation levels, mechanical stability and strength, enclosure construction and protection against risk of fire.

Simulated single fault condition testing ensures the safety of the equipment to the user even when the equipment's normal operation fails.

Installation instructions

Before operating your projector please read this manual thoroughly, and retain it for future reference.

Installation and preliminary adjustments should be performed by qualified BARCO personnel or authorized BARCO service dealers.

OWNER’S RECORD

The part number and serial number are located at the rear of the projector. Record these numbers in the spaces provided below. Refer to them whenever you call upon your BARCO dealer regarding this product.

PART NUMBER:

SER. NUMBER:

DEALER:

5975646A BARCOGRAPHICS 8100LC 220496

1-3

Prescription de sécurtié

ATTENTION

RISQUE D'ELECTROCUTION NE PAS OUVRIR

ATTENTION : AFIN DE REDUIRE LE RISQUE DE CHOCS ELECTRIQUES, NE PAS ENLEVER LE COUVERCLE (OU LE DOS)

IL N'Y A PAS DE PIECES REPARABLES PAR L'UTILISATEUR A L'INTERIEUR

LE SERVICE NE PEUT ETRE EFFECTUE QUE PAR DU PERSONNEL QUALIFIÉ

L’éclair avec une tête de flèche dans un triangle indique à l’utilisateur que les pièces à l’intérieur de l’appareil présentent un risque de chocs électriques.

POUR EVITER DES RISQUES D’INCENDIE OU DE CHOCS ELECTRIQUES, NE PAS EXPOSER CE PROJECTEUR A LA PLUIE OU A L’HUMIDITE

Fédéral communication commission (FCC statement)

Cet équipement a été testé et trouvé conforme aux limites imposées aux appareils digitaux de classe A, selon la section 15 des règles FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences lorsque l’utilisation doit se faire dans un environnement commercial. Cet équipement génère, utilise et peut

1-4

Le point d’exclamation dans un triangle indique à l’utilisateur que des instructions de fonctionnement et/ou de service sont comprises dans la documentation technique de cet équipement.

AVERTISSEMENT

émettre de l’énergie aux fréquences radio, et s’il n’est pas installé et utilisé conformément aux instructions du manuel, il peut créer des interférences désavantageuses dans les communications radio. L’utilisation de cet équipement dans des zones résidentielles peut créer des interférences. Le cas échéant, l’utilisateur devra prendre toutes les mesures requises pour les amoindrir, à ses propres frais.

5975646A BARCOGRAPHICS 8100LC 220496

Safety Instructions

The lightning flash with an arrowhead within a triangle is intended to tell the user that parts inside this product are risk of electrical shock to persons.

To prevent fire or electrical shock hazard, do not expose this projector to rain or moisture

Federal communication commission (FCC statement)

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

5975646A BARCOGRAPHICS 8100LC 220496

The exclamation point within a triangle is intended to tell the user that important operating and/or servicing instructions are included in the technical documentation for this equipment.

Warning

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

1-5

Prescription de sécurtié

Instructions pour l’utilisateur : Si cet équipement cause des interférences de radio ou de télévision,

l’utilisateur peut essayer de corriger les interférences en appliquant une ou plusieurs de les mesures suivantes :

- Ré-orienter l’antenne radio ou télévision.

- Déplacer l’ équipement concernant le récepteur.

- Brancher l’ appareil sur une autre prise de telle sorte que l’appareil

et le récepteur se trouvent sur différents circuits électriques.

. Fixer les connecteurs des cables a l’équipement au moyen des vis. Remarque :

L’utilisation de câbles blindés est exigée afin d’observer les règles de la section 15 des règles FCC.

Prescriptions de securite générales.

* Lire toutes les prescriptions de sécurité et de fonctionnement avant

d’utiliser cet appareil.

* Le manuel de prescriptions de securite et de fonctionnement doit

être conservé pour consultation ultérieure.

* Il faut respecter tous les avertissements mentionnés sur le projecteur

et dans les manuels.

* Suivre fidèlement toutes les prescriptions d’utilisation et de

fonctionnement de cet équipement.

SECURITE

* Cet équipement doit fonctionner sur une source à courant alternatif.

Ce projecteur peut être branché sur un système à IT courant.

* Cet appareil est équipé d’un connecteur à trois broches dont une mise

à la terre. Le connecteur n’est adapté qu’à des prises de courant du

type avec terre. Ceci est une mesure de sécurité. Si le connecteur ne s’adapte pas dans la prise, contacter votre électricien pour remplacer la prise non valable. Ne pas compromettre le but du

connecteur de terre. Avertissement pour les utilisateurs : CE PROJECTEUR DOIT ÊTRE MIS À LA TERRE avec le cordon secteur fourni. (Si le cordon secteur n'est pas correct, consulter votre revendeur.)

B. Cordon d’alimentation avec connecteur ANSI 73.11

Les couleurs des fils du cordon d’alimentation sont codées comme suit :

Vert/Jaune : terre Blanc : neutre Noir : actif

* Ne rien laisser en appui sur le cordon d’alimentation. Ne pas placer

ce cordon là où des personnes risques de marcher dessus.

1-6

5975646A BARCOGRAPHICS 8100LC 220496

Safety Instructions

Instructions to the user : if this equipment does cause interference to radio or television

reception, the user may try to correct the interference by one or more of the following measures :

- Re-orientation of the receiving antenna for the radio or television.

- Relocate the equipment with respect to the receiver.

- Plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits.

• Fasten cables connectors to the equipment by mounting screws.

Note :

The use of shielded cables is required to comply within the limits of Part15 of FCC rules.

General safety instructions.

* All the safety and operating instructions should be read before using

this unit.

* The operating instructions manual should be retained for future

reference.

* All warnings on the projector and in the documentation manuals

should be adhered to.

* All instructions for operating and use of this equipment must be

followed precisely.

ON SAFETY

* This product should be operated from an AC power source. This

projector may be connected to an IT-power system.

* This product is equipped with a 3-wire grounding plug, a plug having

a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the

5975646A BARCOGRAPHICS 8100LC 220496

plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE

GROUNDED (EARTHED) via the supplied 3 conductor AC power cable. (If the supplied power cable is not the correct one, consult your dealer.)

B. Power cord with ANSI 73.11 plug:

The wires of the power cord are colored in accordance with the following code.

Green/yellow: ground White: neutral Black: live

* Do not allow anything to rest on the power cord. Do not locate this

product where persons will walk on the cord.

1-7

Prescription de sécurtié

* Pour débrancher le cordon, le tirer par le connecteur, jamais par le

cordon lui-même.

* Si on utilise une rallonge, vérifier que le total des courants des

appareils raccordés à cette rallonge ne dépasse pas la capacité nominale du câble de rallonge. Vérifier aussi que la somme des consommations des appareils raccordés à la prise murale ne dépasse pas 15 ampères.

* Ne jamais introduire un objet quelconque dans l’appareil à travers

les fentes du boîtier, car ils pourraient être en contact avec des points de tension dangereux ou court-circuiter des pièces, ce qui pourrait entraîner un risque d’incendie ou de choc électrique.

* Ne jamais répandre un liquide quelconque sur l’appareil. Si un

liquide ou un objet solide tombe dans le boîtier, débrancher l’appareil et le faire vérifier par du personnel qualifié avant de reprendre l’utilisation.

* Foudre - Pour une protection supplémentaire de cet appareil vidéo

lors d’un orage ou s’il n’est pas employé et laissé sans surveillance pendant de longues périodes, le débrancher de la prise murale. Ceci évite tout endommagement au projecteur par la foudre ou par des impulsions sur le secteur.

* Avant de débrancher le projecteur, réduire la chaleur de la lampe en

commutant le projecteur en mode d’attente et laisser refroidir la lampe du projecteur pendant 15 minutes au moins. Puis le projecteur peut être débranché par l’interrupteur secteur.

L’Installation

* Ne pas placer le projecteur sur un chariot, un support ou une table

instable. Le projecteur risquerait de tomber causant des dégâts sérieux au projecteur.

1-8

* Ne pas utiliser le projecteur à proximité d’eau. * N’utiliser que le cordon d’alimentation fourni avec votre projecteur.

Bien qu’ils se ressemblent, d’autres cordons d’alimentation n’ont pas subi des tests de sécurité dans l’usine et pour cette raison ils ne peuvent pas être utilisés pour actionner le projecteur. Si vous avez besoin d’un cordon d’alimentation de remplacement, contactez votre agent.

* Les fentes et les ouvertures pourvues dans le boîtier et au dos ou

Circulation d'air

Filter an ti-pouss iè re

Surfac e

sur le fond, sont destinées à la ventilation. Pour assurer un fonctionnement fiable du projecteur et le protéger de toute surchauffe, ses ouvertures ne doivent être ni obstruées ni recouvertes. Les ouvertures ne devraient jamais être obstruées en plaçant l’appareil sur un lit, un divan, un tapis ou toute autre surface similaire. L’appareil ne devrait jamais être placé près ou au-dessus d’un radiateur ou autre source de chaleur. Ce projecteur ne doit pas être installé dans une installation encastrée ou fermée, sauf si une ventilation suffisante est assurée.

5975646A BARCOGRAPHICS 8100LC 220496

Safety Instructions

* To disconnect the cord, pull it out by the plug. Never pull the cord

itself.

* If an extension cord is used with this product, make sure that the

total of the ampere ratings on the products plugged into the extension cord does not exceed the extension cord ampere rating. Also make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

* Never push objects of any kind into this product through cabinet

slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock.

* Never spill liquid of any kind on the product. Should any liquid or

solid object fall into the cabinet, unplug the set and have it checked by qualified service personnel before resuming operations.

* Lightning - For added protection for this video product during a

lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges.

* To reduce the lamp heat of the projector, switch the projector

first

to stand-by and let the projector lamp cool down for at least 15 minutes. Then the projector may be switchedoff with the power switch.

On Installation

* Do not place this projector on an unstable cart, stand, or table. The

projector may fall, causing serious damage to it.

* Use only the power cord supplied with your projector. While

appearing to be similar, other power cords have not been safety tested at the factory and may not be used to power the projector. For a replacement power cord, contact your dealer.

* Slots and openings in the cabinet and the sides are provided for

Air circulat i on

Build-in Dust filter

Surface

ventilation; to ensure reliable operation of the projector and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This projector should not be placed in a built-in installation or enclosure unless proper ventilation is provided.

* Do not use this projector near water.

5975646A BARCOGRAPHICS 8100LC 220496

1-9

Prescription de sécurtié

* Laisser suffisamment d’espace autour du projecteur et ne pas

obstruer la circulation de l’air. Ne pas mettre des feuilles libres ou d’autres objets plus près de 11 cm du projecteur.

Entretien et Réparation

Ne pas essayer de réparer le projecteur vous-même, puisque ouvrir le boîtier ou l’enlèvement des blindages peuvent vous exposer à une puissance électrique dangereuse et au risque d’une décharge électrique.

Contacter le service technique qualifié dans les cas suivants :

- Si le cordon secteur ou la prise de courant est endommagé ou

effiloché.

- Si on a répandu du liquide dans le projecteur.

- Si l’appareil a été exposé à la pluie ou à de l’eau.

- Si l’ appareil ne fonctionne pas normalement, bien que les instruc-

tions soient correctement suivies. Ne régler que les commandes décrites dans les instructions de fonctionnement, car un mauvais réglage d’autres commandes peut entraîner des dégâts et souvent nécessiter un travail important par un technicien qualifié pour remettre l’appareil en conditions de fonctionnement normal.

- Si l’appareil est tombé ou si le boîtier est endommagé.

- Si l’appareil présente des changements nets de performance,

indiquant un besoin de réparation.

Pièces de rechange - Lorsqu’on a besoin des pièces de rechange,

veiller à ce que le technicien de service utilise des pièces d’origine BARCO ou des pièces équivalentes autorisées qui ont les mêmes caractéristiques que la pièce d’origine BARCO. Un remplacement par des pièces de rechange non autorisées peut nuire à la performance et la fiabilité, entraîner incendies, chocs électriques ou d’autres dangers. L’utilisation de pièces de rechange non autorisées peut annuler la garantie.

Vérification de sécurité - Lorsqu’un service ou une réparation sur

ce projecteur est terminé, demander au technicien de service de faire les vérifications de sécurité pour s’assurer que le projecteur est en bon état de fonctionnement.

Le projecteur emploie une lampe halogène à vapeurs métalliques de 575 W. Remplacer la lampe par une lampe de projection quelconque peut causer la surchauffe ou une qualité de l’image inacceptable. N’utiliser que des lampes de projection indiquées par BARCO ou un agent autorisé de BARCO ou un service.

Nettoyage

Débrancher l’appareil de la prise avant tout nettoyage. Ne pas utiliser des détergents liquides ou des aérosols. Utiliser un chiffon humide pour le nettoyage.

Pour garder au boîtier son aspect neuf, le nettoyer régulièrement avec un chiffon doux. Des tâches tenaces peuvent être enlevées avec un chiffon humidifié par une solution de détergent doux. Ne jamais utiliser des solvants forts, tels que du ‘thinner’ ou du benzène, ni des produits de nettoyage abrasifs, car ils pourraient endommager le boîtier.

1-10

5975646A BARCOGRAPHICS 8100LC 220496

Safety Instructions

* Do not block the projector cooling fans or free air movement under

and around the projector. Loose papers or other objects may not be nearer to the projector than 4" on any side.

On Servicing

Do not attempt to service this projector yourself, as opening or removing covers may expose you to dangerous voltage potential and risk of electric shock! Refer all projector service to a qualified BARCO service center.

Call for service in the following conditions :

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled into the projector.

- If the product has been exposed to rain or water.

- If the product does not operate normally when the operating

instructions are followed.

Adjust only those controls that are covered by the operating instructions since improper adjustment of the other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation;

- If the product has been dropped or the cabinet has been damaged;

- If the product exhibits a distinct change in performance, indicating a need for service.

Replacement parts - When replacement parts are required, be sure

the service technician has used original BARCO replacement parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards. Unauthorized substitutions may void warranty.

Safety check - Upon completion of any service or repairs to this

projector, ask the service technician to perform safety checks to determine that the projector is in proper operating condition.

The projecor uses a 575 W metal halide projection lamp. Replacing the projection lamp with any other projection lamp can cause overheating or unacceptable image quality. Use only the projection lamps specified by BARCO, or an authorized BARCO dealer or service center.

On Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

To keep the cabinet looking brand-new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution. Never use strong solvents, such as thinner or benzine, or abrasive cleaners, since these will damage the cabinet.

5975646A BARCOGRAPHICS 8100LC 220496

1-11

Prescription de sécurtié

Pour garantir les meilleures performance et définition, les objectifs de projection sont spécialement traités avec un revêtement anti-reflets. En conséquence : éviter de toucher les objectifs. Pour enlever la poussière de l’objectif, utiliser un chiffon sec et doux. Ne pas utiliser de chiffon humide, de solution détergente ou de diluant. Respecter la méthode de nettoyage des objectifs indiquée dans l’annexe D au manuel d'utilisateur.

Ré-emballage

Conserver l’emballage et les produits d’emballage d’origine, ils seront d’un précieux secours s’il avère utile d’expédier le projecteur. Pour une protection maximale, ré-emballer l’appareil de la même manière qu’à l’usine.

Eclairage

Pour garantir la meilleure qualité possible de l’image projetée, il est essentiel que l’éclairage ambiant incident sur l’écran soit réduit au strict minimum.

Lors de l’installation du projecteur et de l’écran, il faut veiller à éviter toute exposition directe de l’écran à la lumière ambiante. Eviter tout éclairage perturbateur sur l’écran par des rayons du soleil ou des éclairages fluorescents. L’utilisation d’un éclairage ambiant contrôlable, tel qu’un spot incandescent ou un variateur de lumière est recommandée pour obtenir un éclairage correct de la pièce. Dans la mesure du possible veiller à ce que les parois et le sol de la pièce dans laquelle le projecteur doit être installé soient non-réfléchissants et de couleur foncée. Des surfaces brillantes réfléchissent et diffusent la lumière ambiante et par conséquent réduisent le contraste de l’image sur l’écran.

1-12

5975646A BARCOGRAPHICS 8100LC 220496

Safety Instructions

To ensure the highest optical performance and resolution, the projection lenses are specially treated with an anti-reflective coating, therefore : avoid touching the lens. To remove dust on the lens, use a soft dry cloth. Do not use a damp cloth, detergent solution, or thinner. Follow the lens cleaning procedure on Appendix D in the Owners Manual.

On Repacking

Save the original shipping carton and packing material; they will come in handy if you ever have to ship your projector. For maximum protection, repack your set as it was originally packed at the factory.

On illumination

In order to obtain the best quality for the projected image, it is essential that the ambient light which is allowed to fall on the screen be kept to an absolute minimum.

When installing the projector and screen, care must be taken to avoid exposure to ambient light directly on the screen. Avoid adverse illumination on the screen from direct sunlight or fluorescent lighting fixtures.

The use of controlled ambient lighting, such as incandescent spot light or a dimmer, is recommended for proper room illumination. Where possible, care should also be taken to ensure that the floors and walls of the room in which the projector is to be installed are nonreflecting, dark surfaces. Brighter surfaces will tend to reflect and diffuse the ambient light and hence reduce the contrast of the projected image on the screen.

5975646A BARCOGRAPHICS 8100LC 220496

1-13

Prescription de sécurtié

1-14

5975646A BARCOGRAPHICS 8100LC 220496

Unpacking & Dimensions

UNPACKING

DIMENSIONS

BATTERY INSTALLATION ON THE RCU

5975646A BARCOGRAPHICS 8100LC 220496

2-1

Unpacking & Dimensions

Pull

To open

234

379

Unpacking

To open the banding, pull on the clip as shown in the first drawing.

Take the projector out of its shipping carton and place it on a table. For transportation, the projector is mounted on a wooden board with 3 bolts. Use a 13 mm wrench to remove these bolts. When using the projector as a table mounted configuration, always mount the 3 supporting feet by turning in into the provided holes (see drawing on next page).

Warning : To prevent overheating of the projector as table mounted, always remove the wooden board and turn in the 3 supporting feet to allow air circulation via the built-in dust filter at the bottom.

Save the original shipping carton and packing material, they will come in handy if you ever have to ship your projector. For maximum protection, repack your projector as it was originally packed at the factory.

Contents of the shipped box :

- 1 BARCOGRAPHICS 8100LC

- 1 remote control unit RCU + 9V battery

- 1 power cable with outlet plug type CEE7 or ANSI 73.11.

- 1 owner’s manual

- 3 supporting feet

2-2

5975646A BARCOGRAPHICS 8100LC 220496

Projector dimensions

(units : mm)

Unpacking & Dimensions

Some examples of lenses :

Name lens L min L max (*) mm(inch) mm(inch)

HD(1.2:1) 1072 (42.20) 1087 (42.79) HD(2.2:1) 1043 (41.06) 1070 (42.12) HD(3.3:1) 1017 (40.04) 1072 (42.20) HD(3.9:1) 1022 (40.24) 1162 (45.75) HD(5:1) 1082 (42.60) 1202 (47.32) HD(7:1) 1252 (49.29) 1372 (54.02) HD(1.5-3:1) 1325 (52.17) 1355 (53.35)

5975646A BARCOGRAPHICS 8100LC 220496

(*) More info about lenses, see appendix F

2-3

Unpacking & Dimensions

Battery installation in the RCU.

A battery (not yet installed to save the battery life time) is delivered inside the plastic bag with the power cord. To install the battery, remove the battery cover on the backside of the remote control by pushing the indicated handle a little to the bottom of the RCU. Lift up the top side of the cover at the same time (fig. 1).

Insert the new 9 V battery (type E-block or equivalent) in the lower compartment and connect the battery to the contact plate. Insert the battery into the lower compartment and put the cover back.

Note : projector address has to be programmed on the RCU before using the RCU (see chapter 'Controlling').

2-4

Contact plate

Battery

310a.DRW

Insert here the 'Insert card RCU' which you can cut out on the last page of this manual.

fig.2

fig.1

5975646A BARCOGRAPHICS 8100LC 220496

Installation Guidelines

INSTALLATION GUIDELINES

Environment

What about ambient light?

Which screen type?

What image size? How big should the image be?

5975646A BARCOGRAPHICS 8100LC 220496

Where to install the projector?

How to install the projector?

3-1

Installation Guidelines

Installation guidelines

Careful consideration of things as image size, ambient light level, projector placement and type of screen to use are critical to the optimum use of the projection system.

* Environment

Do not install the projection system in a site near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust or humidity. Be aware that room heat rises to the ceiling; check that temperature near the installation site is not excessive.

* What about ambient light ?

The ambient light level of any room is made up of direct or indirect sunlight and the light fixtures in the room. The amount of ambient light will determine how bright the image will appear. So, avoid direct light on the screen. Windows that face the screen should be covered by opaque drapery while the set is being viewed. It is desirable to install the projecting system in a room whose walls and floor are of non-reflecting material. The use of recessed ceiling lights and a method of dimming those lights to an acceptable level is also important. Too much ambient light results in a ‘wash out’ of the projected image. That appears as less contrast between the darkest and lightest parts of the image. With bigger screens, the ‘wash out’ becomes more important. As a general rule, darken the room to the point where there is just sufficient light to read or write comfortably. Spot lighting is desirable for illuminating small areas so that interference with the screen is minimal.

3-2

5975646A BARCOGRAPHICS 8100LC 220496

* Which screen type?

Screen width

There are two major categories of screens used for projection equipment. Those used for front projected images and those for rear projection applications.

Screens are rated by how much light they reflect (or transmit in the case of rear projection systems) given a determined amount of light projected toward them. The ‘GAIN’ of a screen is the term used. Front and rear screens are both rated in terms of gain. The gain of screens range from a white matte screen with a gain of 1 (x1) to a brushed aluminized screen with a gain of 10 (x10) or more. The choice between higher and lower gain screens is largely a matter of personal preference and another consideration called the Viewing angle.

In considering the type of screen to choose, determine where the viewers will be located and go for the highest gain screen possible. A high gain screen will provide a brighter picture but reduce the viewing angle.

For more information about screens, contact your local screen supplier.

* What image size? How big should the image be?

The BARCOGRAPHICS 8100LC is designed for projecting an image size (video) from 1.00m (3.3ft) to 15.00m (49.2ft) with a aspect ratio of 4 to 3.

Installation Guidelines

5975646A BARCOGRAPHICS 8100LC 220496

3-3

Installation Guidelines * Where to install the projector?

Definitions of the Abbreviation on drawings

B = Distance between ceiling and top of the screen or between floor and bottom of the screen.

A = Correction value, distance between bottom side of projector and middle of the lens. Value to be subtracted from B to obtain the correct installation position. (A value is a constant value for all screen widths and type of lenses, A = 195 mm.)

CD = Total distance between projector and ceiling or projector and floor.

SW = Screen width. SH = Screen height (image height). PD = Projector Distance, distance between screen and projec-

tor.

Inputs and computer video format input compatibility :

Some examples : VIDEO and S-VIDEO

COMPONENT VIDEO RGB ANALOG with STANDARD SYNC (SYNC ON GREEN or SEPARATE SYNC) RGB ANALOG with TRI-LEVEL SYNC (SYNC ON GREEN or SEPARATE SYNC) VGA : 640 x 480 pixels MAC : 640 x 480 pixels Super VGA : 800 x 600 pixels XGA : 1024 x 768 pixels up to 1280 x 1024 pixels Sources with pixel clock < 135 MHz

Lens type selection.

a) determine the required screen width. b) determine the approximate position of the projector in the projection

room with regard to the screen and measure the projector-screen distance (PD).

c) refer to the lens diagrams to find the best corresponding PD

with regard to the measured projector-screen distance for the

required screen width. The lens type is determined (lens name is indicated on top of the page). Start the installation procedure for the projector as described in the manual.

3-4

5975646A BARCOGRAPHICS 8100LC 220496

Installation Guidelines

Table mounting of the BARCOGRAPHICS 8100LCCeiling mounting of the BARCOGRAPHICS 8100LC

Ceiling

Screen

Optical axis proj ection lens

SIDE VIEW

CD = B - A

Projector

CD = B - A

Projector

Screen

Optical axis projection lens

Floor

SIDE VIEW

Screen

BOTTOM VI EW

5975646A BARCOGRAPHICS 8100LC 220496

BACK VIEW

Ceiling

Screen

TOP VIEW

BACK VIEW

Floor

3-5

Installation Guidelines * How to install a projection lens?

The BARCOGRAPHICS 8100LC is supplied without any lens. The following lenses are available as an option :

HD(1.2:1) HD(2.2:1) HD(3.3:1) HD(4.0:1) HD(5:1) HD(7:1) HD(1.5-3:1) HD(3.0-5.3:1)

WHD(3.5:1) How to install the lens by the BARCOGRAPHICS 8100LC? Remove the foam rubber in the opening of the lens holder.

- Take the new lens out of its shipping carton and remove the lens

covers.

- Turn the lens into the lens holder by turning clockwise.

- Focus the lens (see appendix C) and secure the correct position

with the fastener ring by turning this ring clockwise.

* How to install the projector?

Ceiling mount or table mount? To install the BARCOGRAPHICS 8100LC, it is recommended that the BARCO mounting kits which are specially designed for this function be used at all times.

BARCO ceiling support. Order number : R9827341 Always use the BARCO ceiling support to attach your BARCOGRAPHICS 8100LC to the ceiling.

The installation instruction for this support is enclosed in the packet of the set. You can order these instructions also from BARCO. (BARCO order number R5975693)

Note : A ceiling mount adapter is needed to mount the projector to the ceiling mount support. BARCO order number : R9829100.

(see appendix A for detailled information)

BARCO projecti on t abl e.

BARCO's projection table provides adjustable height and offers a stable surface for the projector Order number R9827740.

3-6

5975646A BARCOGRAPHICS 8100LC 220496

INSTALLATION SET UP

Projector configuration

Installation Set Up

5975646A BARCOGRAPHICS 8100LC 220496

4-1

Installation Set Up

The BARCOGRAPHICS 8100LC can be installed to project images in four different configurations : front/table, front/ceiling, rear/table and rear/ceiling.

Rear/Ceiling

Front/Ceiling

Rear/Table

4-2

Front/Table

5975646A BARCOGRAPHICS 8100LC 220496

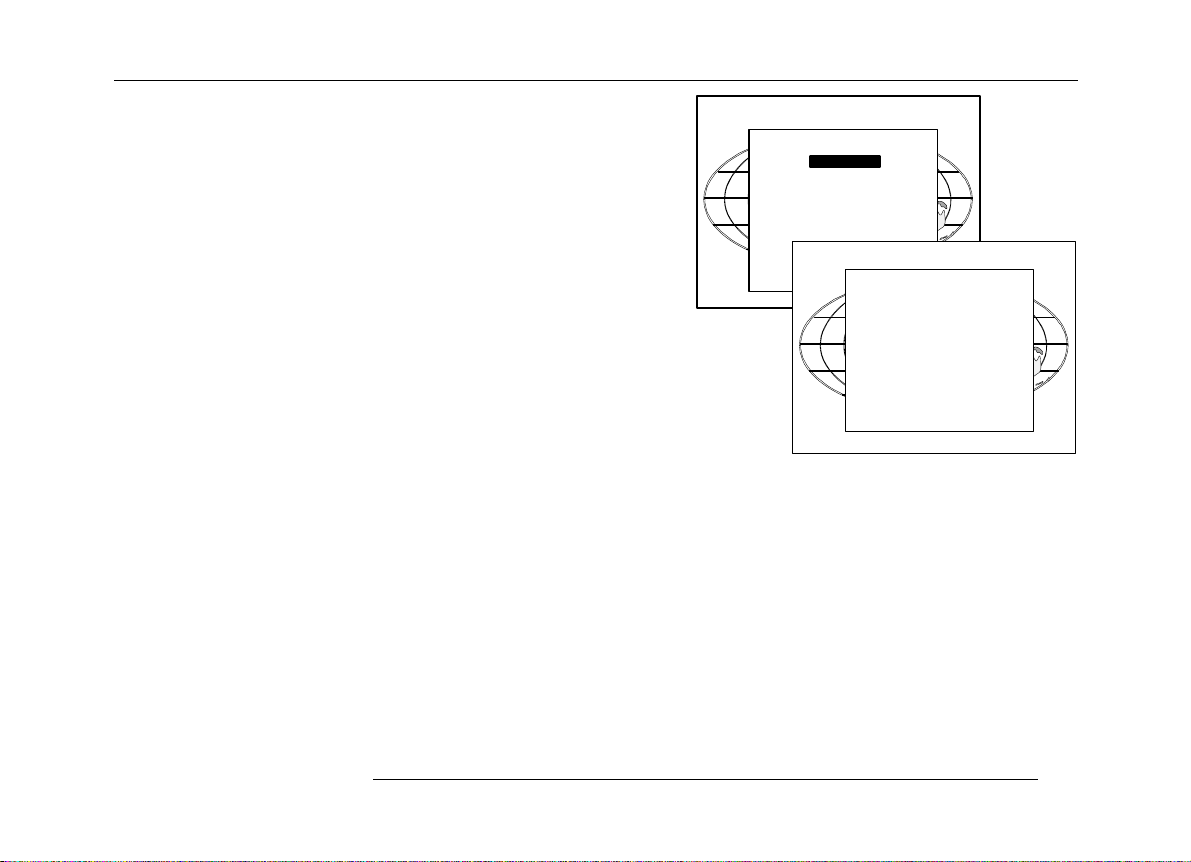

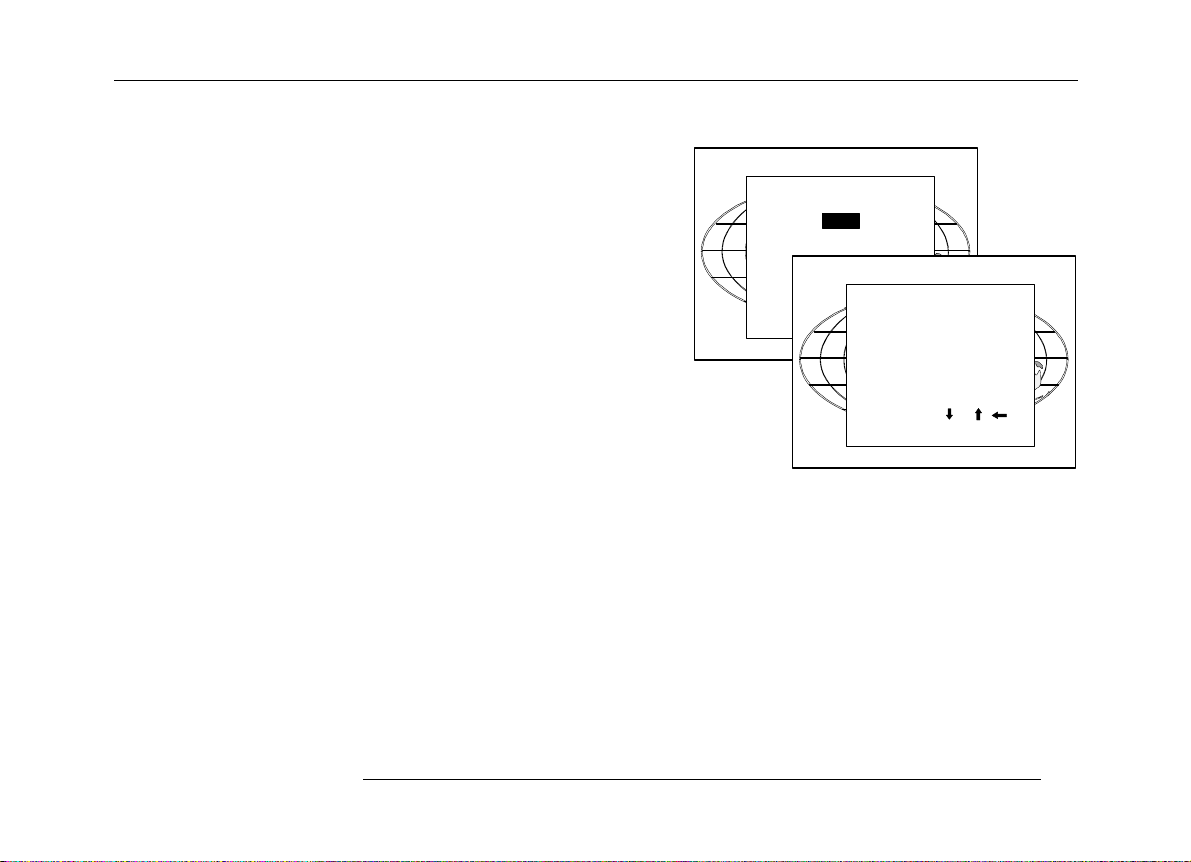

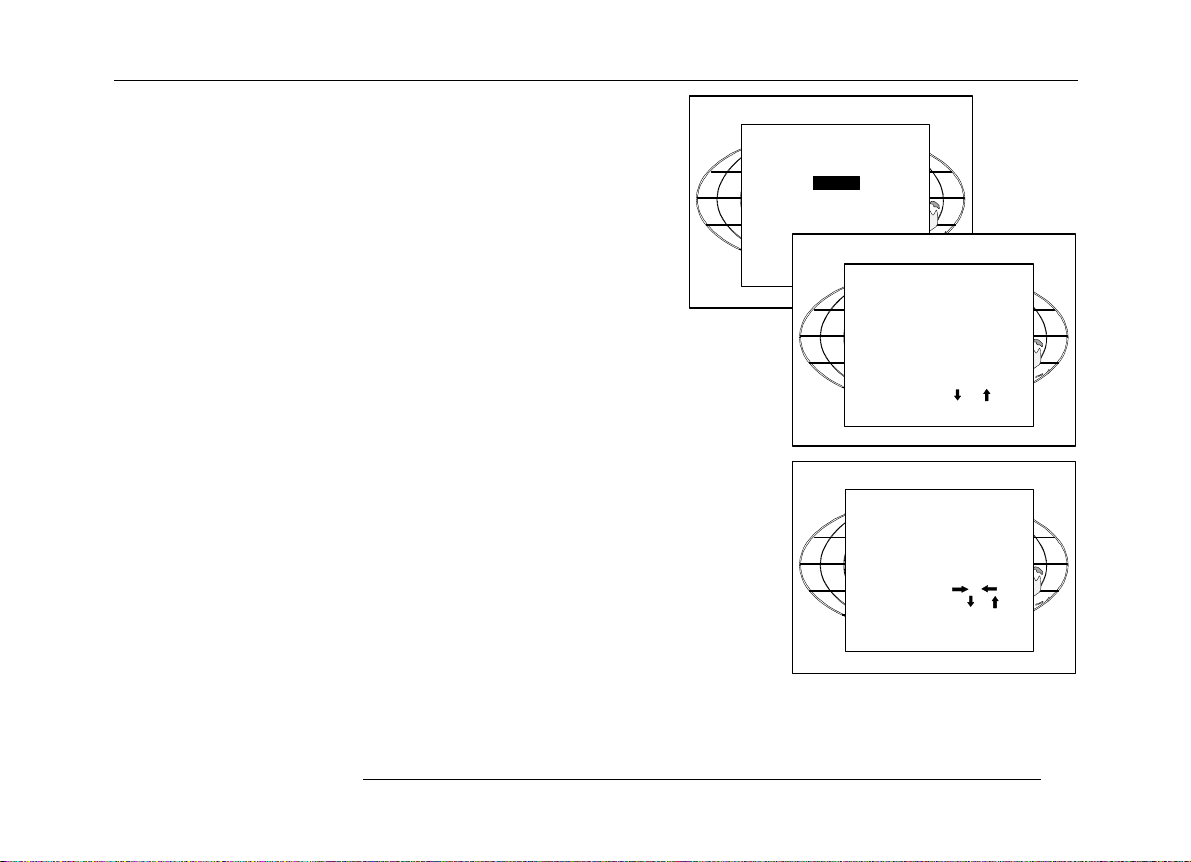

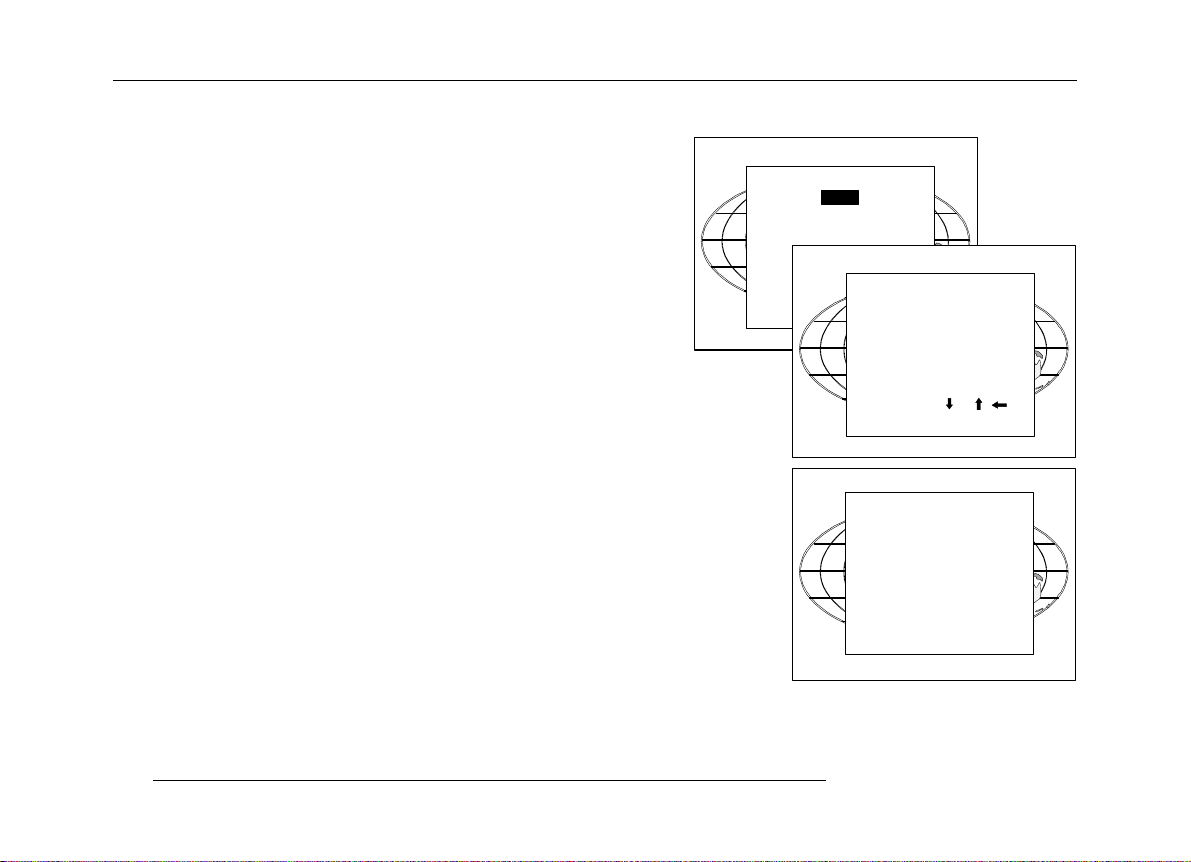

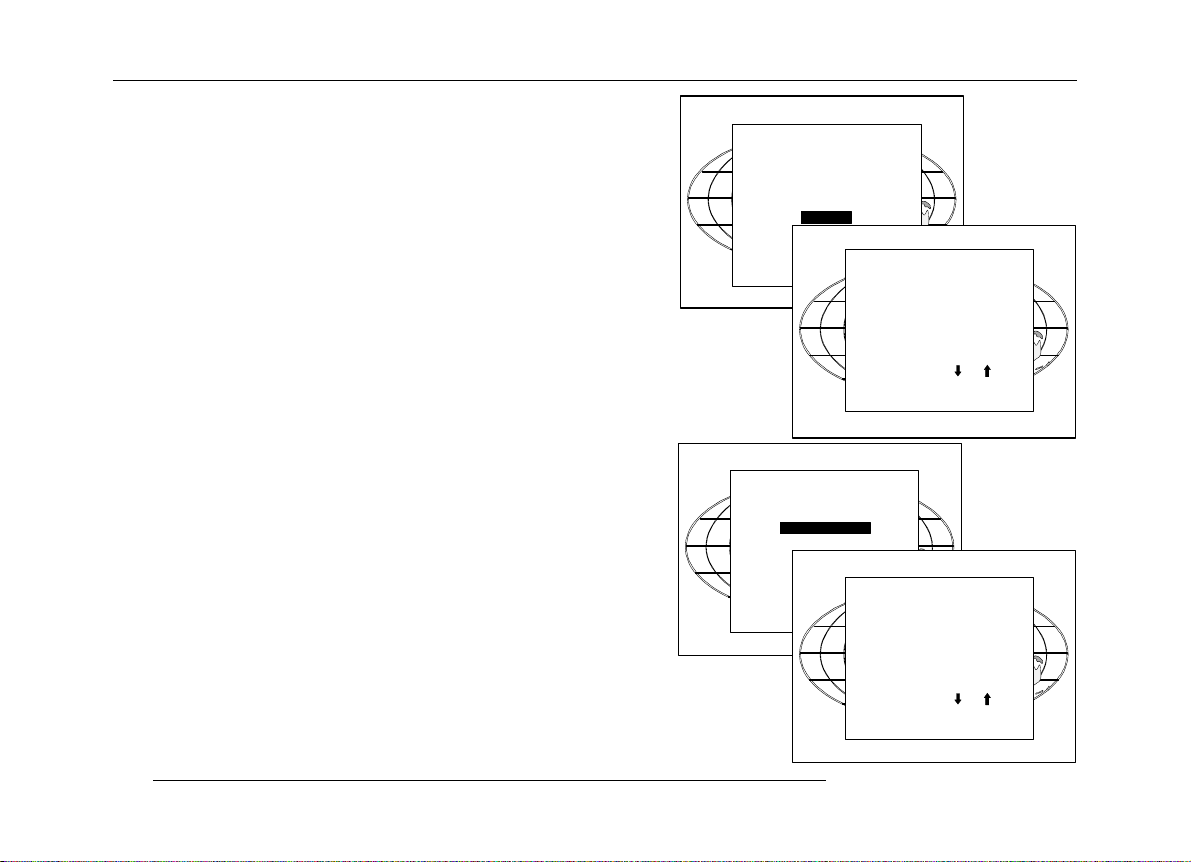

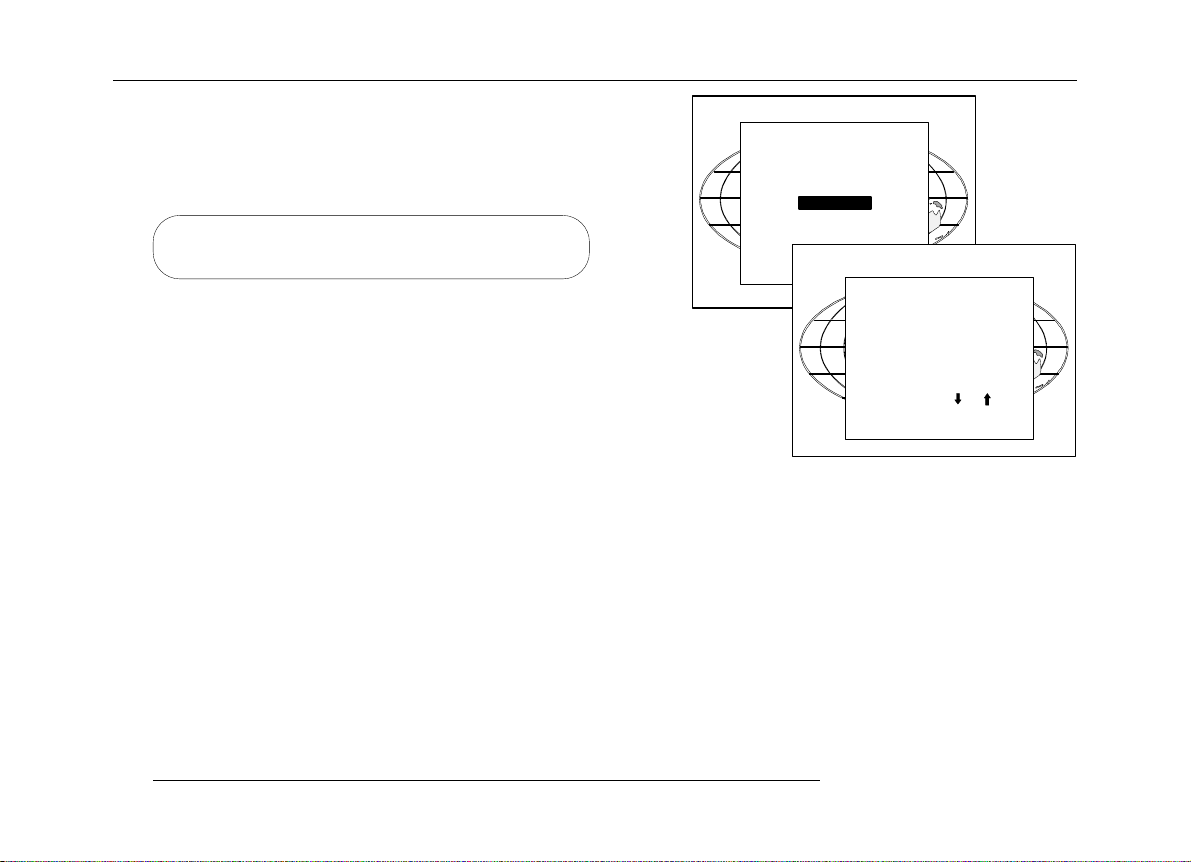

To change the Configuration, enter the adjustment mode by pushing ADJUST or

ENTER.

Highlight Installation by pushing the control stick forward or backward and press

ENTER

to select. The installation menu will be displayed.

ENTER displays the Installation menu. EXIT returns to operational mode.

Highlight Configuration by pushing the control stick forward or backward and press

ENTER to select. The configuration menu will be displayed.

ENTER displays the Configuration menu. EXIT returns to the path selection menu. ADJUST retuns to operational mode.

The actual selected configuration will be highlighted. Push the control stick forward or backward to select the corresponding configuration with regard to the projector environment. Press

ENTER to confirm your selection.

ENTER to confirm the selection. EXIT returns to the installation menu. ADJUST retuns to operational mode.

Installation Set Up

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

Select with or

then <ENTER>

<EXIT> to return.

INSTALLATION

INPUT SLOTS

CONVERGENCE

CONFIGURATION

INTERNAL PATTERNS

Select with or

then <ENTER>

<EXIT> to return.

CONFIGURATION

FRONT/TABLE

FRONT/CEILING

REAR/TABLE

REAR/CEILING

Select with or

then <ENTER>

<EXIT> to return.

5975646A BARCOGRAPHICS 8100LC 220496

4-3

Installation Set Up

4-4

5975646A BARCOGRAPHICS 8100LC 220496

Location and Functions of Control

LOCATION AND FUNCTION OF CONTROLS

Front panel terminology

Local keypad

Remote control

5975646A BARCOGRAPHICS 8100LC 220496

5-1

Location and Functions of Control

Front panel terminology

RS232 OUT

RS 23 2 IN

COMMUNICATIO N PO RT

(800-PERIPHERALS)

PROJECTO R MODE : GREEN - O PERATI ON

REMOTE

RED - ST AND BY

IR-ACKNOWLEDGED

IR-RECEIVED

DIAGNOSTICS

CODE

IR-REC EIV ER

This device co mplies with Part 1 5 of the FCC rules . Operation is subject to fo llowing two conditions : (1) This device may not cause harmful interference (2) This device must a ccept any interferen ce received including interference tha t may cause unde sired ope ration

100 - 230 V 9 - 4 A

60 - 50 Hz

5-2

RS232 IN : to allow communication with external compu-

ter, e.g. IBM PC or compatible, Macintosh ...

2 3 4

RS232 OUT : used to connect to next projector, RS232IN

plug (communication link for PC or MAC to the next projector).

Communication port : allows communication with the

800 peripherals.

Remote : remote input for wired remote control.

Projector mode indication : indicates the status of the

projector.

no lighting up : power switch is not pressed. red lighting up : power switch is pressed, projector in stand by mode. green lighting up : projector in operational mode.

7 8

IR-Acknowledged : IR signals are recognized.

IR-Received : IR signals are received but not recog-

nized by the projector.

Diagnostics code : a) source number

b) error code : a two digits error code is displayed when something goes wrong inside the projector.

IR receiver : receiver for control signals transmitted

from the RCU.

Power switch : '1' = on, '0' = off

Power input : autoranging from 100 to 230 Vac.

5975646A BARCOGRAPHICS 8100LC 220496

Control Panel Terminology

a. Local keypad

Getting access

The keypad is located behind a door, screened with the name of the projector.

To open the door, push once on the indicated side of the door and turn it to the front side of the projector.

b. Remote control

Location and Functions of Control

This remote control includes a battery powered infrared (IR) transmitter that allows the user to control the projector remotely. This remote control is used for source selection, control, adaptation and set up. It includes automatic storing of :

- picture controls (Brightness, Sharpness...)

- settings

5975646A BARCOGRAPHICS 8100LC 220496

Other functions of the remote control are :

- switching between standby and operational mode.

- switching to "pause" (blanked picture, full power for immediate restarting)

- direct access to all connected sources.

- variable adjustment speed : when pushing continuously on the control stick or the picture keys, the adjustment will be executed in an accelerated fashion.

5-3

Location and Functions of Control

Local keypad

9 7 5 3 1

STANDBY

8 6

TEXT

SHARPN TINT BRIGHTN

PHASE

ENTER

COLOR

EXIT

PAUSE

CONTRAST

Remote Control (RCU)

13 12

5 9

TEXT

PHASE

SHARPNESS

COLOR

BRIGHTNESS

CONTRAST

EXIT

ENTER

FREEZ

TINT

ADJ

PAUSE

STBY

9 8

5-4

32a

5975646A BARCOGRAPHICS 8100LC 220496

Location and Functions of Control

Terminology

Back light key

and visible in the dark.

ADJ. : ADJUST key, to enter the adjustment mode or for

quick exit in the adjustment mode.

Address key (recessed key), to enter the address of the

projector (between 0 and 9). Press the sunk address key with a pencil, followed by pressing one digit button between 0 and 9.

STBY : stand by button- to start projection when the

PAUSE : to stop projection for a short time, press 'PAUSE'.

The image disappears but full power is retained for immediate restarting.

Digit buttons : direct input selection.

Picture controls : use these buttons to obtain the desired

picture analog level (see also 'Controlling').

PHASE : used to remove the instability of the image.

TEXT : when adjusting one of the image, e.g. controls

during a meeting, the displayed bar scale can be removed by pressing 'TEXT' key first. To re-display the bar scale on

5975646A BARCOGRAPHICS 8100LC 220496

: when activated, all keys will be lighted up

power switch is switched on. without switching off the power switch.

- to switch off the projector

the screen, press 'TEXT' key again. 'TEXT' key only active in operational mode.

FREEZ : press to freeze the projected image.

ENTER : to start up the adjustment mode or to confirm an

adjustment or selection in the adjustment mode.

EXIT : to leave the adjustment mode or to scroll upwards

when in the adjustment mode.

Control stick key (on RCU) or '+' and '-' keys (cursor

keys): to make menu selections when in the adjustment mode. The control stick can move forward, backward, to the right or to the left. Comparision between control stick movement and the use of the cursor keys on the local keypad : RCU = local keypad control stick forward = '+' key up control stick backward = '-' key down control stick to the right = '+' key right control stick to the left = '-' key left Use the decrease the analog level of the image controls when they are first selected.

RC operating indication : lights up when a button on the

remote control is pressed. (This is a visual indicator to check the operation of the remote control)

'+' and '-' keys (cursor keys) : to increase or

5-5

Location and Functions of Control

5-6

5975646A BARCOGRAPHICS 8100LC 220496

POWER CONNECTION

Power Connection

5975646A BARCOGRAPHICS 8100LC 030696

6-1

Power Connection

Power (mains) cord connection

Use the supplied power cord to connect your projector to the wall outlet. Plug the female power connector into the male connector at the front of the projector.

The power input is auto-ranging from 100 to 240 VAC. This projector may be connected to an IT-power system.

Fuses

Warning For continued protection against fire hazard :

- replace with the same type of fuse.

- refer replacement to qualified service personnel

Fuse type : T12.5 AH/250V

Switching on

RS 232 IN

COMMUNICATION PORT

(800-PERIPHERALS)

VGA-INPUT

REMOTE

PROJECTOR MODE : GREEN - OPERATION

RED - STANDBY

MAC-INPUT

VIDEOS-VIDEO

VIDEO-INPUT

DECODER

Use the power switch to switch on.

When '0' is visible, the projector is switched off. When '1' is visible, the projector is switched on.

6-2

S-VIDEO

VIDEO

100-240Vac 10-4.5A

5975646A BARCOGRAPHICS 8100LC 030696

When switching on with the power switch, the projector starts in the stand by mode. The projector mode indication lamp is red.

Power Connection

To start image projection : a. press the 'Stand by' button on the local keypad or on the remote control. The projector mode indication lamp will be green.

7 5

3 1

STANDBY

TEXT

SHARPN TINT BRIGHTN

EXIT

ENTER

PAUSE

CONTRASTCOLORPHASE

Stand by button

ADJ EXIT

PAUSE

STBY TEXT

PHASE

SHARPNESS

TINT

COLOR

BRIG HTN ESS

CONTRAST

ENTER

FREEZ

b. press a digit button to select an input source. The projector mode indication lamp will be green.

5975646A BARCOGRAPHICS 8100LC 030696

PROJECTOR MODE : GREEN - OPERATION

REMOTE

RED - STANDBY

OMMUNICATION PORT

(800-PERIPHERALS)

Projector mode indication lamp

VIDEOS-VIDEO

6-3

Power Connection

When the total run time of the lamp is 970 hours or more, the following message will be displayed for 1 minute. This message will be repeated every 30 minutes. Press EXIT to remove the message before the minute is over.

When the total run time of the lamp is 1000 hours or more, the following message, with the exact run time is displayed on the screen.

Lamp run time is 1000 hours. Operating the lamp longer than 1000 hours may damage the projector. Please replace the lamp.

When OK (ENTER) is pressed to go on, the warning will be repeated every 30 min.

The total lifetime of the lamp for a safe operation is 1000 hours max. (normal power mode). Do not use it longer. Replace always with a same type of lamp. Call a BARCO authorized service technician for lamp replacement.

Lamp run time 980 h

WARNING

Lamp run time is 1000 hours

Operating the lamp longer

than 1000 hours may damage

the projector.

Please replace the lamp

Warning : Using a lamp for more than 1000 hours is dangerous, the lamp could explode.

Switching to stand-by.

When the projector is running and you want to go to stand-by, press the stand-by key.

Caution

to stand-by and let the projector lamp cool down until the fans stop blowing (or for at least 15 minutes).

6-4

: Before powering down the projector, switch the projector

<ENTER> to continue

Switching off

To switch off:

- press first stop blowing ( or at least 15 min).

- switch off the projector with the power switch.

STANDBY key and let cool down until the fans

5975646A BARCOGRAPHICS 8100LC 030696

Connections

INPUT MODULE CONNECTIONS

Module insertion into the BARCOGRAPHICS 8100LC.

Video/S-Video input module

RGB analog input module

Component input module

RGB3S/RG3sB input module

Peripheral equipment connection

Connecting a computer

5975646A BARCOGRAPHICS 8100LC 220496

Connecting a RCVDS800 or RCVDS05

Connecting a VS05

Connecting an IR Remote Receiver 800

7-1

Connections

Input connections.

The BARCOGRAPHICS 8100LC has modular input facilities. The input slots can be filled up with the following modules :

Video, S-video (NTSC) input

order no. R9827900

RGBS/RGsB analog input

order no. : R9827910

RGB3S/RG3sB input

order no. : R9827920

Component Video input

order no. : R9827930

The sequence of insertion has no importance. It is even perfectly possible to insert several input modules of one type.

Note : When using a RCVDS 800, RCVDS05 or VS05, the input configuration of the projector must be as follows:

Slot 1 : video input module Slot 2 : RGB analog input module Slot 3 : Component input module

Input module insertion into the BARCOGRAPHICS 8100LC :

- Power down the BARCOGRAPHICS 8100LC and disconnect the power cord from the wall outlet.

- Remove the dummy plate covering the chosen input slot by turning out both screws.

- Slide the input module in the free slot. Insure the module is seated correctly in the guide grooves.

- Press on both handles of the input module until the module plug seats in the connector of the BARCOGRAPHICS 8100LC.

7-2

DIAGNOSTICS

CODE

IR-RE CEIVER

RS232 OUT

IR-ACKNOW LEDGED

IR-RE CEIVED

100 - 230 V 9 - 4 A 60 - 50 Hz

- Secure the input module by tightening both retaining screws.

- Reconnect the power cord to the wall outlet and switch on the projector.

The new installed module can be selected with the digit buttons on the RCU or the local keypad.

5975646A BARCOGRAPHICS 8100LC 220496

Connections

Video/S-video input module

To the Video input : Composite video signals from a VCR, OFF air signal decoder, etc...

1 x BNC 1.0Vpp ± 3 dB To the S-Video input : Separate Y-luma/C-chroma signals for higher quality playback of

Super VHS-signals. 1 x 4 pins plug (mini DIN) pin configuration :

1 ground luminance 2 ground chrominance 3 luminance 1.0 Vpp ± 3 dB

4 chrominance 282 mVpp ± 3 dB Input selection : Key in the corresponding slot number on the RCU or the local

keypad. Depending on the priority setting in the Input slots menu, Video or S-Video will be displayed. If the wrong source type is displayed, start up the adjustment mode and select Installation. Select the Input Slots menu. Highlight the corresponding slot number with the arrow keys and press ENTER to change the priority setting. To start up the Adjustment menu, press

ADJUST or ENTER.

RS232 OUT

VCR S-VHS

RS 232 IN

Luma/Chroma

TV tuner, e.g. TVDM 40 stereo

S-Video input

IR-ACKNOWLEDGE D

IR-RECEIVED

VIDEO/S-VIDE O INPUT

Audio input not available

DIAGNOSTICS

CODE

IR-RECEIVER

This device complies with Part 15 of the FCC rules. Operation is subject to following two conditions : (1) This device may not cause harmful interference (2) This device must accept any interference received including interference that may cause undesired operation

Composite Video

Audio amplifier

Video input

100 - 230 V 9 - 4 A 60 - 50 Hz

5975646A BARCOGRAPHICS 8100LC 220496

VCR

7-3

Connections

Push the Control stick key forward or backward to highlight Installation and press ENTER to display the Installation menu.

EXIT returns to operational mode.

Use the control stick to select Input Slots by pushing it forward or backward and press and displays the result in the Input Slots menu.

Push the control stick forward or backward to select the corresponding (video or S-video) input slot number. To change the priority between Video and S-Video, press key to toggle.

ENTER. The internal system will scan the inputs

ENTER

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE Source 01

Select with or

then <ENTER>

<EXIT> to return.

INSTALLATION

CONVERGENCE

CONFIGURATION

INPUT SLOTS

INTERNAL PATTERNS

Select with or

then <ENTER>

<EXIT> to return.

INPUT SLOTS

1. RGB-SS[CV]

2. RGB-SOG

3. Video [Video]

4. Component Video

7-4

5975646A BARCOGRAPHICS 8100LC 220496

Connections

Straps on module level.

Floating or non-floating input. Video input :

J11 : strap "yes" : non floating strap "no" : floating S-Video input :

J12 : strap "yes" : non floating strap "no" : floating J13 : strap "yes" : non floating strap "no" : floating

Factory preset : strap on, input non floating.

Floating or non floating input

J12

J11

J13

5975646A BARCOGRAPHICS 8100LC 220496

7-5

Connections

AAAA

RGB analog input module.

RGB analog input terminals with separate Horizontal and Vertical sync inputs(RGB-HV), with Composite sync input(RGB-S) or with Sync signals on green(RGsB).

Always use an interface when a computer and local monitor have to be connected to the projector. Interfaces to be applied :

Universal analog interface.

Order number : R9826100.

RGB 120 MHz analog interface.

Order number : R9826570.

VGA interface

Order number 120V : R9828079. Order number 230V : R9828070

MAC interface

Order number 120V : R9828059 Order number 230V : R9828050

MAGIK interface

Order number 120V : R9828129 Order number 230V : R9828120

H / C

RGB ANALOG INPUT

Vert. sync

Red

Green

Blue

Hor. sync or Composite sync

RGBS/RGsB analog : 5 x BNC

Red : 0.7 Vpp ± 3 dB Blue : 0.7 Vpp ± 3 dB Green : 0.7 Vpp ± 3 dB

1 Vpp ± 3 dB if sync on green Vert. sync : 1 Vpp to 4 Vpp ± 3 dB Hor. sync / Composite sync :

1 Vpp to 4 Vpp ± 3 dB

All input signals are always 75 ohm terminated, even in the "not selected" mode.

This device complies with Part 15 of the FCC rules. Operation is subje ct to foll owing two cond itions : (1) This device may not cause harmful interference

RS232 OU T

ANALOG INTERFACE 120 MHz

OFF

DIAGNOSTICS

CODE

IR-ACKNOWLE DGED

IR-R ECEIVE D

INPUT

INP

IR-R ECEIVE R

(2) This device must accept any interference received including interference that may cause undesired operation

100 - 230 V 9 - 4 A 60 - 50 Hz

AAA

AAAA

AAA

AAAA

AAA

AAAA

AAA

AAAA

7-6

5975646A BARCOGRAPHICS 8100LC 220496

Connections

RGB input selection :

Key in the corresponding slot number on the RCU or the local keypad.

Straps on module level :

Floating or non-floating input. Red : J3 : strap "yes" : non floating strap "no" : floating

Green :J4 : strap "yes" : non floating strap "no" : floating Blue : J5 : strap "yes" : non floating strap "no" : floating H/C : J6 : strap "yes" : non floating strap "no" : floating V : J7 : strap "yes" : non floating strap "no" : floating

Factory preset : strap "yes", non floating input Sync selection : strap on module level. J8 : see drawing Factory preset : separate sync. Sync selection on the Input Slots menu. The horizontal sync input can be set as separate sync input or as

separate sync + video input. To change this setting, press

ADJUST

or ENTER key to start up the Adjustment mode..

Floating or non floating input

J8 Sync selection

Separate sync

Sync on green

5975646A BARCOGRAPHICS 8100LC 220496

7-7

Connections

Push the control stick key forward or backward to select

Installation

and press ENTER.

Use the control stick to select Input Slots by pushing forward or backward and press

ENTER. The internal system will scan the

inputs and displays the result in the Input Slots menu.

Push the control stick forward or backward to select the corresponding RGB input slot. To change the sync priority for Sync separate, press

ENTER key to toggle between CV and CS or HS&VS.

Possible indication :

RGB-SS [CV] = separate sync is composite video signal

on H/C input.

RGB-SS [CS or HS&VS] = separate sync is composite

sync or horizontal and vertical sync.

RGB-SOG = sync on green.

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE Source 01

Select with or

then <ENTER>

<EXIT> to return.

INSTALLATION

INPUT SLOTS

CONVERGENCE

CONFIGURATION

INTERNAL PATTERNS

Select with or

then <ENTER>

<EXIT> to return.

INPUT SLOTS

1. RGB-SS [CV]

2. RGB-SOG

3. Video [Video]

4. Component Video

7-8

5975646A BARCOGRAPHICS 8100LC 220496

Component input module.

Connect your component signals (Y-luma, R-Y and B-Y), e.g. a professional VCR to the Component input module. Component video : 4 x BNC

R-Y :0.7 Vpp ± 3 dB B-Y : 0.7 Vpp ± 3 dB Y : 0.7 Vpp ± 3 dB

1 Vpp ± 3 dB if Tri-level sync on green

Composite sync : 1 Vpp to 4 Vpp ± 3 dB

All input signals are always 75 ohm terminated, even the module is "not selected".

RS232 OUT

RS 232 IN

REMOTE

GREEN - OPERATION

Red - luma

IR-ACKNOWL EDGED

IR-REC EIVED

Luma

DIAGNOSTICS

CODE

COMPONENT VIDEO INPUT

Sync

Blue - luma

This device complies with Part 15 of the FCC rules. Operation is subject to following two conditions : (1) This device may not cause harmful interference (2) This device must accept any interference received including interference that may cause undesired operation

IR-REC EIVER

Connections

100 - 230 V 9 - 4 A 60 - 50 Hz

5975646A BARCOGRAPHICS 8100LC 220496

Professional VCR

7-9

Connections

Component input selection :

Key in the corresponding slot number on the RCU or the local keypad.

Indication on the input slot menu :

Component Video-SS = Component video with separate sync Component Video-SOY = Component video with sync on Y Component Video-3LSS = Component video with 3 level separate sync Component Video-3LSOY = Component video with 3 level sync on Y

Straps on module level :

Floating or non-floating input. R-Y : J3 : strap "yes" : non floating strap "no" : floating Y : J4 : strap "yes" : non floating strap "no" : floating B-Y : J5 : strap "yes" : non floating strap "no" : floating S : J6 : strap "yes" : non floating strap "no" : floating

Factory preset : strap "yes", non floating input Sync selection.

J8 : strap "no" : separate sync strap "yes" : sync on Y.

Floating or non floating input

J9 : strap "yes" : Tri-level sync strap "no" : normal sync.

7-10

Factory preset : separate sync and normal sync.

5975646A BARCOGRAPHICS 8100LC 220496

RGB3S/RG3sB input module.

Connections

Connect your RGB signals with Tri-level sync, e.g. a professional VCR to the RGB 3 level sync input module. RGB3S/RG3sB analog : 5 x BNC

Red :0.7 Vpp ± 3 dB Blue : 0.7 Vpp ± 3 dB Green : 0.7 Vpp ± 3 dB

1 Vpp ± 3 dB if Tri-level sync on green Vert. Tri-level sync : 1 Vpp to 4 Vpp ± 3 dB Hor. Tri-level sync / Composite Tri-level sync:

1 Vpp to 4 Vpp ± 3 dB

All input signals are always 75 ohm terminated, even in the "not selected" mode.

Input selection :

Key in the corresponding slot number on the RCU or the local keypad.

Indication on the input slot menu :

RGB3L-SS = RGB with separate Tri level sync. RGB3L-SOG = RGB with Tri level sync on green.

RS232 OUT

H / C

98 27920

RGB 3-LEVEL SYNC INPUT

Vert. 3 level

sync Hor. or composite 3 level sync

Blue

Green

Red

This device complies with Part 15 of the FCC rules. Operation is subject to following two con ditions : (1) This device may not cause harmful interference

IR-RECEI VER

(2) This device must accept any interference received including interference tha t may cause undesired operat ion

100 - 230 V 9 - 4 A 60 - 50 Hz

DIAGNO STIC S

RS 232 IN

IR-ACKNOWLEDGED

IR-RECEI VED

CODE

HDTV VCR

5975646A BARCOGRAPHICS 8100LC 220496

7-11

Connections

Straps on module level :

Floating or non-floating input. Red : J3 : strap "yes" : non floating strap "no" : floating Green :J4 : strap "yes" : non floating strap "no" : floating Blue : J5 : strap "yes" : non floating strap "no" : floating H/C : J6 : strap "yes" : non floating strap "no" : floating V : J7 : strap "yes" : non floating strap "no" : floating

Factory preset : strap "yes", non floating input Sync selection. J8 : separate sync or sync on green. Factory preset : separate sync.

Floating or non floating input

J8 Sync selection

Separate 3 level sync

3 level sync on green

7-12

5975646A BARCOGRAPHICS 8100LC 220496

Connecting a computer, e.g. IBM PC (or compatible), Apple Macintosh to the RS 232 input of the projector.

The BARCOGRAPHICS 8100LC projector has a RS232 port that allows it to communicate with a computer.

Applications : remote control and data communications.

a) remote control :

- easy adjustment of projector via IBM PC (or compatible) or MAC connection.

- allow storage of multiple projector configurations and set ups.

- wide range of control possibilities.

- address range from 0 to 255.

b) data communications :

- sending data to the projector or copying the data from the projector to a hard memory device.

Set up of the baud rate for communication with a computer.

See

'Change Baudrate PC'

in chapter

'Service mode'

RS232 OUT

RS232 connection

IR-ACKNOWLEDGED

IR-REC EIVED

DIAGNOSTICS

CODE

IR-REC EIVER

This device complies with P art 15 of the FCC rules. Operation is subject to following two conditions : (1) This device may not cause harmful interference (2) This device must accept any i nterference rec eived including interference that may cause undesired operation

Connections

100 - 230 V 9 - 4 A 60 - 50 Hz

5975646A BARCOGRAPHICS 8100LC 220496

7-13

Connections

Connecting a RCVDS 800 or RCVDS 05 to the BARCOGRAPHICS 8100LC.

- Up to 10 inputs with one RCVDS800 or 20 inputs with the RCVDS 05 and 90 inputs when RCVDS's are linked via the expansion module.

- Serial communication with the projector.

- Remote control buttons on the RCVDS to control the BARCOGRAPHICS 8100LC (source selection and analog settings).

- The selected source number will be displayed on a 2 digit display and the selected input module will be indicated with a LED on the rear.

For more information about the use of : the RCVDS 800, consult the owner's manual, order number : R5975004. the RCVDS 05, consult the owner's manual, order number : R5975765.

Connecting a VS05 to the BARCOGRAPHICS 8100LC.

The VS05 can switch up to 5 Composite Video sources, 3 Super Video sources and 1 RGB analog or component video source to the BARCOGRAPHICS 8100LC. In addition, the audio signal proper to the source, can be switched to an audio amplifier. Order number : R9827890

For more information about the use of the VS05, consult the VS05 owner's manual, BARCO order number : R5975245.

Connecting an IR Remote Receiver 800 to the BARCOGRAPHICS 8100LC.

This infrared red receiver unit makes it possible to control the BARCOGRAPHICS 8100LC from another room. There is a communication line cable between the IR receiver and the projector or the RCVDS. The control information from the RCU can now be sent to the IR Remote Receiver 800. The IR Remote Receiver 800 displays the selected source on a 7segment display. Order number : R9827515.

Communication cable

IR Remote Receiver 800

Screen

BARCOGRAPHICS 8100

Projection room

Control room

7-14

5975646A BARCOGRAPHICS 8100LC 220496

CONTROLLING

How to use the RCU.

Projector address

How to display a projector address.

How to program an address into the RCU.

Picture controls with direct access.

Controlling

5975646A BARCOGRAPHICS 8100LC 130696

8-1

Controlling

The BARCOGRAPHICS 8100LC can be controlled with

a. the RCU b. the hardwired RCU (cable is not included) c. the local keypad.

Controlling the projector with the RCU and the hardwired RCU is equal.

How to use the RCU?

a) Point the front of the RCU to the reflective screen surface.

Ceiling

IR sensor

Screen

RCU

b) RCU used in a hardwired configuration.

RS232 OUT

IR-ACKNOWLEDGED

IR-RECEIVED

100 - 230 V 9 - 4 A

60 - 50 Hz

This devi c e complies w ith Pa rt 15 of the FCC r ules. Oper a tion is subject to fol l owing tw o c o nditio ns : (1) Thi s device m ay not cause h armful i nterf erence (2) Th i s device m ust acce pt any int e rferenc e receiv ed

DIAGNOSTICS

includ ing in ter f ere nce t hat may ca use undesi r ed oper at i on

CODE

IR-RECEIVER

Cable not included

Plug one end of the remote cable in the connector on the bottom of the RCU and the second side in the connector in the front panel of the BARCOGRAPHICS 8100LC labelled 'REMOTE'.

8-2

5975646A BARCOGRAPHICS 8100LC 130696

Controlling

c) Point the front of the RCU directly at one of the IR sensors of the projector.

IR sensor

IR-RECEIVED

IR-ACKNOWLEDGED

CODE

IR-RECEIVER

DIAGNOSTICS

Front of pr ojector

45° 45°

RCU

Ceiling

Table

IR sensor

Rear of projector

45° 45°

RCU

65 43

When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the projector IR sensor.

Projector address

a. Software set up of the projector address.

See 'Change projector address' in chapter 'Service mode'. Every projector requires an individual address between 0 and 255

which can be set in the Service mode. Only projectors with addresses between 0 and 9 can be controlled with the RCU.

b. How to control the projector or projectors.

The projector's address may be set to any value between 0 and 255. When the address is set, the projector can be controlled now :

- RCU for addresses between 0 and 9.

- computer, e.g. IBM PC (or compatible), Apple MAC, etc. for addresses between 0 and 255.

Note : a projector will respond to a RCU set to an address of '0' regardless of what address is set in the projector itself.

c. Using the RCU.

Before using the RCU, its is necessary to enter the projector address into the RCU (only when that address is between 1 and 9). The projector with the corresponding address will listen to that specific RCU. When address 0, 'zero address' is programmed into the RCU, every projector, without exception will listen to the commands given by this RCU.

5975646A BARCOGRAPHICS 8100LC 130696

8-3

Controlling

How to display a projector address?

Press the ADDRESS key (sunk key on the RCU) with a pencil. The projector's address will be displayed in a 'Text box'. This text box disappears after a few seconds. To continue using the RCU, it is necessary to enter the same address with the digit buttons (address between 0 and 9). For example : if the Address key displays projector address 003, then press "3" digit button on the RCU to set the RCU's address to match the projector's address.

How to program an address into the RCU?

Press the ADDRESS key (sunk key on the RCU) with a pencil and enter the address with the digit buttons. That address can be any digit between 0 and 9. When programming '0', zero address, the RCU will control any projector regardless of the projector's address. This feature allows multiple projectors with different addresses to be controlled by a single RCU.

Picture controls with direct access.

When an image control is pressed, a text box with a bar scale, icon and function name of the control, e.g. 'brightness...' appears on the screen (only if text is ON). See example screen. The length of the bar scale and the value of the numeric indication indicate the current memorized setting for this source. The bar scale changes as the + or - buttons of the control on the RCU are pressed or the + or - buttons on the local keypad.

Brightness Control

A correct Use the + button for a higher brightness. Use the - button for a lower brightness.

8-4

'brightness'

setting is important for good image reproduction.

PROJECTOR ADDRESS

001

BRIGHTNESS

5975646A BARCOGRAPHICS 8100LC 130696

10050

Controlling

Contrast Control

A correct 'contrast' setting is important for good image reproduction. Adjust the contrast to the level you prefer, according to room lighting conditions. Use the + button for a higher contrast. Use the - button for lower contrast.

Color Saturation

Color saturation is only active for Video and S-Video. Adjust the color intensity of the picture. Use the + button for richer colors. Use the - button for lighter colors.

Tint Control

Tint is only active for Video and S-Video when using the NTSC 4.43 or NTSC 3.58 system. Use the + button Use the - button.

Sharpness Control.

Use the + button for a sharper picture. Use the - button for a softer picture.

Phase Control

Use the arrow keys to adjust the phase. Within the total adjustment range there are 2 or 3 areas where the phase is correctly aligned.

5975646A BARCOGRAPHICS 8100LC 130696

8-5

Controlling

8-6

5975646A BARCOGRAPHICS 8100LC 130696

Start Up of the Adjustment Mode

START UP OF THE ADJUSTMENT MODE

5975646A BARCOGRAPHICS 8100LC 220496

9-1

Start Up of the Adjustment Mode

Adjustment Mode

All source set ups, picture tunings and geometry are made while in the 'Adjustment mode' . Press the ADJUST or ENTER key to enter the 'Adjustment mode'.

You are now in the 'Adjustment mode'. The control stick (RCU) or '+ or '-' keys (local keypad) are used to make menu selections and also for adjustments. The

EXIT keys are used to move forward and backward through the menu structure. The ADJUST key can be used to terminate the adjustment mode while any path selection

menu is displayed. There are 5 possible paths to follow once in the Adjustment mode. They are :

ENTER and

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

Select with or

then <ENTER>

<EXIT> to return.

Installation - Installation should be selected if a new input module is

installed or a new source is connected to an existing input module. Also when the projector is relocated in a new configuration.

Guided - Guided should be selected if the user intends to perform a

complete new set up. All of the necessary adjustments or set ups are made in a predetermined sequence.

9-2

Random Access - Random Access should be selected if the user is

used to set up a source.

Service - Service should be selected if the user intends to change

general settings such as password, language, address, etc.or some service actions as reset lamp run time, panel adjustments, etc. or get set-up information.

5975646A BARCOGRAPHICS 8100LC 220496

Some items in the Adjustment mode are password protected. While selecting such an item, the projector asks to enter your password (Password protection is only available when the password strap on the controller module is ON, see 'Change password' in chapter 'Service mode'.

Your password contains 4 digits. Enter the digits with the numeric keys.

Example : 2 3 1 9 The first digit position is highlighted. Enter with the numeric keys. The highlighted square jumps to the next position. Continue until all 4 digits are filled in.

When your password is correct, you get access to the selected item. When your password is wrong. The error message "Invalid password" is displayed on the screen. Press

ENTER to continue and to return to the Service menu.

Start Up of the Adjustment Mode

PASSWORD

ENTER PASSWORD

----

Use numeric keys

<EXIT> to return

Error

Factory programmed password :

0 0 0 0

Once the password is correctly entered, all other password protected items are accessible without re-entering your password.

When re-entering the Adjustment mode, it will be nessary to enter your password again when selecting a password protected item.

5975646A BARCOGRAPHICS 8100LC 220496

Invalid password

<EXIT> to return

9-3

Start Up of the Adjustment Mode

9-4

5975646A BARCOGRAPHICS 8100LC 220496

Guided Adjustment Mode

GUIDED ADJUSTMENT MODE

5975646A BARCOGRAPHICS 8100LC 220496

10-1

Guided Adjustment Mode

The Guided Adjustment Mode is not active.

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE Source 01

Select with or

then <ENTER>

<EXIT> to return.

10-2

5975646A BARCOGRAPHICS 8100LC 220496

Random Access Adjustment Mode

RANDOM ACCESS ADJUSTMENT MODE

File Service

Picture Tuning

Geometry

5975646A BARCOGRAPHICS 8100LC 130696

11-1

Random Access Adjustment Mode

Starting up the Random Access Adjustment Mode

Push the control stick forward or backward to highlight 'Random Access' and then press

ENTER.

RANDOM ACCESS

ADJUSTMENT MODE

FILE SERVICE

PICTURE TUNING

GEOMETRY

Select with or

then <ENTER>

<EXIT> to return.

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

Select with or

then <ENTER>

<EXIT> to return.

11-2

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

PICTURE TUNING

SYNC [SLOW]

STILL VIDEO [ON]

COLOR BALANCE

GAMMA

Select with or

then <ENTER>

<EXIT> to return.

GEOMETRY

SHIFT

SIZE

SIDE KEYSTONE

BLANKING

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

5975646A BARCOGRAPHICS 8100LC 130696

Random Access Adjustment Mode

File service

Before using a new source, a correct file has to be installed. The projector's memory contains a list of files corresponding to the most used sources. When the new source corresponds with one of these files, the file can be loaded and saved for future use. When there is a little difference, the file can also be loaded and than edited until the source specs are reached.

Highlight

ENTER to select. The File service menu will be displayed.

The following file manupulations are possible :

File Service

by pushing the control stick forward or backward and press

ENTER displays the File Service menu; EXIT returns to the Path selection menu. ADJUST returns to operational mode.

- Load : installation of a file for a new source.

- Edit : editing a loaded file to the source specs.

- Rename : renaming a file.

- Copy : copying a file to a new file.

- Delete : deleting an existing file.

- Options : way of displaying the file annotation and sort possibilities.

File annotation : xxxxxxxx.xxx x xxxxXxxxxi

i or blanc : i = interlaced, blanc = not interlaced

xxxxXxxxx : active pixel rating

x : source number

xxx : file extension, first character is C (for custom made files) or S (for standard files). The second and third character is used for a following number (=file index) file index for custom files : 00 to 63.

xxxxxxxx : base name, 8 characters.

ADJUSTMENT MODE

RANDOM ACCESS

FILE SERVICE

PICTURE TUNING

GEOMETRY

Select with or

then <ENTER>

<EXIT> to return.

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

5975646A BARCOGRAPHICS 8100LC 130696

11-3

Random Access Adjustment Mode

Load file

Push the control stick forward or backward to select LOAD and press

ENTER to display the Load menu.

The Load menu displays the corresponding files depending on the installed filter.

This filter can be "Fit" or "All". To change the filter, push the control stick to the right to select "filter list" (filter list will be hightlighted) and press

ENTER to toggle the annotation between brackets.

"All" : all files that can be loaded will be displayed. "Fit" : only the best fitting files will be displayed (with a distinction of ± 2 lines and line duration distinction of ± 300 ns)

Push the control stick forward or backward to select the most fitting file and press When scrolling through the files, the image will be adapted according the settings of the selected file (on line adaptation). When the best fitting image is displayed, press Load file menu will be displayed with the new created file and the on which the new file is based on. Press load file menu.

If the displayed image is not yet as it has to be, select the most corresponding file and go to the Edit menu to change the file settings.

During a load file, the actual active file is displayed next to the indication 'Active file'.

ENTER to select.

ENTER to select this file. A confirm

ENTER to confirm your new creations or EXIT to return to the

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

FILTER LIST [All]

Filename Src Resolution

----------------------------------------------------pal .s01 1 675x278i pal .c01 1 675x278i secam .s03 3 675x278i

----------------------------------------------------Active file : pal.c50

Select with or ,

<ENTER> to accept

<EXIT> to return.

<ENTER> to confirm

<EXIT> to return

LOAD FILE

CONFIRM

LOAD FILE

Create file

pal.c02

based on file

pal.s01?

11-4

5975646A BARCOGRAPHICS 8100LC 130696

Edit file

The Edit file menu makes it possible to change the settings of the file according to the real settings of the connected source. Consult the source specification before entering the data. To start up the EDIT menu, push the control stick forward or backward to select EDIT in the FILE menu and press

Select the file which must be edited (mostly the active file) and press

ENTER.

The Edit file adaptation menu will be displayed. The file name will be displayed in the upper right corner. The following items can be adjusted : Total quantity horizontal pixels Active quantity horizontal pixels Horizontal shift in pixels Horizontal period in µs (is automatically adapted during the installation of a file with LOAD) Total vertical lines (is automatically adapted during the installation of a file with LOAD) Active vertical lines Vertical shift in lines Interlaced : toggle on/off (is automatically set to its correct position during the installation of a file with LOAD)

All settings can individually be changed. Push the joy stick key forward or backward to select an item. The color of the selected item will change and follow one of the three methods to change the value. a. press

ENTER to activate the digits and enter directly with the

numeric keys on the RCU or local keypad the new value or b. press

ENTER to activate the digits. Push the joy stick key to the

right or to the left to select the changing digit. Push the joy stick key

ENTER.

Random Access Adjustment Mode

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with or

then <ENTER>

Filename Src Resolution

<EXIT> to return.

----------------------------------------------------pal .s01 1 675x278i pal .c01 1 675x278i secam .s03 3 675x278i

----------------------------------------------------Active file : pal.c50

EDIT FILE

Select with or ,

<ENTER> to accept

<EXIT> to return.

5975646A BARCOGRAPHICS 8100LC 130696

11-5

Random Access Adjustment Mode

forward or backward to scroll to desired digit. When finished press

ENTER to confirm.

c. counting up or down by pushing the joy stick key to the right or to the left.

How finding the correct values for the displayed item? During the installation of a file with LOAD, the horizontal period, the total number of vertical lines and the interlaced mode are automatically measured and filled in in the menu table. These values will be available when starting up the EDIT procedure of an active file. Select first If the value for (small vertical bars in the projected image) will be seen in the image. Select "Total" and adjust the pixel quantity. Adjust for zero bars (hint : if the number of bars increase, adjust in the other way).

The active pixels : determine the width of the window on the screen. This value is normally given in the source specifications. If not, adjust until full image is displayed (no missing pixels).

Horizontal shift : to shift the image on the screen. Horizontal period : already filled in with the correct value when active

file. Press Select

press ENTER. The full image is displayed. The

selected to be edited.

"Horizontal"

and press ENTER to display a full image.

"Horizontal total pixels"

is wrong, sampling mistakes

EXIT to return to the normal Edit file menu.

"Vertical"

"Vertical Total lines"

by pushing the joy stick key forward or backward and

are already filled when an active file is

of the projected image. This value is normally given in the specification of the source. If not, adjust until full image height is displayed (no missing lines)

Vertical shift

backward) on the screen until the correct image position is obtained.

Interlaced [On] or [Off]

active file has to be edited. If the image is wrong due to mismeasurement, use the ENTER key to toggle between [On] and [Off]. (for interlaced images, 1 frame contains 2 fields).

: shift the image up and down (push joy stick forward or

: this selection is automatically filled when

Read AMDS

AMDS = automatic mode detection & synchronisation During the installation of a file with LOAD, the system automatically measured the horizontal period, the total vertical lines and the interlaced mode. When selecting Read AMDS, the system remeasures the above indicated items.

The

"Active lines"

11-6

: number of horizontal lines determining the height

5975646A BARCOGRAPHICS 8100LC 130696

Options

Random Access Adjustment Mode

Source number : The source number of a non-active source can be changed to any other source number. This makes it possible to create a file for future source numbers.

Clamp position : Clamping determines the black level of the signal. The clamp pulse can be related to the leading or the trailing edge of the sync pulse. Use the

ENTER key to toggle between [leading] and

[trailing]. Clamp delay : The time between the leading edge of the clamp pulse

and the locked edge of the sync pulse. Can be any value between 0 and 127. Change the value by pushing the control stick to the left or to the right.

Clamp width : The width of the clamp pulse Can be any value between 0 and 127. Change the value by pushing the control stick to the left or to the right.

Field polarity : Default [auto] [auto] = autodetection of the field polarity. The field polarity function is used for interlaced images. Both rasters of the image could be shifted in a wrong way (double lines are visilble in the image). This can be corrected by forcing the field polarity to [neg] or [pos]. Use the

ENTER key to toggle between [auto], [pos] and [neg].

Field select : Default [both] The field select is only used for interlaced images. One frame of an interlaced image contains two fields, an even and an odd field. The choice exists to project [both] fields on the screen or only the [even] or [odd] field. This can be useful for 3D projection. Use the

ENTER key to toggle between [both], [even] and [odd].

EDIT FILE OPTIONS

Source number 1 Clamp position [leading] Clamp delay 0 Clamp width 10 Field polarity [pos] Field select [both] Vertical refresh [sync] Vert. sync polarity [leading]

Select with or

<ENTER> to toggle

or to change value

<EXIT> to return

Example for clamp position [trailing]

leading edge

trailing edge

Sync pulse

Clamp pulse

Clamp width

Clamp delay

5975646A BARCOGRAPHICS 8100LC 130696

11-7

Random Access Adjustment Mode

Vertical refresh [sync/async] : The way of updating the image information on the LCD panels. For moving images, the vertical refresh has to be done on a synchronous way, for still images, asynchronous vertical refresh is possible.

Vertical sync polarity : [leading] or [trailing] The vertical refresh can be synchronised with the leading sync edge or trailing sync edge. Default on [leading]. Toggling to [trailing] is only necessary for special applications where the trailing edge of the sync signal has to be taken as a reference. Use the

Press

ENTER key to toggle between [leading] or [trailing]

EXIT to leave the Edit File Option menu.

11-8

5975646A BARCOGRAPHICS 8100LC 130696

Rename

To change the name of a selected file. Use the control stick to select RENAME and press Rename selection menu will be displayed.

Use the control stick to select a file name and press ENTER to select. The Rename menu will be displayed with the selected file name

already filled in in the 'From file name :' area and in the 'To file name :' area.

Press

ENTER to select the separate characters. Push the control

stick to the right or to the left to select the desired character. Change that characters by pushing the control stick forward or backward. Numeric characters can be entered directly with numeric keys on the RCU. Press

ENTER to confirm. The renamed file is entered in the list of files.

Press

EXIT to return to the Rename menu selection. No changes are

made.

ENTER. The

Random Access Adjustment Mode

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

RENAME FILE

Filename Src Resolution

----------------------------------------------------pal .s01 1 675x278i pal .c01 1 675x278i secam .s03 3 675x278i

----------------------------------------------------Active file : pal.c50

Select with or

<ENTER> to accept

<EXIT> to return.

RENAME FILE

Frome file name :

pal.s01

To file name :

demo.s10

Select with or

Reprogram with or

or numeric keys

<ENTER> to confirm

<EXIT> to return

5975646A BARCOGRAPHICS 8100LC 130696

11-9

Random Access Adjustment Mode

Copy

To copy a selected file into a new file. Use the control stick to select COPY and press selection menu will be displayed. Use the control stick to select a file name and press

The Copy menu will be displayed with the selected file name already filled in in the 'From file name :' area and in the 'To file name :' area.

Press ENTER to select the separate characters. Push the control stick to the right or to the left to select the desired character. Change that characters by pushing the control stick forward or backward. Numeric characters can be entered directly with numeric keys on the RCU. Press

ENTER to confirm. The copied file is entered in the list of files.

Press

EXIT to return to the Copy selection menu. No copies are

made.

ENTER. The Copy

ENTER to select.

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

Filename Src Resolution

----------------------------------------------------pal .s01 1 675x278i pal .c01 1 675x278i secam .s03 3 675x278i

----------------------------------------------------Active file : pal.c50

Select with or

<ENTER> to accept

<EXIT> to return.

Reprogram with or <ENTER> to confirm

COPY FILE

Frome file name :

xga_60.s03

To file name :

xga_60.c14

Select with or

or numeric keys

<EXIT> to return

11-10

5975646A BARCOGRAPHICS 8100LC 130696

Delete

To delete a selected file out of the list of files. Use the control stick to select DELETE and press selection menu will be displayed.

Push the control stick forward or backward to select a file and press

ENTER.

If [All] is selected, your password has to be entered before all files will be deleted.

ENTER. The delete

Random Access Adjustment Mode

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

DELETE FILE

Filename Src Resolution

----------------------------------------------------pal .s01 1 675x278i pal .c01 1 675x278i secam .s03 3 675x278i [All]

----------------------------------------------------Active file : pal.c50

Select with or

<ENTER> to accept

<EXIT> to return.

A confirmation menu "Delete file 'file name'?" is displayed. When you want to delete the file, press file, press

EXIT.

ENTER. If you do not want to delete the

Note : the active file cannot be deleted.

5975646A BARCOGRAPHICS 8100LC 130696

CONFIRM

DELETE FILE

Delete file:

pal.c01?

<ENTER> to confirm

<EXIT> to return

11-11

Random Access Adjustment Mode

File Options

Use the control stick to select OPTIONS and press ENTER. The option selection menu will be displayed.

Press ENTER to toggle between [name] and [index] [name] : The files in the file list will be sorted on the file name. [index] : The files in the file list will be sorted on the file extension.

Picture Tuning

Highlight Picture Tuning by pushing the control stick forward or backward and press ENTER to select. The Picture Tuning menu will be displayed. The next items are available :

- sync slow/fast

- still video

- color balance

- gamma

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

RANDOM ACCESS

ADJUSTMENT MODE

FILE SERVICE

PICTURE TUNING

GEOMETRY

Select with or

then <ENTER>

<EXIT> to return.

FILE OPTIONS

FILE SORT [NAME]

Select with or

then <ENTER>

<EXIT> to return.

PICTURE TUNING

SYNC [SLOW] STILL VIDEO [ON] COLOR BALANCE

GAMMA

11-12

Select with or

then <ENTER>

<EXIT> to return.

5975646A BARCOGRAPHICS 8100LC 130696

Sync slow/fast

Highlight sync by pushing the control stick forward or backward and press ENTER to toggle between SLOW and FAST.

Note : Sync is normally used in the SLOW position. The FAST position is used to compensate for unsteady sync pulses from older video playback equipment.

Random Access Adjustment Mode

PICTURE TUNING

SYNC [SLOW]

STILL VIDEO [ON] COLOR BALANCE

GAMMA

Select with or

then <ENTER>

<EXIT> to return.

Still Video

This function is only used for stationary interlaced images. Highlight Still Video by pushing the control stick forward or backward and press ENTER to toggle between ON and OFF.

Still Video : ON : the displayed image contains less jitter and gives a sharper image. Still Video : OFF : for moving picture.

5975646A BARCOGRAPHICS 8100LC 130696

PICTURE TUNING

SYNC [SLOW]

STILL VIDEO [ON]

COLOR BALANCE

GAMMA

Select with or

then <ENTER>

<EXIT> to return.

11-13

Random Access Adjustment Mode

Color Balance

Highlight Color Balance by pushing the control stick forward or backward and press ENTER to select the color balance selection menu.

The next choices are possible : Fixed color balance :

- 3200 K (reddish)

- 6500 K (white)

- 9300 K (bluish) Custom white balance. Push the control stick forward or backward to select Fixed Color

Balance or Custom Color Balance. If Fixed Color Balance is selected, use the control by pushing it to the right or to the left to select one of the 3 prepogrammed color temperatures.

When Custom Color Balance is selected, push the control stick forward or backward to adjust red and push the control stick to the right or to the left to adjust blue (range 0 to 2.5) in comparison with the green color (value 1).

PICTURE TUNING

SYNC : SLOW

STILL VIDEO : ON

COLOR BALANCE

GAMMA

Select with or

then <ENTER>

<EXIT> to return.

COLOR BALANCE

Fixed color balance

3200 6500 9300

Custom white balance

Select with , , ,

then <ENTER>

<EXIT> to return.

For custom adjust

red with or

blue with or

11-14

GAIN RED

5975646A BARCOGRAPHICS 8100LC 130696

2.5

Gamma

With the gamma correction adjustment, it is possible to bring the details in dark image parts more to the front (lower image values) or to reduce the importance of these details (higher gamma values).

To change the gamma value, highlight Gamma by pushing the control stick forward or backward and press ENTER.

Random Access Adjustment Mode

PICTURE TUNING

SYNC [SLOW]

STILL VIDEO [ON]

COLOR BALANCE

GAMMA

Select with or

then <ENTER>

<EXIT> to return.

GAMMA

2.4

5975646A BARCOGRAPHICS 8100LC 130696

11-15

Random Access Adjustment Mode

Geometry

Highlight Geometry by pushing the control stick forward or backward and press

ENTER to select the geometry selection menu.

The following adjustment are possible :

- horizontal and vertical image shift.

- horizontal and vertical image size

- side keystone (only necessary if the projector is mounted under

a non standard projection angle).

- blanking

- options The following ways are possible to adjust a geometry function :

- using the control stick to adjust or

- entering the value with the digit keys. Therefore, press

ENTER to

select the indicated value and enter the desired value with the digit keys. Press

ENTER to confirm the entered value.

Shift

RANDOM ACCESS

ADJUSTMENT MODE

FILE SERVICE

PICTURE TUNING

GEOMETRY

Select with or

then <ENTER>

<EXIT> to return.

GEOMETRY

SHIFT

SIZE

SIDE KEYSTONE

BLANKING

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

Highlight Shift by pushing the control stick forward or backward and press ENTER. The image can be shifted in a horizontal or vertical direction. Push the control stick forward or backward to shift the image in a vertical direction. Push the control stick to the right or to the left to shift the image in a horizontal direction. The default value for the shift is 0. Shifting in a vertical direction : when the shift value is positive, the image is shifted upwards, when the value is negative, the image is shifted downwards. Shifting in a horizontal direction : when the shift value is positive, the image is shifted to the right, when the value is negative, the image is shifted to the left.

11-16

GEOMETRY

SHIFT

SIZE

SIDE KEYSTONE

BLANKING

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

5975646A BARCOGRAPHICS 8100LC 130696

Size

Highlight Size by pushing the control stick forward or backward and press

ENTER to select.

Random Access Adjustment Mode

GEOMETRY

SHIFT

SIZE

SIDE KEYSTONE

BLANKING

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

The size can be adjusted in a vertical or horizontal way. When adjusting the vertical size, for table mount configuration : the upper side of the image is fixed and only the lower side can be moved to its exact position. for ceiling mount configuration : the lower side of the image is fixed and only the upper side can be moved to its exact position. When adjusting the horizontal size, the left side of the image is fixed and only the right side can be moved to its exact position.

Hint : Before sizing the image, be sure that

- for table mount configuration the upper left corner is correctly

positionned on the screen. Use the Shift function to position this corner.

- for ceiling mount configuration the upper left corner is correctly

positionned on the screen. Use the Shift function to position this corner.

5975646A BARCOGRAPHICS 8100LC 130696

Fixed sides

Horizontal size adjustment

Vertical size adjustment

Example for table mount configuration

11-17

Random Access Adjustment Mode

Side keystone

Highlight Side Keystone by pushing the control stick forward or backward and press ENTER to select.

The side keystone adjustment is used to align the image if the projector is mounted as a non standard projection angle.

Push the control stick to the right or to the left to adjust the keystone of the image. When the upper part of the image is wider than the lower part of the image, push the control stick to the left. The number indication below the bar scale will be negative. When the upper part of the image is smaller than the lower part of the image, push the control stick to the right. The number indication below the bar scale will be positive.

GEOMETRY

SHIFT

SIZE

SIDE KEYSTONE

BLANKING

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

11-18

5975646A BARCOGRAPHICS 8100LC 130696

Blanking

Highlight Blanking by pushing the control stick forward or backward and press ENTER to select.

Random Access Adjustment Mode

GEOMETRY

SHIFT

SIZE

SIDE KEYSTONE

BLANKING

OPTIONS

Blanking adjustments affect only the edges of the projected image and are used to frame the projected image on to the screen and to hide or black out unwanted information (or noise). A 0% on the bar scale indicates no blanking.

The following blanking corrections are possible :

- top blanking

- bottom blanking

- left blanking

- right blanking

5975646A BARCOGRAPHICS 8100LC 130696

Left blanking

Select with or

then <ENTER>

<EXIT> to return.

Top blanking

Bottom blanking

BLANKING

TOP

BOTTOM

LEFT

RIGHT

Select with or

then <ENTER>

<EXIT> to return.

Right blanking

11-19

Random Access Adjustment Mode

BLANKING

TOP

BOTTOM

LEFT

RIGHT

Select with or

then <ENTER>

<EXIT> to return.

Adjustment of the blanking on the of the image

Adjustment of the blanking on the bottom of the image

Correct by pushing the control stick forward or backward

Adjustment of the blanking on the left side

11-20

Adjustment of the blanking on the right side

Correct by pushing the control stick to the right or to the left

5975646A BARCOGRAPHICS 8100LC 130696

Options

Highlight Options by pushing the control stick forward or backward and press ENTER. The Geometry Options menu will be displayed. The next question will be asked by the projector : 'Use the same side keystone correction for all files ? [YES] or [NO]. [YES] : the same keystone correction will be used for all installed files. [NO] : the keystone has to be adjusted file per file.

Push the ENTER key to toggle between [YES] or [NO]. Press EXIT to return to the Geometry menu.

Random Access Adjustment Mode

GEOMETRY

SHIFT

SIZE

SIDE KEYSTONE

BLANKING

OPTIONS

Select with or

then <ENTER>

<EXIT> to return.

GEOMETRY OPTIONS

Use the same side

keystone correction

for all files ?

[YES]

<ENTER> to toggle

<EXIT> to return

5975646A BARCOGRAPHICS 8100LC 130696

11-21

Random Access Adjustment Mode

11-22

5975646A BARCOGRAPHICS 8100LC 130696

INSTALLATION

Convergence

Configuration

Internal Patterns

Installation

5975646A BARCOGRAPHICS 8100LC 220496

12-1

Installation

Starting up the Installation Mode

Push the control stick forward or backward to highlight Installation and then press

The following item can be selected in the Installation mode :

Input slots : to set up the input priority. Convergence : to align the red, green and blue image. Configuration : to set up the projector position. Internal Patterns :

ENTER.

ENTER continues to the Installation mode selection menu. EXIT returns to operational mode.

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

Select with or

then <ENTER>

<EXIT> to return.

INSTALLATION

INPUT SLOTS

CONVERGENCE

CONFIGURATION

INTERNAL PATTERNS

Select with or

then <ENTER>

<EXIT> to return.

12-2

5975646A BARCOGRAPHICS 8100LC 220496

Input Slots

Highlight Input Slots by pushing the control stick forward or backward and press ENTER. The internal system will scan the input slots and displays the result in the Input Slots menu.

INSTALLATION

INPUT SLOTS

CONVERGENCE

CONFIGURATION

INTERNAL PATTERNS

Installation

Source indication Video or S-Video Video[Video]

Video[S-Video]

RGB analog RGB-SS[CV] : separate sync is composite

video signal on H/C input RGB-SS[CS or HS&VS] : separate sync is composite sync or horizontal and vertical sync RGB-SOG : sync on green

Component video Component Video - SS : component video

with separate sync Component Video - SOY : component video with sync on Y Component Video - 3LSS : component video with 3 level separete sync. Component Video - 3LSOY : component video with 3 level sync on Y.

RGB analog with tri-level sync RGB3L-SS : RGB with separate Tri level

sync RGB3L-SOG : RGB with Tri level sync on green

5975646A BARCOGRAPHICS 8100LC 220496

Select with or

then <ENTER>

<EXIT> to return.

Select with or

then <ENTER>

<EXIT> to return.

INPUT SLOTS

1. RGB-SS [CV]

2. RGB-SOG

3. Video [Video]

4. Component Video

If a RCVDS (switched on) or VS05 is connected to the projector, it will be also indicated on the menu by adding

+800 peripheral

. If no 800 peripheral indication is made on the menu, there are still two possibilities :

- no RCVDS or VS05 connected or

- RCVDS is switched off. When a 800 peripheral is connected to the projector, the input slots are not accessible with the control stick to toggle their function.

12-3

Installation

Convergence

Highlight backward and press menu. Every LCD panel has 6 adjustment screws. By turning these screws you change the relative position of the panels and converge the image. Always start with the adjustment of the green panel. When the green image is correctly focused, it will later on be used as the reference image to converge the red and blue image.

Next alignments have to be done : You have to adjust the green panel until the indicated lines on the

screen are focused (sharp lines). Continue with the red panel and adjust until the red lines coincide with the green lines. Than continue with the blue panel until the blue lines coincide with the green lines.

Follow the next procedure to adjust the LCD panels.

"Convergence"

ENTER to display the convergence selection

by pushing the control stick forward or

INSTALLATION

INPUT SLOTS

CONVERGENCE

CONFIGURATION

INTERNAL PATTERNS

Select with or

then <ENTER>

<EXIT> to return.

CONVERGENCE

GREEN

BLUE ON GREEN

RED ON GREEN

HATCH

Select with or

then <ENTER>

<EXIT> to return.

* Open the top cover as described in

Service Mode

Change password

in chapter

The three mounting parts for the LCD's (two are shown on the drawing below) are located on the black metal cover. The screws are indicated from 1 to 6 for each color.

12-4

5975646A BARCOGRAPHICS 8100LC 220496

To adjust the convergence, there are test patterns provided in the convergence menu.

Use the control stick to hightlight display the

Convergence

menu.

Convergence

and press ENTER to

Start with the Green test pattern and continue with the Red on green and finish with the Blue on green. Use the control stick to select

Green

and press ENTER to display the

green pattern.

The pattern shows lines of one pixel. Near six lines on the displayed pattern, a screw is drawn with a number next to it (e.g. if displayed in green = corresponding with the screws and numbers on the green LCD panel). When turning a screw in the direction marked by the arrow above the displayed screw on the screen, the line on the screen moves in the direction of the straight arrow.

Green focusing

a. Adjust the projection lens until optimal focus for the lines 5 and 6

is obtained (hint : use the focusing marker lines next to the indicated points)

b. Turn screw 4 for optimal focus of the corresponding green line 4 on

the screen.

Installation

CONVERGENCE

GREEN

BLUE ON GREEN

RED ON GREEN

HATCH

Select with or

then <ENTER>

<EXIT> to return.

c. Turn screw 5 for optimal focus of the corresponding green line 5 on

the screen.

d. Turn screw 6 for optimal focus of the corresponding green line 6 on

the screen.

5975646A BARCOGRAPHICS 8100LC 220496

12-5

Installation

The three alignments influence each other, therefore repeat if necessary the above three steps (b,c and d). When the green pattern is correctly focused, press the

Convergence

menu.

Red on green convergence.

Use the control stick to hightlight

Red on green

display the Red on green test pattern.

The longest lines are the red lines. These lines must be converged with the green lines. The drawn screws and numbers are displayed in red.

Follow next steps : a. Adjust first screws 4, 5 and 6 to obtain an optimal focus for

respective lines 4, 5 and 6. Due to interaction, it may be necessary to repeat step a several times. Follow next steps to converge the red lines with the green lines :

EXIT to return to

and press ENTER to

CONVERGENCE

GREEN

BLUE ON GREEN

RED ON GREEN

HATCH

Select with or

then <ENTER>

<EXIT> to return.

b. Start with screw 2 and adjust for optimal convergence of line 2. c. Adjust screw 3 for optimal convergence of line 3. Due to interaction repeat above two steps (b and c) if line 2 and

possibly line 3 is misaligned.

12-6

5975646A BARCOGRAPHICS 8100LC 220496

If both lines are correctly converged, continue with screw 4. Adjust screw 4 until line 4 is correctly converged. It is possible that line 2 and 3 have to be reconverged. If so, repeat procedure for screw 2 and 3 (step b and c)

If line 2, 3 and 4 are converged, continue with line 1 (screw 1). When line 1 is converged, check again the convergence of lines 2, 3 and 4. If necessary

repeat the above procedure for the corresponding lines.

Installation

Check if lines 5 and 6 are correctly converged. If so, press

pattern

menu and continue with Blue on green.

EXIT to return to the

Test

If not yet correctly converged, check the distance between lines 5 and 6 of the red pattern and the distance between lines 5 and 6 of the green lines.

Two possibilities :

1) distance between red lines is smaller than distance between green lines. Turn screw 5 and 6 clockwise until distance between lines 5 and 6 is the same for the red and green lines.

2) distance between red lines is greater than distance between green lines. Turn screw 5 and 6 counter clockwise until distance between lines 5 and 6 is the same for the red and green lines.

Due to this movement the lines 1, 2, 3 and 4 may be out of convergence. Repeat the above mentioned steps for the respective lines. If all lines are correctly converged, press

5975646A BARCOGRAPHICS 8100LC 220496

EXIT to return to the

Test pattern

menu.

12-7

Installation

Blue on green convergence.

Use the control stick to highlight display the Blue on green test pattern.

Repeat the same procedure as for Red on green lines but read blue when red is indicated.

Blue on green

and press ENTER to

CONVERGENCE

GREEN

BLUE ON GREEN

RED ON GREEN

HATCH

Select with or

then <ENTER>

<EXIT> to return.

To check the result of the convergence adjustments, highlight

Hatch

and press ENTER. A hatch pattern will be displayed on the screen.

ENTER : displays a hatch pattern. EXIT : returns to the installation menu.

All lines must be displayed in white, if not so repeat the convergence adjustment procedure.

12-8

CONVERGENCE

GREEN

BLUE ON GREEN

RED ON GREEN

HATCH

Select with or

then <ENTER>

<EXIT> to return.

5975646A BARCOGRAPHICS 8100LC 220496
