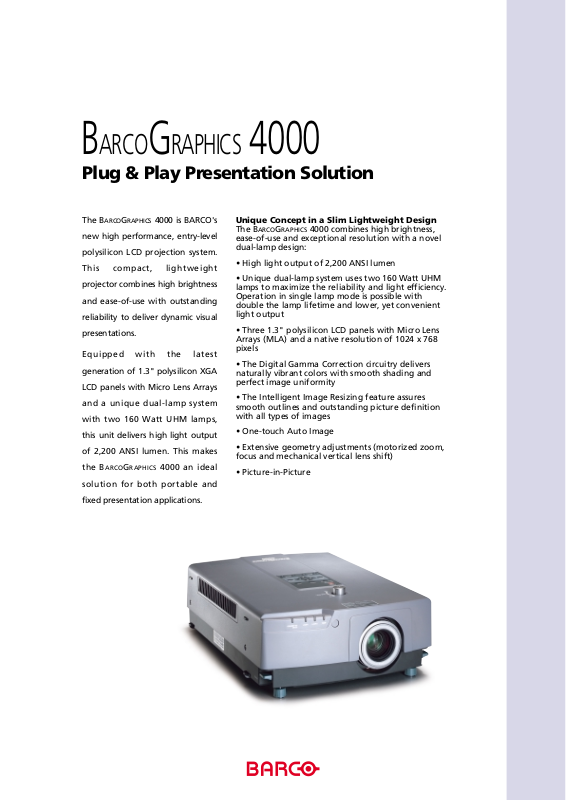

Barco Graphics 4000 Product Sheet

Plug & Play Presentation Solution

BARCOGRAPHICS 4000

Unique Concept in a Slim Lightweight Design

The B

ARCOGRAPHICS 4000 combines high brightness,

ease-of-use and exceptional resolution with a novel
dual-lamp design:

• High light output of 2,200 ANSI lumen

• Unique dual-lamp system uses two 160 Watt UHM
lamps to maximize the reliability and light efficiency.
Operation in single lamp mode is possible with
double the lamp lifetime and lower, yet convenient
light output

• Three 1.3" polysilicon LCD panels with Micro Lens
Arrays (MLA) and a native resolution of 1024 x 768
pixels

• The Digital Gamma Correction circuitry delivers
naturally vibrant colors with smooth shading and
perfect image uniformity

• The Intelligent Image Resizing feature assures
smooth outlines and outstanding picture definition
with all types of images

• One-touch Auto Image

• Extensive geometry adjustments (motorized zoom,
focus and mechanical vertical lens shift)

• Picture-in-Picture

The B

ARCOGRAPHICS 4000 is BARCO's

new high performance, entry-level

polysilicon LCD projection system.

This compact, lightweight

projector combines high brightness

and ease-of-use with outstanding

reliability to deliver dynamic visual

presentations.

Equipped with the latest

generation of 1.3" polysilicon XGA

LCD panels with Micro Lens Arrays

and a unique dual-lamp system

with two 160 Watt UHM lamps,

this unit delivers high light output

of 2,200 ANSI lumen. This makes

the B

ARCOGRAPHICS 4000 an ideal

solution for both portable and

fixed presentation applications.

BARCO Projection Systems
is an ISO9001 registered
company.

The information and data given are typical for the
equipment described. However any individual
item is subject to change without any notice.

R599515(9)-May 2000 - Printed in Belgium

BARCO Projection Systems America

3240 Town Point Drive, Kennesaw, GA 30144

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

BARCO Projection Systems Head Office

Noordlaan 5 8520 Kuurne, Belgium

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

Visit BARCO on the web: http://www.barco.com

Light Output

2,200 ANSI lumen
Brightness uniformity: >85 % for the
total screen

LCD Panels

3 active matrix 1.3" diagonal
XGA poly-silicon LCD panels with
Micro Lens Arrays and a native
resolution of 1024 x 768 pixels.

Contrast Ratio

>200 : 1 (full white/full black)

Scan Frequencies

Horizontal 15 kHz - 94 kHz
Vertical 50 Hz - 120 Hz

Compatibility

The B

ARCOGRAPHICS 4000 is

compatible with:

• All current video sources (NTSC,
PAL, SECAM) in Composite, S-VHS,
Component or RGB formats

• HDTV and improved TV-standards
(480p and 720p)

• All computer graphics formats
from VGA, S-VGA, XGA and S-XGA

• Most Macintosh computers

• Electronic workstations with a
resolution up to 1280 x 1024 pixels

Lamp

Dual-lamp technology with 160 Watt
UHM DC lamps.
Typical lifetime: 2000 hours

Can also operate in single-lamp
mode: 4,000 hrs projector lamp life
(serial single-lamp operation) at 50%
specified light output.

Lens

(2.3-2.8 :1) motorized zoom/focus
lens

Screen Width

From 2-20 ft. / 0.6 - 6 m

Inputs

1x RGB
1x RGB/YP

bPr

(D15 connector)
1x Video (RCA)
1x S-Video (4-pin mini-DIN)
2x Stereo Audio for RGB/YP

bPr

(Mini-jack)
1x Stereo Audio for Video (RCA)

Output

1x RGB/YP

bPr

(D15 connector)
1x Stereo Audio (Mini-jack)

Communication

1x D9 connector for RS232 Input
1x D9 connector for remote control
1x Mouse Out (DIN 13)

Special Features

• Picture-in-Picture

• Auto-Image

• User-adjustable automatic stand-by
from 1 - 60 minutes

• Power Save function

• Manual vertical lens shift

•

Wireless remote with mouse control

• Intelligent image resizing for
VGA/S-VGA/S-XGA and MAC displays

• 10-bit digital gamma correction

• 3D adaptive comb filter for precise
Y/C signal separation

• Lightweight and durable
magnesium alloy cabinet

• Ceiling/desk mount

• Selectable 7-language on-screen
menu (English, German, French,
Spanish, Italian, Chinese, Japanese)

• Indicators for lamp errors, thermal
warnings, and suggested
replacement

• Built-in stereo amplifier and
speakers (2 x 2 W) for multimedia
applications

AC Power

Universal AC Power Supply
Auto-ranging 100-240 VAC / 50-60Hz

Power Consumption

480 Watt

Thermal Dissipation

<1700 BTU/Hour

Safety Regulations

Compliant with UL1950 and EN60950

Electromagnetic Interference

The B

ARCOGRAPHICS 4000 complies

with FCC rules & regulations, part 15
Class A and CE EN55022 Class B

Weight

Net weight: 20.3 lbs. / 9.2 kg
Shipping weight: 27.6 lbs. / 12.5 kg

Order Information

B

ARCOGRAPHICS 4000 R9001930

Replacement lamp unit

(single lamp) R9840530

Replacement lamp unit

(set of 2 lamps) R9840540
Ceiling Mount 4000 Short R9840550
Ceiling Mount 4000 Long R9840560

Technical Specifications

Dimensions mm inch

D 470 18.50
W 332 13.07
H 134 5.28

Input panel

WD

H
