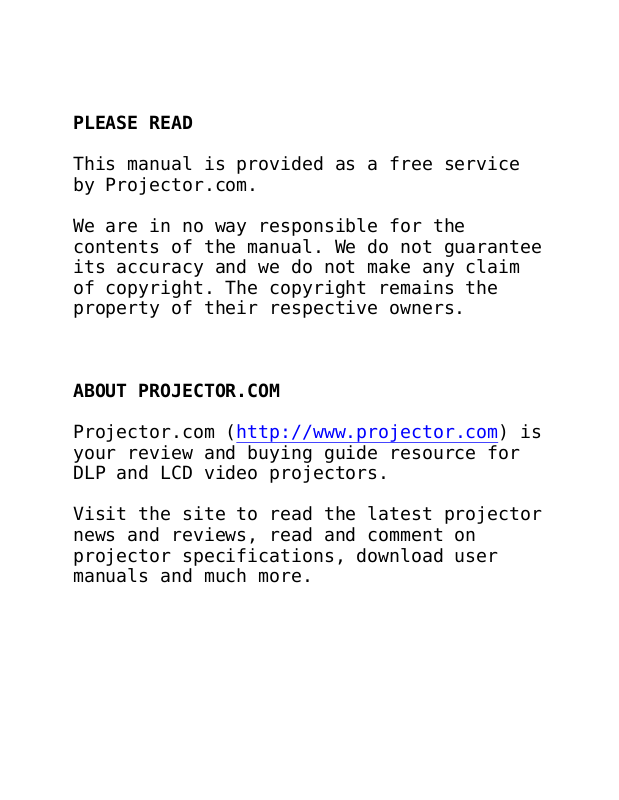

PLEASE READ

We are in no way responsible for the contents of the manual. We do not guarantee its accuracy and we do not make any claim of copyright. The copyright remains the property of their respective owners.

Visit the site to read the latest projector news and reviews, read and comment on projector specifications, download user manuals and much more.

GRAPHICS

1209s

R9000972 R9000977

OWNER'S MANUAL

BARCO PROJECTION SYSTEMS

GRAPHICS

1209s

R9000972 R9000977

OWNER'S MANUAL

Date : 010797

Art. No. :

R5975628

R9000972 : BARCOGRAPHICS 1209s 230V R9000977 : BARCOGRAPHICS 1209s 120V

Due to constant research, the information in this manual is subject to change without notice. Produced by BARCO NV, July 1997.

BARCO nv/Projection Systems

Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com

Printed in Belgium

Table of contents ...........................................................................................................................................................................i

Safety instructions ..................................................................................................................................................................... 1-1

On safety.............................................................................................................................................................................1-1

On installation ..................................................................................................................................................................... 1-2

On servicing ........................................................................................................................................................................1-2

On cleaning .................................................................................................................... ..................................................... 1-2

On repacking ....................................................................................................................................................................... 1-2

On illumination.....................................................................................................................................................................1-2

Location and Functions of Control ...........................................................................................................................................2-1

Rear panel terminology........................................................................................................................................................2-1

Front panel terminology ........................................................................................................ ............................................... 2-1

Control panel terminology .................................................................................................................................................... 2-2

a. The Local Keypad............................................................................................................................................................2-2

b. RCU control panel terminology ........................................................................................................................................2-2

Connections ...............................................................................................................................................................................3-1

AC Power (mains) Cord Connection ....................................................................................................................................3-1

Power Check ....................................................................................................................................................................... 3-1

Switching On/Off .................................................................................................................................................................3-1

Signal Input Connection to the Projector : ............................................................................................................................ 3-2

Connecting a Composite Video source to port 1. .................................................................................................................3-3

Connecting a S-Video or Video source to port 2. ................................................................................................................. 3-3

Connecting a RGB Analog source to port 3. ........................................................................................................................ 3-4

Connecting a RGB Analog source to port 4/5.......................................................................................................................3-4

Connecting a RGB Analog source with Tri-level sync to port 4/5.(option) ............................................................................. 3-5

Connecting a Component Video source to port 4/5. ............................................................................................................. 3-5

Connecting a Component Video source with Tri-level sync to port 4/5.(Opion)..................................................................... 3-5

Peripheral equipment...........................................................................................................................................................3-6

Connecting a RCVDS 05 switcher to the projector ............................................................................................................... 3-6

Connecting a VS05 switcher to the projector. ...................................................................................................................... 3-6

Connecting an IR Remote Receiver to the projector .............................................................................. .............................. 3-6

Controlling..................................................................................................................................................................................4-1

Battery installation in the RCU. ............................................................................................................................................4-1

How to use your RCU ............................................................................................................ .............................................. 4-2

Projector Address ................................................................................................................................................................ 4-2

How to display a projector address? .................................................................................................................................... 4-3

How to program an address into the RCU? .......................................................................................................................... 4-3

Input selection .....................................................................................................................................................................4-3

Analog Picture Controls ........................................................................................................ ............................................... 4-4

Controlling chained projectors. ............................................................................................................................................ 4-4

Start up of the Adjustment Mode ..............................................................................................................................................5-1

Adjustment Mode ................................................................................................................................................................5-1

Random Access Adjustment Mode ........................................................................................................................................... 6-1

Starting-Up the Random Access Adjustment mode..............................................................................................................6-1

Overview 'Random Access Adjustment' mode ..................................................................................................................... 6-1

Selecting Setup Pattern ....................................................................................................................................................... 6-3

Internal Cross Hatch Pattern................................................................................................................................................6-3

Random access adjustment mode selection menu. ............................................................................................................. 6-4

Picture Tuning ..................................................................................................................................................................... 6-4

Color Balance......................................................................................................................................................................6-4

Sync Fast/Slow Adjustment ...................................................................................................... ........................................... 6-5

Peaking ............................................................................................................................................................................... 6-5

Clamp Tuning ......................................................................................................................................................................6-5

Port 2 : Video or S-Video .....................................................................................................................................................6-6

Line Doubler ........................................................................................................................................................................ 6-6

Color Select.........................................................................................................................................................................6-6

Focusing .............................................................................................................................................................................6-7

Focusing color select...........................................................................................................................................................6-7

Blue on source ....................................................................................................................................................................6-7

Geometry Adjustments ........................................................................................................................................................6-8

Horizontal Phase Adjustment............................................................................................................................................... 6-8

Raster Shift Adjustment ....................................................................................................................................................... 6-9

Left-Right (east-west) Adjustments .................................................................................................................................... 6-10

Seagull correction.............................................................................................................................................................. 6-11

Left Side Correction........................................................................................................................................................... 6-11

Top-Bottom (north-south) Adjustments ........................................................................................... ................................... 6-12

Seagull Correction ............................................................................................................. ................................................ 6-13

Horizontal Size Adjustment..................................................................................................... ........................................... 6-13

Vertical Linearity Adjustment .................................................................................................. ........................................... 6-14

Vertical Size Adjustment....................................................................................................... ............................................. 6-14

5975628 BARCOGRAPHICS 1209s 010797

i-1

Table of Contents

Blanking Adjustments........................................................................................................................................................ 6-15

Convergence Adjustment .................................................................................................................................................. 6-16

Service mode ............................................................................................................................................................................. 7-1

Starting up the Service mode. ............................................................................................................................................. 7-1

Overview flowchart 'Service' mode. ..................................................................................................................................... 7-1

Identification........................................................................................................................................................................ 7-2

Copy a block ....................................................................................................................................................................... 7-2

Deletion of blocks............................................................................................................. ................................................... 7-3

Deleting block by block ....................................................................................................................................................... 7-3

Deletion of all blocks ........................................................................................................................................................... 7-3

Change password ............................................................................................................................................................... 7-4

Change Language............................................................................................................................................................... 7-4

Run time ............................................................................................................................................................................. 7-4

Set to midposition ............................................................................................................................................................... 7-5

Undo Midposition ................................................................................................................................................................ 7-5

Convergence Mid ................................................................................................................................................................ 7-5

Undo Convergence Mid(position) ........................................................................................................................................ 7-5

Dynamic Astigmatism (spot shape adjustment) .................................................................................... ............................... 7-6

G2 Adjust ............................................................................................................................................................................ 7-7

Gamma corrections ............................................................................................................................................................. 7-7

CRT run in cycle ................................................................................................................................................................. 7-7

Projector Warm Up.............................................................................................................................................................. 7-8

CRT Drive Mode ................................................................................................................................................................. 7-8

Messages, warnings and failures ............................................................................................................................................. 8-1

Options....................................................................................................................................................................................... 9-1

Appendix A : Orbiting ................................................................................................................................................................... A-1

Appendix B : Adjsutment Blocks and Source Numbers 90-99 ........................................................................ .............................. B-1

i-2 5975268 BARCOGRAPHICS 1209s 010797

Safety Instructions

SAFETY INSTRUCTIONS

Notice on Safety

This equipment is built in accordance with the requirements of the international safety standards EN60950, UL 1950 and CSA C22.2 No.950, which are the safety standards of information technology equipment including electrical business equipment.

These safety standards impose important requirements on the use of safety critical components, materials and isolation, in order to protect the user or operator against risk of electric shock and energy hazard, and having access to live parts. Safety standards also impose limits to the internal and external temperature rises, radiation levels, mechanical stability and strength, enclosure construction and protection against the risk of fire.

Simulated single fault condition testing ensures the safety of the equipment to the user even when the equipment's normal operation fails.

INSTALLATION INSTRUCTIONS

Before operating this equipment please read this manual

thoroughly, and retain it for future reference.

Installation and preliminary adjustments should be performed

by qualified BARCO personnel or by authorized BARCO

service dealers.

OWNER’S RECORD

The part number and serial number are located at the back side of the projector. Record these numbers in the spaces provided below. Refer to them whenever you call upon your BARCO dealer regarding this product.

PART NUMBER :

SER. NUMBER :

DEALER :

WARNING

TO PREVENT FIRE OR ELECTRICAL SHOCK

HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE

FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT)

This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Instructions to the user : If this equipment does cause interference to radio or television

reception, the user may try to correct the interference by one or more of the following measures :

- Re-orientation of the receiving antenna for the radio or television.

- Relocate the equipment with respect to the receiver.

- Plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits.

- Fasten cables connectors to the equipment by mounting screws.

Note : The use of shielded cables is required to comply within the limits of Part 15 of FCC rules and EN55022.

* All the safety and operating instructions should be read before using

this unit.

* The safety and operating instructions manual should be retained for

future reference.

* All warnings on the equipment and in the documentation manuals

should be adhered to.

* All instructions for operating and use of this equipment must be

followed precisely.

On safety

1. This product should be operated from an AC power source.

This projector may be connected to an IT-power system.

Operating AC power voltage of the projector: BARCOGRAPHICS 1209s

Art.No. R9000972 (230V AC)

The lightning flash with an arrowhead within a triangle is intended to tell the user that parts inside this product may cause a risk of electrical shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and/or servicing instructions are included in the technical documentation for this equipment.

5975628 BARCOGRAPHICS 1209S 010797

Art. No R9000977 (120V AC)

Consult your dealer to switch over from 230Vac to 120 Vac or from 120Vac to 230 Vac. If you are not sure of the type of AC power available, consult your dealer or local power company.

2. This product is equipped with a 3-wire grounding plug, a plug

having a third (grounding) pin. This plug will only fit into a groundingtype power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

1-1

Safety Instructions

WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE GROUNDED (EARTHED) via the supplied 3 conductor AC power cable. (If the supplied power cable is not the correct one, consult your dealer.)

A. Mains lead (Power cord) with CEE 7 plug: The wires of the mains lead are colored in

accordance with the following code.

Green and yellow: earth (safety earth) Blue: neutral

Brown: line (live) B. Power cord with ANSI 73.11 plug: The wires of the power cord are colored in

accordance with the following code.

Green/yellow: ground

White: neutral

Black: line (live)

3. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

To disconnect the cord, pull it out by the plug. Never pull the cord itself.

4. If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord does not exceed the extension cord ampere rating. Also make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

5. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock.

Never spill liquid of any kind on the product. Should any liquid or solid object fall into the cabinet, unplug the set and have it checked by qualified service personnel before resuming operations.

6. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges.

On installation

1. Do not place this equipment on an unstable cart, stand, or table.

The product may fall, causing serious damage to it.

Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the equipment. C.If the product has been exposed to rain or water. D. If the product does not operate normally when the operating

instructions are followed. Note : Adjust only those controls that are covered by the operating instructions since improper adjustment of the other controls may result in damage and will often require extensive work by a qualified

technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinct change in performance, indicating

a need for service. Replacement parts - When replacement parts are required, be sure

the service technician has used original BARCO replacement parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards. Unauthorized substitutions may void warranty.

Safety check - Upon completion of any service or repairs to this projector, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

On cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

- To keep the cabinet looking brand-new, periodically clean it with a

soft cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution. Never use strong solvents, such as thinner or benzine, or abrasive cleaners, since these will damage the cabinet.

- To ensure the highest optical performance and resolution, the

projection lenses are specially treated with an anti-reflective coating, therefore, avoid touching the lens. To remove dust on the lens, use a soft dry cloth. Do not use a damp cloth, detergent solution, or thinner.

On repacking

Save the original shipping carton and packing material; they will come in handy if you ever have to ship your equipment. For maximum protection, repack your set as it was originally packed at the factory.

2. Do not use this equipment near water.

3. Slots and openings in the cabinet and the back or bottom are

provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. The projector should not be placed in a built-in installation or enclosure unless proper ventilation is provided.

4. Do not block the projector cooling fans or free air movement under and around the projector. Loose papers or other objects may not be nearer to the projector than 4" on any side.

On servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage potentials and risk of electric shock!

1-2 5975628 BARCOGRAPHICS 1209S 010797

On illumination

In order to obtain the best quality for the projected image, it is essential that the ambient light which is allowed to fall on the screen be kept to an absolute minimum.

When installing the projector and screen, care must be taken to avoid exposure to ambient light directly on the screen. Avoid adverse illumination on the screen from direct sunlight or fluorescent lighting fixtures.

The use of controlled ambient lighting, such as incandescent spot light or a dimmer, is recommended for proper room illumination. Where possible, care should also be taken to ensure that the floors and walls of the room in which the projector is to be installed are nonreflecting, dark surfaces. Brighter surfaces will tend to reflect and diffuse the ambient light and hence reduce the contrast of the projected image on the screen.

Location and Function of Controls

LOCATION AND FUNCTION OF CONTROLS

REAR PANEL TERMINOLOGY

PORT 4/5

(RGB - HV)

PORT 6

REMOTE

COMMUNICATION

Communication Port (800 peripherals)

* allows communication between the RCVDS switcher and

the projector. * allows connection of a remote IR receiver unit to the projector.

Port 3

RGB Analog Input (9 pin female sub D connector). Allows

a character generator, microcomputer, etc. having analog RGB outputs to be connected to the projector.

Port 4/5 : RGB-S Input (5x BNC connector): RGB-S input : allows a character generator, microcomputer,

video camera, etc. having analog RGB output to be connected to the projector.

Line inputs: - signals RED-GREEN-BLUE

Comp/H sync V sync

PORT 3

- COMPOSITE sync. signal

- Tri level sync signal (option)

PORT 1 (VIDEO)

OFF ON

75 ohm

PROJEC T OR MODE POWER/MA INS

GREEN : ope ra tional RED : stand-by

PORT 2

(S-VIDEO)

ONOFF

75 ohm

Projector Pilot Lamp : indicates the status of the projector.

- unlit : mains (power) switch is not pressed.

- lit : mains (power) switch is pressed and the indicated color shows the projector mode:

Green color : operational mode of the projector. Red color : standby mode of the projector.

Important : projector ("Operational" or "Standby") mode is defined during the installation of the projector. (Refer to a qualified technician for change).

S-VIDEO Input: S-Video or Video in, depending on the priority setting in the Picture Tuning menu. For S-Video : Separated Y/C (luma-chroma) signal inputs and outputs for higher quality playback of Super VHS signals (4-pin S-VIDEO connector loop-through).

75 ohm Termination Switch for S-Video signals

For Video : Composite video inputs on pin 1 and 3.

VIDEO Input (Composite video, 2x loop-through BNC

connector): allows a video tape recorder, video camera,

color receiver/monitor, etc. having video line output to be connected to the projector.

75 ohm Termination Switch for Video signals

FRONT PANEL TERMINOLOGY

V NOM

120/230 Volt

7/5Amp

I MAX

50/60Hz

FREQ

RS 232 Input Port

Connection between the projector and an IBM PC (or compatible) or MAC (RS422) for remote computer control and data communication.

RS 232 Output Port

RS 232 Input Port allows a communication link for PC or MAC to the next projector in a series of projector.

RS232 IN

RS232 O UTRS232 IN

1 2

RS232 O UT

REMOTE

Power Switch : press the switch to turn the projector ON.

Depending on the hardware set-up of the projector during installation, the projector switches to ‘Standby’ or to ‘Op-

erational' mode. If in standby, the standby LED lights up.

REMOTE

685

IR Sensor

receiver for control signals transmitted from the RCU.

IR Remote

Connector for remote input for hard wired remote control

AC Power input

5975628 BARCOGRAPHICS 1209S 010797

2-1

Location and Function of Controls

PORT 1

PORT 6

COMMUNICATION

PORT 4/5

(RGB - HV)

Comp/H sync V sync

REMOTE

PORT 3

(VIDEO)

OFF ON

75 ohm

PROJECTOR MODE POWER/MAINS GREEN : operat i onal RED : stand-by

PORT 2

(S-VI DEO)

75 ohm

ONOFF

built in RCU800

Control panel terminology

a. The Local Keypad (built in RCU)

Gaining Access

The local keypad is built in into the rear of the projector. Push once on the door cover and it will open. It is possible to turn it 90°. This local keyboard has the same functions as the Remote Control Unit (RCU)

352

367

b. RCU control panel terminology

This remote control includes a battery powered infrared (IR) transmitter that allows the user to control the projector remotely. This remote control is used for source selection, control, adaptation and set-up. It includes automatic storing of :

- picture controls (Brightness, Sharpness,....)

- picture geometry adjustments

- convergence adjustments

Other functions of the remote control are:

- switching between standby and operational modes

- switching to "pause" (blanked picture, full power for immediate

restarting)

- direct access to all connected sources

- variable adjustment speed : when pushing continuously on the control stick or the picture keys, the adjustment will be executed in an accelerated fashion.

Back light key : when activated, all keys will be lit up and

visible in the dark.

stand-by

ADJ

STBY

PAUSE8TEXT

EXIT

ENTER

SHARPNESS

TINT

COLOR

BRIGHTNESS

CONTRAST

pause/park

sharpness

tint color

brightness

contrast

ADJ. : adjust key, to enter or exit the adjustment mode.

Address key (recessed key), to enter the address of the

projector (between 0 and 9). Press the address key, followed by pressing one digit button between 0 and 9.

STBY : stand by button :

- to initiate remote power up operation

- to stop projection without main power off.

Pause :to blank the image, press PAUSE. The image

disappears but full power is retained for immediate restarting.

Digit buttons : direct input selection. Picture controls : use these buttons to obtain the desired

level (see also 'Controlling') for each picture function. TEXT : when adjusting one of the image controls during a

meeting, the displayed bar scale can be removed by pressing 'TEXT' key first. To re-display the bar scale on the screen, press 'TEXT' key again. 'TEXT' key is only active in operational mode. When 'TEXT' is off, no warning message will be displayed.

32c

ENTER : to start up the adjustment mode or to confirm an

adjustment or selection in the adjustment mode. EXIT : to leave the adjustment mode or to scroll upwards

when in the adjustment mode.

Control disk : to make menu selections when in the adjustment mode. Also allows to increment or decrement an adjustment in the adjustment mode.

control disk up = up arrow in the menus control disk down = down arrow in the menus control disk to the right = arrow to the right on the menus control disk to the left = arrow to the left on the menus

RC operating indication : lights up when a button on the remote control is pressed. (This is a visual indicator to check the operation of the remote control)

2-2 5975628 BARCOGRAPHICS 1209S 010797

Connections

CONNECTIONS

AC Power (mains) Cord Connection

Use the supplied power cord to connect your projector to the wall outlet. Plug the female power connector into the male connector at the frontside of the projector.

Power Check

Power voltage indication on sticker on the rear side of the projector. The power voltage is indicated by the art. no.

V NOM I MAX FREQ

120/230 Volt

7/5Amp

50/60Hz

RS232 IN

RS232 OUT

RS232 OU T

REMOTE

685

Warning ! Check if the indicated power voltage corresponds to that of the wall outlet.

Art. No. R9000972 must be connected to a 230 VAC power source. Art. No. R9000977 must be connected to a 120 VAC power source.

If the wall outlet voltage is different, call a qualified technician for power adaptation of the projector.

Switching On/Off

The projector is switched ON and OFF using the power (mains) switch ON/OFF.

Pressed : ON Not pressed : OFF

The projector can start now in the 'operational mode' (image displayed) or in the 'stand by mode', depending on the position of the 'power up' dip switch on the controller unit. This DIP switch must be set during installation by a qualified technician. If you want to change this start up mode, call a qualified technician.

Stand by indication lamp : no light up : projector switched off

green color : projector in Operational mode red color : projector is in Standby mode.

T 1

PROJECTOR MODE POWER/MAINS

EO)

GREEN : operational RED : stand-by

PORT 2

(S-VIDEO)

OFF

75 ohm

352

When starting up the projector, with the power switch or via the standby key, the projector can start up in two ways if the "CRT run in" cycle option is switched OFF.

- full white image (projector warm up) or

- immediately image display.

5975628 BARCOGRAPHICS 1209S 010797

3-1

Connections

The way of starting up can be set in the service mode.

Start up with full white image.

The next menu will be displayed for 30 seconds. a. Start up with warm up period. If no action is taken, a white image will be displayed for 20 minutes.

This white image will be shifted on the faceplate of the CRT to avoid a CRT burn in. During this warm up period, it is possible to interrupt this white image projection by pressing the EXIT key. The previous menu will be repeated for another 30 seconds but the remaining time will be indicated. If EXIT is pressed, the remaining warm up period will be shipped.

PROJECTOR WARM UP

A FULL WHITE PATTERN

WILL BE GENERATED FOR

20 MINUTES.

FOR IMMEDIATE USE OF

THE PROJECTOR, PRESS

<EXIT>. WARNING : SKIPP I NG THIS PROCEDURE CAN REDUCE

THE INITIAL PICTURE

QUALITY OF THE PROJECTED

IMAGE.

THIS OPTION CAN BE

DISABLED IN THE SERVICE

During the warm up period, every 30 seconds a text box with the remaining time will be displayed on the screen for 2 seconds. This text box will be displayed every time on another place.

If another key, different from EXIT, is pressed, a text box with following text will be displayed : Please use <EXIT> to leave this procedure.

b. Start up without warm up period. If the

EXIT key is pressed, the warm up period will be skipped and the projector is

immediately ready for use.

Warning : skipping this warm up procedure can reduce the initial picture quality of the projected image.

Signal Input Connection to the Projector :

- Composite Video

- S-Video

- RGBS or RGsB

- RGB3S or RG3sB (option)

- Component Video

PORT 6

COMMUNICATION

REMOTE

PORT 3

Comp/H sync V sync

PORT 4/5

(RGB - HV)

RGB

PORT 1 (VIDEO)

OFF

75 ohm

REMAINING

PROJECTOR

WARM UP

TIME

18.5MIN

PLEASE USE

<EXIT> TO

LEAVE THIS

PROCEDURE

PROJECTOR MO D E POWER/MAIN S

GREEN : operat io na l RED : stand-by

PORT 2

(S-VIDEO)

OFF

75 ohm

357

Port No Projector input Press Digit Button

1 Comp. Video 1 2 S-Video 3 RGB 4/5 RGB 4/5 Component video 4/5 RGB with Tri level sync 4/5 Component video

with Tri-level sync

Only available when the optional Tri-level sync module is installed.

3-2 5975628 BARCOGRAPHICS 1209S 010797

/Comp. Video* 2

3 4 or 5 6 7

Input signal Y/C (luma/chroma)

Input signal : R, G and B with automatic sync detection between seperate sync (separate composite sync or with separate Hor and Vert. sync) or sync on green (composite sync).

Input signal : R-Y, Y and B-Y with separate composite sync or with separate Hor and Vert. sync or with composite sync on Y.

Input signal : R, G and B with separate Tri level sync or with Tri-level sync on green.

Input signal : R-Y, Y and B-Y with separate Tri level sync or with composite Tri-level sync.

* Video or S-Video : switchable in the Picture

Tuning menu.

Connecting a Composite Video source to port 1.

Composite video signals from a VCR, OFF air signal decoder, etc..

PORT 6

COMMUNICA TION

Video input selection :

with the RCU or the build in RCU : press digit button 1

TV tuner, e.g. TVDM40 stereo

REMOTE

PORT 3

PORT 4/5

(RGB - HV)

Comp/H sync V sync

Composite video

PORT 1 (VIDEO)

OFF

75 ohm

PROJEC T OR MODE POWER/ MA INS

GREEN : operational RED : stand-by

PORT 2

(S-VIDEO)

Connections

OFF

75 ohm

to next projector or to a monitor

* Note : if using the loop-through Video output, then set the Termination Switch to the "OFF" position.

VCR

Connecting a S-Video or Video source to port 2.

Separate Y-luma/C-chroma signals for higher quality playback of Super VHS signals.

PORT 6

COMMUNICA TION

4 pin connector configurations:

For S-video:

Pin 1: earth(ground) luminance Pin 2: earth(ground) chrominance Pin 3: luminance signal(Y)

1Vpp ±3dB

Pin 4: chrominance signal(C)

300mVpp ±3dB

For video:

Pin 1: earth(ground) video Pin 2: not connected

Pin 3: video signal Pin 4: not connected

Input selection

with the RCU or the build in RCU : press digit button 2 Depending on the priority setting in the Picture Tuning menu, Video or S-Video can be displayed. If the setting is not correct, start up the adjustment mode by pushing on th Select 'Random Access' and press

Select 'Selected source' and press

ADJUST key.

ENTER.

Highlight 'Picture Tuning' and press ENTER.

Highlight Port 2 : Video and press ENTER to toggle between VIDEO or S-VIDEO. Press EXIT to return. Press ADJUST to return to operational mode.

REMOTE

VCR S-VHS

PORT 3

Comp/H sy nc V sync

PORT 4/5

(RGB - HV)

Luma/Chroma

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

IRIS

Source 02

Choose a setup pattern

Select with or

from below :

then <ENTER>

<EXIT> to return.

SELECTED SOURCE

GENLOCKED PATTERN

INTERNAL # PATTERN

Select with or

then <ENTER>

<EXIT> to return.

Audio amplifier

PORT 1 (VIDEO)

OFF

75 ohm

PROJECTOR MODE POWER/MAINS

GREEN : operational RED : stand-by

Audio amplifier

Source 02

RANDOM ACCESS

ADJUSTMENT MODE

PICTURE TUNING

GEOMETRY

CONVERGENCE

FOCUSING

COLOR SELECT

ORBITING

CONTR. MODULATION

SOFT EDGE

Select with or

then <ENTER>

<EXIT> to return.

PORT 2

(S-VIDEO)

OFF

75 ohm

to next projector or to a monitor

PICTURE TUNING

COLOR BALANCE

SYNC : FAST

PORT2 : S-VIDEO

LINE DOUBLER : ON

358

359

* Note: When using the Port 2 loop-through output, set the Termination Switch in the "OFF" position.

5975628 BARCOGRAPHICS 1209S 010797

Select with or

<ENTER> to accept

<EXIT> to return.

3-3

Connections

Connecting a RGB Analog source to port 3.

Connect your RGB source via an interface to Port 3. Always use an interface when a computer and local monitor have to be connected to the projector.

Barco interfaces which can be applied : Universal analog interface R9826100 RGB 120 MHz analog interface R9826570 VGA interface 120V R9828079

230V R9828070

MAC interface 120V R9828059

230V R9828050

MAGIK interface 120V R9828129 & R9828128

230V R9828120 & R9828121

RGB analog input with automatic sync detection. (Separate H and V sync inputs, with composite sync input or with sync signals on green)

Pin configuration D9 connector of the Analog input. 1 not connected 2 ground RGBS 3 RED 4 GREEN 5 BLUE 6 ground RGBS 7 ground RGBS 8 Hor/comp. sync 9 Vert. sync

PORT 6

COMMUNICATIO N

OFF

REMOTE

PORT 3

ANALOG INTER F. 120MHz

Comp/H sync V sync

RGB

INPUT

PORT 4 /5

(RGB - HV)

INP

PORT 1 (VIDEO)

OFF ON

75 ohm

INP

inver.75 ohm term.

PROJECTOR MODE POWER/MAI NS

GREEN : operational RED : stand-by

PORT 2

(S-VIDEO)

OFF

75 ohm

361

Analog Input Selection :

with the RCU or build in RCU, press digit button 3.

Connecting a RGB Analog source to port 4/5.

RGB analog input terminals with separate H and V sync inputs, with composite sync input or with sync signals on green (automatic sync detection). Always use an interface when a computer and local monitor have to be connected to the projector. See 'Connecting a RGB Analog source to port 3' for a list of BARCO interfaces which can be applied.

PORT 6

COMMUNICATIO N

RGB input selection :

(RGB : R, G, B signals with automatic sync detection)

with the RCU or the build in RCU : press digit button 4 or 5

REMOTE

PORT 3

ANALOG INTER F. 120MHz

OFF

Comp/H sync V sync

PORT 4 /5

(RGB - HV)

INPUT

PORT 1 (VIDEO)

OFF ON

75 ohm

INP

inver.75 ohm term .

PROJE CTOR MODE POWER /MAINS

GREEN : operational RED : stand-by

PORT 2

(S-VIDEO)

OFF

75 ohm

363

3-4 5975628 BARCOGRAPHICS 1209S 010797

Connecting a RGB Analog source with Tri-level

75 ohm

OFF ON

PORT 1 (VIDEO)

PORT 4/5

(RGB - HV)

Comp/H sy nc V sync

RGB

PORT 3

PORT 6

REMOTE

COMMUNICATION

PROJECTOR MODE POWER/MAINS

PORT 2

(S-VIDEO)

75 ohm

OFF

GREEN : operational RED : stand-by

359

VCR HDTV player

Audio ampli f ier

75 ohm

OFF ON

PORT 1 (VIDEO)

PORT 4/5

(RGB - HV)

Comp/H sy nc V sync

RGB

PORT 3

PORT 6

REMOTE

COMMUNICATION

PROJECTOR MODE POWER/MAINS

PORT 2

(S-VIDEO)

75 ohm

OFF

GREEN : operational RED : stand-by

359

VCR HDTV player

Audio ampli f ier

75 ohm

OFF ON

PORT 1 (VIDEO)

PORT 4/5

(RGB - HV)

Comp/H sy nc V sync

PORT 3

PORT 6

REMOTE

COMMUNICATION

PROJECTOR MODE POWER/MAINS

PORT 2

(S-VIDEO)

75 ohm

ONOFF

GREEN : operational RED : stand-by

359

VCR HDTV player

Audio ampli f ier

sync to port 4/5. (option)

RGB analog input terminals with Tri level sync input or with Tri-level sync on green. The projector detects automatically where the sync signal is located.

RGB input selection :

(RG3sB : R, G, B signals with automatic Tri-level sync detection)

with the RCU or the build in RCU : press digit button 7

Connecting a Component Video source to port 4/5.

Connections

A component video (R-Y, Y, B-Y) with sync signals can be connected to the projector via the Port 4/5. The projector detects automatically where the sync signal is located.

To select the component video input :

with the RCU or the build in RCU : press digit button 6.

Connecting a Component Video source with Trilevel sync to port 4/5. (Opion)

A component video (R-Y, Y, B-Y) with Tri-level sync signals can be connected to the projector via the Port 4/5. The projector detects automatically where the sync signal is located.

To select the component video input :

with the RCU or the build in RCU : press digit button 8.

5975628 BARCOGRAPHICS 1209S 010797

3-5

Connections

PERIPHERAL EQUIPMENT

Connecting a RCVDS 05 switcher to the projector

- Up to 20 inputs with the RCVDS 05 switcher and up to 90 inputs when 10 RCVDS switchers are linked via the expansion modules.

- Serial communication with the projector.

- Remote control buttons on the RCVDS to control the projector (source selection and analog settings)

- The selected source number will be displayed on a 2 digit display and the selected input modules will be indicated with a LED on the rear.

For more information about the use of tje RCVDS, consult the Owner's Manual of the RCVDS. Order number : RCVDS05 : R5975765

Connecting a VS05 switcher to the projector.

The VS05 can switch up to 5 Composite Video sources, 3 S-Video Sources and 1 RGB analog or component Video source to the projector. In addition, an audio signal associated with the source, can be switched to an audio amplifier. Order number : R9827890.

For more information about the use of the VS05, consult the VS05 Owner's Manual, order number : R5975245.

Connecting an IR Remote Receiver to the projector.

This infra-red receiver unit makes it possible to control the projector from another room. There is a communication line cable between the IR receiver and the projector or the RCVDS. The infrared control information from the Remote Control Unit is sent to the IR Remote Receiver. The IR Remote Receiver 800 displays the selected source on a 7-segment display. Order number : R9827515.

3-6 5975628 BARCOGRAPHICS 1209S 010797

Controlling

CONTROLLING

Caution : Do not display a stationary image with full brightness

and contrast for longer than 20 min., otherwise you risk damage to the CRT's.

Battery installation in the RCU.

A new battery is delivered inside the plastic bag with the power cord. Before using the RCU, install first the battery.

Remove the battery cover on the backside of the RCU by pushing the indicated handle a little to the bottom of the RCU. Lift up the top side of the cover at the same time (fig. 1).

Insert the new 9 V battery (type 6F22S or equivalent) in the lower compartment and connect the battery to the contact plate.

Insert the battery into the lower compartment and put the cover back.

Contact plate

Battery

fig.2

310a.DRW

Insert here, behind the plastic cover, the 'Insert card for RCU'. You can cut out the correct insert card on one of the last pages of this manual.

fig.1

5975628 BARCOGRAPHICS 1209S 010797

4-1

Controlling

The BARCOGRAPHICS 1209s can be controlled with

a. the RCU b. the hardwired RCU (cable not included) c. the built-in RCU (local keypad)

The procedure and results of controlling the projector with either of these RCU options is essentially the same.

How to use your RCU

a) Point the front of the RCU towards the reflective screen surface

Ceiling

IR sensor

Screen

RCU800

c) RCU used in a hardwired configuration.

RS232 OUTRS232 IN

REMOTE

366

Plug one end of the remote cable in the connector on the bottom of the RCU and the second side in the connector in the rear panel of the projector labelled 'REMOTE'.

d) Built-in RCU (local keypad) To gain access to the built-in RCU, see paragraph 'The local keypad'

Projector Address

b) Point the front of the RCU towards one of the IR sensors in the projector.

When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the projector's IR sensor. IR Receiver Locations on the Projector:

a. Software set up of the projector address.

See 'Change Projector Address' in chapter 'Service Mode'. Every projector requires an individual address between 0 and 255 which is set in the Service mode. Only projectors with addresses between 0 and 9 can be controlled with the RCU.

b. How to control the projector.

The projector's address may be set to any value between 0 and 255. When the address is set, the projector can be controlled now with :

- the RCU for addresses between 1 and 9.

- computer, e.g. IBM PC (or compatible), Apple MAC, etc. for addresses between 0 and 255.

Note : a projector will respond to a RCU set to an address of '0' regardless of what address is set in the projector itself. Address "O" is therefore a universal address.

c. Using your RCU.

Before using your RCU, it is necessary to enter the projector address into the RCU (only when that address is between 1 and 9). The projector with the corresponding address will listen to that specific RCU. When address 0, 'zero address' is programmed into the RCU, every projector, without exception will listen to the commands given by this RCU.

ENTER

365

4-2 5975628 BARCOGRAPHICS 1209S 010797

Controlling

How to display a projector address?

Press the ADDRESS key (recessed key on the RCU) with a pencil. The projector's address will be displayed in a 'Text box'. This text box

PROJECTOR ADDRESS 001

disappears after a few seconds. To continue using your RCU, it is necessary to enter the same address with the digit buttons (address between 0 and 9). For exemple, if the Adrress Key displays projector address 003, then press the "3" digit button on the RCU to set the RCU's address to match the projector's address.

How to program an address into the RCU?

Press the ADDRESS key (recessed key on the RCU) with a pencil and enter the address with the digit buttons. That address can be any digit between 0 and 9. When programming '0', zero address, the RCU will control a projector regardless of the projector's address. This feature allows multiple projectors with different addresses to be controlled by a single RCU.

With the digit buttons on the RCU, it is possible to select input sources, Video, S-Video, RGsB or RGBS, RG3sB or RGB3S.

When a valid and available source is selected, there will be information displayed on the screen about that source (if "Text" is on). This information includes :

-source number

- horizontal frequency

- vertical frequency

Source 2 Fh= 15.6 kHz Fv= 50 Hz

When the entry is a non valid source number, a warning appears on the screen : 'input not available'.

Input selection

Port No Projector input Press Digit

Button

1 Comp. Video 1 2 S-Video 3 RGB 4/5 RGB 4/5 Component video 4/5 RGB with Tri level sync

/Comp. Video* 2

3 4 or 5 6 7

4/5 Component video

with Tri-level sync

Only available when the optional Tri-level sync module is installed.

Input signal Y/C (luma/chroma)

Input signal : R, G and B with automatic sync detection between seperate sync (separate composite sync or with separate Hor and Vert. sync) or sync on green (composite sync).

Input signal : R-Y, Y and B-Y with separate composite sync or with separate Hor and Vert.sync or with composite sync on Y.

Input signal : R, G and B with separate Tri level sync or with Trilevel sync on green.

Input signal : R-Y, Y and B-Y with separate Tri level sync or with composite Tri-level sync.

* Video or S-Video : switchable in the PictureTuning menu.

WARNING input not

available

When a valid source number is selected, the projector will display this source or it will wait on the selected source number until the source

WARNING source not

available

becomes available. A message 'source not available' will be displayed for a short time.

5975628 BARCOGRAPHICS 1209S 010797

4-3

Controlling

Analog Picture Controls

The analog picture controls can be adjusted with the RCU. The control keys are located on the lower right side of the key panel of the RCU and indicated with the name of the control and an icon. When an analog picture control is pressed, a text box with bar scale and the function name of the control, e.g. 'brightness...' appears on the screen (only if The length of the bar scale indicates the current memorized setting for this source. The bar scale changes as the + or - buttons of the control are pressed.

'TEXT' is ON).

Brightness Control

A correct 'brightness' setting is important for good image reproduction. Adjust the brightness with the + button and - button (RCU) until the darkest parts of the picture appear black. A bar scale gives a visual indication on the screen of the current brightness setting

while pressing on the above indicated keys. If the bar scale is not visible on the screen, press 'TEXT' key once and retry the above indicated keys. The bar scale increases when pressing on the + button (higher brightness) and decreases when pressing on the - button (lower brightness).

Contrast Control

A correct 'contrast' setting is important for good image reproduction. Adjust the contrast to the level you prefer, according to room lighting conditions. If the Contrast Control is too low, the picture will be too dim. If it is set too high, the picture may be too bright and not sharp. A bar scale gives a visual indication on the screen of the current contrast setting while pressing the + or - buttons (RCU). If the bar scale is not visible on the screen, press ' The bar scale increases when pressing on the + button (higher contrast) and decreases when pressing on the - button (lower contrast).

Color Saturation Control

Color saturation is only active for Video and S-Video Inputs. This control adjusts the color intensity of the picture. Adjust the color saturation using the + and - buttons (RCU). A bar scale gives a visual indication on the screen of the current color setting while pressing on the above indicated keys. If the bar scale is not visible on the screen, press ' when pressing on the + button (richer colors) and decreases when pressing the - button (lighter colors).

Tint Control

Tint is only active for Video and S-Video Inputs. The Tint Control is effective only when using the NTSC 4.43 or NTSC 3.58 system. A bar scale gives a visual indication on the screen of the current tint setting while pressing the + or - buttons (RCU). If the bar scale is not visible on the screen, press the ' The bar scale increases when pressing on the + button (greener flesh tones) and decreases when pressing the - button (redder flesh tones).

TEXT' key once and retry the above indicated keys.

TEXT' key once and retry the above indicated keys. The bar scale increases

TEXT' key once and retry the above indicated keys buttons.

BRIGHTNESS

189

Sharpness Control.

Sharpness control only active for Video and S-Video Inputs. A bar scale gives a visual indication on the screen of the current sharpness setting while pressing the + or - buttons (RCU). If the bar scale is not visible on the screen, press ' The bar scale increases when pressing on the + button (sharper picture) and decreases when pressing on the - button (softer picture).

TEXT' key once and retry the above indicated keys.

Controlling chained projectors.

Projectors can be controlled individually as well as in a group. For individual control see previous pages. For group control of the projectors.

(input selection and analog picture control) Program the 'zero address' into any RCU. Therefore, press on the address key and key in the address ("0") with the numeric keys on the

RCU itself. Once address '0' is pressed, all projectors will be controlled together until a new address is entered on the RCU. It is possible to have a common input selection and a common analog picture control. Once a new address is entered, only the projector with that specific address will follow the new instructions.

Note : For group control, all projectors in a control group must be capable of receiving the IR signal from the controlling RCU at the same time.

4-4 5975628 BARCOGRAPHICS 1209S 010797

Start Up of the Adjustment Mode

START UP OF THE ADJUSTMENT MODE

Adjustment Mode

All picture geometry and convergence adjustments are made while in the 'Adjustment mode'. Press the ADJUST key to enter the 'adjustment mode'.

You are now in the 'Adjustment mode'. The

ENTER and EXIT keys are used to move forward and backward through the menu structure. The ADJUST key can be used to terminate the

adjustment mode while any path selection menu is displayed. When an adjustment menu is displayed on the screen and no action is taken within the first 5 minutes, the projector will automatically reduce

the brightness and contrast to a level so that the stationary image cannot damage the tubes. There are 5 possible paths to follow once in the Adjustment mode. They are :

INSTALLATION - Installation should be selected if the projector has been

relocated and/or a different screen size is desired. When selecting 'Installation', the user or operator will be warned to call a qualified technician to perform the installation procedure (see example of projected warning on the next page)

GUIDED - Guided should be selected if the user intends to perform a complete

alignment of the projected image. All of the necessary geometry and convergence adjustments are made in a predetermined sequence.

RANDOM ACCESS - Random Access should be selected if the user intends to

make only a few adjustments.

Control disk is used to make menu selections and also vertical and horizontal adjustments. The

ADJUSTMENT MODE

Select a path from below:

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

IRIS

source 1

Select with or then <ENTER> <EXIT> to return

SERVICE - Service should be selected if the user intends to delete blocks, change

password , select service adjustments or get set-up information.

IRIS - This selection will only be available when the IRIS Auto-Convergence unit

is connected to the projector. (See Adjustment Manual for IRIS²) While in Guided or Random Access adjustment Modes, the user may use an

external source, an internally generated genlocked pattern or an internally generated multifrequency cross hatch pattern as a setup pattern.

Warning during the start up of the installation mode.

WARNING

RISK OF ELECTRICAL SHOCK

NO USER ADJUSTABLE PARTS

INSIDE

THE FOLL OW IN G INSTALLATION MENUS ARE RESERVED TO, AND TO BE PERFORMED ONLY BY BARCO PERSONNEL, OR BARCO AUTHORIZED DEALERS

IF QUALIFIED, PRES S <ENTER > TO CONT IN UE , OR IF NOT, <EXIT> TO RETURN.

5975628 BARCOGRAPHICS 1209S 010797

5-1

Start Up of the Adjustment Mode

Some items in the Adjustment mode are password protected. While selecting such an item, the projector asks you to enter your password. (Password protection is only available when the password DIP switch on the controller module is in the ON position. Contact a BARCO authorized technician when no password is requested during the adjustment procedure and password protection is desired.) Your password contains 4 digits.

Enter the digits with the numeric keys on the RCU. Example : 2 3 1 9 For each digit entered, a 'X' appears on the screen under the displayed text 'enter

password'. When your password is correct, you get access to the 'Adjustment item'.

When the entered password is wrong, The message 'Wrong password !!!' will be displayed. The projector stays on the previous selected item.

Factory programmed password :

Once the password is correctly entered, all other password protected items are accessible without re-entering your password. When re-entering the Adjustment mode, it will be necessary to enter your password again when selecting a password protected item.

0000

enter password xxxx

WRONG PASSWORD !!!

197

5-2 5975628 BARCOGRAPHICS 1209S 010797

Random Access Adjustment Mode

RANDOM ACCESS ADJUSTMENT MODE

Starting-Up the Random Access Adjustment mode.

Push the control disk up or down to highlight "RANDOM ACCESS" and then press

ENTER.

Some items in the Random access mode are password protected (when the password function is enabled). Enter your password to continue. All other password protected items are now also available if you stay in the adjustment mode.

ENTER continues to Setup Pattern Selection EXIT returns to Operational mode

Overview 'Random Access Adjustment' mode

COLOR BALANCE

SYNC

PEAKING

PICTURE TUNING

CLAMP TUNING

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

IRIS

Source 01

Select with or

then <ENTER>

<EXIT> to return.

RANDOM ACCESS ADJUSTMENT MODE

SETUP PATTERN SELECTION

GEOMETRY

LINE DOUBLER

PORT 2

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTIONS

TOP-BOTTOM (N-S)

V CENTERLINE BOW

V CENTERLINE SKEW SIDE BOW

SIDE KEYSTONE SEAGULL CORRECTION

LEFT KEYSTONE

LEFT BOW

H CENTERLINE BOW

H CENTERLINE SKEW TOP KEYSTONE

TOP BOW BOTTOM KEYSTONE

BOTTOM BOW

SEAGULL CORRECTION

To next page

5975628 BARCOGRAPHICS 1209S 010797

To next page

6-1

Random Access Adjustment Mode

RANDOM ACCESS ADJUSTMENT MODE

SETUP PATTERN SELECTION

From next page

CONVERGENCE

FOCUSING

From next page

H SIZE

V LINEARITY

V SIZE

BLANKING

GREEN ONLY

RED ON GREEN

BLUE ON GREEN

RED

GREEN

BLUE

TOP

BOTTOM LEFT

RIGHT

COLOR SELECT

ORBITING

CONTRAST MODULATION

SOFT EDGE CORRECTION

RED

GREEN BLUE

RED AND GREEN

BLUE AND GREEN RED AND BLUE

6-2 5975628 BARCOGRAPHICS 1209S 010797

Selecting Setup Pattern

Random Access Adjustment Mode

If an external source is connected to the projector, this menu will be displayed. Push the control disk up or down to highlight the desired setup pattern and then press

ENTER.

Genlocked pattern : internally generated cross hatch pattern, locked on the external source. Internal # pattern : internally generated cross hatch pattern and locked on internal generated

sync signals. (No external source necessary)

continues to Random Access Adjustment Mode or Internal # Pattern Selection

ENTER

EXIT returns to Path Selection menu ADJUST returns to Operational mode

If no external source is connected to the projector, the internal cross hatch pattern menu will be displayed.

Note: The menus in this manual are created for an external source, connected to one of the inputs, and the 'Genlocked Pattern' is selected.

Internal Cross Hatch Pattern

The Internal # pattern menu will be displayed if the internal cross hatch pattern has been selected or if no source is connected to the projector.

The table below lists the 8 fixed factory preset frequencies available. Another 8 blocks are custom programmable.

Push the control disk up or down to highlight the desired cross hatch frequency. Push the control disk to the left and to the right to scroll to another page. Press block is selected.

kHz/Hz

15.6/50 PAL/SECAM

15.7/60 NTSC

31.2/50 EDTV

31.5/60 IDTV

31.2/50 HDTV EUREKA

31.5/60 HDTV ATV

33.7/60 HDTV HIVISION

15.8/60 EGA 1

61.0/76 VGA 1,2

35.5/87 VGA 4

48.5/60 SUPER VGA 1

44.2/70 SUPER VGA 2

61.0/76 SUPER VGA 3

72.1/67 SUPER VGA 4

89.3/67 SUN 3/260

127.0/60 CHROMATICS

ENTER if the desired

Choose a setup pattern from below :

SELECTED SOURCE

GENLOCKED PATTERN

INTERNAL # PATTERN

Select with or

then <ENTER>

<EXIT> to return.

INTERNAL # PATTERN

kHz / Hz

15.6/50 PAL/SECAM

15.7/60 NTSC

31.2/50 EDTV

31.5/60 IDTV

31.2/50 HDTV EUREKA

31.5/60 HDTV ATV Select with or

scroll with or

<ENTER> to accept

<EXIT> to return

Source 01

ENTER continues to the Random Access Adjustment Mode. EXIT returns to the Setup Pattern Selection menu.

5975628 BARCOGRAPHICS 1209S 010797

6-3

Random Access Adjustment Mode

Random access adjustment mode selection menu.

This is the main menu for the Random Access adjustment mode. Through this menu, the following adjustments and features are accessible :

- Picture Tuning Enhanced Blue (only for RGB) Sync slow/fast(video/s-video) Color Balance

- Focusing

- Geometry

- Convergence

- Color select

And also Orbiting, Contrast modulation and Soft Edge if these options are installed.

Picture Tuning

Highlight Picture tuning by pushing the control disk up or down and press ENTER. The Picture tuning menu will be displayed. Depending on the input source, the Picture tuning menu will display different items. For Video input sources :

Color Balance Line Doubler Port 2 : Video or S-Video (only when source 2 is selected)

For RGB analog sources :

Color Balance Sync slow/fast Peaking Clamp Tuning

for Component input and RGB on 15 kHz.

Color Balance Sync slow/fast Peaking Clamp Tuning Line Doubler (option)

RANDOM ACCESS

ADJUSTMENT MODE

PICTURE TUNING

GEOMETRY

CONVERGENCE

FOCUSING

COLOR SELECT

ORBITING

CONTR. MODULATION

SOFT EDGE

Select with or

then <ENTER>

<EXIT> to return.

PICTURE TUNING

COLOR BALANCE

SYNC : FAST

PEAKING

CLAMP TUNING

LINE DOUBLER

Select with or

<ENTER> to accept

<EXIT> to return.

Color Balance

The Color Balance function is used to select or adjust the color temperature of white used by the projector. The Color Balance can be adjusted on two different ways :

- fixed color balance. You have the choice between 3200 K (reddish),

4900 K, 6500 K (white) or 9300 K (bluish).

- Custom white and black balance.

Fixed Color Balance.

Highlight one of the 4 preprogrammed color temperatures with the control disk and press

Custom Color Balance.

Select custom Red & Blue gain with the control disk and press

ENTER to start the adjustment.

Push the control disk up or down to adjust the red gain and push the control disk to the left or to the right to adjust the blue gain. A bar scale indicates the amount of adjustment. Select custom Green gain with the control disk and press ENTER to start the adjustment. Push the control disk up or down to adjust the green gain.

Select custom R & B cut off with the control disk and press enter to start the adjustment. Push the control disk up or down to adjust the red cut-off and push the control disk to the left or to the right to adjust the blue cut-off. Select custom Green cut off with the control disk and press enter to start the adjustment. Push the control disk up or down to adjust the red cut-off

EXIT returns to the Picture tuning menu.

ENTER

to display the desired color balance.

PICTURE TUNING

COLOR BALANCE

SYNC : FAST

PEAKING CLAMP TUNING LINE DOUBLER

Select with or

<ENTER> to accept

<EXIT> to return.

CUSTOM RED & BLUE GAIN

CUSTOM RED & BLUE CUT OFF

CUSTOM GREEN CUT OFF

COLOR BALANCE

FIXED COLOR BALANCE

3200 4900 6500 9300

CUSTOM GREEN GAIN

Select with arrow keys

then <ENTER>

Red & Blue :

adjust red with or

Blue with or

<EXIT> to return

6-4 5975628 BARCOGRAPHICS 1209S 010797

Sync Fast/Slow Adjustment

The sync function is used to minimize horizontal jittering or tearing at the top to the displayed image. Highlight SYNC by pushing the control disk up or down and press

ENTER to toggle between FAST and SLOW.

Note: SYNC is normally used in the SLOW position. For Video and S-Video the sync is automatically set to FAST.

ENTER will toggle Sync between FAST and SLOW EXIT will return to the random access selection menu

Peaking

Peaking improves the contours in an projected image. Highlight PEAKING by pushing the control disk up or down and press

ENTER to display the peaking menu.

During the creation of new settings for a RGB source the corresponding peaking is switched on as default. For frequencies between : 15 kHz - 45 kHz : Low frequency peaking 45 kHz - 85 kHz : Mid frequency peaking 85 kHz - 135 kHz :High frequency peaking If another peaking is desired, use the control disk to highlight 'low', 'mid' or 'high' frequency or to switch off the peaking.

Random Access Adjustment Mode

PICTURE TUNING

COLOR BALANCE

SYNC : FAST

PEAKING

CLAMP TUNING : normal

LINE DOUBLER

Select with or

<ENTER> to accept

<EXIT> to return.

PICTURE TUNING

COLOR BALANCE

SYNC : FAST

PEAKING

CLAMP TUNING : normal

LINE DOUBLER

Select with or

<ENTER> to accept

<EXIT> to return.

PEAKING

OFF

LOW FREQUENCY

MID FREQUENCY

HIGH FREQUENCY

Clamp Tuning

Highlight CLAMP TUNING by pushing the control disk up or down and press TION.

Select Normal : - for all standard sources and all sources with a

Select Restoration

ENTER to toggle between NORMAL and RESTORA-

backporch > 0.8µs,

- for sources with noise and spikes in the signal. : - for standard sources with a backporch between

0.4 µs and 0.8 µs,

- for sources with sync separate or sync on Green.

Select with or

then <ENTER>

<EXIT> to return.

PICTURE TUNING

COLOR BALANCE

SYNC : FAST

PEAKING

CLAMP TUNING : normal

LINE DOUBLER :ON

Select with or

<ENTER> to accept

<EXIT> to return.

5975628 BARCOGRAPHICS 1209S 010797

6-5

Random Access Adjustment Mode

Port 2 : Video or S-Video

Port 2 can be used as a Video or S-Video input. Highlight Port 2 by pushing the control disk up or down and press

to toggle between VIDEO and S-VIDEO.

ENTER

Line Doubler (option)

Line doubling is only possible for Video, S-Video, Component Video images on standard line frequency and RGB signals on 15 kHz. To eliminate the video line patterns and to improve the image stability, the line doubler has to be switched on. The line doubler is default set in the ON position when starting up for the first time. The setting of the line doubler will be saved together with the source number. Each time this source number is selected, the last saved version will be loaded.

Highlight Line Doubler with the control disk and press toggle between ON (active) and OFF (non active).

ENTER to

PICTURE TUNING

COLOR BALANCE

PORT2 : S-VIDEO

LINE DOUBLER : ON

Select with or

<ENTER> to accept

<EXIT> to return.

PICTURE TUNING

COLOR BALANCE

SYNC : FAST

PORT2 : S-VIDEO

LINE DOUBLER : ON

Select with or

<ENTER> to accept

<EXIT> to return.

EXIT will return to the random access selection menu.

Color Select

Highlight COLOR SELECT by pushing the control disk up or down and press

Use the control disk to highlight a color (CRT) or combination of colors to display the projected image in that specific color. To select a new color, press appears again on the screen. To terminate the color select procedure, press

ENTER

to display the color select menu.

ENTER continues to the color select menu EXIT will return to Internal Crosshatch Selection or Setup

Pattern Selection Menu

ADJUST returns to operational mode

ENTER, the color selection menu

EXIT

ENTER continues with the selected color or color combina-

tion.

EXIT returns to the Random access main menu.

RANDOM ACCESS

ADJUSTMENT MODE

PICTURE TUNING

GEOMETRY

CONVERGENCE

FOCUSING

COLOR SELECT

ORBITING

CONTR. MODULATION

SOFT EDGE

Select with or

then <ENTER>

<EXIT> to return.

COLOR SELECT

RED

GREEN

BLUE

RED AND GREEN

BLUE AND GREEN

RED AND BLUE

Select with or

<ENTER> to accept

<EXIT> to return.

6-6 5975628 BARCOGRAPHICS 1209S 010797

Focusing

Before starting the 'focusing' adjustment, be sure the lenses are correctly focused. Push the control disk up or down to select 'Focusing' and press

ENTER.

ENTER continues to the Focusing color select menu. EXIT returns to Internal Crosshatch Selection or Setup Pattern

Selection menu.

ADJUST returns to operational mode.

Focusing color select.

The focusing has to be done for the three colors separately. Therefore, start by selecting Green by pushing the control disk up or down and adjust Midpoint, top, bottom left and right focusing. Return to this focusing color select menu and continue with Red and Blue. Repeat for both colors Midpoint, top, bottom left and right focusing.

ENTER selects the focusing menu for the selected color. EXIT returns to the Random access main menu.

Random Access Adjustment Mode

RANDOM ACCESS

ADJUSTMENT MODE

PICTURE TUNING

GEOMETRY

CONVERGENCE

FOCUSING

COLOR SELECT

ORBITING

CONTR. MODULATION

SOFT EDGE

Select with or

then <ENTER>

<EXIT> to return.

FOCUSING

RED

GREEN

BLUE

BLUE ON SOURCE

Select with or

then <ENTER>

<EXIT> to return.

Midpoint focusing

Push the control disk up or down to select midpoint and press ENTER continue with the midpoint focusing.

Adjust by pushing the control disk to the left or to the right until the center of the image is sharp. Press

ENTER to return to the focusing menu.

Top image focusing

The same procedure has to be repeated as for the midpoint focusing. Push the control disk up or down and press

ENTER to continue to the

top focusing. Push the control disk to the left or to the right to adjust the top focusing. Adjust until the upper part of the image is sharp. ENTER to return to the Green Focusing menu.

Bottom image focusing

The same procedure has to be repeated as for the midpoint focusing. Push the control disk up or down to select bottom and press to continue to the bottom focusing. Push the control disk up or down to adjust the bottom focusing. Adjust until the lower part of the image is sharp.

ENTER to return to the Green Focusing menu.

ENTER

Left image focusing

FOCUSING

RED

GREEN

BLUE

BLUE ON SOURCE

Select with or

then <ENTER>

<EXIT> to return.

GREEN FOCUSING

MIDPOINT

TOP

BOTTOM

LEFT

RIGHT

Select with or

then <ENTER>

<EXIT> to return.

The same procedure has to be repeated as for the midpoint focusing. Push the control disk up or down to select LEFT and press

ENTER

to continue to the left focusing. Push the control disk up or down to adjust the left focusing. Adjust until the left part of the image is sharp.

ENTER to return to the Green Focusing menu.

When on the Green Focusing menu, press EXIT to return to the focusing color select menu and continue with the other colors.

Right image focusing

Blue on source

The same procedure has to be repeated as for the midpoint focusing. Push the control disk up or down to select RIGHT and press

ENTER

to continue to the right focusing. Push the control disk to the left or to the right to adjust the right focusing. Adjust until the right part of the image is sharp.

to return to the Green Focusing menu.

ENTER

5975628 BARCOGRAPHICS 1209S 010797

After focusing the three color, and a discoloring on a normal image is still visible, select 'Blue on source' on the Focusing menu and repeat the above steps for Midpoint, top, bottom left and right focusing. Press

EXIT to return to focusing menu.

6-7

Random Access Adjustment Mode

Geometry Adjustments

The geometry adjustments have to be done only on the green image. These adjustments are automatically implemented for the other color images : Left-right (EW) and Top-Bottom Corrections, Blanking, Horizontal Amplitude, Vertical Amplitude, Vertical Linearity and Horizontal Phase.

Highlight GEOMETRY by pushing the control disk up or down and press

ENTER to display the geometry menu.

ENTER will display Geometry menu EXIT will return to Internal Crosshatch Selection or Setup

Pattern Selection Menu

ADJUST returns to operational mode

Within the Geometry Adjustment menu, the following adjustments are available :

- Horizontal Phase (not for internal # pattern).

- Raster Shift

- Left-Right Corrections

- Left Side Corrections

- Top-Bottom Corrections

- Horizontal Size

- Vertical Linearity

- Vertical Size

- Blanking

RANDOM ACCESS

ADJUSTMENT MODE

PICTURE TUNING

GEOMETRY

CONVERGENCE

FOCUSING

COLOR SELECT

ORBITING

CONTR. MODULATION

SOFT EDGE

Select with or

then <ENTER>

<EXIT> to return.

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

The convergence corrections are disabled during geometry corrections. The blanking corrections are only enabled during the blanking adjustments.

Horizontal Phase Adjustment

Push the control disk up or down to highlight H PHASE on Geometry menu and then press

Note : No horizontal phase adjustment is available on the internal # pattern.

For external sources : If the raster shift is correctly adjusted, the H Phase text box is projected in the middle of the raster. At that moment, the "><" icon indicates the middle of the raster. Adjust the H Phase control until the middle of the projected image is equal with the middle of >< icon.

Note :

- if the genlocked pattern was selected, the external source will be displayed.

A bar scale and a number indicator (between 0 and 100) on the screen give a visual indication of the horizontal phase adjustment.

ENTER continues to geometry menu .

ENTER.

Push the control disk to the right to correct

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

H PHASE

Push the control disk to the left to correct

H PHASE

6-8 5975628 BARCOGRAPHICS 1209S 010797

Raster Shift Adjustment

The green raster must be centered both horizontally and vertically on the center of the CRT surface. To center the green raster, look into the green lens and use the control disk to move the raster.

CAUTION It is necessary to look into the lenses to perform these adjustments.

To avoid eye discomfort while looking into the lenses, reduce the contrast and gradually increase the brightness level until the raster becomes visible on the face of the CRT.

ENTER will select green raster shift adjustment EXIT returns to random access adjustment mode menu.

Warning : In order to ensure maximum CRT longevity and to

avoid CRT damage, do not shift the raster outside the phosphor area of the CRT.

To start the adjustment, use the control disk to highlight Raster shift and press ENTER to display the green raster on the phosphor.

forbidden area

Random Access Adjustment Mode

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

projected raster

crt faceplate border

phosphor border

Press EXIT to return to the Geometry menu. Note : Horizontal and Vertical shifts for Red and Blue should

be end up with a setting close to 50%. If these settings are significantly greater or lesser than 50%, then contact a BARCO authorized service technician.

correct raster position

wrong raster positions

233

5975628 BARCOGRAPHICS 1209S 010797

6-9

Random Access Adjustment Mode

Left-Right (east-west) Adjustments

Left-right adjustments affect only the vertical lines of the projected image. Only the green image is displayed while making left-right adjustments. The red and blue images will automatically be corrected in the same manner. Convergence corrections are automatically disabled for the duration of these adjustments. The following adjustments can be executed

- Vertical Centerline Bow

- Vertical Centerline Skew

- Side Bow

- Side Keystone

- Seagull correction

Push the control disk up or down to highlight LEFT-RIGHT (E/W) on the geometry menu and then press

ENTER will select Left-Right adjustment menu EXIT returns to random access adjustment mode main menu. ADJUST returns to operational mode

The warning : "Use this correction to adjust the right side of the image" appears on the screen when selecting 'Side Bow' or 'Side Keystone'. When the right side is correctly adjusted, use 'Left Side Correction' to correct the left side of the image.

ENTER.

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

V CENTERLINE BOW

V CENTERLINE SKEW

SIDE KEYSTONE

SEAGULL CORRECTION

Warning : Use this correction to

adjust the right side of the image !

Select with or

then <ENTER>

<EXIT> to return.

LEFT-RIGHT

SIDE BOW

All adjustments are indicated on the screen with the function name, a bar scale and a number between 0 and 100. Adjust the next alignments until the vertical lines are straight. For side bow and side keystone, look only to the right side of the image. To enter an alignment, push the control disk up or down to highlight a function and press Press

EXIT to return.

ENTER to activate this function.

LEFT-RIGHT

V CENTERLINE BOW

V CENTERLINE SKEW

SIDE BOW

SIDE KEYSTONE

SEAGULL CORRECTION

Select with or

then <ENTER>

<EXIT> to return.

Corrects for curvature of the vertical lines in the middle of the image.

Corrects the tilting of the vertical lines in the middle of the image.

Corrects for curvature of the vertical lines on the right side

Corrects the keystone geometry correction of the vert. lines on the right side

Correct by pushing the control disk to the right

Correct by pushing the control disk to the left

6-10 5975628 BARCOGRAPHICS 1209S 010797

Seagull correction

Use this correction only if, after adjusting the vertical lines with the side bow or side keystone, still a 'S' deformation is visible on the left and the right side of the image. The default value on the bar scale for this correction is 50.

Push the control disk up or down to highlight SEAGULL CORREC- TION on the Left-Right menu and then press ENTER.

Eliminate the deformation by pushing the control disk to the left or to the right until a straight line is obtained.

Left Side Correction

Left side corrections affect only the vertical lines of the set up pattern. Only the green image is displayed while making the left side adjustments. The red and blue images will automatically be corrected in the same manner.

Convergence corrections are automatically disabled for the duration of these adjustments.

Look only to the left side of the image while adjusting these fine tunings (bow and keystone). Before starting the left side correction, insure that the side bow and keystone adjustments are done prior to these fine adjustments ! The following adjustments can be executed :

- Left keystone

- Left bow

Push the control disk up or down to highlight LEFT SIDE CORREC- TION on the geometry menu and then press

ENTER.

Random Access Adjustment Mode

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

LEFT-RIGHT

V CENTERLINE BOW

V CENTERLINE SKEW

SIDE BOW

SIDE KEYSTONE

SEAGULL CORRECTION

Select with or

then <ENTER>

<EXIT> to return.

LEFT SIDE CORRECTION

LEFT KEYSTONE

LEFT BOW

Ensure that the side bow and keystone adjustments are done prior to these fine adjustments !

Select with or

then <ENTER>

<EXIT> to return.

ENTER will select the Left Side Correction menu. EXIT will return to the random access adjustment menu. ADJUST returns to operational mode.

All adjustments are indicated on the screen with the function name, a bar scale and a number between 0 and 100. Adjust the next alignments until the vertical lines on the left side are straight.

LEFT SIDE CORRECTION

LEFT KEYSTONE

LEFT BOW

Ensure that the side bow and keystone adjustments are done prior to these fine adjustments !

Select with or

then <ENTER>

<EXIT> to return.

To enter an alignment, push the control disk up or down to highlight a function and press Press

EXIT to return.

ENTER to activate this function.

Correct the keystone geometry distortion of the vertical lines

Correct the bow geometry distortion of the vertical lines

Correct by pushing the control disk to the right

Correct by pushing the control disk to the left

5975628 BARCOGRAPHICS 1209S 010797

6-11

Random Access Adjustment Mode

Top-Bottom (north-south) Adjustments

Top-Bottom and center adjustments affect only the horizontal lines of the projected image. To start up the Top-Bottom and center corrections, follow the next procedure :

Push the control disk up or down to highlight TOP-BOTTOM (N/S) on the geometry menu and then press

Only the green image is displayed while making top-botton adjustments. The red and blue images will automatically be corrected in the same manner. Convergence corrections are automatically disabled for the duration of these adjustments.

ENTER.

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

TOP-BOTTOM (N-S)

H CENTERLINE BOW

H CENTERLINE SKEW

TOP KEYSTONE

BOTTOM KEYSTONE

SEAGULL CORRECTION

TOP BOW

BOTTOM BOW

The following adjustments can be executed :

- horizontal centerline bow

- horizontal centerline skew

- top bow

- top keystone

- bottom bow

- bottom keystone

- seagull correction

All adjustment are indicated on the screen with the function name, a bar scale and a number between 0 and 100.

Adjust the next alignments until the vertical lines are straight. To enter an alignment, push the control disk up or down to highlight a function and press Press

EXIT to return.

ENTER to activate this function.

TOP-BOTTOM

H CENTERLINE BOW

H CENTERLINE SKEW

TOP BOW

TOP KEYSTONE

BOTTOM BOW

BOTTOM KEYSTONE

SEAGULL CORRECTION

Select with or

then <ENTER>

<EXIT> to return.

Select with or

then <ENTER>

<EXIT> to return.

Corrects for curvature of the horizontal lines in the middle of the image.

Corrects the tilting of the horizontal lines in the middle of the image.

Corrects for curvature of the horizontal lines on the upper side

Corrects the keystone geometry correction of the hor. lines on the upper side

Corrects for curvature of the horizontal lines on the lower side

Corrects the keystone geometry correction of the hor. lines on the lower side

Correct by pushing the control disk down

Correct by pushing the control disk up

6-12 5975628 BARCOGRAPHICS 1209S 010797

Seagull Correction

Use this correction after the image has been adjusted with top and bottom bow and keystone. If still a deformation (like a seagull) on top and bottom of the image is visible, proceed to the seagull correction. Due to interaction, it is possible that the top and bottom bow have to be readjusted after adjusting the seagull correction to obtain an improved image. The default value on the bar scale of this correction is 50. Push the control disk up or down to select the 'Seagull Correction' and press

ENTER to select.

Eliminate teh deformation by pushing the control disk upwards or downwards until a straight line is obtained.

ENTER will return to Top-Bottom adjustment menu EXIT will return

to Geometry menu

Horizontal Size Adjustment

Random Access Adjustment Mode

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

TOP-BOTTOM (N-S)

H CENTERLINE BOW

H CENTERLINE SKEW

TOP KEYSTONE

TOP BOW

BOTTOM KEYSTONE

BOTTOM BOW

SEAGULL CORRECTION

Select with or

then <ENTER>

<EXIT> to return.

Push the control disk up or down to highlight H SIZE on the Geometry menu and then press

will select horizontal size adjustment

ENTER

returns to random access adjustment mode menu.

EXIT

ENTER.

ADJUST returns to operational mode

Adjust the horizontal size by the control disk to the right or to the left until the exact image width is obtained.

Note :

- if the internal # pattern was selected, this pattern remains on the screen.

- if the genlocked pattern was selected, the external source will be displayed.

A bar scale and a numeric indicator help to gauge the horizontal size adjustment.

Hint : In order to avoid loss of resolution in the projected image and to ensure maximum CRT longevity, do not use an excessively small horizontal size setting.

EXIT will return to Geometry

H size too large

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

H SIZE

Ideal image width

H size too small

5975628 BARCOGRAPHICS 1209S 010797

6-13

Random Access Adjustment Mode

Vertical Linearity Adjustment

The vertical linearity adjustment function corrects for vertical nonlinearities which extend from the center of the image to the top and bottom of the image. Push the control disk up or down to highlight V LINEARITY on the Geometry menu and then press ENTER.

ENTER will select vertical linearity adjustment, EXIT returns to random access adjustment mode menu, ADJUST returns to operational mode

Adjust the vertical linearity with the control disk until the distances between the horizontal lines of the set up pattern are equal from top to bottom.

EXIT will return to the Geometry menu

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

V LINEARITY

Vertical Size Adjustment

Push the control disk up or down to highlight V SIZE on the Geometry menu and then press ENTER.

ENTER will select vertical size adjustment EXIT returns to random access adjustment mode menu,. ADJUST returns to operational mode

Adjust the vertical size by pushing the control disk up or down until the correct image height is obtained.

Note :

- if the internal # pattern was selected, this pattern remains on the screen.

- if the genlocked pattern was selected, the external source will be displayed.

A bar scale and a numeric indicator give a visual indication of the vertical size adjustment.

Hint : In order to avoid loss of resolution in the projected image and to ensure maximum CRT longevity, do not use an excessively small vertical size setting.

EXIT will return to Geometry

Ideal mage Hight

Image too

Tall

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

Ideal


Hight

V SIZE

Image to o

Short

6-14 5975628 BARCOGRAPHICS 1209S 010797

Blanking Adjustments

Blanking adjustments affect only the edges of the projected image and are used to frame the projected image on to the screen and to hide or black out unwanted information (or noise). A 0% on the bar scale indicates no blanking.

To start up the Blanking adjustments, follow the next procedure : Push the control disk up or down to highlight BLANKING on the

Geometry menu and then press ENTER.

Random Access Adjustment Mode

GEOMETRY

H PHASE

RASTER SHIFT

LEFT-RIGHT (E-W)

LEFT SIDE CORRECTION

TOP-BOTTOM (N-S)

H SIZE

V LINEARITY

V SIZE

BLANKING

Select with or

then <ENTER>

<EXIT> to return.

BLANKING

TOP

BOTTOM

LEFT

RIGHT

Select with or

then <ENTER>

<EXIT> to return.

The following blanking corrections are possible :

- top blanking

- bottom blanking

- left blanking

- right blanking

Therefore :

- if the internal # pattern was selected, this pattern remains on the screen.

- if the genlocked pattern was selected, the external source will be displayed.

Adjust the next blanking alignments until the image is correctly framed or the unwanted information is blanked out. To enter a blanking alignment, push the control disk up or down to highlight a function and press ENTER to activate this function.

Press EXIT to return.

BLANKING

TOP

BOTTOM

LEFT

RIGHT

Select with or then <ENTER>

<EXIT> to return

Top blanking

eft blanking

Bottom blanking

Adjustment of the blanking on the of the image

Adjustment of the blanking on the bottom of the image

Correct by pushing the control disk up or down

Right blanking

Adjustment of the blanking on the left side

Adjustment of the blanking on the right side

5975628 BARCOGRAPHICS 1209S 010797

Correct by pushing the control disk to the right or to the left

6-15

Random Access Adjustment Mode

Convergence Adjustment

Convergence adjustments affect both the horizontal and vertical lines of the setup pattern. These adjustments are performed on the red image while superimposed on the green image and then on the blue image while superimposed on the green image. Start with the Coarse convergence adjustments and finalise with the Fine convergence adjustment.

RANDOM ACCESS

ADJUSTMENT MODE

PICTURE TUNING

GEOMETRY

CONVERGENCE

FOCUSING

COLOR SELECT

ORBITING

CONTR. MODULATION

SOFT EDGE

Select with or

then <ENTER>

<EXIT> to return.

CONVERGENCE

COARSE ADJUSTMENT

RED ON GREEN

BLUE ON GREEN

FINE ADJUSTMENT

GREEN ONLY

RED ON GREEN

BLUE ON GREEN

Select with or

then <ENTER>

<EXIT> to return.

The screen area is divided into 25 areas.

Coarse Convergence Adjustment.

Highlight 'Red on green' under the coarse convergence item and press ENTER. The coarse convergence menu will be displayed. The following items are possible :

- Horizontal sides : adjust the vertical lines, within a certain area, on both sides without influencing the lines on the middle of the image.

- Vertical corners : adjust the horizontal lines in the four corners, within a certain area, without influencing the middle of the image.

Repeat for 'blue on green'

23 9 15 17

22 8 14 16

54123

20 18 6 10 12

19 7 11 13

Select with or

then <ENTER>

<EXIT> to return.

CONVERGENCE

COARSE ADJUSTMENT

RED ON GREEN

BLUE ON GREEN

FINE ADJUSTMENT

GREEN ONLY

RED ON GREEN

BLUE ON GREEN

Select with or

then <ENTER>

<EXIT> to return.

COARSE CONVERGENCE

HORIZONTAL SIDES

VERTICAL CORNERS

Select with or

then <ENTER>

<EXIT> to return.

Horizontal sides

Highlight 'Horizontal lines' and press To make a coarse adjustment of the red or blue vertical lines in zone 3 and 5 simultaneously.

Hint :

ENTER to start the adjustment.

Select with or

then <ENTER>

<EXIT> to return.

COARSE CONVERGENCE

HORIZONTAL SIDES

VERTICAL CORNERS

Select with or

then <ENTER>

<EXIT> to return.

- look to the end of scan and adjust until the red or the blue vertical lines are on the green lines or as close as possible to the green lines.

- during these adjustments, the horizontal convergence adjustments in zones 2, 3, 4 and 5 will be set to midposition (barscale 50).

6-16 5975628 BARCOGRAPHICS 1209S 010797

Vertical corners

Random Access Adjustment Mode

Highlight 'Vertical corners' and press

ENTER to start the adjustment.

To make a coarse adjustment of the red or blue horizontal lines in zone 10, 14, 18 and 22 simultaneously.

Hint :

- Adjust until the red or the blue horizontal lines are on the green lines or as close as possible to the green lines.

- During these adjustments, the horizontal convergence adjustments in zones 10 to 25 will be set to midposition (barscale 50).

Fine Convergence Adjustment.

Use these controls after coarse convergence adjustment to optimize the convergence of the red and blue image on the green image.

Use the control disk to make horizontal or vertical convergence adjustments in the selected zone and then press box to another zone or

EXIT to return to the Convergence menu.

ENTER toggles arrow keys between zone selection and zone adjust-

ment .

EXIT returns to convergence menu.

Note : The green convergence adjustments can be added as an option. When these are available, always start with 'green only'. This option will also be indicated on the convergence menu.

ENTER to move the

Select with or

then <ENTER>

<EXIT> to return.

CONVERGENCE

COARSE ADJUSTMENT

RED ON GREEN

BLUE ON GREEN

FINE ADJUSTMENT

GREEN ONLY

RED ON GREEN

BLUE ON GREEN Select with or

then <ENTER>

<EXIT> to return.

Select with or

then <ENTER>

<EXIT> to return.

COARSE CONVERGENCE

HORIZONTAL SIDES

VERTICAL CORNERS

Select with or

then <ENTER>

<EXIT> to return.

CONVERGENCE

SEL : select area

using arrow keys

ADJ : adjust area

using arrow keys

Toggle between SEL and ADJ with <ENTER> <ENTER> continue <EXIT> to return

Highlight first 'Green only' when available with the control disk and press

ENTER to display the convergence adjustment menu.

Continue with red on green and blue on green.

CONVERGE ADJUSTMENT

green image

red image

5975628 BARCOGRAPHICS 1209S 010797

6-17

Service Mode

SERVICE MODE

Starting up the Service mode.

Use the control disk to highlight 'Service' and then press ENTER. Some items in the Service mode are password protected (when the

password function is active). Enter your password to continue. All other password protected items are now also free available if you stay in the adjustment mode.

ENTER continues to the Service Mode main menu. EXIT returns to the Operational mode.

The service items are combined in two service menus. To switch from the first to the second menu or vice versa, push the control disk up or down to select 'more...'

ADJUSTMENT MODE

Select a path from below :

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

Select with or

then <ENTER>

<EXIT> to return.

IRIS

source 1

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

SERVICE MODE

G2 ADJUSTMENT

GAMMA CORRECTIONS

CRT RUN IN CYCLE

PROJECTOR WARM UP

CRT DRIVE MODE

MORE...

Overview flowchart 'Service' mode.

IDENTIFICATION

COPY A BLOCK

DELETE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

SERVICE MODE

RUN TIME

G2 ADJUSTMENT

GAMMA CORRECTIONS

CRT RUN IN CYCLE

PROJECTOR WARM UP

Select with or

then <ENTER>

<EXIT> to return.

CRT DRIVE MODE

5975628 BARCOGRAPHICS 1209s 010797

7-1

Service Mode

Identification

Highlight 'Identification' with the control disk and press ENTER. The 'Identification' screen gives information concerning :

- projector address. To change the address of your projector, contact a qualified service technician.

- software version.

- configuration.

possible installations :

* front-ceiling * front-table * rear-ceiling * rear-table

- baud rate PC : transfer speed for communication with an IBM PC

(or compatible) or MAC. The baud rate of the projector must be the same as the baud rate of the connected computer. When there is a difference, contact a qualified service technician to make the appropriate changes.

- Text ON/OFF Indicates in operational mode if the bar scale and number indicator will be displayed and if warnings and failures will be displayed. ON : displayed OFF : not displayed

The status can be changed by pressing the 'TEXT' key once on the RCU.

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

GRAPHICS 1209s

Proj. address : 001 Soft. Version : 6.00 Config. : Ceiling

Baudrate PC : 9600 Text : ON Serial No. : 103589552

Front

- Serial no. : indicates the fabrication number of the projector. This number can be useful when calling for technical assistance.

Copy a block

The copy a block function copies the settings of a selected block into the active block. Highlight copy a block with the control disk and press

ENTER will select the highlighted item.

To copy the settings of a closed block to the block you are working on (active block), use the control disk to select a block. All existing settings will be overwritten with the new settings.

Press

ENTER to copy the selected block. A confirmation screen will

be displayed. If you are certain you wish to copy the contents of the selected block

into the active block, press

ENTER.

EXIT cancels the copy procedure and returns without copying the

block.

ENTER.

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK DELETE ALL BLOCKS CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

Nr. Src Fh Fv inp conf 1 1 15.6 50 video FC 2 3 31.2 60 RGB3S RT 3 - 15.6 50 intern FC 4 2 31.5 50 RGB3S FC 5 - 33.7 60 intern FC 6 7 8

COPY MODE

Active block nr. 1

Select with or

<ENTER> to copy

<EXIT> to return.

All settings in current block will be overwritten !

<ENTER> to confirm <EXIT> to cancel

COPY BLOCK

7-2 5975628 BARCOGRAPHICS 1209s 010797

Deletion of blocks

This item is password protected. The delete function is used to clear all data (settings) from an adjustment block. A delete can be given :

- block by block

- for all blocks.

Deleting block by block

Service Mode

The delete a block function deletes the settings of a selected block. Highlight 'Delete a block' with the control disk and press

ENTER.

Push the control disk up or down to select the desired adjustment block. Press

ENTER to delete the selected adjustment block. A

confirmation menu will be displayed.

ENTER will delete the selected block. EXIT cancels the deletion procedure and returns to the Service mode

main menu.

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELETE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

DELETE MODE

Nr. Src Fh Fv inp conf 1 1 15.6 50 video FC 2 3 31.2 60 RGB3S RT 3 - 15.6 50 intern FC 4 2 31.5 50 RGB3S FC 5 - 33.7 60 intern FC 6 7 8

Select with or

<ENTER> to copy

<EXIT> to return.

Active block nr. 1

DELETE BLOCK

The selected block will be deleted !

<ENTER> to confirm <EXIT> to cancel

Deletion of all blocks

Highlight 'delete all blocks' with the control disk and press ENTER.

ENTER gives a confirmation message before deleting.

If you are certain you wish to delete all blocks, press ENTER to confirm, otherwise press Once

ENTER

is pressed, all block headers and adjustment settings

are permanently removed and cannot be restored.

EXIT to return.

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELETE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

All block will be deleted !

<ENTER> to confirm <EXIT> to cancel

DELETE BLOCK

5975628 BARCOGRAPHICS 1209s 010797

7-3

Service Mode

Change password

This item is password protected. Highlight 'change password' with the control disk and press

The current password is displayed. The new password must consist of 4 digits between 0 and 9. Push the control disk to the left or to the right to select the digits to be changed. Use the numeric keys to enter the new digits.

Press

ENTER to save the new password. Before saving the new

password, a confirmation screen will be displayed. Press

EXIT to return to the Service menu without saving the new

password.

When the displayed password is correct, press ENTER to save. If not correct, press

EXIT to cancel the saving.

ENTER.

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

Enter new password :

Use and to select, and reprogram with numeric keys. <ENTER> to confirm <EXIT> to return

PASSWORD

0 0 0 0

CHANGE PASSWORD

Password will be reprogrammed as xxxx

<ENTER> to confirm <EXIT> to cancel

Change Language

The 'Change Language' function offers the possibility to change the language of the screen menus to :

- English

- Spanish

- French

- German therefore, pusj the control disk up or down to highlight 'Change language' and press

ENTER to select the language menu.

Push the control disk up or down to select the desired language and press

ENTER to change the language.

Run time

Highlight 'run time' with the control disk and press ENTER to display the amount of time the projector has played since its first start up at the factory.

Note : all projectors leave the factory after a burn-in period of approximately 100 hours.

Press

EXIT to return the service mode menu.

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK DELETE ALL BLOCKS CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

LANGUAGE

ENGLISH

ESPAÑOL FRANCAIS DEUTSCH

Select new language

with or

then <ENTER>

<EXIT> to return.

RUN TIME

105 h

7-4 5975628 BARCOGRAPHICS 1209s 010797

Set to midposition

Item is password protected. Highlight 'set to midposition' with the control disk and press

ENTER

to set all settings to their midposition. A confirmation menu will be displayed first.

ENTER will set all settings to their midposition. EXIT will cancel the

operation to set all settings to their midposition.

Undo Midposition

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK DELETE ALL BLOCKS CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

All settings in current block will be overwritten !

<ENTER> to confirm <EXIT> to cancel

Service Mode

SET TO MIDPOSITION

When 'Set to Midposition' is selected, all settings are set to their midposition. To cancel this action, select 'Undo Midposition' by pushing the control disk up or down and press ENTER. 'Undo Midposition' is displayed in the service mode in stead off 'Set to Midposition' when this latter is pressed.

An undo is possible as long as the projector is playing on the same source (= same adjustment block) even when some adjustments as geometry or convergence are already readjusted. When undo is pressed all settings are reset to the previous settings.

Convergence Mid

Item is password protected. Highlight 'convergence mid' with the control disk and press to set all convergence settings to their midposition. A confirmation screen will be displayed first.

sets the convergence settings to their midposition.

ENTER

cancels the procedure to set the convergence settings to their midposition.

ENTER

EXIT

DELETE ALL BLOCKS CHANGE PASSWORD

DYNAMIC ASTIGMATISM

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

All settings in current block will be overwritten !

<ENTER> to confirm <EXIT> to cancel

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK

CHANGE LANGUAGE

RUN TIME

UNDO MIDPOSITION

CONVERGENCE MID

MORE...

Select with or

then <ENTER>

<EXIT> to return.

CONVERGENCE MID

Undo Convergence Mid(position)

When 'Convergence Mid' is activated, all convergence settings are set to their midposition. To cancel this action, select 'Undo Convergence Mid' by pushing the control disk up or down and press

ENTER.

'Undo Convergence Mid' is displayed in the service mode menu in stead off 'Convergence Mid' when this latter is activated.

An 'undo' is possible : * as long as the projector is operating on the same source (= same adjustment block) even when some convergence adjustments are already readjusted AND * 'set to midposition' is not yet selected.

When undo is pressed all convergence settings are reset to the

5975628 BARCOGRAPHICS 1209s 010797

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

UNDO CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

<EXIT> to return.

7-5

Service Mode

previous settings.

Dynamic Astigmatism (spot shape adjustment)

The spot shape adjustments correct the spot shape in 8 different areas on the screen and that for the three colors separately. The spot shape is adjusted according to the axial axises and the diagonal axises when using the arrow keys on the RCU. These adjustments have to be done on a dot pattern (e.g. the

internally generated pattern) with standard line frequency (15 kHz). The adjustment values are stored in the EEPROM and remain the same for all frequencies. Follow the next procedure :

Highlight 'Dyn. Astigmatism' by pushing the joy disk up or down and

press ENTER to select. EXIT returns to the path selection main menu.

Select the source type, selected source or genlock pattern, by

highlighting the color for which the spot shape has to be corrected and press ENTER. e.g. when selecting RED under 'on genlocked pattern', the projector switches to a genlocked pattern. Press ENTER to continue adjustment.

Spot shapes

before dynamic

stigmatism correction

astigmatism cor rection

Diagon al

(use the and

arrow key)

Axial

astigmatis m co rr ection

(use the and

arrow key)

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELTE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

SET TO MIDPOSITION

CONVERGENCE MID

DYNAMIC ASTIGMATISM

MORE...

Select with or

then <ENTER>

DYNAMIC ASTIGMATISM

<EXIT> to return.

ON SELECTED SOURCE

ON GENLOCKED PATTERN

astigmatism cor rection

RED

GREEN

BLUE

RED

GREEN

BLUE

Select pattern or color

with or

then <ENTER>

<EXIT> to return.

Spot shapes

after dynamic

Increase the contrast level using the Contrast Control to near maximum. Using that "+" Sharpness Key, defocus the image until the dots are large and easily visible. Press ENTER to continue to SEL.

SEL : select the adjustment area on the screen where the spot shape has to be corrected. Use the arrow keys to select one of the 8 areas. Press ENTER to continue to ADJ.

ADJ : adjust the spot shape in the axial or diagonal direction when using the arrow keys for the selected area. Adjust until the spot shape

DYNAMIC ASTIGMATISM

First adjust the defocusing

of the image. SEL : select area using arrow keys ADJ : adjust axial astigmatism

using

or , diagonal

astigmatism using

Toggle between SEL and ADJ

with <ENTER>

<ENTER> to continue

<EXIT> to return.

is circular. Use the up and down arrow keys for the diagonal astigmatism

7-6 5975628 BARCOGRAPHICS 1209s 010797

adjustment and the left and right arrow keys for the axial astigmatism adjustment. Press ENTER to continue selecting a new area. The adjustment direction (axial or diagonal) and adjustment value are given in a text box on the screen. When all areas are adjusted, press EXIT to return to the service main menu.

G2 Adjust

Item is password protected. Highlight 'G2 adjust' with the control disk and press continue.

ENTER to

SERVICE MODE

G2 ADJUSTMENT

GAMMA CORRECTIONS

CRT RUN IN CYCLE

PROJECTOR WARM UP

CRT DRIVE MODE

MORE...

Service Mode

A safety notice will be displayed on the screen as it is necessary to open the top cover to adjust the G2.

'G2 adjustment should be performed by BARCO personnel, or BARCO authorized dealers'.

If you are qualified, press ENTER to continue. If not qualified, press

EXIT to return to the Service mode main menu. Further description

of the G2 adjustment is given in the Installation manual.

Gamma corrections

Item is password protected. Highlight 'Gamma Corrections' with the control disk and press

to continue.

TER

A warning will be displayed on the screen as there is a risk of incorrect adjustment of the projector..

'The Gamma Corrections are factory adjusted using an ACTAS colour analyser ! Therefore, only qualified installation or service personnel should perform these adjustments !'

If you are qualified, press ENTER to continue. If not qualified, press

EXIT to return to the Service mode main menu. Further description

of the Gamma Corrections are given in the Installation manual, Appendix C.

EN-

Select with or

then <ENTER>

<EXIT> to return.

RISK OF ELECTRICAL SHOCK

G2 ADJUSTMENT SHOULD BE PERFORMED BY BARCO PERSONNEL, OR BARCO AUTHORIZED DEALERS.

IF QUALIFIED, PRESS <ENTER> TO CONTINUE, OR IF NOT, <EXIT> TO RETURN.

SERVICE MODE

G2 ADJUSTMENT

GAMMA CORRECTIONS

CRT RUN IN CYCLE

PROJECTOR WARM UP

CRT DRIVE MODE

MORE...

Select with or

then <ENTER>

<EXIT> to return.

RISK OF INCORRECT

ADJUSTMENT OF THE PROJECTOR

THE GAMMA CORRECTIONS ARE FACTORY ADJUSTED USING AN ACTAS COLOUR ANALYSER ! THEREFORE, ONLY QUALIFIED INSTALLTION OR SERVICE PERSONNEL SHOULD PERFORM THESE ADJUSTMENTS ! <ENTER> TO CONTINUE <EXIT> TO RETURN.

SAFETY NOTICE

WARNING

CRT run in cycle

The CRT run in cycle option can only be activated when memory blocks on an internal # pattern are available. When one or more such blocks are available, a flashing white image (5sec on, 5 sec off) is generated and that for 5 min on the first internal block. In the next 5 min, a second internal block will be used to generate the flashing white image. The image will also be shifted in a vertical way to prevent a CRT burn in. To quit the CRT run in cycle option, press EXIT.

Highlight 'CRT run in cycle' with the control disk and press

ENTER to

SERVICE MODE

G2 ADJUSTMENT

GAMMA CORRECTIONS

CRT RUN IN CYCLE

PROJECTOR WARM UP

CRT DRIVE MODE

MORE...

start .

Select with or

If a memory block adjusted on an internal # pattern is available, the CRT run in cycle will start when pressing

ENTER. If no such a block

is available, the projector cannot run the CRT run in option and leaves the adjustment mode. If you still want to run CRT run in cycle, create first a memory block

then <ENTER>

<EXIT> to return.

CRT RUN IN CYCLE

A flashing white pattern will be

generated until <EXIT> is pressed.

The projector only uses memory

blocks adjusted on an internal

# pattern; if no such block is

available, the projector can't run

the procedure and leaves the

adjusment mode.

<ENTER> to continue

<EXIT> to cancel

on an internal # pattern and restart the CRT run in option.

5975628 BARCOGRAPHICS 1209s 010797

7-7

Service Mode

Projector Warm Up

Highlight 'Projector Warm Up' by pushing the control disk up or down and press

ENTER to select the projector warm up menu.

The ON/OFF option can be toggled with the ENTER key. When in the ON position (and the CRT run in cycle is OFF), the

projector can start up with a warm up period of 20 minutes. During the start up a warm up menu will displayed. This menu offers the possibility to skip the warm up periode anyway by pressing the EXIT key and offers the possibility to adjust the horizontal and vertical amplitude of the this white image with the control disk. During this warm up period, a full white image is shifted on the CRT faceplate to avoid a burn in. Every 30 seconds a text box will be displayed on another place on the screen with the remaining time to go. When EXIT is pressed during this warm up periode, the warm up menu will be redisplayed with the remaining time indication. Press another time EXIT to interrupt the warm up cycle. When the warm up option is OFF, when switching on the the projector, it starts immediately with the projection of the selected source.

CRT Drive Mode

The projector CRT's can be driven with the normal current (normal mode), a lower current (economic mode) or with a higher current (boost mode). To change the drive mode, highlight 'CRT drive mode' by pushing the control disk up or down and press ENTER to display the CRT drive mode menu.

SERVICE MODE

G2 ADJUSTMENT

GAMMA CORRECTIONS

CRT RUN IN CYCLE

PROJECTOR WARM UP

CRT DRIVE MODE

MORE...

Select with or

then <ENTER>

<EXIT> to return.

A FULL WHITE PATTERN

WILL BE GENERATED FOR

20 MINUTES AT POWER UP

AFTER THIS PROCEDURE

THE PROJECTOR IS READY

TO PERFORM IN OPTIMUM

TOGGLE OPTION ON OR OFF

SERVICE MODE

G2 ADJUSTMENT

GAMMA CORRECTIONS

CRT RUN IN CYCLE

PROJECTOR WARM UP

CRT DRIVE MODE

MORE...

PROJECTOR WARM UP

OPTION : ON

CONDITION

with <ENTER>

<EXIT> to return

To change the boost mode, push the control disk up or down to select a display mode and press ENTER to select.

The following modes are available :

- normal

- economic : lower drive current to the CRT's, the lifetime of the CRT's will enlarge but the light output will reduce.

- tempory boost : higher drive current to the CRT's, the lifetime of the CRT's will shorten but the light output will be higher. This situation is tempory, when restarting the projector, the drive mode is auto-

matically set to normal.

- permanent boost : higher drive current to the CRT's, the lifetime of the CRT's will shorten but the light output will be higher. This setting will be saved in the EEPROM. When restarting the projector, it will start up in boost mode.

A warning, permanent BOOST mode in use, will be displayed to inform the user. When text is on, this warning will be repeated every time a new source is selected.

Select with or

then <ENTER>

<EXIT> to return.

CRT DRIVE MODE

NORMAL

ECONOMIC

TEMPORARY BOOST PERMANENT BOOST

WARNING : permanent

boost mode reduces the lifetime

of the CRT's !

Select with or

then <ENTER>

<EXIT> to return.

WARNING

PERMANENT BOOST MODE IN USE !

7-8 5975628 BARCOGRAPHICS 1209s 010797

Messages, warnings and failures

INPUT 01 Fh= 15.6 kHz Fv= 050 Hz

SOURCE 01

enter

password

x x x x

text on

text off

PROJECTOR

ADDRESS :

003

MESSAGES, WARNINGS AND FAILURES

When selecting a new source, information about this source will be displayed on the screen. Source number, horizontal and vertical frequencies of the displayed source.

Announcement of the selected source.

Message to enter your password. Password contains 4 digits.

These messages will be displayed on the screen when pushing the TEXT key.

Text ON : the 'bar scale indication' will be enabled during the change of an analog control in the 'operational mode' + all warnings and failures will be displayed.

Text OFF : the 'bar scale indication' will be disabled during the change of an analog control in the 'opera- tional mode' + all warnings and failures will not be displayed.

Indication of the projector address when activating the 'ADDRESS' button on the RCU with a pencil or other small object.

WARNING :

invalid

code entry

WARNING :

end of adjust range

WARNING :

input no

longer

available

WARNING :

input se-

lector not

available

WARNING :

invalid

frequency

input

table is deleted

Message when the entered password is wrong.

End of adjustment range.

Message will be displayed when the input source is no longer available. The following message then appears: 'check input signal or se- lect new source'.

It warns you to check the power connection or the power status of the RCVDS. Next message will appear immediatly on the screen : 'go to stand-by'.

The entered frequency or applied frequency of the source is out of the projector's range.

Message to inform that selected table is deleted. This message will be followed by 'confirm message', on which the user has to answer.

WARNING :

input not available

WARNING :

source not

available

WARNING :

invalid

key entry

5975628 BARCOGRAPHICS 1209s 010797

When using the projector with the RCVDS, this warning will be displayed when selecting an input slot of an RCVDS where the input board is missing.

The input is a valid input but the source is not connected to the input terminals or the input source is switched off.

When a wrong key is pressed on the RCU.

FAILURE

I2C error

addr. : 7FH

FAILURE

short

circuit on

I2C bus

Hardware failure. Call a qualified service technician for repair.

8-1

Messages, warnings and failures

FAILURE

RCVDS com-

munication

error

FAILURE

IRIS commu-

nication

error

WAIT

starting

IRIS

FAN FAILED

Projector

will

switch off

Serial communication error between the RCVDS and the projector.

Communication error between IRIS 800 and the projector. Call a qualified service technician.

Message during the start up of the IRIS. Message will disappear when the IRIS is ready to accept commands.

Message when one of the fans are not working anymore. Projector switches to stand-by

8-2 5975268 BARCOGRAPHICS 1209s 010797

Options

OPTIONS

IR Receiver 800

This infrared receiver unit makes it possible to control the BARCOGRAPHICS 808s from another room. There is a communication line with cable between the IR receiver and the projector or the RCVDS05. The control information from the RCU can now be sent to this IR receiver. The IR receiver 800 displays the selected source on a 7-segment display. Order number : R9827515

Hardwired RCU.

The control signals from the RCU can be sent to the projector via a wired connection.

shield

conductor

Preparing your remote cable : Use a shielded cable with a maximum length of 100 m and two mini-

jack 3.5 mm connectors (order number : R3131991).

RCVDS 05 Source Selector

An optional RCVDS05 makes it possible to connect up to 20 sources to the projector. When RCVDS's are linked via the expansion module, even 90 inputs can be connected to the projector. The selected source number will be displayed on a 2 digit display and the selected input module will be indicated with a LED on the rear. Order Numbers RCVDS 05: 110V: 9827888

9827889

220V: 9827880

9827881

VS05 Switcher

- Peel back the vinyl covering of the cable on both sides and twist the wire core.

- Solder a jack plug as shown in drawing above to each end of the cable. shield = ground conductor = data information

When the cable is ready, plug one side in the remote control and the other side in the connector on the rear of the projector labelled ‘remote’.

Projector Control software

The software is user-friendly and makes full use of : mouse control, pull down menus and dialog boxes.

Two main applications are available with this software : remote control and transfering and receiving data of projector settings.

Remote Control Simulation. Advantage : address range 0 to 255. Adjustment Data : where can it be located when a IBM PC (or

compatible) or MAC or Workstation is connected :

- hard memory device with files of settings.

- the contents of the local memory of the computer.

- the contents of the projector.

The VS05 is a versatile Video and HDTV source selector for all BARCO's digitally controlled large screen projectors. It offers the possibility to connect and switch up to 5 different Video sources, 3 different S-Video sources and 1 RGB Analog source to a BARCO projector. In addition, the audio signal proper to the source, can be switched to an audio amplifier. Order Numbers: 110V: 9827890

220V: 9827899

5975628 BARCOGRAPHICS 1209s 010797

9-1

Options

MAGIK Interface

Multifuctional Analog Graphics Interface Kit. BARCO's MAGIK interface allows the user to connect a presentation device such as a projector or a professional monitor to any computer with analog video signal with or without maintaining the connection with its own display. The MAGIK interface buffers and amplifies any RGB analog signal with TTL or analog sync without signal loss or image degradation. The MAGIK can be delivered together with connection cables for PC, MAC, SUN or workstation in a nice handbag case.

Ceiling Mount kit CM100

This heavy duty Ceiling Mount Kit enables the projector to be installed in any ceiling mount application. A heavy duty pulley system facilitates installation and maintenance. order number : R9827341

Orbiting Kit

Static pictures are very often shown on large screen projectors, especially in process control and presentation applications. Due to the fact that the same picture information is shown for a long period in the same place, picture tubes can be damaged by 'local burn-in'. To reduce this problem, a special Orbiting circuit is available which moves the picture very slowly around a predefined screen area. The cycle time is very long to make the movement of the projected image imperceptible. The use of the orbiting kit is described in appendix A. Order number : R9827780

Line Doubler Kit

BARCO's line doubler kit consists of a video decoder with a three-line adaptive Comb filter, an enhancement circuit and the line doubler itself.

- The three-line adaptive Comb filter improves color transitions and teduces noise in the video signal.

- The enhancement circuit integrated in the decoder provides sharper images with clearer outlines.

- The line doubler circuit reduces visible line structure by doubling the number of lines of the video image.

Order numbers MAGIK with cables and case :

R9828120 (230V) R9828129 (120V)

Order number MAGIK only :

R9828121 (230V) R9828128 (120V)

Adapter and communication cables

BARCO provides several cables to connect peripheral equipment to the BARCOGRAPHICS 808s.

a. D9-D9 communication cable

- To connect an IBM PC (or compatible) to the projector.

- To connect a RCVDS 800 or RCVDS05 to the projector.

- To connect a IR receiver to the RCVDS800 or RCVDS05 or to the projector.

- To be used as extension cable for all other adapter cables.

Available length :5 m (16ft), order number R982770; 15 m(50ft), order number R9827560; and 30 m (100ft), order number R9827570

b. Din Mini8-D9 adapter cable.

- To connect a Macintosh computer to the projector. Available length : 1 m (3,2 ft), order number R9827640.

c. D25-D9 adapter cable

- To connect a workstation to the projector. Available length : 1 m (3,2 ft), order number R9827630

These three circuits work in unison to produce a smoother yet sharper image which is significantly more appealing when watching video images. Order number : R9828161

d. 5 BNC to 5 BNC cable

- To connect an analog source to the BNC input of the projector Available lenght : 60 cm, order number R9828260

9-2 5975628 BARCOGRAPHICS 1209s 010797

150 cm, order number R9828261 5 m, order number R9828262 15 m, order number R9828263

Orbiting

ORBITING

Orbiting (option)

Static pictures are very often shown on large screen projectors, espectially in process control and presentation applications. Due to the fact that the same picture information is shown for a long period on the same place, picture tubes can be damaged by 'local burn-in'.

Adjustment procedure : The orbiting path is automatically added to the Random access adjustment mode menu when installed. Press

ADJUST to enter the adjustment mode and select Random.

The Random Access Adjustment Mode menu will be displayed. Highlight ORBITING by pushing the joy stick forward or backward and press

ENTER.

Orbiting Mode Toggle Switches

The orbiting module is provided with a three pin connector for connection with the BARCO's BCl link option module, used in multiple projector installations. For Orbiting, one projector operates as master wheras the others operate as slave.

To avoid this problem, BARCO has designed special Orbiting circuitry which moves the picture very slow around a predefined screen area. The orbiting circuitry has been designed using a very long cycle time to make the movement of the projected image imperceptible.

RANDOM ACCESS

ADJUSTMENT MODE

PICTURE TUNING

GEOMETRY

CONVERGENCE

FOCUSING

COLOR SELECT

ORBITING

CONTR. MODULATION

SOFT EDGE

Select with or

then <ENTER>

<EXIT> to return.

Master/Slave Toggle

Highlight 'CHANGE TO SLAVE' with the joy stick and press ENTER to set the projector as Slave.

Highlight 'CHANGE TO MASTER' with the joy stick and press

ENTER to set the projector as Master.

Orbiting ON/OFF toggle (only in Master Orbiting)

Highlight 'MODE : ON' with the joy stick and press ENTER to set the ORBITING OFF. Highlight 'MODE : OFF' with the joy stick and press ORBITING ON.

ENTER toggles between mode on and off.

returns to the Path selection menu.

EXIT

ENTER

to set the

MASTER ORBITING

CHANGE TO SLAVE

MODE : ON

SPEED : FAST

ADJUST DEVIATION SELECT WITH OR

THEN <ENTERN>

DEVIATION ADJUST :

VERTICAL WITH OR

HORIZONTAL WITH OR

<EXIT> to return.

HORIZONTAL WITH OR

MASTER ORBITING

CHANGE TO MASTER

MODE : ON

SPEED : FAST

ADJUST DEVIATION SELECT WITH OR

THEN <ENTERN> DEVIATION ADJUST : VERTICAL WITH OR

<EXIT> to return.

MASTER ORBITING

CHANGE TO MASTER

MODE : ON

SPEED : FAST

ADJUST DEVIATION SELECT WITH OR

THEN <ENTERN> DEVIATION ADJUST : VERTICAL WITH OR

<EXIT> to return.

5975628 BARCOGRAPHICS 1209s 010797

A-1

Orbiting

A t

Orbiting Speed Toggle (only in MASTER Orbiting)

Highlight 'SPEED : SLOW' with the control stick and press ENTER to set the ORBITING SPEED to Fast. Highlight 'SPEED : FAST' with the control stick and press

ENTER

set the ORBITING SPEED to Slow

ENTER continues to Set up Orbiting

returns to path selection menu

EXIT ADJUST returns to operational mode.

Orbiting Alignment

Preparation : Before proceeding to the alignment of the Orbiting default settings, be sure that the Horizontal Phase and the Raster shift are correctly aligned with the Orbiting mode set to OFF.

This alignment must be performed in case of a multiple projector installation with Master and Slave projectors in order to ensure a correct operation of the Orbiting for all projectors.

Adjustment procedure Stand-Alone projector :

Highlight 'ADJUST DEVIATION' with the control stick and press

ENTER.

MASTER ORBITING

CHANGE TO MASTER

MODE : ON

SPEED : FAST

ADJUST DEVIATION SELECT WITH OR

THEN <ENTERN> DEVIATION ADJUST : VERTICAL WITH OR

HORIZONTAL WITH OR

<EXIT> to return.

SLAVE ORBITING

CHANGE TO MASTER

ADJUST DEVIATION

When adjusting the horizontal and the vertical deviation, the picture moves in the corresponding direction, allowing the set up of the deviation without orbiting operation.

Push the control stick to the right or backward to toggle between Hor. and Vert. deviation andjustment.

djust horizontal deviation by pushing

he control stick to the left or to the right

SELECT WITH OR

THEN <ENTERN> DEVIATION ADJUST : VERTICAL WITH OR

HORIZONTAL WITH OR

<EXIT> to return.

HORIZONTAL

ORBIT AMPL

VERTICAL

djust vertical deviation by pushing

he control stick forward or backward

ORBIT AMP L

A-2 5975268 BARCOGRAPHICS 1209s 010797

Adjustment procedure multiple projector installations :

A t

HORIZONTAL ORBIT AMPL

VERTICAL

ORBIT AMP L

Inportant : to allow corrections in the deviation alignments of the slave projectors, never adjust the deviations of the master projector to its maximum.

Default setting of the Master projectorn see 'Stand-Alone projector'. Highlight 'ADJUST DEVIATION' by pushing the control stick forward

or backward and press When adjusting the horizontal and the vertical deviation, the picture

moves in corresponding direction, allowing the set up of the deviation without orbiting operation.

Push the control stick to the right or backward to toggle between Hor. and Vert. deviation adjustment.

ENTER.

SLAVE ORBITING

CHANGE TO MASTER

ADJUST DEVIATION

SELECT WITH OR

THEN <ENTERN> DEVIATION ADJUST : VERTICAL WITH OR

HORIZONTAL WITH OR

<EXIT> to return.

Orbiting

djust horizontal deviation by pushing

he control stick to the left or to the right

djust vertical deviation by pushing

he control stick forward or backward

5975628 BARCOGRAPHICS 1209s 010797

A-3

Adjustment Blocks and Source Numbers 90-99

ADJUSTMENT BLOCKS AND SOURCE NUMBERS 90 - 99

Adjustment Blocks (memory blocks)

As the projector is digitally controlled, all geometry and convergence adjustments are stored in the projector’s memory as numeric values. These numeric values are used to control digital potentiometers which in turn, control the projector. Each source connected to the projector has a unique set of adjustment data which is automatically downloaded into the projector’s digital potentiometers once the source has been selected. This set of adjustment data is referred to as an “adjustment block”.

An adjustment table is automatically created for a source when the source is first connected to the projector and the Adjustment mode is entered. If other sources have already been connected to the projector and geometry and convergence adjustments have been performed on these sources, the projector will use Linear Digital Interpolation to create a new block for the new source. This block will provide an initial set of adjustments for the new source that have been calculated by the projector from “previous experience”.

The projector’s memory has the capacity to store 32 adjustment blocks. The adjustment block consists of two parts, the block header and the data representing the values for all adjustments (eg. Convergence and Geometry) in the projector for the source the block corresponds to. The block header contains the basic characteristics of the source and the projector configuration used to display the source.

Block Header example of block header

Block Number 01 Source Number 01 Horizontal Frequency 15.6 kHz Vertical Frequency 50 Hz Input Type video Scan Switch Configuration Front/Ceiling The data representing the various adjustments for the source follows the block header.

Source numbers 90 - 99

Source numbers 90 - 99 do not correspond to physical inputs to the projector or RCVDS. They are used to assign an additional adjustment block to a source. This additional adjustment block may contain different geometry and convergence settings, sync fast/slow positions and enhanced blue on/off settings. The relationship between source numbers 0 - 9 and 90 - 99 (projector with RCVDS) or 1 - 5 and 91 - 95 (stand-alone projector) is shown in the diagram below.

source input 0

source input 1

source input 2

source input 9

source number 0

source number 90

source number 1

source number 91

source number 2

source number 92

source number 9

source number 99

Block header A

Block header A, different analog settings

Block header B

Block header B, different analog settings

Block header C

Block header C, different analog settings

Block header J

Block header J, different analog settings

5975628 BARCOGRAPHICS 1209s 010797

B-1

Adjustment Blocks and Source Numbers 90-99

The alternate adjustment block for sources 0 - 9 (projector with RCVDS) or 1 - 5 (stand-alone projector) is activated by selecting the corresponding source number 0 - 9 (projector with RCVDS) or 1 - 5 (stand-alone projector). Once this source number is selected, the alternate block of adjustment data is in use and may be modified via the adjust mode of the projector. The alternate adjustment block is automatically stored.

Follow the steps below to create a second adjustment block for a source between 0 and 9.

1. Select the source between 0 and 9 that the second adjustment block is to be created for.

2. Select the corresponding source number between 90 and 99. The adjustment block for the source number between 0 and 9 is copied to the corresponding source number between 90 and 99.

3. Enter the adjust mode and make any desired changes (geometry, convergence, sync fast/slow, enhanced blue on/off) to the second adjustment block.

4. Exit the adjust mode. Note : the above also applies to source number 1 - 5 and 91 - 95 of

a stand alone projector (no RCVDS)

B-2 5975628 BARCOGRAPHICS 1209s 010797

INSERT CARD

Insert Card

RCU

INPUT S O URCE S

PROJECTOR

1 2

4 5

6 7

INPUT SO URCE S

RCVDS

2 3 5 6

7 8

RCU

INPUT S O URCE S

PROJECTOR

4 5

6 7

INPUT SO URCE S

RCVDS

2 3 5 6

5975628 BARCOGRAPHICS 1209s 010797
