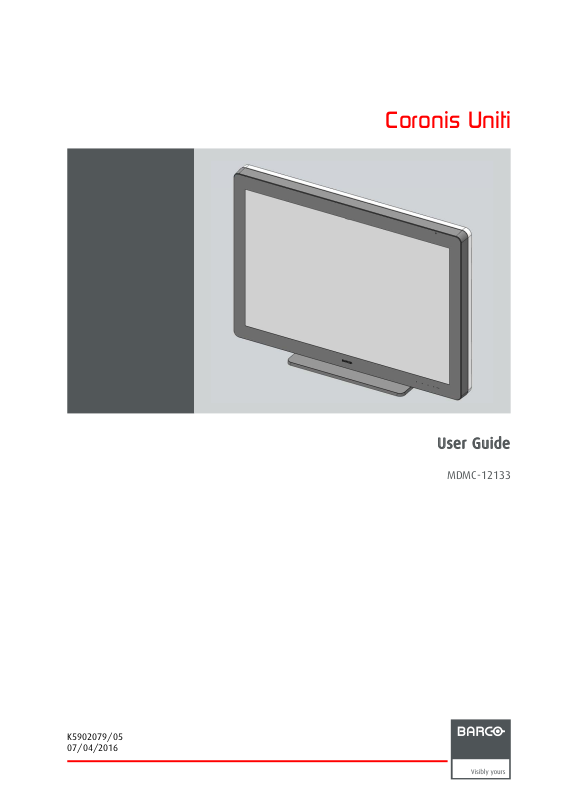

Coronis Uniti
User Guide
MDMC-12133
K5902079/05
07/04/2016
Page 2
Barco NV
President Kennedypark 35, 8500 Kortrijk, Belgium
Phone: +32 56.23.32.11
Fax: +32 56.26.22.62
Support: www.barco.com/en/support
Visit us at the web: www.barco.com
PrintedinBelgium
Page 3
Table of contents
TABLE OF CONTENTS
1. Welcome! ......... ............................................................ ..................... 3
1.1 About the product ............................................................................................. 3
1.2 What’s in the box.............................................................................................. 3
2. Parts, controls and connectors .................................. ............................. 5
2.1 Display front view .. ................ ................ ................ ................ ................ ........... 5
2.2 Display rear view.............................................................................................. 6
2.3 Accessories.................................................................................................... 7
3. Display installation ................... ........................................................... 9
3.1 Removing the connector compartment cover .............................................................. 9
3.2 Unlocking the tilt mechanism ................................................................................10
3.3 Unlocking the height mechanism............................................................................10
3.4 Adjusting the display position....... ................ ................ ................ ................ .........11
3.5 Connecting the signal cables ................................................................................12
3.6 Connecting the power cable .................................................................................14
3.7 Mounting the film clip ................ ................ ................ ................ ................ .........15
3.8 Mounting the MultiTouchPad.... ................ ................ .................. ................ ...........16
3.9 Routing the cables & Reattach the connector compartment cover ......... ................ .............17
3.10 Fixation of the foot on the desk..............................................................................18
3.11 VESA-mount installation .....................................................................................19
3.12 First time starting up ......... ................ ................ ................ ................ ................ .22
4. Daily operation ....................................... ............................................ 23
4.1 Recommendations for daily operation ............. ................ ................ ................ .........23
4.2 Key indicator lights....... ................ ................ ................ ................ ................ .....24
4.3 Standby switching.............................................................................................24
4.4 Bringing up the OSD menus ............ ................ ................ ................ ................ .....25
4.5 Navigating through the OSD menus ................... ................ ................ ................ .....25
4.6 Overview of the functionality of the Left/Right keys ............................ .. .. . . . . . . . . . . . . . . . . . . . . . . . 26
4.7 I-Luminate .....................................................................................................27
4.8 Extended display keypad functions .........................................................................27
4.8.1 I-luminate mode .................. ................ ................ .................. ................ .....27
4.8.2 Viewing mode............................................................................................27
5. Advanced operation ......................................... .................................... 29
5.1 OSD menu language ...... ................ ................ ................ ................ ................ ...29
5.2 OSD menu automatic close function....... ................ ................ ................ ................ .29
5.3 Power LED.....................................................................................................29
5.4 Key indicator lights....... ................ ................ ................ ................ ................ .....30
5.5 Power lock function .... ................ ................ ................ ................ .................. .....30
5.6 SoftGlow Task light ........ ................ ................ ................ ................ ................ ...30
5.7 SoftGlow Wall light ............................................................................................31
5.8 DPMS mode...... ................ ................ ................ ................ ................ .............31
5.9 Hibernate.................... ................ ................ ................ ................ ................ ...32
5.10 I-Luminate default mode ........ ................ ................ ................ ................ .............32
5.11 I-Luminate film position.................. ................ ................ ................ ................ .....33
5.12 Luminance target. ................ .................. ................ ................ ................ ...........33
5.13 Color presets ..................................................................................................33
5.14 Color temperature........ ................ ................ ................ ................ ................ .....34
5.15 Color coordinates .. ................ ................ ................ ................ ................ ...........34
5.16 Viewing modes ................................................................................................35
5.17 Display functions..............................................................................................35
5.18 Ambient Light Compensation (ALC) ................. ................ ................ ................ .......36
5.19 Reading rooms ............... ................ ................ ................ ................ ................ .36
5.20 Continuous ALC...............................................................................................37
5.21 Embedded QA.............. ................ ................ ................ ................ ................ ...37
5.21.1 About Embedded QA ...................................................................................38
K5902079 CORONIS UNITI 07/04/2016
1
Page 4
Table of contents
5.21.2 DICOM status report ... ................ ................ ................ ................ ................ .38
5.21.3 DICOM compliance check..... ................ ................ ................ ................ .........39
5.21.4 DICOM calibration.......................................................................................39
5.21.5 Reset DICOM calibration ................ ................ ................ ................ ............... 39
5.21.6 DICOM error threshold..................................................................................39
5.22 Image scaling..................................................................................................40
5.23 Image source selection modes ............. ................ ................ ................ ................ .40
5.24 Grayscale conversion modes................................................................................41
5.25 Input interface standard version .............................................................................41
5.26 EDID format .................... ................ ................ ................ ................ ............... 41
5.27 EDID timings...................................................................................................42
5.28 Display info ................. ................ ................ ................ ................ ................ ...42
5.29 Display status..................... ................ ................ ................ ................ .............42
6. Cleaning your display ........................ ................................................... 45
6.1 Cleaning instructions .........................................................................................45
7. Repackaging instructions .......................... ............................................ 47
7.1 Repacking your Coronis Uniti system.......................................................................47
8. Important information ................ ........................................................... 53
8.1 Safety information........ ................ ................ ................ ................ ................ .....53
8.2 Environmental information ...................................................................................55
8.3 Regulatory compliance information ........ ................ ................ ................ ................ .57
8.4 EMC notice ......... ................ .................. ................ ................ ................ .........58
8.5 Explanation of symbols.. ................ ................ ................ ................ ................ .....61
8.6 Legal disclaimer...............................................................................................63
8.7 Technical specifications ......................................................................................63
8.8 Open source license information ..... ................ ................ .................. ................ .....65
2
K5902079 CORONIS UNITI 07/04/2016
Page 5
1. WELCOME!
1.1 About the product
Overview
Thank you for choosing this Coronis Uniti!
1. Welcome!
Coronis Uniti is an ingenious PACS display system designed to enhance flexibility and productivit
nostic imaging. Featuring the industry’s first 33-inch color LCD that can be used as two seamless heads
or one wide-screen display, Coronis Uniti offers you the freedom to organize your workspace just the way
you want it. It allows you to read radiology, mammography, and breast tomosynthesis images, side by
side on a single diagnostic screen. Coronis Uniti features Barco Optical Glass illuminated by DuraLight
Brilliance to provide an exceptional image over your entire field of view. Use the instructions in this guide
to install your Coronis Uniti display and discover the productive features and include
d accessories!
CAUTION: Read all the important safety information before installing and operating your
Coronis Uniti. Please refer to the dedicated chapter in this user guide.
1.2 What’s in the box
Overview
Your Coronis Uniti comes with:
• this Coronis Uniti user guide
• Quick Installation Sheet
• a system CD
• two DisplayPort cables
• a USB cable
• a set of AC power cords
• an external power supply
•Filmclip
• MultiTouchPad
yindiag-
If you ordered a Barco display controller, it’s also in the box together with its accessories. A dedicated
user guide is available on the system CD.
Keep y our original packaging. It is designed for this display and is the ideal protection
during transport and storage.
K5902079 CORONIS UNITI 07/04/2016 3
Page 6
1. Welcome!
4 K5902079 CORONIS UNITI 07/04/2016
Page 7
2. Parts, controls and connectors
2. PARTS, CONTR OL S AND
CONNECTORS
2.1 Display front view
Overview
Image 2-1
Front view
1
I-Luminate/Left key
3
Menu key
5
Power status indicator light (Power On)
7
I-Guard
2
Right key
4
Standby key
6
Power status indicator light (Standby)
8
Ambient light sensor
K5902079 CORONIS UNITI 07/04/2016
5
Page 8
2. Parts, controls and connectors
2.2 Display rear view
Connector compartment cover closed
Image 2-2
Rear view with closed connector compartment cover
1
Connector compartment cover
3
Tilt & swivel foot
5
Foot lock pin (only for transportation)
7
SoftGlow Wall light
Store the foot lock pin and tilt lock pin for possible future transportation of the display.
2
Tilt lock pin (only for transportation)
4
Cable duct
6
SoftGlow Task light
6 K5902079 CORONIS UNITI 07/04/2016
Page 9
Connector compartment cover open
Image 2-3
Rear view with open connector compartment cover
1
Power connector
3
Display port connector
5
USB upstream connector
7
USB downstream connector (see tip below)
2. Parts, controls and connectors
2
Display port connector
4
Not used
6
USB downstream connector (see tip below)
8
USB downstream connector (see tip below)
Please connect your keyboard or mouse to your PC rather than to the Uniti U SB ports
when hibernate is enabled (default setting). Please refer to "Hibernate", page 32 to disable hibernation.
2.3 Accessories
Film clip
The film clip can be used to hold a radiological film when using the I-Luminate function as a light box.
K5902079 CORONIS UNITI 07/04/2016
7
Page 10
2. Parts, controls and connectors
Image 2-4
Film clip
MultiTouchPad
The MultiTouchPad enables and controls SpotView.
Image 2-5
MultiTouchPad
8 K5902079 CORONIS UNITI 07/04/2016
Page 11
3. Display installation
3. DISPLAY INSTALLATION
Prior to installing your Coronis Uniti and connecting all necessary cables, make sure to
have a suitable display controller physically installed in your computer. If you are using
a Barco display controller, please consult the user guide delivered with it to do this.
For a list of compatible display controllers, please refer to t he latest version of the compatibility matrix available on m
patibility Matrices > Barco Systems Compatibility Matrices).
3.1 Removing the connector compartment cover
The connector compartment cover should be removed to get access to the connectors.
y.barco.com (MyBarco > My Support > Healthcare > Com-
To remove the connector compartment cover
1. Gently push the two lips on the top of the cover.
2. Pull the top of the cover slightly away from the display and lift the cover upwards.
3. Remove the cover.
K5902079 CORONIS UNITI 07/04/2016
9
Page 12
3. Display installation
3.2 Unlocking the tilt mechanism
In the factory, the tilt system in the display stand is locked with a red pin to prevent damage during transportation. You’ll have to remove this pin before adjusting your display
position.
Push the display against the buffer part to easily remove the pin.
To r emove t h e pin:
1. Position the display with its rear side facing you.
2. Pull out the red pin in the display stand.
3. Keep the pin in case the display needs to be shipped later.
WARNING: Before transportation of the display, insert the pin in the lock mechanism so
that the grey color of the pin isn’t visible anymor e.
3.3 Unlocking the height mechanism
In the factory, the height-positioning system in the display stand i s locked with a red pin
to prevent damage during transpor
your display height position.
10 K5902079 CORONIS UNITI 07/04/2016
tation. You’ll have to remove this pin before adjusting
Page 13
3. Display installation
To r emove t h e pin:
1. Position the display with its rear side facing you.
2. While holding the display panel pushed down, pull out the red pin in the display stand.
3. Keep the pin in the dedicated hole in case the display needs to be shipped later.
To retain the pin for possible future transportation, insert the short, red end of the pin
back into the sta nd of your display.
3.4 Adjusting the display position
In the factory, the height-positioning and the tilt system in the display stand are locked
with red pi ns to prevent damage during transportation. You’ll have to remove both pins
before adjusting your display posit
To adjust the display position
1. Remove the tilt lock pin, see "Unlocking the tilt mechanism", page 10.
2. Remove the height lock pin in the display stand, see "Unlocking the height mechanism", page 10.
3. Tilt, swivel, raise and lower the disp
lay as desired.
ion.
K5902079 CORONIS UNITI 07/04/2016
11
Page 14
3. Display installation
CAUTION: Do not try to pivot your display when attached to the stand. Trying to do so
could cause serious damage to your display and its stand.
3.5 Connecting the signal cables
To get access to the connectors, remove the connector compartment cover. See "Removing the connector compartment cover", page 9 .
To connect the signal cables to the display:
1. Connect one head of the display controller to the DisplayPort connector with one of the supplied Dis-
playPort cables.
12
K5902079 CORONIS UNITI 07/04/2016
Page 15
3. Display installation
2. Connect another head of the display controller to the other DisplayPort connector with one of the sup-
plied DisplayPort cables.
3. Connect a PC USB downstream connector to the display’s USB upstream connector by means of the
supplied USB 2.0 cable.
K5902079 CORONIS UNITI 07/04/2016
13
Page 16
3. Display installation
Communication with the display is possible via DisplayPort although it is recommended
to use the USB upstream connector for faster communication.
3.6 Connecting the power cable
To connect the power cable to the display:
1. Connect the supplied external DC power supply to the +24 VDC power input of your Coronis Uniti
display.
14
K5902079 CORONIS UNITI 07/04/2016
Page 17
3. Display installation
Warning:Fasten the power connector to your display with the screws provided at the sides of the con-
nector.
2. Plug the other end of the external DC power supply into a grounded power outlet by means of the proper
power cord delivered in the packaging.
Use the external power supply de live red with your display. If you do not use the correct
power supply, the display will not start up.
3.7 Mounting the film clip
To mount the film clip
The film clip can be mounted on the top side of the display.
1. Position the film clip on the top side of the bezel at the desired location (in the middle, left or right).
K5902079 CORONIS UNITI 07/04/2016
15
Page 18
3. Display installation
2. To remove the film clip, lift the front end or rear end of the clip.
3.8 Mounting the MultiTouchPad
To mount the MultiTouchPad
1. Connect the MultiTouchPad to one of the USB downstream connectors (using either those found in the
cable compartment or on the right side of the display).
2. With the MultiTouchPad attached and the driver installed, simply press on the MultiTouchPad to move
the focus on the SpotView around the display(s). The SpotView vanishes when no finger is pressing
on the MultiTouchPad, unless the left side of the MultiTouchPad button is held down.
16
K5902079 CORONIS UNITI 07/04/2016
Page 19
3. Display installation
3.9 Routing the cables & Reattach the connector compartment
cover
To route the cables
1. Route all connected cables through the cable routing channel in the stand of your display.
Tip: The cable straps at the inside of the connector compartment allow you to fix the cables for better
shielding of the cables.
To reattach the connector compartment cover
1. Reattach the connector compartment cover by sliding the cover’s top. You’ll hear a “click” sound of the
cover’s clips when the connector compartment cover is in position.
K5902079 CORONIS UNITI 07/04/2016
17
Page 20
3. Display installation
3.10 Fixation of the foot on the desk
Overview
If you would like to attach the Coronis Uniti to a desk, the tilt & swivel foot has 4 screw holes (4x M4) to
mount the foot on a desk.
18
K5902079 CORONIS UNITI 07/04/2016
Page 21
1. Drill four holes in the desk.
3. Display installation
300
(143)
120
Fixation position: 4x M4
(100)
100
405
2. Fasten the foot on the desk with 4x M4 screws (length of the screws depending on the depth of the
desk).
3.11 VESA-mou nt installation
CAUTION: Use suitable mounting apparatus to avoid risk of injury.
WARNING: Never move a display att
itself. Instead, make sure that the arm is equipped with a VESA approved handle and
use this to move the display.
Please refer to the instruction manual of the arm for more information and instructions.
WARNING: Use an arm that is approved by VESA (according to the VESA 200 x 100 mm
or VESA 1 00 x 100 mm standard).
ached to an arm by pulling or pushing the display
Use an arm that can support the weight of the display. Refer to the technical specifications of this display for the applicable weight.
K5902079 CORONIS UNITI 07/04/2016 19
Page 22
3. Display installation
CAUTION: You should mount the panel in landscape position. Portrait position is pos-
sible but not supported.
WARNING: To avoid muscle strain or back injury, use lifting aids and proper lifting tech-
niques when removing or replacing.
Overview
The panel, standard attached to the tilt & swivel foot, is compatible with the VESA 200 x 100 mm and
VESA 100 x100 mm standard. So it can be used with an arm stand according to the VESA 200 x 100 mm
or VESA 100 x 100 mm standard.
Therefore, the tilt & swivel foot must be removed from the panel.
1. Fasten the height mechanism of the foot by putting the red pin in the hole "Unlocking the height mech-
anism", page 10.
2. Put the display face down on a clean and soft surface. Be careful not to damage the panel screen.
3. Loosen the plastic covers with a cross head screwdriver.
20 K5902079 CORONIS UNITI 07/04/2016
Page 23
4. Remove the two plastic covers.
3. Display installation
5. Remove the 9 screws fixing the foot while supporting the foot.
K5902079 CORONIS UNITI 07/04/2016 21
Page 24
3. Display installation
6. Attach the arm stand firmly to the panel using 6 screws M4 x 6 mm for a 200 x 100 mm VESA solution
or 4 screws M4 x 6 mm for a 100 x 100 mm VESA solution.
WARNING: Never move a display attached to an arm by pulling or p
itself. Instead, make sure that the arm is equipped with a VESA approved handle and
use this to move the display.
Please refer to the instruction manual of the arm for more information and instructions.
3.12 First time starting up
Overview
You are now ready to start up your Coronis Uniti for the first time.
1. Switch on your Coronis Uniti as described in "Standby switching", page 24.
2. Turn on the computer connected to your display.
If you have properly installed your display and di
appear once the boot procedure is finished.
Your Coronis Uniti display will be running in a basic video mode at a default refresh rate
when first time starting up. If you are using a Barco display controller, please consult
the dedicated user guide available on the system CD to install the drivers, software and
documentation. When this is done, your display will automatically detect the connected
video input signal(s) and apply the correct v
splay controller, the Windows start-up messages will
ideo mode and refresh rate.
ushing the display
22 K5902079 CORONIS UNITI 07/04/2016
Page 25
4. Daily operation
4. DAILY OPERATION
4.1 Recommendations for d aily operation
Optimize the lifetime of your display
Enabling the Display Power Management System (DPMS) of your display will optimize its diagnostic lifetime by automatically switching off the backlight when the display is not used for a specified period of time.
By default, DPMS is enabled on your display, but it also needs to be activated on your workstation. To do
this, go to “Power Options Properties” in the “Control Panel”.
Barco recommends setting DPMS activation after 20 minutes of non-usage.
Use a screen saver to avoid image retention
Prolonged operation of an LCD with the same content on the same screen area may result in a form of
image retention.
You can avoid or significantly reduce the occurrence of this phenomenon by using a screen saver. You
can activate a screen saver in the “Display properties” window of your workstation.
Barco recommends setting screen saver activation after 5 minutes of non-usage. A
good screen saver displays moving content.
In case you are working with the same image or an application with static image elements for several hours
continuously (so that the screen saver is not activated), change the image content regularly to avoid image
retention of the static elements.
Understand pixel technology
LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a
limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic
performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its
LCD panels.
To learn more about LCD technology and missing pixels, consult the dedicated white
papers available at w
ww.barco.com/healthcare.
Enhance user comfort
Every Barco multi-head display system is color matched with the highest specifications in the market.
Barco recommends keeping color-matched displays together. Furthermore, it is important to use all displays of a multi-head configuration at the same rate to preserve color
matching throughout the economic lifetime of the system.
K5902079 CORONIS UNITI 07/04/2016 23
Page 26
4. Daily operation
Maximize quality assurance
The ’MediCal QAWeb’ system offers online service for high-grade Quality Assurance, providing maximum
diagnostic confi dence and uptime.
Barco recommends to install MediCal QAWeb Agent and apply the default QAWeb policy
at least. This policy includes calibration on regular intervals. Connecting to MediCal
QAWeb Server offers even more possibilities.
Learn more and sign up for the free MediCal QAWeb Essential level at
w
ww.barco.com/QAWeb.
4.2 Key indicator lights
About the key indicator lights
By default, the indicator lights of the keys will be dimmed which makes the keys unavailable at that moment. To make the keys illuminate and available for further actions touch one of the keys. As a result, all
keys will be illuminated and are now available for further actions. However, if no further actions are taken
within the following 5 seconds, the keys will dim again.
The I-Luminate/Left key is always lit and available for activation of t
ture. Please refer to "I-Luminate", page 27 for more information.
The key auto-dim function can be disabled in the OSD menus. Please refer to "Key indicator lights", page 30 f or detailed instructions on how to do this.
4.3 Standby switching
The connected power supply also provides a switch that can be used to turn the power
completely off. To use the display, please make sure to switch on this power supply.
This can be done by pushing the on/off switch on the power supply into the “│” position.
To switch your display on using the keys:
he I-Luminate fea-
Switching on the display while it is in standby mode can be done by:
1. Push the standby key once.
As a result, the display will switch on and the power status indicator light is white.
During start-up phase, the orange indicator light and the white indicator light are lit, until
the unit is fully started.
24 K5902079 CORONIS UNITI 07/04/2016
Page 27
4. Daily operation
To switch your display to Stand-by using the keys:
Switchingoffthedisplaycanbedoneby:
1. Push the standby key shortly for three times. After the second push, the OSD message “Power off”
appears on the display, this means the display will go in standby mode.
As a result, the display will switch to stand-by mode and the power status indicator light is orange.
In case of a power outage recovery, your display will always start-up in the power mode
it was in before the power interruption (i.e. stand-by or on). This protects your display
against inadvertent image retention problems.
4.4 Bringing up the OSD menus
How to bring up the OSD menus
TheOSDmenuallowsyoutoconfigure different settings to make your Coronis Uniti fit your needs within
your working environment. Also, you can retrieve general information about your display and its current
configuration settings through the OSD menu.
Bringing up the OSD menus can be done by:
1. If not already done so, switch on the display as previously described.
2. Illuminate the keys as previously described.
3. While the keys are illuminated, touch the menu key.
As a result, the OSD main menu comes up in the bottom right corner of the screen. However, if no further
actions are taken within the following 90 seconds, the OSD will disappear again.
The OSD menu auto-exit function can be disabled in the OSD menu. Please refer to
"OSD menu automatic close function", page 29 for detailed instructions on how to do
this.
4.5 Navigating through the OSD menus
How to navigate through the OSD menus
Navigating through the OSD menus can be done by:
• Use the left/right keys to move through the (sub)menus, change values or make selections.
• To go into a submenu or confirm adjustments and selections, use the menu key.
• Use the standby key to cancel adjustments or exit a (sub)menu.
• Exit all OSD menus at once by touching the standby key for approximately 2 seconds.
The key icons are displayed above the keys, adapted to the function that it is used for
(menu dependent).
K5902079 CORONIS UNITI 07/04/2016 25
Page 28
4. Daily operation
I-Luminate is not available while the OSD menu is activated.
Overview key icons
Left, Right
Menu
Enter
Cancel
Standby (IEC 60417–5009)
4.6 Overview of the functionality of the Left/Right keys
Overview
Left key Right key Behavior
Push Push Cycle viewing mode between text, diagnostic
Push No Push
Toggle on I-Luminate
Left key Right key Menu Behavior
Push No push No menu Toggle off
I-Luminate
No push Push No menu
Push Push No menu
No push No push Menu Nothing
Cycle I-Luminate
modes between
text small film,
large film, no film
Cycle viewing
mode between
text and
diagnostic,
also toggle off
I-Luminate
26 K5902079 CORONIS UNITI 07/04/2016
Page 29
4. Daily operation
Left key
No Push Push
Right key Behavior
Enable OSD
Left key
No push Push No menu
Push No push No menu Nothing
Push Push No menu
No push No push Menu
Right key Menu Behavior
Cycle SoftGlow
modes between
task light, wall
light, both, none.
Cycle viewing
mode between
text and
diagnostic
Enter the OSD
menu
4.7 I-Luminate
About I-Luminate
When the display is in power on mode and the OSD menu is not shown, I-Luminate can be activated by
touching the I-luminate/left key.
When touching the I-Luminate key, the display will enter the I-Luminate mode, for approximately 1 minute.
Touch the I-Luminate key again to immediately switch back to normal mode.
4.8 Extended display keypad functions
About extended display keypad functions
The concept of the extended display keypad functions is to present a selection of functions immediately
available to the user without the need to navigate through the OSD Menu.
The e xtended display keypad functions wil
visible on the screen.
4.8.1 I-luminate mode
To quickly change the I-luminate mode
1. While no OSD menu is on the screen, press the I-luminate/Left key to bring up the I-luminate quick
selection menu.
2. Toggle the available I-luminate modes (see "I-Luminate default mode", page 32) by pressing the Right
key.
4.8.2 Viewing mode
To quickly change the viewing mode
1. While no OSD menu is on the screen, press the Left key and Right key simultaneously to change the
viewing mode.
l only be available when no OSD menu is
2. Toggle the available viewing modes (see "Viewing modes", page 35) by pressing the Left/Right key
simultaneously.
K5902079 CORONIS UNITI 07/04/2016
27
Page 30
4. Daily operation
28 K5902079 CORONIS UNITI 07/04/2016
Page 31
5. Advanced operation
5. ADVANCED OPERATION
5.1 OSD menu language
About the OSD menu language
By default, the OSD menu comes up in English. However, there’s a wide range of other languages available for the OSD menu of your Coronis Uniti.
To change the language of the OSD menu:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > User Interface > Menu menu.
3. Enter the Language submenu.
4. Select one of the available languages and confirm.
5.2 OSD menu automatic close function
About the OSD menu automatic close function
By default, the OSD menu will disappear automatically after approximat
ever, this function can be disabled so that the OSD menu remains on the screen until manually closed.
ely 90 seconds of inactivity. How-
To enable/disable the OSD menu automatic close function:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > User Interface > Menu menu.
3. Enter the Automatic Close submenu.
4. Select Enabled/Disabled as desired and confirm.
5.3 Power LED
About the power LED
To prevent distractions, the power LED is dimmed by default when the display is switched on and used in
normal operation. This behavior can be changed so that the power LED will light up during normal operation. Below is an overview of the different power LED states, in ascending order of power consumption:
Display status Power LED behavior
1
Off
Hibernate2/Softoff
Suspend mode
Standby mode
Normal operation
4
4
3
Dimmed
Steady amber
Slow blinking amber
Fast blinking amber
Dimmed (power LED disabled in OSD, default setting)
Steady white (power LED enabled in OSD)
1. Power supply unplugged or switched off.
2. Requires DPMS mode and Hibernate to be enabled in the OSD menu.
3. Switched off via the standby touch key.
4. Requires DPMS mode to be enabled in the OSD menu.
K5902079 CORONIS UNITI 07/04/2016 29
Page 32
5. Advanced operation
To enable/disable the power LED:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > User Interface > Indicator Lights menu.
3. Enter the Power Status submenu.
4. Select Enabled/Disabled as desired and confirm.
5.4 Key indicator lights
About the key indicator lights
By default, after lighting up, the key indicator lights will dim again if no further actions are taken within the
following 5 seconds. However, this behavior can be changed so that the key indicator lights are always
on or always off.
To configure the key indicator lights
1. Bring up the OSD main menu.
2. Navigate to the Configuration > User Interface > Indicator Lights menu.
3. Enter the Keys submenu.
4. Select Automatic/Always On/Always Off as desired and confirm.
5.5 Power lock function
About the power lock function
By enabling the power lock function, the Coronis Uniti is forced to remain switched on. This means that it
can’t be switched to stand-by mode manually until the power lock function is disabled again.
To enable/disable the power lock function:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > User Interface > Controls menu.
3. Enter the Power Lock submenu.
4. Select Enabled/Disabled as desired and confirm.
5.6 SoftGlow Task light
About the SoftGlow Task light
The Coronis Uniti is equipped with a SoftGlow Task light. This allows you to have light on your desk in a
dark environment. The brightness of the SoftGlow Task light can be adjusted.
To enable/disable the SoftGlow Task light:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Lights menu.
3. Enter the SoftGlow Task light submenu.
4. Select Enabled/Disabled as desired and confirm.
30
K5902079 CORONIS UNITI 07/04/2016
Page 33
5. Advanced operation
To adjust the SoftGlow Task light brightness:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Lights menu.
3. Enter the SoftGlow Task light brightness submenu.
4. Set a SoftGlow Task light brightness value as desired and confirm.
5.7 SoftGlow Wall light
About the SoftGlow Wall light
The Coronis Uniti is equipped with a SoftGlow Wall light. This allows you to have light on the wall at the
back of your display in a dark environment. The brightness of the SoftGlow Wall light can be adjusted.
To enable/disable the SoftGlow Wall light:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Lights menu.
3. Enter the SoftGlow Wall light submenu.
4. Select Enabled/Disabled as desired and confirm.
To adjust the SoftGlow Wall light brightness:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Lights menu.
3. Enter the SoftGlow Wall light brightness submenu.
4. Set a SoftGlow Wall light brightness value as desired and confirm.
5.8 DPMS mode
About DPMS mode
Enabling the Display Power Management System (DPMS) mode on your d
tic lifetime by automatically switching off the backlight when the display is not used for a specified period
of time. By default, DPMS mode is enabled on your display, but it also needs to be activated on your
workstation. To do this, go to the “Power options properties” window of your workstation.
Barco recommends setting DPMS activation after 20 minutes of non-usage.
isplay will optimize its diagnos-
When DPMS mode is enabled on your display, an additional OSD power saving function
becomes available: hibernate. Please refer to "Hibernate", page 32 for more information
on hibernation and how to enable this function.
To enable/disable DPMS mode on your display:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Power Management menu.
3. Enter the DPMS Mode submenu.
K5902079 CORONIS UNITI 07/04/2016
31
Page 34
5. Advanced operation
4. Select Enabled/Disabled as desired and confirm.
5.9 Hibernate
About hibernate
When hibernate is enabled, not only the backlight will be switched off, but also other functionalities will be
disabled to further reduce power consumption to a minimum. This happens after a specificperiodoftime
which can be manually adjusted.
Hibernate can only be enabled on your display when the DPMS mode is enabled first.
Therefore, please refer to "DPMS mode", pa ge 31 to do this.
Please connect your keyboard or mouse to your PC rather than to the Uniti U SB ports
when hibernate is enabled.
To enable/disable hibernation on your display:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Power Management menu.
3. Enter the Hibernate submenu.
4. Select Enabled/Disabled as desired and confirm.
To specify the hibernate timeout:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Power Management menu.
3. Enter the Hibernate Timeout submenu.
4. Set the timeout value as desired and confirm.
5.10 I-Luminate default mode
About the I-Luminate default mode
The I-Luminate mode defines the default activated mode during the I-Luminate boost. This mode can be:
Screen
Film (large or small) Film (large or small): the boost mode activates a
The boost mode is applied on the screen display.
high illuminated rectangle on top of the screen,
simulating a light box for use with radiological film.
The size of this rectangle is similar to a classic
(large or small) radiological film.
To set the I-L uminate mode:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > I-Luminate menu.
3. Enter the Default mode submenu.
32
K5902079 CORONIS UNITI 07/04/2016
Page 35
5. Advanced operation
4. Select Screen/Small Film/Large Film as desired and confirm.
5.11 I-Luminate film position
About the I-Luminate film position
By default, the I-Luminate rectangle comes up in the top/center of the left part of the screen. This position
can be changed to top/left or top/right corner of the left part of the screen or top/left, top/center or top/right
corner of the right part of the screen.
To set the I-Luminate film position:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > I-Luminate menu.
3. Enter the Film Position submenu.
4. Select Left Side Top Left/Center/Right or Right Side Top Left/Center/Right as desired and confirm.
5.12 Luminance target
About the luminance target
The luminance target of your Coronis Uniti is adjustable over a predefined
luminance target, the display will adjust its backlight to reach the target.
To set the luminance target:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration menu.
3. Enter the Luminance Target submenu.
4. Set a luminance target value as desired and confirm.
The default, factory DICOM calibrated luminance value is available in the technical specifications table. The guaranteed backlight lifetime is valid for this setting.
5.13 Color presets
About color presets
range. When you change the
The available color preset settings for your display are:
• Clearbase: Simulation of the clearbase film color temperature.
• Bluebase: Simulation of the bluebase film color temperature.
• User: When selecting the User color temperature setting, you will be able to manually define the X
and Y coordinates or the display color temperature in separate submenus.
• Native White: The native, unmodified color temperature of the LCD panel.
To select a color preset:
1. Bring up the OSD main menu.
K5902079 CORONIS UNITI 07/04/2016
33
Page 36
5. Advanced operation
2. Navigate to the Configuration > Calibration > Color Settings menu.
3. Enter the Color Presets submenu.
4. Select one of the available Color Presets and confirm.
5.14 Color t emp eratu re
About color temperature:
It is possible to change the color temperature of your display.
Color temperature can only be changed on your display when color presets is set to
user. Therefore, please refer to "Color presets", page 33 to do this.
To change the color temperature:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Color Settings menu.
3. Enter the Color Definition submenu.
4. Select Color Temperature and confirm.
5. Enter the Color Temperature submenu.
6. Set the Temperature value as desired and confirm.
5.15 Color c oordinates
About color coordinates:
It is possible to change the color coordinates of your display.
Color coordinates can only be changed on your display when color presets is set to
user. Therefore, please refer to "Color presets", page 33 to do this.
To change the color coordinates:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Color Settings menu.
3. Enter the Color Definition submenu.
4. Select Color Coordinates and confirm.
5. Enter the x and/or y submenu.
6. Set the coordinate value for x and/or y as desired and confirm.
34
K5902079 CORONIS UNITI 07/04/2016
Page 37
5. Advanced operation
5.16 Viewing mo des
About viewing modes
The Coronis Uniti can be used in two viewing modes:
• Diagnostic: This mode provides the full calibrated luminance and is intended for using the display for
diagnostic purposes.
• Text: In this mode, the luminance is reduced to approximately half of the luminance. This is intended
for using the display with office applications such as word processing.
Please note that text mode is not persistent, once powered off, the unit will restart in diagnostic mode.
To quickly switch the viewing mode without having to enter the OSD menu, touch the
left and right key (the two leftmost buttons) at the same time during normal operation.
As the Coronis Uniti is intended to be used in a diagnostic environment, the diagnostic
mode should always be selected.
To select a viewing mode:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration menu.
3. Enter the Viewing Mode submenu.
4. Select Diagnostic/Text as desired and confirm.
5.17 Display functions
About display functions
Native, uncorrected panels will display all grayscale/color levels with luminance increments that are not
optimal for crucial diagnostic information. Studies have shown however, that in medical images certain
grayscale/color parts contain more diagnostic information then others. To respond to these conclusions,
display functions have been defined. These functions emphasize on these parts containing crucial diagnostic information by correcting the native panel behavior.
The available display functions for your Coronis Uniti are:
• Native: If you select Native, the native panel behavior will not be corrected.
• Dynamic Gamma 1.8 or 2.2: These are gamma functions that are shifted to take into account the
non-zero luminance of an LCD panel when driven with a “black” si
CT applications to improve the perception of low Hounsfield values.
• DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that
was developed to improve the quality and communication of digital images in radiology. In short, the
DICOM display function results in more visible grayscales in the images. Barco recommends selecting
the DICOM display function for most medical viewing applications.
• User: This display function will be automatically selected when display functions are defined by Med-
iCal QAWeb.
• Gamma 1.8 or 2.2: Select one of these display functions in case the display is to replace a CRT
display with a gamma of 1.8 or 2.2 respectively.
gnal. They are especially useful in
K5902079 CORONIS UNITI 07/04/2016
35
Page 38
5. Advanced operation
The settings of the display must be adapted to suit the requirements of the visualization
software. In case of doubt, please contact the vendor of the visualization software.
To select a display function:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration menu.
3. Enter the Display Function submenu.
4. Select one of the available display functions and confirm.
5.18 A mbient Light Compensation (ALC)
About ALC
Ambient Light Compensation (ALC) can only be enabled on your display when the DICOM display function is selected. Therefore, please refer to "Display functions", page
35 to correctly set the display function.
When ALC is enabled, the DICOM display function will be recalculated taking a preset ambient light correction value into account. This value is determined by the selected reading room. Therefore, it is also
important to select a realistic reading room when enabling ALC. This can be done by following the instructions in "Reading rooms", page 36.
To enable/disable ALC:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Ambient Light m
3. Enter the Ambient Light Compensation submenu.
4. Select Enabled/Disabled as desired and confirm.
enu.
5.19 Reading rooms
About reading rooms
Reading rooms can only be selected w hen the DICOM display function is selected.
Therefore, please refer to "Display functions", page 35 to correctly set the display
function.
The American Association of Physicists in Medicine (AAPM) composed a list of pre-defined reading rooms.
Each of these reading rooms are defined by following parameters:
• the maximum light allowed in this type of room
• the preset ambient light correction value for this reading room
These parameters are stored in your display and determine the preset ambient light correction value to
take into account to recalculate the DICOM display function when Ambient Light Compensation (ALC) is
enabled. Please refer to "Ambient Light Compen
36
sation (ALC)", page 36 to enable ALC.
K5902079 CORONIS UNITI 07/04/2016
Page 39
5. Advanced operation
The available reading rooms for your Coronis Uniti are:
• CR/DR/ MAMMO: Corresponds to light conditions in diagnostic reading rooms for computed radiology,
digital radiology or mammography. This setting has the lowest maximum ambient light.
• CT/MR/NM: Corresponds to light conditions in diagnostic reading rooms for computed tomography,
magnetic resonance or nuclear medicine scans.
• Staff Office: Corresponds to light conditions in office rooms.
• Clinical Viewing Room: Corresponds to light conditions in diagnostic reading rooms for clinical view-
ing.
• Emergency Room: Corresponds to light conditions in emergency rooms.
• Operating Room: Corresponds to light conditions in operating rooms. This setting has the highest
maximum ambient light.
To select a reading room:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Ambient Light menu.
3. Enter the Reading Room submenu.
4. Select one of the available reading rooms and confirm.
5.20 Continuous ALC
About Con tinuous ALC
Continuous ALC can only be selected when the DICOM display function is selected.
Therefore, please refer to "Display functions", page 35 to correctly set the display function.
Enabling continuous ALC will continuously recalculate the DICOM display function taking the averaged
ambient light into account.
To select continuous ALC:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Ambient Light menu.
3. Enter the Continuous ALC submenu.
4. Select Enabled/Disabled as desired and confirm.
5.21 Embedded QA
Overview
• About Embedded QA
• DICOM status report
• DICOM compliance check
• DICOM calibration
• Reset DICOM calibration
• DICOM error threshold
K5902079 CORONIS UNITI 07/04/2016
37
Page 40
5. Advanced operation
5.21.1 About Embedded QA
About
Embedded QA allows you to run a display calibration or compliance test directly from the display using the
OSD menus described in the next sections. Embedded QA will use the front sensor / I-Guard to measure
the necessary luminance levels for either a calibration or compliance test. Various settings for both actions
can be selected from the display’s OSD menu. The last results of both actions can be consulted from the
OSD.
Embedded QA or MediCal QAWeb?
Embedded QA is not a replacement for the Barco MediCal QAW eb solution.
Although Embedded QA is a reliable option to perform a simple calibration or compliance test, Barco still
highly recommends MediCal QAWeb as the solution of choice for calibration and QA. Medical QAWeb
brings many benefits such as centralized asset management, the ability to schedule tasks, remote management, automated reporting, alerting and specific support of regional QA standards such as DIN 686857, JESRA and AAPM TG18. That’s why MediCal QAWeb Agent acts as the master for all supported displays from the moment it is installed and running. MediCal QAWeb Agent will take over from Embedded
QA and overwrite any settings which were applied by Embedded QA.
5.21.2 DICOM status report
About DICOM status report
Following information is available:
DICOM Compliance Status (status since last compliance check):
• Compliance status: Shows if the current DICOM curve is compliant or not.
• Maximum error: Shows the maximum error of the current DICOM curve. This is the deviation com-
pared to a perfect DICOM.
• Error threshold: Shows the error threshold. This is the maximum error allowed before a DICOM
calibration is required.
• Time elapsed since latest compliance check: Shows the backl
check.
• Display Function: Shows the current display function.
• Ambient light compensation: Shows the ambient light compens
• Reading Room: Shows the selected reading room.
• Luminance: Shows the measured luminance.
• Black luminance: Shows the measured backlight luminance.
DICOM Calibration Status:
• No calibration executed yet: No other information is visible
• Calibration executed: When the calibration is executed, the following extra information is shown:
Backlight runtime elapsed since latest calibration, display functi
ing room.
Current DICOM Settings
• Display Function: Shows the current display function.
• Ambient Light Compensation: Shows the ambient light compensation status.
• Reading room: Shows the selected reading room.
ight runtime since last compliance
ation status.
on, ambient light compensation, read-
To retrieve the DICOM status report:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Embedded QA menu.
3. Select DICOM status report to make the information visible on the screen.
38
K5902079 CORONIS UNITI 07/04/2016
Page 41
5. Advanced operation
5.21.3 DICOM compliance check
About DICOM compliance check
The DICOM compliance check will measure the DICOM curve of your display in different steps. After
measurement, the DICOM status report is shown.
To start DICOM compliance check:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Embedded QA menu.
3. Select DICOM compliance check to start the compliance check.
Warning:Pressing a key during the compliance check will abort the check.
5.21.4 DICOM calibration
About DICOM calibration
TheDICOMcalibrationwilladdacorrectiontothecurrentDICOMcurvetoapproachtheperfectDICOM
curve as good as possible.
To start DICOM calibration:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Embedded QA menu.
3. Select DICOM calibration to start the calibration.
Warning:Pressing a key during calibration will abort the calibration, previous values will be restored.
Note: After calibration, the compliance check will start automatically.
5.21.5 Reset DICOM calibration
About reset DICOM calibration
It is possible to restore the original (not corrected) DICOM curve.
To reset the DICOM calibration:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Embedded QA menu.
3. Enter the DICOM preferences submenu.
4. Select reset DICOM calibration to restore the original (not corrected) DICOM curve.
5.21.6 DICOM error threshold
About DICOM error threshold
The threshold to definetheDICOMcompliancecanbemodified in steps of 5% starting from 5 to 30%.
When the maximum deviation is not bigger than the selected threshold, the compliance check will be OK.
To set the DICOM error threshold:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Calibration > Embedded QA menu.
3. Enter the DICOM preferences submenu.
4. Set DICOM error threshold as desired and confirm.
K5902079 CORONIS UNITI 07/04/2016
39
Page 42
5. Advanced operation
5.22 Image scaling
About image scaling
Enabling image scaling will multiply each individual pixel to one or more adjacent pixels so that the size
of the displayed image will be a multiple of the original image source video input signal.
Image scaling is only possible when the resolution of y our display’s video input signal
is less than or equal to half the maximum resolution of the display.
To enable/disable image scaling:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Image Source menu.
3. Enter the Scaling submenu.
4. Select Enabled/Disabled as desired and confirm.
5.23 Image source selection modes
About image source selection modes
Your Coronis Uniti automatically detects the number of video input signals connected, attaches them to the
correct display side and applies the correct video settings to it (resolution, video encoding mode, refresh
rate,...). However, it may be needed to manually select the video input signal(s) to be displayed on a
certain display side or to adjust certain video settings yourself. The start to this is selecting one of the
following image source selection modes available for your display:
Automatic In this mode, your display automatically detects the
connected video input signals, attaches them to the
correct display side and applies the correct video
settings to it (resolution, video encoding mode,
refresh rate,...). No video settings are available
when this mode is selected.
One Image Source This mode is intended for displaying and manually
configuring only one connected video input signal.
When selecting this mode, the video settings
become available for the selected video input
signal.
Two Image Sources This mode is intended for displaying and manually
configuring two connected video input signals (one
on each display side). When selecting this mode,
the video settings become available for the selected
video input signal on each side of the display.
Expert mode
This mode is intended for displaying and manually
configuring one or two connected video input
signals. When selecting this mode, the video
settings become available for both video input
signals on both sides of the display.
To select an image source selection mode:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Image Sources menu.
3. Enter the Image Source Selection submenu.
40
K5902079 CORONIS UNITI 07/04/2016
Page 43
5. Advanced operation
4. Select one of the available image source selection modes and confirm.
5.24 Grayscale conversion modes
About grayscale conversion modes
Grayscale conversion modes specify how color generated on the display controller is converted to
grayscale in your display.
The available grayscale conversion modes are:
No Conversion
Use Red Channel This mode is intended for grayscale displays where
gray is sent over the red channel.
Use Green Channel This mode is intended for grayscale displays where
gray is sent over the green channel.
Use Blue Channel This mode is intended for grayscale displays where
gray is sent over the blue channel.
To manually select a grayscale conversion mode:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Image Sources > Input Settings > DisplayPort1/2 menu.
3. Enter the Grayscale Conversion submenu.
4. Select one of the available color conversion modes and confirm.
5.25 Input interface standard version
About Input interface standard version
The Coronis Uniti supports two input interface standard versions: DPCD V1.1 and DPCD V1.2
To select the E D ID f o r m at
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Image Sources > Input Settings > DisplayPort1/2 menu.
3. Enter the Input interface standard version submenu.
4. Select one of the available versions and confirm.
To obtain full resolution (2100 x 2800) and full refresh rate (60Hz), DPCD V1.2 should be
selected.
5.26 EDID format
About EDID format
The Coronis Uniti supports two EDID formats: E-EDID V1.4 and DisplayID V1.3
K5902079 CORONIS UNITI 07/04/2016
41
Page 44
5. Advanced operation
To select the E D ID f o r m at
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Image Sources > Input Settings > > DisplayPort 1/2 > EDID menu.
3. Enter the EDID format submenu.
4. Select one of the available format and confirm.
5.27 EDID timings
About EDID timings
Following EDID timings are available for your Coronis Uniti:
Refresh Rate Allows to manually select the refresh rate of the
image source video input signal depending on the
maximum refresh rate of the display controller
connected to your display.
Color Depth Allows to change the color depth to 8 or to 10 bit.
To manually set EDID timings:
1. Bring up the OSD main menu.
2. Navigate to the Configuration > Image Sources > Input Settings > DisplayPort 1/2 menu.
3. Enter the EDID submenu.
4. Select Resolution, Refresh Rate, Preferred Orientation or Color Depth.
5. Select one of the available settings and confirm.
5.28 Display info
About display info
Your display serial number, color type, native resolution, firmware versions, etc. are available in a dedicated submenu of the OSD menu.
To retrieve info about your display:
1. Bring up the OSD main menu.
2. Navigate to the About this Display menu to make the information visible on the screen.
5.29 Display status
About d isplay status
The Status submenu of the OSD menu provides info on the current status of your display (runtimes, temperatures, etc.), the status of the connected image sources (video encoding mode, timings, etc.), the
current calibration status of your display (display function, luminance, ALC, etc.) and the status about
activated connections.
To retrieve the status of your display:
1. Bring up the OSD main menu.
42
K5902079 CORONIS UNITI 07/04/2016
Page 45
5. Advanced operation
2. Navigate to the Status menu.
3. Enter the Display, Image Sources, Calibration or Connectivity submenu as desired.
K5902079 CORONIS UNITI 07/04/2016
43
Page 46
5. Advanced operation
44 K5902079 CORONIS UNITI 07/04/2016
Page 47
6. Cleaning your display
6. CLEANING YOUR DISPLAY
6.1 Cleaning instructions
To clean the display
Clean the display using a sponge, cleaning cloth or soft tissue, lightly moistened with a recognized cleaning product for medical equipment. Read and follow all label instructions on the cleaning product. In case
of doubt about a certain cleaning product, use plain water.
Do not use following products:
• Alcohol/solvents at higher concentration > 5%
• Strong alkalis lye, strong solvents
•Acid
• Detergents with fluoride
• Detergents with ammonia
• Detergents with abrasives
• Steel wool
• Sponge with abrasives
• Steel blades
• Cloth with steel thread
CAUTION: Take care not to da mage or scratch the front glass or LCD. Be careful with
rings or other jewelry and do not apply excessive pressure on the front glass or LCD.
CAUTION: Do not apply or spray liquid directly to the display as excess liquid may cause
damage to internal electronics. Instead, apply the liquid to a cleaning cloth.
K5902079 CORONIS UNITI 07/04/2016 45
Page 48
6. Cleaning your display
46 K5902079 CORONIS UNITI 07/04/2016
Page 49
7. Repackaging instructions
7. REPACKAGING INSTRUCTIONS
7.1 Repacking your Coronis Uniti system
How to repack your Coronis Uniti system
1. Insert the connector cover in the small buffer.
Image 7-1
2. Lock the height mechanism at the lowest display position by inserting the hook pin in the back of the
stand.
Caution: Make sure that the hook pin is inserted deep enough until only the red part of the pin is visible.
Image 7-2
3. Remove the tilt lock pin from the back of the display, if this was not yet done during installation.
K5902079 CORONIS UNITI 07/04/2016
47
Page 50
7. Repackaging instructions
Image 7-3
4. Tilt the display in the most upwards position.
Image 7-4
5. Slide the small buffer between the display and the stand.
Image 7-5
6. Tilt the display back, to the most downward position.
48
K5902079 CORONIS UNITI 07/04/2016
Page 51
7. Repackaging instructions
Image 7-6
7. Lock the tilt mechanism by inserting the tilt lock pin in the lock hole at the back of the display.
Caution: Make sure that the tilt lock pin is inserted deep enough until only the red part of the pin is
visible.
Image 7-7
Image 7-8
8. Place the display in the bottom box so that it fits in the buffers.
Caution: It takes 2 persons to safely e
xecute this action.
K5902079 CORONIS UNITI 07/04/2016
49
Page 52
7. Repackaging instructions
Image 7-9
9. Insert the 2 cardboard compartments in the bottom buffers.
Image 7-10
10.Position the 2 top buffers on the display and cardboard compartments.
Image 7-11
11.Slide the accessory box and the display controller box in the cardboard compartments.
50
K5902079 CORONIS UNITI 07/04/2016
Page 53
Image 7-12
12.Put the touchpad box in the dedicated cutout.
7. Repackaging instructions
Image 7-13
13.Slide the top box over the display, in the bottom box.
Caution: Make sure that the position of the lock cutouts in the bottom box and top box fit together.
Image 7-14
14.Insert the 4 locks in the provided cutouts of the box.
K5902079 CORONIS UNITI 07/04/2016
51
Page 54
7. Repackaging instructions
Image 7-15
15.Turn each lock a quarter turn to the right.
Image 7-16
16.The Coronis Uniti system is ready to be shipped.
Image 7-17
52 K5902079 CORONIS UNITI 07/04/2016
Page 55
8. IMPORTANT INFORMATION
8.1 Safety information
General recommendations
Read the safety and operating instructions before operating the device.
Retain safety and operating instructions for future reference.
Adhere to all warnings on the device and in the operating instructions manual.
Follow all instructions for operation and use.
Electrical Shock or Fire Hazard
To prevent electric shock or fire hazard, do not remove cover.
No serviceable parts inside. Refer servicing to qualified personnel.
Do not expose this apparatus to rain or moisture.
8. Important information
Modifications to the unit:
Do not modify this equipment without authorization of the manufacturer.
Type of protection (electrical):
Display with external power supply: Class I equipment.
Degree of safety (flammable anesthetic mixture):
Equipment not suitable for use in the presence of a flammable anesthetic mixture
or nitrous oxide.
with air or with oxygen
Non-patient care equipment
• Equipment primarily for use in a health care facility that is i
is unlikely (no applied part).
• The equipment may not be used with life support equipment.
• The user should not touch the equipment, nor its signal input por
and the patient at the same time.
Power connection – Equipment with external 24 VDC power suppl
• Power requirements: The equipment must be powered using the d
(
) SELV power supply.
• The medical approved DC (
• The power supply is specified as a part of the ME equipme
system.
• To avoid the risk of electric shock, this equipment must only be connected to a supply mains with
protective earth.
• The equipment should be installed near an easily accessible outlet.
• The equipment is intended for continuous operation.
) power supply must be powered by the AC mains voltage.
ntended for use where contact with a patient
ts (SIP)/signal output ports (SOP)
y
elivered medical approved 24 VDC
nt or combination is specified as a ME
Transient over-voltage
If the device is not used for a long time, disconnect it from the AC inlet to avoid damage by transient
over-voltage.
K5902079 CORONIS UNITI 07/04/2016
53
Page 56
8. Important information
To fully disengage the power to the device, please disconnect the power cord from the AC inlet.
Power cords:
• Do not overload wall outlets and extension cords as this may result in fire or electric shock.
• Mains lead protection (U.S.: Power cord): Power cords should be routed so that they are not likely to
be walked upon or pinched by items placed upon or against them, paying particular attention to cords
at plugs and receptacles.
• The power supply cord should be replaced by the designated operator only at all time.
• Use a power cord that matches the voltage of the power outlet, which has been approved and complies
with the safety standard of your particular country.
Water and moisture
Never expose the device to rain or moisture.
Never use the device near water - e.g. near a bathtub, washbasin, swimming pool, kitchen sink, laundry
tuborinawetbasement.
Ventilation
Do not cover or block any ventilation openings in the cover of the set. When installing the device in a
cupboard or another enclosed location, heed the necessary space between the set and the sides of the
cupboard.
Installation
Place the device on a flat, solid and stable surface that can support the weight of at least 3 devices. If you
use an unstable cart or stand, the device may fall, causing serious injury to a child or adult, and serious
damage to the device.
This apparatus conforms to:
• CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product)
• CE - 2014/30/EU
• IEC 60950-1:2005 + A1:2009
• EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011
• IEC 60601-1:2005 + C1:2006 + C2:2007
• EN 60601-1:2006 + A11:2011
• ANSI/AAMI ES 60601-1:2005 + C1:2009 + A2:2010
• CAN/CSA C22.2 No. 60601-1 (2008)
• IEC 60601-1-2:2007
• EN 60601-1-2:2007 + AC:2010
• CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2012
•KCC
•VCCIclassB
•FCCclassB
• ICES-001 level B
• FDA 510(k)
•RoHS
National Scandinavian Deviations for CL. 1.7.2:
Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan"
Norway: "Apparatet må tilkoples jordet stikkontakt"
Sweden: "Apparaten skall anslutas till jordat uttag"
54
K5902079 CORONIS UNITI 07/04/2016
Page 57
8. Important information
8.2 Environmental information
Disposal Information
Waste Electrical and Electronic Equipment
This symbol on the product indicates that, under the European Directive 2012/19/EU governing
waste from electrical and electronic equipment, this product must not be disposed of with other municipal
waste. Please dispose of your waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. To prevent possible harm to the envir
human health from uncontrolled waste disposal, please separate these items from other types of waste
and recycle them responsibly to promote the sustainable reuse of material resources.
For more information about recycling of this product, please contact your local city office or your municipal
waste disposal service.
onment or
For details, please visit the Barco website at: h
ttp://www.barco.com/en/AboutBarco/we
ee
Turkey RoHS compliance
Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.
[Republic of Turkey: In conformity with the WEEE Regulation]
中国大陆 RoHS
Chinese Mainland RoHS
根据中国大陆《电器电子产品有害物质限制使用管理办法》（也称为中国大陆RoHS）， 以下部分列出了
Barco产品中可能包含的有毒和/或有害物质的名称和含量。中国大陆RoHS指令包含在中国信息产业部
MCV标准：“电子信息产品中有毒物质的限量要求”中。
According to the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and
contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese
Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section
“Limit Requirements of toxic substances in Electronic Information Products”.
零件项目(名称)
Component name
印制电路配件
有毒有害物质或元素
Hazardous substances and elements
铅
Pb
xooo oo
汞
Hg
镉
Cd
六价铬
Cr6+
多溴联苯
PBB
多溴二苯
醚
PBDE
Printed Circuit Assemblies
液晶面板
LCD panel
外接电(线)缆
External Cables
內部 线路
Internal wiring
金属外壳
Metal enclosure
K5902079 CORONIS UNITI 07/04/2016 55
xooo oo
xooo oo
oo oo oo
oo oo oo
Page 58
8. Important information
零件项目(名称)
Component name
塑胶外壳
Plastic enclosure
散热片( 器)
Heatsinks
电源供应器
Power Supply Unit
风扇
Fan
文件说明书
Paper Manuals
光盘说明书
CD manual
本表格依据SJ/T 11364的规定编制
This table is prepared in accordance with the provisions of SJ/T 11364.
o: 表示该有毒有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下.
有毒有害物质或元素
Hazardous substances and elements
铅
Pb
oo oo oo
oo oo oo
xooo oo
oo oo oo
oo oo oo
oo oo oo
汞
Hg
镉
Cd
六价铬
Cr6+
多溴联苯
PBB
多溴二苯
醚
PBDE
o: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for
this part is below the limit requirement in GB/T 26572.
x: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求.
x: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous
materials used for this part is above the limit requirement in GB/T 26572.
在中国大陆销售的相应电子信息产品（EIP）都必须遵照中国大陆《电子电气产品有害物质限制使用标识
要求》标准贴上环保使用期限（EFUP）标签。Barco产品所采用的EFUP标签（请参阅实例，徽标内部的编
号使用于指定产品）基于中国大陆的《电子信息产品环保使用期限通则》标准。
All Electronic Information Products (EIP) that are sold within Chinese Mainland must comply with the
“Marking for the restriction of the use of hazardous substances in electrical and electronic product” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the
EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
10
ChinaEnergyLabel
If there is a China Energy Label on your packaging or product, the product meets the following energy
requirements corresponding with the energy efficiency level on the label.
56
K5902079 CORONIS UNITI 07/04/2016
Page 59
8. Important information
按照中国 << 能源效率标识管理办
法>>
In accordance with The Regulation
of the Implementation on China
Energy Label
能源效率等级
Energy Efficiency Level
能源效率
Energy Efficiency (cd/W)
关闭状态能耗
Energy Consumption in off mode
(W)
执行的能源效率国家标准编号
Code of National Standard applied
本显示器符合以下要求
This monitor is compliant with the
following requirements
12
>1.05 >0.85
<0.5 <1.0
GB 21520 GB 21520
本显示器符合以下要求
This monitor is compliant with the
following requirements
8.3 R egulatory compliance information
Indications for use
The MDMC-12133 is intended to be used in displaying and viewing digital images, including standard and
multi-frame digital mammography, for review, analysis and diagnosis by trained medical practitioners.
It is especially designed for breast tomosynthesis (3D mammography) applications, breast MRI, and breast
US.
It is especially designed for CT and ultrasound including vascular and gynecological US.
Caution (USA): Federal law restricts this device to sale by or on the order of a physician or a practitioner
trained on its use.
FCC class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This device generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Canadian notice
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.
K5902079 CORONIS UNITI 07/04/2016
57
Page 60
8. Important information
8.4 EMC notice
General information
No specific requirement on the use of external cables or other accessories except power supply.
With the installation of the device, use only the delivered power supply or a spare part provided by the
legal manufacturer. Using another can result in a decrease of the immunity level of the device.
Electromagnetic emissions
The Coronis Uniti is intended for use in the electromagnetic environment specified below. The customer
or the user of the Coronis Uniti should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment –
Guidance
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic emissions
IEC 61000-3-2
Volta ge fluctuations/ flicker
emissions
IEC 61000-3-3
Group 1 The Coronis Uniti uses RF energy
only for its internal function.
Therefore, its RF emissions are
very low and are not likely to
cause any interference in nearby
electronic equipment.
Class B
Class D
Complies
The Coronis Uniti is suitable
for use in all establishments,
including domestic establishments
and those directly connected to
the public low-voltage power
supply network that supplies
buildings used for domestic
purposes.
This Coronis Uniti complies with appropriate medical EMC standards on emissions to, and interference
from surrounding equipment. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Interference can be determined by turning the equipment off and on.
If this equipment does cause harmful interference to, or suffer from harmful interference of, surrounding
equipment, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna or equipment.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
Electromagnetic immunity
The Coronis Uniti is intended for use in the electromagnetic environment specified below. The customer
or the user of the Coronis Uniti should assure that it is used in such an environment.
Immunity test
Electrostatic discharge
(ESD)
IEC 61000-4-2
IEC 60601
Test levels
± 6kV contact
±8kVair
Compliance level
± 6kV contact
±8kVair
Electromagnetic
environment –
guidance
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30%
58 K5902079 CORONIS UNITI 07/04/2016
Page 61
8. Important information
Immunity test
Electrical fast
transient/burst
IEC 61000-4-4
Surge
IEC61000-4-5
Voltage dips, short
interruptions and voltage
variations on power
supply input lines
IEC 61000-4-11
Power frequency (50/60
Hz) magnetic field
IEC 61000-4-8
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
IEC 60601
Test levels
± 2kV for power supply
lines
± 1kV for input/ output
lines
± 1 kV line(s) to line(s)
± 2 kV line(s) to earth
<5%U
U
T
40% U
5
(> 95% dip in
T
) for 0.5 cycle
(60%dipinUT)
T
for 5 cycles
70% U
(30%dipinUT)
T
for 25 cycles
<5%U
) for 5s
U
T
(>95% dip in
T
3A/m
3Vrms
150 kHz to 80 MHz
3V/m
80 MHz to 2.5 GHz
Compliance level
± 2kV for power supply
lines
± 1kV for input/ output
lines
± 1 kV line(s) to line(s)
±2kVline(s)toearth
<5%U
U
) for 0.5 cycle
T
40% U
(> 95% dip in
T
(60% dip in UT)
T
for 5 cycles
70% U
(30% dip in UT)
T
for 25 cycles
<5%U
)for5s
U
T
Not applicable
(>95% dip in
T
6
3V
3V/m
Electromagnetic
environment –
guidance
Mains power quality
should be that of a typical
commercial or hospital
environment
Mains power quality
should be that of a typical
commercial or hospital
environment
Mains power quality
should by that of a
typical commercial or
hospital environment. If
the user of the Coronis
Uniti requires continued
operation during power
mains interruptions, it is
recommended that the
Coronis Uniti be powered
from an uninterruptible
power supply or a battery.
Power frequency
magnetic fields should
be at levels characteristic
of a typical location in
a typical commercial or
hospital environment.
Portable and mobile
RF communications
equipment should be
used no closer to any
part of the Coronis
Uniti, including cables,
than the recommended
separation distance
calculated from the
equation applicable
to the frequency
of the transmitter.
Recommended
separation distance
d=1.2√P
d=1.2√P 80 MHz to 800
MHz
d=2.3√P 800 MHz to 2.5
Ghz
Where P is the maximum
output power rating
of the transmitter in
watts (W) according
to the transmitter
manufacturer and d
is the recommended
5. is the a.c. mains voltage prior to application of the test level.
6. Coronis Uniti doesn’t contain susceptible components to magnetic fields
K5902079 CORONIS UNITI 07/04/2016 59
Page 62
8. Important information
Immunity test
At 80 MHz and 800 MHz, the higher frequency range applies.
IEC 60601
Test levels
Compliance level
Electromagnetic
environment –
guidance
separation distance in
meters (m).
Field strengths from
fixed RF transmitters,
as determined by an
electromagnetic site
survey,
7
should be less
than the compliance
level in each frequency
8
range.
Interference may occur in
the vicinity of equipment
marked with symbol:
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
Recommended separation distance
The Coronis Uniti is intended for use in an electromagnetic environment in which radiated RF disturbances
are controlled. The customer of the user of the Coronis Uniti can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and the Coronis Uniti as recommended below, according to the maximum output power of
the communications equipment.
Rated maximum output
power of transmitter
W
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100121223
Separation distance according to frequency of transmitter
9
150kHz to 80MHz
d=1.2√P
80MHz to 800MHz
d=1.2√P
800MHz to 2.5GHz
d=2.3√P
7. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur
radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the
location in which the Coronis Uniti is used exceeds the applicable RF compliance level above, the Coronis Uniti should be observed
to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or
relocating the Coronis Uniti.
8. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than3V/m.
9. For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be
estimated using the equation applicable to the frequency of the transmitter. Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
60 K5902079 CORONIS UNITI 07/04/2016
Page 63
At 80 M Hz and 800 MHz, the separation distance for the higher frequency range applies .
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection form structures, object and people.
8.5 Explanation of symbols
Symbols on the device
On the device or power supply, you may find the following symbols (nonrestrictive list):
Indicates compliance with the Directive 93/42/EEC as Class I device
8. Important information
Indicates compliance with the Directive 93/42/EEC as Class II device
Indicates compliance with Part 15 of the FCC rules (Class A or Class B)
Indicates the device is approved according to the UL regulations
Indicates the device is approved according to the UL regulations for Canada
and US
Indicates the device is approved according to the UL regulations for Canada
and US
Indicates the device is approved according to the UL Demko regulations
Indicates the device is approved according to the CCC regulations
Indicates the device is approved according to the VCCI regulations
Indicates the device is approved according to the KC regulations
K5902079 CORONIS UNITI 07/04/2016 61
Page 64
8. Important information
Indicates the device is approved according to the BSMI regulations
Indicates the device is approved according to the PSE regulations
Indicates the USB connectors on the device
Indicates the DisplayPort connectors on the device
Indicates the legal manufacturer
Indicates the manufacturing date
Indicates the temperature limitations10for the device to safely operate within specs
Indicates the device serial number
Indicates the device part number or catalogue number
Warning: dangerous voltage
Caution
Consult the operating instructions
Indicates this device must not be thrown in the trash but must be recycled,
according to the Europe
directive
an WEEE (Waste Electrical and Electronic Equipment)
Indicates Direct Current (DC)
Indicates Alterna
10. Values for xx and yy can be found in the technical specifications paragraph.
62 K5902079 CORONIS UNITI 07/04/2016
ting Current (AC)
Page 65
8. Important information
Stand-by
Equipotentiality
8.6 Legal disclaimer
Disclaimer notice
Although every attempt has been made to achieve technical accuracy in this document, we assume no
responsibility for errors that may be found. Our goal is to provide you with the most accura
documentation possible; if you discover errors, please let us know.
Barco software products are the property of Barco. They are distributed u nder copyright by Barco NV or
Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or
Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any
form, is authorized.
te and usable
The specifications of Barco products are subject to change without notice.
Trademarks
All trademarks and registered trademarks are property of their respective owners.
Copyright notice
This document is copyrighted. All rights are reserved. Neither this document, nor any part of it, may
be reproduced or copied in any form or by any means - graphical, electronic, or mechanical including
photocopying, taping or information storage and retrieval systems - without written permission of Barco.
© 2016 Barco NV all rights reserved.
8.7 Technical specifications
Overview
Screen technology IPS
Active screen size (diagonal) 853.44 mm (33.6")
Active screen size (H x V) 708.1 x 472.1 mm (27.8 x 18.6")
Aspect ratio (H:V)
Resolution
Pixel pitch 0.1686 mm
Color imaging
Gray imaging
Color support
Viewing angle (H, V) 178°, CR ≥ 10
3:2
4200 x 2800 (optionally 2x 5MP)
Yes
Yes
Yes
Uniform Luminance
Techn o l o g y (ULT )
Per Pixel Uniformity (PPU) Yes, in color
K5902079 CORONIS UNITI 07/04/2016 63
Color PPU
Page 66
8. Important information
Ambient Light Compensation
(ALC)
Backlight Output Stabilization
(BLOS)
I-Guard
Maximum luminance
DICOM calibrated luminance
(ULT off)
Contrast ratio (typical) 1200:1 (PPU on)
Responsetime(Tr+Tf)
Scanning frequency
Housing color RAL 9004 + RAL 9003
Video input signals DP1.2
USB ports 4 (1 upstream, 3 downstream)
USB standard
Power requirements (nominal) 100 - 240 V
Power consumption (nominal)
Power save mode Yes
Power management
Dot clock 195 MHz
OSD languages English, German, French, Dutch, Italian, Spanish, Portuguese, Swedish,
Dimensions with stand (W x H
xD)
Dimensions w/o stand (W x H
xD)
Dimensions packaged (W x H
xD)
Net weight with stand 33 kg
Net weight w/o stand
Net weight packaged with
stand
Net weight packaged w/o stand N/A
Height adjustment range 95 mm
Tilt
Swivel -23° / +23°
Pivot
Mounting standard
Screen protection Protective, non-reflective glass cover
Recommended modalities Radiology, mammography and digital breast tomosynthesis
Yes
Yes
Yes
> 2100 cd/m² (PPU on)
1000 cd/m²
<33ms
25 - 85 Hz
2.0
190 W
VESA DPMS
Chinese (simplified), Japanese, Korean, Arabic, Polish, Russian
795 x 610 x 300 mm (lowest position)
795 x 572 x 131 mm
960 x 715 x 395 mm
24 kg
42 kg
-5° / +30°
N/A
VESA (200 x 100 mm & 100 x 100 mm)
64 K5902079 CORONIS UNITI 07/04/2016
Page 67
8. Important information
Certifications
Supplied accessories
Optional accessories
QA software QAWeb
Units per pallet 6
Pallet dimensions (W x H)
Warranty 5 years, 40k hours backlight warranty
Operating temperature 0°C to +35°C (+20°C to +30°C within spec)
Storage temperature -20°C to +60°C
Operating humidity 20% - 85% RH
Storage humidity 5% - 85% RH
• CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product)
• CE - 2014/30/EU
• IEC 60950-1:2005 + A1:2009
• EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011
• IEC 60601-1:2005 + C1:2006 + C2:2007
• EN 60601-1:2006 + A11:2011
• ANSI/AAMI ES 60601-1:2005 + C1:2009 + A2:2010
• CAN/CSA C22.2 No. 60601-1 (2008)
• IEC 60601-1-2:2007
• EN 60601-1-2:2007 + AC:2010
• CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2012
•KCC
• VCCI class B
•FCCclassB
• ICES-001 level B
• FDA 510(k)
•RoHS
User Guide
Quick Installation Sheet
Video cables (2x DisplayPort)
Main cables (UK, European (CEBEC/KEMA), USA (UL/ CSA; adaptor
plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
Film clip
MultiTouchPad
None
1000 x 1200
11
12
Operation altitude
max. 3000 m
8.8 Open source licen se information
Open source license information
This product contains software components released under an Open Source license. You acknowledge
living up to the conditions of each separate Open Source Software license.
11. If you are concerned to go out of the limited specs, please use a humidifier.
12. If you are concerned to go out of the limited specs, please use a humidifier.
K5902079 CORONIS UNITI 07/04/2016 65
Page 68
8. Important information
A list of the Open Source Software components used is available in the applicable EULA, through the “My
Barco” section of the Barco website or through other (online) means.
Copyright on each Open Source Software component belongs to the respective initial copyright holder,
each additional contributor and/or their respective assignee(s), as may be identified in the respective Open
Source Software documentation, source code, README file, or otherwise. You shall not remove or obscure or otherwise alter the respective copyrights.
EACH S EPARATE OPEN SOURCE SOFTWARE COMPONENT AND ANY RELATED DOCUMENTATION ARE PROVIDED "AS IS" WITHOUT EXPRESS OR IMPLIED WARRANTY INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL THE COPYRIGHTHOLDER OR ANY OTHER CONTRIBUTOR
BE LIABLE FOR DIRECT, INCIDENTAL, SPECIAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY. MORE INFORMATION/DETAILS IS TO BE FOUND IN EACH SPECIFIC OPEN
SOURCE LICENSE.
With respect to GPL, LGPL or similar licenses with regard to corresponding source code access and
automatic license terms applicability:
• You acknowledge living up to the conditions of each such specific applicable Open Source Software
license. You are responsible for your own additions, changes or modifications without any recourse
or claim towards Barco whatsoever. You further acknowledge that any such additions, changes or
modifications may impair the ability of Barco – at Barco’s sole discretion - to continue to provide service, warranties, software updates, fixes, maintenance, access or such similar abilities, without any
recourse or claim towards Barco whatsoever.
• Barco offers to provide the corresponding source code, and shall make the corresponding source code
available to you via email or download link, except where the applicable license entitles you to require
Barco to provide you the corresponding source code on a tangible medium, in which case Barco will
charge you for the actual costs of performing such distribution, such as the cost of media, shipping
and handling. You may exercise this option upon written request to Barco N.V, attn. legal department,
President Kennedypark 35, 8500 Kortrijk (Belgium). Th
from the date of the distribution of this product by Barco.
is offer is valid for a period of three (3) years
66
K5902079 CORONIS UNITI 07/04/2016
Loading...
