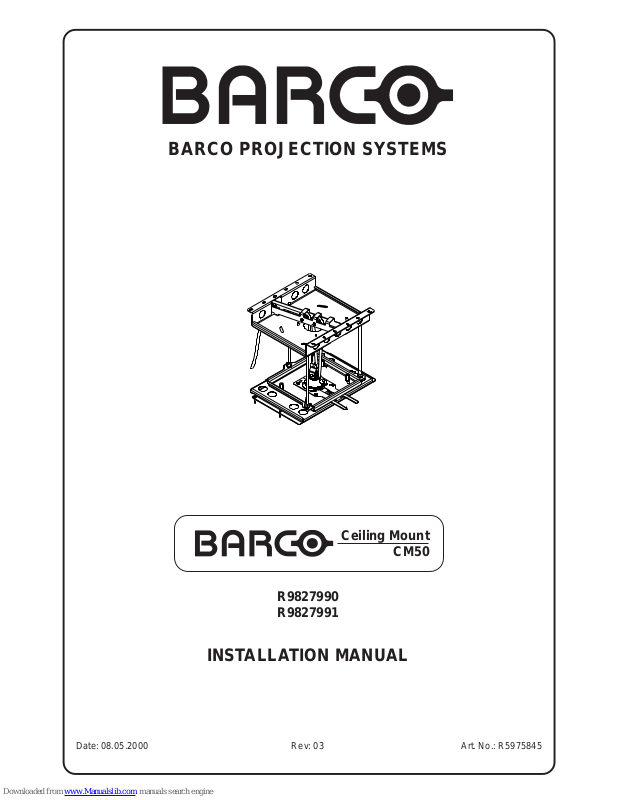

Page 1
BARCO PROJECTION SYSTEMS
Date: 08.05.2000
INSTALLATION MANUAL
R9827990
R9827991
Art. No.: R5975845Rev: 03
Ceiling Mount
CM50
Page 2
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
2
Mounting Instructions
Caution
Installing the CM50 for the 700 and 3000 series projectors should be performed only
after you are thoroughly familiar with all of the following safety checks and installation
guidelines. To do otherwise increases the risk of hazards and injury to the user.
Warning
The ceiling should be capable of supporting a weight of at least 250 kg (441 lbs). If it
cannot, the ceiling must be reinforced. Improper installation may result in serious
personal injury.
Caution
This ceiling mount is designed for use only with BARCO 700-series, 3000-series and
6000-series (maximum dual stacked) projectors.
Use with other appliances may result in instability causing possible injury.
Maximum load: 70kg (154 lbs)
R9827991
(Ceiling mount without pulley)
R9827990
(Ceiling mount with pulley)
Do not modify and / or replicate any part of the ceiling mount unit
Page 3
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
3
Mounting Instructions
1. Projector Installation possibilities.
Configuration A
The projector is mounted directly to
the ceiling with the use of the ceiling
mount support without the pulley system.
Configuration B
The projector is mounted at a distance from the ceiling. The total
mounting kit, support, rods and quick
fixations are used to lower the projector in order to match the projected
image with the screen.
Ceiling
Ceiling
Configuration C
The projector is mounted at a distance from the ceiling. The total
mounting kit, pulley system, support, rods and quick fixations are
used to lower the projector in order
to match the projected image with
the screen.
Page 4
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
4
Mounting Instructions
2. Disassembling the delivered kit.
B
C
D
E
Upper support
Lock holder
system
Center pla te
Projec t or
support
Kit CM50 R9827991
(Ceiling mount without pulley)
For transportation, all parts of the kit are mounted together.
To disassemble the kit, follow the next steps :
* Remove the 3 bolts B holding the centre plate
to the upper support. (The removed bolts are no
longer necessary to re-assemble the support.)
* Remove the 4 tube bolts D (M8).
* Squeeze the arms of the lock holder system to
unlock the projector plate.
* If configuration A will be installed, turn out the
two bolts C holding the lock holder system to the
centre plate.
Page 5
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
5
Mounting Instructions
A
B
C
D
E
Cord suppor t
Upper support
Lock holder
system
Center plate
Projector
support
Kit CM50 R9827990
(Ceiling mount with pulley)
For transportation, all pieces of the kit are
mounted together.
To disassemble the kit, follow the next steps :
* Turn out the two bolts A, holding the cord
support to the upper support (M6).
* Remove the 3 bolts B holding the center plate
to the upper support. (The removed bolts are no
longer necessary to re-assemble the support.)
* Remove the 4 tube bolts D (M8).
* Squeeze the arms of the lock holder system to
unlock the projector plate.
* If configuration A will be installed, turn out the
two bolts C holding the lock holder system to the
center plate.
Page 6
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
6
Mounting Instructions
3. Mounting instructions for the projector support.
- Turn the projector upside down.
- Mount the projector support on the projector with four
bolts (M5x35) and 4 washers (10x5.3x1) to the projector.
Projectors 700 series
Bolt and Washer (x4)
Projectors 3000 series
Attention: the projector support can be mounted on
the projectors 3000 series after the adapter plate (kit
R9829450) has been mounted.
* Turn the projector upside down.
Mounting the adapter plate
- Turn in the 3 supporting feet.
- Place the adapter plate on the projector until the
four provided holes in the plate match the holes in
the projector.
- Secure the plate using the 4 bolts M5x35 with
washer
Mounting the projector support
- Mount the projector support with six bolts (M5x35)
and 4 washers (10x5.3x1) to the adapter plate.
Adapter plate
Bolt and Washer (x4)
Bolt and Washer (x6)
Page 7
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
7
Mounting Instructions
4. Mounting the Upper Support to the ceiling
4.1 Determination of the mounting distance between SCREEN and FRONT CEILING SUPPORT
Configuration A
PD = perpendicular projector distance between screen and front side of the projector
(see installation manual of the projector).
Important:
For the Projectors 700 series: the perpendicular distance between the support and
the screen is the same value as the calculated PD.
For the Projectors 3000 series: the perpendicular distance between the support and
the screen is the calculated value PD increased with 17.35cm.
For the Projectors 2100 series: the perpendicular distance between the support and
the screen is the calculated value PD increased with 16.9cm.
16.9cm
17.35cm
Page 8
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
8
Mounting Instructions
Configuration B & C
CD= perpendicular distance from ceiling to highest edge of projector
PD = perpendicular projector distance between screen and front side
of the projector
(see projector installation manual)
Important:
For the Projectors 700 series: the perpendicular distance between the support and the screen
is the same value as the calculated PD.
For the Projectors 3000 series: the perpendicular distance between the support and the screen
is the calculated value PD increased with 17.35cm.
For the Projectors 2100 series: the perpendicular distance between the support and the screen
is the calculated value PD increased with 16.9cm.
CD
PD
17.35cm
16 .9 cm
PD
PD
PD
PD
PD
CD
CD
Page 9
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
9
Mounting Instructions
4.2 Mounting the CEILING SUPPORT
Mounting rules
The mounted ceiling support
must be:
- perpendicular to the screen and
- mounted level.
water level
screen
ceiling support
Mounting the ceiling support:
Preparation:
- Place the support on the ceiling on the right
distance from the screen and perpendicular
to the screen.
- Mark at least 4 fixation holes on the ceiling
(minimum 2 on each side of the support and
as far as possible to the edges of the support).
- Remove the upper support and drill holes in
order to be able to insert bolts (M10) which
guarantee a downward support of at least
250 kg (441lbs).
70
70 70 70
80
360
Mounting holes for bolts M10
Front
Page 10
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
10
Mounting Instructions
Move the projector with
support towards the
ceiling mount and push
the cone through the
locking hole until it locks
securely.
The projector can be rotated horizontally a little to the left or to the right until
the projector axis becomes perpendicular with the screen.
Secure this correct position with the
four tube nuts and washers
(16x8.4x1.6).
tube nuts and washer
lock
lock arms
Mount first the lock holder system with four bolts and washers
(16x7.2x4) to the upper support.
Squeeze the arms of the lock holder system to check the correct
functioning of the lock.
Then, attach the upper support to the ceiling with at least 4 bolts
(M10).
Configuration A
4.3 Mechanical assembling and Installation
ç
Page 11
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
11
Mounting Instructions
Configuration B
Mounting the lock
If the lock holder system is not yet
mounted on the center plate, proceed with this mounting.
Mount the lock holder system with
four bolts (M4x8) and washers
(16x7.2x4) to the center plate.
Squeeze the arms of the lock holder
system to check the correct functioning of the lock.
Mounting of the 3 threaded rods
lock arms
lock
Mounting ho les f or IRIS800
(Projector 700 series)
front view
The length of the extension rods (X) is determined by
the position of the projector with regard to the ceiling
distance (CD).
The value CD can be calculated with the formula given
in the
Installation Manual
of your projector.
Projectors 700 series
The minimum and the maximum length of the rods (X)
is given in mm by these formulas :
Xmin = CD - 50 - 75 + 55
Xmax = CD - 50 - 75 + 90
overshoot
height ceiling support
total height projector support + center plate.
Projectors 3000 series
The minimum and the maximum length of the rods
(X) is given in mm by these formulas :
Xmin = CD - (50+33) - 75 + 55
Xmax = CD - (50+33) - 75 + 90
50
33
total height projector support + center plate+
adapter plate.
overshoot
front view
projector
adapter plate
height ceiling support
Page 12
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
12
Mounting Instructions
Configuration B (continued)
Mounting the rods on the ceiling support
Turn a nut M12 (A) on one side of each rod.
Slide a washer (B) on each rod.
Slide a rubber washer (C) on each rod.
Slide another washer (D) on each rod.
Run the end of the each rod, on which the nut and
washers are mounted, through the provided holes
in the upper support and secure with a washer
(E), a rubber washer (F), a washer (G) and a nut
M12 (H).
Mounting the center plate on the rods
Mount the plate so that the distance between the ceiling and the
bottom side of the center plate is equal to CD - 22 mm (22 mm
is the height of the projector support).
Adjust the nuts on the rods until the center plate is water-levelled.
A
B
C
D
E
F
G
H
rods
center plate
Mounting the projector on the ceiling support.
A
Push the projector until the cone clicks securely into the lock
holder system.
Check if the projector is well locked.
If the projector is well locked, rotate the projector a little to the left
or to the right until the projector axis is perpendicular with the
screen.
Secure this position with the four tube bolts A.
Page 13
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
13
Mounting Instructions
Configuration C
Insertion of the cord
Insert the cord as shown in next drawing.
Start cord insertion at the pulley (fix the
pulley to the cord using the two wire rope
clips) and continue as illustrated with the
arrows.
Mounting the cord support
First slide the pulley through the gap on the front
side of the upper support and push the pulley
through the circular gap in the upper support.
Slide the cord support through the gap on the front
side and secure the cord support with the two bolts
(M6).
Mounting the projector on the ceiling support
A
Supportin g
axle
Bolt A
Pulley
cable
Coupling the pulley to the projector support
Push the pulley into the cone on the projector
support.
Run the bolt (M8x60) through the cone and over
the supporting axle and secure by turning the bolt
in the cone.
The system is ready to start lifting up the projector
Apply now all the mounting instructions as explained for the configuration B (see page 10 and 11), except
....
(only the cord support is not present in the illustrations)
Page 14
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
14
Mounting Instructions
Configuration C
(continued)
A
Supporting
axle
Bolt A
Pulley
cable
Pull on the cord to lift up the projector. Pull until
the cone clicks securely into the lock holder
system.
Check if the projector is well locked by loosening the cord a little.
If the projector is well locked, rotate the projector a little to the left or to the right until the
projector axis is perpendicular with the screen.
Secure this position with the four tube bolts A.
Lifting up the projector
Safety precautions :
- Standing under the projector
while lifting is dangerous and
must be avoided !
- Lifting up the projector has to be
done very slowly to avoid swaying.
- Persons not involved with the
installation have to be kept out
of the working area.
After all safety precautions have
been taken, proceed to lift up the
projector.
Page 15
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
15
Mounting Instructions
1
2
3
4
6
7
8
9
10
11
12
13
19
20
21
22
23
24
14
15
16
17
18
ref. Order n°. # Description
1 36 6161 6 nut M12
2 36 7385 12 washer DIN125 M14
3 80 5365 6 washer rubber 28x14x6
4 80 5355 1 upper support
6 80 1996 3 rod 735mm
7 36 31229 3 screw DIN933 M4x8
8 80 5364 2 washer 16x7.2x4
9 72 2551 2 lock fix P
10 80 5361 1 lock spring
11 3631049 4 screw dIN933 M3x6
12 80 5363 1 lock holder 2
13 80 5354 1 lock holder 1
14 80 5352 1 center plate
15 36 61152 4 nut 11408 M8
16 36 7380 4 washer 16x8.4x1.6
17 36 6161 6 nut twolock M12
18 36 75862 6 washer DIN6319C M12
19 36 23758 2 screw DIN 933 M8x20
20 80 5351 1 cone lock center
21 36 23832 1 screw DIN931 M8x60
22 80 5350 1 projector support
23 36 23378 4 screw DIN933 M5x35
24 36 73792 4 washer DIN125 10x5.3x1
R9827991
(Ceiling mount without pulley)
Page 16
Date : 25/10/95 R9827990-1
Ceiling Mount CM50
R9827990
R9827991
16
Mounting Instructions
1
2
3
4
6
7
8
9
10
11
12
13
5
19
20
21
22
23
24
14
15
16
17
18
31
30
29
28
27
26
25
R9827990
(Ceiling mount with pulley)
ref. Order n°. # Description
1 36 6161 6 nut M12
2 36 7385 12 washer DIN125 M14
3 80 5365 6 washer rubber 28x14x6
4 80 5355 1 upper support
6 80 1996 3 rod 735mm
7 36 31229 3 screw DIN933 M4x8
8 80 5364 2 washer 16x7.2x4
9 72 2551 2 lock fix P
10 80 5361 1 lock spring
11 3631049 4 screw dIN933 M3x6
12 80 5363 1 lock holder 2
13 80 5354 1 lock holder 1
14 80 5352 1 center plate
15 36 61152 4 nut 11408 M8
16 36 7380 4 washer 16x8.4x1.6
17 36 6161 6 nut twolock M12
18 36 75862 6 washer DIN6319C M12
19 36 23758 2 screw DIN 933 M8x20
20 80 5351 1 cone lock center
21 36 23832 1 screw DIN931 M8x60
22 80 5350 1 projector support
23 36 23378 4 screw DIN933 M5x35
24 36 73792 4 washer DIN125 10x5.3x1
25 80 5356 1 cord support
26 72 2125 4 wheel pull
27 80 2356 4 wheel pull axel
28 36 7212 8 clips DIN 471
29 31 8205 1 cord nylon D10
30 36 7090 2 fastener cable 7/16
31 80 5362 1 wheel holder
Loading...
