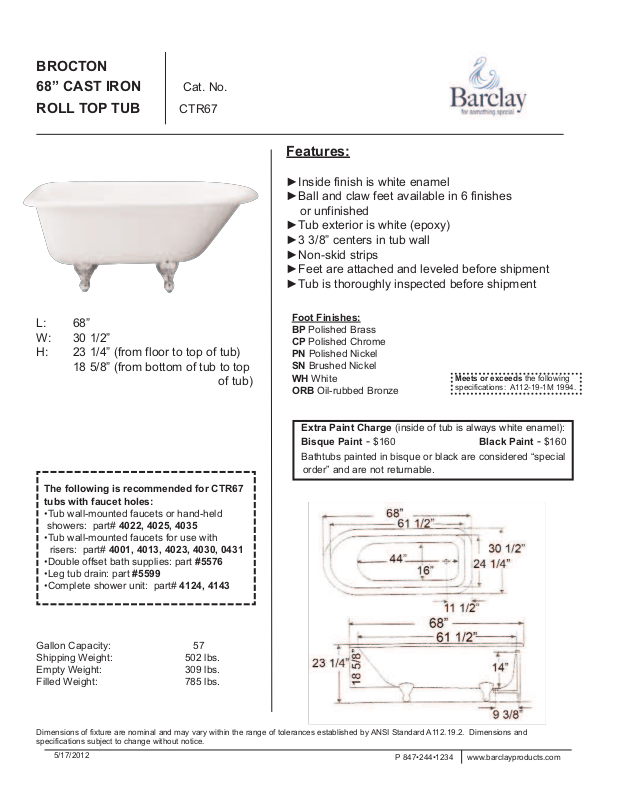

Barclay CTR67WHUF Specifications

BROCTON
68” CAST IRON Cat. No.

ROLL TOP TUB CTR67

Features:

►Inside finish is white enamel
►Ball and claw feet available in 6 finishes

or unfinished
►Tub exterior is white (epoxy)
►3 3/8” centers in tub wall
►Non-skid strips
►Feet are attached and leveled before shipment
►Tub is thoroughly inspected before shipment

L: 68”
W: 30 1/2”
H: 23 1/4” (from floor to top of tub)

18 5/8” (from bottom of tub to top

of tub)

The following is recommended for CTR67
tubs with faucet holes:

•Tub wall-mounted faucets or hand-held
showers: part# 4022, 4025, 4035

•Tub wall-mounted faucets for use with

risers: part# 4001, 4013, 4023, 4030, 0431

•Double offset bath supplies: part #5576

•Leg tub drain: part #5599

•Complete shower unit: part# 4124, 4143

Foot Finishes:
BP Polished Brass
CP Polished Chrome
PN Polished Nickel
SN Brushed Nickel
WH White
ORB Oil-rubbed Bronze

Extra Paint Charge (inside of tub is always white enamel):
Bisque Paint - $160 Black Paint - $160

Bathtubs painted in bisque or black are considered “special

order” and are not returnable.

Meets or exceeds the following
specifications: A112-19-1M 1994.

Gallon Capacity: 57
Shipping Weight: 502 lbs.
Empty Weight: 309 lbs.
Filled Weight: 785 lbs.

Dimensions of fixture are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2. Dimensions and
specifications subject to change without notice.

5/17/2012

P 847•244•1234 www.barclayproducts.com
