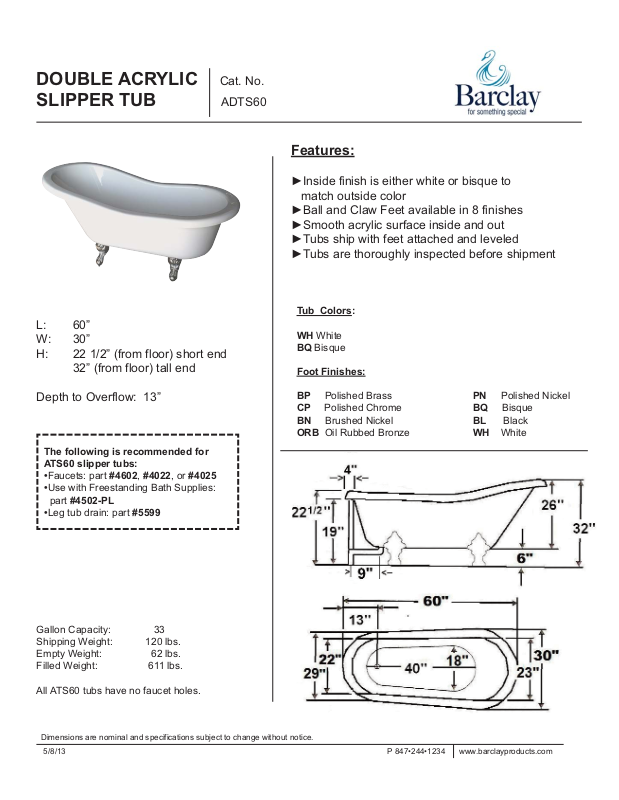

DOUBLE ACRYLIC Cat. No.
SLIPPER TUB ADTS60
Gallon Capacity: 33
Shipping Weight: 120 lbs.
Empty Weight: 62 lbs.
Filled Weight: 611 lbs.
All ATS60 tubs have no faucet holes.
L: 60”
W: 30”
H: 22 1/2” (from floor) short end
32” (from floor) tall end
Depth to Overflow: 13”
P 847•244•1234 www.barclayproducts.com
5/8/13
Dimensions are nominal and specifications subject to change without notice.
Features:
►Inside finish is either white or bisque to
match outside color
►Ball and Claw Feet available in 8 finishes
►Smooth acrylic surface inside and out
►Tubs ship with feet attached and leveled
►Tubs are thoroughly inspected before shipment
Tub Colors:
WH White
BQ Bisque
Foot Finishes:
BP Polished Brass PN Polished Nickel
CP Polished Chrome BQ Bisque
BN Brushed Nickel BL Black
ORB Oil Rubbed Bronze WH White
The following is recommended for
ATS60 slipper tubs:
•Faucets: part #4602, #4022, or #4025
•Use with Freestanding Bath Supplies:
part #4502-PL
•Leg tub drain: part #5599
