Page 1
1
TEXAS RANCHERO GRILL AND
SMOKER (TEXASK)
User Manual
FOR OUTDOOR USE ONLY
READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
AND SAVE THIS MANUAL FOR FUTURE REFERENCE.
Page 2
2
TABLE OF CONTENTS
SAFETY INFORMATION ................................................................ 3
PARTS LIST ................................................................................... 5
HARDWARE LIST .......................................................................... 7
EXPLODED VIEW .......................................................................... 8
TOOLS LIST ................................................................................... 8
ASSEMBLY INSTRUCTIONS......................................................... 9
CARE AND MAINTENANCE ........................................................ 20
OPERATION INSTRUCTIONS ..................................................... 21

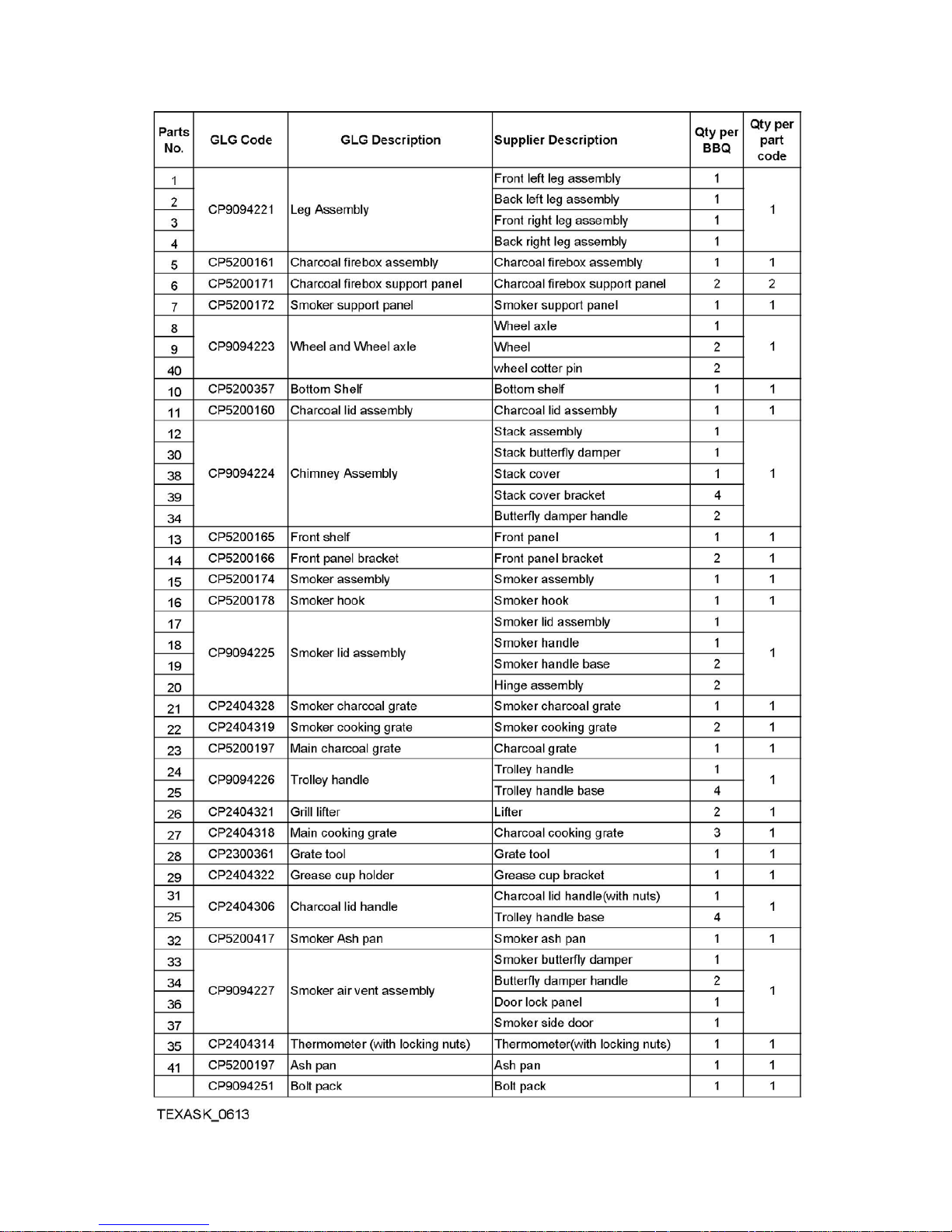

REPLACEMENT PARTS LIST……………………………………...25
Page 3
3
SAFETY INFORMATION
SAFETY WARNINGS – READ CAREFULLY
Before assembling or using your new TEXAS SMOKER -- carefully read this instruction
manual and all safety warnings!
This symbol “!” indicates a safety warning – pay special attention to the information
following this warning when assembling or using your TEXAS SMOKER.
Failure to follow safety warnings could result in bodily injury or property damage.
ASSEMBLY
¾ Use caution during assembly and operation. Use caution when reaching into or under
this unit.
¾ Properly dispose of packaging materials.
¾ When moving or lifting, use caution to avoid back strains or injuries.
PLACEMENT
¾ FOR OUTDOOR USE ONLY. Do not use TEXAS SMOKER indoors or in an enclosed or
non-ventilated area.
¾ Never use on a wooden surface or other flammable surfaces. Use only on a hard, stable
surface that can support the unit’s weight.
¾ Keep at least 3 meters of clearance between the unit and any combustible materials
when it is in use (including, but not limited to bushes, shrubs, trees, leaves, grass,
wooden decks or fences, buildings, etc.).
¾ Keep unit away from gasoline and/or other flammable liquids, flammable gases,
flammable vapours, or areas where these may be present. Do not store or use the unit
in these areas.
¾ In windy conditions, place unit in an outdoor area that is sheltered from wind.
¾ Do not try to move or reposition the unit while it is in use.
¾ Keep the unit out of reach of children or the infirm when in use.
¾ Do not place goods over 6 kg on the front shelf.
LIGHTING A FIRE
¾ NEVER use gasoline, kerosene, lighter fluid or alcohol to light charcoal. Using any of
these products (or similar flammable products) could cause a flare up, flash fire, or
explosion. Severe bodily injury could result. We recommend using only solid
firelighters.
¾ Do not add instant light charcoal briquettes or firelighters to an existing fire. A flash fire
may result in bodily injury or property damage.
¾ Do not light this unit without the ash pan in place.
Page 4
4
USAGE AND OPERATION
¾ It is strongly recommended to pre burn your grill prior to your first use. By lighting a
SMALL charcoal fire to simulate the cooking process, you will burn off any residues or
oils created during the manufacturing process. This will also cure and harden the high
temperature finish. This is a once only process.
¾ The TEXAS SMOKER gets VERY hot when in use – do not touch hot surfaces. Always
wear insulated mitts when the unit is hot.
¾ Do not wear loose clothing when using this unit.
¾ Do not allow hair to come in contact with this unit
¾ When unit is hot, never leave it unattended
¾ Do not operate this unit grill without the ash pan properly in place.
¾ Use caution when opening the hood – push back to its fully opened position. If the hood
is left partially open, it may drop suddenly, causing bodily injury. The hood’s handle may
be hot – use insulated mitts.
¾ Do not lean on or place more than 6 kg on the front shelf.
¾ Keep a fire extinguisher on hand in the event the fire gets out of control.
¾ When fresh air comes in contact with flame, a flare up can result. Use caution when
opening hood. Maintain a safe distance from hot steam and flames.
¾ Close the hood and all butterfly dampers to extinguish flames.
¾ To prolong surface finish and metal life, do not exceed a grill temperature of 200 °C
(400°F) and do not let burning charcoal or wood come in contact with the walls of the
grill (keep burning fuel approximately 50mm away from ash pan edge).
ASH DISPOSAL AND CLEAN UP
¾ Do not leave hot grill or hot coals and ashes unattended.
¾ Do not remove or empty ash pan until all coals and ashes have completely cooled.
¾ Using insulated mitts – after coals and ashes have completely cooled – remove ash pan
and empty ashes into a metal container. Douse with water before disposal. Keep
container a safe distance from combustible materials.
¾ Wet the surfaces beneath and around the grill to extinguish any ashes or coals that may
have fallen out of grill.
¾ To prevent rust: clean grill after each use, apply a light coat of non-stick vegetable oil,
cover and store in a dry place.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
Page 5
5

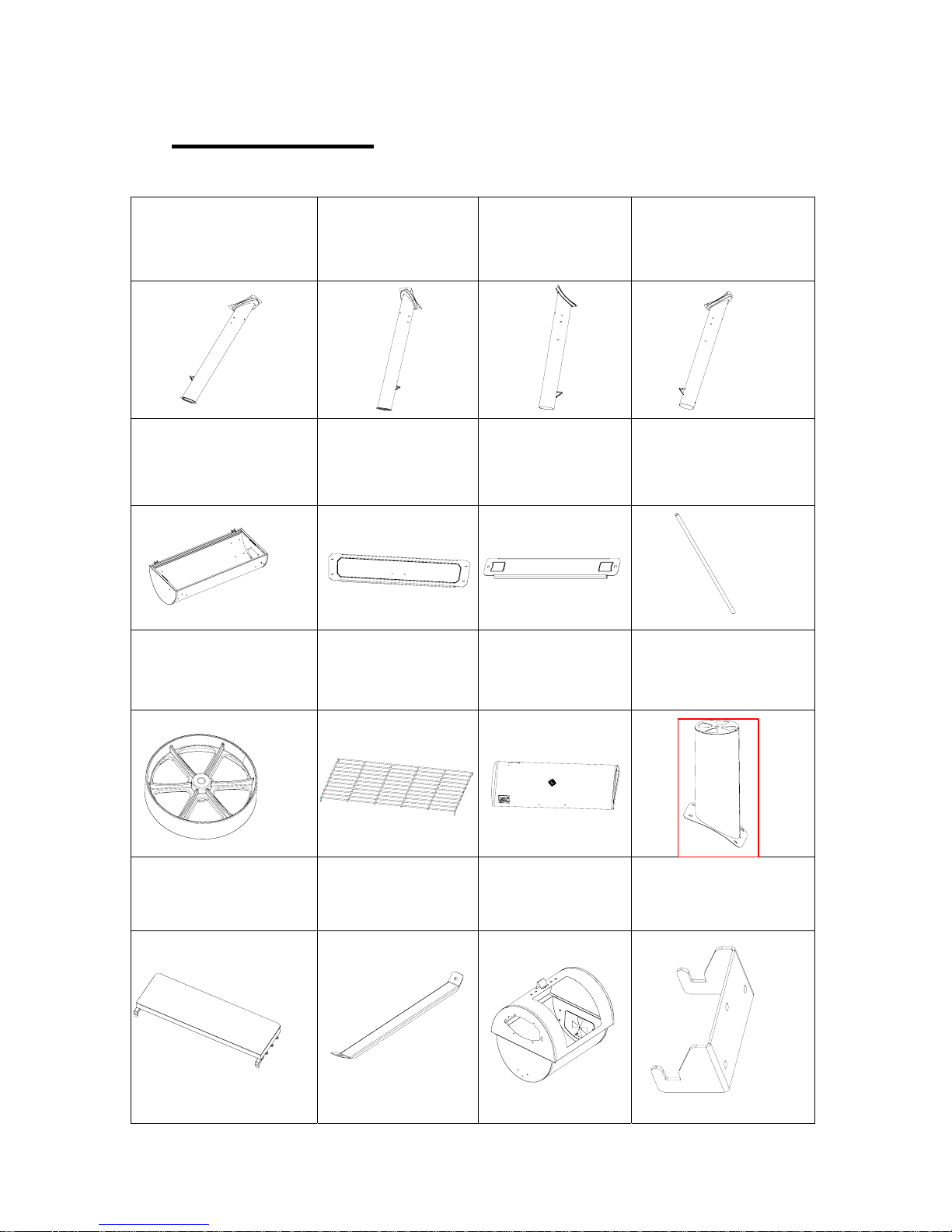

PARTS LIST
1. Front Left Leg
Assembly - 1 piece
2. Back Left Leg
Assembly - 1 piece
3. Front Right Leg
Assembly - 1 piece
4. Back Right Leg
Assembly - 1 piece
5. Charcoal Firebox
Assembly - 1 piece
6. Charcoal Firebox
Support Panel - 2
pieces
7. Smoker Support
Panel - 1 piece
8. Wheel Axle - 1 piece
9. Wheel - 2 pieces 10. Bottom Shelf - 1
piece
11. Charcoal Lid
Assembly - 1 piece
12. Stack Assembly - 1
piece
13. Front Panel - 1
piece
14. Front Panel
Bracket - 2 pieces
15. Smoker
Assembly - 1 piece
16. Smoker Hook - 1
piece
Page 6

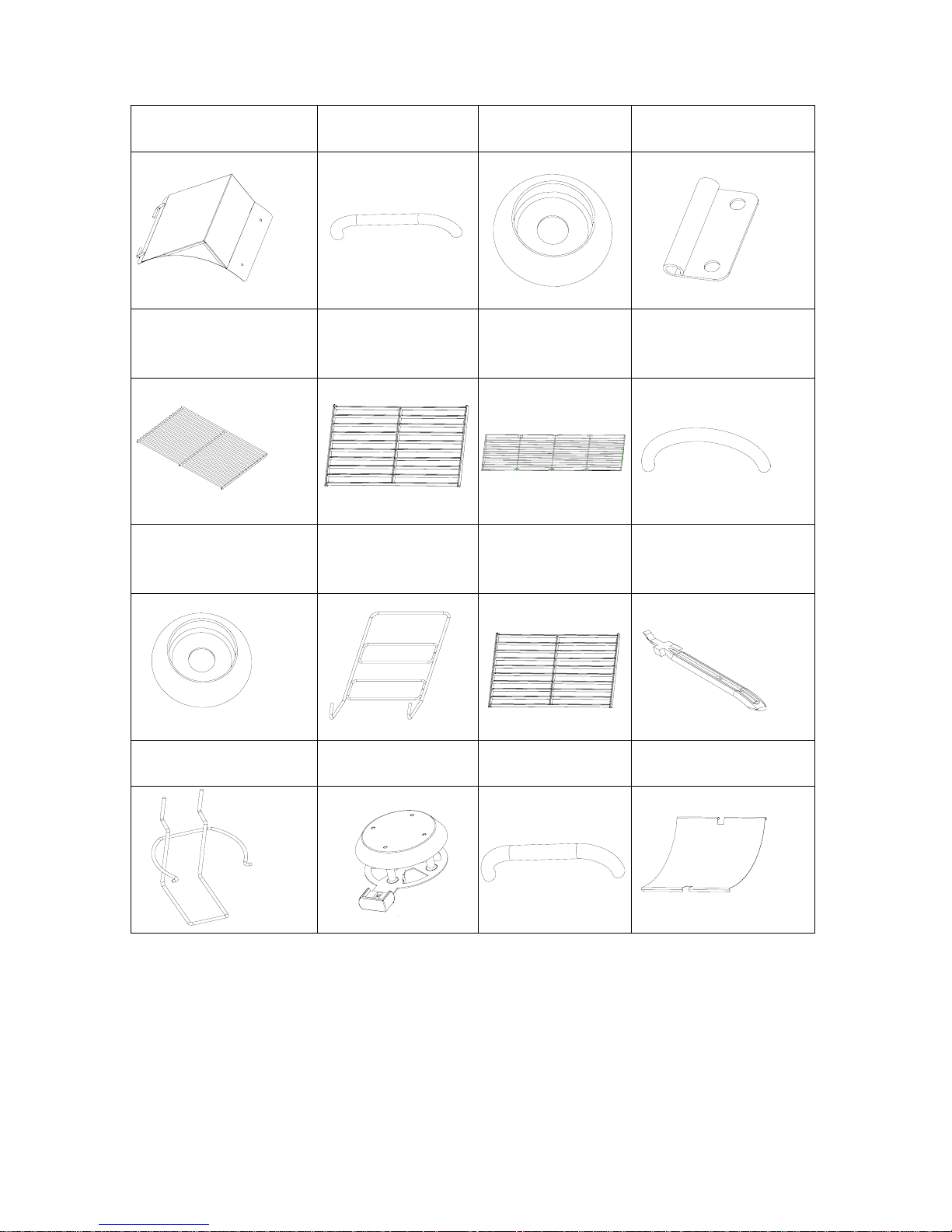

6
17. Smoker Lid
Assembly - 1 piece
18. Smoker Handle
- 1 piece
19. Smoker Handle
Base - 2 pieces
20. Hinge Assembly - 2
pieces
21. Smoker Charcoal
Grate - 1 piece
22. Smoker Cooking
Grate - 2 pieces
23. Charcoal Grate
with Ash Pan - 1
piece
24. Trolley Handle - 1
piece
25. Trolley Handle Base
- 4 pieces
26. Lifter - 2 pieces 27. Charcoal
Cooking Grate - 3
pieces
28. Grate Tool - 1
pieces
29. Grease Cup
Bracket - 1 piece
30. Chimney Lid - 1
piece
31. Charcoal Lid
Handle - 1 piece
32. Smoker Ash Pan 1 piece
Page 7
7

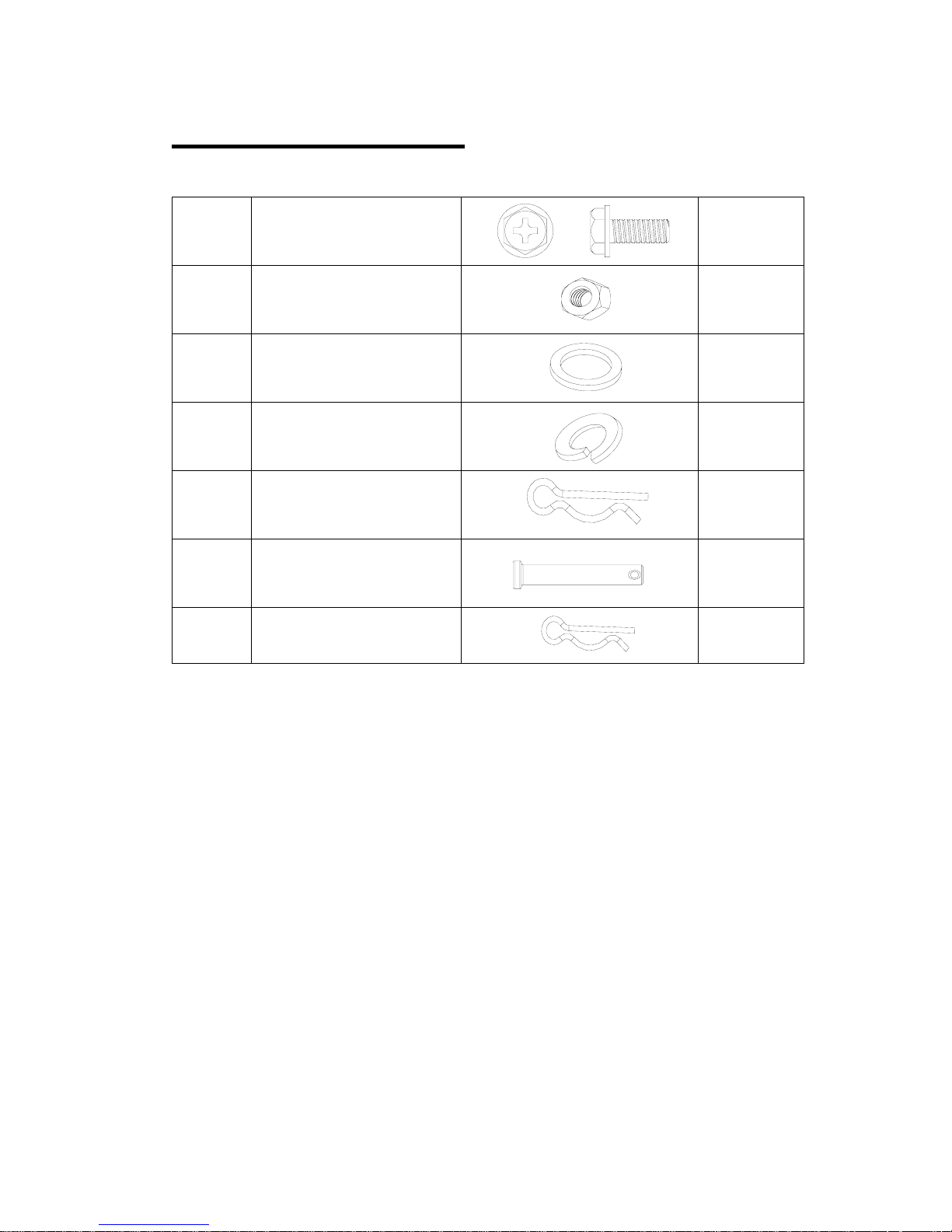

HARDWARE LIST
A M6x12 Bolt
47 pcs
B M6 Nut
18 pcs
C D6 Washer
1 pc
D D6 Spring Washer
1 pc
E Wheel Cotter Pins 2 pcs
F Hinge Pins
2 pcs
G Cotter Pins 4 pcs
Page 8
8

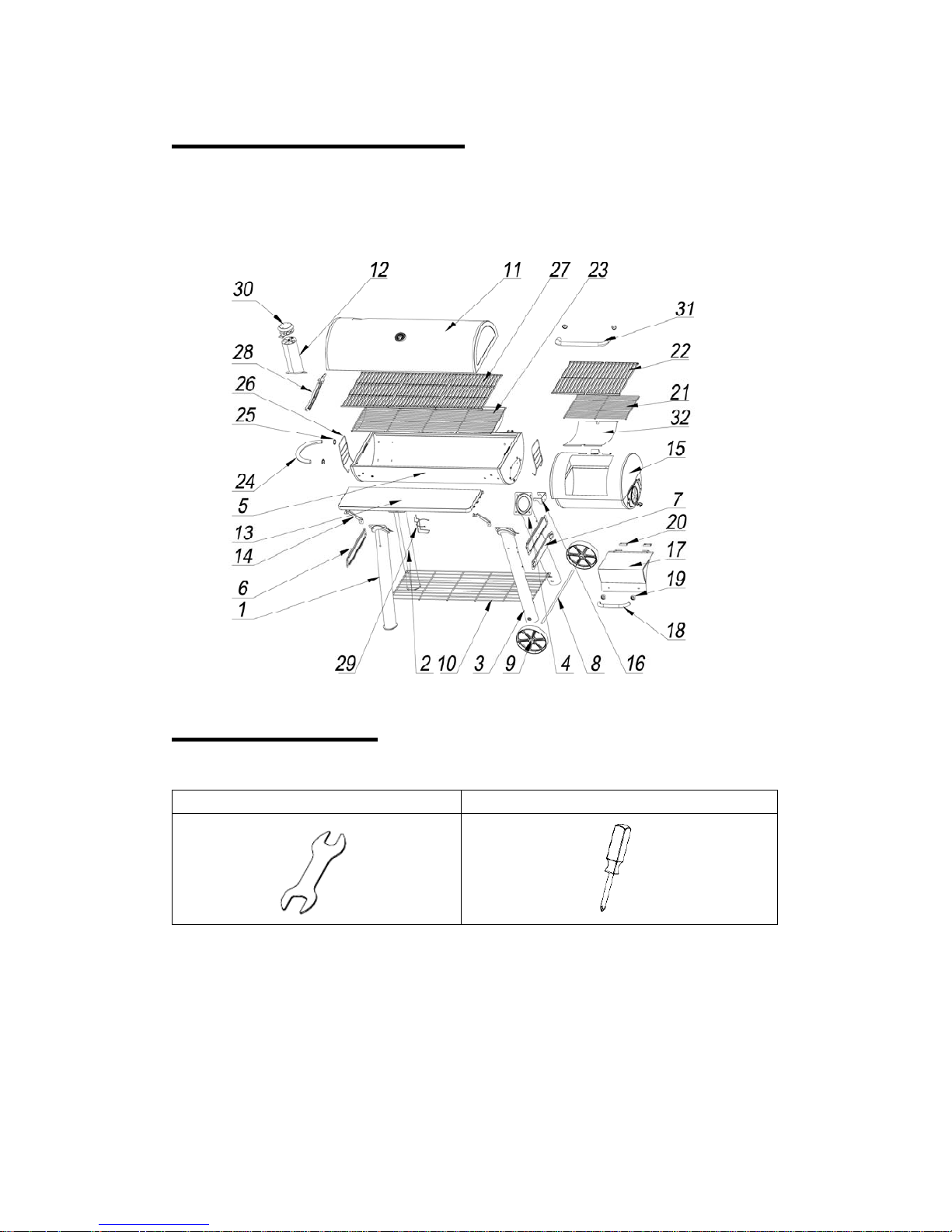

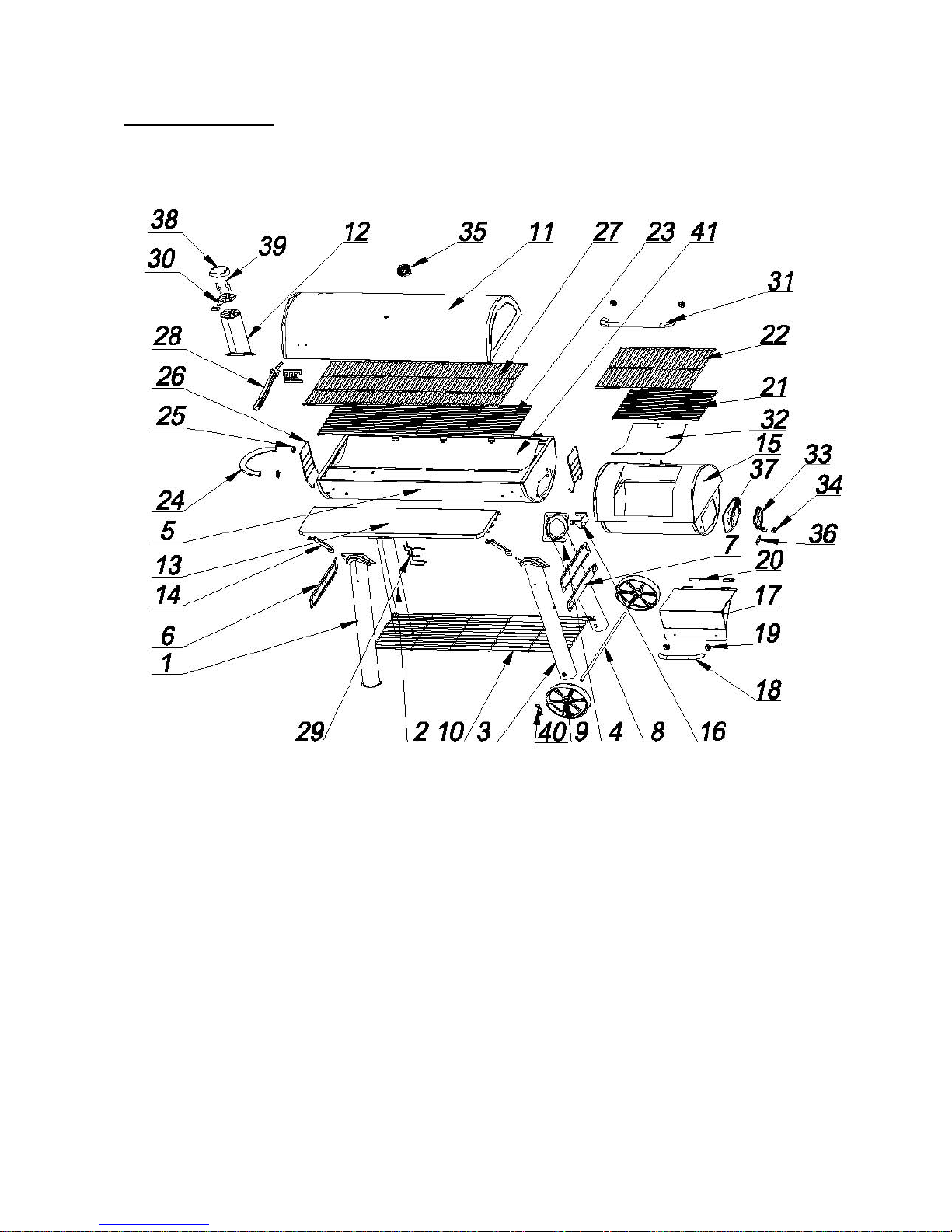

EXPLODED VIEW
TOOLS LIST
Tools required for assembly (not included):
10x12mm Wrench - 1 pc Phillips Head Screwdriver - 1 pc
Page 9
9
ASSEMBLY INSTRUCTIONS
! Read all safety warnings and assembly instructions carefully before assembling or operating
your grill.
Assembly Steps

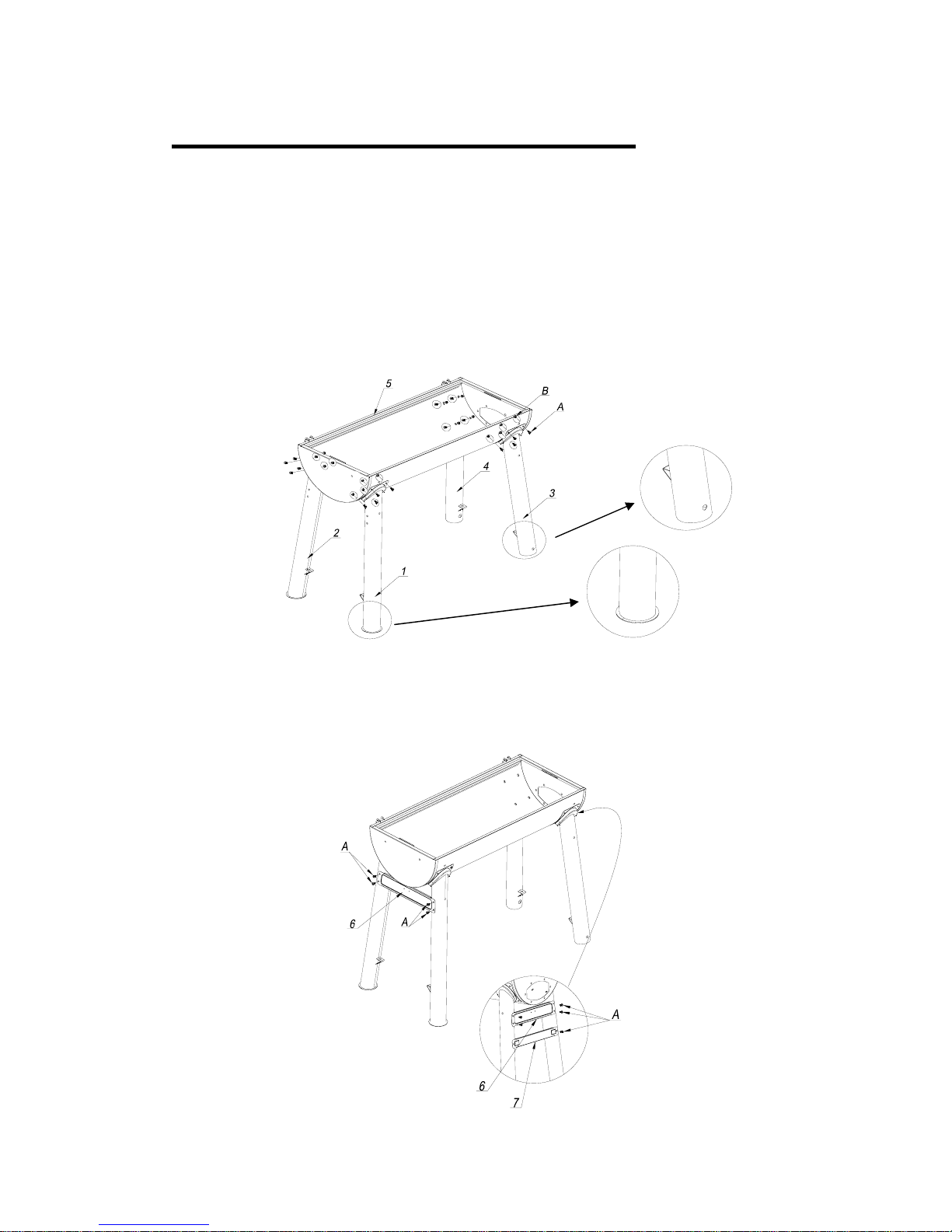

Step 1
Attach the front left leg (1), back left leg (2), front right leg (3) and back right leg (4) to
the charcoal firebox (5) using 16 M6 x 12 bolts (A) and 16 M6 x 12 nuts (B).
Step 2
Attach the charcoal firebox support panel (6) to the front left leg (1) and back left leg
(2) using 4 M6 x 12 bolts (A). Attach the charcoal firebox support panel (6) and
smoker support panel (7) to the front right leg (3) and back right leg (4) using 6 M6 x
12 bolts (A).
Page 10
10
ASSEMBLY INSTRUCTIONS

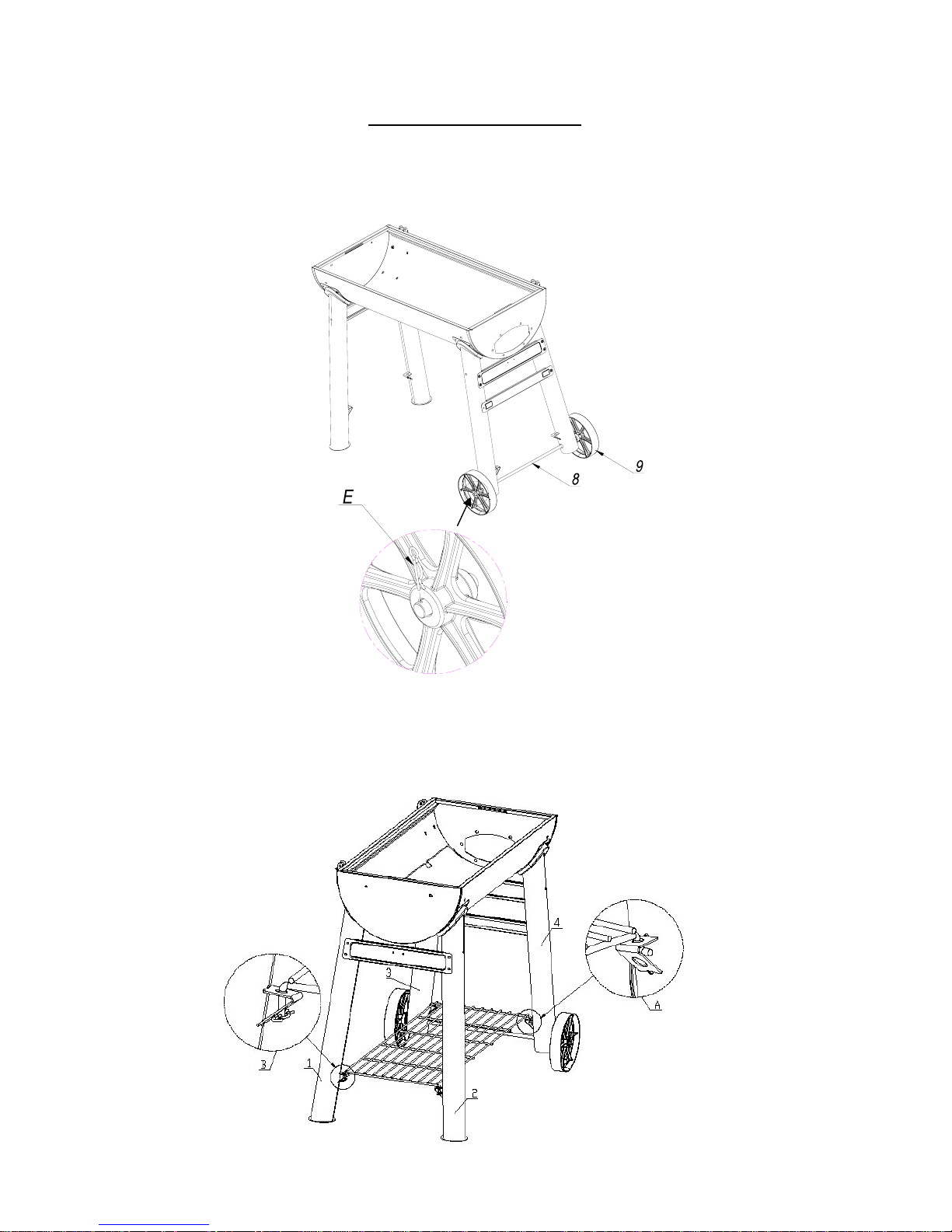

Step 3
Attach the wheels (9) by placing the wheel axle (8) through the holes on the front right
leg (3) and back right leg (4), insert the wheel cotter pins (E) to the end of the wheel
axle (8).
Step 4
To put one side of bottom shelf into the bracket of Leg 3 & Leg 4 (e.g. pic. A), afterwards
to put another side of bottom shelf into the bracket of Leg 1 & Leg 2, finally insert cotter
pin into the hole (e.g. Pic. B)
Page 11
11
ASSEMBLY INSTRUCTIONS

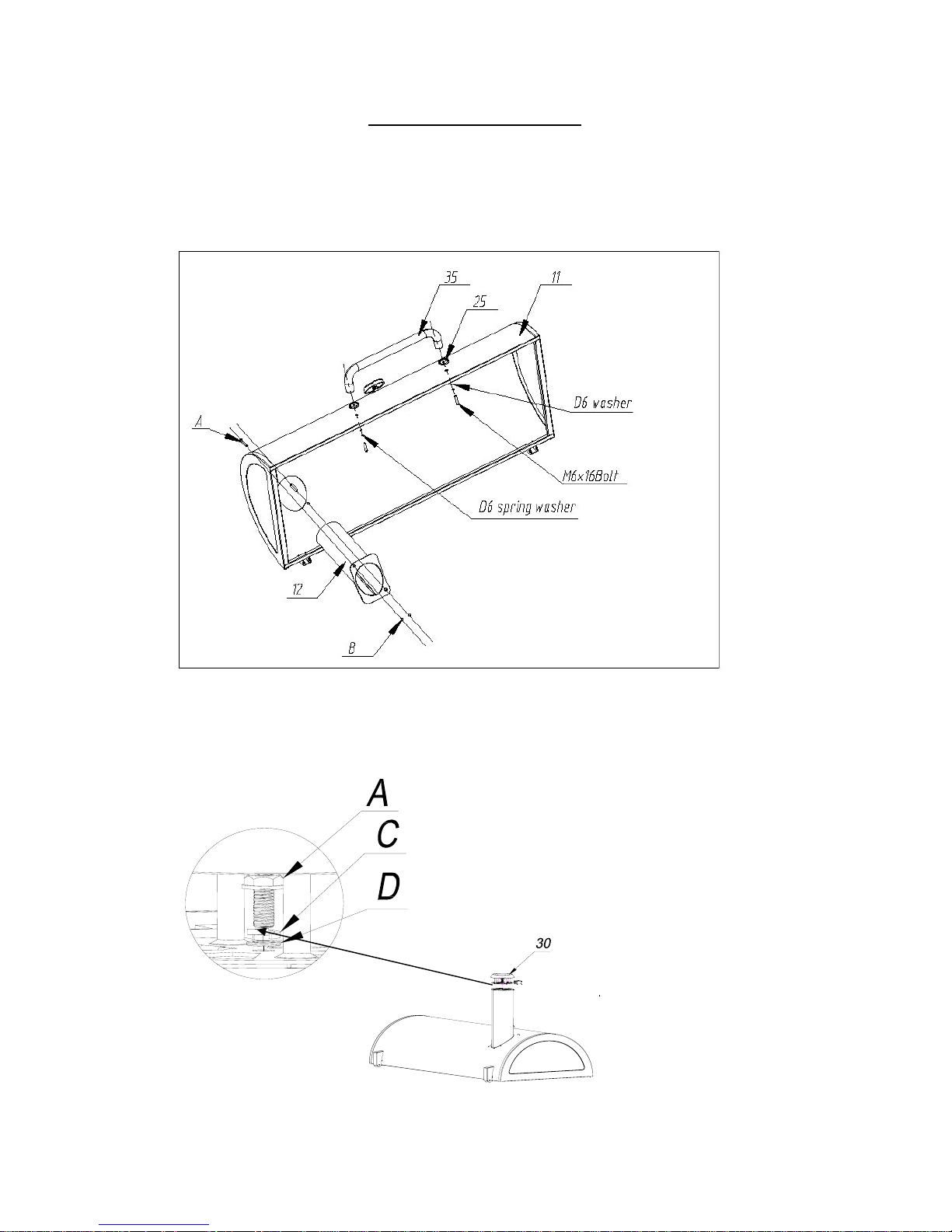

Step 5
Attach the stack (12) to the charcoal lid (11) using 2 M6 x 12 bolts (A) and 2 M6 nuts
(B). Unscrew the pre-assembled M6 x 16 bolt, D6 washer and D6 spring washer from
the charcoal lid handle (31). Attach the charcoal lid handle and 2 trolley handle bases
(25) to the charcoal lid (11) and tighten the bolt, washer and spring washer.
Step 6
Attach the chimney lid (30) to the stack (12) using 1 M6 x 12 (A), 1 D6 spring washer
(C) and 1 D6 washer (D).
Page 12
12
ASSEMBLY INSTRUCTIONS

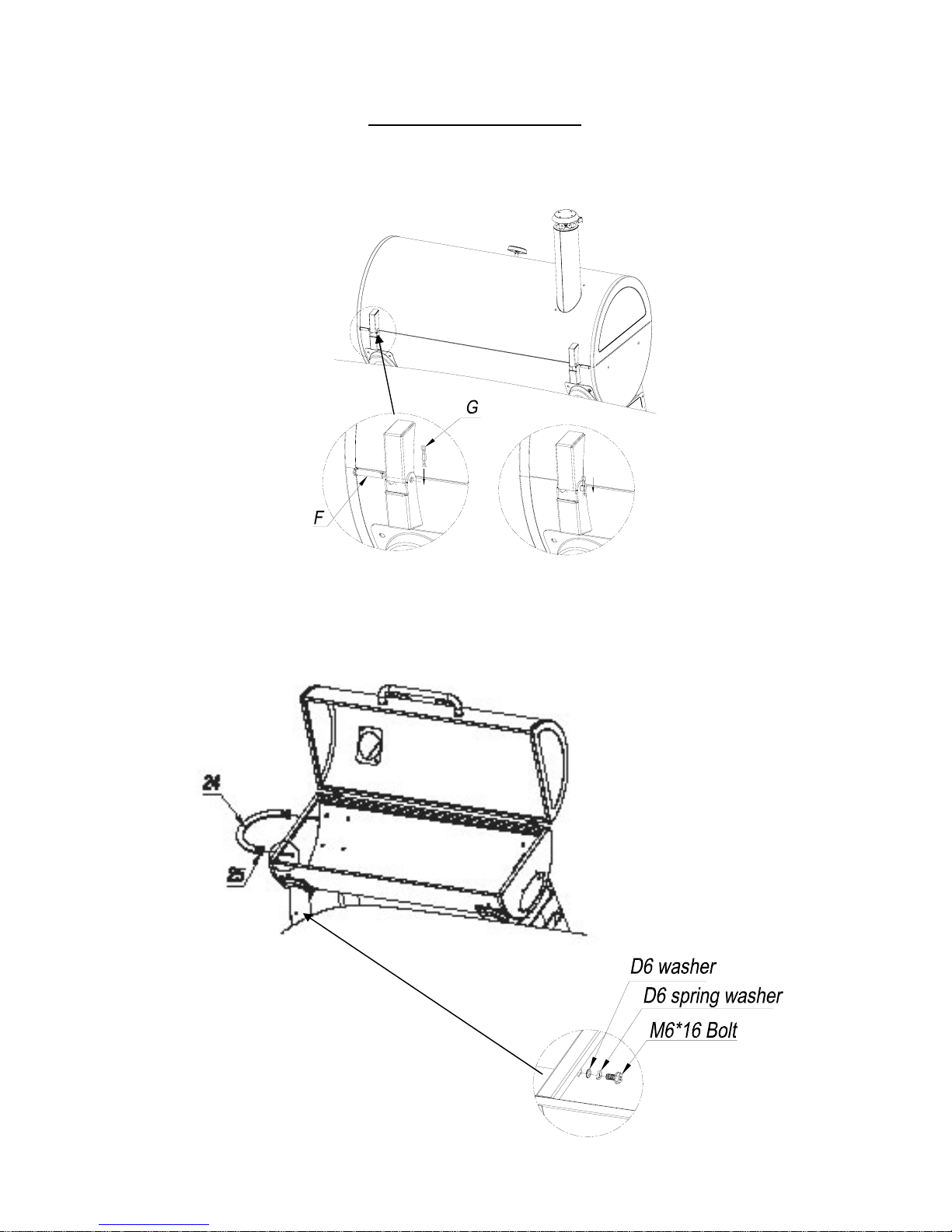

Step 7
Attach the charcoal lid (11) to the charcoal firebox (5) using 2 hinge pins (F) and 2 lid
cotter pins (G).
Step 8
Unscrew the pre-assembled M6 x 16 bolt, D6 spring washer and D6 washer from the
trolley handle (24), attach the trolley handle (24) and two trolley handle bases (25) to
the charcoal firebox assembly.
Page 13
13
ASSEMBLY INSTRUCTIONS

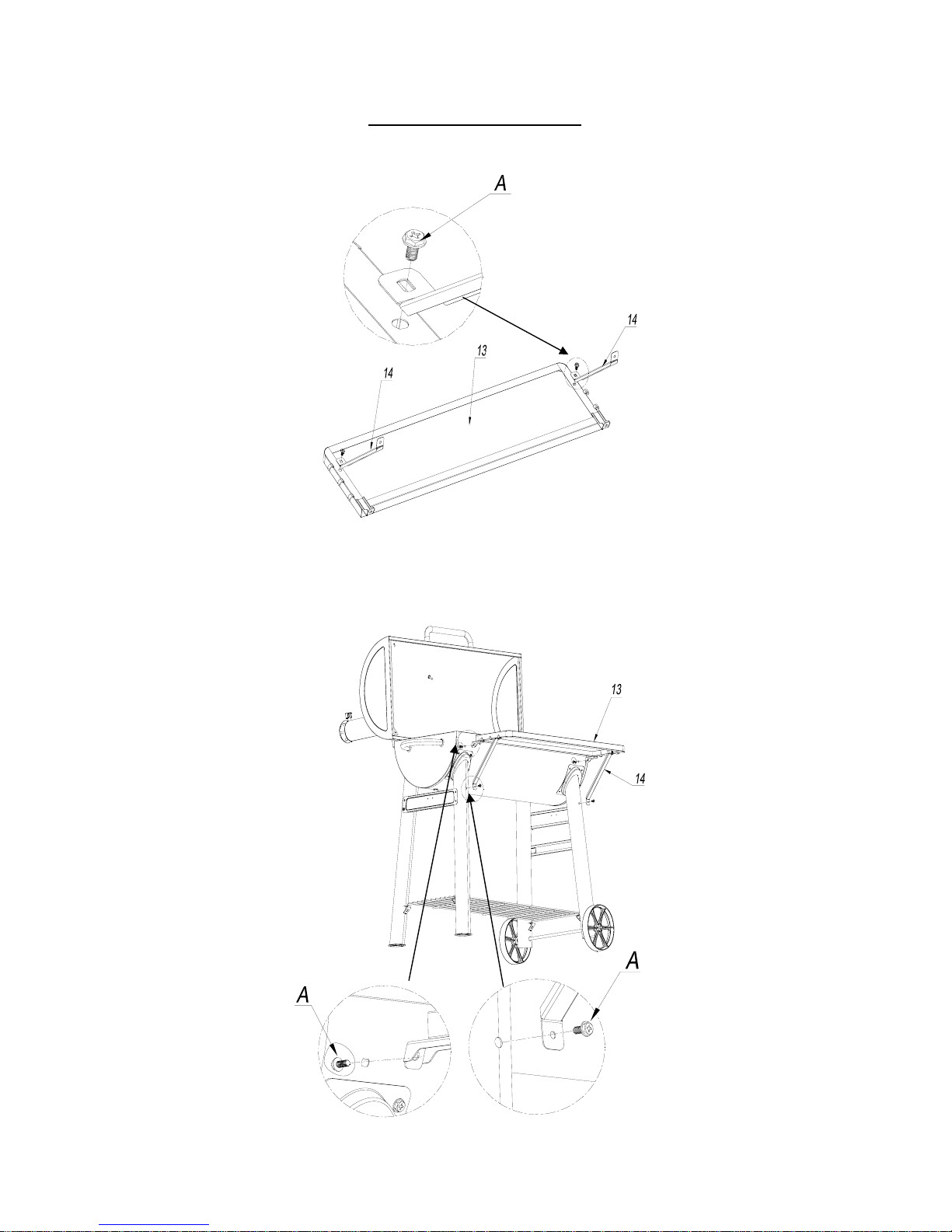

Step 9
Attach the front panel bracket (14) to the front panel (13) using 2 M6 x 12 bolts (A).
Step 10
Attach the front panel assembly to the charcoal firebox using 2 M6 x 12 bolts (A) and
to the legs using 2 M6 x 12 bolts (A).
Page 14
14
ASSEMBLY INSTRUCTIONS

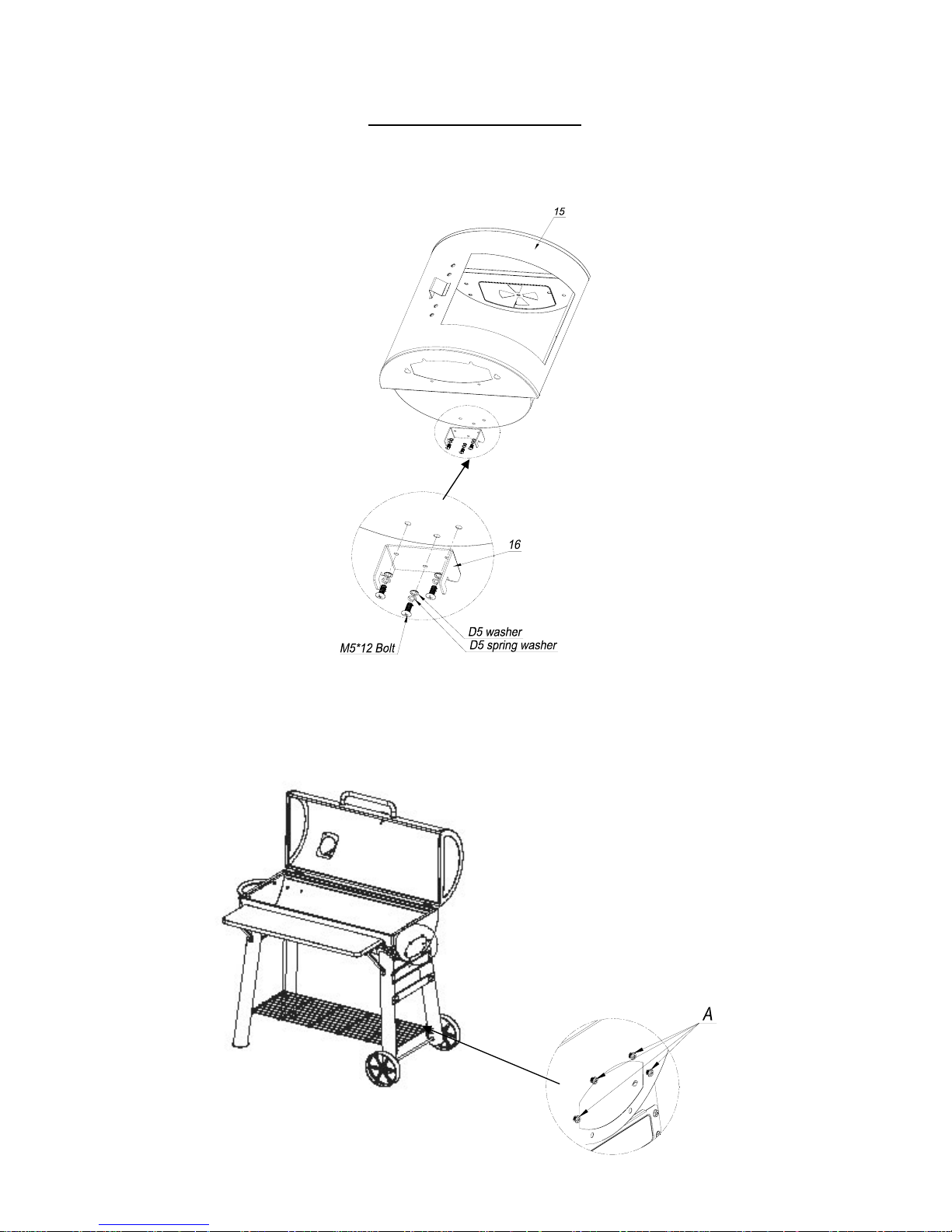

Step 11
Unscrew the M5 x 12 bolts, D5 spring washers and D6 washers from the smoker (15),
attach the smoker hook (16) to the smoker (15), re-attach bolts, spring washers and
washers, then tighten.
Step12
Pre-assemble 4 M6 x 12 bolts (A) to the right side of charcoal body. Do not fully
tighten bolts (keep approximately 1/8 in. from fully installed) as the smoker needs to
slide onto these bolts.
Page 15
15
ASSEMBLY INSTRUCTIONS

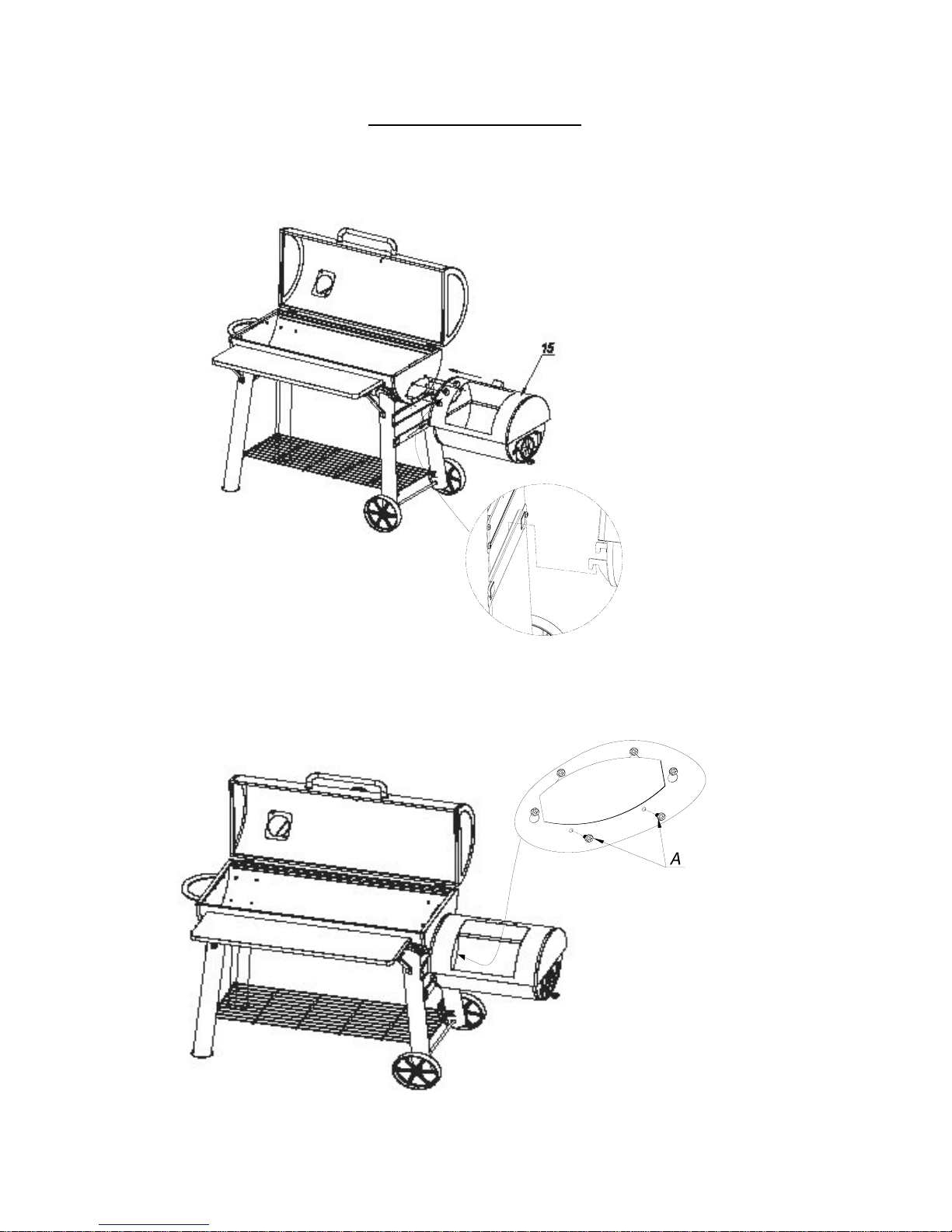

Step 13
Attach the smoker (15) to the charcoal firebox, attach the smoker hook (16) to the
smoker support (7).
Step 14
Attach the smoker (15) to the charcoal firebox using 2 M6 x 12 bolts (A), and tighten
all the bolts.
Page 16
16
ASSEMBLY INSTRUCTIONS

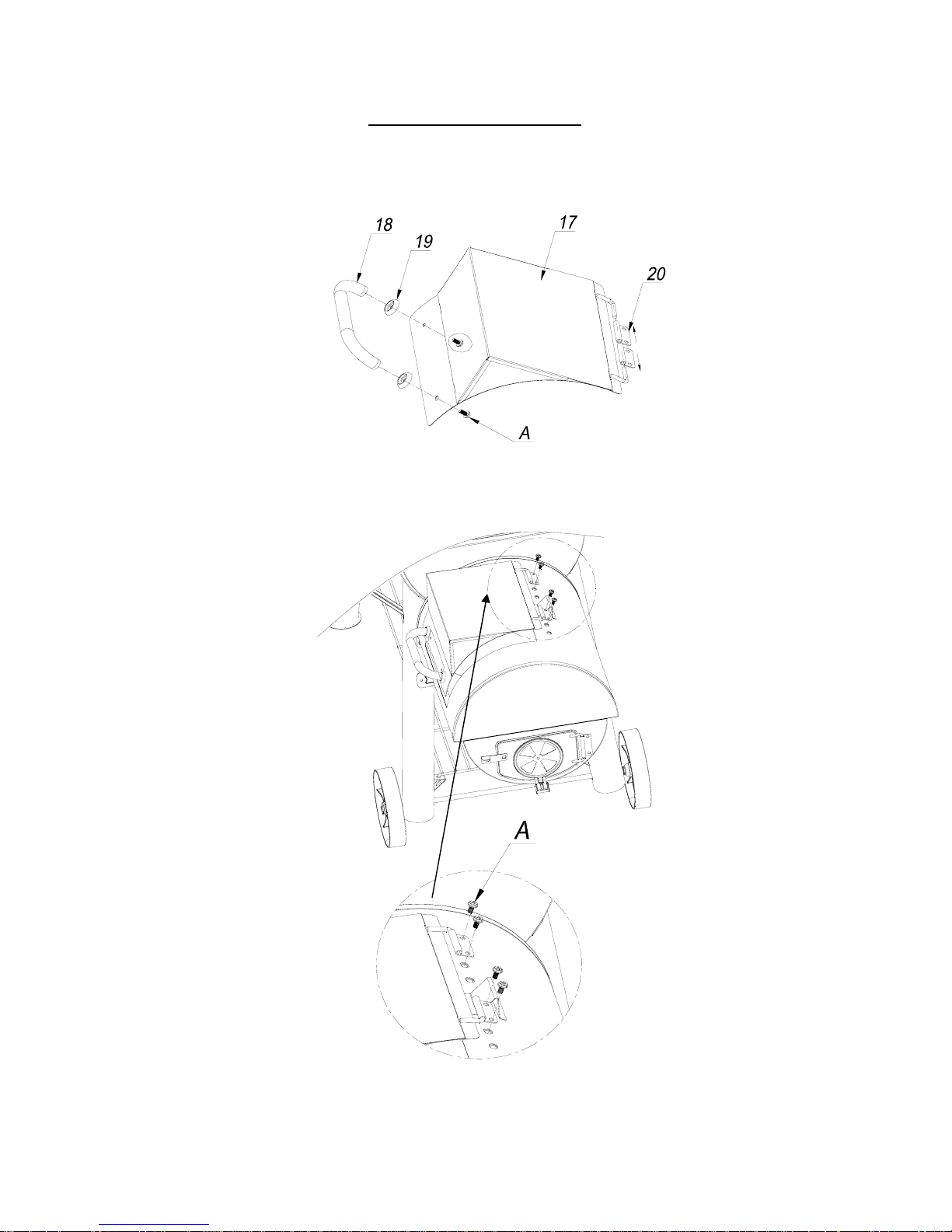

Step 15
Attach the smoker handle (18) and two smoker handle bases (19) to the smoker lid
using 2 M6 x 12 bolts (A), then insert 2 hinges (20) onto the smoker lid spindles.
Step 16
Attach the smoker lid assembly to the smoker assembly using 4 M6 x 12 bolts (A).
Page 17
17
ASSEMBLY INSTRUCTIONS

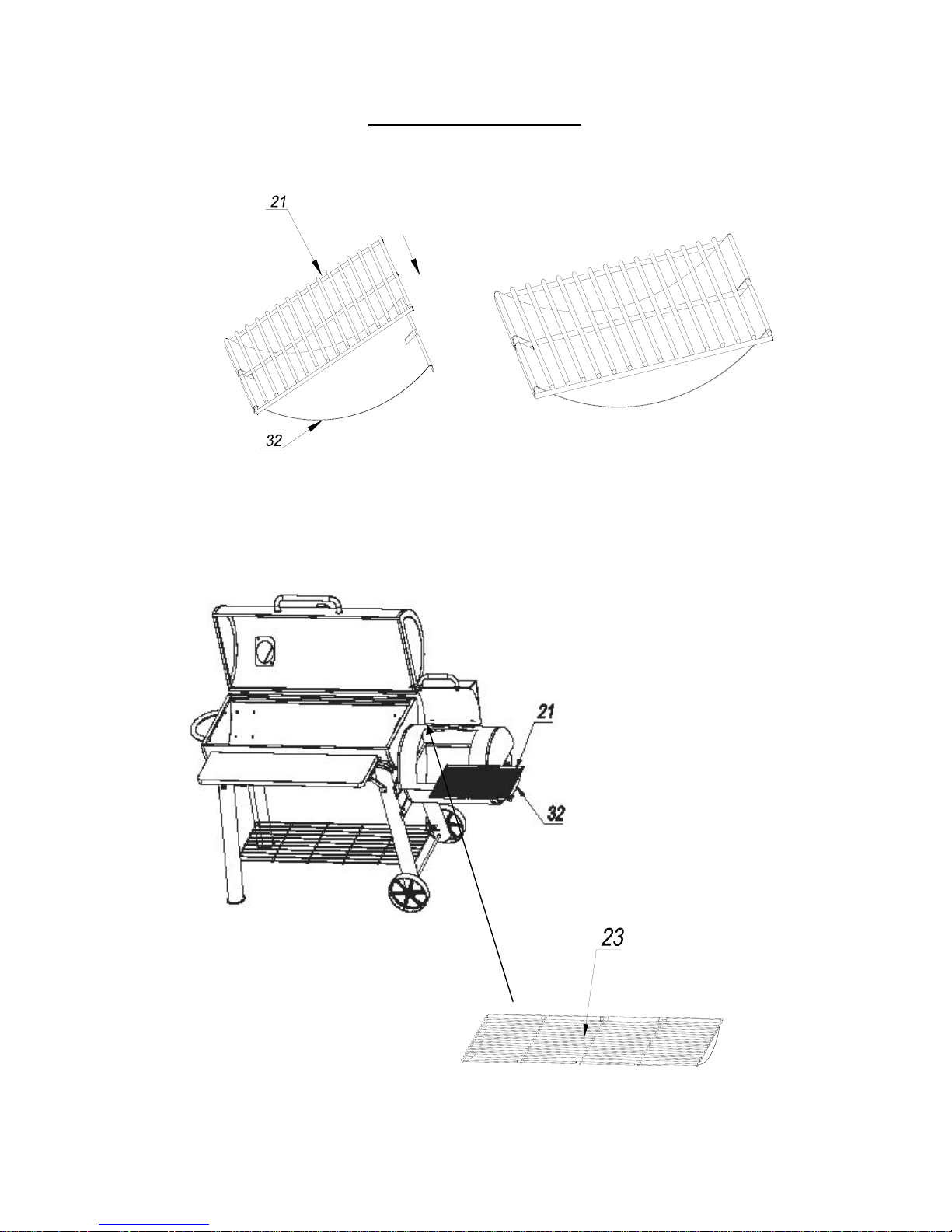

Step 17
Attach the smoker ash pan (32) to the smoker charcoal grate (21).
Step 18
Place the charcoal grate with ash pan (23) into the charcoal grill, and place the
smoker charcoal grate with ash pan into the smoker.
Page 18
18
ASSEMBLY INSTRUCTIONS

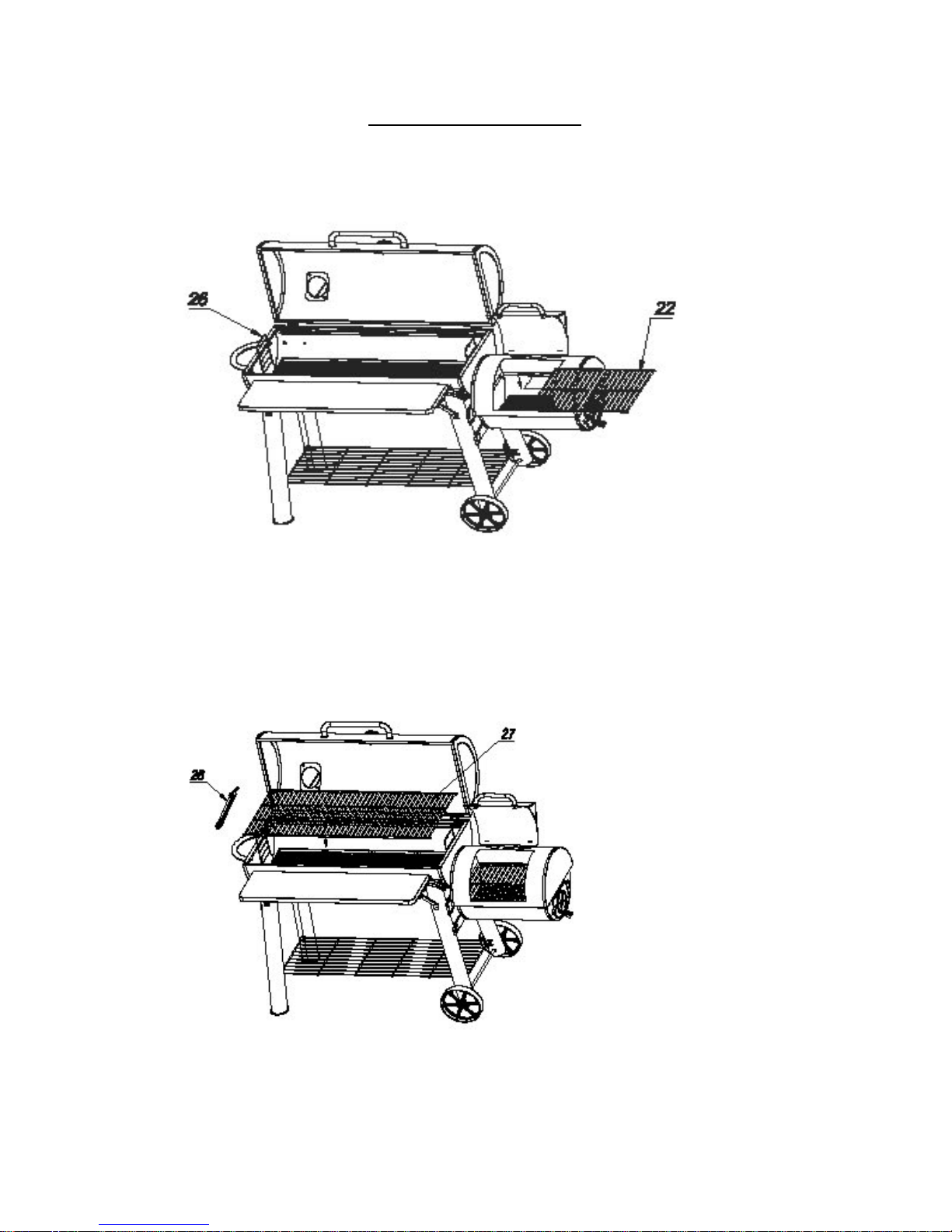

Step 19
Place lifters (26) into both sides of the charcoal firebox and place the smoker cooking
grate (22) into smoker.
Step 20
Place charcoal cooking grates (27) into the charcoal firebox, and put the grate tool (28)
on the charcoal cooking grates.
Page 19
19
ASSEMBLY INSTRUCTIONS

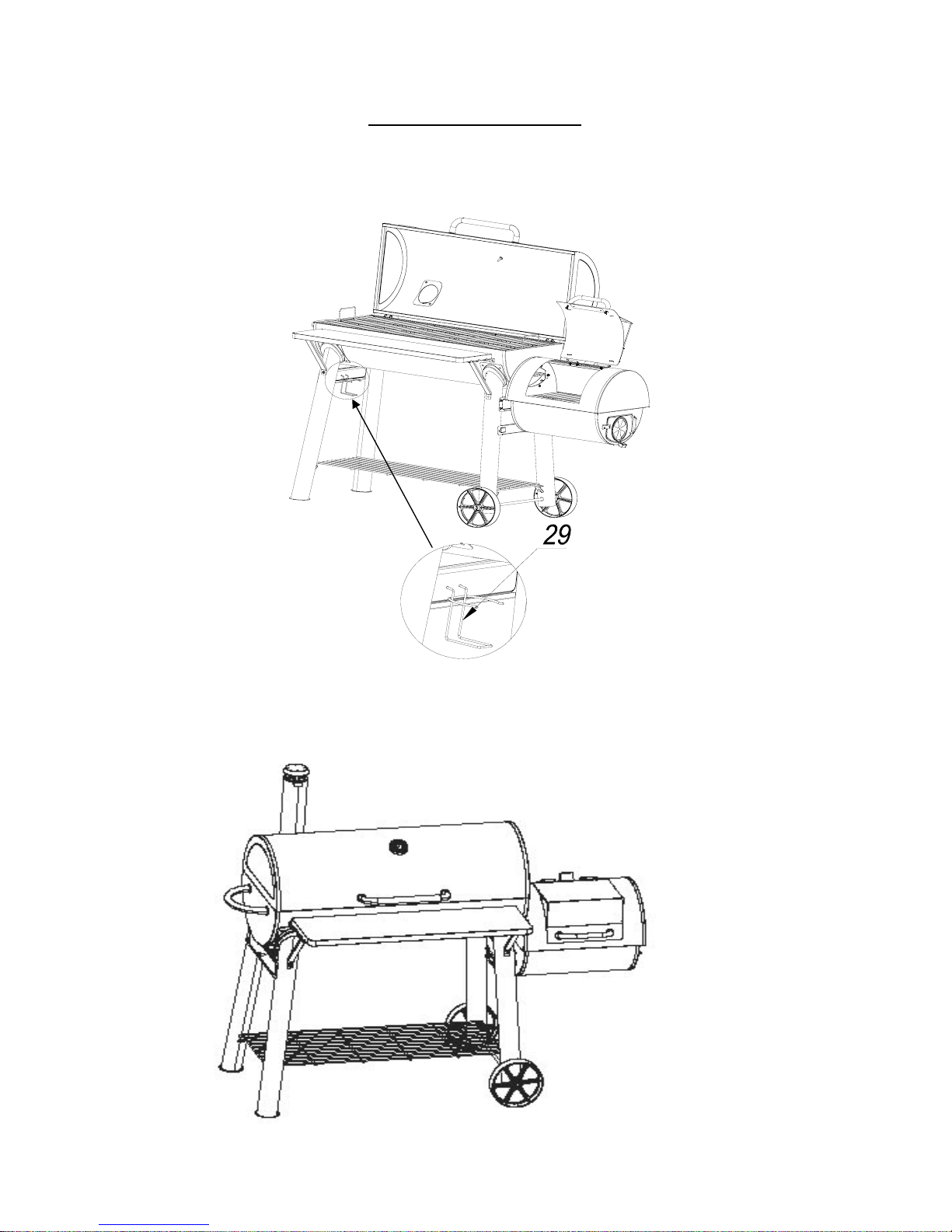

Step 21
Attach the grease cup bracket (29) to the charcoal firebox support panel (6). Use an
empty standard size soft drink can as the fat cup.
Step 22
The grill is now assembled.
Page 20
20
CARE AND MAINTENANCE
ASH CLEANOUT
It is imperative that you clean out the ashes from your TEXAS SMOKER after both
grill and ashes have completely cooled – and before moisture can combine with the
ash. Ash and moisture can create lye, which is very acidic, and speeds up rusting.
CLEANING OF COOKING GRATES
It is much easier to keep the porcelain-coated cooking grates clean if they are
brushed just after cooking, while the coals are still hot – instead of allowing excess
residue to harden after it cools. Take care to avoid burns by wearing insulated mitts.
After brushing, allow the grates (as well as the grill itself) to cool. For more thorough
cleaning, use a wet, soapy, fine steel wool pad with only slight pressure. Rinse
thoroughly and dry.
FINISH TOUCH-UP
Surface rust can be removed with a wire brush. Rust spots on the surface can be
buffed, cleaned, and then lightly coated with vegetable oil or vegetable oil spray to
minimise rusting. High temperature paint is available from your store of purchase to
restore the painted exterior surfaces. Follow the directions on the can.
Page 21
21
OPERATION INSTRUCTIONS
It is strongly recommended to pre burn your grill prior to your first use. By lighting a SMALL
charcoal fire to simulate the cooking process, you will burn off any residues or oils created during
the manufacturing process. This will also cure and harden the high temperature finish. This is a
once only process.
LIGHTING A FIRE
Open the hood of your TEXAS SMOKER, as well as all of the butterfly dampers.
Remove the cooking grates. Add charcoal. Do not put more than 3 kilogrammes of
charcoal briquettes or 1.5 kilogrammes of lump charcoal into the pan. Do not let
burning charcoal or wood come in contact with the walls of the grill (keep fuel
approximately 50 mm away from the ash pan edge). Use firelighters to start the fire,
following directions on the packet
.
Allow the charcoal enough time to completely ash over before beginning to cook, so
that the firelighters have enough time to burn off. Starting to cook too soon can leave
your food tasting like firelighters. After ash over is complete, use long-handled tongs
to spread the charcoal into a single layer on the grate.
Chimney starters, electric starters, or other types of fire starters may be used instead
of lighter fluid to light the fire – but only according to those manufacturers’ instructions.
Never use instant light charcoal or charcoal lighter fluid with any of these other
starting methods.
CONTROLLING A FIRE
Allow enough time for properly building the fire and getting the TEXAS SMOKER up
to desired temperature before attempting to cook.
Rising heat will move up and out of the unit, pulling in cooler air behind it, which
provides more oxygen for the fire. Your TEXAS SMOKER has two butterfly dampers
that control airflow, which lets you fine tune the temperature. NOTE: Dampers will
become very hot after lighting the charcoal - be sure to wear insulated grill mitts
during adjustment.
After the fire is established and the unit reaches the desired cooking temperature, the
butterfly dampers can be left completely open, providing maximum airflow for a higher
temperature or closed as needed to decrease airflow for a lower temperature. Use the
heat indicator to monitor the temperature.
Half opening the damper on the stack and half opening the damper on the smoker
side panel will create a convection effect inside the grill when the hood is closed.
This will allow for extended cooking times when Indirect Cooking.
Page 22
22
ADDING ADDITIONAL CHARCOAL
To achieve the extended cooking times needed for Indirect Cooking or slow smoking,
additional charcoal can be added by opening the charcoal lid. Take out the cooking
grill using a grate tool and insulated grill mitts - as the cooking grill can be VERY hot.
Using long-handled tongs, stoke the coals enough to allow excess ash to fall through
the charcoal grate into the ash pan below. Again using insulated mitts and
long-handled tong add charcoal to the charcoal grate as needed and return the
cooking grill back into place.
NEVER use lighter fluid or instant light charcoal when adding additional charcoal to
an existing fire. This can be VERY dangerous. Do not attempt to empty the ash pan
while charcoal or ashes are still hot. Wait until the ashes and whole unit have
completely cooled before emptying the ashes.
See the “Cooking Methods” section below for more information on Indirect Cooking
and slow smoking.
COOKING METHODS
You can use your TEXAS SMOKER to cook in three different ways – depending on
the type of food, and how you want to prepare it.
BARBEQUE GRILLING
Barbeque Grilling is cooking directly over the fire, using direct heat. This method is
the quickest and works well for foods that are tender before you cook them –
including steaks, beef or pork tenderloin, burgers, hot dogs, sausages, chicken,
seafood, etc.
Barbeque Grilling uses temperatures that are over 160 °C (325 °F). When cooking at
these temperatures, it is important to carefully watch your food to keep it from burning.
Also, you can close the lid and butterfly dampers to put out any grease flare-up that
may occur when fats and oils start to run from cooking food.
INDIRECT COOKING
Indirect Cooking is cooking using indirect heat and smoke. This method takes a little
longer, but can be used for nearly any kind of food you want to cook (including those
above). As Indirect Cooking uses lower temperatures and longer cooking times this method works best for cuts of meat that need time to tenderise – such as ribs,
brisket, pork shoulder, wild game, etc
Indirect Cooking uses temperatures from 105°C (225°F) to 160°C (325°F). Try to
maintain around 135°C (275°F) for optimal results.
Page 23
23
SLOW SMOKING
Slow smoking uses much lower temperatures and much longer cooking times. Slow
smoking is actually a way to cure meats rather than cook them. Slow smoking is ideal
for turkeys, chickens, beef briskets, cheese and sausage.
Slow smoking uses temperatures that range from 60°C (140°F) to 105°C (225°F).
Many slow smoking recipes call for the use of as line brine that helps preserve the
meat and avoid bacterial contamination during the cooking process. It is
recommended to only cook above 105°C (225°F) unless you are experienced at how
to avoid bacterial contamination, It is OK to smoke food, and then straight away
Barbeque Grill it for immediate consumption.
USING CHARCOAL AND WOOD
CHARCOAL
Your TEXAS SMOKER is made ideally to burn charcoal briquettes or natural wood
lump charcoal – both of which have different cooking attributes. Charcoal briquettes
typically provide longer burn times than lump charcoal – but lump charcoal burns
hotter than briquettes. Using the charcoal pan access door to add more charcoal
makes both briquettes and lumps easy and convenient for extended cooking times.
Heat Beads™ can also be used, but take care to fully burn them in before cooking.
Heat Beads™ generally will burn for longer but at a lower temperature per kg.
SMOKING WOODS
Adding smoking woods to your TEXAS SMOKER is an easy and effective way to
create wonderful flavor combinations for all types of Barbeque Grilled, Indirect
Cooked, , or Slow Smoked foods. Wood chips are typically used for shorter cooking
times, where chunks are better for longer cooking times.
When choosing smoking woods, the rule of thumb is to use a fruited hardwood – from
a tree that bears a nut, fruit, or berry. The most popular and widely available smoking
woods are hickory and mesquite. Hickory imparts a milder flavor, where mesquite is
more intense. Other common wood varieties are oak, apple, pecan, cherry, etc.
It is important to never use pine, gums, cedar, or kiln dried wood as they contain
resins than taste bad and can be poisonous
And any smoking woods should be well cured. Green wood still contains all the sap
and moisture needed to keep the tree alive, and will impart a very strong-tasting
smoke that will turn your foods black. Also, when you try burning green wood, it is
hard to reach a good temperature, because all the moisture inside the wood can put
the fire out while it’s burning. Well-cured wood lights easily, maintains cooking
temperature, and produces a great tasting smoke flavor that isn’t too strong.
Never use any timber that may have previously ben painted or treated as it could be
poisonous. If you are not sure of the source, assume it is poisonous and don’t use it.
Page 24
24
The amount of smoke flavor imparted to your food can be controlled by not just the
type of wood you use (whether a mild wood or more intense), but also by the length of
time the meat is smoked. Indirect Cooking typically adds more smoke flavor to food
than Barbeque Grilling, due to the longer cooking times. You can also control the
amount of smoke flavor by wrapping meats in aluminum foil for part of the cooking
process. Cook meat for 1/2 to 2/3 of the total cooking time, or until it looks to be the
perfect color. Then wrap the meat in foil and finish cooking the meat until done.
“!” WARNING “!”
Most surfaces on this unit are VERY hot when in use. Use extreme caution. Keep
others away from unit.
Always wear protective clothing to prevent injury.
Keep children and pets away from unit when in use.
Do not move this unit during operation.
Never substitute gasoline, kerosene or alcohol for charcoal starter. In some states,
the use of charcoal starter is prohibited by law. In this case, paraffin - based starter
cubes can be substituted for charcoal starter. Never use charcoal starter fluid with an
electric start
Page 25
25
SPARE PARTS LIST
Page 26
26
Loading...
