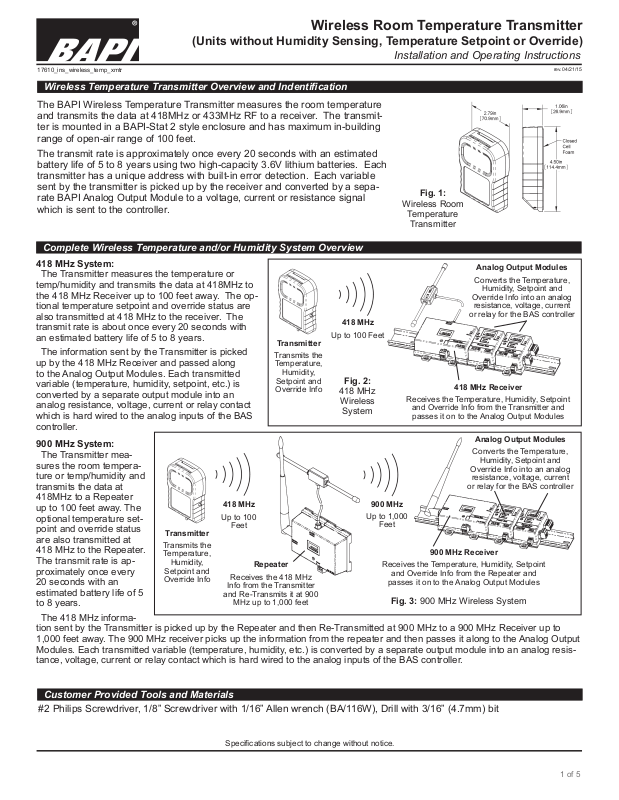

Wireless Room Temperature Transmitter
(Units without Humidity Sensing, Temperature Setpoint or Override)
Installation and Operating Instructions
17610_ins_wireless_temp_xmtr
Wireless Temperature Transmitter Overview and Indentication
The BAPI Wireless Temperature Transmitter measures the room temperature
and transmits the data at 418MHz or 433MHz RF to a receiver. The transmitter is mounted in a BAPI-Stat 2 style enclosure and has maximum in-building
range of open-air range of 100 feet.
The transmit rate is approximately once every 20 seconds with an estimated
battery life of 5 to 8 years using two high-capacity 3.6V lithium batteries. Each
transmitter has a unique address with built-in error detection. Each variable
sent by the transmitter is picked up by the receiver and converted by a separate BAPI Analog Output Module to a voltage, current or resistance signal
which is sent to the controller.
Fig. 1:
Wireless Room
Temperature
Transmitter
Complete Wireless Temperature and/or Humidity System Overview
418 MHz System:
The Transmitter measures the temperature or
temp/humidity and transmits the data at 418MHz to
the 418 MHz Receiver up to 100 feet away. The optional temperature setpoint and override status are
also transmitted at 418 MHz to the receiver. The
transmit rate is about once every 20 seconds with
an estimated battery life of 5 to 8 years.
The information sent by the Transmitter is picked
up by the 418 MHz Receiver and passed along
to the Analog Output Modules. Each transmitted
variable (temperature, humidity, setpoint, etc.) is
converted by a separate output module into an
analog resistance, voltage, current or relay contact
which is hard wired to the analog inputs of the BAS
Transmitter
Transmits the
Temperature,
Humidity,
Setpoint and
Override Info
418 MHz
Up to 100 Feet
Fig. 2:
418 MHz
Wireless
System
Receives the Temperature, Humidity, Setpoint
and Override Info from the Transmitter and
passes it on to the Analog Output Modules
Analog Output Modules
Converts the Temperature,
Humidity, Setpoint and
Override Info into an analog
resistance, voltage, current
or relay for the BAS controller
418 MHz Receiver
controller.
900 MHz System:
The Transmitter measures the room temperature or temp/humidity and
transmits the data at
418MHz to a Repeater
up to 100 feet away. The
optional temperature setpoint and override status
are also transmitted at
418 MHz to the Repeater.
The transmit rate is approximately once every
20 seconds with an
estimated battery life of 5
to 8 years.
Transmitter
Transmits the
Temperature,
Humidity,
Setpoint and
Override Info
418 MHz
Up to 100
Feet
Repeater
Receives the 418 MHz
Info from the Transmitter
and Re-Transmits it at 900
MHz up to 1,000 feet
900 MHz
Up to 1,000
Feet
900 MHz Receiver
Receives the Temperature, Humidity, Setpoint
and Override Info from the Repeater and
passes it on to the Analog Output Modules
Fig. 3: 900 MHz Wireless System
Analog Output Modules
Converts the Temperature,
Humidity, Setpoint and
Override Info into an analog
resistance, voltage, current
or relay for the BAS controller
The 418 MHz information sent by the Transmitter is picked up by the Repeater and then Re-Transmitted at 900 MHz to a 900 MHz Receiver up to
1,000 feet away. The 900 MHz receiver picks up the information from the repeater and then passes it along to the Analog Output
Modules. Each transmitted variable (temperature, humidity, etc.) is converted by a separate output module into an analog resistance, voltage, current or relay contact which is hard wired to the analog inputs of the BAS controller.
rev. 04/21/15
Customer Provided Tools and Materials
#2 Philips Screwdriver, 1/8” Screwdriver with 1/16” Allen wrench (BA/116W), Drill with 3/16” (4.7mm) bit
Specications subject to change without notice.
1 of 5
Wireless Room Temperature Transmitter
(Units without Humidity Sensing, Temperature Setpoint or Override)
17610_ins_wireless_temp_xmtr
Analog Output Module Training
The installation process requires that each transmitter is trained to its associated output module so that they communicate with each other. Pushing
buttons in a dened sequence on the units will bind them together.
The training process is easiest on a test bench with the units within arm’s
reach of each other. Training can be done in the eld but requires two people
and a set of walkie talkies or cell phones. Be sure to place an identication
mark on the transmitter and associated output module after they have been
trained so that they can be matched together at the job site.
Perform the training sequence for each output module. Any transmitted variable can be trained to more than one output module. If a Repeater is used in
the system, be sure it is powered and within reception range of the transmitter and the 900 MHz Receiver to train the output modules.
Installation and Operating Instructions
Battery polarity is
important or damage
to the unit may occur
Training
Button
rev. 04/21/15
TEMPERATURE VARIABLE TRAINING
1. To train an output module to a temperature variable, select the
Resistance, Voltage or Current Output Module calibrated to the proper
temperature range and connect it to the wireless receiver. Note: Multiple
output modules can be trained to the same transmitter.
2. Apply power to the receiver which will supply power to the connected
output modules. The power LED on the receiver will light and remain lit. (Current Output
Modules must have loop power supplied to the module itself before they can be trained.)
3. Remove the cover of the room transmitter and remove the battery tabs or install the batteries,
observing polarity as shown in Fig 4. The “transmit LED” will ash about once every 20 seconds,
indicating a transmission.
Room Transmitter battery
Fig. 4:
installation and training
Transmit
LED
Output
Module
Service
Button
4. Press and hold down the “Service Button” on the top of the output module (Fig 5) that you wish
to train. Then, press and release the “training button” (see Fig 4) on the transmitter. When the
output module receives the “training transmission” from the transmitter, the output module’
LED will light steady. Release the “Service Button” on the output module and the red LED will go
out. The transmitter and output module are now trained to each other. During normal operation,
the output module’s LED will ash about once every 20 seconds indicating data reception from
the transmitter trained to it.
s red
Fig. 5:
Output
Module
5. Mount the transmitter at the desired location, removing the batteries if needed. (The units will remain trained through power failures
and battery replacement.)
Mounting of the Room Transmitter
Note: The transmitter should have been trained to the output module at
Provided
Drywall
Anchors
Provided #6 x 1” Screws
3.25”
(80mm)
Fig. 6: Drywall Mounting
this point of the installation.
Drywall Mounting
1. Place the base plate against the wall where you want to mount the sensor.
Typically 5 feet above the oor.
2. Using a pencil, mark out the two mounting holes.
3. Drill two 3/16” (4.7 mm) holes in the center of each marked mounting hole.
Insert a drywall anchor into each hole.
4. Secure the base to the drywall anchors using the #6 x 1 inch mounting
screws provided.
5. Install provided batteries or pull battery tabs and follow polarity as shown
in gure 3 or damage may occur. The unit will work on just one battery
however the battery life will be cut in half.
6. Attach cover by latching it to the top of the base, rotating the cover down
and snapping it into place.
7. Secure the cover by backing out the lock-down screws using a 1/16” Allen
wrench until they are ush with the bottom of the cover.
Specications subject to change without notice.
