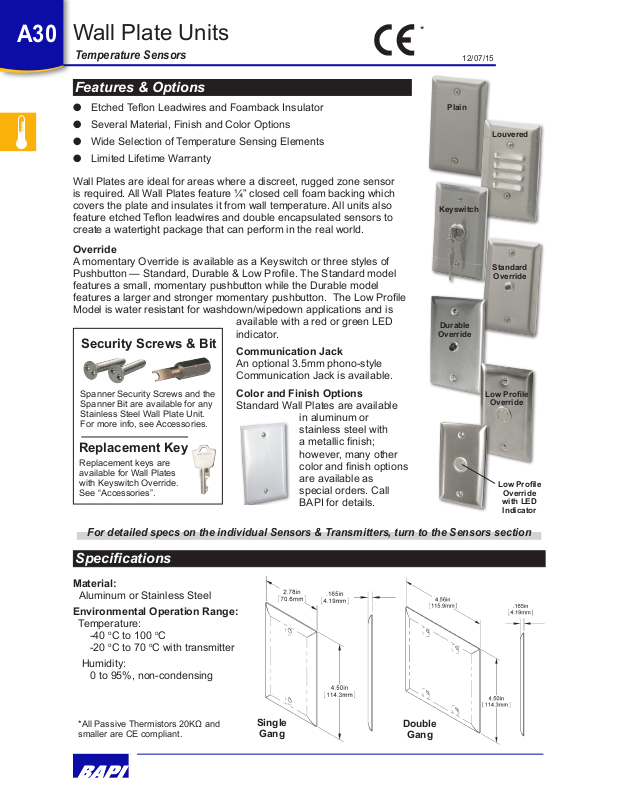

BAPI Wall Plate Units Catalog Page
A30
Wall Plate Units
*
Temperature Sensors
Features & Options
l Etched Teon Leadwires and Foamback Insulator
l Several Material, Finish and Color Options
l Wide Selection of Temperature Sensing Elements
l Limited Lifetime Warranty
Wall Plates are ideal for areas where a discreet, rugged zone sensor
is required. All Wall Plates feature ¼” closed cell foam backing which
covers the plate and insulates it from wall temperature. All units also
feature etched Teon leadwires and double encapsulated sensors to
create a watertight package that can perform in the real world.
Override
A momentary Override is available as a Keyswitch or three styles of
Pushbutton — Standard, Durable & Low Prole. The Standard model
features a small, momentary pushbutton while the Durable model
features a larger and stronger momentary pushbutton. The Low Prole
Model is water resistant for washdown/wipedown applications and is
available with a red or green LED
indicator.
Security Screws & Bit
Communication Jack
An optional 3.5mm phono-style
Communication Jack is available.
12/07/15
Plain
Louvered
Keyswitch
Standard
Override
Durable
Override
Spanner Security Screws and the
Spanner Bit are available for any
Stainless Steel Wall Plate Unit.
For more info, see Accessories.
Replacement Key
Replacement keys are
available for Wall Plates
with Keyswitch Override.
See “Accessories”.
Color and Finish Options
Standard Wall Plates are available
in aluminum or
stainless steel with
a metallic nish;
however, many other
color and nish options
are available as
special orders. Call
BAPI for details.
Low Prole
Override
Low Prole
Override
with LED
Indicator
For detailed specs on the individual Sensors & Transmitters, turn to the Sensors section
Specications
Material:
Aluminum or Stainless Steel
Environmental Operation Range:
Temperature:
-40 oC to 100 oC
-20 oC to 70 oC with transmitter
Humidity:
0 to 95%, non-condensing
*All Passive Thermistors 20KΩ and
smaller are CE compliant.
Single
Gang
Double
Gang
Wall Plate Units
Ordering Information Wall Plate Units - Temperature
List Your
Price Order
Sensor Type (Required) Use the designator number (shown to the left in bold) to indicate the sensor
THERMISTORS RTDs
Thermistors
1.8K
1.8K Ω @ 25 °C
1K[375]
1K Ω Platinum @ 0 °C, 3.75 Ω/°C temp. coeff.
$18 Each $_______
3K
3K Ω @ 25 °C
1K[NI]
1K Ω Nickel @ 21°C, 5 Ω/°C temp. coeff.
3.25K
3.25K Ω @ 25 °C (T30 type)
1K
1K Ω Platinum @ 0 °C, 3.85 Ω/°C temp. coeff.
RTD's
3.3K
3.3K Ω @ 25 °C
2K
2K Ω Silicon @ 20 °C, 8 Ω/°C temp. coeff.
$25 Each
10K-2
10K Ω @ 25 °C
or
$_______
SEMICONDUCTORS
$35 for 1K[NI]
10K-3[11K]
334
20K
20K Ω @ 25 °C
592
AD592 Semiconductor, 273 µA @ 0 °C Semi-
50K
50K Ω @ 25 °C
conductors
100K
$25 Each $_______
TEMPERATURE TRANSMITTERS (not available with Louvered Plates)
Temperature
T1K[range]
Transmitters
T1KM[range]
1K Platinum RTD, 1,000 Ω @ 0 °C with MATCHED* 4 to 20 mA Output
$100 for $_______
T10K[range]
10K Thermistor, 10,000 Ω @ 25 °C with 4 to 20 mA Output
T1K & T10K
T10K5[range]
10K Thermistor, 10,000 Ω @ 25 °C with 0 to 5 VDC Output
T10K10[range]
10K Thermistor, 10,000 Ω @ 25 °C with 0 to 10 VDC Output
TEMPERATURE TRANSMITTER RANGES $280 for
& T1KM $_______
45 TO 96F 7 TO 35C
0 TO 100F -18 TO 38C
Finish / Material Designation (Required) Call BAPI if a colored Wall Plate is needed.
-SP**
Stainless Steel, Type 302/304, Satin Finish, Single Gang (standard)
$0
Stainless Steel, Type 302/304, Satin Finish, Double Gang
$_______
-AP
Aluminum, Clear Anodized, Single Gang (standard)
$0
$10 $_______
Override Switch Options Not available on louvered plates.
-O
Standard Pushbutton Override Switch
$10
$_______
-O1
Durable Style Pushbutton Override
$24
$_______
-O2
Low Profile Style Pushbutton Override
$57
$_______
-O2G5
Low Profile Pushbutton Override, Green LED, 5 VDC¹
$100
$_______
-O2G24
Low Profile Pushbutton Override, Green LED, 24 VDC or VAC¹
$100
$_______
-O2R5
Low Profile Pushbutton Override, RED LED, 5 VDC¹
$100
$_______
-O2R24
Low Profile Pushbutton Override, RED LED, 24 VDC or VAC¹
$100
$_______
-K
Keyswitch Override: momentary, normally open
$45
$_______
-OWD
Washdown Keyswitch, NO & NC
$230
$_______
Optional Comm. Jack Not available on louvered plates.
-C35
Communication Jack: phono-style (3.5 mm)
$10
$_______
-SEC1
Spanner Security Screws²
$2 $_______
EXAMPLE
BA/ 10K-2 -AP-152 -O -C35 -SEC1
Call BAPI if you have questions about the above ordering grid or the configuration of the product you are ordering.
Total =
$______
Call BAPI if you would like three or more gang Wall Plate Units
$20
A31
12/07/15
Temperature Sensors
Note: Many color and nish options are available as special orders. Call BAPI for details.
BA/
##
10K-3 10K Ω @ 25 °C
5,238 Ω @ 25 °C
100K Ω @ 25 °C
1K Platinum RTD, 1,000 Ω @ 0 °C with 4 to 20 mA Output
592-10K
LM334 Semiconductor
AD592 Semicond. with 10 kΩ shunt resistor,
2.73 V @ 0 °C
Custom temperature transmitter ranges are available. Common ranges listed below
40 TO 90F 4 TO 32C
-SP-152**
-SP-631*
Example Part Number: BA/10K-2-AP-152-O-C35-SEC1
Your Part Number:
Stainless Steel, Type 302/304, Satin Finish, Louvered Plate, Box Mount - vertical mount,
single gang
Optional Spanner Security Screws
Three or more gang Wall Plate Units are available. Call BAPI for details.
¹Voltage to power LED indicator (5 VDC or 24 VDC or VAC) must come from the controller or other external source.
²Security Screws are stainless steel and may not match the color of the aluminum wall plate
*Louvered Plates are not available with Temperature Transmitters, Override or Comm. Jack
**Double gang is required when used with Temp. Transmitter and Override or Comm. Jack. (See "-SP-152" option above)
