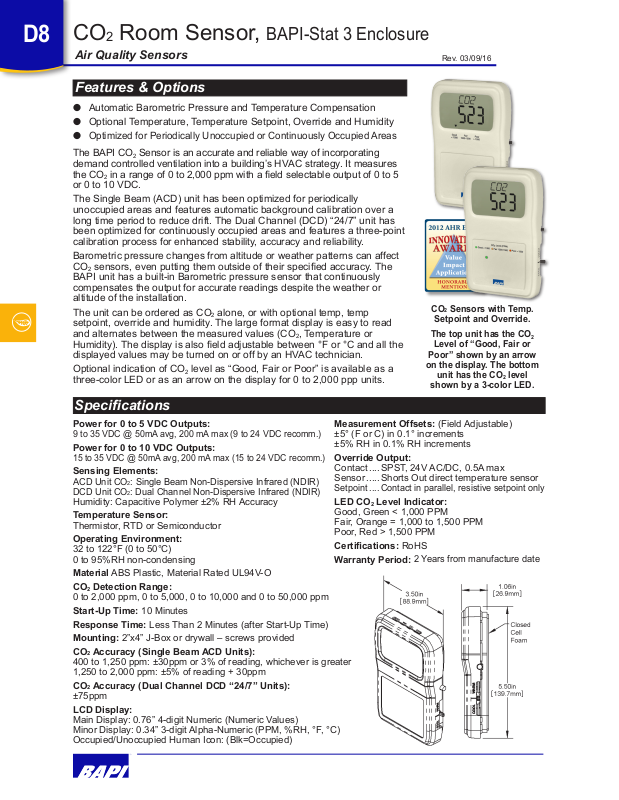

BAPI VOC Room Sensor Catalog Page
D8
CO2 Room Sensor,
BAPI-Stat 3 Enclosure
Air Quality Sensors
Features & Options
l Automatic Barometric Pressure and Temperature Compensation
l Optional Temperature, Temperature Setpoint, Override and Humidity
l
Optimized for Periodically Unoccupied or Continuously Occupied Areas
The BAPI CO2 Sensor is an accurate and reliable way of incorporating
demand controlled ventilation into a building’s HVAC strategy. It measures
the CO2 in a range of 0 to 2,000 ppm with a eld selectable output of 0 to 5
or 0 to 10 VDC.
The Single Beam (ACD) unit has been optimized for periodically
unoccupied areas and features automatic background calibration over a
long time period to reduce drift. The Dual Channel (DCD) “24/7” unit has
been optimized for continuously occupied areas and features a three-point
calibration process for enhanced stability, accuracy and reliability.
Barometric pressure changes from altitude or weather patterns can affect
CO2 sensors, even putting them outside of their specied accuracy. The
BAPI unit has a built-in Barometric pressure sensor that continuously
compensates the output for accurate readings despite the weather or
altitude of the installation.
The unit can be ordered as CO
setpoint, override and humidity. The large format display is easy to read
and alternates between the measured values (CO2, Temperature or
Humidity). The display is also eld adjustable between °F or °C and all the
displayed values may be turned on or off by an HVAC technician.
Optional indication of CO2 level as “Good, Fair or Poor” is available as a
three-color LED or as an arrow on the display for 0 to 2,000 ppp units.
alone, or with optional temp, temp
2
Rev. 03/09/16
CO2 Sensors with Temp.
Setpoint and Override.
level
2
The top unit has the CO
Level of “Good, Fair or
Poor” shown by an arrow
on the display. The bottom
unit has the CO
shown by a 3-color LED.
2
Specications
Power for 0 to 5 VDC Outputs:
9 to 35 VDC @ 50mA avg, 200 mA max (9 to 24 VDC recomm.)
Power for 0 to 10 VDC Outputs:
15 to 35 VDC @ 50mA avg, 200 mA max (15 to 24 VDC recomm.)
Sensing Elements:
ACD Unit CO2: Single Beam Non-Dispersive Infrared (NDIR)
DCD Unit CO2: Dual Channel Non-Dispersive Infrared (NDIR)
Humidity: Capacitive Polymer ±2% RH Accuracy
Temperature Sensor:
Thermistor, RTD or Semiconductor
Operating Environment:
32 to 122°F (0 to 50°C)
0 to 95%RH non-condensing
Material ABS Plastic, Material Rated UL94V-O
Detection Range:
CO
2
0 to 2,000 ppm, 0 to 5,000, 0 to 10,000 and 0 to 50,000 ppm
Start-Up Time: 10 Minutes
Response Time: Less Than 2 Minutes (after Start-Up Time)
Mounting: 2”x4” J-Box or drywall – screws provided
Accuracy (Single Beam ACD Units):
CO
2
400 to 1,250 ppm: ±30ppm or 3% of reading, whichever is greater
1,250 to 2,000 ppm: ±5% of reading + 30ppm
Accuracy (Dual Channel DCD “24/7” Units):
CO
2
±75ppm
LCD Display:
Main Display: 0.76” 4-digit Numeric (Numeric Values)
Minor Display: 0.34” 3-digit Alpha-Numeric (PPM, %RH, °F, °C)
Occupied/Unoccupied Human Icon: (Blk=Occupied)
Measurement Offsets: (Field Adjustable)
±5° (F or C) in 0.1° increments
±5% RH in 0.1% RH increments
Override Output:
Contact
Sensor
Setpoint ....Contact in parallel, resistive setpoint only
LED CO2 Level Indicator:
Good, Green < 1,000 PPM
Fair, Orange = 1,000 to 1,500 PPM
Poor, Red > 1,500 PPM
Certications: RoHS
Warranty Period:
.... SPST, 24V AC/DC, 0.5A max
..... Shorts Out direct temperature sensor
2 Years from manufacture date
List Your
Price Order
Ordering Information BAPI-Stat 3 Style Room CO2 Sensor with Optional Temperature and Humidity Sensing
BA/
Temperature Display Mode
BS3F
Temperatures Displayed in °F (Temperature is displayed by default but can be turned off by the user. See instruction sheet.)
$35.00
$_______
BS3C
Temperatures Displayed in °C (Temperature is displayed by default but can be turned off by the user. See instruction sheet.)
$35.00
$_______
BS3X No LCD Display $0.00
CO₂ Output
$475.00
$_______
CO₂ as 0 to 2,000 PPM, 0 to 10 VDC output, Single Beam Automatic Background Calibration unit for periodically unoccupied areas
$475.00
$_______
CO₂ as 0 to 2,000 PPM, 0 to 5 VDC output, Dual Channel Calibration "24/7" unit for continuously occupied areas
$505.00
$_______
$505.00
$_______
Humidity Transmitter (Omit if not required)
-H205 ±2% Humidity Transmitter, 0 to 5 VDC output
$80.00
$_______
-H210 ±2% Humidity Transmitter, 0 to 10 VDC output
$80.00
$_______
-H212 ±2% Humidity Transmitter, 2 to 10 VDC output
$80.00
$_______
Setpoint Display Options (Skip if not required)
Desired Range
Designator
Desired Range
Designator
P
60 to 80 °F or 15 to 27 °C
E
A
65 to 80 °F or 18 to 27 °C
F
-# -5 to +5
B
70 to 74 °F or 21 to 23 °C
L
C
45 to 96 °F or 7 to 36 °C
G
D
Setpoint Output Value Range (Skip if not required)
Desired Range
Designator
Desired Range
Designator
23
15 k to 5 kΩ
61 Any
25
0 to 20 kΩ
80 Setpoint
## 1800 to 2200 Ω
27
4.75 k to 24.75 kΩ
81 $6.00
$_______
40
7.87 k to 27.87 kΩ
83
41
10 k to 30 kΩ
84
42
0 to 100 kΩ
90
60
0 to 5 V*
00*
Additional Setpoint Ranges are Available. See App. Notes Pg. 2 for complete list.
SETPOINT LEGEND (insert Designator #)
Legend Range Designator Legend Range Designator
L0
COOL/WARM
L6
Additional Legends are Available. Call BAPI for more information.
Sensor Type (If resistive sensor required)
-0
100 Platinum RTD, 100Ω @ 0°C, 0.385Ω/°C temp coeff. RTD's
-1375
1K Platinum RTD, 1,000Ω @ 0°C, 3.75Ω/°C temp coeff. $25.00
$_______
-1NI
1K Nickel RTD, 1,000Ω @ 21°C, 5Ω/°C temp coeff. or
-1
1K Platinum RTD, 1,000Ω @ 0°C, 3.85Ω/°C temp coeff. $35 for 1NI
$_______
-2
2K Silicon RTD, 2,000Ω @ 20°C, 8Ω/°C temp coeff.
-18
1.8K Thermistor, 1,800Ω @ 25°C Thermistors
-3
3K Thermistor, 3,000Ω @ 25°C $18.00
$_______
-33
3.3K Thermistor, 3,300Ω @ 25°C
-102
10K-2 Thermistor, 10,000Ω @ 25°C
-103
10K-3 Thermistor, 10,000Ω @ 25°C
-10311
10K-3[11K] Thermistor, 5,238Ω @ 25°C, 11KΩ shunt resistor
-20
20K Thermistor, 20,000Ω @ 25°C
-50
Semi-
-100
conductor
-592
$25.00
$_______
Override Configuration (Must select one)
-J
Override as a Separate Output.*
(Dry contact only, not intended to switch a load.)
$5.00
$_______
-N Override in Parallel (//) with Sensor
$5.00
$_______
-P Override in Parallel (//) with Setpoint: NOT available on voltage setpoint models
$5.00
$_______
-Z No Override. (Needed if no override is required)
$0.00
Optional Communication Jack (Mounted in unit's base)
-C11L RJ11 (4 pin) Style Jack with Leads
$20.00
$_______
-C11LT RJ11 (4 pin) Style Jack with Leads and Terminal Block
$20.00
$_______
-C35L 3.5 mm Phono Jack w/ Leads Attached
$10.00
$_______
-C35LT 3.5 mm Phono Style Jack with Leads and Terminal Block
$10.00
$_______
-C22L RJ22 (4 pin) Style Jack with Leads Attached
$25.00
$_______
-C22LT RJ22 (4 pin) Style Jack with Leads and Terminal Block
$25.00
$_______
Optional Test and Balance Switch
-TB
$7.50
$_______
Differential Ground - Setpoint & Temp Sensor (Skip if not required)
-DF
CO₂ Level Indication** (Must select one)
-LED
-ARW
-BNK No LED or Arrow Indicators, No Legend**
EXAMPLE
BA/
BS3F -ACD05 -H205 -A 80L6 -0 -J -C11L -TB -LED
Example Part Number: BA/BS3F-ACD05-H205-A80L6-0-J-C11L-TB-LED
Total =
$______
CO2 Room Sensor,
BAPI-Stat 3 Enclosure
D9
Rev. 03/09/16
-ACD05
-ACD10
-DCD05
-DCD10
CO₂ as 0 to 2,000 PPM, 0 to 5 VDC output, Single Beam Automatic Background Calibration unit for periodically unoccupied areas
CO₂ as 0 to 2,000 PPM, 0 to 10 VDC output, Dual Channel Calibration "24/7" unit for continuously occupied areas
-2 to +2
-3 to +3
50 to 90 °F or 10 to 32 °C
55 to 85 °F or 13 to 30 °C
674 to 274 Ω
800 to 1200 Ω
0 to 1000 Ω
500 to 1500 Ω
2 k to 3 kΩ
0 to 10 kΩ
Air Quality Sensors
No Legend
50K Thermistor, 50,000Ω @ 25°C
100K Thermistor, 100,000Ω @ 25°C
AD592 Semiconductor, 273 µA @ 0°C
Three Position Switch
Differential Ground (Default is Common Ground)
3-color LED on Logo Plate, "Good, Fair and Poor"
Arrow on Display with "Good, Fair and Poor" legend
Your Part Number:
Call BAPI if you have questions about the above ordering/pricing grid or the configuration of the product you are ordering.
*Not available with Differential Ground (-DF) option
