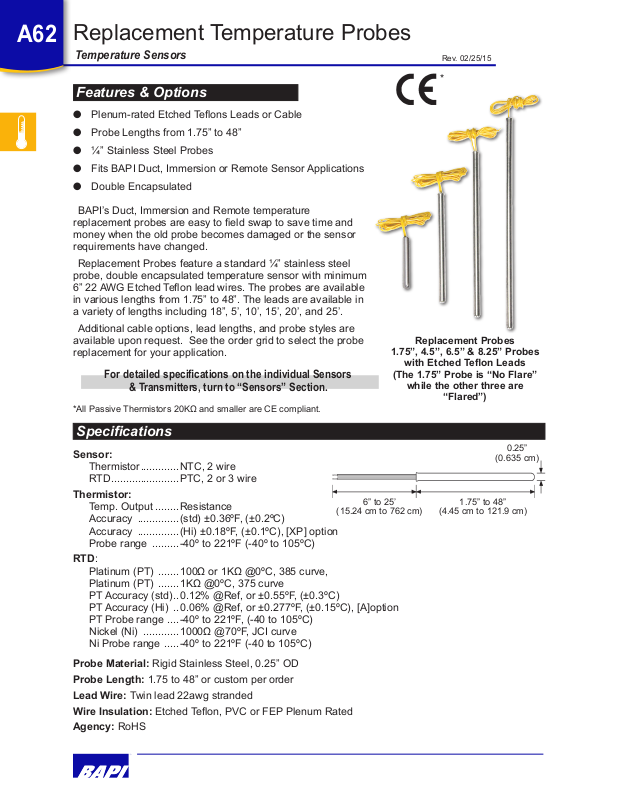

BAPI Replacement Temperature Probes Catalog Page

A62

Replacement Temperature Probes

Temperature Sensors

Features & Options

l Plenum-rated Etched Teons Leads or Cable

l

Probe Lengths from 1.75” to 48”

l

¼” Stainless Steel Probes

l

Fits BAPI Duct, Immersion or Remote Sensor Applications

l

Double Encapsulated

BAPI’s Duct, Immersion and Remote temperature
replacement probes are easy to eld swap to save time and
money when the old probe becomes damaged or the sensor
requirements have changed.

Replacement Probes feature a standard ¼” stainless steel
probe, double encapsulated temperature sensor with minimum
6” 22 AWG Etched Teon lead wires. The probes are available
in various lengths from 1.75” to 48”. The leads are available in
a variety of lengths including 18”, 5’, 10’, 15’, 20’, and 25’.

Additional cable options, lead lengths, and probe styles are
available upon request. See the order grid to select the probe
replacement for your application.

For detailed specications on the individual Sensors

& Transmitters, turn to “Sensors” Section.

*All Passive Thermistors 20KΩ and smaller are CE compliant.

Rev. 02/25/15

*

Replacement Probes

1.75”, 4.5”, 6.5” & 8.25” Probes
with Etched Teon Leads

(The 1.75” Probe is “No Flare”

while the other three are

“Flared”)

Specications

Sensor:

Thermistor .............NTC, 2 wire

RTD .......................PTC, 2 or 3 wire

Thermistor:

Temp. Output ........Resistance

Accuracy .............. (std) ±0.36ºF, (±0.2ºC)

Accuracy .............. (Hi) ±0.18ºF, (±0.1ºC), [XP] option

Probe range ......... -40º to 221ºF (-40º to 105ºC)

RTD:

Platinum (PT) ....... 100Ω or 1KΩ @0ºC, 385 curve,

Platinum (PT) ....... 1KΩ @0ºC, 375 curve

PT Accuracy (std) ..0.12% @Ref, or ±0.55ºF, (±0.3ºC)
PT Accuracy (Hi) ..0.06% @Ref, or ±0.277ºF, (±0.15ºC), [A]option

PT Probe range ....-40º to 221ºF, (-40 to 105ºC)

Nickel (Ni) ............1000Ω @70ºF, JCI curve

Ni Probe range .....-40º to 221ºF (-40 to 105ºC)

Probe Material: Rigid Stainless Steel, 0.25” OD
Probe Length: 1.75 to 48” or custom per order
Lead Wire: Twin lead 22awg stranded
Wire Insulation: Etched Teon, PVC or FEP Plenum Rated
Agency: RoHS

(15.24 cm to 762 cm)

6” to 25’

0.25”

(0.635 cm)

1.75” to 48”

(4.45 cm to 121.9 cm)

Replacement Temperature Probes

Ordering Information Replacement Probes & Transmitters List Your

BA/ Price Order

THERMISTORS RTDs Thermistors

1.8K

1.8K Ω @ 25 °C

1K[375]

1K Ω Platinum @ 0 °C, 3.75 Ω/°C temp. coeff.

$18 Each $_______

2.2K

2.2K Ω @ 25 °C

1K[NI]

1K Ω Nickel @ 21°C, 5 Ω/°C temp. coeff.

3K

3K Ω @ 25 °C

1K

1K Ω Platinum @ 0 °C, 3.85 Ω/°C temp. coeff.

RTD's

3.25K

3.25K Ω @ 25 °C (T30 type)

2K

2K Ω Silicon @ 20 °C, 8 Ω/°C temp. coeff.

$25 Each

3.3K

3.3K Ω @ 25 °C

or $_______

10K-2

10K Ω @ 25 °C

SEMICONDUCTORS $35 for 1K[NI]

10K-3

10K Ω @ 25 °C

334

LM334 Semiconductor

10K-3[11K]

5,238 Ω @ 25 °C

592

AD592 Semiconductor, 273 µA @ 0 °C Semi-

20K

20K Ω @ 25 °C

592-10K AD592 Semicond. w/ 10 kΩ shunt resistor, 2.73 V @ 0 °C

conductors

47K

47K Ω @ 25 °C

$25 Each $_______

50K

50K Ω @ 25 °C

100K

100K Ω @ 25 °C

Probe Length Required selection

-P-1.75"

"No Flare" Probe, 1.75" probe

$0

-P-4"

"No Flare" Probe, 4.00" probe

$0

-P-4.5"

Stock "Flared" Probe, 4.5" probe (for Duct 4" or Immersion 2")

$0

-P-6.5"

Stock "Flared" Probe, 6.50" probe (for Duct 6" or Immersion 4")

$0

-P-8.25"

Stock "Flared" Probe, 8.25" probe (for Duct 8")

$0

-P-9.5" Stock "Flared" Probe, 9.50" probe (for Immersion 8")

$0

-P-12.25" Stock "Flared" Probe, 12.25" probe (for Duct 12" or Immersion 10")

$0

-P-18.25"

Stock "Flared" Probe, 18.25" probe (for Duct 18")

$0

$22 $_______

-P-30.25" Non-Stock "Flared" Probe, 30.25" probe (for Duct 30")

$22 $_______

-P-36.25" Non-Stock "Flared" Probe, 36.25" probe (for Duct 36")

$30

$_______

-P-48" Non-Stock "Flared" Probe, 48.00" probe (for Duct 48")

$30 $_______

Etched Teflon or Cable Lead Length Must select one

-TFE

6 inch Etched Teflon leads (Plenum Rated)

$0

-TFE-18"

18 inch Etched Teflon leads (Plenum Rated)

$0

-TFE-5'

5 feet Etched Teflon leads (Plenum Rated)

$2

$_______

-TFE-10'

10 feet Etched Teflon leads (Plenum Rated)

$4

$_______

-TFE-15'

15 feet Etched Teflon leads (Plenum Rated)

$6

$_______

-TFE-20'

20 feet Etched Teflon leads (Plenum Rated)

$8

$_______

-TFE-25'

25 feet Etched Teflon leads (Plenum Rated)

$10

-PL

6 inch Plenum Rated Cable (RPP)

$0

-PL-18"

18 inch Plenum Rated Cable (RPP)

$0

-PL-5'

5 feet Plenum Rated Cable (RPP)

$2

$_______

-PL-10'

10 feet Plenum Rated Cable (RPP)

$4

$_______

-PL-15'

15 feet Plenum Rated Cable (RPP)

$6

$_______

-PL-20'

20 feet Plenum Rated Cable (RPP)

$8

$_______

-PL-25'

25 feet Plenum Rated Cable (RPP)

$10

$_______

-FEP

6 inch FEP Jacketed Plenum Cable (RPFEP)

$3

$_______

-FEP-18"

18 inch FEP Jacketed Plenum Cable (RPFEP)

$3

$_______

-FEP-5'

5 feet FEP Jacketed Plenum Cable (RPFEP)

$5

$_______

-FEP-10'

10 feet FEP Jacketed Plenum Cable (RPFEP)

$10

$_______

-FEP-15'

15 feet FEP Jacketed Plenum Cable (RPFEP)

$15

$_______

-FEP-20'

20 feet FEP Jacketed Plenum Cable (RPFEP)

$20

$_______

-FEP-25'

25 feet FEP Jacketed Plenum Cable (RPFEP)

$25

$_______

EXAMPLE

Total =

$______

A63

Rev. 02/25/15

Sensor Type Required selection Use the designator number (shown to the left in bold) to indicate the sensor

Temperature Sensors

-P-24.25"

BA/ 10K-2 -P-18.25"-TFE

Example Part Number: BA/10K-2-P-18.25"-TFE

Your Part Number:

Call BAPI if you have questions about the above ordering grid or the configuration of the product you are ordering.

Non-Stock "Flared" Probe, 24.25" probe (for Duct 24")
