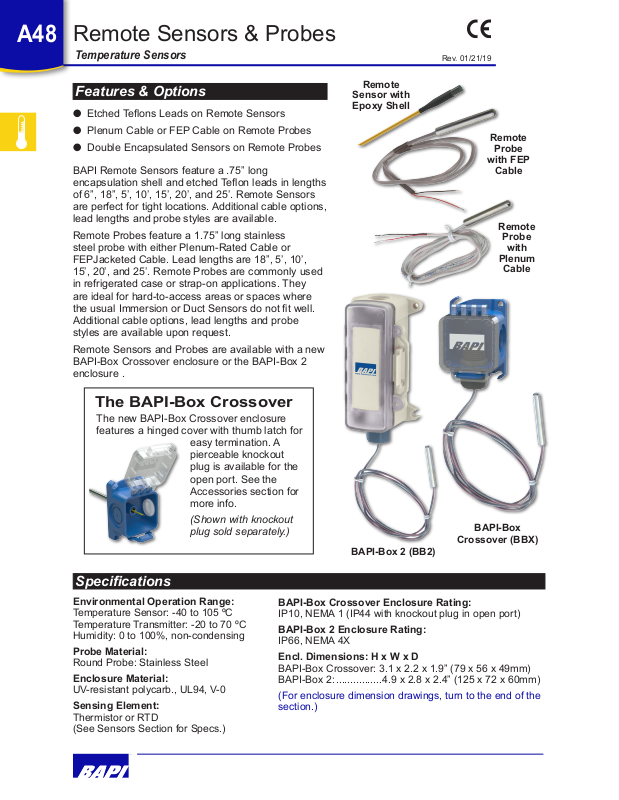

BAPI Remote Sensors Catalog Page

A48

Remote Sensors & Probes

Temperature Sensors

Features & Options

l Etched Teons Leads on Remote Sensors

l Plenum Cable or FEP Cable on Remote Probes

l Double Encapsulated Sensors on Remote Probes

BAPI Remote Sensors feature a .75” long
encapsulation shell and etched Teon leads in lengths
of 6”, 18”, 5’, 10’, 15’, 20’, and 25’. Remote Sensors
are perfect for tight locations. Additional cable options,
lead lengths and probe styles are available.

Remote Probes feature a 1.75” long stainless
steel probe with either Plenum-Rated Cable or
FEPJacketed Cable. Lead lengths are 18”, 5’, 10’,
15’, 20’, and 25’. Remote Probes are commonly used
in refrigerated case or strap-on applications. They
are ideal for hard-to-access areas or spaces where
the usual Immersion or Duct Sensors do not t well.
Additional cable options, lead lengths and probe
styles are available upon request.

Remote Sensors and Probes are available with a new
BAPI-Box Crossover enclosure or the BAPI-Box 2
enclosure .

Rev. 01/21/19

Remote
Sensor with
Epoxy Shell

Remote

Probe

with FEP

Cable

Remote

Probe

with

Plenum

Cable

The BAPI-Box Crossover

The new BAPI-Box Crossover enclosure
features a hinged cover with thumb latch for

easy termination. A
pierceable knockout
plug is available for the
open port. See the
Accessories section for
more info.

(Shown with knockout
plug sold separately.)

Specications

Environmental Operation Range:

Temperature Sensor: -40 to 105 ºC
Temperature Transmitter: -20 to 70 ºC
Humidity: 0 to 100%, non-condensing

Probe Material:
Round Probe: Stainless Steel

Enclosure Material:
UV-resistant polycarb., UL94, V-0

Sensing Element:

Thermistor or RTD
(See Sensors Section for Specs.)

BAPI-Box

Crossover (BBX)

BAPI-Box 2 (BB2)

BAPI-Box Crossover Enclosure Rating:

IP10, NEMA 1 (IP44 with knockout plug in open port)

BAPI-Box 2 Enclosure Rating:

IP66, NEMA 4X
Encl. Dimensions: H x W x D

BAPI-Box Crossover: 3.1 x 2.2 x 1.9” (79 x 56 x 49mm)
BAPI-Box 2:

(For enclosure dimension drawings, turn to the end of the
section.)

................4.9 x 2.8 x 2.4” (125 x 72 x 60mm)

Remote Sensors & Probes

Temperature Sensors

Use the Option Selection Guide below to create your custom part number. Replace the number and
parenthesis with the designator for each selection. Skip the designator and dashes for optional selections
that are not required in your conguration.

Remote Sensors and Probes Option Selection Guide:

BA/ ( #1 ) - ( #2 ) - ( #3 )

A49

#1: Temperature Sensor (required)
1K[375]

1K[NI].............1K Ω Nickel RTD

1K ..................1K Platinum RTD (385 curve)

1.8K ...............1.8K Thermistor

3K ..................3K Thermistor

10K-2 .............10K-2 Thermistor

10K-3 .............10K-3 Thermistor

10K-3[11K]

20K ................20K Thermistor

1K Plat. RTD Transmitters below with 4 to 20 mA
Output - BAPI-Box 2 Enclosure required.

T1K[32 TO 212F] ....32 to 212°F Range

T1K[20 TO 120F] ....20 to 120°F Range

T1K[0 TO 100F] ......0 to 100°F Range

T1K[0 TO 100C] .....0 to 100°C Range

T1K[-7 TO 49C] ......-7 to 49°C Range

T1K[-18 TO 38C] ....-18 to 38°C Range

Matched Transmitters are also available. Contact
your BAPI representative for ordering.

#2: Probe and Cable Options (required)

REMOTE SENSOR, ETCHED TEFLON LEADS

PP-6” .............Remote Sensor, 6” Leads

REMOTE SENSOR, PLENUM-RATED CABLE

PP-18” ...........Remote Sensor, 18” Leads

PP-5’ ..............Remote Sensor, 5’ Leads

PP-10’ ............Remote Sensor, 10’ Leads

PP-15’ ............Remote Sensor, 15’ Leads

PP-20’ ............Remote Sensor, 20’ Leads

PP-25’ ............Remote Sensor, 25’ Leads

..........1K Platinum RTD (375 curve)

.....10K-3[11K] Thermistor

REMOTE PROBE, PLENUM-RATED CABLE

RPP-6”

RPP-18” .........Remote Probe, 18” Leads

RPP-5’ ...........Remote Probe, 5’ Leads

RPP-10’ .........Remote Probe, 10’ Leads

RPP-15’ .........Remote Probe, 15’ Leads

RPP-20’ .........Remote Probe, 20’ Leads

RPP-25’ .........Remote Probe, 25’ Leads

REMOTE PROBE, FEP-JACKETED CABLE

RPFEP-6” ......Remote Probe, 6” Leads

RPFEP-18” ....Remote Probe, 18” Leads

RPFEP-5’ .......Remote Probe, 5’ Leads

RPFEP-10’ .....Remote Probe, 10’ Leads

RPFEP-15’ .....Remote Probe, 15’ Leads

RPFEP-20’ .....Remote Probe, 20’ Leads

RPFEP-25’ .....Remote Probe, 25’ Leads

REMOTE PROBE, FEP-JACKETED CABLE

RPFEP2-6”
RPFEP2-18” ..Remote Probe, 18” Leads

RPFEP2-5’ .....Remote Probe, 5’ Leads

RPFEP2-10’ ...Remote Probe, 10’ Leads
RPFEP2-15’ ...Remote Probe, 15’ Leads
RPFEP2-20’ ...Remote Probe, 20’ Leads
RPFEP2-25’ ...Remote Probe, 25’ Leads

#3: Enclosure

(optional, BB2 required for units with transmitter)
BBX

BB2 .............BAPI-Box 2 (IP66, NEMA 4X)

...........Remote Probe, 6” Leads

SUITABLE FOR SUBMERSION

....Remote Probe, 6” Leads

............BAPI-Box Crossover (IP10)

Additional options are available for these units but not shown in this Selection Guide. Contact your
BAPI representative for the complete list of options. Submittal sheets without List Prices can be
downloaded from our website at www.bapihvac.com

Example Number: BA/( 10K-2 ) - ( RPP-18” ) - ( BBX )

Actual Number (with parenthesis removed): BA/10K-2-RPP-18”-BBX

Description: 10K-2 Thermistor, Outside Air Temperature Sensor, Remote Probe with Plenum Rated

Cable, 18” Cable Leads, BAPI-Box Crossover Enclosure.

Your Number: BA/
