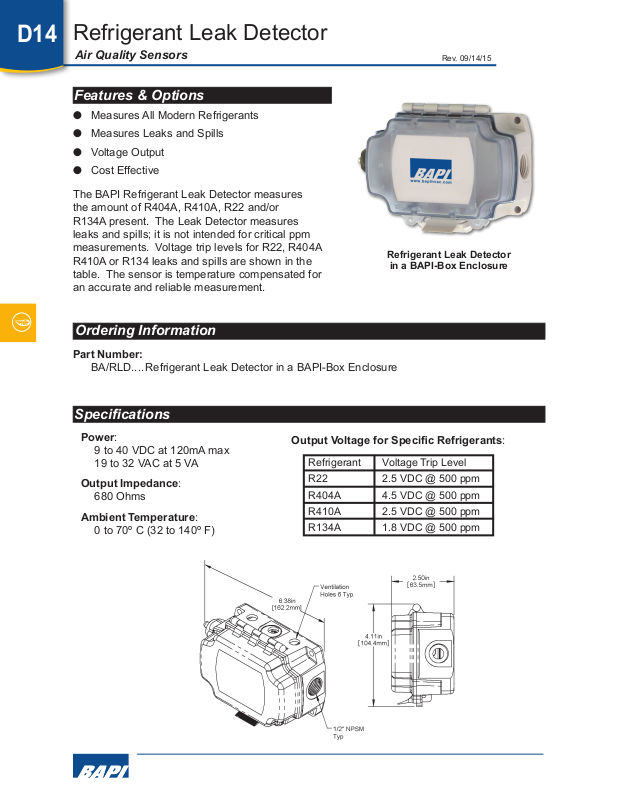

BAPI Refrigerant Leak Detector Catalog Page

D14

Refrigerant Leak Detector

Air Quality Sensors

Features & Options

l Measures All Modern Refrigerants

l Measures Leaks and Spills

l Voltage Output

l Cost Effective

The BAPI Refrigerant Leak Detector measures
the amount of R404A, R410A, R22 and/or
R134A present. The Leak Detector measures
leaks and spills; it is not intended for critical ppm
measurements. Voltage trip levels for R22, R404A
R410A or R134 leaks and spills are shown in the
table. The sensor is temperature compensated for
an accurate and reliable measurement.

Ordering Information

Rev. 09/14/15

Refrigerant Leak Detector

in a BAPI-Box Enclosure

Part Number:

BA/RLD .... Refrigerant Leak Detector in a BAPI-Box Enclosure

Specications

Power:

9 to 40 VDC at 120mA max
19 to 32 VAC at 5 VA

Output Impedance:

680 Ohms

Ambient Temperature:

0 to 70º C (32 to 140º F)

Output Voltage for Specic Refrigerants:

Refrigerant Voltage Trip Level

R22 2.5 VDC @ 500 ppm

R404A 4.5 VDC @ 500 ppm

R410A 2.5 VDC @ 500 ppm

R134A 1.8 VDC @ 500 ppm
