Duct Temperature Transmitters
BA/#-D Temperature Transmitter
Installation & Operations
20913_ins_Duct_Active

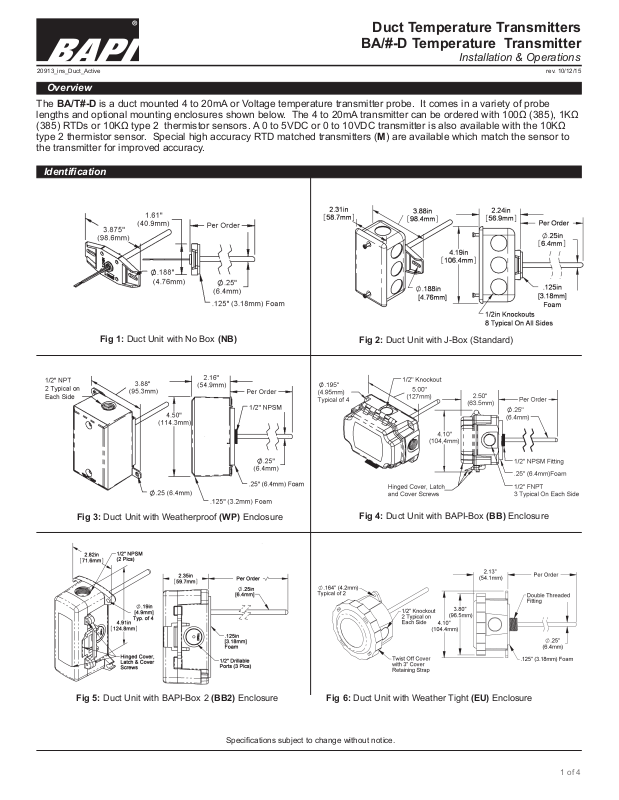

Overview
The BA/T#-D is a duct mounted 4 to 20mA or Voltage temperature transmitter probe. It comes in a variety of probe lengths and optional mounting enclosures shown below. The 4 to 20mA transmitter can be ordered with 100Ω (385), 1KΩ (385) RTDs or 10KΩ type 2 thermistor sensors. A 0 to 5VDC or 0 to 10VDC transmitter is also available with the 10KΩ type 2 thermistor sensor. Special high accuracy RTD matched transmitters (M) are available which match the sensor to the transmitter for improved accuracy.
Identication
rev. 10/12/15
Fig 1: Duct Unit with No Box (NB)
Fig 3: Duct Unit with Weatherproof (WP) Enclosure
Fig 4: Duct Unit with BAPI-Box (BB) Enclosure
Fig 5: Duct Unit with BAPI-Box 2 (BB2) Enclosure
Specications subject to change without notice.
Fig 6: Duct Unit with Weather Tight (EU) Enclosure
1 of 4
20913_ins_Duct_Active
Mounting
1. Place the sensor in the middle of the duct away from temperature stratied air, coils or humidiers to achieve the best tempera­ture reading.
2. Drill the probe hole as depicted on this page for the enclosure being used. Insert the probe into the duct.
3. Mount the enclosure to the duct using BAPI recommended #8 screws through a minimum of two opposing mounting tabs provided. Weatherproof (WP) enclosures require assembly of the mounting tabs on opposite corners. A 1/8 inch pilot screw hole in the duct makes mounting easier through the mounting tabs. Use the enclo­sure tabs to mark the pilot hole locations.
4. Snug up the sensors so that the foam backing is depressed to prevent air leak­age but do not over-tighten or strip the screw threads.
Note 1: Do not drill into the weatherproof enclosures (BB, BB2, WP, EU, EUO) which will violate the NEMA and/or the IP rating.
Note 2: Use caulk or Teon tape for your conduit entries to maintain the appropriate NEMA or IP rating for your application.
Note 3: Conduit entry for outdoor or wet ap­plications should be from the bottom of the enclosure.
BA/#-D Temperature Transmitter
Fig 7:
Junction Box or No-Box (NB)
Mounting Holes
Duct Temperature Transmitters
Installation & Operations
rev. 10/12/15
Fig 8: BAPI-Box 2 (BB2)
Enclosure Mounting Holes
Fig 9: BAPI-Box (BB) Enclosure Mounting
Holes, Rotate 90° for Horizontal Mounting
Fig 10: Weather Tight (EU or
EUO) Enclosure Mounting Holes
Specications subject to change without notice.
Fig 11: Weatherproof (WP)
Enclosure Mounting Holes
2 of 4
Duct Temperature Transmitters
BA/#-D Temperature Transmitter
Installation & Operations
20913_ins_Duct_Active
Wiring & Termination
BAPI recommends using twisted pair of at least 22AWG and sealant lled connectors for all wire connections. Larger gauge wire may be required for long runs. All wiring must comply with the National Electric Code (NEC) and local codes. Do NOT run this device’s wiring in the same conduit as high or low voltage AC power wiring. BAPI’s tests show that inaccurate signal levels are possible when AC power wiring is present in the same conduit as the sensor wires.
rev. 10/12/15
Fig. 12: Typical RTD 4 to 20mA Transmitter with Flying Leads
Fig. 14: Typical Thermistor 4 to 20mA Transmitter
Fig. 13: Typical RTD 4 to 20mA Transmitter with Terminals
Fig. 15: Typical Thermistor Voltage Transmitter
Diagnostics
Possible Problems: Possible Solutions:
Unit will not operate. - Measure the power supply voltage by placing a voltmeter across the transmitter’s (+) and
- Check if the RTD wires are physically open or shorted together and are terminated to the
- Measure the physical temperature at the temperature sensor’s location using an accurate
(-) terminal. Make sure that it matches the drawings above and power requirements in the specications.
transmitter.
temperature standard. Disconnect the temperature sensor wires and measure the temperature sensor’s resistance with an ohmmeter. Compare the temperature sensor’s resistance to the appropriate temperature sensor table on the BAPI website.
• The reading is incorrect in the controller.
- For a 4-20mA current transmitter measure the transmitter current by placing an ammeter
Voltage Temperature Equation
T = TLow + (V x TSpan) VSpan T = Temperature at sensor TLow = Low temperature of span THigh = High temperature of span TSpan = THigh - TLow VLow = Low transmitter voltage usually=(0, 1 or 2v) VHigh = High transmitter voltage usually=(5 or 10v) VSpan = VHigh - VLow V = Signal reading in volts
- Determine if the input is set up correctly in the controllers and BAS software.
in series with the controller input. The current should read according to the “4-20mA Temperature Equation” shown below.
- For a voltage transmitter, measure the signal with a volt meter (Orange or Orange/Black to Black). The signal should read according to the “Voltage Temperature Equation” shown below.
4-20mA Temperature Equation
T = TLow + (A -4) x (TSpan) 16 T = Temperature at sensor TLow = Low temperature of span THigh = High temperature of span TSpan = THigh - TLow A = Signal reading in mA
Specications subject to change without notice.
3 of 4
20913_ins_Duct_Active
Specications
RTD Transmitter
Power Required: 7 to 40VDC Transmitter Output: 4 to 20mA, 850Ω@24VDC Output Wiring: 2 wire loop Output Limits: <1mA (short), <22.35mA (open) Span: Zero: Zero & Span Adjust: 10% of span Accuracy: ±0.065% of span Linearity: ±0.125% of span Power Output Shift: ±0.009% of span RTD Sensor: 2 wire Platinum (Pt), 385 curve Transmitter Ambient -4 to 158ºF(-20 to 70ºC) 0 to 95% RH, Non-condensing
Thermistor Transmitter
Supply Voltage:
10 to 35 VDC (0 to 5 VDC or 4 to 20 mA Outputs) 15 to 35 VDC (0 to 10 VDC Output) 12 to 24 VAC (0 to 5 VDC Outputs)
15 to 24 VAC (0 to 10 VDC Output) Transmitter Output: 4 to 20mA, 700Ω@24VDC 0 to 5 & 0 to 10VDC, 10KΩ min Output Wiring: 2 & 3 wire (See wiring detail on pg. 3) Transmitter Limits: -40 to 185ºF, (-40 to 85ºC) Accuracy: ±1.015ºC, from (0 to 65ºC) Linearity: ±0.065ºC, from (0 to 65ºC) Resolution: Span/1024 Thermistor Sensor: 10K-2 Thermistor, 10KΩ @77ºF Transmitter Ambient: 32 to 158ºF, (0º to 70ºC) 0 to 95% RH, Noncondensing
Thermistor: 10K-2,Thermal Resistor (Bare Sensor) Accuracy (Std): ±0.36ºF, (±0.2ºC) Accuracy (High): ±0.18ºF, (±0.1ºC), [XP] option Stability: < 0.036ºF/Year, (<0.02ºC/Year) Heat Dissipation: 2.7 mW/ºC Probe Range: -40º to 221ºF (-40º to 105ºC) Wire Colors: Standard: Yellow/Yellow (no polarity) High Acc. [XP]: Yellow/Yellow (no polarity)
RTD:
Platinum (Pt): 100Ω and 1KΩ @0ºC, 385 curve, Pt Accuracy (Std): 0.12% @Ref, or ±0.55ºF, (±0.3ºC) Pt Accuracy (High): 0.06% @Ref, or ±0.277ºF, (±0.15ºC), [A]option
Pt Stability: ±0.25ºF, (±0.14ºC) Pt Self Heating: 0.4 ºC/mW @0ºC Pt Probe Range: -40º to 221ºF, (-40 to 105ºC) Wire Colors: 1KΩ, Class B Orange/Orange (no polarity) 1KΩ, Class A Orange/White (no polarity) 100Ω, Class B Red/Red (no polarity) 100Ω, Class A Red/Red-w/black stripe (no polarity)
Min. 30ºF (17ºC), Max 1000ºF, (555ºC) Min. -148°F (-100°C), Max 900ºF (482ºC)
Resistance Temp Device (Bare Sensor)
General color code (other colors possible)
Duct Temperature Transmitters
BA/#-D Temperature Transmitter
Installation & Operations
rev. 10/12/15
Sensitivity: Approximate @ 32ºF (0ºC) Thermistor: Non-linier (See www.bapihvac.com, click “Sensor Specs”)
RTD (Pt): 3.85Ω/ºC for 1KΩ RTD
0.385Ω/ºC for 100Ω RTD
Lead Wire: 22awg stranded
Insulation: Etched Teon, Plenum rated
Probe: 304 Stainless steel, 0.25” OD
Probe Length:
Duct Gasket: 1/4” Closed cell foam (impervious to mold)
Mounting: Extension tabs (ears), 3/16” holes
Enclosure Types: (Part number designator in bold)
J-Box: -JB, w/ eight ½” knock-outs Weatherproof: -WP, w/ two ½” FNPT entries, (Bell box) BAPI-Box: -BB, w/ four ½” NPSM & one ½” drill-out BAPI-Box 2: Weather Tight: -EU, EUO, w/ two ½” knock-outs
Enclosure Ratings: (Part number designator in bold) J-Box: -JB, NEMA 1 Weatherproof: -WP, NEMA 3R, IP14 BAPI-Box: -BB, NEMA 4, IP66, UV Rated BAPI-Box 2: -BB2, NEMA 4, IP66, UV Rated Weather Tight: -EU, NEMA 4, IP66 Weather Tight: -EUO, NEMA 4, IP66, UV rated
Enclosure Material: (Part number designator in bold) J-Box: -JB, Galvanized steel, UL94H-B Weatherproof: -WP, Cast Aluminum, UV rated BAPI-Box: -BB, Polycarbonate, UL94V-0, UV rated BAPI-Box 2: -BB2, Polycarbonate, UL94V-0, UV rated Weather Tight: -EU, ABS Plastic, UL94V-0 Weather Tight:
Ambient (Encl.) 0 to 100% RH, Non-condensing BAPI-Box -BB, -40ºF to 185ºF, (-40º to 85ºC) BAPI-Box 2 -BB2, -40ºF to 185ºF, (-40º to 85ºC) Weather Tight -EUO, EU, -40ºF to 185ºF, (-40º to 85ºC) J-Box & No Box -JB, NB, -40ºF to 212ºF, (-40º to 100ºC) Weatherproof -WP, -40ºF to 212ºF, (-40º to 100ºC)
Agency RoHS, PT=DIN43760, IEC Pub 751-1983, JIS C1604-1989
2’, 4’, 8’ or per order
-BB2, w/ three ½” NPSM & three ½” drill-outs
-EUO, ASA (Geloy) Plastic, UL94V-0, UV rated
Related Products
BA/SFC1000-100 Sealant lled crimp connectors (100 connectors) BA/SFC2000-100 Sealant lled crimp twist on wire nuts (100 nuts)
Specications subject to change without notice.
4 of 4
