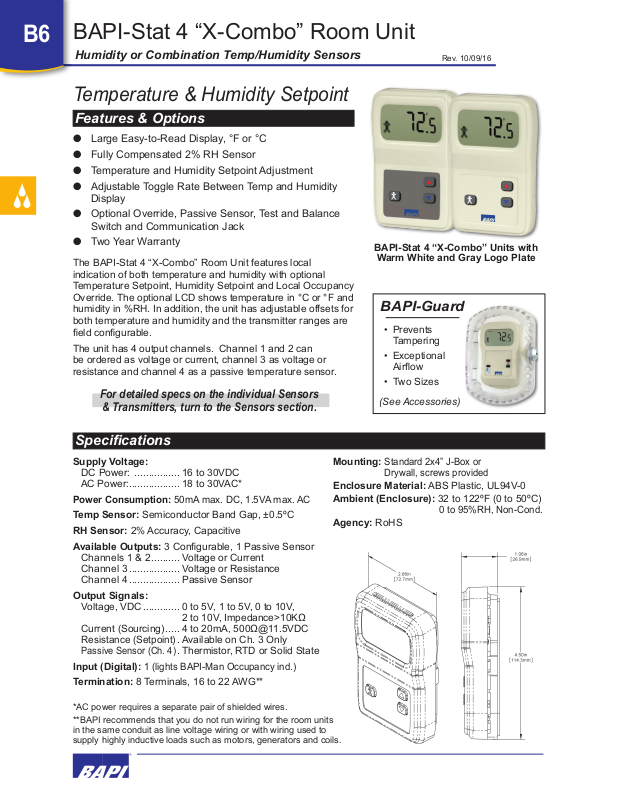

BAPI BAPI-Stat 4 “X-Combo” Room Unit Catalog Page

B6
BAPI-Stat 4 “X-Combo” Room Unit
Humidity or Combination Temp/Humidity Sensors
Temperature & Humidity Setpoint
Features & Options
Large Easy-to-Read Display, °F or °C
Fully Compensated 2% RH Sensor
Temperature and Humidity Setpoint Adjustment
Adjustable Toggle Rate Between Temp and Humidity
Display
Switch and Communication Jack
Two Year Warranty
The BAPI-Stat 4 “X-Combo” Room Unit features local indication of both temperature and humidity with optional Temperature Setpoint, Humidity Setpoint and Local Occupancy Override. The optional LCD shows temperature in °C or °F and humidity in %RH. In addition, the unit has adjustable offsets for both temperature and humidity and the transmitter ranges are fi eld confi gurable.
The unit has 4 output channels. Channel 1 and 2 can be ordered as voltage or current, channel 3 as voltage or resistance and channel 4 as a passive temperature sensor.
For detailed specs on the individual Sensors
& Transmitters, turn to the Sensors section.
Rev. 10/09/16
BAPI-Stat 4 “X-Combo” Units with
Warm White and Gray Logo Plate
BAPI-Guard
• Prevents Tampering
• Exceptional Airfl ow
• Two Sizes
(See Accessories)
Specifi cations
Supply Voltage:
DC Power: ................ 16 to 30VDC
AC Power:.................. 18 to 30VAC*
Power Consumption: 50mA max. DC, 1.5VA max. AC
Temp Sensor: Semiconductor Band Gap, ±0.5ºC
RH Sensor: 2% Accuracy, Capacitive
Available Outputs: 3 Confi gurable, 1 Passive Sensor
Channels 1 & 2 .......... Voltage or Current
Channel 3 .................. Voltage or Resistance
Channel 4 .................. Passive Sensor
Output Signals:
Voltage, VDC ............. 0 to 5V, 1 to 5V, 0 to 10V,
2 to 10V, Impedance>10KΩ
Current (Sourcing) ..... 4 to 20mA, 500Ω@11.5VDC
Resistance (Setpoint) Passive Sensor (Ch. 4)
Input (Digital):
Termination: 8 Terminals, 16 to 22 AWG**
*AC power requires a separate pair of shielded wires. **BAPI recommends that you do not run wiring for the room units
in the same conduit as line voltage wiring or with wiring used to supply highly inductive loads such as motors, generators and coils.
1 (lights BAPI-Man Occupancy ind.)
. Available on Ch. 3 Only . Thermistor, RTD or Solid State
Mounting:
Enclosure Material: ABS Plastic, UL94V-0 Ambient (Enclosure): 32 to 122ºF (0 to 50ºC)
Agency: RoHS
Standard 2x4” J-Box or
Drywall, screws provided
0 to 95%RH, Non-Cond.
BAPI-Stat 4 “X-Combo” Room Unit
B7
Rev. 10/09/16
Required
Ordering Information:
X-Combo in a BAPI-Stat 4 Enclosure (required)
BA/BS4XC BAP
Exa
mple Part Number:
BA/BS4XC -F -
Your Part Number: Sh
BA/BS4XC
Notes:
* This sensor is not loop powered. The output sources the 4-20mA output. The sensor will always require external power. ** Common Ground only, for voltage, current, and resistive outputs. *** An override adds one button on the sensor. Selecting temperature a ^ Front button if setpoints are used or side button if override only. Not intended to switch a load. (0.5A MAX @24V) ^ ^ This is for the passive sensor only. Active Test & Balance is through the sensor Mode select ^ ^ ^ The option adds setpoint buttons. This sensor can only have 2 setpoint buttons. The override button is used to toggle between Temperature and Humidity setpoints Call BAPI if you have questions about the above ordering grid or the configuration of the product you are ordering.
I-Stat 4 w/ Optional (Rm. Temp., Rm. RH, Temp. Setpoint, Humidity Setpoint, Override and/or Display) $165 $______
