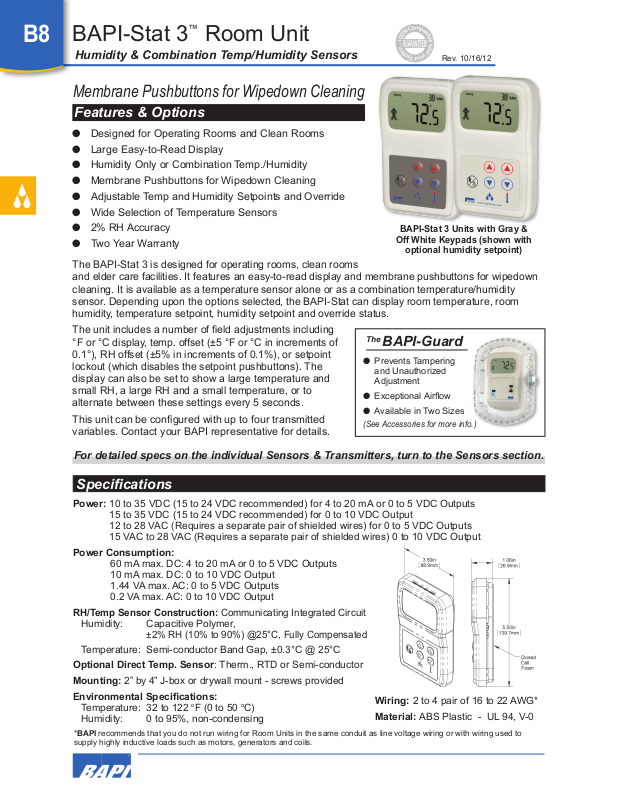

BAPI-Stat 3™ Room Unit
Humidity & Combination Temp/Humidity Sensors
Rev. 10/16/12
Membrane Pushbuttons for Wipedown Cleaning
Features & Options
Designed for Operating Rooms and Clean Rooms
Large Easy-to-Read Display
Humidity Only or Combination Temp./Humidity
Membrane Pushbuttons for Wipedown Cleaning
Adjustable Temp and Humidity Setpoints and Override
Wide Selection of Temperature Sensors
2% RH Accuracy
Two Year Warranty
The BAPI-Stat 3 is designed for operating rooms, clean rooms
and elder care facilities. It features an easy-to-read display and membrane pushbuttons for wipedown
cleaning. It is available as a temperature sensor alone or as a combination temperature/humidity
sensor. Depending upon the options selected, the BAPI-Stat can display room temperature, room
humidity, temperature setpoint, humidity setpoint and override status.
The unit includes a number of fi eld adjustments including
°F or °C display, temp. offset (±5 °F or °C in increments of
0.1°), RH offset (±5% in increments of 0.1%), or setpoint
lockout (which disables the setpoint pushbuttons). The
display can also be set to show a large temperature and
small RH, a large RH and a small temperature, or to
alternate between these settings every 5 seconds.
This unit can be confi gured with up to four transmitted
variables. Contact your BAPI representative for details.
The
Prevents Tampering
Exceptional Airfl ow
Available in Two Sizes
(See Accessories for more info.)
BAPI-Stat 3 Units with Gray &
Off White Keypads (shown with
optional humidity setpoint)
BAPI-Guard
and Unauthorized
Adjustment
For detailed specs on the individual Sensors & Transmitters, turn to the Sensors section.
Specifi cations
Power: 10 to 35 VDC (15 to 24 VDC recommended) for 4 to 20 mA or 0 to 5 VDC Outputs
15 to 35 VDC (15 to 24 VDC recommended) for 0 to 10 VDC Output
12 to 28 VAC (Requires a separate pair of shielded wires) for 0 to 5 VDC Outputs
15 VAC to 28 VAC (Requires a separate pair of shielded wires) 0 to 10 VDC Output
Power Consumption:
60 mA max. DC: 4 to 20 mA or 0 to 5 VDC Outputs
10 mA max. DC: 0 to 10 VDC Output
1.44 VA max. AC: 0 to 5 VDC Outputs
0.2 VA max. AC: 0 to 10 VDC Output
RH/Temp Sensor Construction: Communicating Integrated Circuit
Humidity: Capacitive Polymer,
Temperature: Semi-conductor Band Gap, ±0.3°C @ 25°C
Optional Direct Temp. Sensor: Therm., RTD or Semi-conductor
Mounting: 2” by 4” J-box or drywall mount - screws provided
Environmental Specifi cations:
Temperature: 32 to 122 oF (0 to 50 oC)
Humidity: 0 to 95%, non-condensing
*BAPI recommends that you do not run wiring for Room Units in the same conduit as line voltage wiring or with wiring used to
supply highly inductive loads such as motors, generators and coils.
±2% RH (10% to 90%) @25°C, Fully Compensated
Wiring: 2 to 4 pair of 16 to 22 AWG*
Material: ABS Plastic - UL 94, V-0
BAPI-Stat 3™ Room Unit
-10
-11
-12
-13
-14
-15
-16
-17
-18
-20
-22
-24
-25
-26
-27
-28
-29
-2
2K Silicon RTD, 2,000 Ω @ 20 °C, 8 Ω/°C temp. coeff.
-100
100K Thermistor, 100,000 Ω @ 25 °C
-592
AD592 Semiconductor, 273 µA @ 0 °C
EXAMPLE
-10M-24
Humidity Sensor Accuracy
Setpoint Output, %RH 0 - 5V
Ordering Information BAPI-Stat 3 Room Unit - Temperature, Humidity or Combination
Channel # 1* - T , H , R are placeholders for the range options. (See inset charts)
Setpoint Output, Temperature 4 - 20 mA
Setpoint Output, Temperature 0 - 10V
Setpoint Output, %RH Resistive w/o Override (DF is wired to Channel 3 & 4)
Override Only [5 V -> 0 V -> 5V] (Common Ground required)
Optional Additional Outputs Ch 3 & 4 - T , H, R are placeholders for range options. (See inset charts)
Channel # 2*
%RH Output, 4 - 20 mA
%RH Output, 0 - 10 V
Setpoint Output, Temperature 0 - 5 V
Setpoint Output, %RH Resistive w/ Override (DF is wired to Channel 3 & 4)
Optional Communication Jack
Optional Sensor Type Ch 5
CG
Designator
Rev. 10/16/12
BA/BS3
Temperature Display Mode
F Temp
eratures Displayed in °F
C Temperatures Displayed in °C
2 Accuracy in % for the Relative Humidity Output (i.e. ±2% RH)
-0 T
Temperature Output, 4 - 20 mA
-1 T
Temperature Output, 0 - 5 V
-2 T
-
Setpoint Output, Temperature 0 - 5 V
3 T
Setpoint Output, %RH 4 - 20 mA
-4 H
-5 H
Temperature Output 0 - 10V
-6 T
-7 T
Setpoint Output, %RH 0 - 10V
-8 H
R = Output Range Designator
Designator Output Range Span
00 0 to 5 V 5 Volts
01 1 to 5 V 4 Volts
02 3.7 to 0.85 V 2.85 Volts
03 5 to 0 V 5 Volts
04 4.2 to 1.2 V 3 Volts
10 0 to 10 V 10 Volts
20 889 to 111 Ω 778Ω
21 792 to 208 Ω 584Ω
22 695 to 305 Ω 390Ω
23 674 to 274 Ω 400Ω
24 597 to 305 Ω 292Ω
25 800 to 1200 400Ω
26 909 to 1309 400Ω
27 1800 to 2200 400Ω
28 866 to1286 400Ω
40 0 to 1 kΩ 1 kΩ
41 500 to 1500 Ω 1 kΩ
42 2 to 3 kΩ 1 kΩ
43 249 to 1249 Ω 1 kΩ
44 10 to 11 kΩ 1 kΩ
45 12.5K-11.5K Ω 1 kΩ
46 1K to 0 Ω 1 kΩ
47 182 to 1182 Ω 1 kΩ
50 0 to 5 kΩ 5 kΩ
51 7.87k to 2.87kΩ 5 kΩ
60 0 to 10 kΩ 10 kΩ
61 15 to 5 kΩ 10 kΩ
62 9577 to 1422 Ω
63 1 to 11 kΩ 10 kΩ
64 200 to 10200 10 kΩ
80 0 to 20 kΩ 20 kΩ
81 4.75 to 24.75 kΩ 20 kΩ
82 6.19 to 26.19 kΩ 20 kΩ
83 7.87 to 27.87 kΩ 20 kΩ
84 10 to 30 kΩ 20 kΩ
BA/BS3 F
2
0 C
Example Part Number: BA/BS3F2-0C-10M-24C80CG-61CG-102-C35L-TB-GRY
Your Part Number:
All ranges and options may not be shown here, call BAPI for additional options or with questions about this ordering grid
* Channel 1 or 2 are Common Ground
** Test & Balance is only available with Direct Sensor Type Output
***Must use a 10K-2 thermistor for the External Sensor option. Thermistor is purchased separately. (25’ max) This option is only available on units without humidity
(skip if ordering a temperature only unit)
- T , H , R are placeholders for the range options. (See inset charts)
H
%RH Output, 0 - 5 V
H
T
Setpoint Output, Temperature 4 - 20 mA
T
H
Setpoint Output, %RH 4 - 20 mA
H
Setpoint Output, %RH 0 - 5 V
H
T
Setpoint Output, Temperature 0 - 10 V
Setpoint Output, %RH 0 - 10 V
H
T R G
H R G
T R G
T R G
H R G
H R G
T = Temperature, Output &
Display Range
°F °C
A
-3 to +3 -3 to +3
B
-5 to +5 -5 to +5
C
50 to 90 °F 10 to 32 °C
D
55 to 85 °F 13 to 30 °C
E
60 to 80 °F 15 to 27 °C
F
65 to 80 °F 18 to 27 °C
G 45 to 96 °F 7 to 35 °C
J
68 to 78 °F 20 to 26 °C
K
65 to 95 °F 18 to 35 °C
L
70 to 74 °F 21 to 23 °C
P -2 to +2 -2 to +2
X
40 to 80 °F 4 to 27 °C
H = Relative Humidity Range
Designator
M
N
G = Connection Configuration
Common Grnd
Differential Grnd
DF
C 80CG-61 CG -102 -C35L
Humidity & Combination Temp/Humidity Sensors
Setpoint Output, Temperature Resistive w/ Override (DF is wired to Channel 3 & 4)
Setpoint Output, Temperature Resistive w/o Override (DF is wired to Channel 3 & 4)
Setpoint Output,Temperature voltage w/o Override (Common Ground required)
Setpoint Output, %RH Voltage w/o Override (Common Ground required)
Override Only [High Ω -> Low Ω ->High Ω] (DF is wired to Channel 3 & 4)
G
G
Optional Override Ch 3 or 4 - dry contact
-60 G Dry Contact Override Ch4 (If the unit is DF, use terminals CH3 & CH4)
-61 G Dry Contact Override Ch5 [Temp - Temp]
-0
100 Platinum RTD, 100 Ω @ 0 °C, 0.385 Ω/°C temp. coeff.
%RH
0 to 100
35 to 70
Type
-1375
-1NI
-1
-18
-3
-33
-102
-103
-10311
-20
-50
-ES
inum RTD, 1,000 Ω @ 0 °C, 3.75 Ω/°C temp. coeff.
1K Plat
1K Ω Nickel RTD, 1,000 Ω @ 21°C, 5 Ω/°C temp. coeff.
latinum RTD, 1,000 Ω @ 0 °C, 3.85 Ω/°C temp. coeff.
1K P
1.8K Thermistor, 1,800 Ω @ 25 °C
3K Thermistor, 3,000 Ω @ 25 °C
hermistor, 3,300 Ω @ 25 °C
3.3K T
10K-2 Thermistor, 10,000 Ω @ 25 °C
10K-3 Thermistor, 10,000 Ω @ 25 °C
10K-3[11K] Therm., 5,238 Ω @ 25 °C, 11kΩ shunt resistor
20K Thermistor, 20,000 Ω @ 25 °C
50K Thermistor, 50,000 Ω @ 25 °C
External Sensor connection. 10K-2 thermistor purchased separately.***
-C11L
-C11LT
-C35L
-C35LT
-C22L
-C22LT
(if resistive sensor required)
RJ11 (4 pin) Style Jack with Leads
RJ11 (4 pin) Style Jack w/ Leads and Terminal Block
3.5 mm Phono Jack w/ Leads Attached
3.5 mm Phono Style Jack w/ Leads and Term. Block
RJ22 (4 pin) Style Jack with Leads Attached
RJ22 (4 pin) Style Jack with Leads and Terminal Block
Optional Test & Balance Switch**
Three Position Switch - "Low" & "High" values vary,
-TB
"Normal" is live sensor value, call for details.*
Keypad Color Must Select One
-GRY
Gray Keypad Color
-OFW
Off White Keypad Color
-TB -GRY
