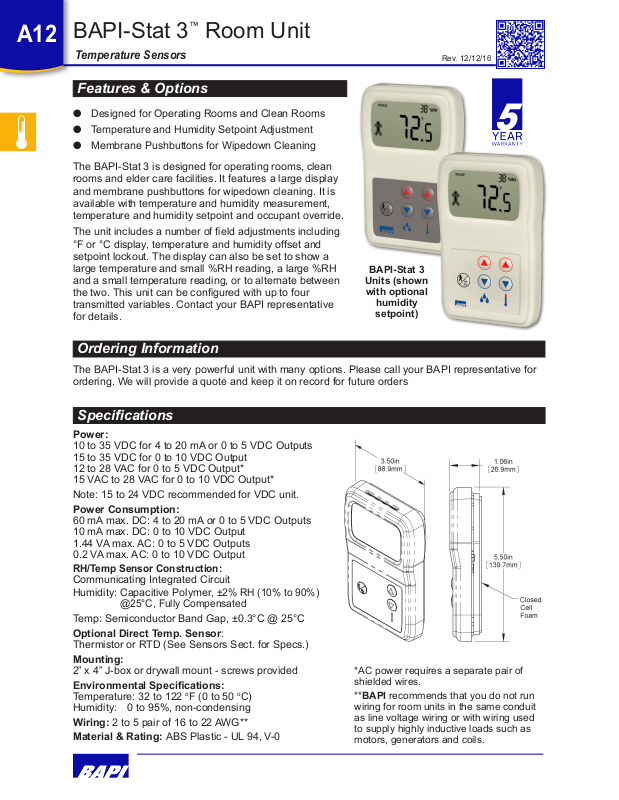

BAPI-Stat 3™ Room Unit
Temperature Sensors
Features & Options
l Designed for Operating Rooms and Clean Rooms
l Temperature and Humidity Setpoint Adjustment
l Membrane Pushbuttons for Wipedown Cleaning
The BAPI-Stat 3 is designed for operating rooms, clean
rooms and elder care facilities. It features a large display
and membrane pushbuttons for wipedown cleaning. It is
available with temperature and humidity measurement,
temperature and humidity setpoint and occupant override.
The unit includes a number of eld adjustments including
°F or °C display, temperature and humidity offset and
setpoint lockout. The display can also be set to show a
large temperature and small %RH reading, a large %RH
and a small temperature reading, or to alternate between
the two. This unit can be congured with up to four
transmitted variables. Contact your BAPI representative
for details.
Rev. 12/12/16
BAPI-Stat 3
Units (shown
with optional
humidity
setpoint)
Ordering Information
The BAPI-Stat 3 is a very powerful unit with many options. Please call your BAPI representative for
ordering. We will provide a quote and keep it on record for future orders
Specications
Power:
10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC Outputs
15 to 35 VDC for 0 to 10 VDC Output
12 to 28 VAC for 0 to 5 VDC Output*
15 VAC to 28 VAC for 0 to 10 VDC Output*
Note: 15 to 24 VDC recommended for VDC unit.
Power Consumption:
60 mA max. DC: 4 to 20 mA or 0 to 5 VDC Outputs
10 mA max. DC: 0 to 10 VDC Output
1.44 VA max. AC: 0 to 5 VDC Outputs
0.2 VA max. AC: 0 to 10 VDC Output
RH/Temp Sensor Construction:
Communicating Integrated Circuit
Humidity: Capacitive Polymer,
@25°C, Fully Compensated
Temp: Semiconductor Band Gap, ±0.3°C @ 25°C
Optional Direct Temp. Sensor:
Thermistor or RTD (See Sensors Sect. for Specs.)
Mounting:
2” x 4” J-box or drywall mount - screws provided
Environmental Specications:
Temperature: 32 to 122
Humidity: 0 to 95%, non-condensing
Wiring: 2 to 5 pair of 16 to 22 AWG**
Material & Rating: ABS Plastic - UL 94, V-0
o
±2% RH (10% to 90%)
F (0 to 50 oC)
*AC power requires a separate pair of
shielded wires.
**BAPI recommends that you do not run
wiring for room units in the same conduit
as line voltage wiring or with wiring used
to supply highly inductive loads such as
motors, generators and coils.
