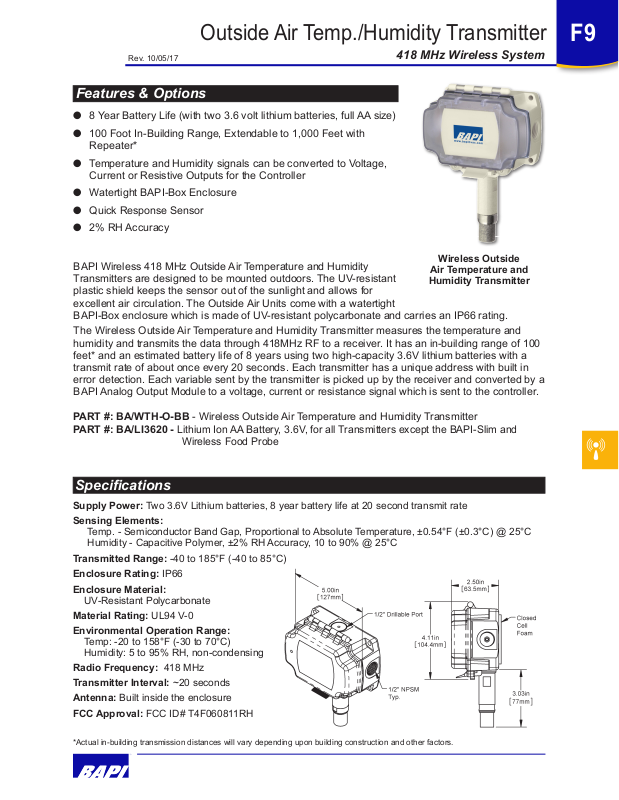

BAPI 418 MHz Wireless System Catalog Page

Outside Air Temp./Humidity Transmitter

F9

Rev. 10/05/17

418 MHz Wireless System

Features & Options

l 8 Year Battery Life (with two 3.6 volt lithium batteries, full AA size)

l 100 Foot In-Building Range, Extendable to 1,000 Feet with

Repeater*

l

Temperature and Humidity signals can be converted to Voltage,

Current or Resistive Outputs for the Controller

l

Watertight BAPI-Box Enclosure

l Quick Response Sensor

l 2% RH Accuracy

BAPI Wireless 418 MHz Outside Air Temperature and Humidity
Transmitters are designed to be mounted outdoors. The UV-resistant
plastic shield keeps the sensor out of the sunlight and allows for
excellent air circulation. The Outside Air Units come with a watertight
BAPI-Box enclosure which is made of UV-resistant polycarbonate and carries an IP66 rating.

The Wireless Outside Air Temperature and Humidity Transmitter measures the temperature and
humidity and transmits the data through 418MHz RF to a receiver. It has an in-building range of 100
feet* and an estimated battery life of 8 years using two high-capacity 3.6V lithium batteries with a
transmit rate of about once every 20 seconds. Each transmitter has a unique address with built in
error detection. Each variable sent by the transmitter is picked up by the receiver and converted by a
BAPI Analog Output Module to a voltage, current or resistance signal which is sent to the controller.

Wireless Outside

Air Temperature and

Humidity Transmitter

PART #: BA/WTH-O-BB - Wireless Outside Air Temperature and Humidity Transmitter
PART #: BA/LI3620 -

Lithium Ion AA Battery, 3.6V, for all Transmitters except the BAPI-Slim and

Wireless Food Probe

Specications

Supply Power: Two 3.6V Lithium batteries, 8 year battery life at 20 second transmit rate
Sensing Elements:

Temp. - Semiconductor Band Gap, Proportional to Absolute Temperature, ±0.54°F (±0.3°C) @ 25°C
Humidity - Capacitive Polymer, ±2% RH Accuracy, 10 to 90% @ 25°C

Transmitted Range: -40 to 185°F (-40 to 85°C)

Enclosure Rating: IP66

Enclosure Material:

UV-Resistant Polycarbonate

Material Rating: UL94 V-0

Environmental Operation Range:

Temp: -20 to 158°F (-30 to 70°C)

Humidity: 5 to 95% RH, non-condensing

Radio Frequency: 418 MHz

Transmitter Interval: ~20 seconds

Antenna: Built inside the enclosure

FCC Approval: FCC ID# T4F060811RH

*Actual in-building transmission distances will vary depending upon building construction and other factors.
