Shenchen Precision Pump
Manual of F series
Important Information
Please read the manual carefully before operating the product.
Warning
Tubing may have crack due to wear. It results in the overflow of fluid
from tubing. In that time human body and instruments may be damaged.
So user must check usually and change tubing in time.
Connect directly the power line to the wall socket, and avoid using the
extense electric line.
If the power line or plug had wear and other damage, please hold the plug
to unplug it, not hold the line.
If following situations happened, please turn off the electric power and
unplug the plug, holding the plug and not the line.
1. Fluid splash on the pump.
2. You think the pump need to maintain or amend.
The user’s power socket must have ground wire, and have reliable
grounding
Shenchen Pump F Series
Catalogue
1. F Series Product Introduction....……………………………………………-1-
2. F Series Product Appearance……………………………………………….-1-
3. F Series Keypad Instruction………………………………………...………-2-
4. F series Interface Composition……………………………………...……...-2-
5. External Control Interface Instruction ……………………………………-10-
6. F Series Technical Specification…………………………………………..-14-
7. F Series Function and Features……………………………………………-15-
8. Product Dimension………………………………………………………...-16-
9. Product Maintenance ……………………………………..………………-18-
10. Warranty and After Sales Service………………………...……………….-19-
Shenchen Pump F Series
- 1 -
C
D
E
1. F Series Product Introduction
F series of peristaltic pump, with 4.3 inch color touch screen control, graphical
interface, animation display working status, with the screen display filling
parameters and system settings, attention to user experience, suitable for
pollution-free, high-precision filling liquid, filling accuracy up to 0.5 %-1%.

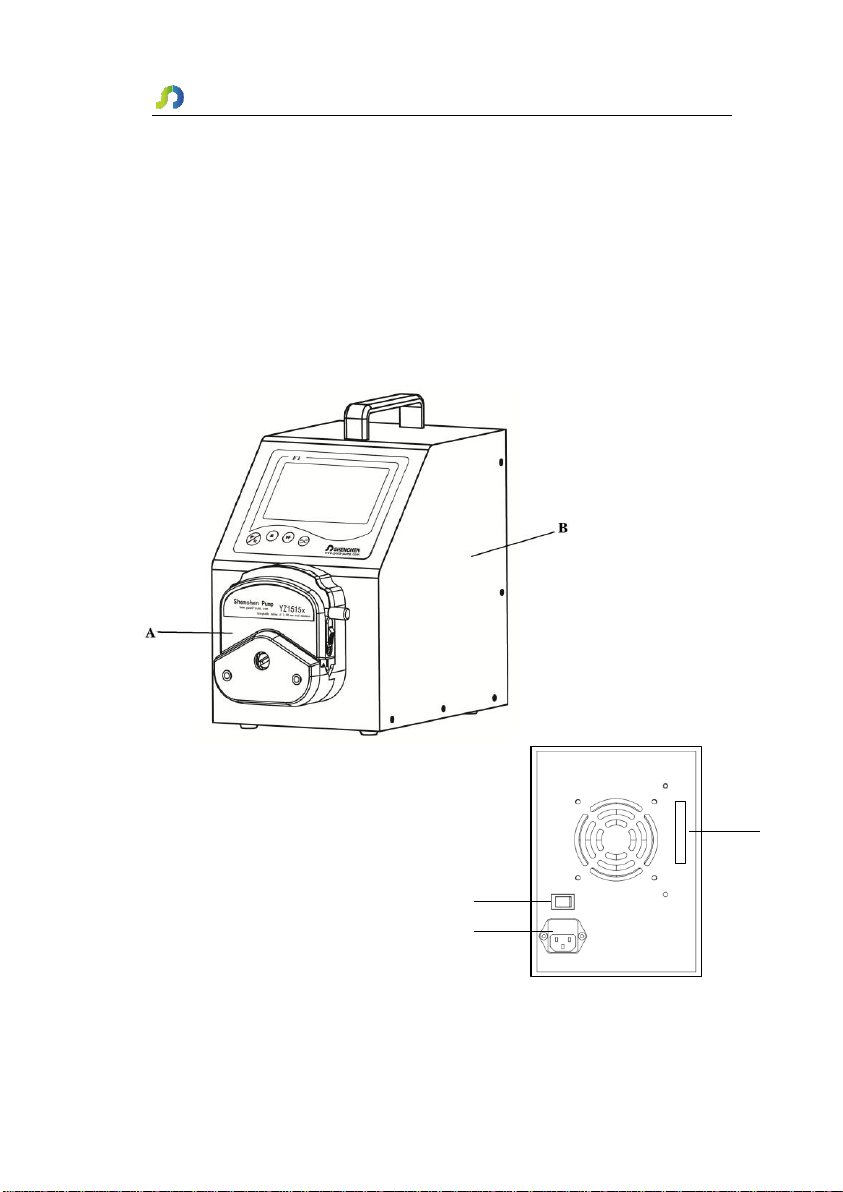

2. F Series Product Appearance
A——Pump Head
B——Drive
C——Power Switch
D——Power Socket
E——External Control Input Port
Shenchen Pump F Series
- 2 -
MAIN
Calibration
System Set
PumpHead
&Tube
Suck-Back
Angle
Date
&Time
Common
Mode
Add
Mode
Monitoring Disp. Vol. Disp. Time Pause TimeDisp. Vol.
MAIN
Calibration
System Set
PumpHead
&Tube
Suck-Back
Angle
Date
&Time
Common
Mode
Add
Mode
Monitoring Disp. Vol. Disp. Time Pause TimeDisp. Vol.
3. F Series Keypad Instruction
Run/Pause Button：In dispensing mode, after setting the dispensing data,
press run/pause button, the pump start work; press run/pause button again,
pause the current working. After press the run/pause button, except calibration
and monitor button all other buttons on main interface become gray, can not be
used.
In transferring mode, press run/pause button, pump start working, now it do
not have pause function.(In system setting interface, users can select working
mode: dispensing mode or transferring mode. )
Stop Button：Press stop button, stop working. Forbidden buttons can be used
on the main interface.
Full Speed Button: Press this button at the stop state, the filling unit will
running with 400rpm. This button is for washing tube and filling liquid
rapidly.
CW/CCW Button: Press this button, the motor will change running direction.
4. F Series Interface Composition
Shenchen Pump F Series
- 3 -
2012-3-15 8:45:05 AM
00.00
ml
/
C
F
KJI
G H
B A D E
Disp. Vol. 10.00 ml
Disp. Time 1.00 s
Pause Time 1.00 s
Copy CNT 0000/0005
Pump Head YZ1515x
Tube Size 25#
Suck-Back 0.00
Work Status
F Series Operation Interface Instruction:
4.1.Booting Interface：
After power on the system, enter the welcome interface, Click anywhere or wait
for 2.5 seconds, the system will automatically enter the English main interface.
4.2.Main Interface：
Main Interface Composition as below:
A. Real-time Display Volume: Select the specific mode and display
content in the system setting interface. In transfering mode, display the
speed or flow rate in real time, you can modify the motor speed or flow
rate by directly clicking on A area. In dispensing mode, display
dispensing volume or current total dispensing numbers.
B. Real-time Dynamic Display: Display the dispensing and transferring
state and monitor result
C. Real-time Parameter Display
In dispensing mode: Display dispensing parameters, include dispensing
volume, current dispensing time count down, current pause time count
down, copy numbers.
In transferring mode: Display the current transferring total volume,
and current working time. The total transferring volume maximum is
9999L. The current working time maximum is 9999 hour. Each one of it
Shenchen Pump F Series
- 4 -
reach the limit, both data will back to zero. Also can set the data back to
zero in the system setting.
D. Set Parameter Display: This area display current working state, pump
head, tubing size and suck-back angle
E. Date and Time Display: Display the current date and time, can amend it
in system settings
F. System Setting Button: Press this button enter system setting interface,
include set the pump head and tube size, set the suck-back angle, set
common mode, set current date and time.
G. Flow Calibration Button: Press this button enter calibration interface.
H. Real-time Monitor Button: Press this button enter monitor interface,
you can check the flow rate, motor speed and dispensing efficiency here.
I. Dispensing Volume Button: Press this button, the numerical keyboard
come out, input the dispensing volume here
J. Time Button: Press this button, the numerical keyboard come out, input
the filling time. Click confirm, it will ask whether continue to input the
pause time, choose ‘YES’, you can input the pause time, choose ‘NO’,
back to the main interface
K. Copy Numbers Button: Press this button, the numerical keyboard come
out, input the copy numbers. If input ‘0’, the copy number is unlimited
4.3. Basic Configuration Interface：
Shenchen Pump F Series
- 5 -
On the main interface, click System Setting button, click Configuration button,
enter Configuration interface.
Click Pump Head, Tube Size drop-down menu choose pump head and tube.
Reference flow rate display the minimum and maximum flow rate of the pump
head and tube.
4.4. Mode Setting Interface
In main interface click ‘ System setting’ button, click’ Mode setting’ button, enter
mode setting interface. Users can choose transferring mode or dispensing mode
freely. According with user’s request, in transferring mode, can choose display
motor speed or flow rate; in dispensing mode, can choose display filling volume
or copy numbers. The display mode decide the content display in A area of main
interface, can display current dispense volume or total numbers. Maximum
dispense numbers is 9999, manual reset.
4.5 Back Suction Angle Setting Interface
Back suction angle setting interface as below：
Shenchen Pump F Series
- 6 -
Please enter back suction angle
360.00
Back Suction angle
range: 0~360
Settings can raise the
dispensing accuracy,
Please re-calibrate the
flow rate.
！
CancelOK
Add
OK
PumpHead Tube Disp. Vol. Pause Time Suck-Back
YZ1515x
YZ1515x
14#
16#
2
7
2
2
0
0
Disp. Time
1
1
Cancel
ClearDec.
》
《
Click the System Setting button on the main interface, click Suck-back Angle
button, enter suck-back angle setting interface. Click Set Suck-back Angle button,
the numerical keyboard will come out, input the suck-back angle and click
‘Confirm’ button, all the filling unit will work with this angle. Click ‘Cancel’
button back to the system setting interface.
4.6.Common Mode Interface
Common Mode Interface as below：：
Click System Setting button on the main interface, click Common Mode button,
enter choose common mode interface.
Add Button: Click this button to add one common mode, in dispensing
mode .click ADD button to pop up and dialog box to ask if to add the curent
setting to common mode.Clike YES to add this mode. It can totally save 60
modes.
Shenchen Pump F Series
- 7 -
Delete Button：Choose one common button, click Delete button, it will ask whether
delete, click ‘YES’, then you can delete this mode.
Clear Button：Click this button, it will ask whether clear all data, click ‘YES’, then
empty all the common mode.
Selecting Button: Choose one of the common mode, click ‘OK’ button, then it will
back to the main interface. The filling parameter is same as the one you chose
from the common mode.
Cancel Button: Click this button back to the system setting interface.
Page Up/Down Button: Can check previous page or next page common mode.
4.7 Communication Settings Interface

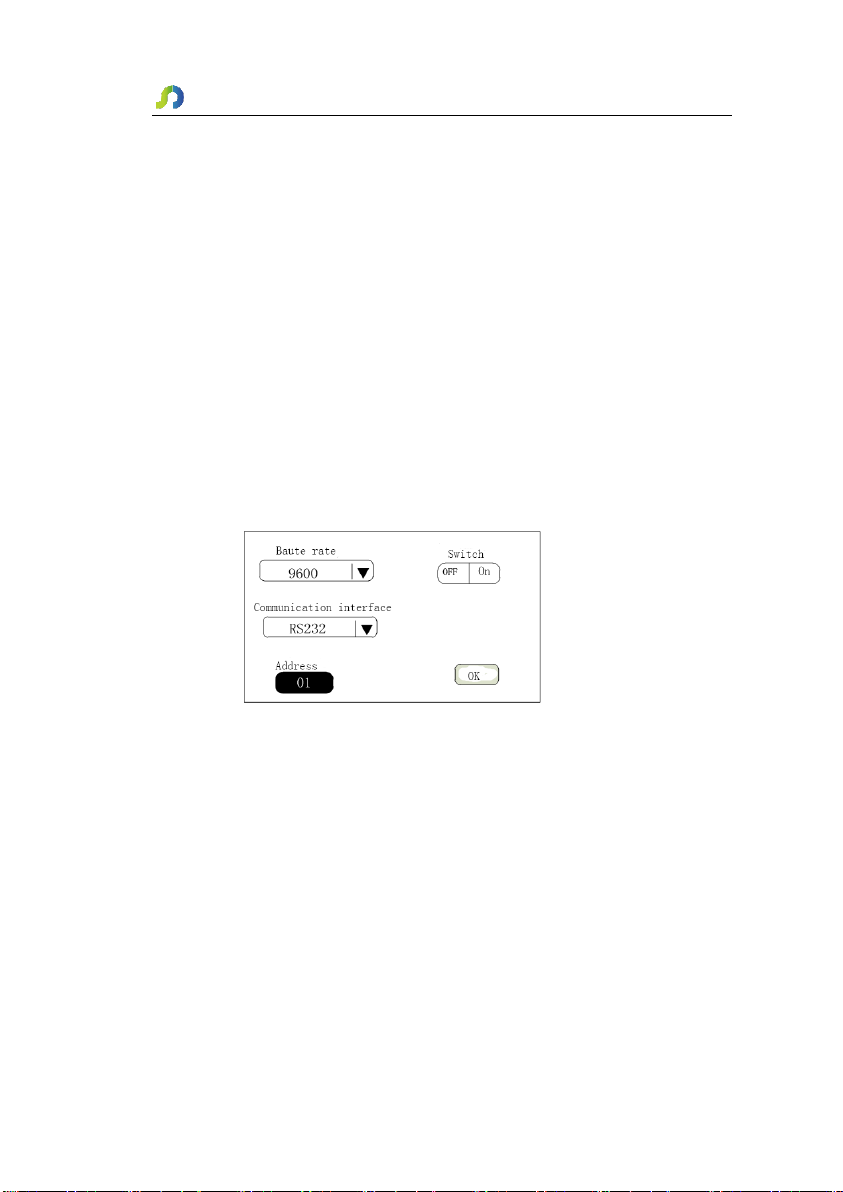

The communication setting interface as below;
Click ’System Setting’ button in main interface, click ‘Communication setting’
button,enter communication setting interface. Users can select baud rate and
communication interface RS232/RS485. Local address can be any number between
1 and 32.
4.8 Flow Calibration Interface
Flow Calibration Interface as below：
- 8 -
10.00
1.00
0.0000ml +0.0000ml
Test
Disp. Vol.
Disp. Time
Actual Vol.
Volume Adjustment
ml
s
1.00
CAL
Cancel
Add
Dec
Esc
Shenchen Pump F Series
Click ‘ Calibration’ button in main interface, enter flow rate calibration interface.
In dispensing mode, calibration interface data: dispensing volume and dispensing
time is the data set in main interface before. In transferring mode, dispensing
volume is current flow rate refer to dispensing time. Click ‘ Dispensing time’ to
change the calibration volume.
Calibration process as below:
A. Confirm dispensing volume and time.
B. Click Start button to start the test, display countdown dispensing time, it will
stop automatically, and the numerical keyboard come out, you can input the actual
dispensing volume. After input the actual dispensing volume, it will ask whether
continue test ( suggest 3 times), choose ‘YES’, it will test again; choose ‘NO’, back
to the calibration interface.
C. After several tests, actual dispensing volume display area display the average
volume, click ‘Calibration’ button, display calibrate successful.
D. If request higher accuracy, you can use the adjust function, click ‘Add’ or ‘Dec’
button, micro adjust the dispensing volume, meet high accuracy dispensing.
Online Micro Adjust Dispensing Volume Process：
If the dispensing volume is not correct during working, this function can micro
adjust the volume online without affect the production line.
A) Click the Calibration button on the main interface, enter flow calibration
interface.
B) Now only the ‘Add’, ‘Dec’ and ‘Esc’ button can be used, other button is
Shenchen Pump F Series
- 9 -
+5V
GD1
GD2
NC
CW/CCW
R/S 2
R/S 1
COM
OUT1
OUT2
①
②
③
④
forbidden.
C) Click Add or Dec button to adjust the dispensing volume.
Click ‘Reset’ button, the data back to factory default data.
4.9. Real-time Monitor Interface
A. Dispensing model Monitor Interface as below：
Click Monitor button on the main interface to enter the monitor interface, check
the current flow rate, motor speed and dispensing efficiency.
B. Transferring mode monitoring interface as shown below
From the main interface, click the monitor button to enter the monitoring interface,
can check the current flow rate and motor speed.
4.10. Date and Time Setting Interface
Date and Time Setting Interface as below：
Shenchen Pump F Series
- 10 -
Back
12-hour
24-hour
Set Date
Set Time
2012-3-15
8:45:35 AM
Thursday
Click Date and Time display in the main interface, enter the date and time setting
interface.
Click Set Date button, the numerical keyboard come out, input the Year, setting
year range is 1970-2099. After input the year, click confirm to set the month and
day. Click Set Time button, the numerical keyboard come out, input the hour,
minute and second.
5. External Control Interface Instruction
External Control Interface Instruction:
1) Interior +5VDC output
2) External control direction, start/stop signal input port: Active signal input (5
Shenchen Pump F Series
- 11 -
VDC)
If need change to 24VDC or 12VDC input, please open the controller
housing, and change the jumper connection on the external control
board as below :
The signal recognition is rising edge effective, the minimum duration of the high
level is 200ms.
GD2：The common port of the external control signal input.
NC：External control full speed signal input ( full speed with high level signal, stop
with low level signal).
CW/CCW：External control direction signal input (signal rising edge effective. )
R/S 2: External control start signal input ( signal rising edge effective).
3) R/S 1 :External control start/stop signal input port: Passive signal input
This port can be connected to a passive switch or a foot switch. Set the validity of
this input in the external control setting interface - foot switch option.
Shenchen Pump F Series
- 12 -
External control diagram as below:
A. Disconnect K1 after short connect, the motor start working, disconnect
again after short connect , pump pause working.
B. Short connect K3, the pump working with full speed. Disconnect, pump
back to previous working status.
C. Each time disconnect K2 after short connect, the motor change working
direction.
D. Disconnect K4 after short connect, the motor start working. Disconnect
again after short connect, the motor stop working.
4) Motor working status output.
- 13 -
RXD
TXD
GND
Shenchen Pump F Series
If it is an external relay, when the motor is running, K1 is closed, and when it
stops, K1 is disconnected.
5) RS232 communication port: Select RS232 in the communication setting
interface, this port is valid.
GND: Communication ground terminal.
TXD: Master sending, peristaltic pump receive signal terminal.
RXD: Peristaltic pump sending, master receive signal terminal.
RS232 connection wiring diagramme as below:
6) RS485 communication port: Select RS485 in the communication setting
interface, this port is valid.
GD1:RS485 ground wire.
A+:connect with RS485 A+.
B-: connect with RS485 B-.
Note:A. Choose RS232 or RS485, the communication protocol is both
standard MODBUS protocol.
B. Only when the pump in main interface, RS232 and RS485
communication is workable.
Shenchen Pump F Series
- 14 -
Dispensing Volume Range
0.1-9999.99ml
Power supply
AC 220V±10% 50Hz/60Hz
（standard）
AC 110V±10% 50Hz/60Hz
（option）
Dispensing Time Range
0.5-9999.99s
External
Control
Start/Stop signal
Pause Time Range
0.5-9999.99s
Communicatio
n
RS232/RS485
Dispensing Volume
Resolution
0.01ml
Temperature
0-40℃
Time Resolution
0.01s
Relative
Humidity
<80%
Dispensing Numbers Range
1-9999，0 is unlimited.
Output
Output motor speed (Open
collector output)
Back suction angel
0-360°
IP rate
IP31
Motor speed
F1
1-150rpm
F3
1-350rpm
F6，F6-3L，F6-6L，
F6-12L
1-600rpm
Power consumption
F1/F3/F6
<50W
F6-3L
<80W
F6-6L
<180W
F6-12L
<300W
Motor type
F1/F3/F6
Stepper motor
F6-3L/F6-6L/F6-12L
Servo motor
6. F Series Technical Specification
Shenchen Pump F Series
- 15 -
7. F Series Function and Features
Accurate angle control technology for high precision filling.
Color screen touch control, friendly interface, animation display filling status,
same screen display filling parameters and system settings.
Intelligent calibration function to calibrate the filling volume before
production to ensure filling accuracy.
Online fine-tuning function makes it easy for you to fine-tune in real time
during production to prevent hose fatigue and elasticity from reducing errors.
60 common filling modes can be stored, saving users time setting parameters
and improving work efficiency.
Back suction angle setting to avoid liquid dripping during shutdown.
External control start and stop function, realize unified control of upper
computer when supporting filling line.
Quick filling function, you can clean the hose or fill the pipeline with liquid.
Support RS232/RS485communication.
304 stainless steel casing, anti-corrosion, no rust, in line with pharmaceutical
GMP requirements.
Shenchen Pump F Series
- 16 -
8. Product Dimension ( Unit: mm)
F1/F3/F6 dimension drawing as below:
F6-3L dimension drawing as below:
Shenchen Pump F Series
- 17 -
F6-6L dimension drawing as below:
F6-12L dimension drawing as below:
Shenchen Pump F Series
- 18 -
9. Maintenance
When the pump is not working, loosen the tubing, avoid the tubing get plastic
deformation because of long time pressure.
The pump drive and pump head do not resist strong corrosive liquids, please
pay attention to this when use the pump.
Keep the pump head rollers clean and dry. If the rollers is not clean, it will
increase the tubing wearing, shorten the tubing life and make the rollers
damage very soon.
If there is liquid drop on the rollers, clean it as soon as possible.
Shenchen Pump F Series
- 19 -
10. Warranty and After Sales Service
We support three years warranty (do not include tubing). During the warranty, the
pump is damaged by wrong operation or man-made sabotage, our company do not
responsible for warranty. If the product out of warranty, we only charge cost for the
replacement parts and shipping cost.
Shenchen Pump F Series
Shenchen Pump F Series
MADE IN CHINA
Baoding Shenchen Precision Pump Co., Ltd.
Address: No.103, Building 2, ZhiDian Industrial Park, FuXing East Road 999,
Baoding, China.
Tel: 0086-312-6780681, 6780680
Fax: 0086-312- 6780636
Website: www.good-pump.com
Email: info@good-pump.com
Loading...
