Flamerite Apollo Tall Electric Stove

1. Installation of Stove

WARNING: Please ensure the following are strictly adhered to upon installation.

A minimum clearance of 40mm is required around the top, both sides and to the rear of the stove. If not this may cause

the heater to cut out.

The Stove must be positioned so that the plug socket is accessible once installed. In the unlikely event of breakdown access

must be allowed to the rear of the Stove so that it may be serviced. The mains cable must therefore be long enough to
allow this. If the removal of the plug is absolutely necessary for installation, cut off within 100mm only of the plug itself.
Any further may affect your warranty.

Where the Stove is being used in an existing chimney, it is very important that the chimney and its drawn airflow are

completely blocked off to prevent directional airflow problems with the heater as well as the thermal cut out to activate.

Positioning the Stove.

If using in conjunction with one of our Fireplace suites, a piece of glass may also supplied which should be placed on the hearth for
the stove to sit on.

(Optional) 150mm Fireplace Deeper Stove Insert

Before final fitting of the fireplace the Stove Insert must be attached to the mantle. We recommend this be done as close as
possible to the hole the fireplace is to be fitted.

Push the two together and screw the back panel to the mantle using the screws in the bag labelled red into the holes only

marked in red.
Secure the base with the screws in the bag labelled black into the holes only marked in black.
Next unscrew the connection box on the inside of the mantle leg (this should be left unscrewed) and connect the wires,
Live (brown) to Live (brown) and Neutral (blue) to Neutral (blue) from the stove insert. (12v)

Now gently push the fireplace into position.

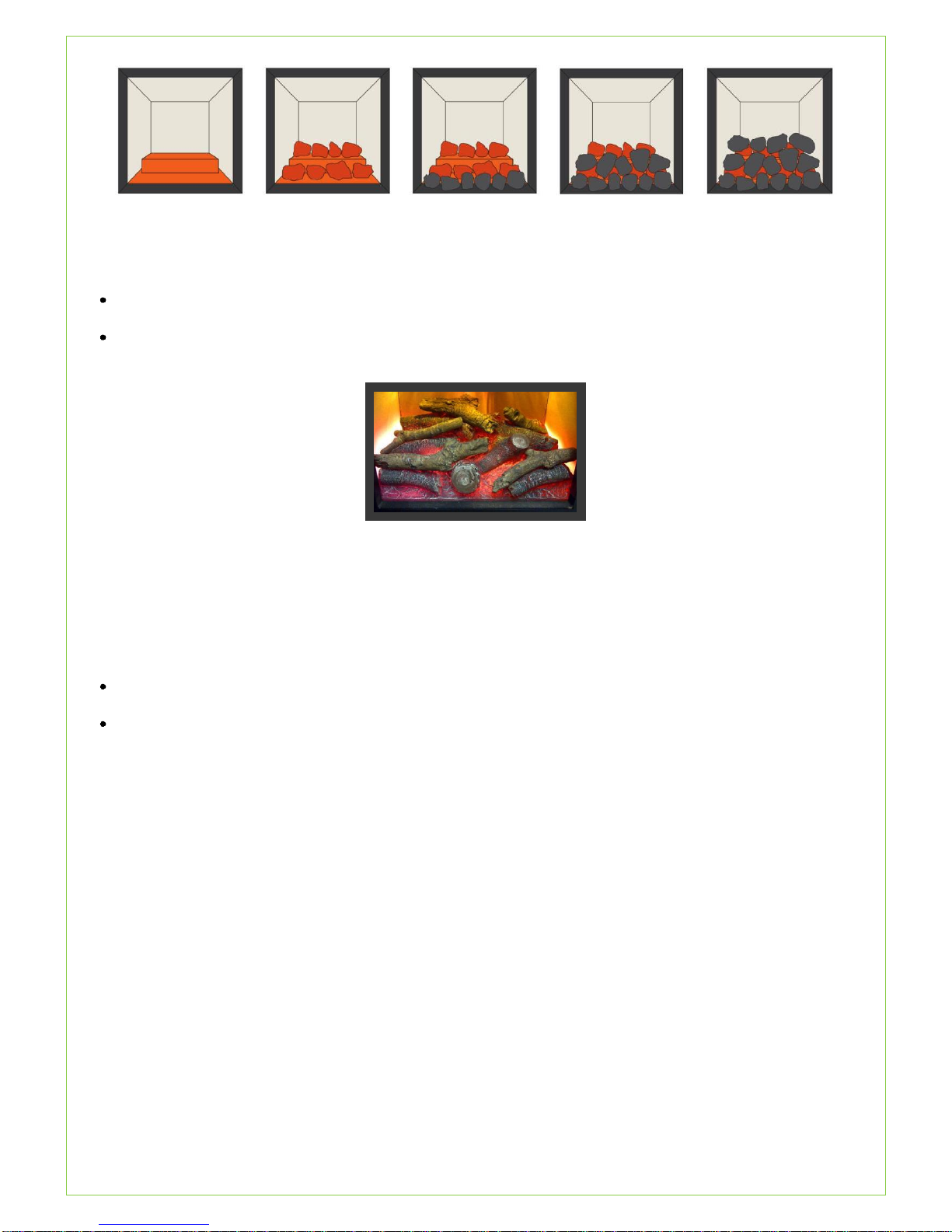

Coal Fuel Effect Layout

The stove is supplied with two pieces of orange fuel bed, 1 flat, 1 U-Shaped, 8 orange coals, 6 small, 5 medium and 4 large ceramic
coals.

Place the flat orange fuel bed into the recess above the light bulbs, followed by the U-Shaped part onto and against the

back of the chamber, open area down. Fig.1

Next proceed with placing the 8 orange coals in any order into the chamber, 4 on top of the U-Shaped part and 4 in front

on the flat orange fuel bed. Fig.2
The 6 small ceramic coals, place in the chamber in front of the 4 most forward orange coals. Fig.3
The medium size ceramic coals, place all 5 across the middle of the fuel bed to the rear of the small ceramic coals, on top of
the front 4 orange coals. Fig.4

Continue laying the 4 remaining larger ceramic coals to the rear of the 5 ceramic coals just laid on top of the second set of

orange coals. Fig.5
The coal formation is subjective to the end user but we recommend the above steps to give the most authentic look. Please spend
time adjusting to suit.

Page 2 of 4

Fig.1 Fig.2 Fig.3 Fig.4 Fig.5

Log Fuel Effect Layout

The stove is supplied with a 1 piece flat orange fuel bed, a 1 piece moulded log effect fuel bed and 5 clay-moulded logs.

Place the flat orange fuel bed into the recess above the light bulbs, followed by the 1 piece moulded log effect fuel bed

against the back of the chamber.

The log formation is subjective to the end user but we recommend following the image in Fig.6 to give the most authentic

yet random look. Please spend time adjusting to suit.

Fig.6

Pebble

Place the pebbles onto the semicircular orange base. Start with the larger pebbles around the outside and the smaller on the inside
and stacked on top.

Fitting the Glass Front & Top

Unpack the front, top and 2 fixing pins. Place the front onto the stove at 45 degrees bottom channel first. Straighten the

front 90-degrees and align the holes with those at the top of the stove. Drop in the two pins provided to secure.

Gently place the top onto the stove. The guilds on the underside of the top will slot/sink into and around the perimeter of

the stove.

Fitting (Optional) Stove Flue Pipe

Quite simply place the flue pipe into the recess in the glass top.

Electrical Connections

Your appliance comes fitted with a plug that incorporates a 13A fuse. The replacement fuses must be 13A and ASTA approved. If the
fuse cover is lost the plug must not be used until a replacement cover, of the same colour, is obtained from an electrical retailer.
The appliance is fitted with a moulded plug if it is necessary cut off the plug, for any reason, it must be discarded immediately
with the fuse removed. Under no circumstances should any attempt be made to reuse the plug, do not insert into any 13A
socket as this could cause a hazard. If the mains cable is damaged it must be replaced by the manufacturer or an authorised
technical service centre.

WARNING THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code.

Green and yellow:

EARTH

Blue:

NEUTRAL

Red:

LIVE

As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings in your plug proceed as
follows: -

Page 3 of 4

The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the

letter E, or coloured green or coloured green and yellow, or marked with the earth symbol

The wire which is coloured blue must be connected to the terminal in the plug which is marked with the letter N, or

coloured black.

The wire which is coloured brown must be connected to the terminal in the plug which is marked with the letter L,

or coloured red.

2. Operating the fire

The Apollo’s controls are located at the back of the stove towards the top right hand corner. Further functions can be

operated either by remote or manually.

Controls (Remote)

The main on/off switch is marked with I/O and will need to be switched to I to operate the stove and illuminate the

fuel bed only. In this position you will be unable to operate the stove further unless the button on the remote or

keypad is pressed first.

To operate the flame effect (and further functions) simply press and release button on the remote or keypad.

To set the flame effect to your desired brightness press then release + or - buttons marked either side of the

icon.

For 1KW of heat, press then release the button marked O/I. To increase the temperature to 2KW press then

release button marked I/II. You may alternate from 1KW to 2KW by pressing I/II at anytime. To turn the

heater off, press then release the button marked O/I. The heater will always start in the lower setting

To turn the flame effect off and deactivate the heater and dimmer functions press then release the button

marked .

To turn the stove off completely the main on/off switch on the back of the stove must be switch back to O.

Controls (Manual)

The main on/off switch is marked with I/O and will need to be switched to I to operate the stove and illuminate the

flame effect.

For heating the controls are located under the on/off switch. For 1kw of heat push the switch marked with a single

bar I. For 2kw of heat push the switch marked with the double bars II. Both switches have to be depressed for 2kw

of heat. The flame effect has to be illuminated for the heater to work.

Controls (RGB colour changing remote, Extreme Stove Only)

For the RGB remote to work it must be pointed upwards and into the stove towards the top where the RGB

lamp is situated. The working area is only a short distance and in a direct line of sight at the very front of the
stove to the RGB lamp.

There are sixteen individual colours to choose from as well as the ability to mix and match using the pre-set or

programmable fade and strobe functions.

A dimmer and on-off function are also present but will only work with the flame image, it has no control over

the fuel bed lighting.

Areas around the fire will become hot when activated. We strongly recommend small children be kept away from having any direct
contact with the appliance by means of fitting a fireguard. This appliance is not intended for use by persons (or children) with reduced
physical sensory or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction
concerning the use of the appliance by the person responsible for their safety. Children should be supervised to ensure they do not
play with this appliance.

3. Maintenance

Warning: Before any maintenance/cleaning is undertaken always disconnect the fire from the mains power supply.

Replacing the fuel effect lamps

Your Stove uses two 5w E14 LED 3000k lamps to illuminate its fuel effect. Replacement lamps are available from Flamerite Fires and
its stockists (see top of page 1). Please note that replacement lamps are not covered under warranty.

Remove the top, then the front. See 2.6. Fitting the Glass Front & Top
Remove any fuel effect. See 2.3 Coals, 2.4 Logs or 2.5 Pebbles.
Remove the orange fuel base and replace the lamps accordingly.

Page 4 of 4

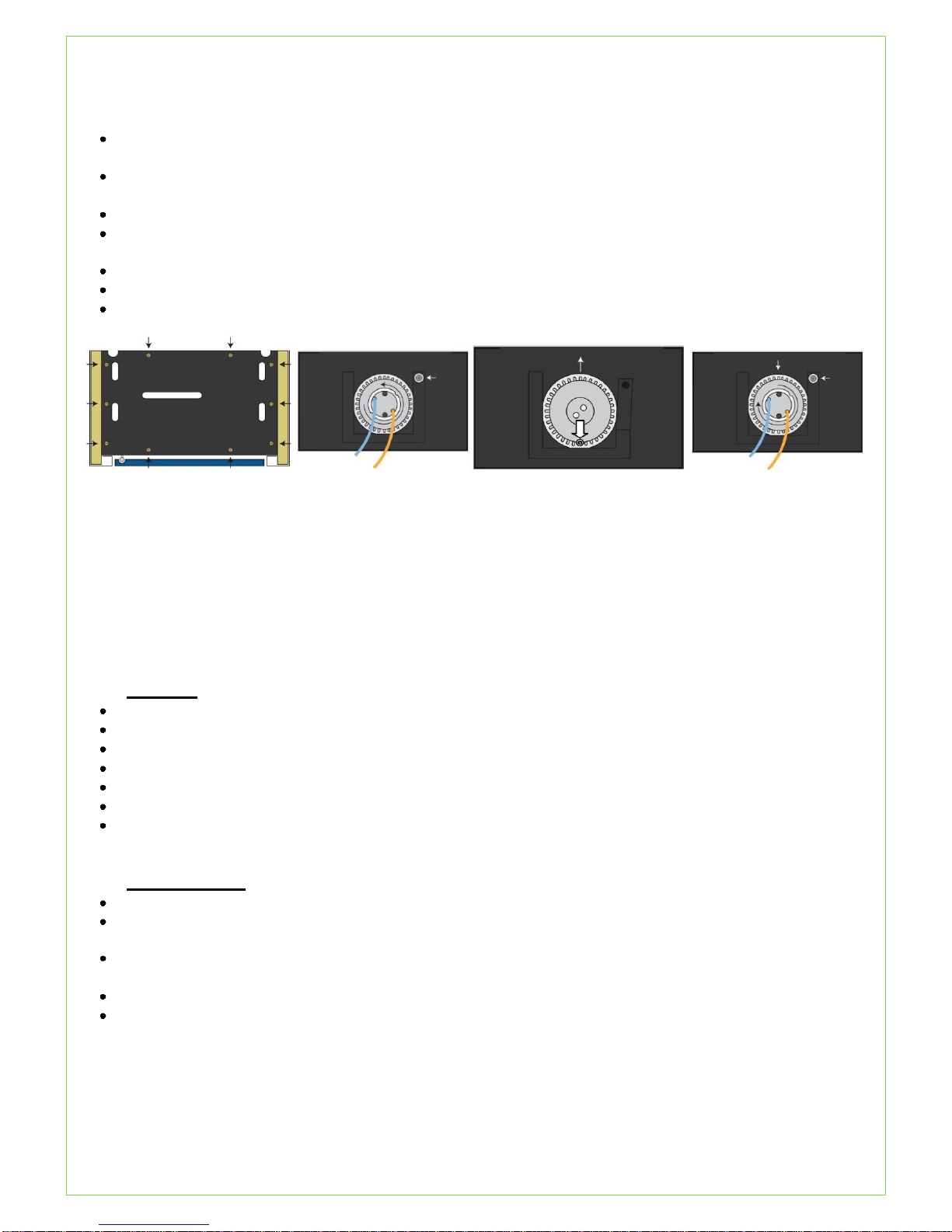

Replacing LED Projection lamp

Tool Needed, Phillips Screwdriver. Your log or coal Stove uses a 5w LED 3000k GU10 lamp for its flame effect. A pebble Extreme
stove uses a 5w LED RGB (55-40LM) GU10. Replacement LED lamps are available from Flamerite Fires and its stockists (see top of
page 1). Please note that replacement LED lamps are only covered by a two year warranty.

To gain access the top must first be removed, See 2.6. Fitting the Glass Front & Top. Remove the ten screws from around

the perimeter of the top plate and lift along with the projector carefully out of the stove Fig.7.

Separate the lamp connecter from the lamp by twisting it anti-clockwise and remove the screw from the clamp holding the

lamp in place. Fig.8

Release the lamp by pulling upward then away, the clamp will bend forward. Fig.9.
Insert the new LED GU10 pushing down making sure it clicks into place. If an RGB colour changing lamp make sure the
“Dot” on the front face of the lamp is at the bottom, see arrow in Fig.9.
Replace the screw in the clamp and reattach the lamp connector. Fig.10
Carefully replace the projector back into the stove and replace the screws. Fig.7.
Finally gently reposition the top. Fig.8. 2.6. Fitting the Glass Front & Top.

Fig.7 Fig.8 Fig.9 Fig.10

Changing battery in the remote

Your remote uses a CR2032 Lithium Battery, replacements are available from Flamerite Fires stockists, most electrical or
photographic stores. Ensure battery is disposed of safely. Do not dispose of in fire, do not swallow and keep away from children.

Cleaning

The stove can be cleaned with a lint free cloth and a non abrasive cleaner. To prolong the life of the fan heater, we recommend
vacuuming areas around the inlet vent to the rear of the stove and the outlet vent beneath regularly to remove dust from around or
on the impellor.

4. Warnings

Do not use the stove in the vicinity of a bath shower or swimming pool.
Never use the stove to dry laundry.
Never install the stove directly underneath a fixed main socket.
Never cover the appliance during the operation of the stove.
The use of an extension lead is not recommended.
Particular caution should be applied to ensure that children do not play with the fuel effects.
As with any electrical appliance whilst the instructions aim to cover as many eventualities as possible, caution and common
sense should be applied when operating your appliance, particularly in the vicinity of small children.

5. Problem solving

No power to the stove: Check the wall socket, plug, fuse and lamps.
No illumination: Make sure stove is turned on. Check heater is working, if so check lamps. Turn on RGB lamp using its

remote.

Illumination but no heat: The safety cut may have operated. See below*. Check there is a gap to the rear of the stove to

the back of the fireplace, minimum 40mm.

Noise when illuminated: Due to moving parts, the electric stove will make a noise.
Noise from the heater when in use: The sound of rushing air is normal.

*Automatic safety cut out: The heater is fitted with an automatic cut out to prevent any damage due to overheating. The element

will continually and automatically cut out if the airflow is obstructed. Never cover the air inlets or outlets. To reset, switch the stove
off, disconnect from the mains supply, remove the cause of overheating and allowed to cool for a suitable period then switch the
stove back on. Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, the appliance must not be
supplied through an external switching device, such as a timer, or connected to circuit regularly switched on and off by a utility.
