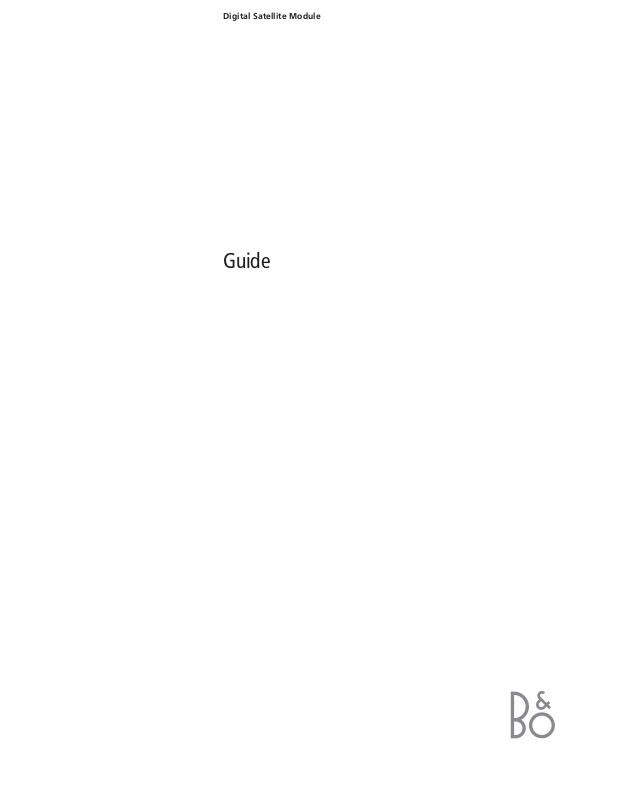

Bang & Olufsen DVB-S User Manual
Digital Satellite Module
Guide
2
This product fulfils the conditions stated in
the EEU directives 89/336 and 73/23.
Contents
Daily use, 4
Find out how to use the Beo4 remote control with the Digital Satellite Module.
How to call up and use the main satellite menu on the screen.
Bring up programme information, 6
How to bring up and use the Program Guide, find out which options are available
via the information display on the screen.
Setup menu, 8
Find out details about the Setup menu; How to make your preference settings, tune
in and edit programs and change your setup.
Download new software, 12
What to do when a new software for the satellite module is available.
3
Connections, 13
Overview of sockets, how to connect the Conditional Access Module and insert a
Smart Card.
What to do if…, 14
Find answers to frequently asked questions, such as how to find new satellite
programs, how to check the signal strength and more.
Glossary, 17
Find a list of commonly used satellite terms.
Index, 19
4
Daily use
When your television is equipped with
the Digital Satellite Module, you can
receive digital satellite programmes.
The Beo4 remote control gives you
access to all functions of your television.
However, only the functions relevant to
the satellite module are explained here,
for further information about operating
your television, refer to the televisions
own Guide.
TV LIGHT RADIO
DTV DVD CD
V MEM RECORD A MEM
789
456
123
TEXT
MENU
0
DTV
0 – 9
TEXT
The Beo4 display shows the source you have
selected, or extra functions available when you
press the LIST button.
Switch on your television and activate the satellite
module
Select program numbers or menus, or enter
numbers in menus
Bring up teletext, if provided by the channel you
are currently watching
Step between programs or move cursor up or
down in menus.
Move cursor left or right or see available options
in menus. While watching a program included in
a Favourite list, you can use the buttons to step
between your Favourite lists and the Program List.
GO
LIST EXIT
STOP
GO
STOP
EXIT
Select and activate a function or confi rm a choice
in a menu. Press and hold while watching satellite
to bring up a Program List
Back up through menus
Exit menus or, for example, teletext
Bring up the Program Guide or use as indicated in
a menu
Bring up or remove the main satellite menu or use
as indicated in a menu
Switch between radio and TV mode or use as
indicated in a menu
Bring up the information display or use as indicated
in a menu
NOTE! Depending on your Beo4 version, the ‘DT V’
button may be named ‘SAT’ instead. These
buttons have the same function.
The main satellite menu
5
The main satellite menu gives access to all
the main functions of the satellite module.
The main menu contains submenus which
can be accessed directly by means of the
coloured buttons or the number buttons.
Menu items in grey cannot be selected.
Press to bring up or remove the
main satellite menu
Press to bring up the Program
Guide with information on
current and next programmes
Press to switch between Radio
and TV Mode*
Press to bring up information on
the programme you are currently
watching
Press to bring up your lists of
favourite programs
Press to bring up the menu for
selecting a subtitle language for
the current programme
Press to bring up the menu for
selecting an audio language
option for the current
programme
Press to bring up the Setup
menu. The Setup menu is
described in more detail on
pages 8–11
Program Guide
Menu
Radio/TV Mode
Information
Favourite s
1
Subtitle Language
2
Audio Language
3
Setup
4
Program List
5
The main satellite menu.
1
2
3
4
5
Program Guide
Menu
Radio/TV Mode
Information
Favourites
Subtitle Language
Audio Language
Setup
Program List
1
2
3
4
*NOTE! If you have not stored any radio programs,
you cannot switch between radio and TV mode.
Press to bring up a list of
programs
5
6
See programme information
You can bring up the Program Guide
on the screen while watching satellite
TV. The Program Guide contains
information about the current and
coming programmes. You can also
change to a different program via the
Guide.
The information display appears
briefly on the screen every time you
change channels. You can also bring
up the display on the screen to see
programme information at any time.
You can specify how long the
information display should remain on
the screen, for further information,
see page 9.
1
VIVA PLUS FAVL1DRS 09:33
Music 9:30 - 10:03
VIVA P LUS Morning G lory
1
10:03 Get the Clip
RAI 1 Appuntam ento al cine ma
2
10:30 TGT 1
RBB Bran denburg Der Son ne entgegen
3
9:45 3000 Meilen gegen den Strom
ARD-Online-Ka... -
4
10:00 Service gesundheit (hr)
MDR THURINGE Heute im Parlament: Der Haushalt 2004
5
10:15 Franklin - D eine Chance um 11
hessen fernsehen Menschen bei Maischberger
6
10:35 Adelheid und ihre Mörder
Themes Favourites Radio/TV mode Information
To choose a Theme, press the
red button
To choose between your lists of
Favourites, press the green
button
To switch between Radio and T V
mode, press the yellow button.
To see further information about
the highlighted program in the
Program Guide, press the blue
button.
If you are watching a satellite program and switch
to a Favourite List containing only radio programs,
the satellite module will switch to radio mode.
When you switch to radio mode, the screen is
switched off and you cannot bring up the
information display on the screen.
NOTE! If you have not stored any radio programs,
you cannot switch between radio and TV mode.
To select another program to
watch…
Use the arrow buttons to move
to the program you wish to see,
and press GO.
GO
