BAND-IT Q Clip User Manual

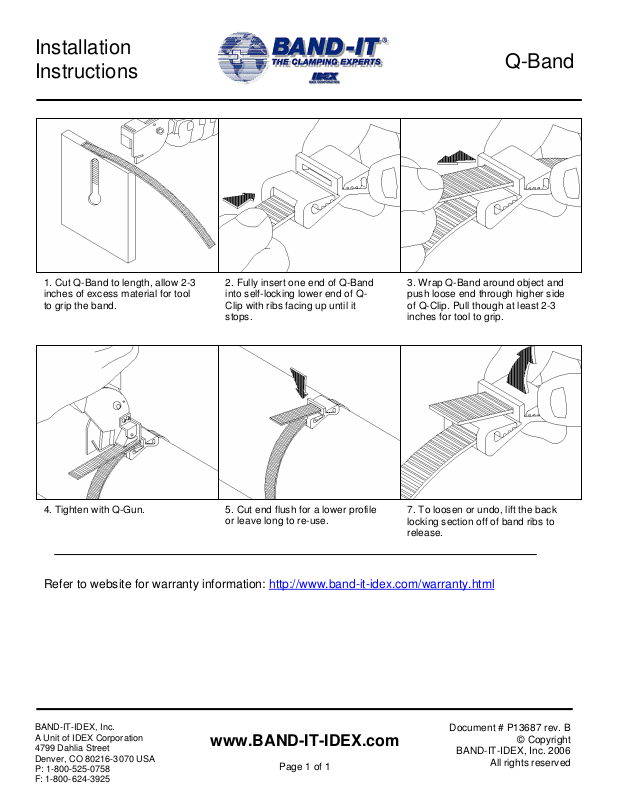

Installation Instructions
1. Cut Q-Band to length, allow 2-3 inches of excess material for tool to grip the band.
2. Fully insert one end of Q-Band into self-locking lower end of Q­Clip with ribs facing up until it stops.
Q-Band
3. Wrap Q-Band around object and push loose end through higher side of Q-Clip. Pull though at least 2-3 inches for tool to grip.
4. Tighten with Q-Gun.
5. Cut end flush for a lower profile or leave long to re-use.
7. To loosen or undo, lift the back locking section off of band ribs to release.
Refer to website for warranty information: http://www.band-it-idex.com/warranty.html
BAND-IT-IDEX, Inc. A Unit of IDEX Corporation 4799 Dahlia Street Denver, CO 80216-3070 USA P: 1-800-525-0758 F: 1-800-624-3925
www.BAND-IT-IDEX.com
Page 1 of 1
Document # P13687 rev. B
