MD R a n g e O p e r a t o r s H a n d b o o k

Covering
Models:-

MD35/20
MD75/80
MD75/150
MD75/150V
MD75/250
MD75/250V
MD150/500
MD225/1000

Operating Manual

Your Bambi Air Compressor is a precision engineered product.
By following these simple steps you will ensure years of trouble free use.

Parts & Service are available from your Bambi dealer.

It is important to quote Model, Type & Serial Number in all communications.

The substitution of parts not manufactured or approved by Bambi can impair
performance, service life and create potential mechanical or personnel hazards and
will invalidate your warranty.

Bambi reserves the right to modify the contents of this operating booklet without
notice and the information is in no way binding on the company.

Warranty

Provided the operating instructions have been followed and the compressor has been
properly maintained Bambi compressors are guaranteed against faulty workmanship
for a period of 1 year.
The air receiver is guaranteed for 5 years.
The guarantee does not cover damage by misuse, incorrect parts or service.
Contact Bambi Air Compressors or your retailer for further information.

1

Safety Precautions

What you must do

Read these instructions before using
your air compressor.
Ensure the compressor has been
installed, electrically connected
and piped in by a properly qualified
person.
Ensure the compressor is kept
upright at all times.

What you must not do

Do not attempt any maintenance
on the compressor until it has been
isolated from the power supply.
Do not attempt any work on the
compressor until the air receiver
and pipe work systems are
depressurised.
Compressed air is dangerous if
misused and can prove fatal. Avoid
any bodily contact with compressed
air.
During operation the motor will
become quite hot to the touch.
Avoid contact to prevent burns.
At no time must the oil temperature
be allowed to exceed 100°C.
Never tamper with the pressure relief
valve.
Never change the oil when the
compressor is still warm. Take
necessary precautions to avoid
contact with the skin.

•

•

•

•

•

•

•

•

•

Bambi SB42/46 compressor oil does not
contain hazardous components and is
not required to be labelled dangerous,
according to the Classification,
Packaging and Labelling of Dangerous
Substances regulation:
[CPL]Regulation 1984

Siting The Compressor

What you must do

Provide adequate protection from
the weather.
Site the compressor level in both
planes.
As larger models are heavy, ensure
the surface has sufficient load
bearing capacity.
Allow access for maintenance all
around the compressor.
Site in a dry area, avoiding damp or
humid conditions. The site must be
dust free, well ventilated and have
a cool ambient temperature. 35°C
should be regarded as the maximum
allowable ambient.

What you must not do

Enclose the compressor or allow
hot air generated by the motor to re­circulate around the compressor.

•

•

•

•

•

•

Electrical Connections

All 220/240 volt compressors, except Model 225/1000 are supplied with a moulded
plug in accordance with national standards.
Never remove the moulded plug.

Wired in accordance with European Standard –
Blue = neutral Brown = live Yellow & Green Stripe = earth

Model 225/1000 requires a dedicated 20 amp power supply.

2

Operation

Refer to exploded parts diagrams and illustrations when reading this section.

Oil level

Your Bambi compressor is shipped without oil for transit. Before use you must fill the
motor to the correct level.

Model 35/20

Remove oil filler plug - see fig 1
Pour oil into motor until correct level is reached - indicated on the oil sight glass,
approx 500cc - see fig 2
Refit the oil filler plug - but do not over-tighten.

Models 75/80 to 225/1000

Remove air intake filter housing by pulling gently out of intake tube - see fig 9
Pour oil into motor through the tube until the correct level is reached indicated on
the oil sight glass, approx 900cc - see fig 2
Refit air intake filter to intake tube

Note!

Always use Bambi SB42/46 compressor oil. Failure to do so will invalidate your warranty.

Starting & Stopping

Plug the compressor into an outlet socket of nominal
voltage and fitted with a 13amp fuse.

Note!

Model 225/1000 requires a dedicated 20 amp power supply.

Switch the compressor on using the red button on top of the pressure switch. Pull
knob up to switch on, push down to switch off – see fig 3.

The compressor will start running and automatically switch off at the preset pressure.

As air is used the pressure drops and the motor will restart at the preset pressure.
Approx 2 Bar differential.

Note!

Never tamper with the pressure switch settings, these are factory set.

Adjusting Outlet Pressure

Use the filter regulator to adjust the outlet pressure. The 40mm pressure gauge
indicates the selected pressure. To increase line pressure rotate the black knob on
top of the filter regulator in a clockwise manner, to decrease turn anti clockwise. It is
possible to lock the setting by pushing the knob down until it “clicks” home – see fig 4.

•

•

•

•

•

•

•

3

Routine Maintenance

Draining the Air Receiver

Drain condensate from air receiver at a pressure of no more than 2 Bar.
Slowly open the drain tap provided to allow water to flow out – see figs 7 & 8.
Close drain tap when all water has drained off.
Do not overtighten, this will damage the tap seal.
Automatic drains where fitted do not require draining, however the drain bottle will
require emptying.

Draining the Filter/Regulator Unit

Slowly open the drain screw provided to allow water to flow out – see fig 5.
Close the drain screw when all water has drained off.

Note !

The waste condensate must be handled in accordance with national environmental rules.

Check Pressure Relief Valve

Ensure the air receiver is not pressurised. Unscrew the knurled end of the pressure
relief valve until an audible “click” is heard. Retighten without using excessive force
– see fig 6.

Technical

The compressor has a maximum 50% duty cycle. The motor must never be allowed
to run continuously otherwise it will overheat and may become damaged.

Do not ignore air leaks. All air connections must be leak free to prevent the
compressor from over heating.

The compressor is fitted with a thermal overload. In the event of excessive
temperature the motor will switch off. After about 50 minutes when the motor has
cooled it will automatically reset.

Note !

You must find the cause of the overload and rectify this before continuing to use the
compressor.

Check for -

Drain tap not closed properly
Air leaks on the pneumatic fittings
Compressor not the correct size for the work load

•

•

•

4

Preventative Maintenance

Operation Daily Weekly Monthly Annually

Drain air receiver < 15 Litres •

Drain air receiver > 15 Litres •

Drain filter regulator •

Check oil level •

Change oil •

Replace air intake filter •

Replace filter regulator element •

Check pressure relief activation

•

Above are to be considered minimum frequency

Technical Specification

Type 35 Pump Specification

Voltage 220/240 110

Motor Kw / Hp 0.37 / 0.5 0.44 / 0.5

Frequency Hz 50 60

Amps 2.4 6

Watts 340 446

Displacement l/min 50 60

FAD@ 6 Bar 33 39

Type 75 Pump Specification

Voltage 220/240 110

Motor Kw / Hp 0.5 / 0.5 0.64 / 0.5

Frequency Hz 50 60

Amps 3.6 7.8

Watts 500 733

Displacement l/min 78 94

FAD@ 6 Bar 54 64

5

Capacitor

Overload
protector

To pressure

switch

Start relay

BLACK

BROWN

BLACK

BLUE

BLACK

Wiring Diagram

75 Pump unit

Wiring Diagram

35 Pump unit

6

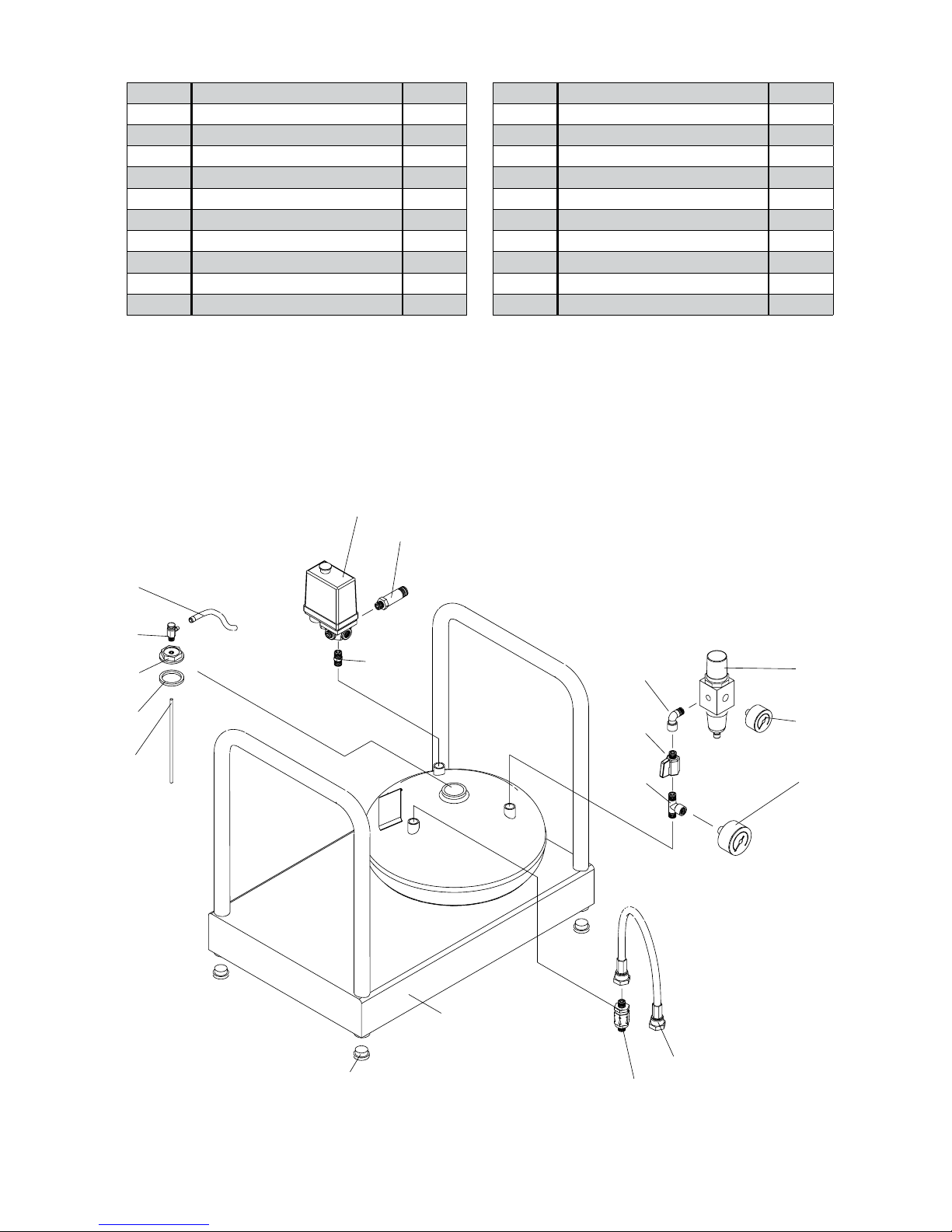

MD35/20

Ref No. Description Part no.

1 4 litre vessel BPB1094

2 Filter regulator BPB1080

3 Regulator gauge BPB1077

4 1/4” Male/Female elbow BPB1139

5 On/off valve BPB1079

6 1/4” Male/Female/Female Tee BPB1109

7 1/4” Male / 1/4” Male adaptor BPB1078

8 Vessel pressure gauge BPB1081

9 200mm delivery pipe BPB1102

10 250mm drain tube BPB0414

Ref No. Description Part no.

11 Non-return valve BPB1086

12 1/4”Male / 1/4” Male adaptor BPB1078

13 1/4” Drain tap BPB1138

14 Pressure switch BPB1074

15 1/4” 10 Bar relief valve BPB1084

16 Handle insert BPB0078

1

3

5

6

7

8

9

10

11

13

12

14

15

16

2

4

7

1

3

5

6

7

8

9

10

11

13

12

14

15

16

17

18

2

4

Ref No. Description Part no.

1 8 litre vessel BPB1100

2 Black round tube insert BPB0076

3 235mm Nylon syphon tube BPB0028

4 Inspection plug seal BPB0502

5 Inspection plug BPB0255

6 Drain tap BPB1138

7 250mm drain tube BPB0414

8 Pressure switch BPB1074

9 1/4” 10 Bar relief valve BPB1084

10 1/4”Male / 1/4” Male adaptor BPB1078

Ref No. Description Part no.

11 1/4”Male/Female elbow BPB1139

12 On/off valve BPB1079

13 1/4” Male/Male/Female tee BPB1095

14 Filter regulator BPB1080

15 Regulator gauge BPB1077

16 Vessel pressure gauge BPB1081

17 200mm delivery pipe BPB1102

18 Non-return valve BPB1086

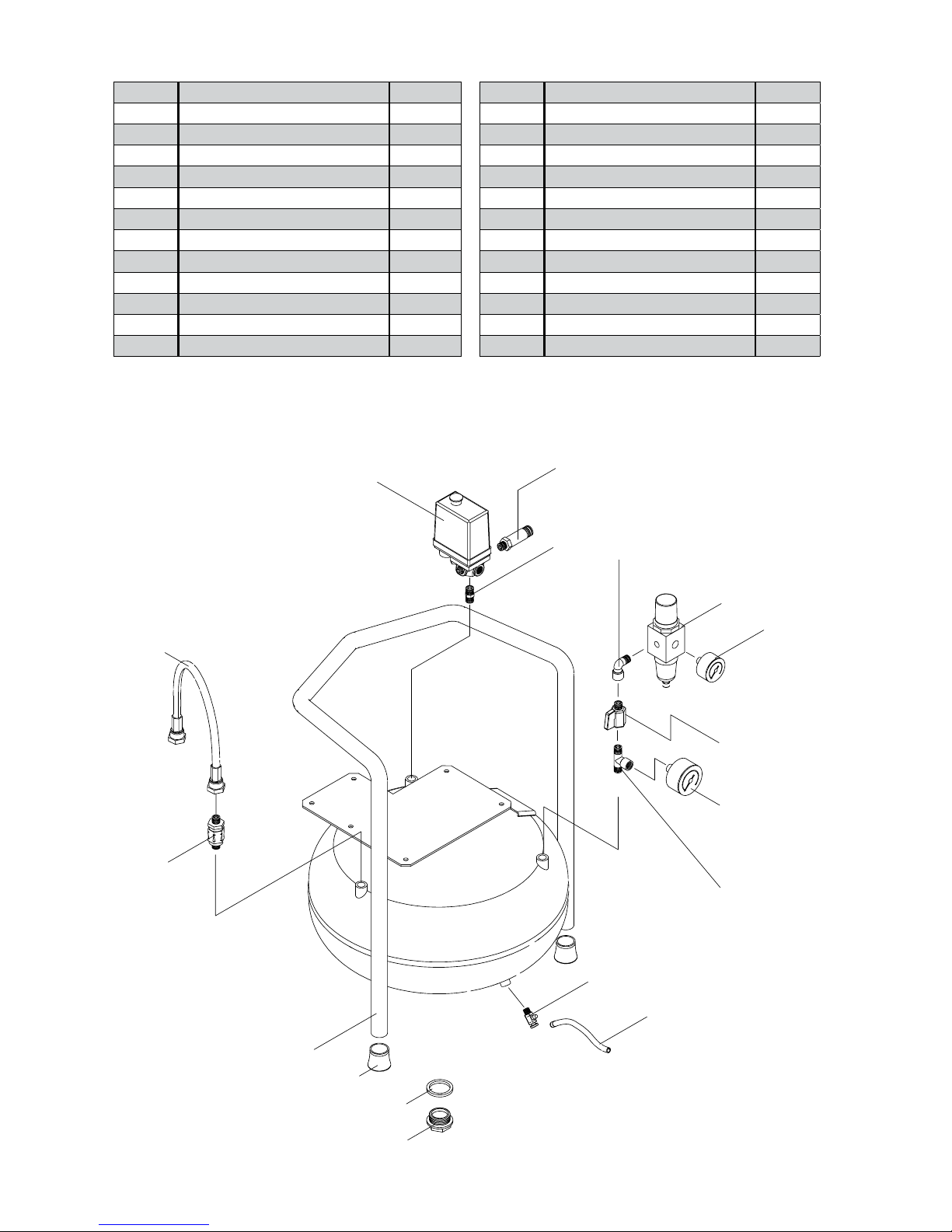

MD75/80

1

3

5

6

7

8

9

10

11

13

12

14

15

16

17

18

19

2

4

8

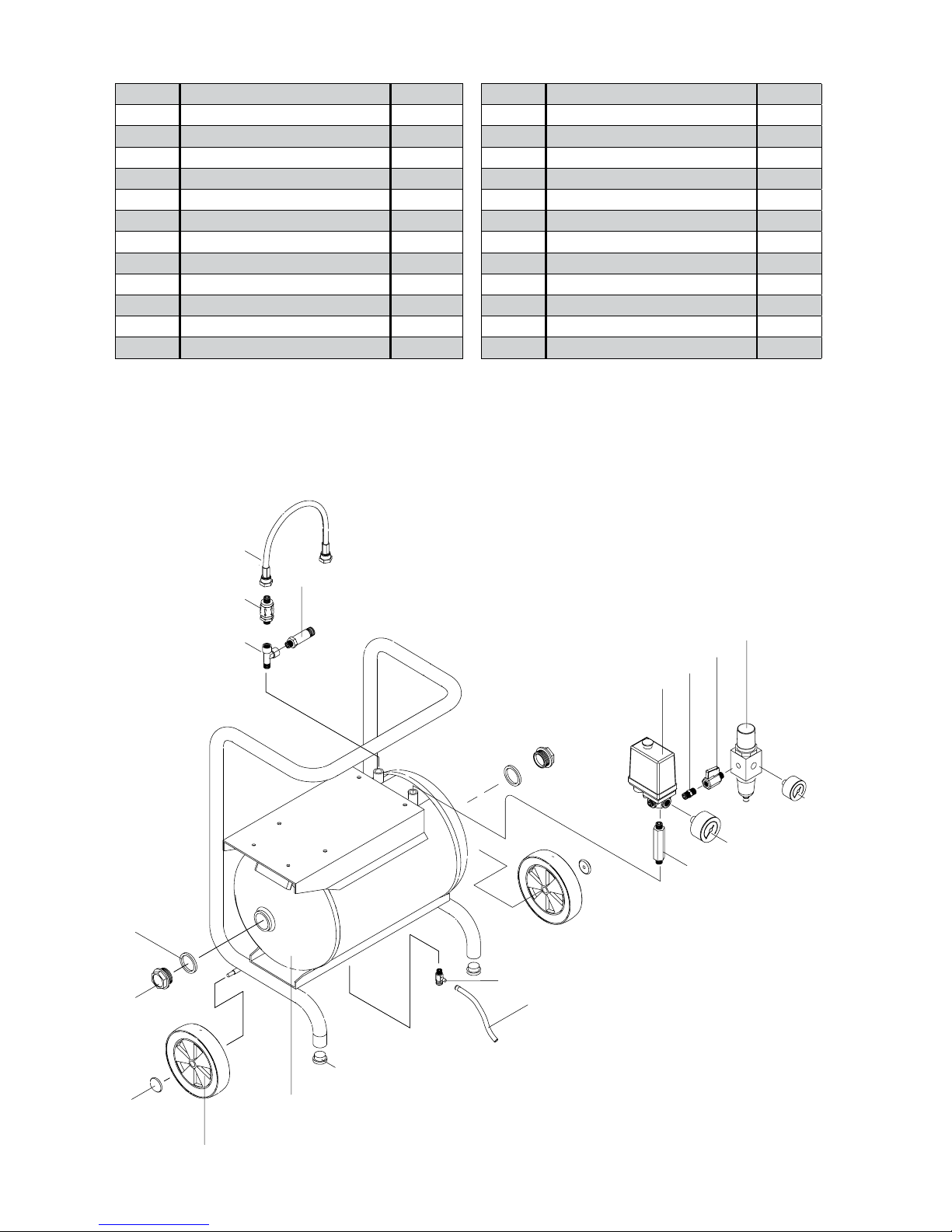

MD75/150

Ref No. Description Part no.

1 15 litre vessel BPB1099b

2 140mm wheel BPB1144

3 Starlock washer BPB1091

4 Inspection plug BPB0243

5 Inspection plug seal BPB0502

6 1/4” Male/Female/Female tee BPB1109

7 Non-return valve BPB1086

8 200mm Delivery pipe BPB1102

9 1/4” 10 Bar relief valve BPB1084

10 Pressure switch BPB1074

11 1/4” Male / 1/4” Male adaptor BPB1078

12 On/off valve BPB1079

Ref No. Description Part no.

13 Filter regulator BPB1080

14 Regulator gauge BPB1077

15 Vessel pressure gauge BPB1081

16 1/4” Extension BPB0152

17 Drain tap BPB1138

18 250mm drain tube BPB0414

19 Black round tube insert BPB0076

9

Ref No. Description Part no.

1 15 litre vessel BPB1099

2 Non-return valve BPB1086

3 500mm delivery pipe BPB1087a

4 Pressure switch BPB1074

5 1/4” 10 Bar relief valve BPB1084

6 1/4”Male / 1/4”Male adaptor BPB1078

7 1/4” Male/Female elbow BPB1139

8 Filter regulator BPB1080

9 Regulator gauge BPB1077

10 On/off valve BPB1079

Ref No. Description Part no.

11 Vessel pressure gauge BPB1081

12 1/4” Male/Male/Female Tee piece BPB1095

13 Drain tap BPB1138

14 250mm drain tube BPB0414

15 Inspection plug BPB0243

16 Inspection plug seal BPB0502

17 Rubber foot BPB0247

MD 75/150V

1

3

5

6 7

8

9

10

11

13

12

14

15

16

17

2

4

10

1

3

5

7

8

9

10

11

13

12

14

15

16

17

18

19

4

6

2

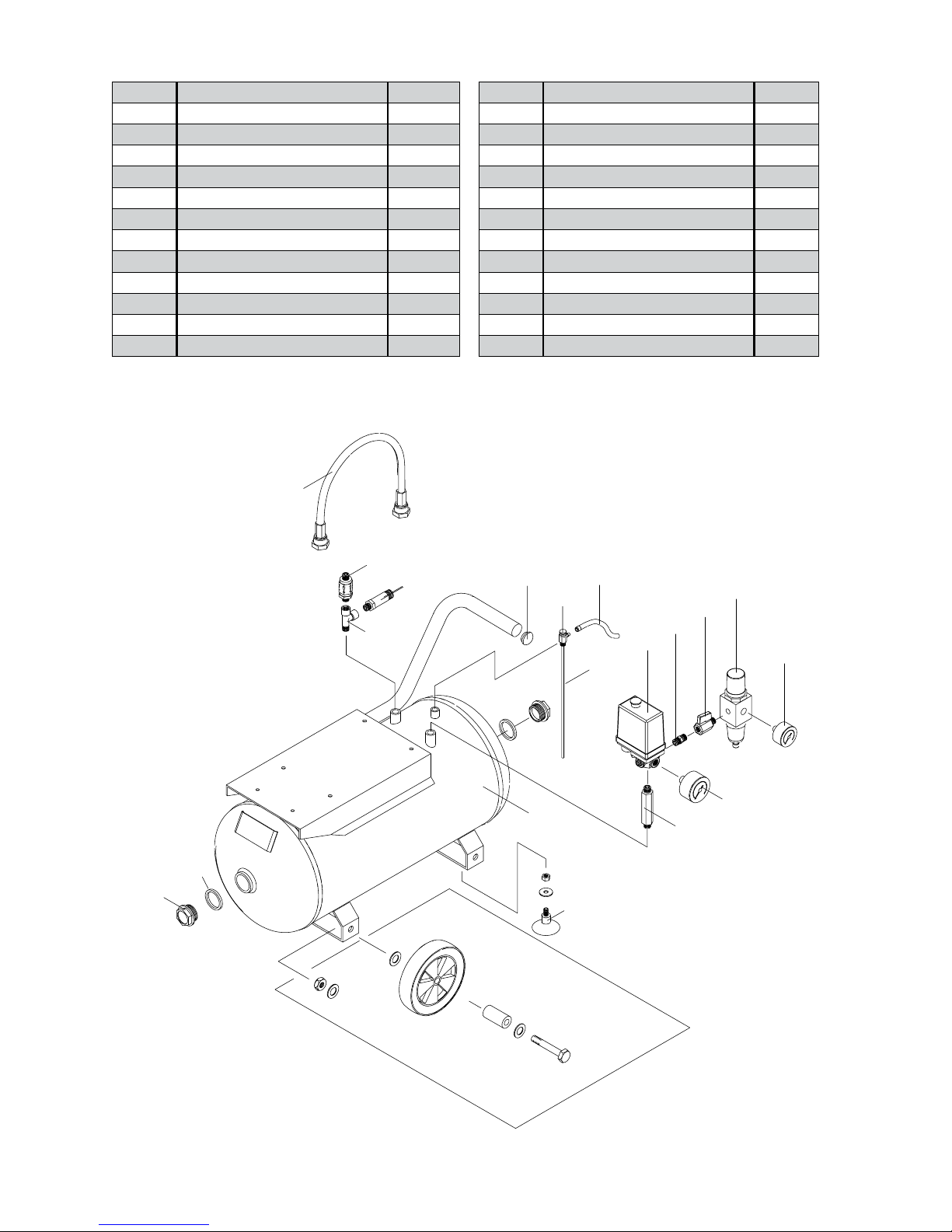

MD75/250

Ref No. Description Part no.

1 24 litre vessel BPB1088b

2 Inspection plug seal BPB0502

3 Inspection plug BPB0243

4 200mm Delivery pipe BPB1102

5 Non-return valve BPB1086

6 1/4” 10 Bar relief valve BPB1084

7 1/4” Male/Female/Female tee BPB1109

8 Handle insert BPB0076

9 Drain tap BPB1138

10 250mm drain tube BPB0414

11 Siphon tube BPB0029

12 Pressure switch BPB1074

Ref No. Description Part no.

13 1/4” Male / 1/4” Male adaptor BPB1078

14 On/off valve BPB1079

15 Filter regulator BPB1080

16 Regulator gauge BPB1077

17 Vessel pressure gauge BPB1081

18 1/4” Extension BPB0152

19 Wheel kit BPB0157

20 Wheel kit BPB0157

20

11

1

3

5

7

8

9

10

11

13

12

14

15

16

17

4

6

2

MD 75/250V

Ref No. Description Part no.

1 24 litre vessel BPB1088

2 Non-return valve BPB1086

3 500mm Delivery pipe BPB1087a

4 Pressure switch BPB1074

5 1/4” 10 Bar relief valve BPB1084

6 1/4” Male / 1/4” Male adaptor BPB1078

7 1/4” Male/Female elbow BPB1139

8 Filter regulator BPB1080

9 Regulator gauge BPB1077

10 On/off valve BPB1079

11 Vessel pressure gauge BPB1081

12 1/4” Male/Male/Female tee BPB1095

Ref No. Description Part no.

13 Drain tap BPB1138

14 250mm drain tube BPB0414

15 Rubber foot BPB0247

16 Inspection plug seal BPB0502

17 Inspection plug BPB0243

12

1

3

5

6

7

8

9

10

11

13

12

14

15

16

2

4

21

22

17

18

19

20

MD150/500

Ref No. Description Part no.

1 50 litre vessel BPB1097

2 Inspection plug BPB0243

3 Inspection plug seal BPB0502

4 300mm Delivery pipe BPB1087

5 1/4” Male/Female/Male tee BPB0158

6 200mm Delivery pipe BPB1102

7 1/4” Male/Female/Female tee BPB1109

8 Non-return valve BPB1086

9 1/4” 10 Bar relief valve BPB1084

10 Handle insert BPB0076

11 Drain tap BPB1138

12 250mm drain tube BPB0414

Ref No. Description Part no.

13 Siphon tube BPB0034

14 Pressure switch BPB1074

15 1/4” Male / 1/4” Male adaptor BPB1078

16 On/off valve BPB1079

17 Filter regulator BPB1080

18 Regulator gauge BPB1077

19 Vessel pressure gauge BPB1081

20 1/4” Extension BPB0152

21 Wheel kit BPB0157

22 Wheel kit BPB0157

13

1

3

5

6 7

8

9

10

11

13

12

14

15

16

23

24

2

4

21

22

17

18

19

20

MD225/1000

Ref No. Description Part no.

1 100 litre vessel BPB1105

2 Inspection plug BPB0243

3 Inspection plug seal BPB0502

4 300mm Delivery pipe BPB1087

5 1/4” Male/Male/Female tee BPB1095

6 300mm Delivery pipe BPB1087

7 1/4” Male/Male/Female tee BPB1095

8 300mm Delivery pipe BPB1087

9 Non-return valve BPB1086

10 1/4” Male/Female/Female tee BPB1109

11 1/4” 10 Bar relief valve BPB1084

12 Handle insert BPB0076

Ref No. Description Part no.

13 Drain tap BPB1138

14 250mm Drain tube BPB0414

15 Siphon tube BPB0035

16 Pressure switch BPB1074

17 1/4” Male / 1/4” Male adaptor BPB1078

18 On/off valve BPB1079

19 Filter regulator BPB1080

20 Regulator gauge BPB1077

21 Vessel pressure gauge BPB1081

22 1/4” Extension BPB0152

23 Wheel kit BPB0604

24 Wheel kit BPB0604

14

37

2

3

4

5

6

7

8

9

10

11

14

15

16

17

18

19

20

21

23

24

26

27

28

30

31

33

34

35

36

40

13

12

29

39

38

32

25

1

22

41

42

7

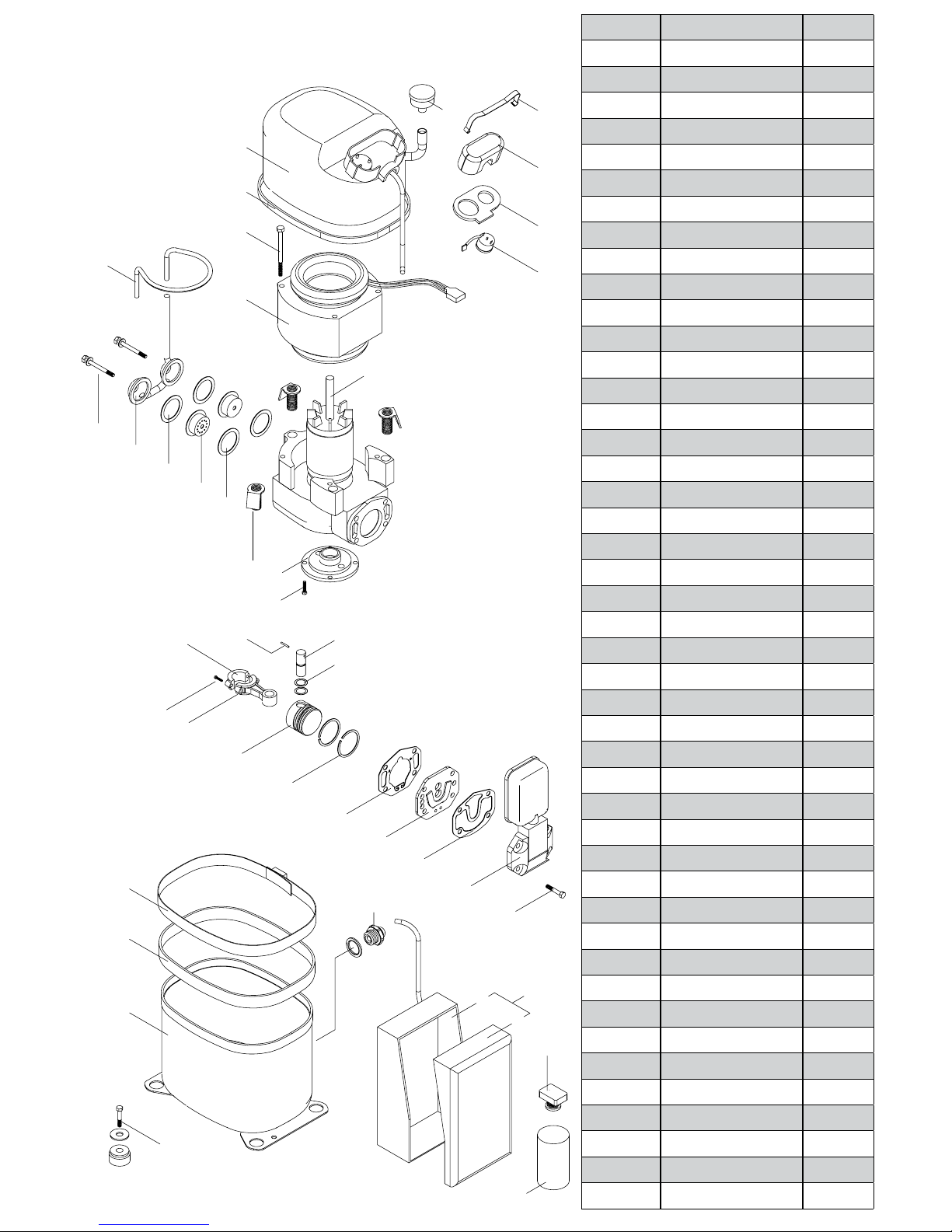

Motor / Pump Parts:

75 model

Ref No. Description Part no.

1 Mounting set BPB1008

2 Bottom casing BPB1011

3 Large rubber gasket BPB1007

4 Closing ring BPB1005

5 Bearing bolt BPB1025

6 Mounting spring BPB1038a

7 Delivery gasket BPB1026

8 Delivery mufflers BPB1128

9 Pressure pipe BPB0132

10 Pressure pipe bolt BPB1027

11 Pressure pipe horse shoe BPB0108

12 Stator 110v BPB0799

12 Stator 240v BPB1023

13 Stator bolt [4 off] BPB1022

14 Small rubber gasket BPB1006

15 Top casing BPB1004

16 Cylinder block BPB1012

17 Air filter BPB1003

18 Overload clip BPB1001b

19 Overload cover BPB1001b

20 Overload gasket BPB1001b

21 Overload BPB1001a

22 Con rod & washers BPB1013a

23 Split pin BPB1015

24 Gudgeon pin BPB0100

25 Con rod washers BPB0102

26 Piston rings (2) BPB1013c

27 Valve plate gasket BPB1014

28 Valve plate BPB1015

29 Cylinder head gasket BPB1016

30 Cylinder head BPB1017

31 Bottom bearing BPB1024

32 Con rod bolt BPB0103

33 Con rod & washers BPB1013a

34 Piston & rings BPB1013b

35 Cylinder head bolt [4] BPB1018

36 Sight glass BPB1009

37 Sight glass seal BPB1010

38 Electrical cabinet back BPB1002f

39 Electrical cabinet cover BPB1002e

40 Electrical cabinet BPB1002

41 Start relay 240v BPB1002a

41 Start relay 110v BPB1002d

42 Capacitor 240v BPB1002b

42 Capacitor 110v BPB1002g

15

Motor / Pump Parts:

35 model

21

23

24

26

27

28

30

31

29

32

25

2

3

4

5

6

7

8

9

10

11

14

15

16

17

18

19

20

13

12

1

22

Ref No. Description Part no.

1 Oil filler plug BPB0079

2 Oil filler plug seal BPB0098

3 Top casing BPB1058

4 Closing ring BPB1059

5 Sealing gasket BPB1057

6 Air intake filter BPB1003

7 Capacitor - 220/240v BPB1051

7 Capacitor - 110v BPB0137

8 Terminal box cover BPB1047

9 Terminal box cover clip BPB1048

10 Start relay - 220/240v BPB1053

10 Start relay 110v BPB0138

11 Overload 220/240v BPB1052

11 Overload - 110v BPB0139

12 Mounting set (4) BPB1055

13 Sight glass BPB1009

14 Sight glass seal BPB1010

15 Bottom casing BPB1056

16 Outlet elbow BPB0065

17 Delivery pipe gasket BPB1042

18 Delivery bolt BPB1039

19 Delivery pipe BPB1041

20 Sealing ring bolt/nut BPB1060

21 Bearing bolt (3) BPB1028

22 Bearing BPB1029

23 Gasket BPB1044

24 Mounting spring (3) BPB1038

25 Valve plate gasket BPB1033

26 Valve plate BPB1034

27 Cylinder head gasket BPB1035

28 Cylinder head BPB1036

29 Cylinder head bolt (4) BPB1037

30 Stator bolt (4) BPB1032

31 Stator - 220/240v BPB1031

31 Stator - 110v BPB0334

32 Motor block BPB1030

ON

OFF

Fig 1

Fig 3

Fig 4

Fig 5

+

_

16

“Click”

Fig 2

SB 42/46

a

Fig 6

17

Fig 6

Fig 8

Fig 9

Fig 7

“Click”

SB 42/46

Issue 1: 11/06
